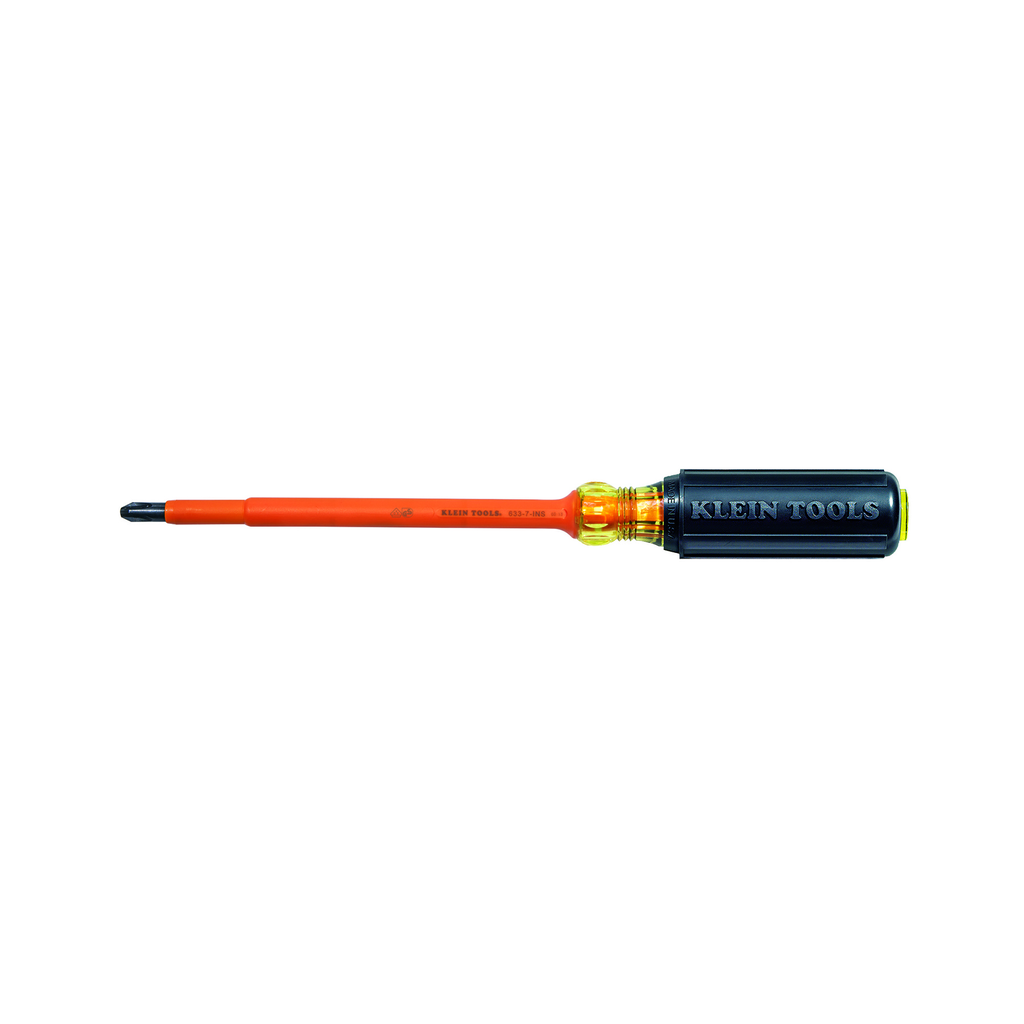

Insulated Screwdriver, #3 Phillips, 7-Inch Round Shank

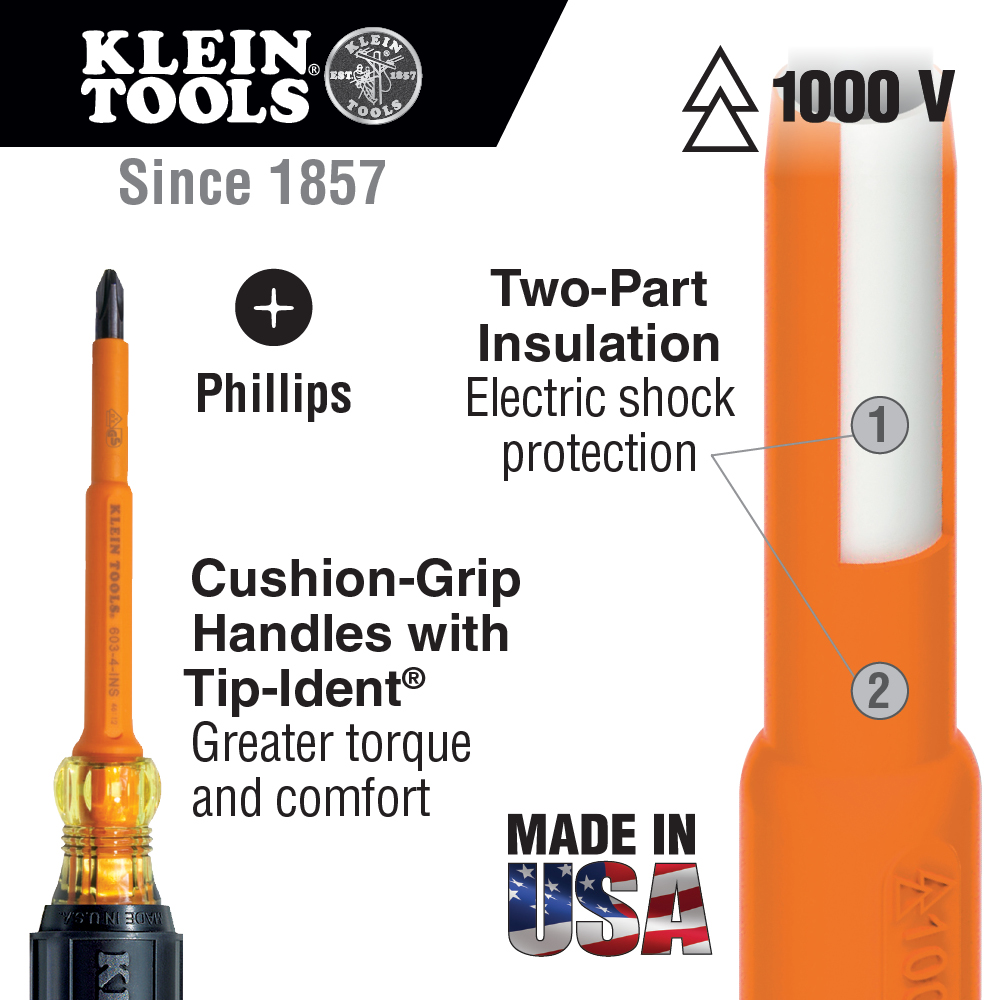

Protect yourself when working near an energized source. Clearly marked with the official 1000-Volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. 2 layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT use to pry or chisel.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.

Features

• Flame Retardant and Impact Resistant Handle
• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Cushion-Grip™ handles for greater torque and comfort
• Made in the USA
• Custom US-made tool steel
• This replaces Cat. No. 603-6-INS
• 1000V Rated for safety

Specifications

• Weight (g): 181
• Weight (oz): 6.4
• Material: Induction Hardened Steel
• Weight: 0.4000 lbs
• Handle Material: High-Dielectric Plastic
• Overall Length (Inch): 12.375
• Magnetic: No
• Tip Size: #3
• Application: For Work Near Energized Sources
• Shank Length: 7" (17.8 cm)
• Overall Length (cm): 31.4
• Depth: 12.3750 in
• Height: 1.0000 in
• Shank Type: Round
• Insulated: Yes
• Standard: IEC 60900 and ASTM F1505
• Handle Color: Black
• Tip Type: Phillips
• Width: 1.0000 in
