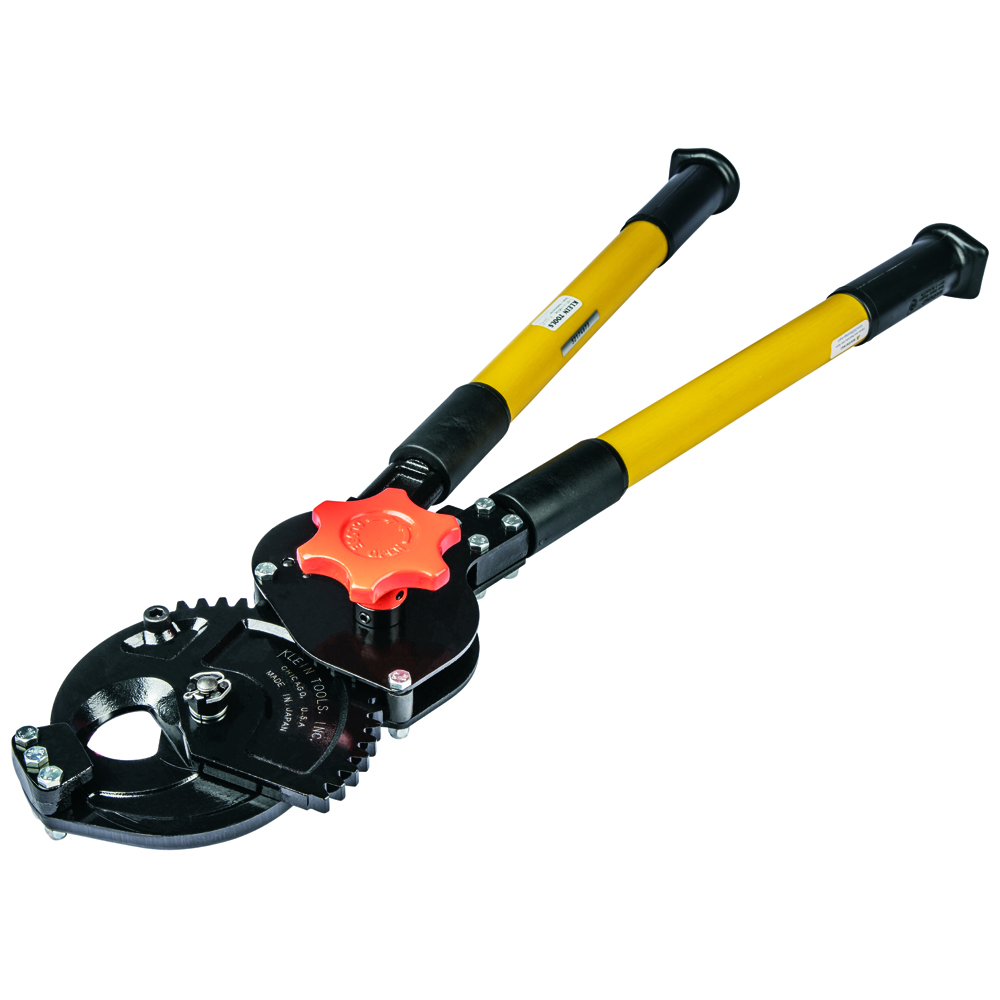

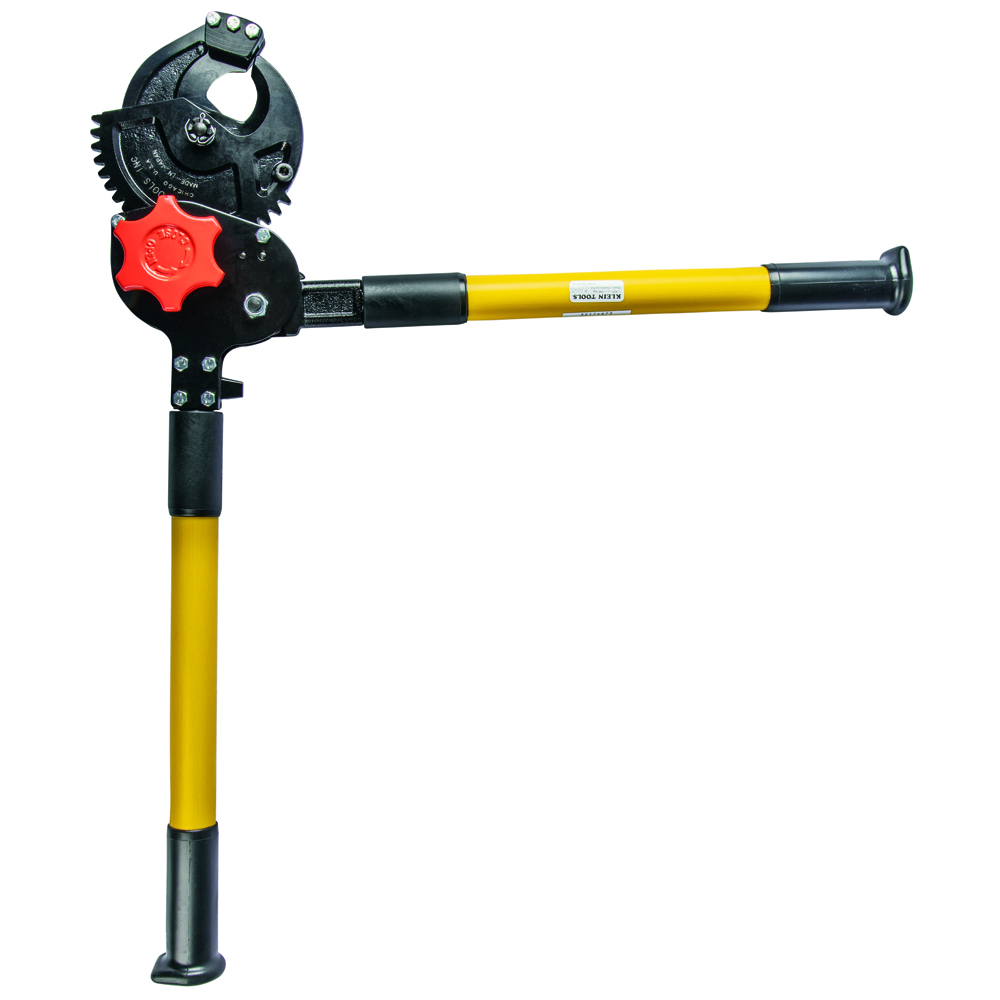

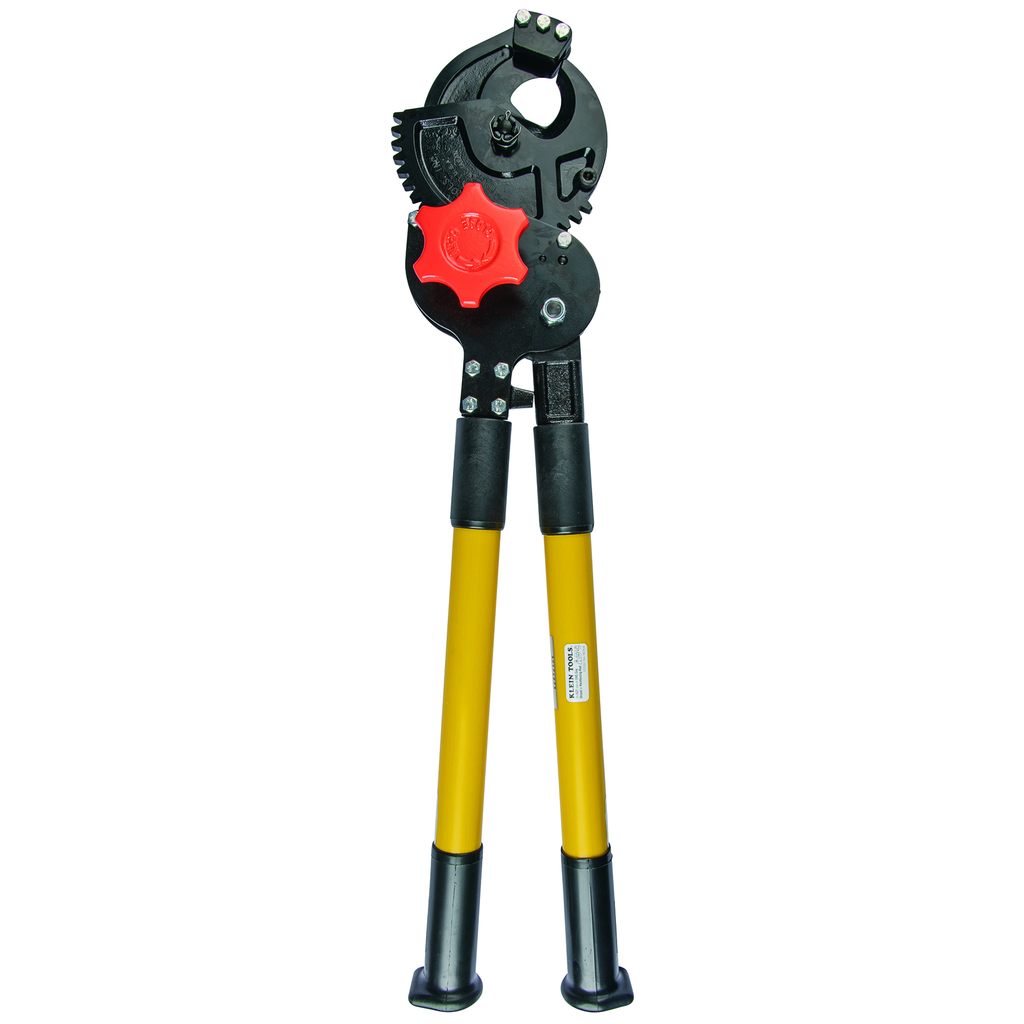

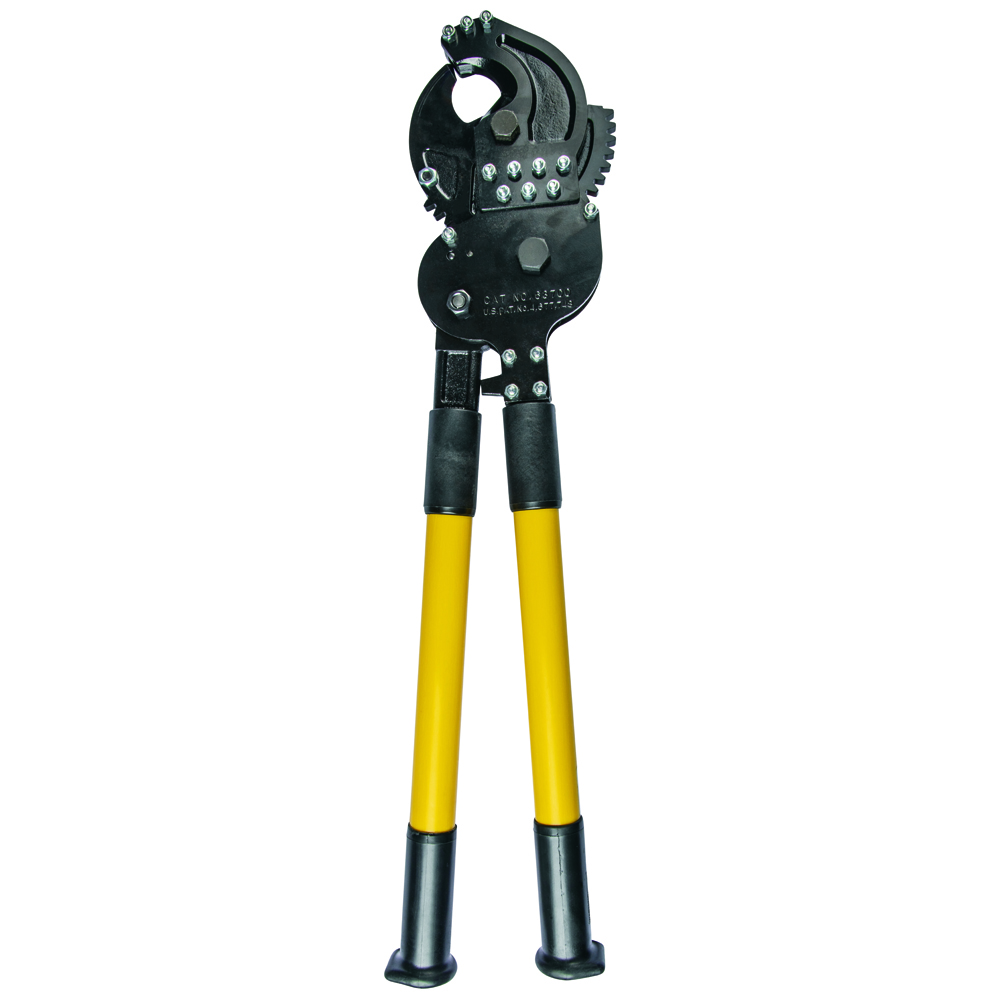

Heavy Duty Ratcheting Cutter

Ratchet-action design of this heavy-duty Ratcheting Cutter provides maximum leverage with minimum effort. Forged, heat-treated, shear-type blades cut steel and ACSR. Long steel handles have heavy vinyl grips for comfort and slip-resistance. Blade-advance knob quickly rotates the blade to engage the cable or other material being cut.

Features

• Ratchet-action design provides maximum leverage with minimum effort for heavy-duty use
• Not designed for cutting EHS Guy Strand or reinforcement rod
• Quick-release mechanism allows for removal of the cable or rod before completion of the cut, if desired

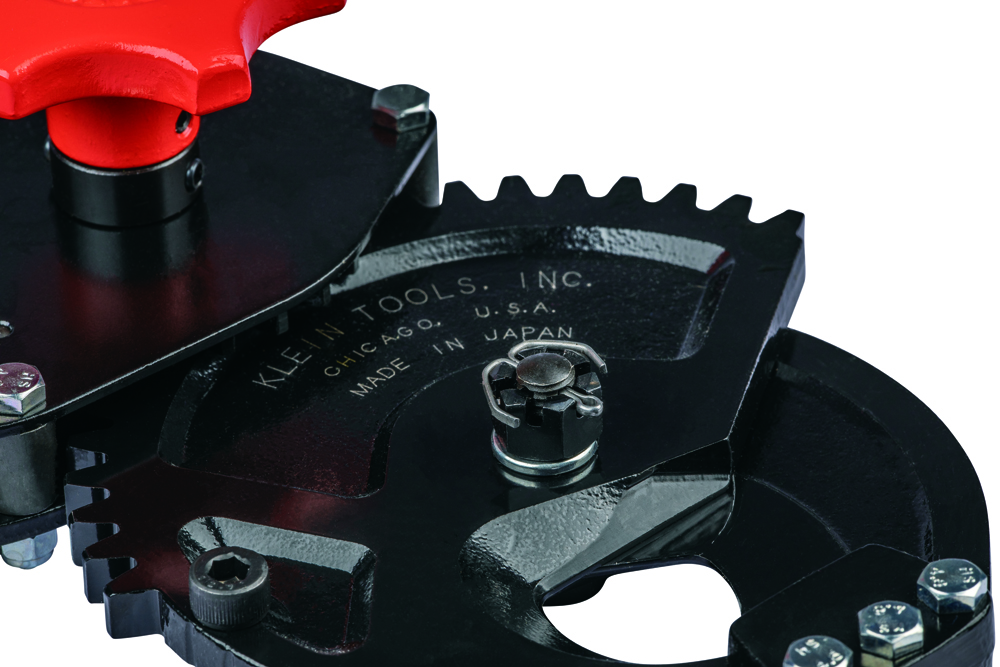

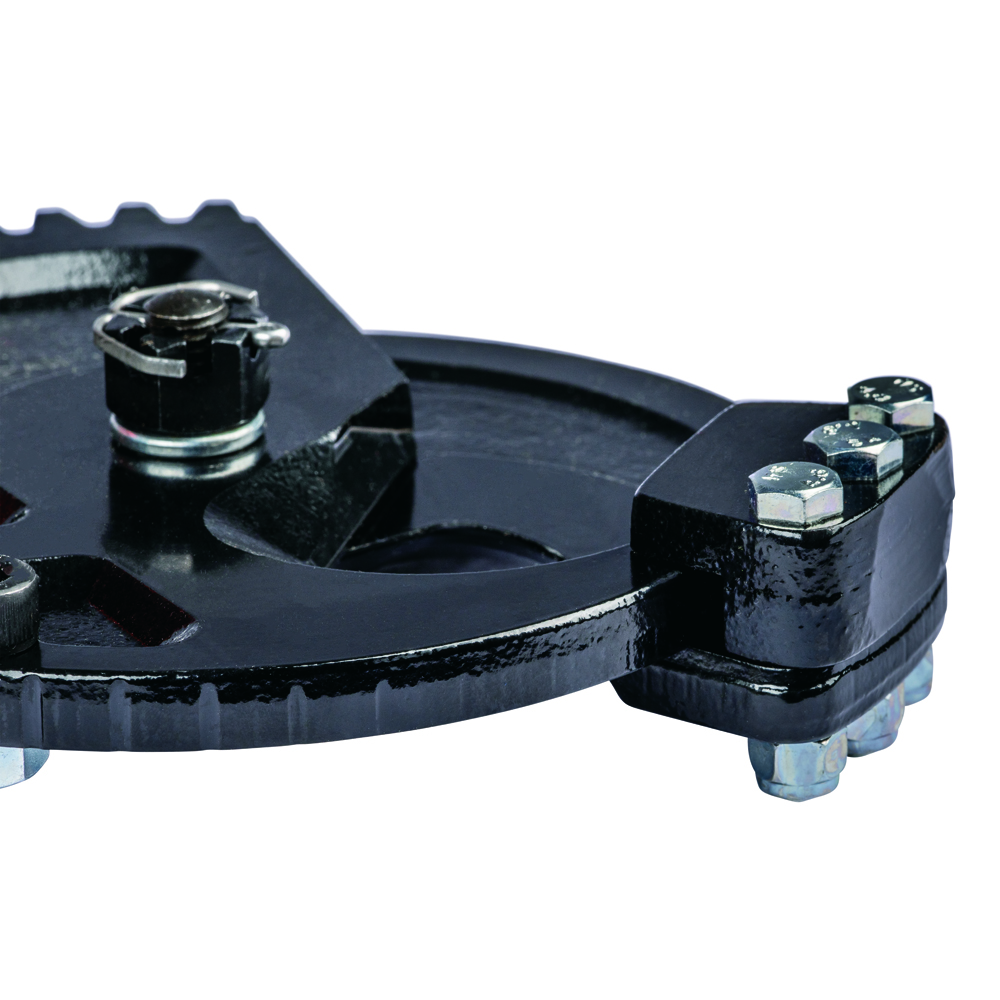

• Forged, heat-treated, shear-type blades, plus a 24-Inch (610 mm) long steel handles with heavy vinyl grips for comfort and slip-resistance
• Cuts steel and ACSR

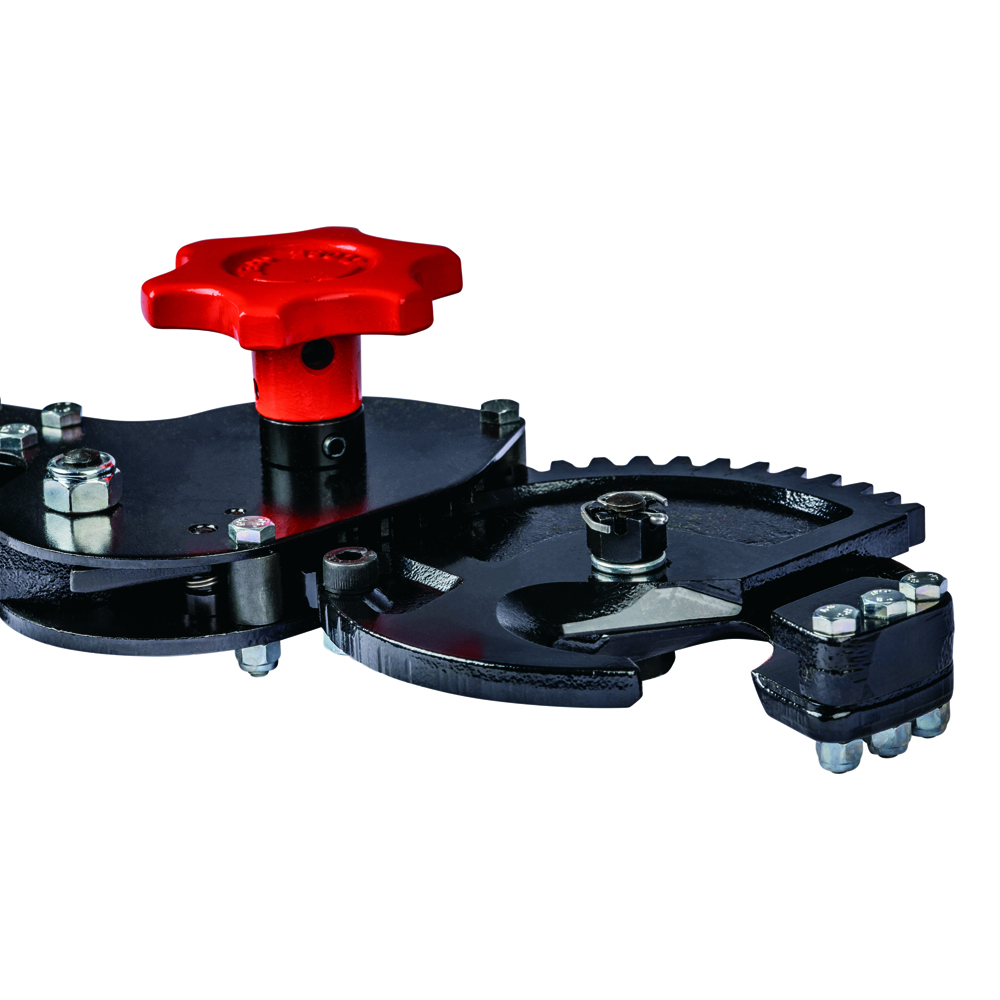

• Blade-advance knob for fast rotation of the blade to engage the cable or other material being cut

Warnings

• Always wear approved eye protection.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Overall Length: 28" (71.1 cm)
• Steel Cable Maximum Capacity: 1-1/4" (31.8 mm) Diameter ACSR, ACAR, 7/16" (11.1 mm) Diameter Common Guy Strand, 5/8" (15.9 mm) Diameter Steel Wire Rope, 1/2" (12.7 mm) Diameter Steel Rod (C.R.S. SOFT)
• Type: Cable Cutter
• Depth: 28.0000 in
• Handle Color: Yellow
• Weight: 14.0000 lbs
• Soft Cable Maximum Capacity: 2-1/4" (57.2 mm) Diameter, 750 MCM Diameter, Copper or Aluminum
• Width: 6.0750 in
• Height: 3.1500 in
