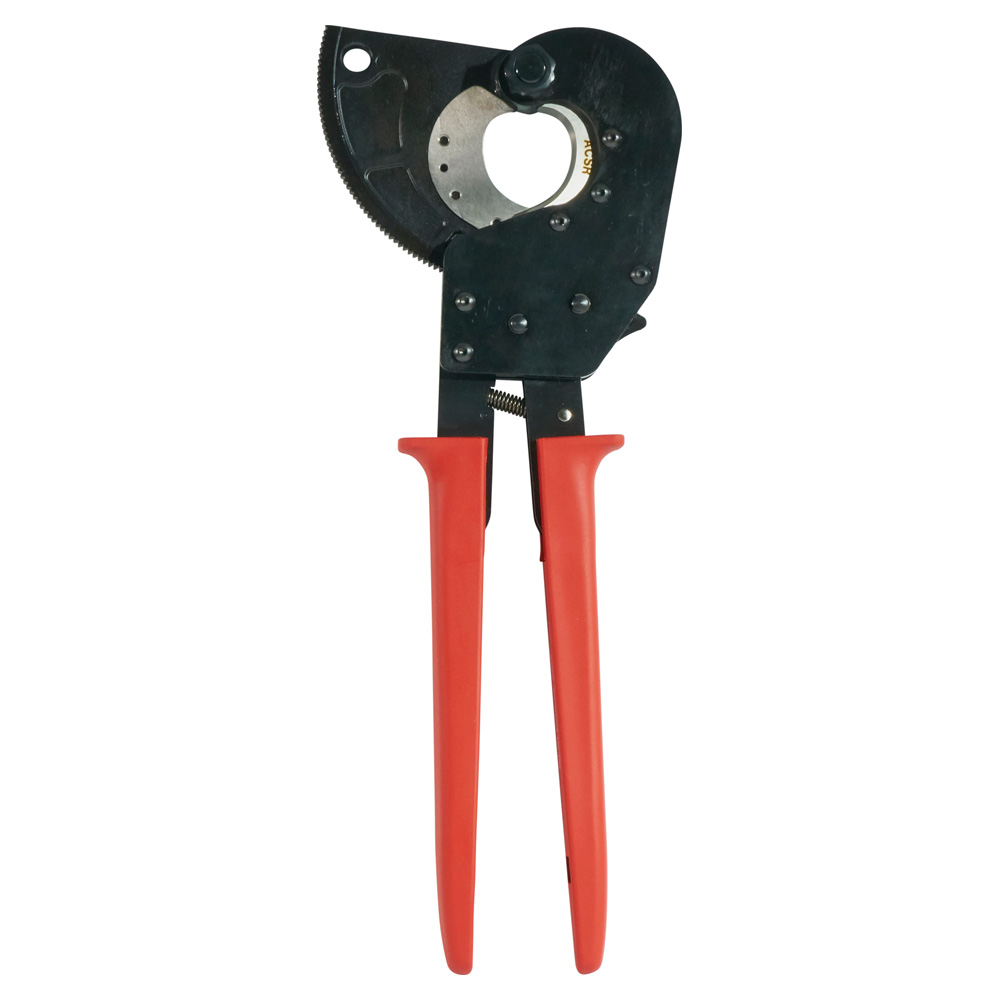

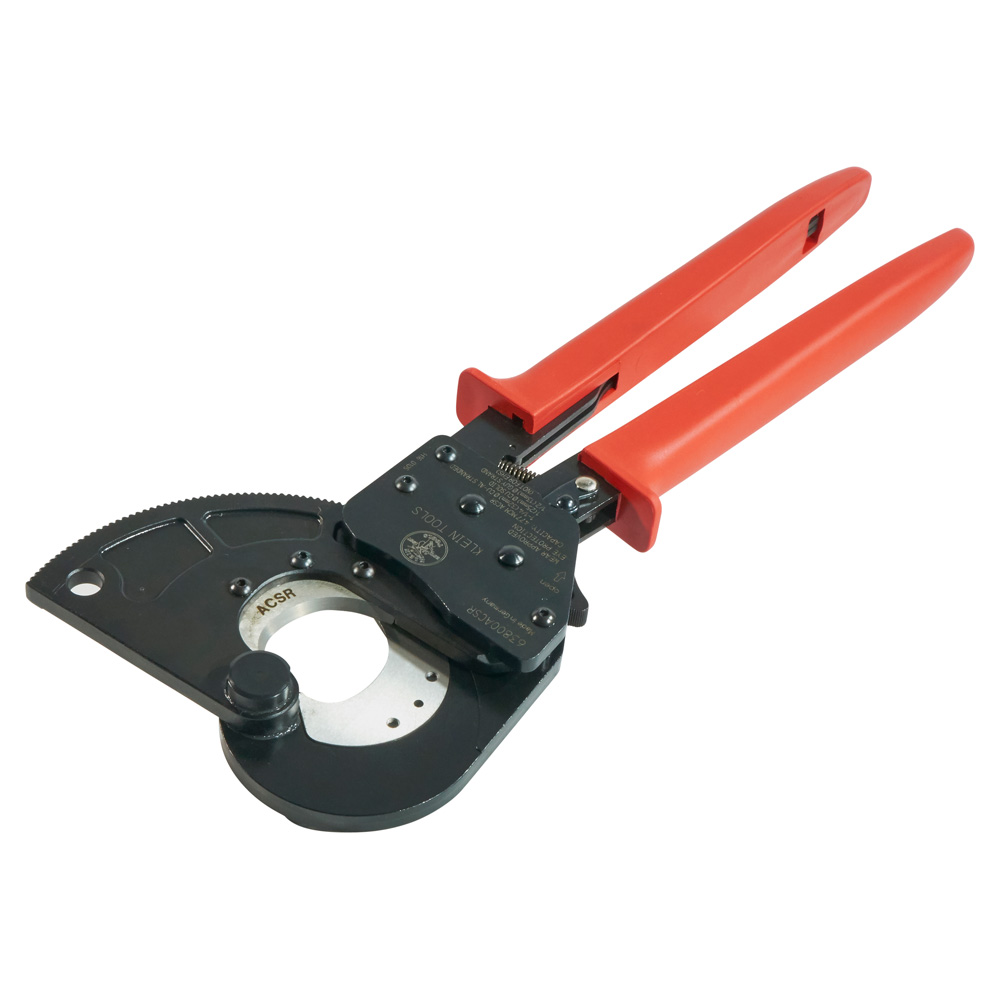

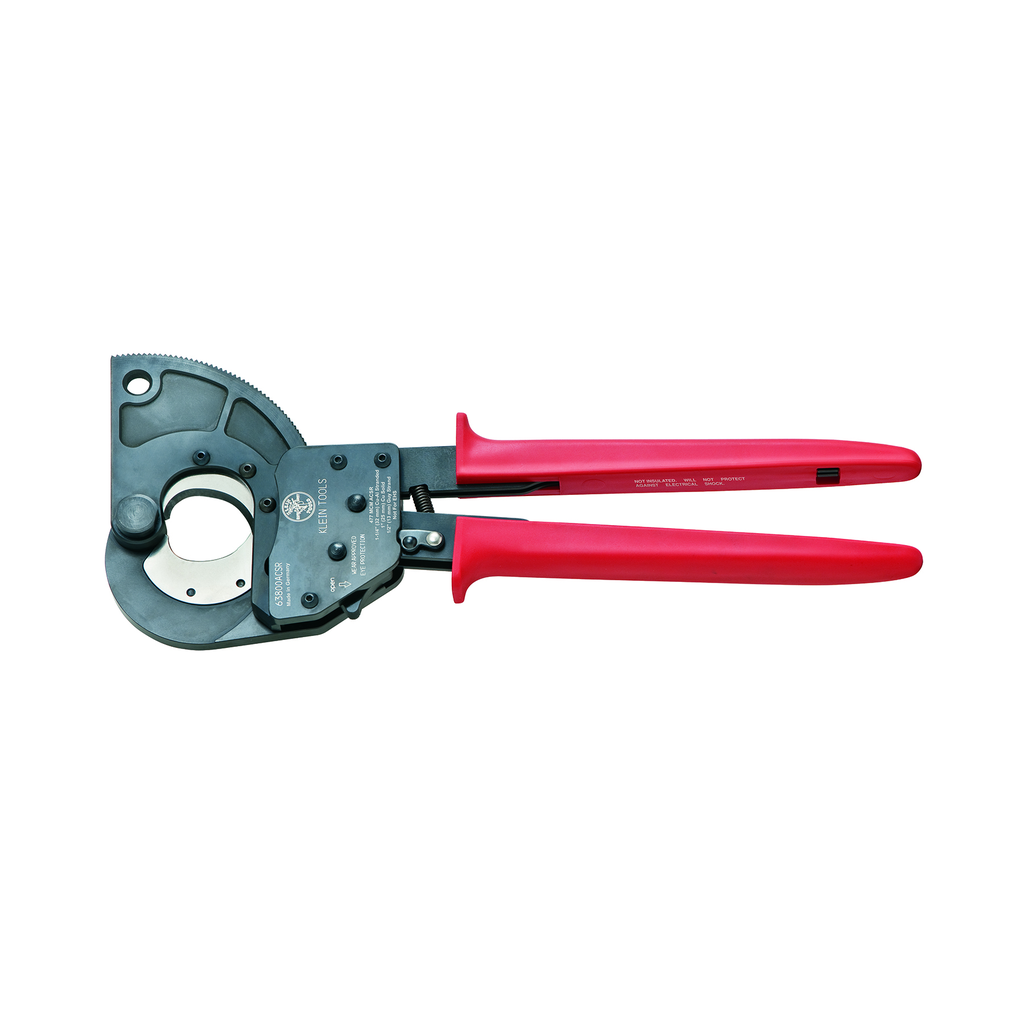

ACSR Ratcheting Cable Cutter

These Klein Tools ACSR Ratcheting Cable Cutters are equipped to cut up to 477 MCM ACSR multi-strand. They have high-leverage ratcheting mechanisms for easier cutting, and can be locked when not in use. They are size efficient as well, with a length just under 14-Inches they can be carried around in a tool pouch.

Warnings

• NOT insulated. Slip on handles are NOT intended for protection against shock.
• Always wear approved eye protection.

Features

• At a length of just under 14-Inch (356 mm), tool can be carried in a tool pouch

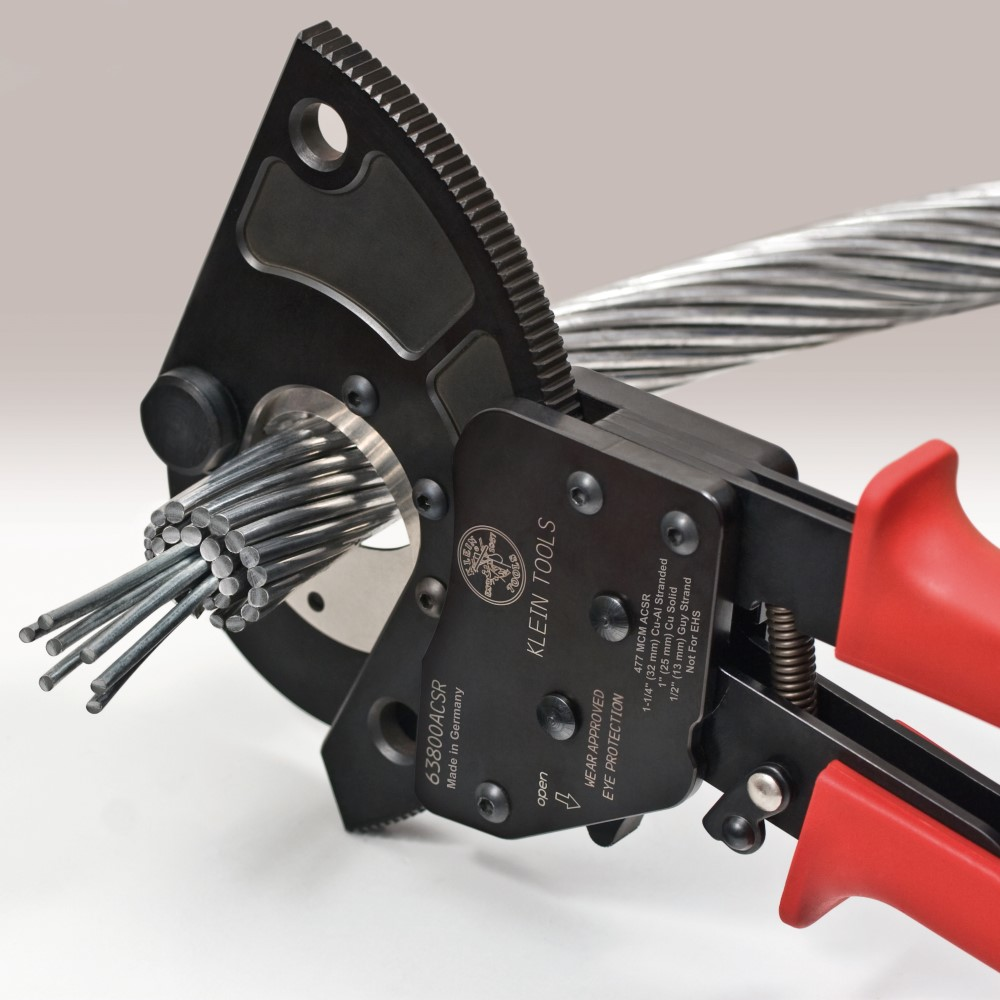

• Cuts up to 477 MCM ACSR multi-strand
• Replacement cutting inserts with screws (Cat. No. 63858) available
• Cutting inserts are easily replaced by removing 3 screws per blade
• Plastic covered handles with hand guards for comfort and firm grip
• Tool can be locked when not in use
• High-leverage ratcheting mechanism for easier cutting
• Capacity: 477 MCM ACSR; 1-1/4-Inch (32 mm) ØCU-AL Stranded

Specifications

• Overall Length (Inch): 13.75
• MCM Maximum Cable Capacity (Aluminum): 1-1/4" (31.8 mm)
• Type: Ratcheting Cable Cutter
• Width: 1.0000 in
• Handle Color: Red
• Overall Length (cm): 34.9
• Weight (lb): 3.2
• Height: 1.0000 in
• Depth: 13.7500 in
• Weight: 3.2000 lbs
• MCM Maximum Cable Capacity (ACSR): 477 MCM
• Weight (kg): 1.5
