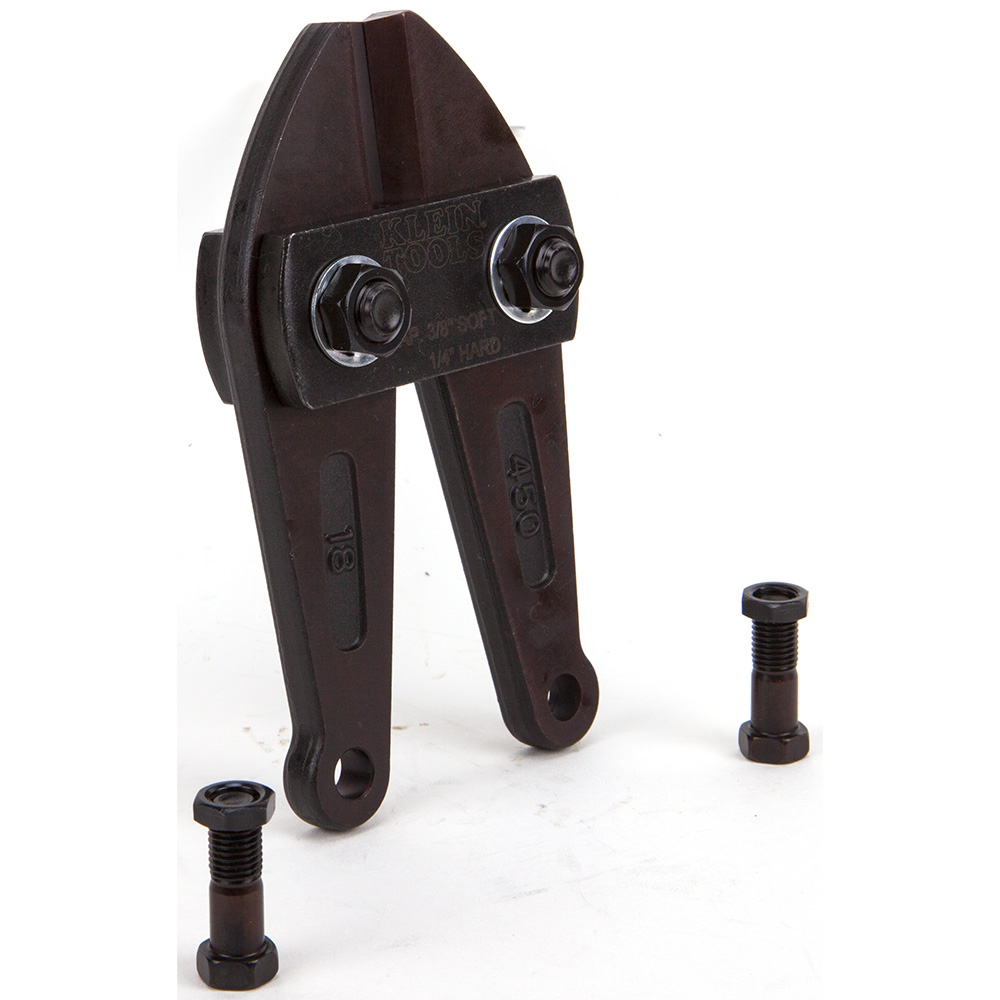

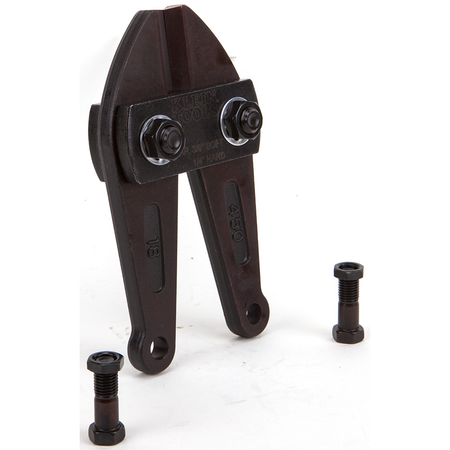

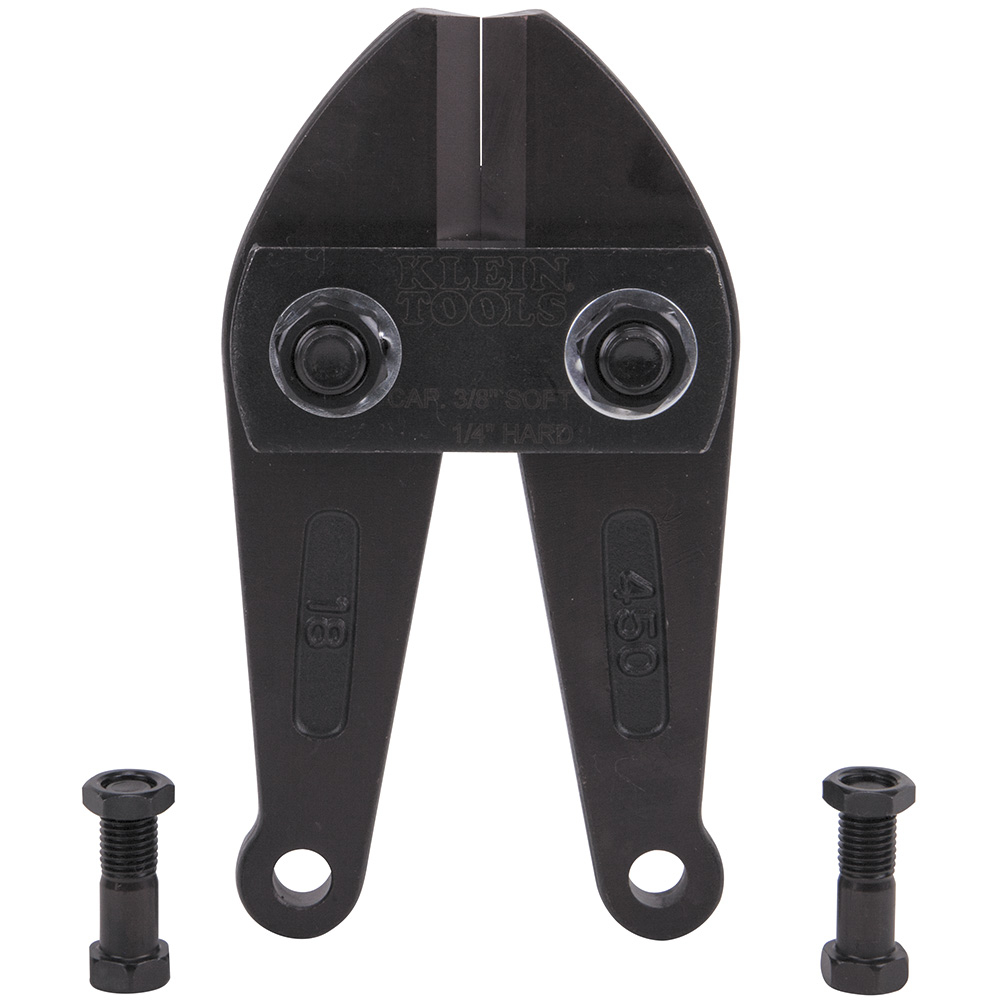

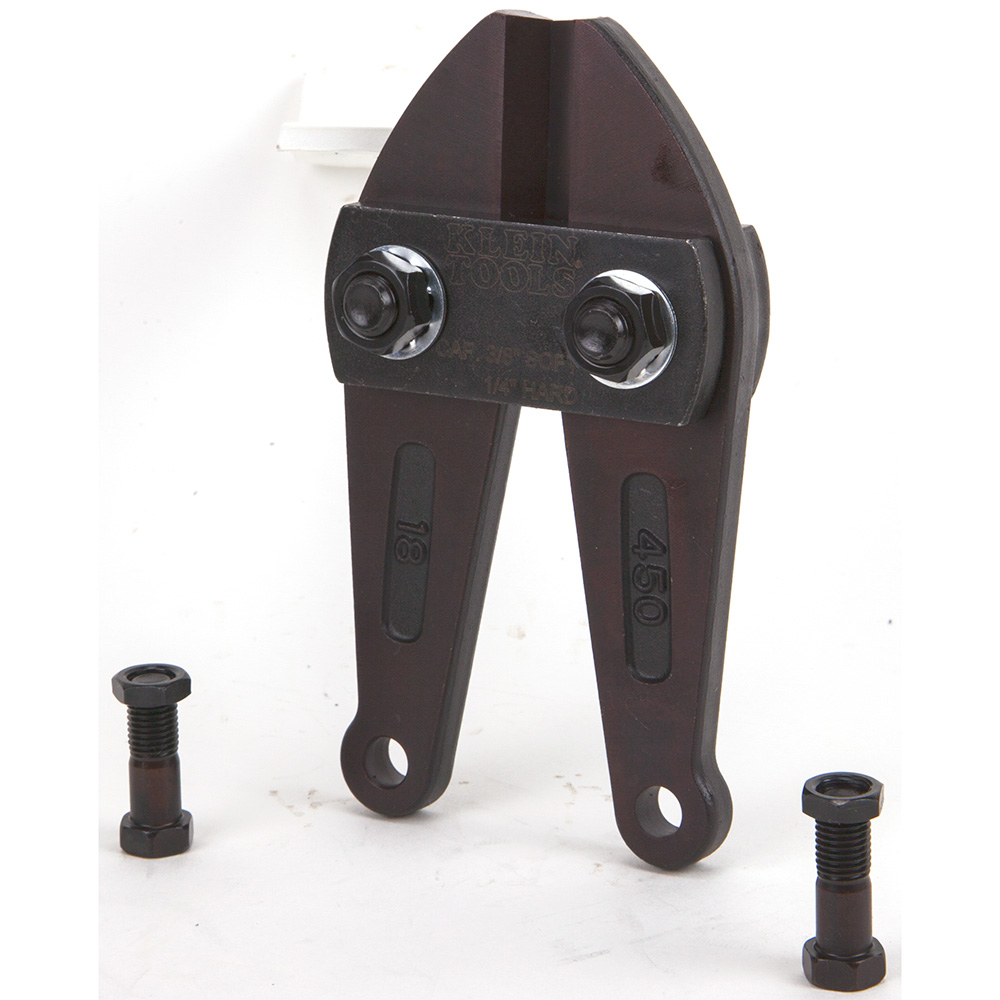

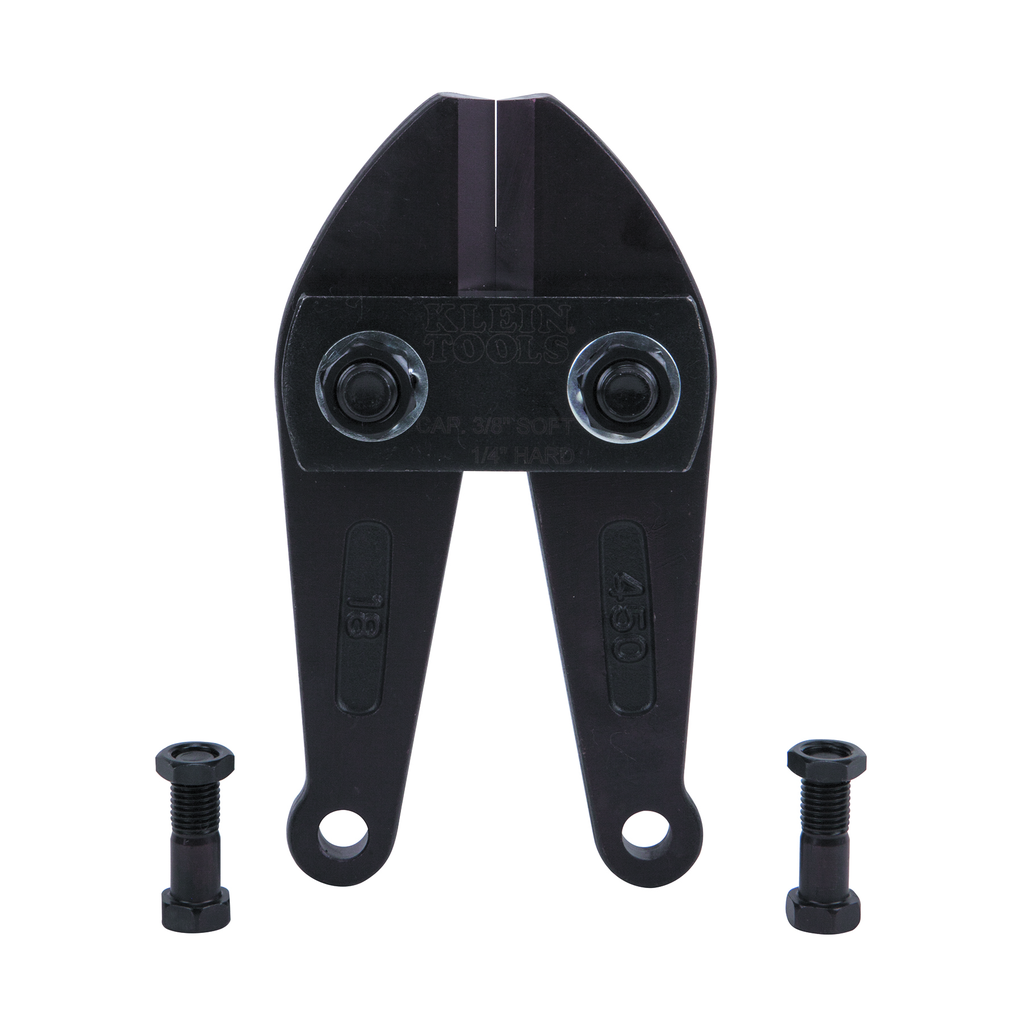

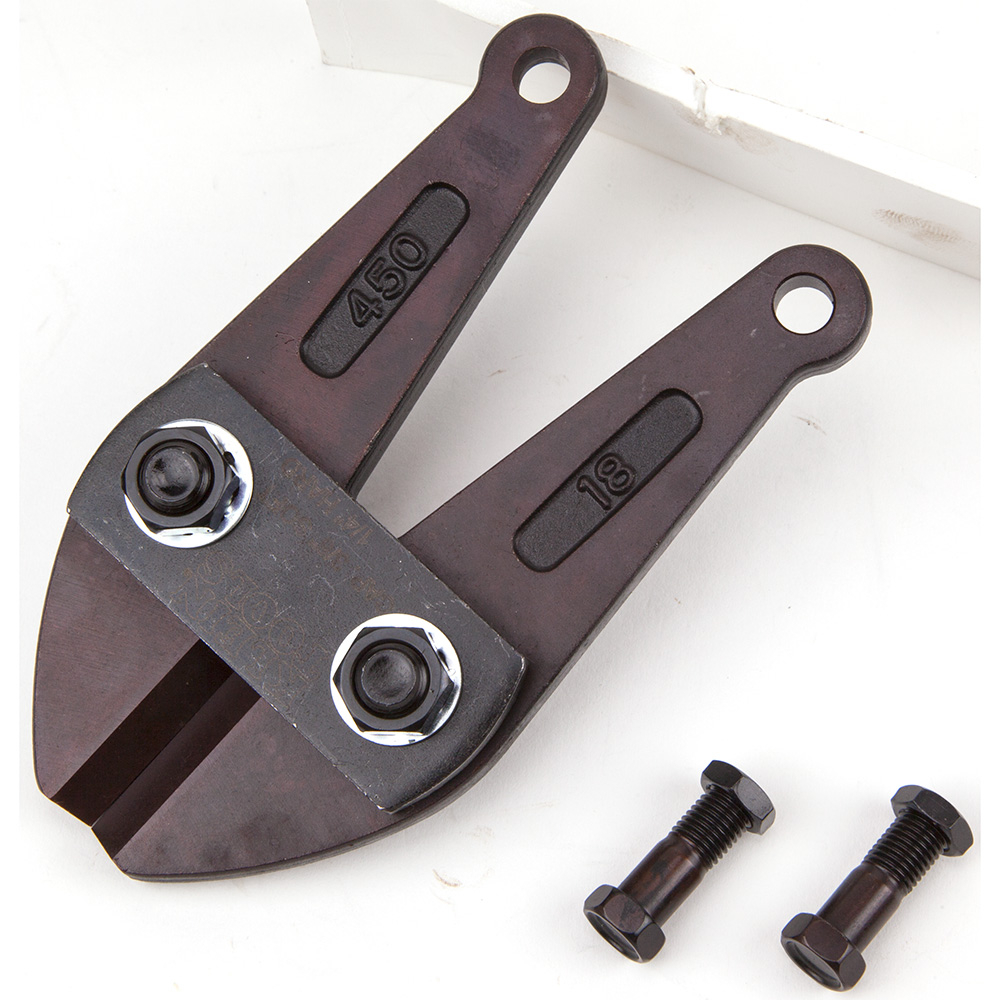

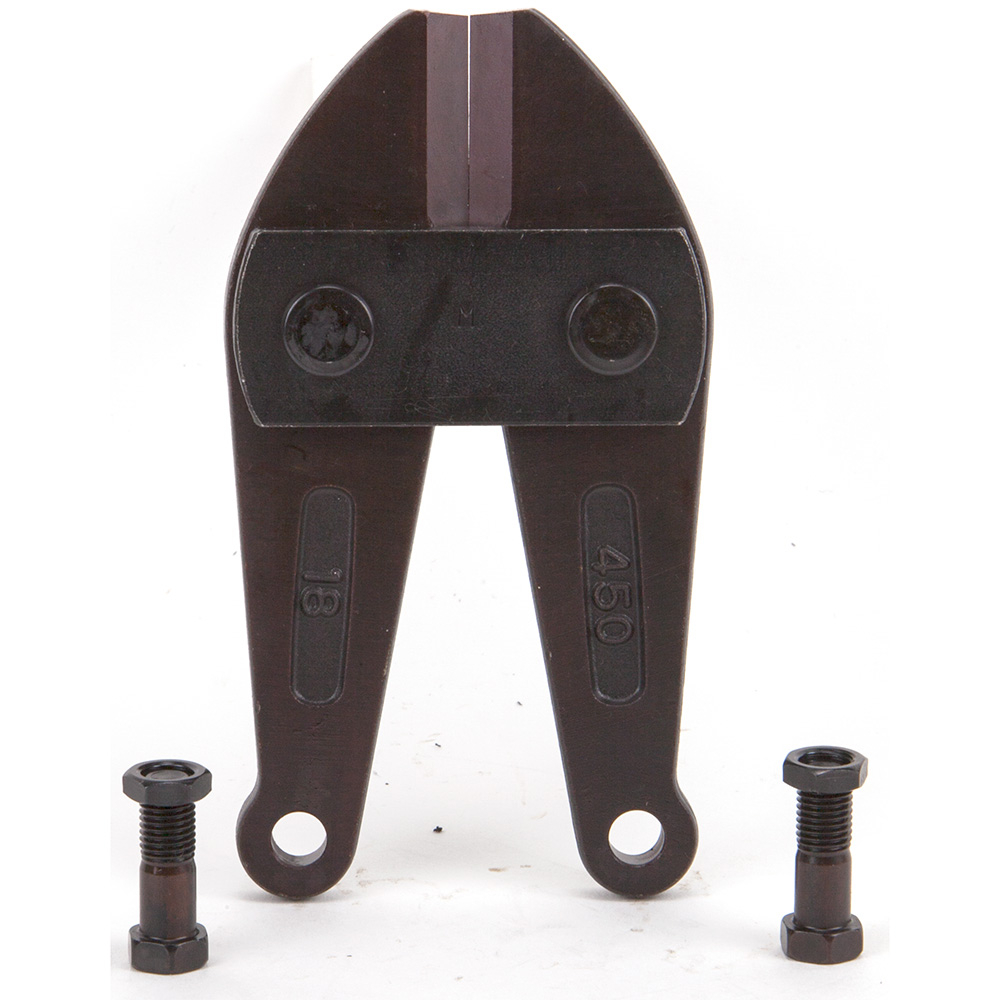

Replacement Head for 18-Inch Bolt Cutter

This replacement blade works with the 18-Inch (45.7 cm) Steel Handle Bolt Cutter (Cat. No. 63318). Cuts soft, medium, and hard metals. Forged, alloy tool steel is precision ground for sure, efficient cutting and long life.

Features

• Cuts soft, medium and hard metals
• Not for cutting cable
• One adjustment realigns cutting edges
• Cutting capacities for soft and medium materials is up to Brinell 300, Rockwell C31
• Cutting capacities for hard materials is up to Brinell 400, Rockwell C42
• Forged, alloy tool steel blade is precision ground for sure, efficient cutting and long life
• One Adjustment Realigns Cutting Edges

Warnings

• NOT insulated. Will NOT protect against electrical shock.
• Always wear approved eye protection.

Specifications

• Weight: 1.2150 lbs
• Type: Replacement Head for Bolt Cutter Cat. No. 63318
• Height: 1.5300 in
• Hard Material Cutting Max Capacity: Up to Brinell 400, Rockwell C42
• Jaw Material: Steel
• Width: 2.7000 in
• Overall Length: 5.125 Inch (13 cm)
• For Use With: 63318
• Depth: 5.1300 in
• Soft & Medium Cutting Max Capacity: Up to Brinell 300, Rockwell C31
• Application: Cutting Soft and Medium Materials up to Brinell 300, Rockwell C31; Hard Materials up to Brinell 400, Rockwell C42
