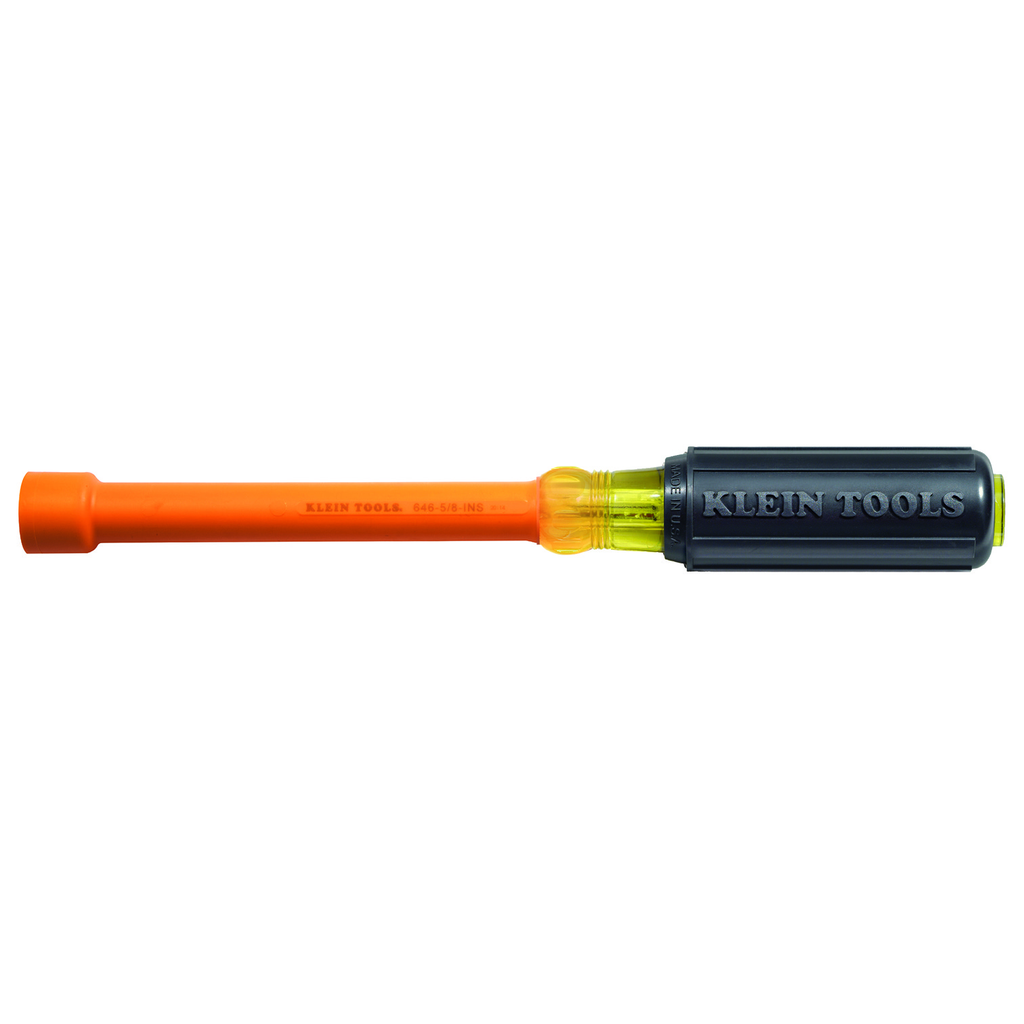

5/8-Inch Insulated Nut Driver, 6-Inch Hollow Shaft

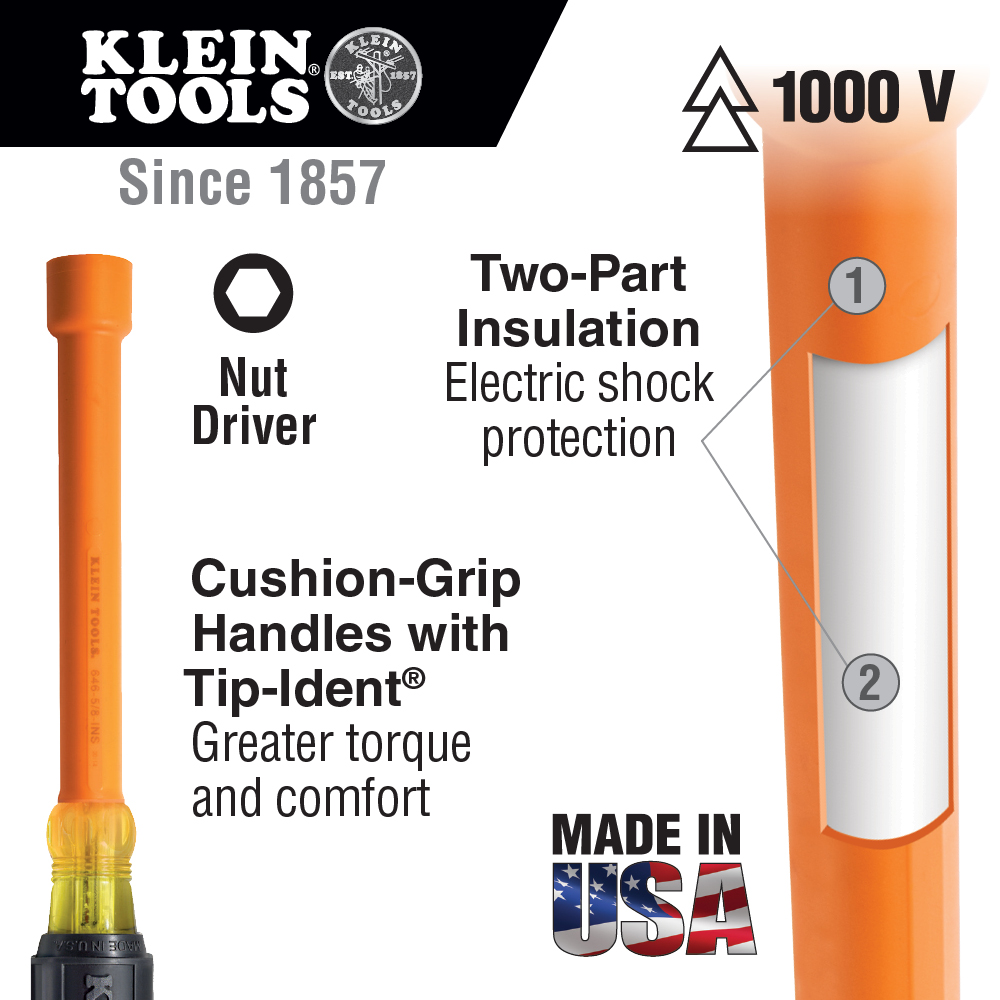

Protect yourself when working near an energized source with Klein's insulated hollow-shaft nut driver. Clearly marked with the official 1000-Volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. The full hollow-shaft permits turning nuts on long screws.

Features

• Tip-Ident Quickly Identifies Nut Driver Size
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool with a flame retardant, impact-resistant, bright orange outer coating
• Cushion-Grip™ handles for greater torque and comfort
• Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Two layers of insulation provide protection against electric shock
• Tip-Ident quickly identifies nut driver size
• Made in USA
• Hollow shafts for work on stacked circuit boards or other long bolt applications

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.

Specifications

• Application: Stacked Circuit Boards, Long Bolt Applications
• Shaft Length (Inch): 6
• Measurement Standard: SAE
• Shaft Length (cm): 15.2
• Weight (g): 181
• Height: 1.0000 in
• Type: Hollow
• Depth: 11.3750 in
• Insulated: Yes
• Material: Steel
• Overall Length (Inch): 11.375
• Overall Length (cm): 28.9
• Width: 1.0000 in
• Color Code: Yellow
• Nut Driver Sizes: 5/8"
• Standard: IEC 60900 and ASTM F1505
• Weight: 0.4000 lbs
• Handle Material: High-Dielectric Plastic
• Magnetic: No
• Weight (oz): 6.4
