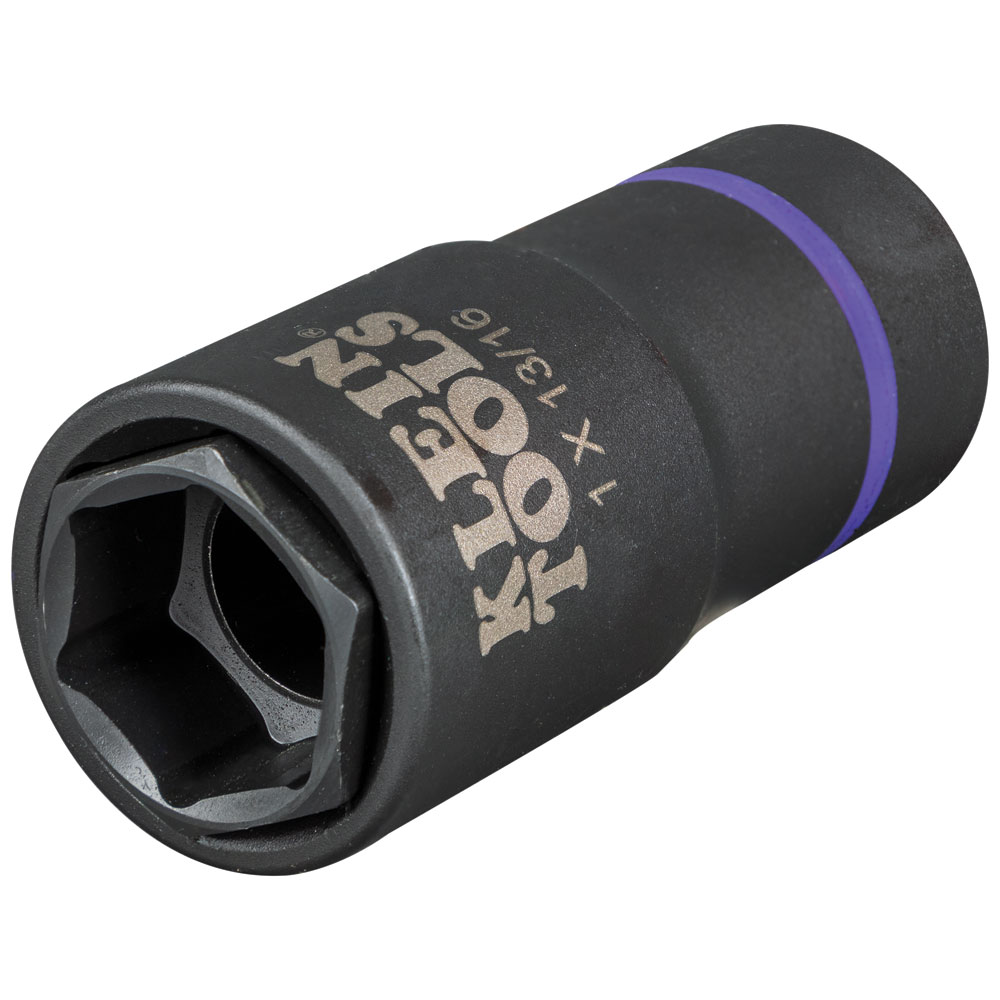

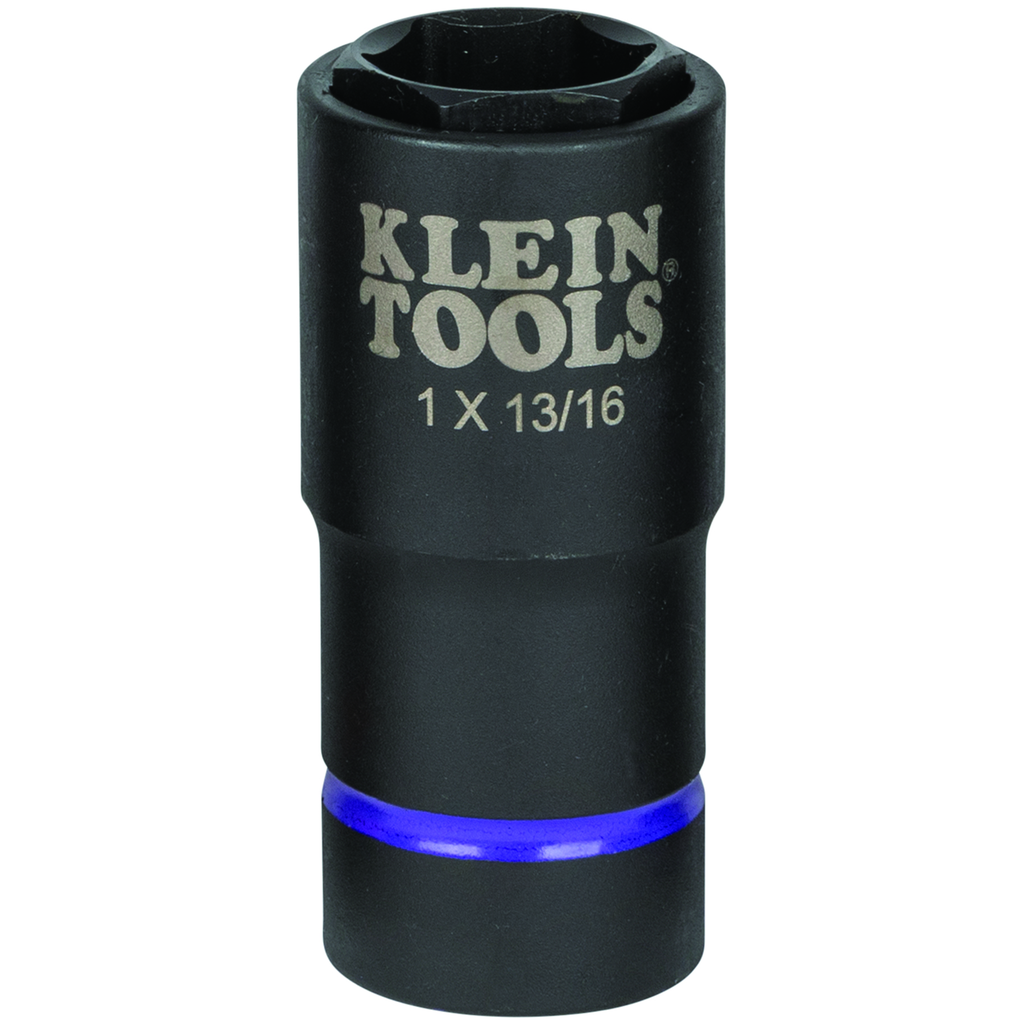

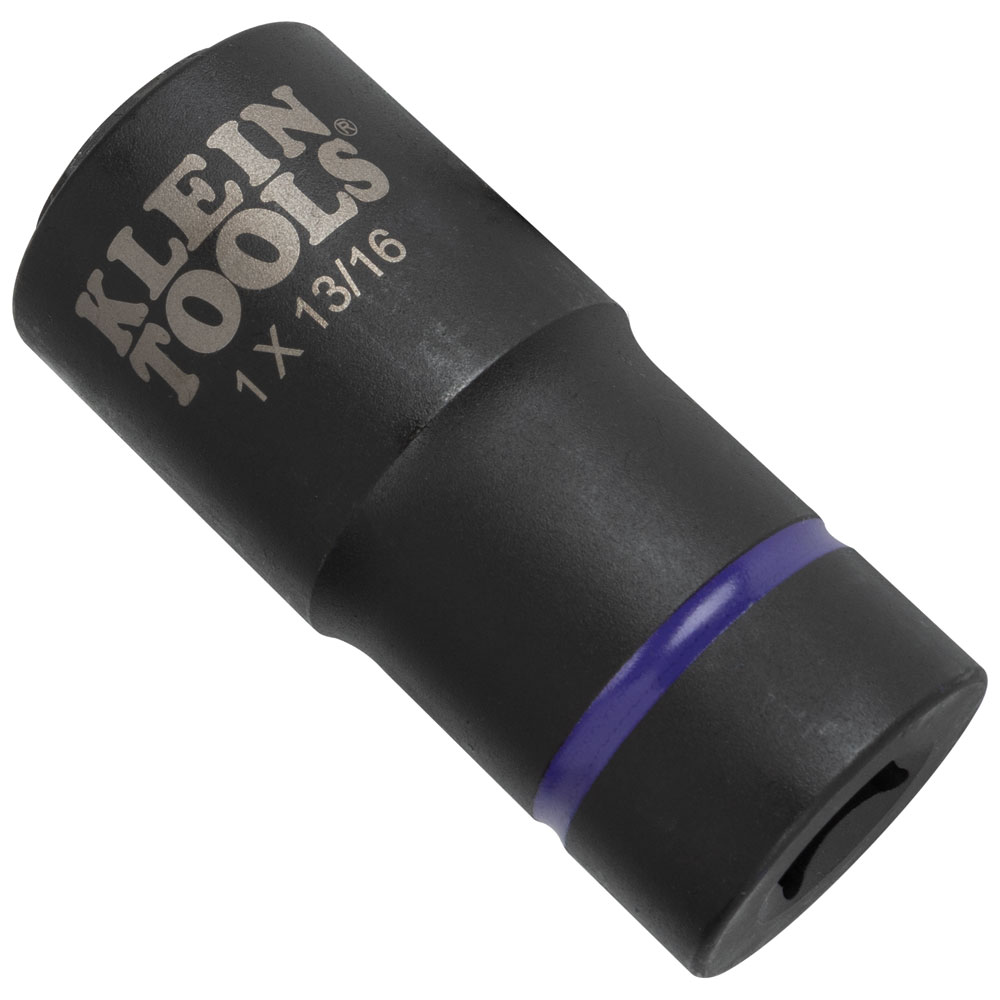

2-in-1 Impact Socket, 6-Point, 1 and 13/16-Inch

Single-ended impact socket with hands-free adjustment between 1-Inch and 13/16-Inch hex sizes. Deep socket with a 1/2-Inch drive is great for use in electrical and construction work. The high-torque, 6-Point design is easier to position and works with square fasteners.

Features

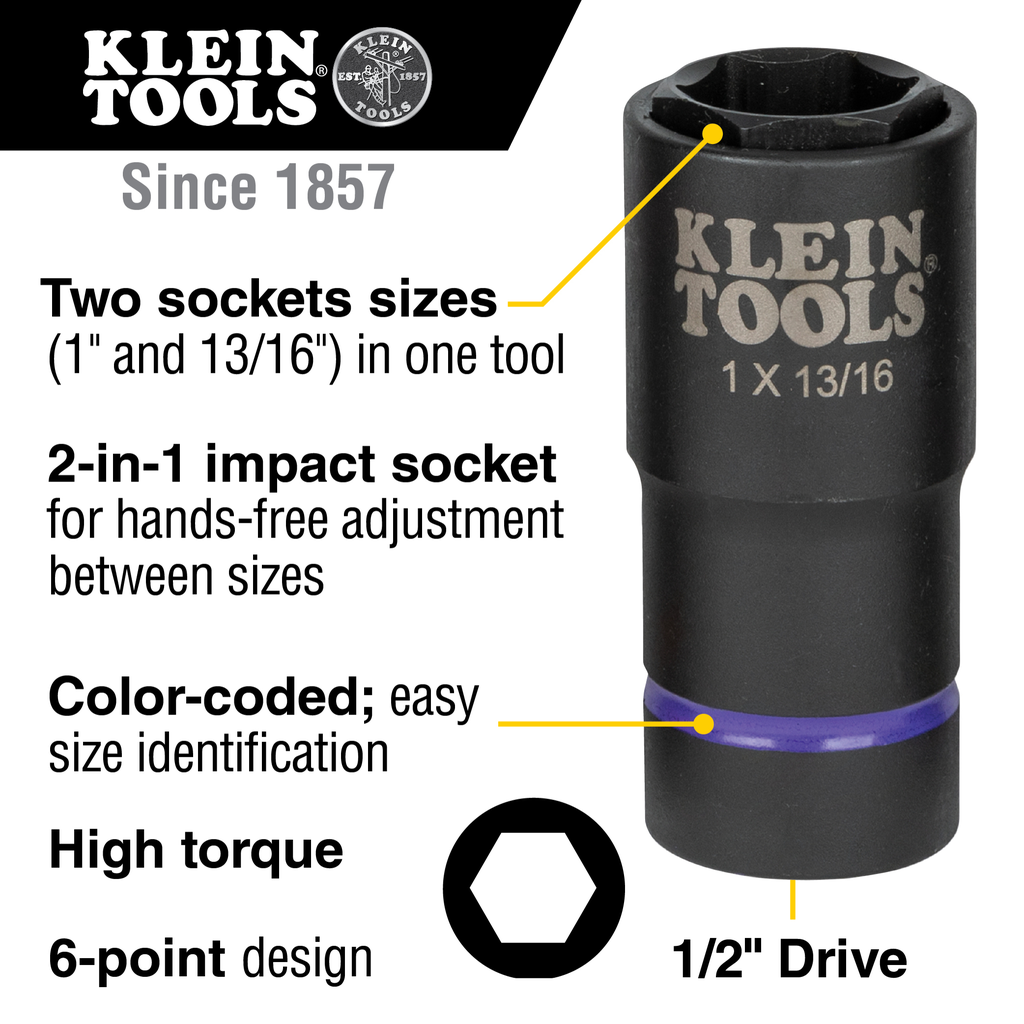

• Single-ended impact socket with hands-free adjustment between socket sizes
• Great for general electrical and construction work
• Engineered for use with impact wrenches including Klein's 1/2-Inch Compact Impact Wrench (Cat. Nos. BAT20-CW, BAT20-CW1)
• Socket is color coded to quickly identify size
• Hands-Free Adjustment

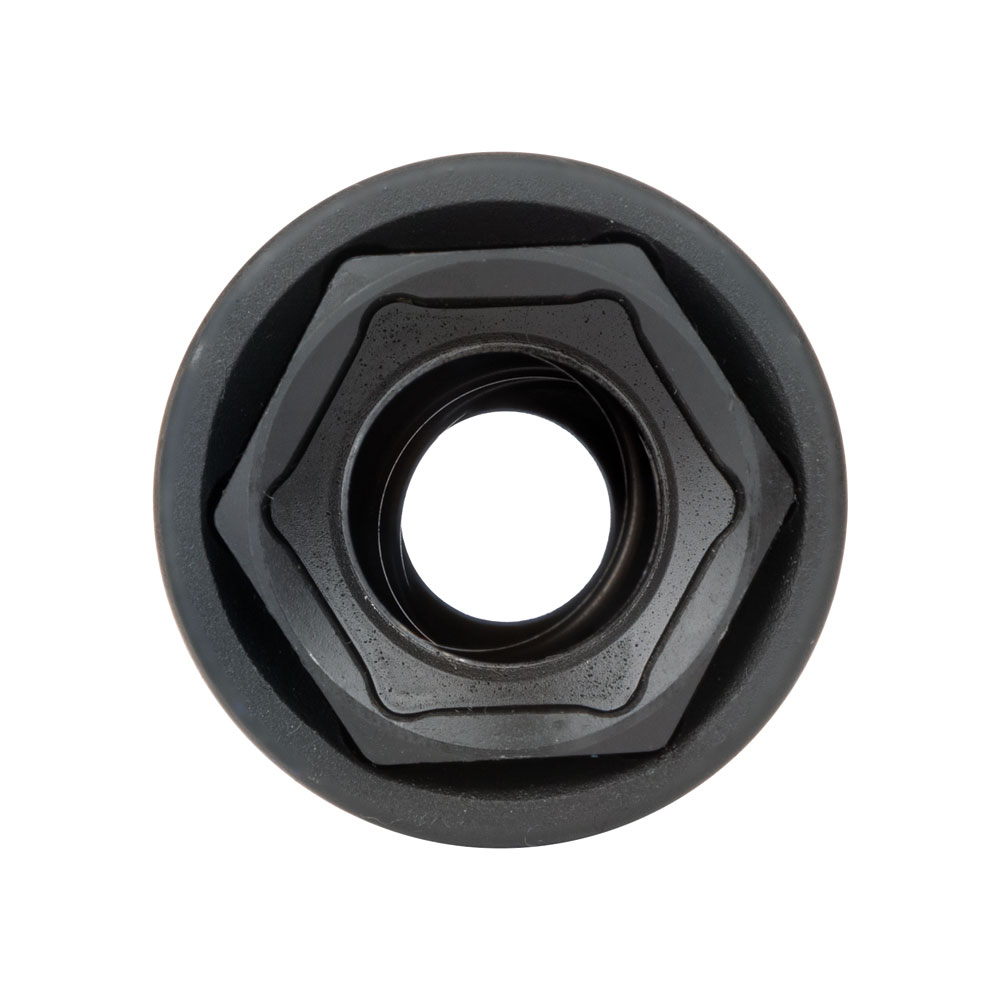

• Two coaxial spring-loaded 1 x 13/16-Inch hex socket sizes in one tool
• High-torque, 6-Point design is easier to position and works with square fasteners
• Deep socket with a 1/2-Inch drive works great for hardware installation and removal
• Cross hole design to prevent unintentional separation of adapter and socket

Warnings

• Always wear approved eye protection.

• Drive Size: 1/2 in
• Socket Size: 1 in x 13/16 in
• Number of Points: 6
• Type: Impact Rated
• Overall Length: 3.1 in (7.9 cm)
• Overall Width: 1.38 in (3.5 cm)
• Overall Height: 1.38 in (3.5 cm)
• Height: 0.087 in
• Depth: 3.1 in
• Width: 0.087 in
• Weight: 0.3 lbs
• Material: 4140 Steel
• Standard: ASME B107.2

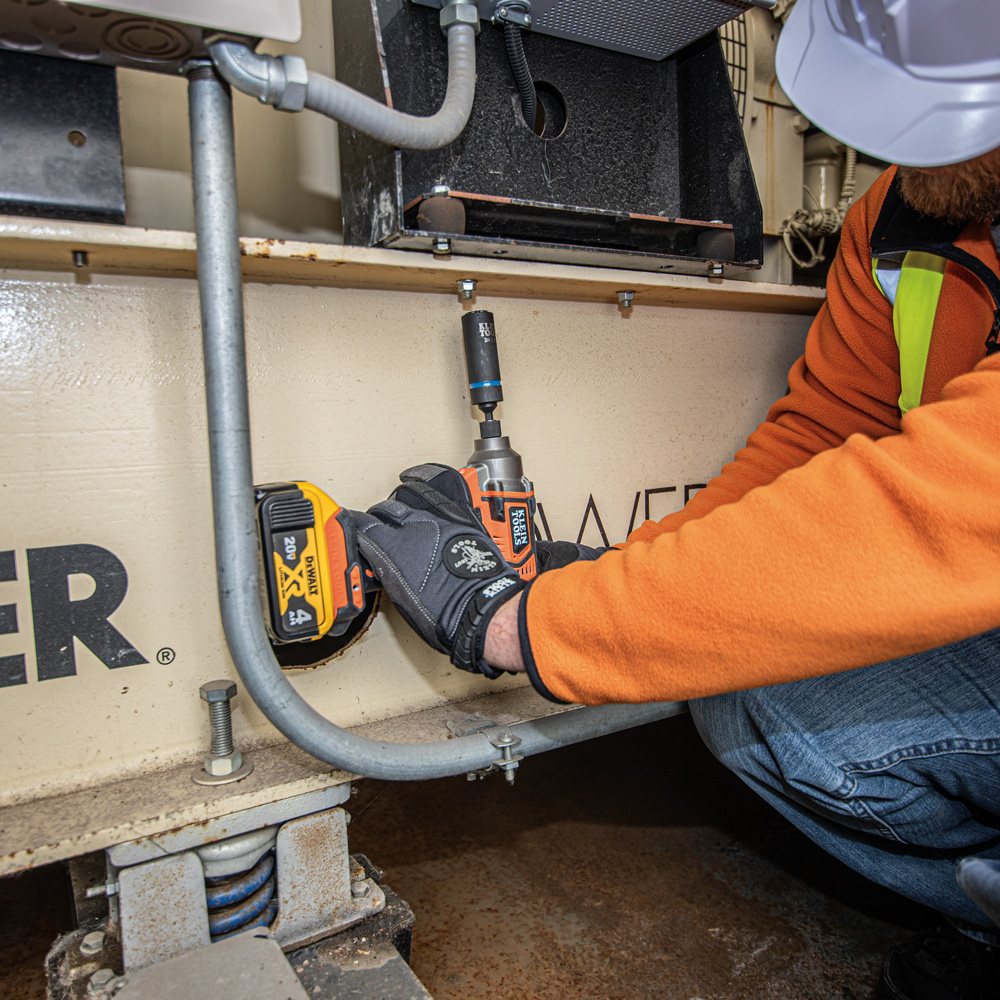

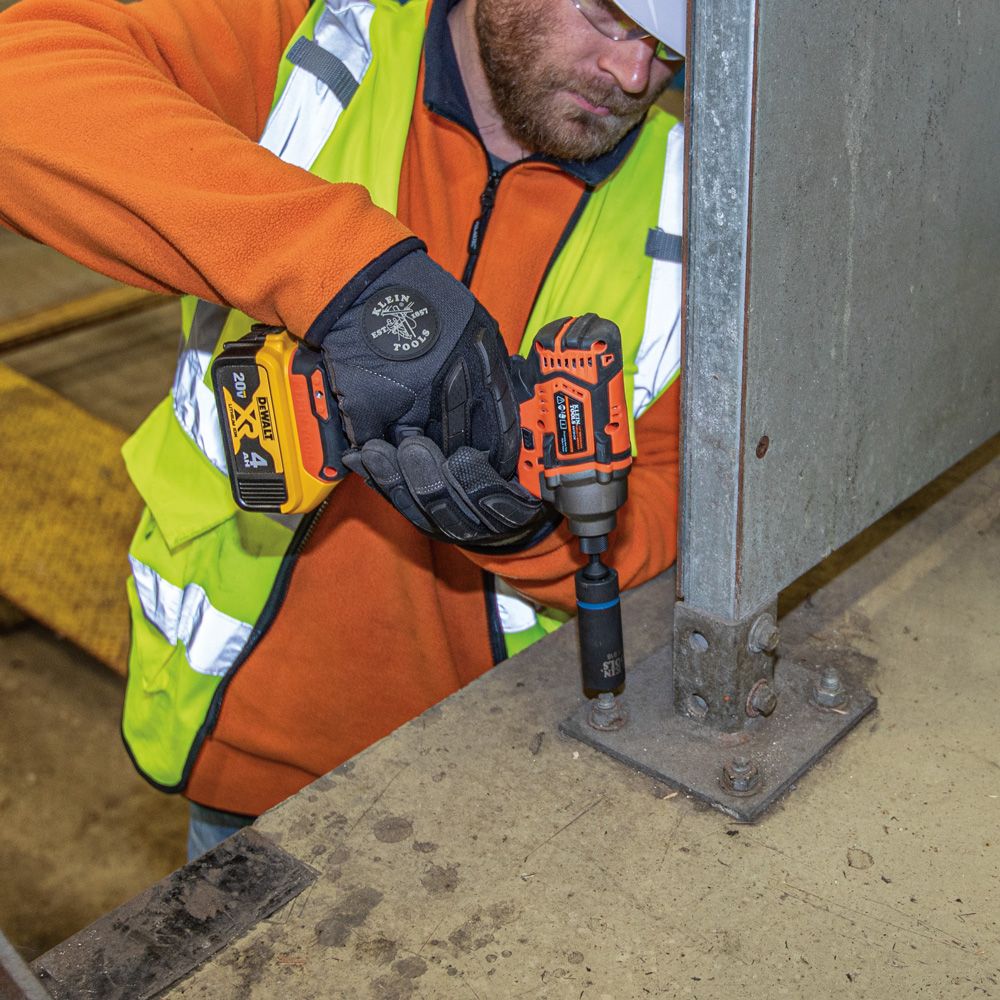

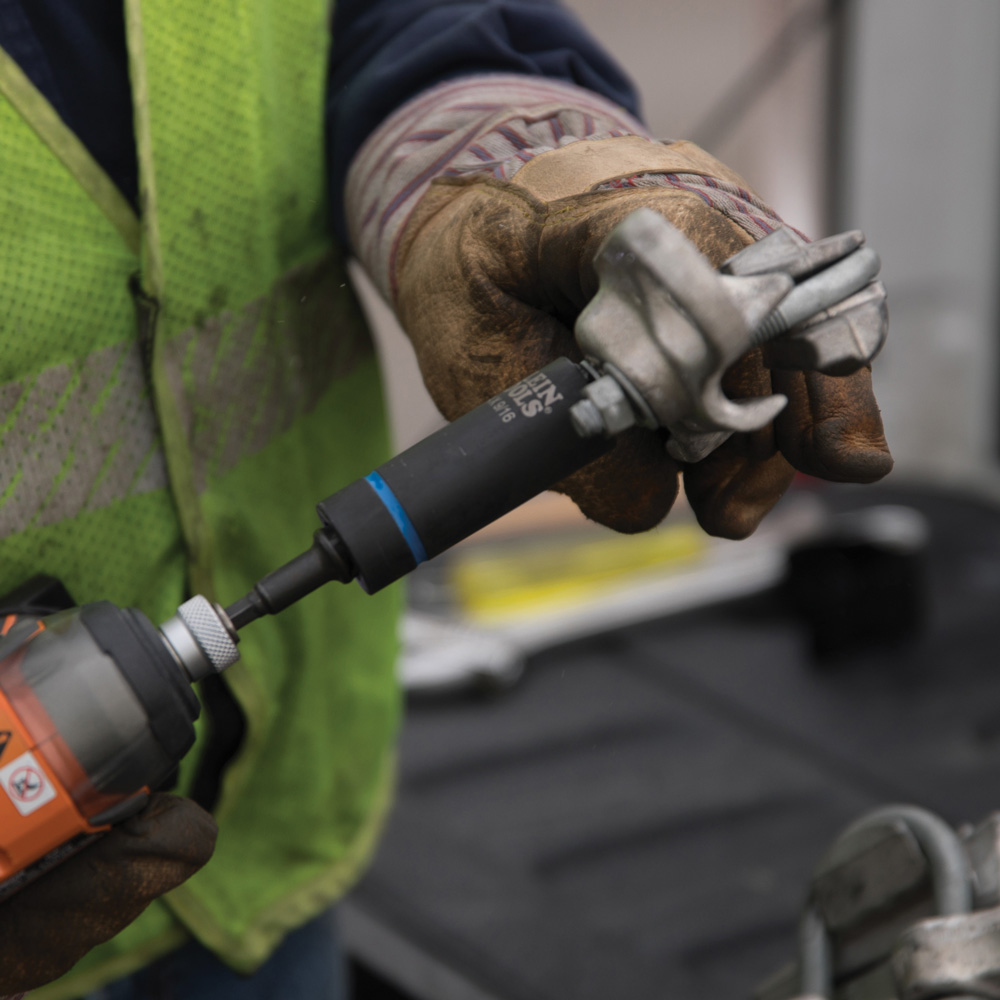

• Application: Pole Hardware Installation and Removal
• Country of Origin: Taiwan
