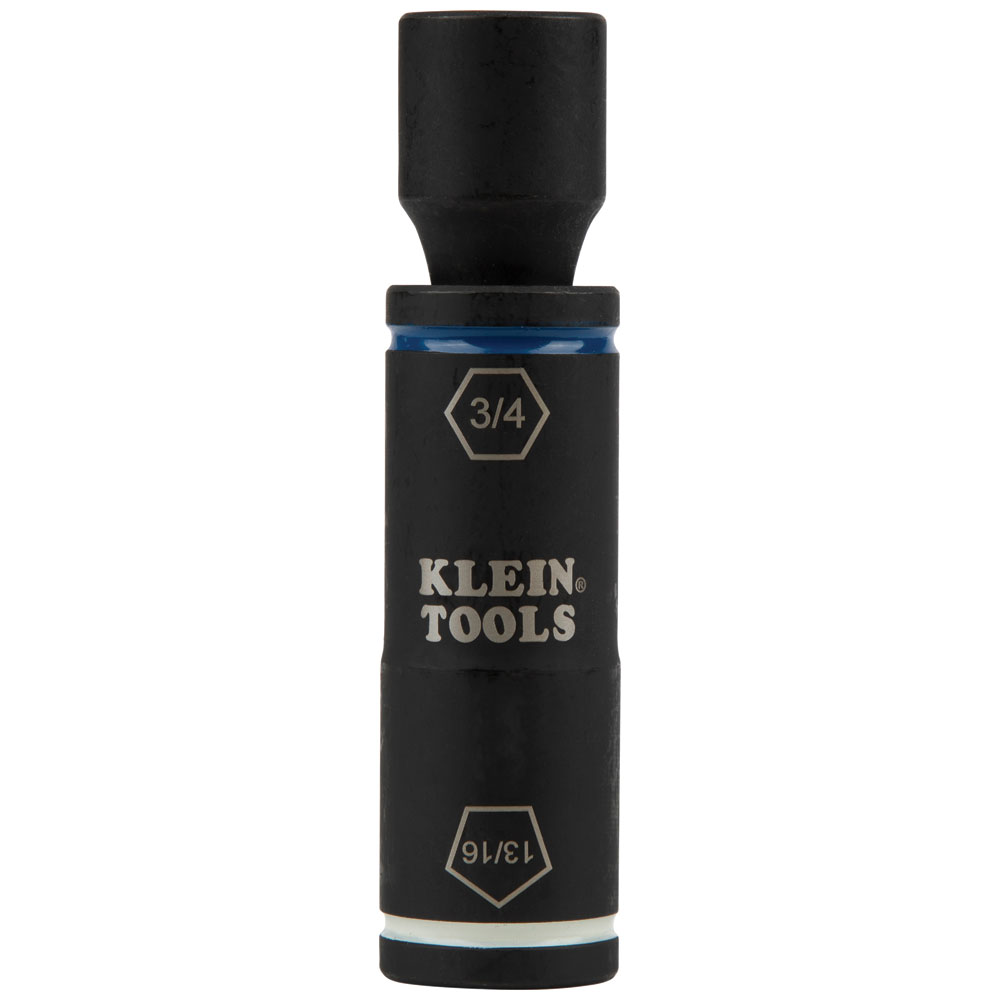

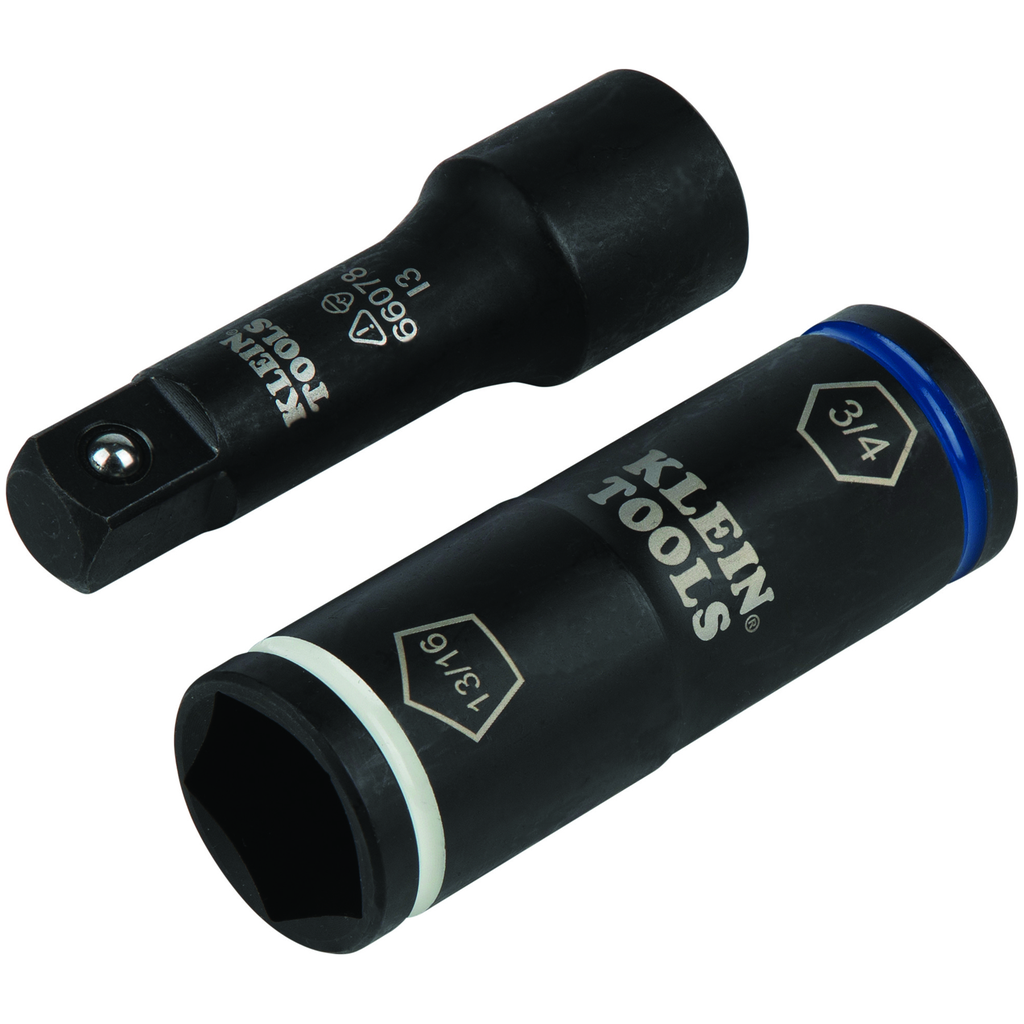

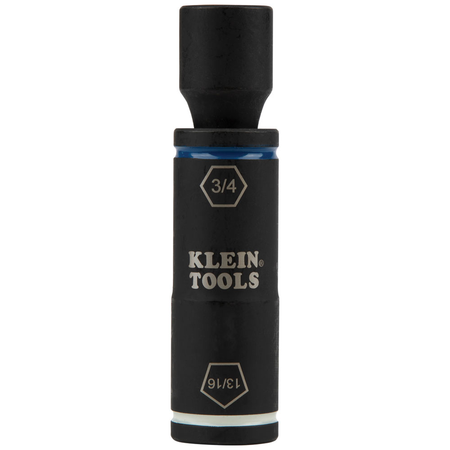

2-in-1 Penta/Hex Flip Socket with Adapter

Klein Tools' Penta Hex Flip Socket with Adapter is a must have for all tradesmen. The 13/16-Inch Penta and 3/4-Inch Hex Flip Socket combines two of the most common socket sizes into one tool. The socket is designed for use with an impact driver including Klein's Impact Wrench (Cat. Nos. BAT20CW, BAT20CW1). The 1/2 to 1/2-Inch square adapter includes a ball detent to help prevent unintentional separation from the socket.

Features

• 1/2 to 1/2-Inch square adapter has a black manganese phosphate finish for rust resistance

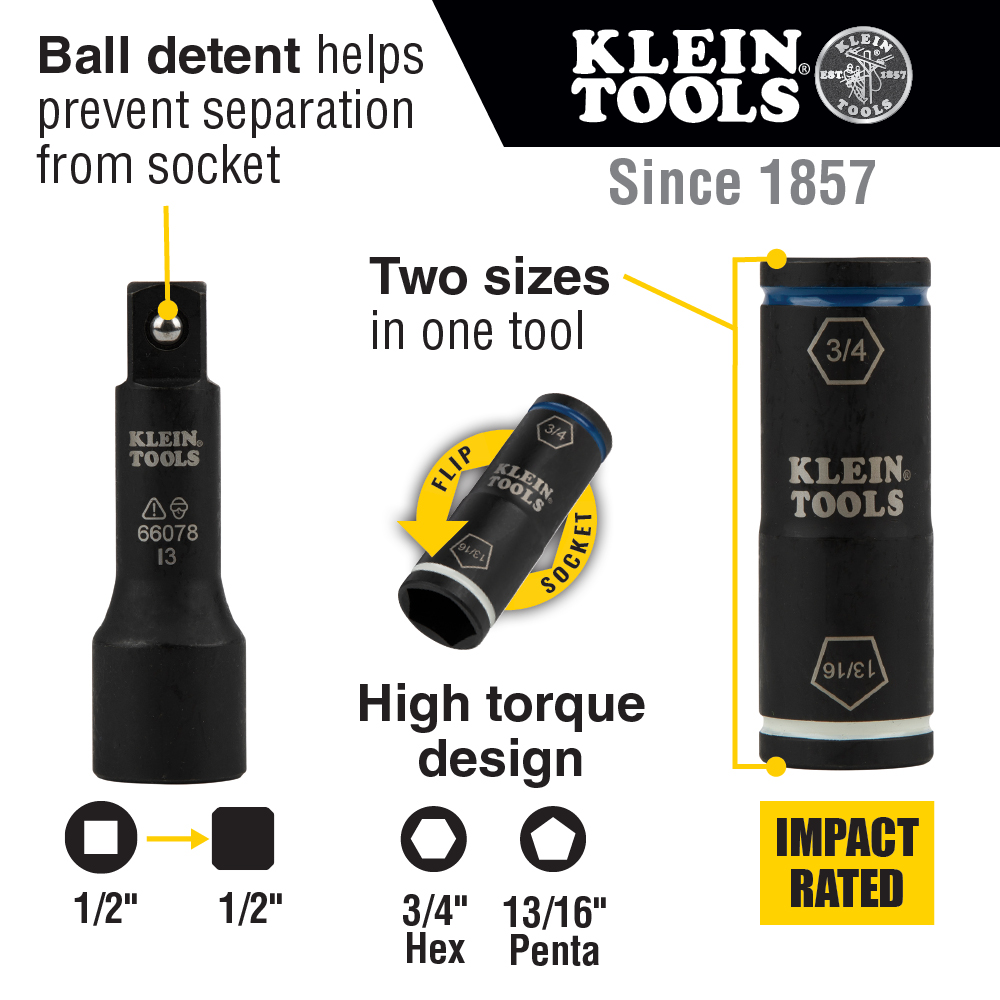

• Includes a ball detent that helps prevent unintentional separation of adapter and socket
• Deep well socket with 1/2-Inch drive works great for hardware installation and removal
• 6-Point, 3/4-Inch Hex socket is easier to position
• Flip Socket
• Easy-to-use flip feature allows for quick changes between Penta and Hex socket sizes

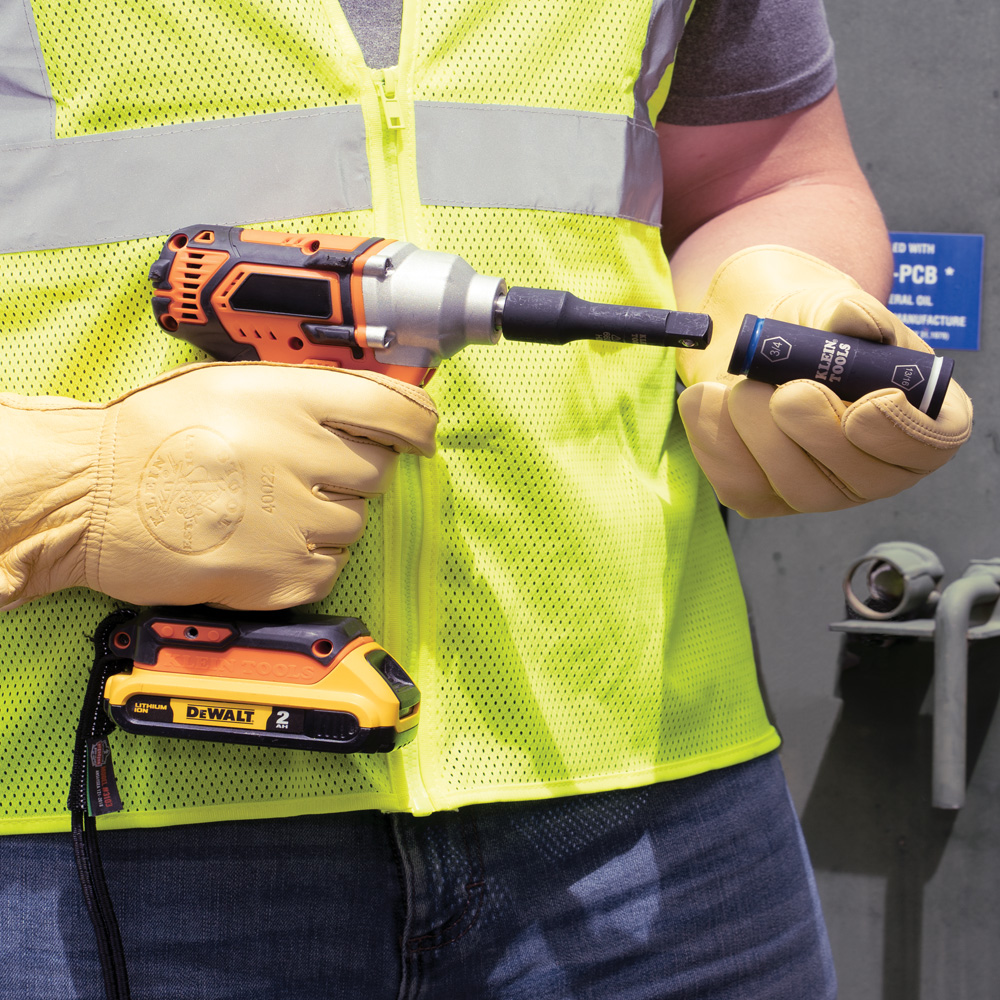

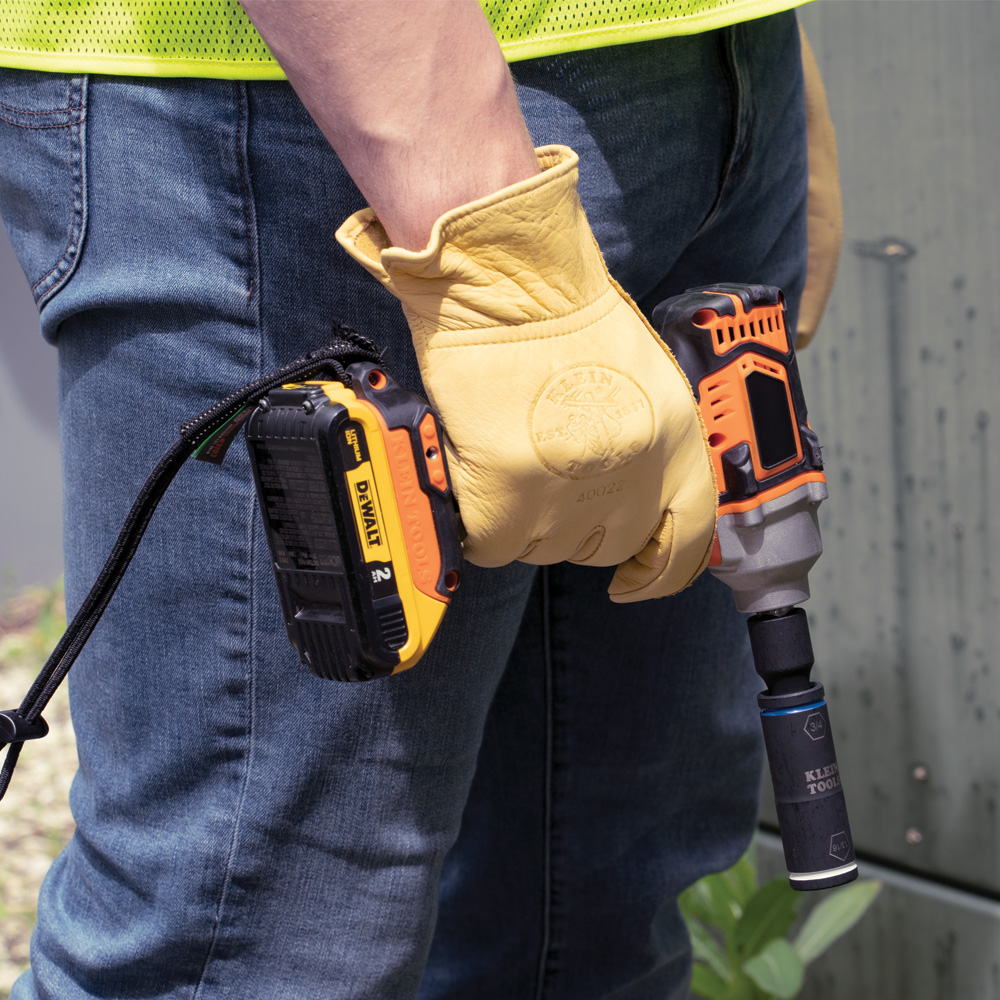

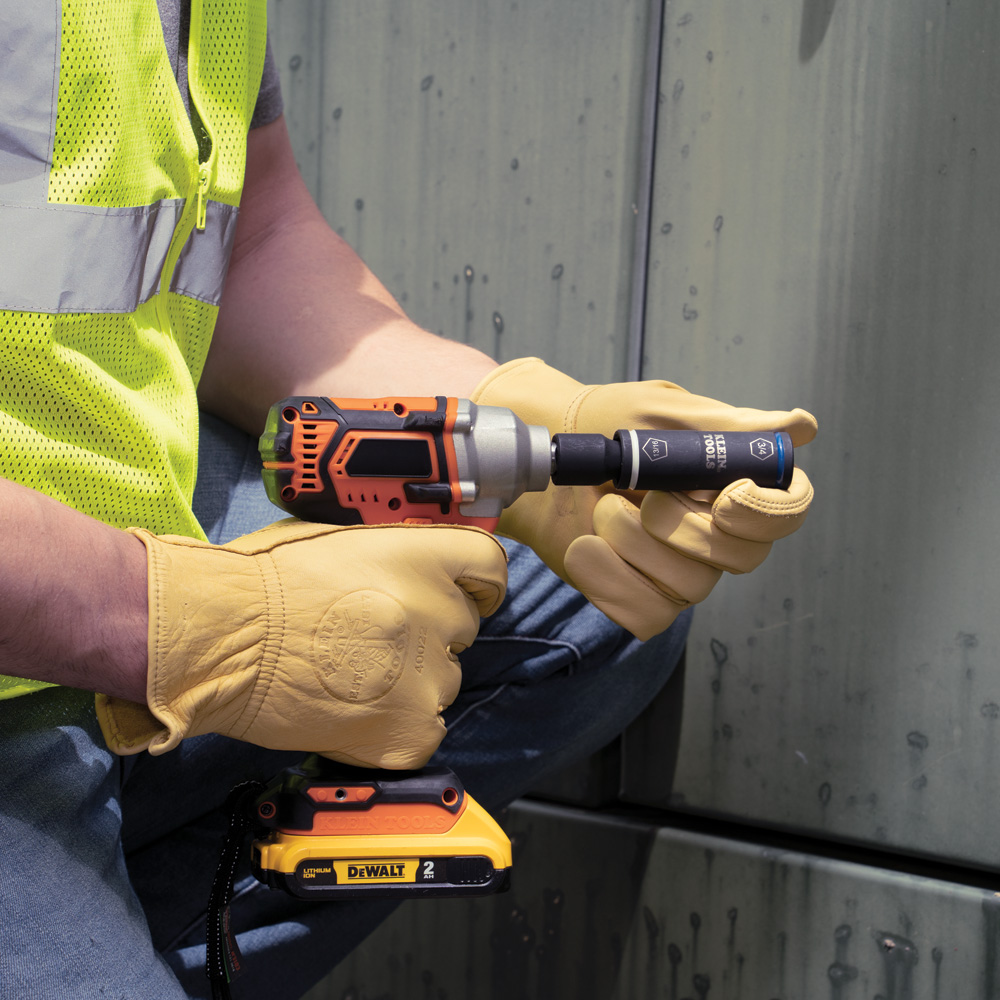

• Socket engineered for use with impact drivers including Klein's 1/2-Inch Compact Impact Wrench (Cat. Nos. BAT20CW, BAT20CW1)
• Includes two of the most common socket sizes (13/16-Inch Penta and 3/4-Inch Hex) in one tool

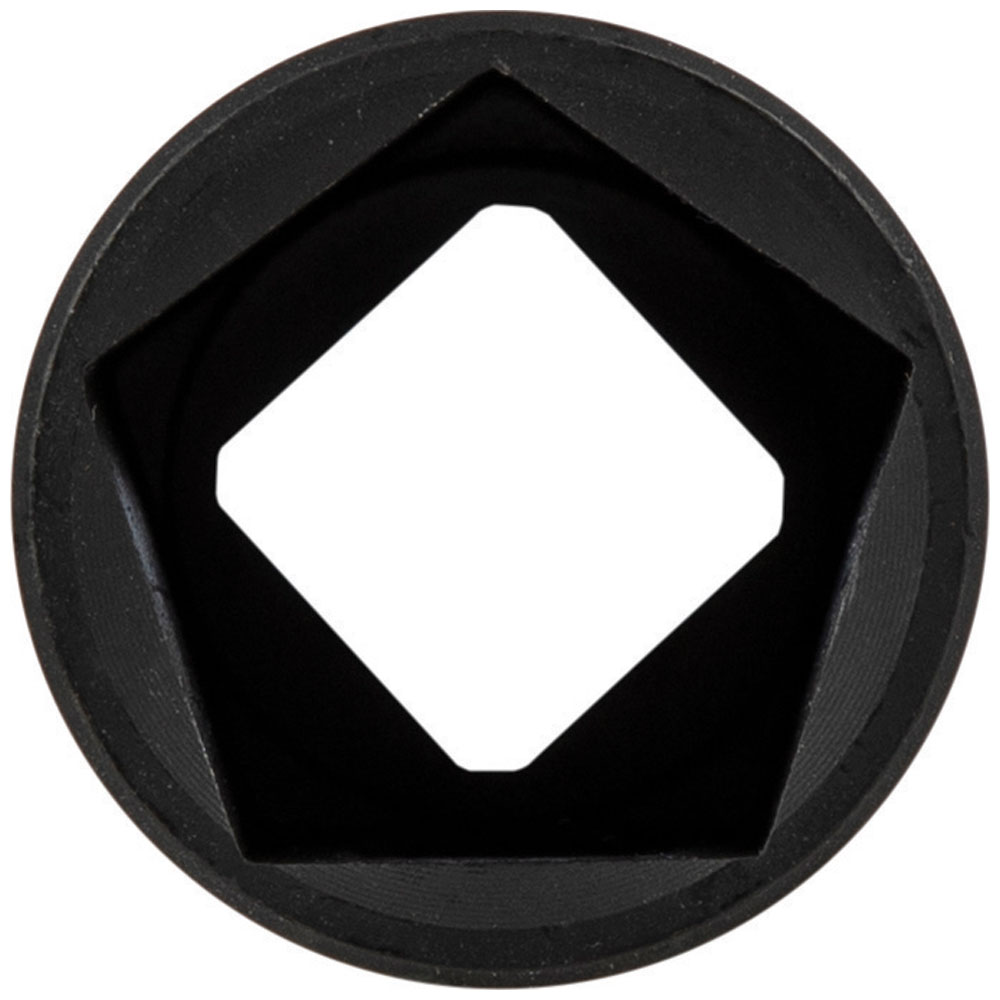

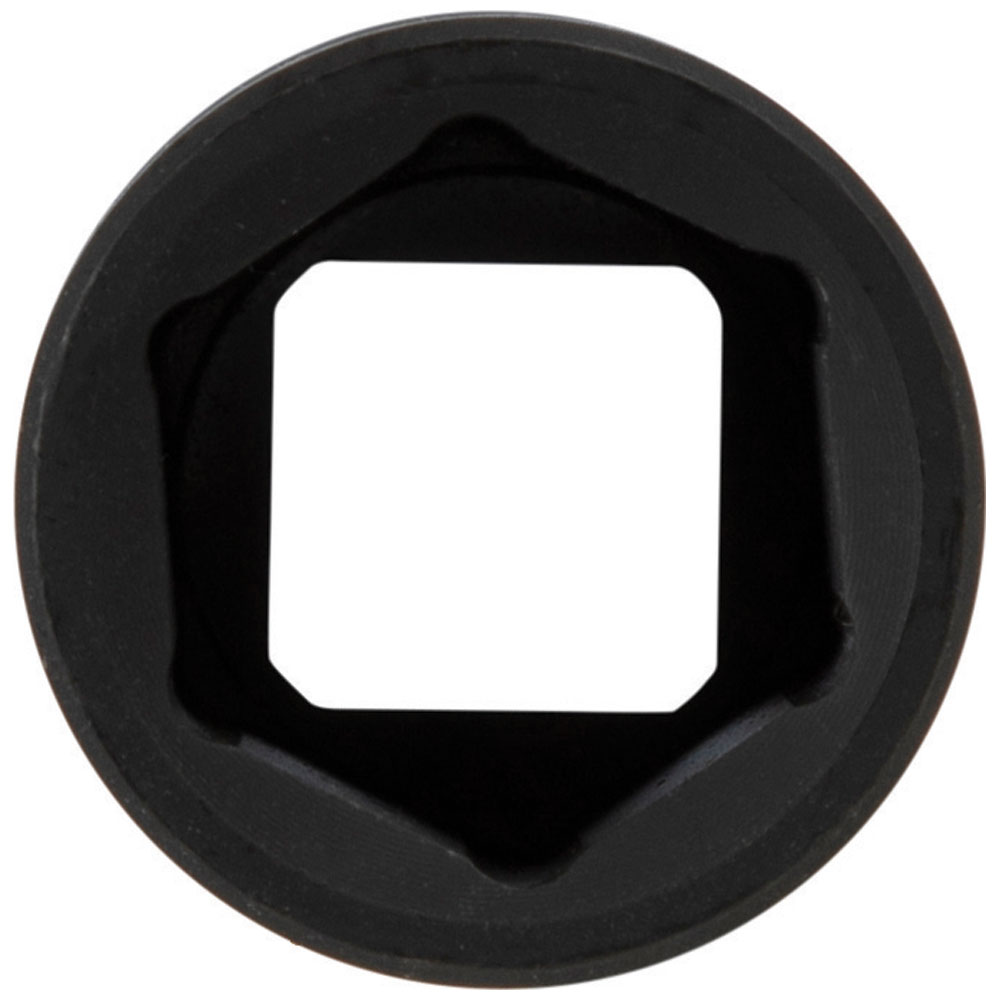

• 5-Point, 13/16-Inch Penta socket works with security bolts commonly used in underground distribution work
• Color coded to easily identify the size of the socket

Warnings

• Always wear approved eye protection.

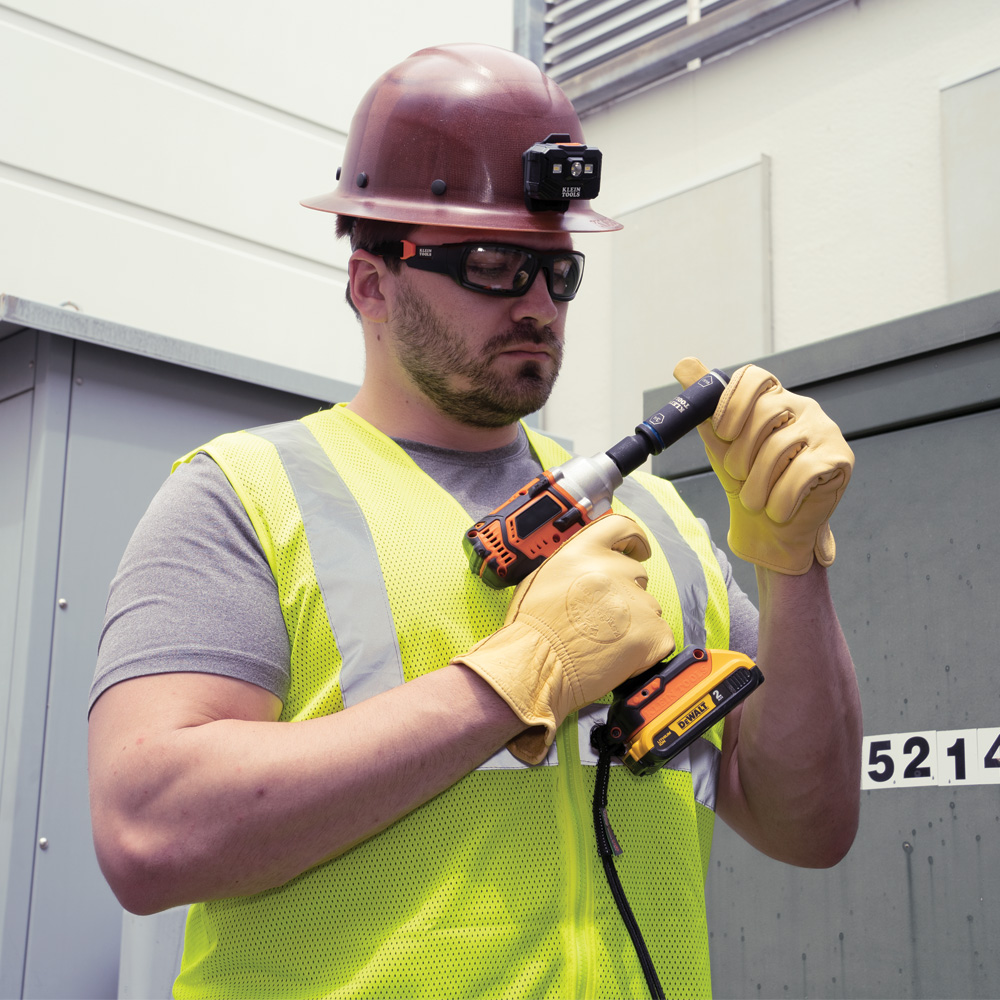

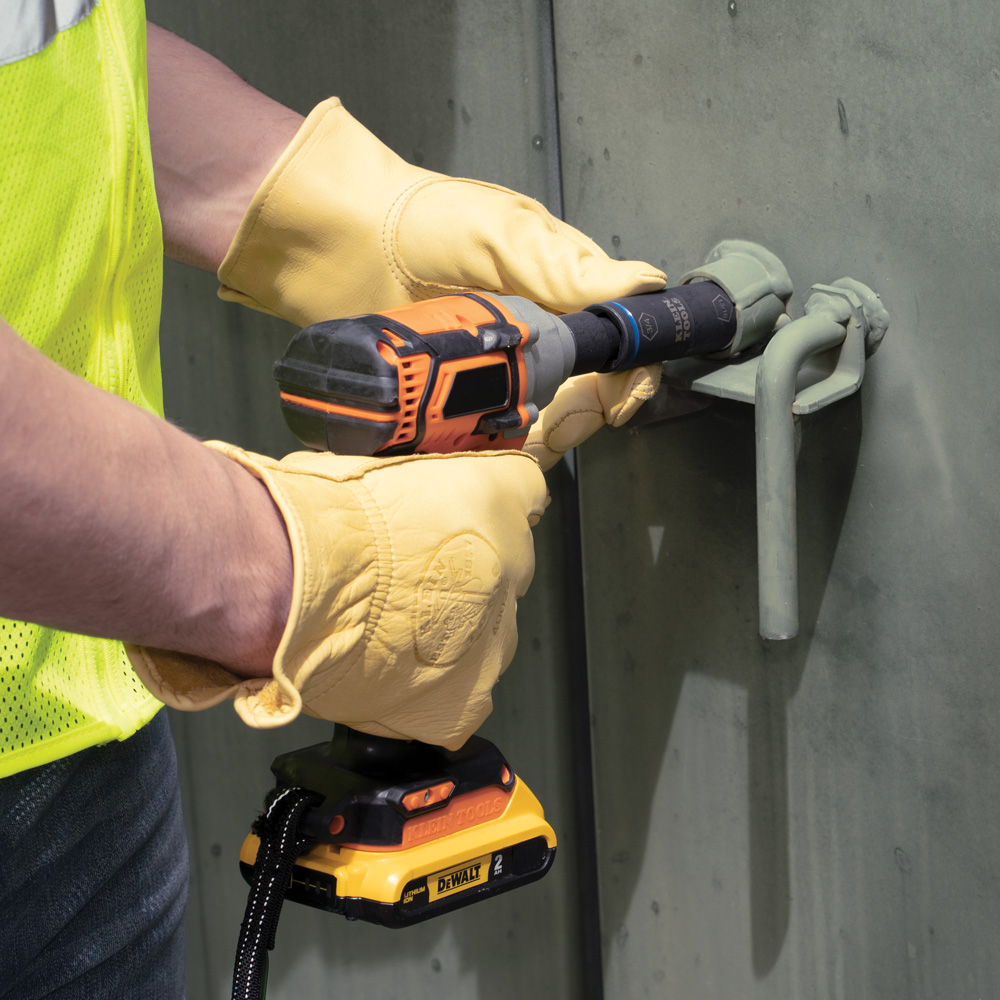

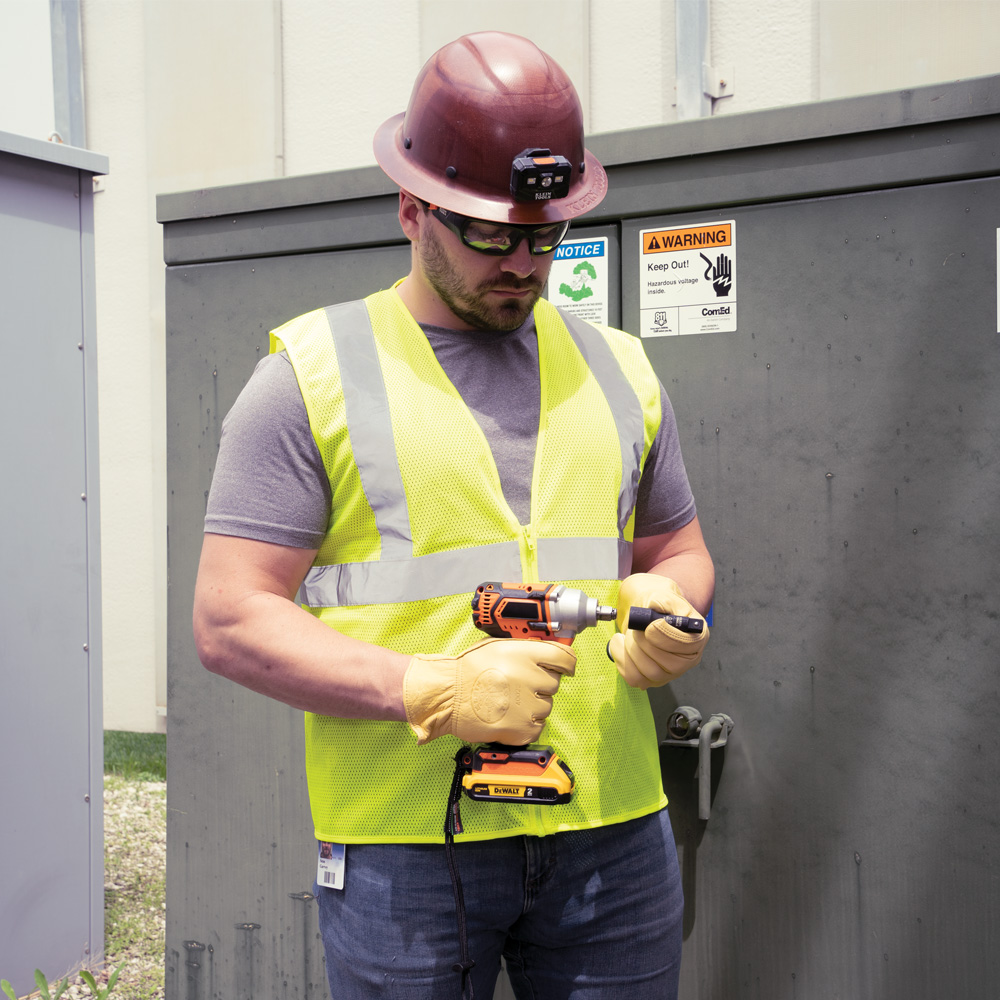

• Application: Pole Hardware Installation and Removal; Underground Distribution Work
• Drive Size: 1/2 in
• Socket Size: 13/16 in Penta, 3/4 in Hex
• Number of Points: 6
• Type: Impact Rated
• Material: 4140 Steel (66081), S2 Steel (X66078)
• Overall Height: 4.72 in (11.98 cm)
• Depth: 4.5 in
• Overall Width: 1.23 in (3.12 cm)
• Overall Length: 1.23 in (3.12 cm)
• Height: 1 in
• Width: 1 in
• Weight: 0.77 lbs
• Standard: ASME B107.17M / B107.4
• Material Finish: Black manganese phosphate
• Socket Type: Flip Socket, Deep Well
• Feature: Ball detent prevents unintentional separation
• Color Coding: Socket size identification
