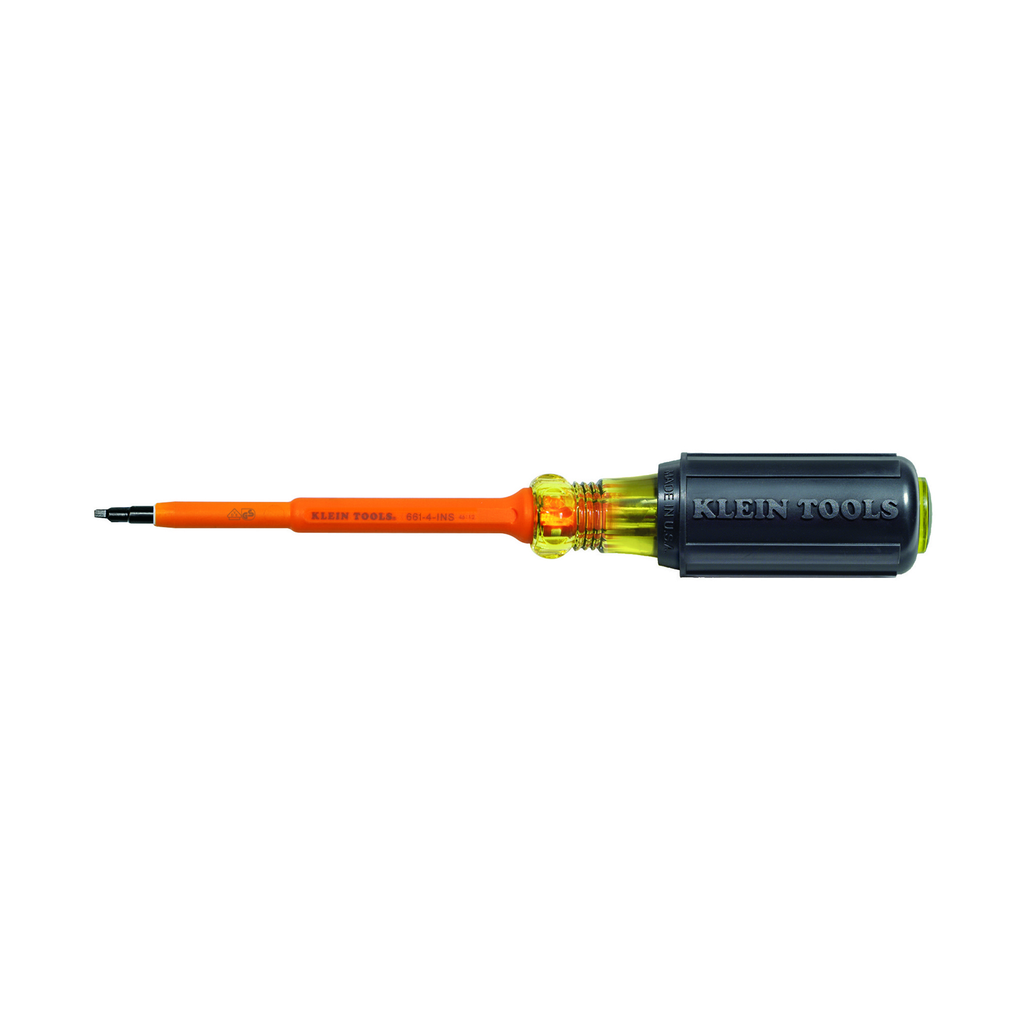

Insulated Screwdriver, #1 Square, 4-Inch Round Shank

Klein insulated tools combine excellent functionality along with reduction of risk of injury where a tool might make contact with an energized source with voltage up to 1000 volts. Two layers of insulation provide protection against electric shock. Clearly marked with the official 1000-volt rating symbol. Round shank with square-recess tip.

Features

• Cushion-Grip™ handle for greater torque and comfort
• Durable two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Custom US-made steel tool
• This item replaces the 665-INS
• 1000V Rated for safety
• Made in the USA
• Flame Retardant and Impact Resistant Handle

Warnings

• Do NOT use to pry or chisel.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Wear approved eye protection.

Specifications

• Application: For Work Near Energized Sources
• Tip Type: Square
• Standard: IEC 60900 and ASTM F1505
• Tip Size: #1
• Type: Recessed
• Handle Color: Black
• Width: 1.0000 in
• Material: Induction Hardened Steel
• Weight (oz): 3.2
• Overall Length (cm): 21.1
• Weight: 0.2000 lbs
• Shank Length: 4" (10.2 cm)
• Shank Type: Round
• Height: 1.0000 in
• Overall Length (Inch): 8.313
• Depth: 8.3130 in
• Insulated: Yes
• Magnetic: No
• Weight (g): 91
• Color Code: Green
• Handle Material: High-Dielectric Plastic
