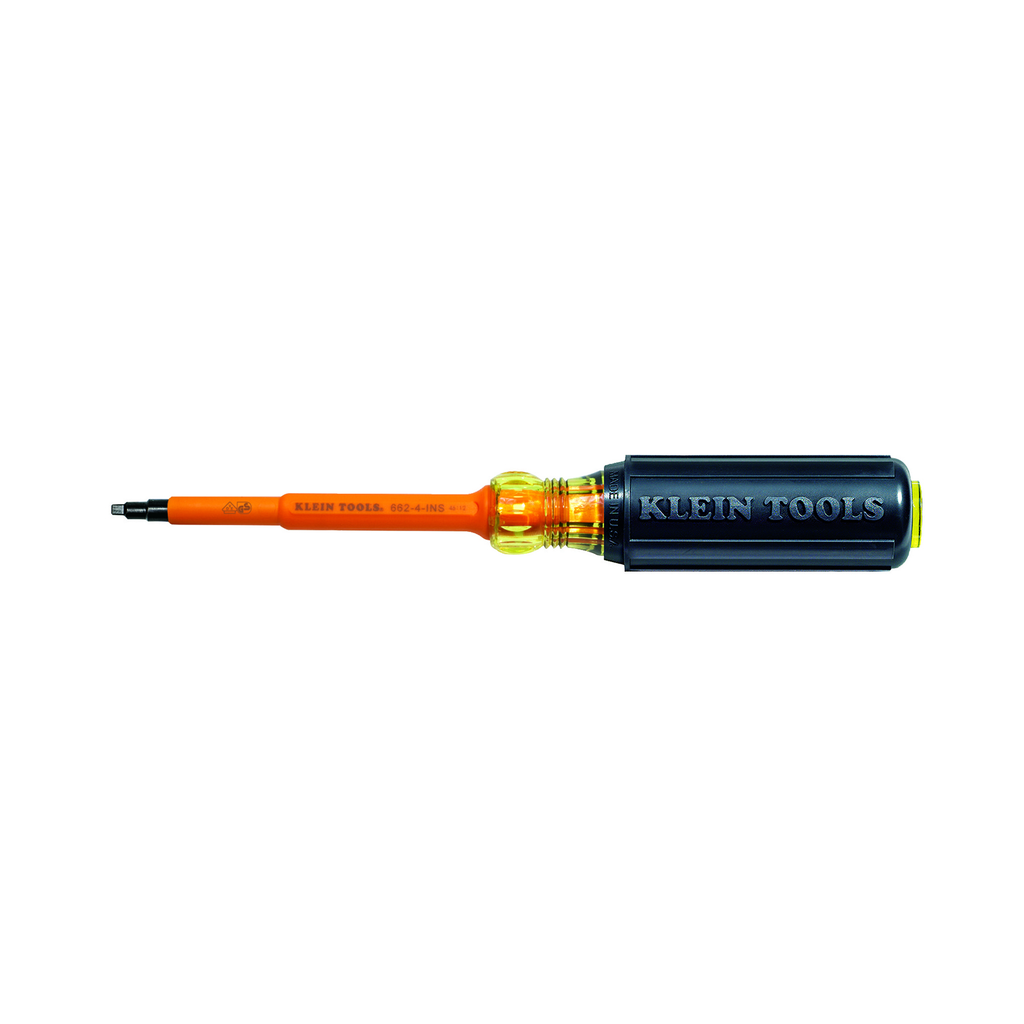

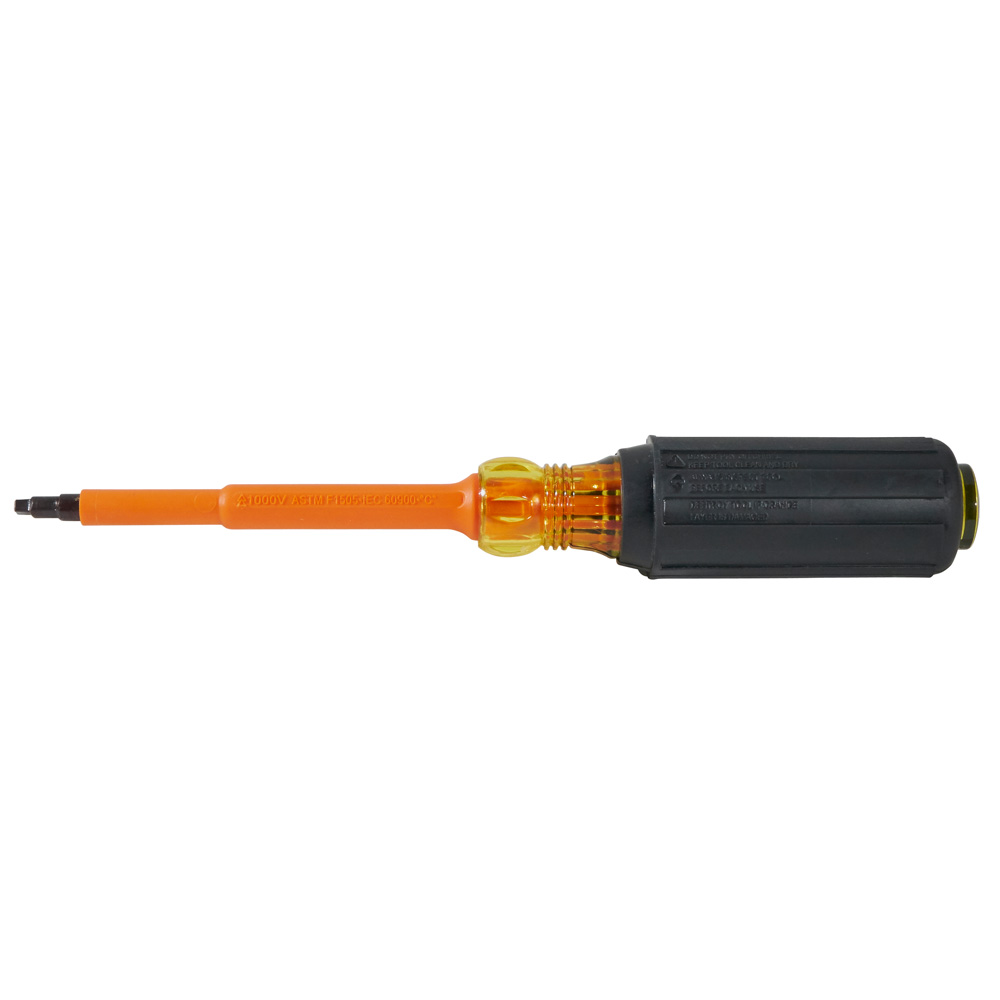

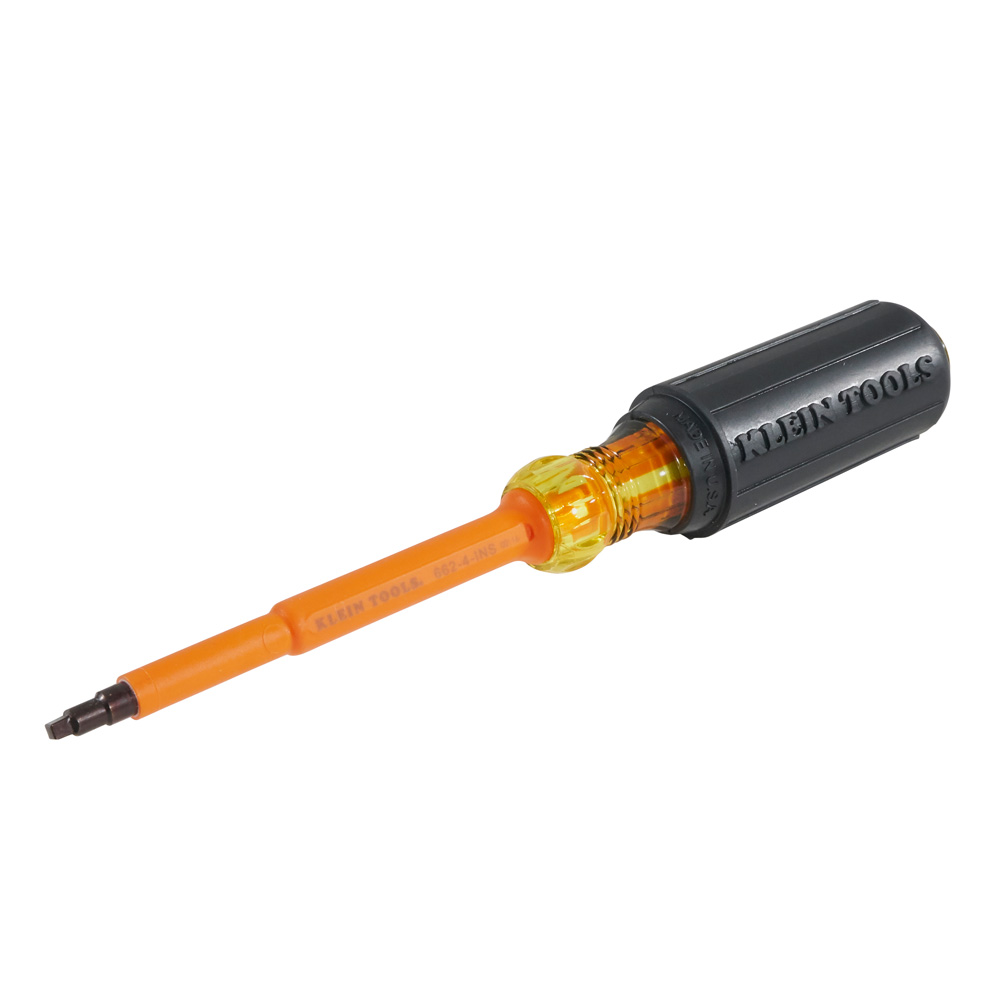

Insulated Screwdriver, #2 Square, 4-Inch Round Shank

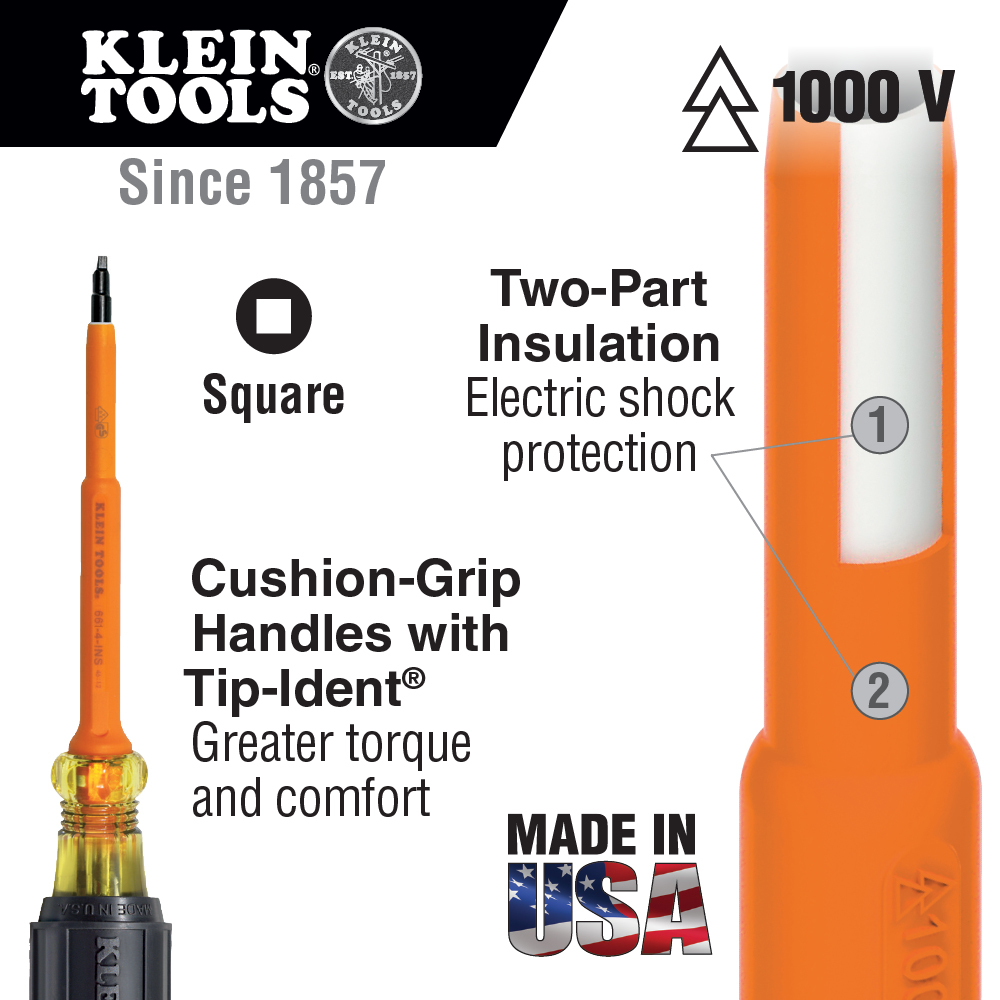

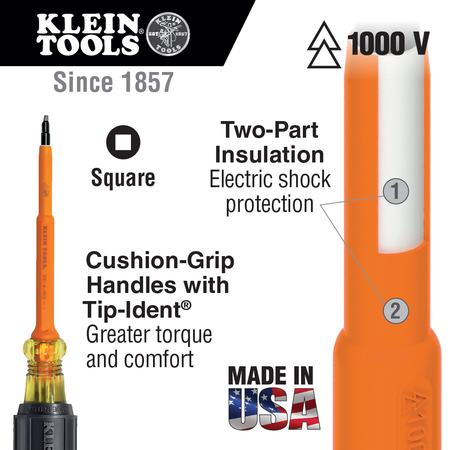

Klein insulated tools combine excellent functionality along with reduction of risk of injury where a tool might make contact with an energized source with voltage up to 1000 volts. Two layers of insulation provide protection against electric shock. Clearly marked with the official 1000-volt rating symbol. Round shank with square-recess tip.

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Wear approved eye protection.
• Do NOT use to pry or chisel.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

Features

• Made in the USA
• Cushion-Grip™ handle for greater torque and comfort
• Durable flame-retardant, molded dual-layer insulation meets or exceeds all ASTM and IEC standards for insulated tools
• Flame Retardant and Impact Resistant Handle
• Custom US-made steel tool
• 1000V rated for safety
• This item replaces the 666-INS

Specifications

• Handle Material: High-Dielectric Plastic
• Handle Color: Black
• Application: For Work Near Energized Sources
• Overall Length (Inch): 8.313
• Standard: IEC 60900 and ASTM F1505
• Handle Type: Cushion-Grip™
• Weight (g): 91
• Type: Recessed
• Height: 1.0000 in
• Tip Size: #2
• Depth: 8.3130 in
• Material: Induction Hardened Steel
• Magnetic: No
• Tip Type: Square
• Overall Length (cm): 21.1
• Color Code: Red
• Shank Length: 4" (10.2 cm)
• Handle Length (Inch): 4
• Width: 1.0000 in
• Weight: 0.2000 lbs
• Shank Type: Round
• Weight (oz): 3.2
• Handle Length (cm): 10.2
• Insulated: Yes
