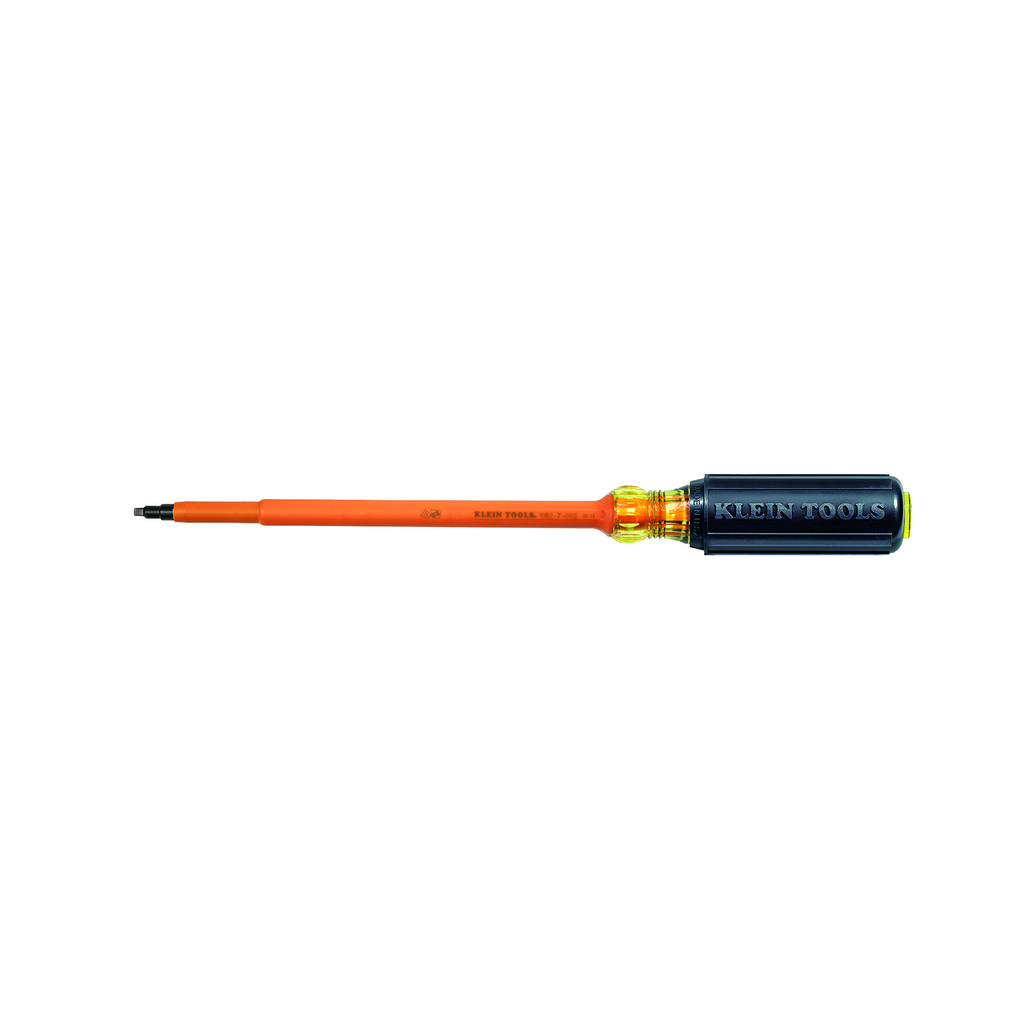

Insulated Screwdriver, #2 Square, 7-Inch Round Shank

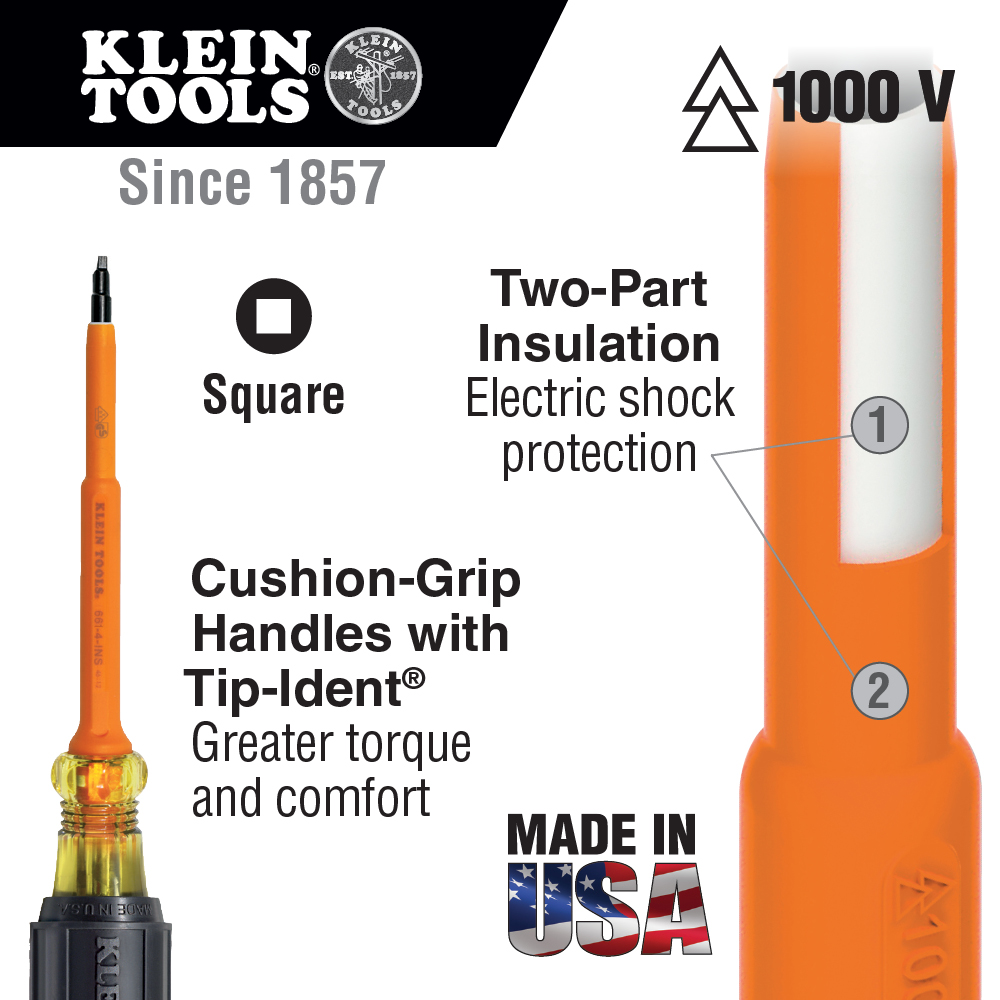

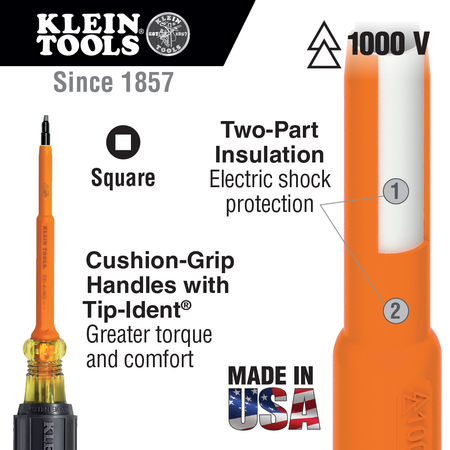

Klein insulated tools combine excellent functionality along with reduction of risk of injury where a tool might make contact with an energized source with voltage up to 1000 volts. Two layers of insulation provide protection against electric shock. Clearly marked with the official 1000-volt rating symbol. Round shank with square-recess tip.

Warnings

• Wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Do NOT use to pry or chisel.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

Features

• Durable two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• 1000V Rated for safety
• Made in the USA
• Flame Retardant and Impact Resistant Handle
• Custom US-made steel tool
• Cushion-Grip™ handle for greater torque and comfort

Specifications

• Weight: 0.2000 lbs
• Weight (oz): 3.2
• Shank Length: 7" (17.8 cm)
• Application: For Work Near Energized Sources
• Standard: IEC 60900 and ASTM F1505
• Handle Material: High-Dielectric Plastic
• Overall Length (Inch): 11.313
• Tip Type: Square
• Shank Type: Round
• Magnetic: No
• Insulated: Yes
• Overall Length (cm): 28.7
• Handle Color: Black
• Material: Induction Hardened Steel
• Color Code: Red
• Height: 1.0000 in
• Depth: 11.3130 in
• Tip Size: #2
• Weight (g): 91
• Width: 1.0000 in
• Type: Recessed
