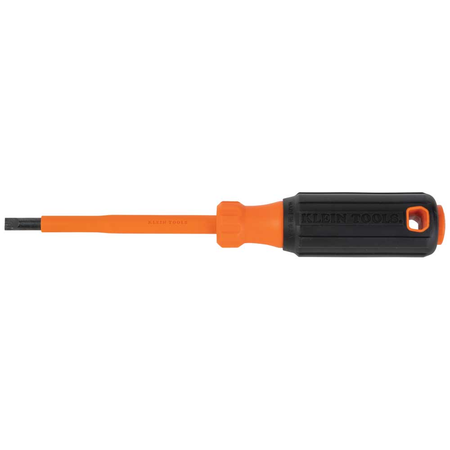

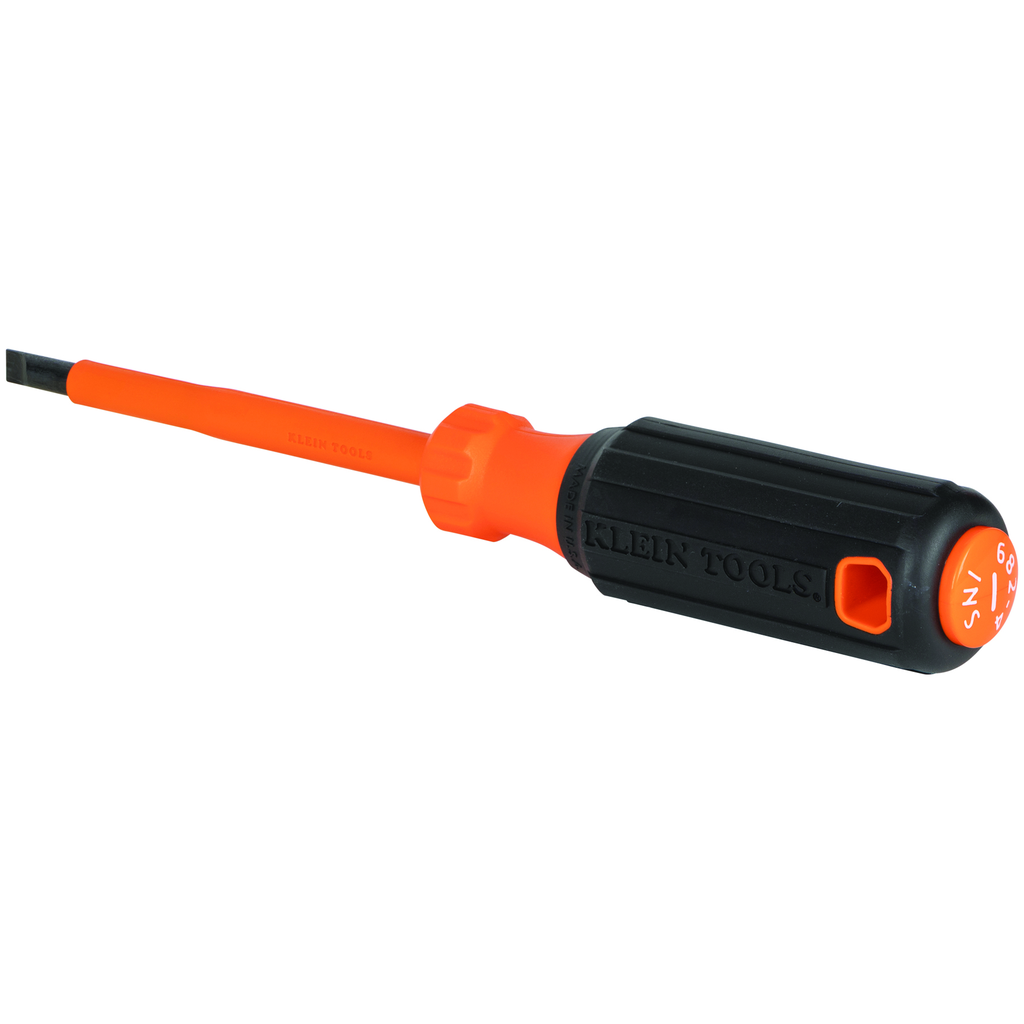

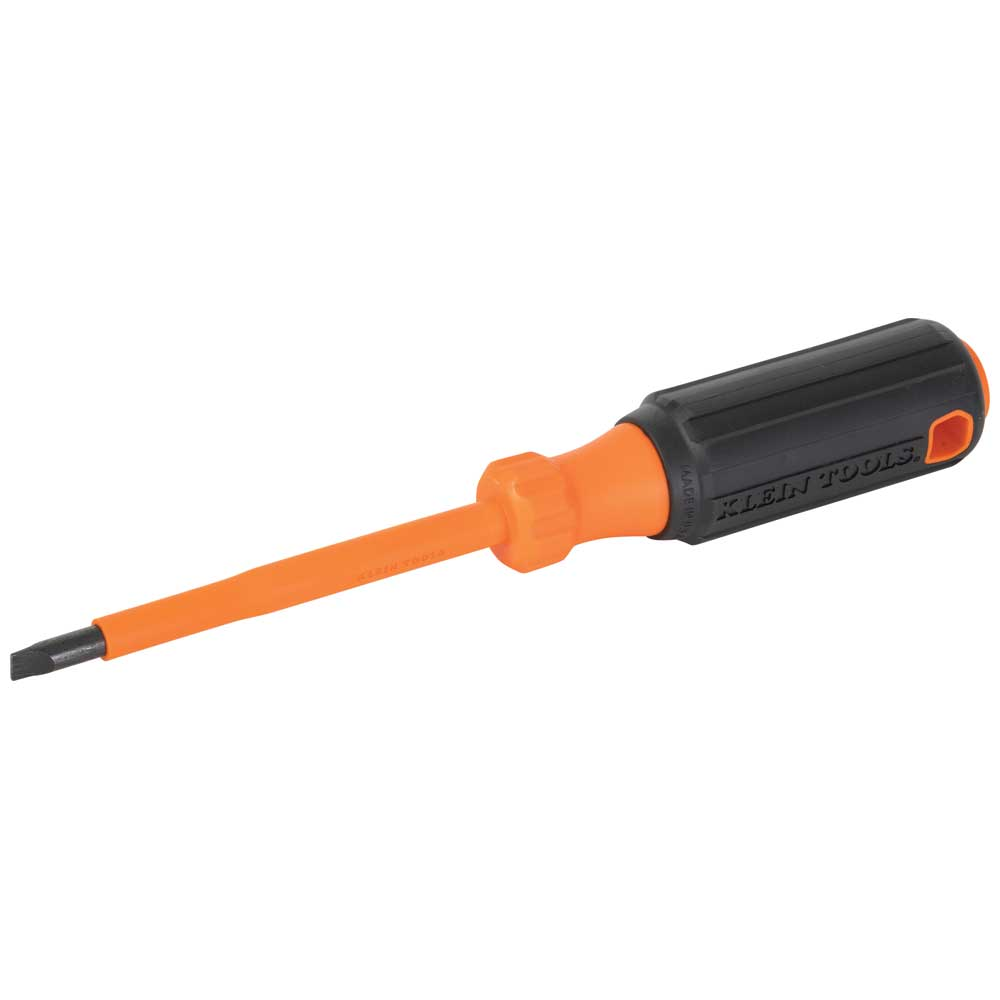

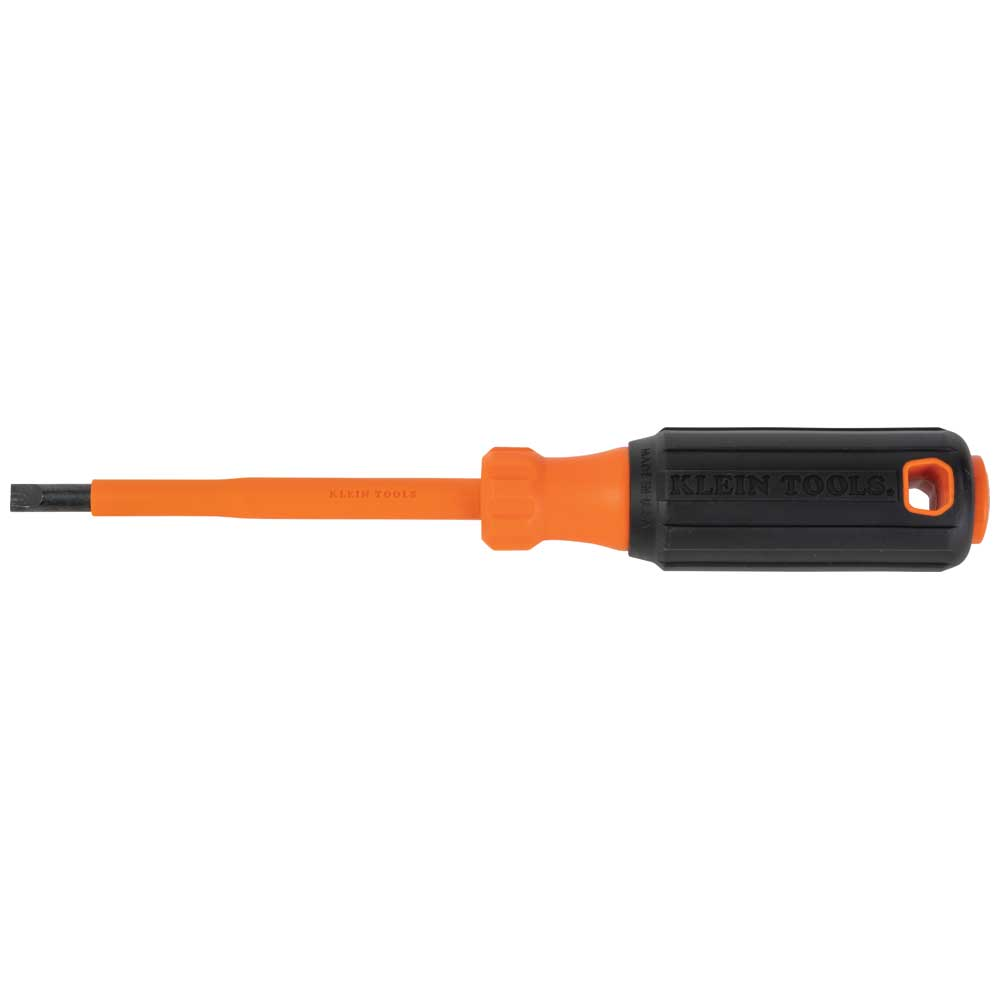

Insulated Screwdriver, 1/4-Inch Cabinet, 4-Inch Round Shank

Klein Tools' Insulated Screwdrivers feature a bright orange coating of flame and impact resistant insulation to protect against electrical shock. These tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000V rating symbol. The tether hole in the handle provides added safety when working at height. Available in 4-Inch and 6-Inch round shanks with a variety of tips.

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.

Features

• Flame Retardant and Impact Resistant Handle

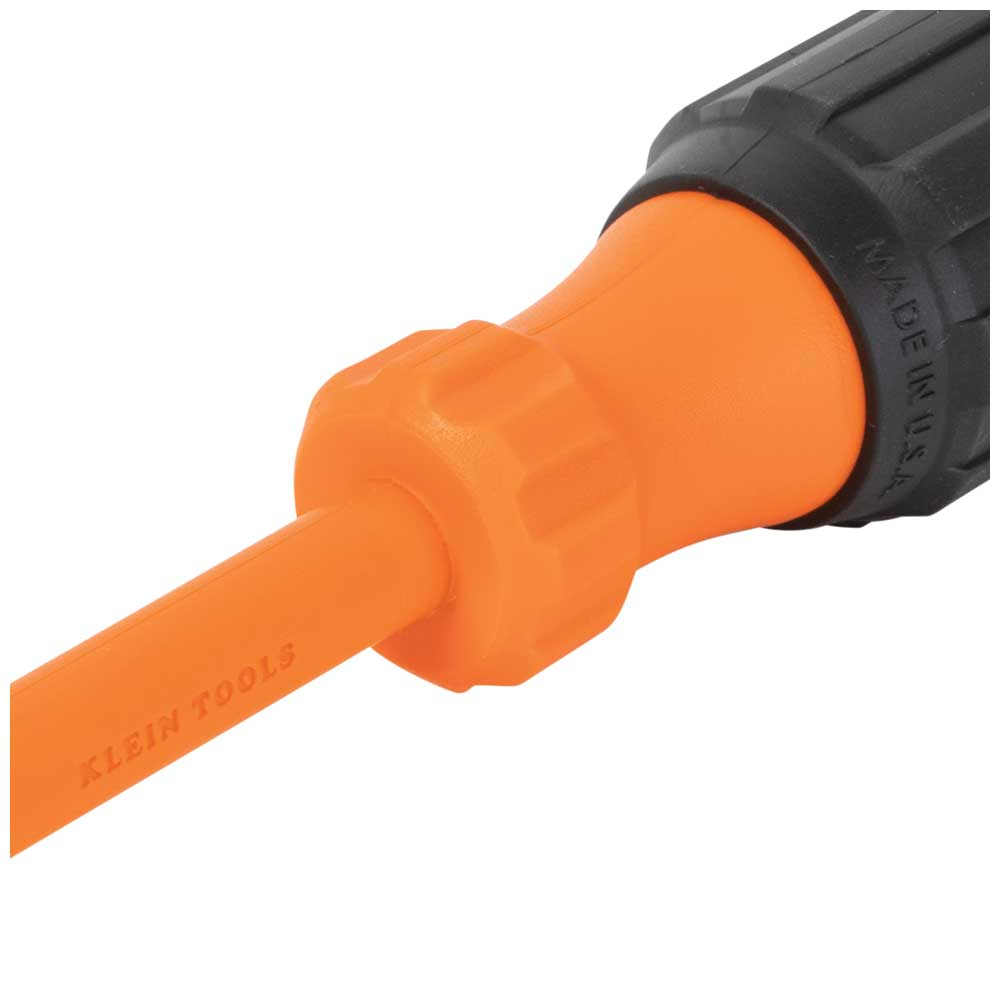

• 1000V rated screwdriver features a layer of bright orange impact and flame resistant insulation to protect from electrical shock
• Cushion-Grip™ handle for greater torque and comfort

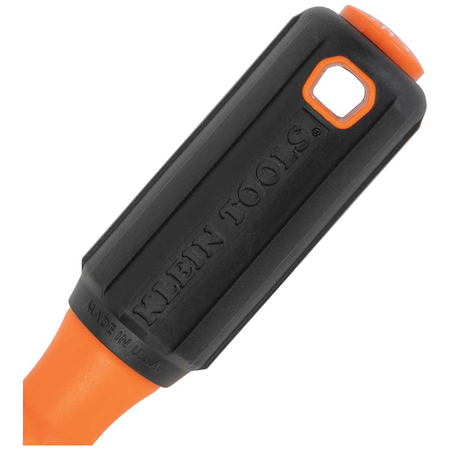

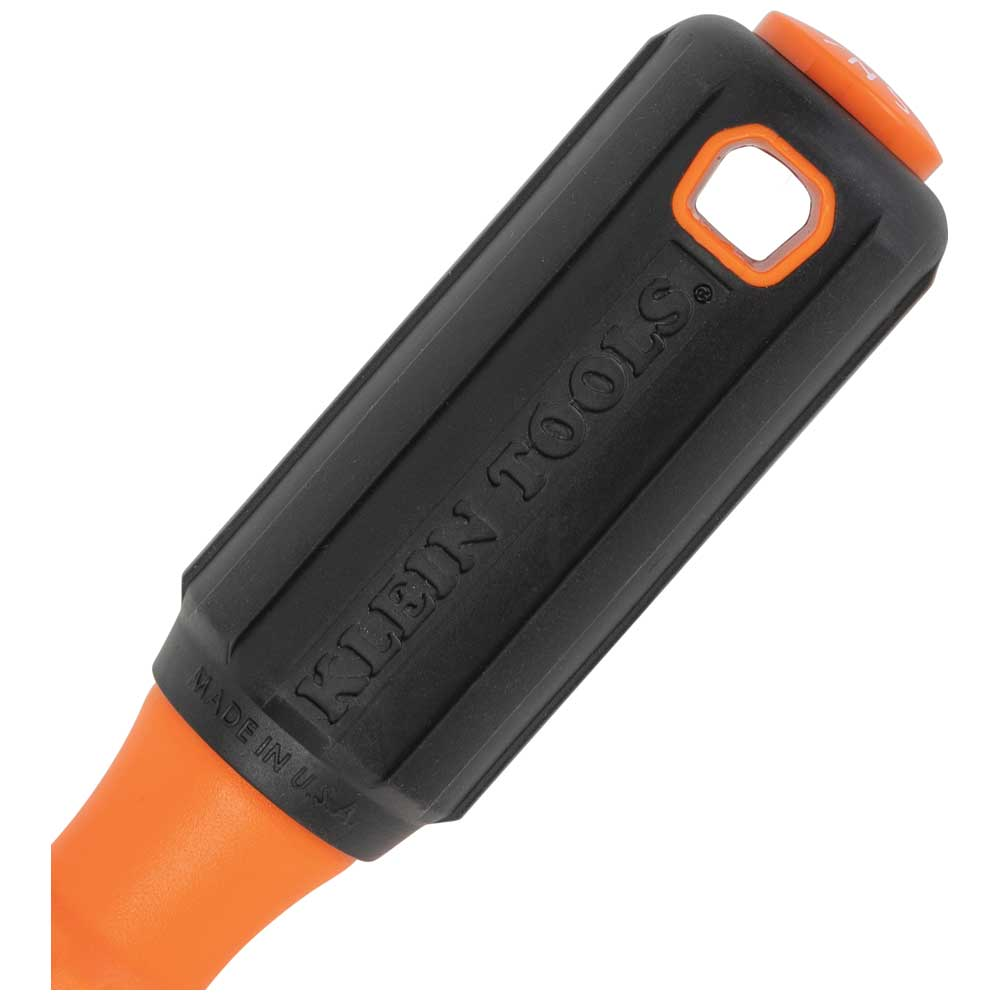

• Tether hole for added safety when working at height
• Made in the USA
• Meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018

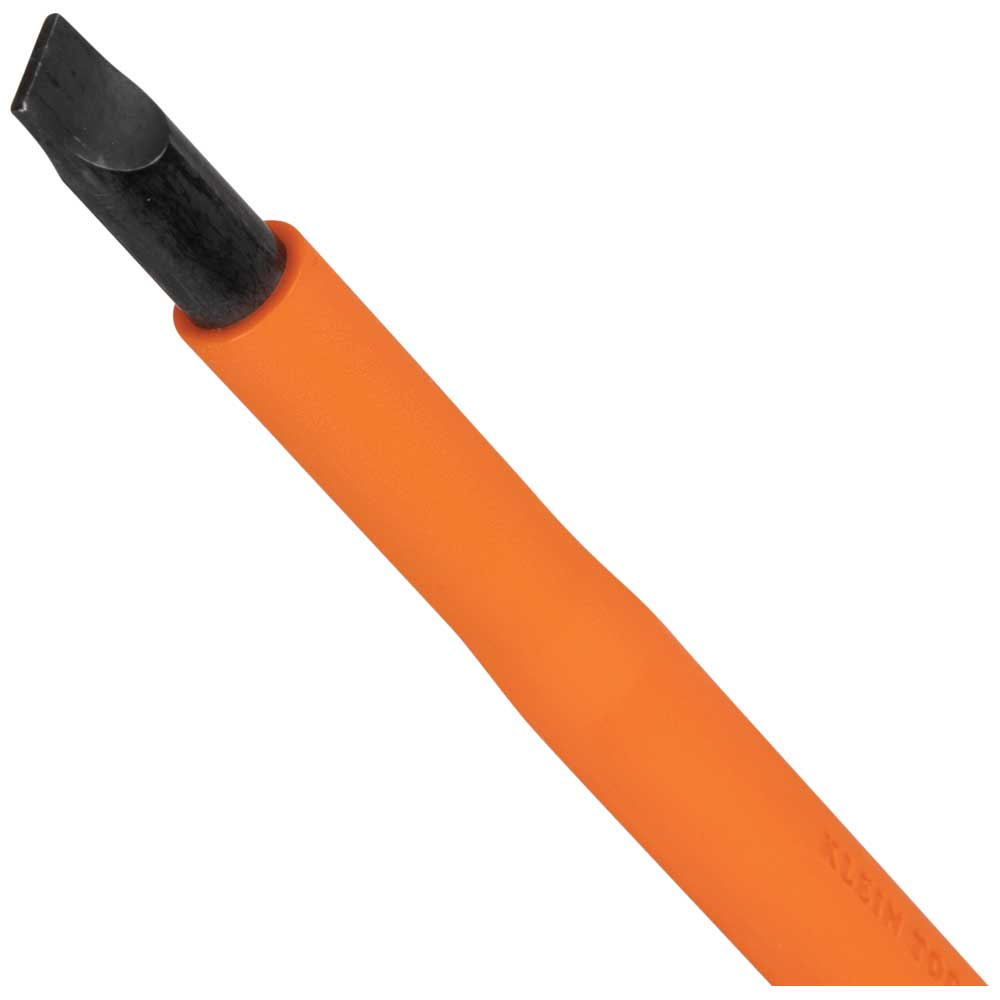

• Insulated screwdriver features 4-Inch (10 cm) round shank with 1/4-Inch Cabinet tip

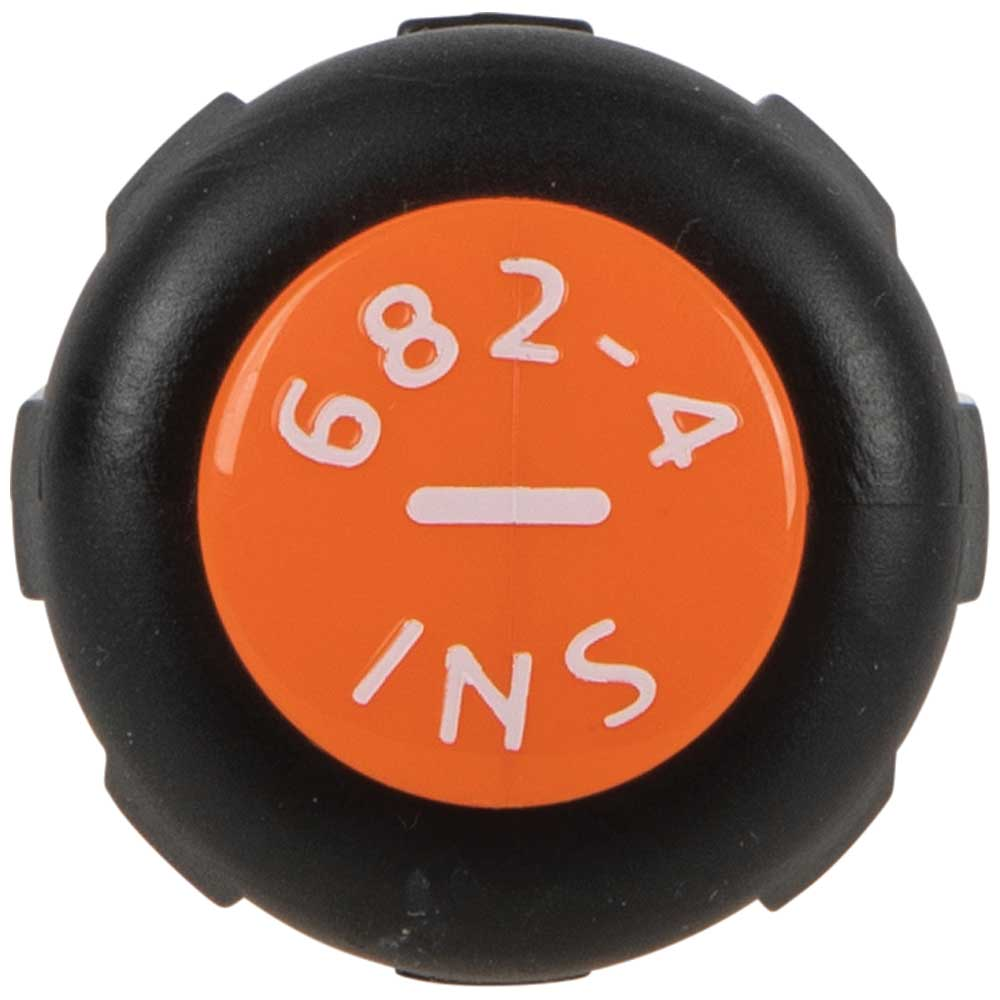

• Tip-Ident® quickly identifies the screwdriver tip orientation so you can easily engage the screwdriver tip with the screw

Specifications

• Magnetic: No
• Handle Length (Inch): 4.31
• Overall Length (cm): 21.1
• Standard: ASTM F1505-16(2021)
• Color Code: Orange
• Overall Height (cm): 21.1
• Overall Height (Inch): 8.32
• Handle Diameter: 1.24" (3.2 cm)
• Width: 1.2500 in
• Handle Color: Black
• Height: 1.2500 in
• Tip Size: 1/4"
• Insulated: Yes
• Shank Length: 4" (10.2 cm)
• Weight: 0.1500 lbs
• Handle Material: Plastic
• Overall Width (cm): 3.1
• Weight (oz): 3.2
• Overall Length (Inch): 8.32
• Weight (g): 91
• Depth: 8.2500 in
• Tip Type: Cabinet
• Handle Length (cm): 10.9
• Shank Type: Round
• Overall Width (Inch): 1.24

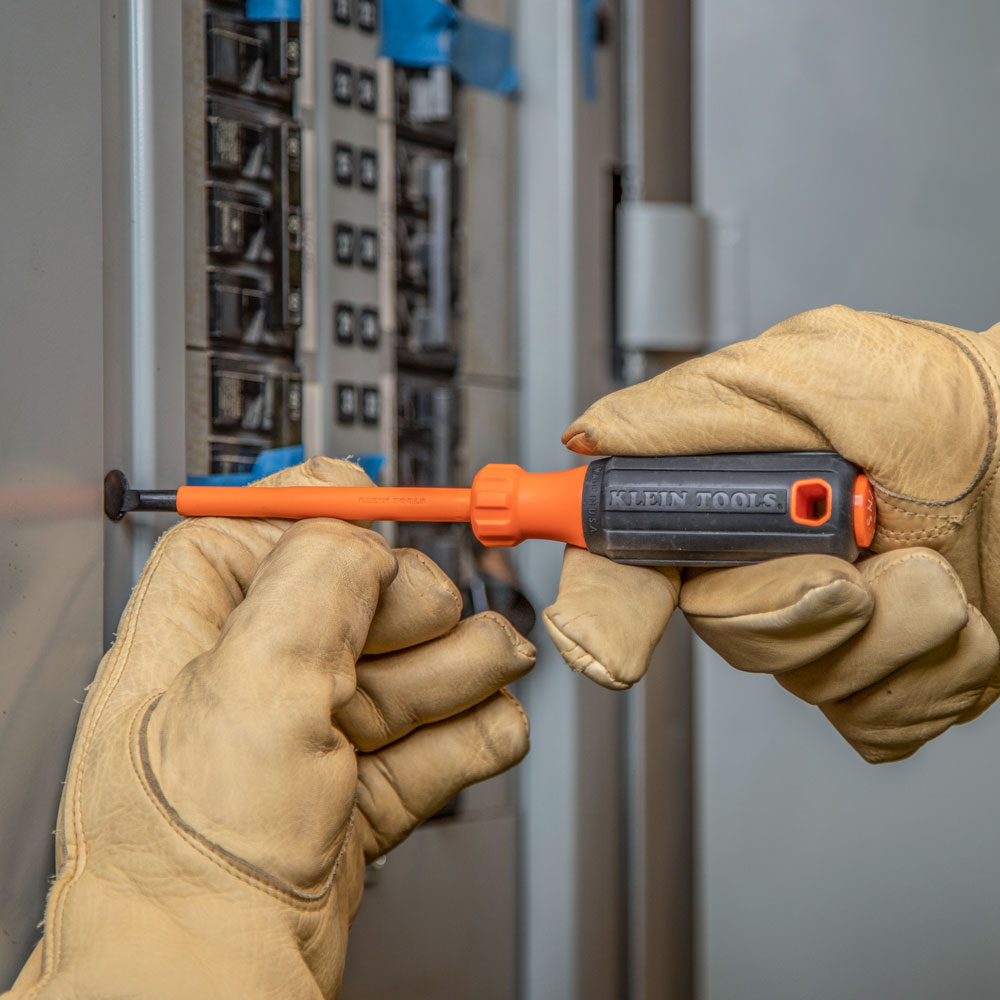

• Application: For Work Near Energized Sources
• Type: Driver
• Material: Steel, Plastic
