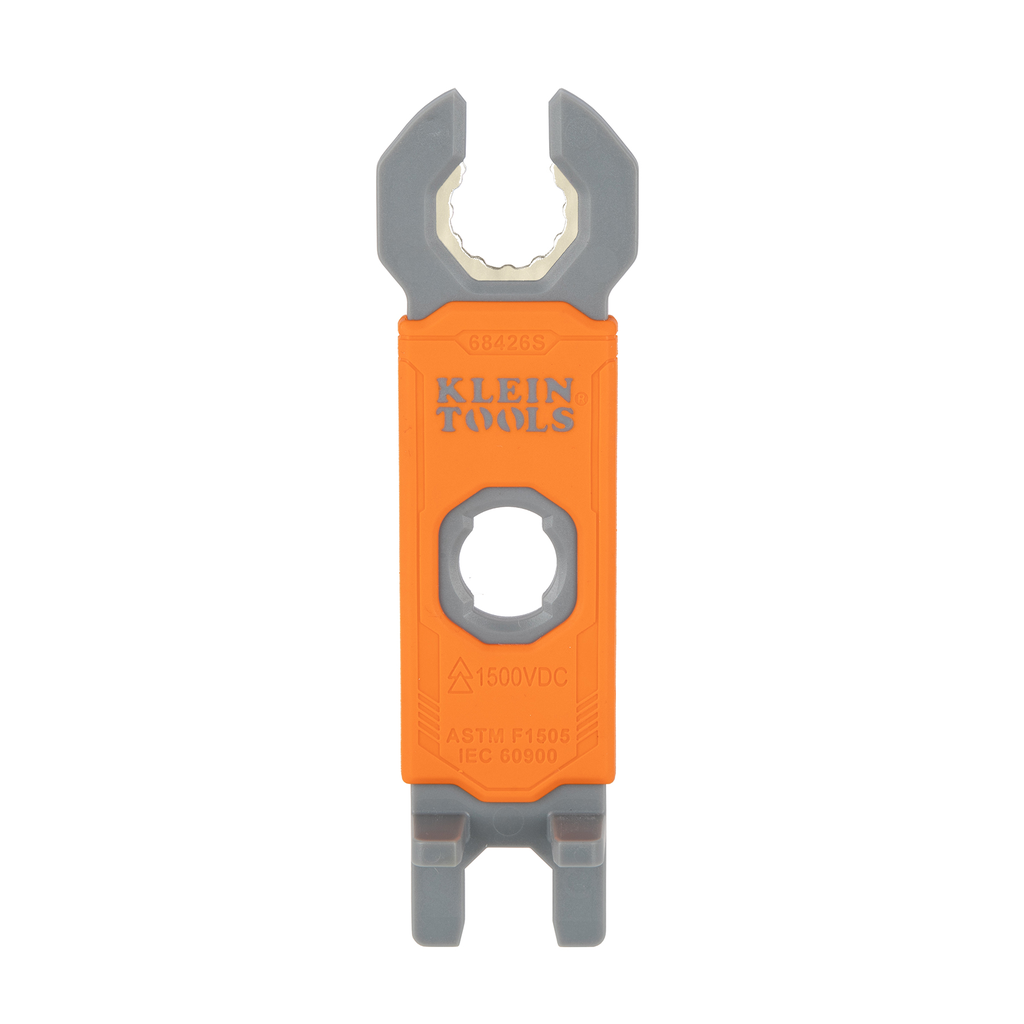

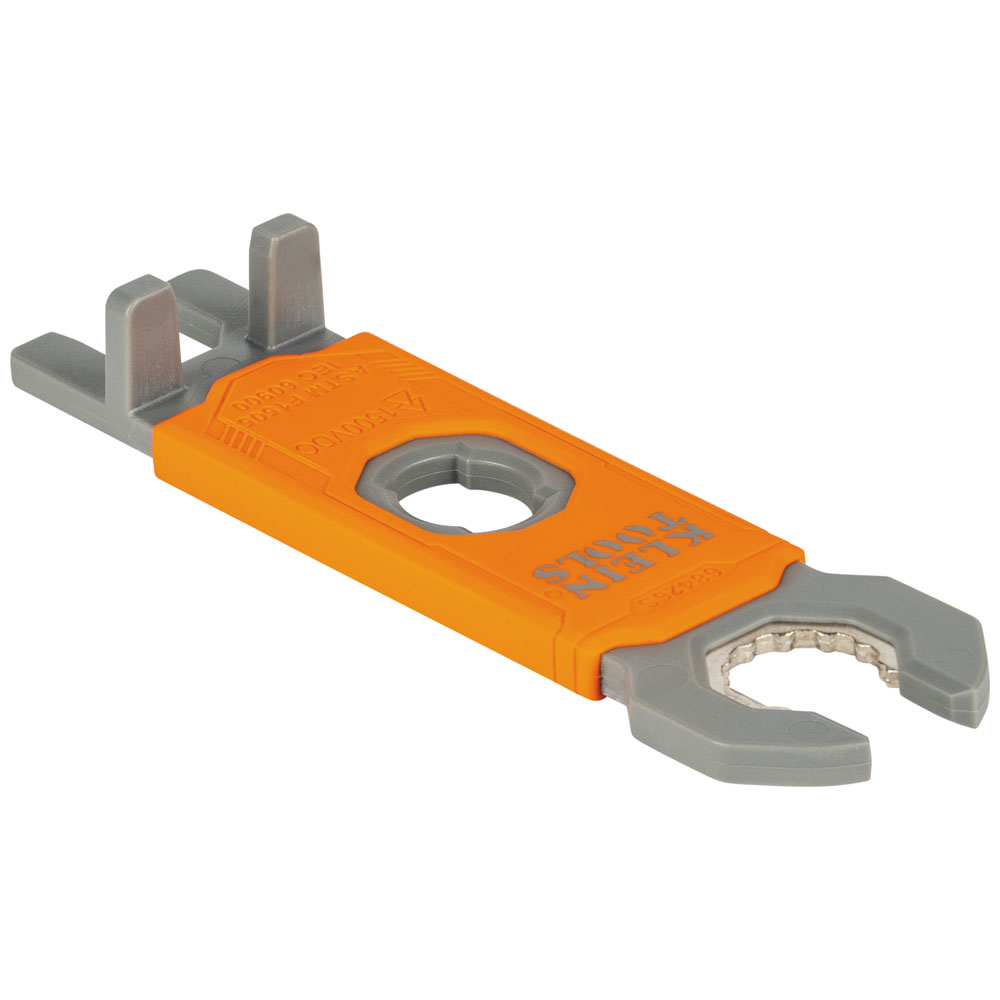

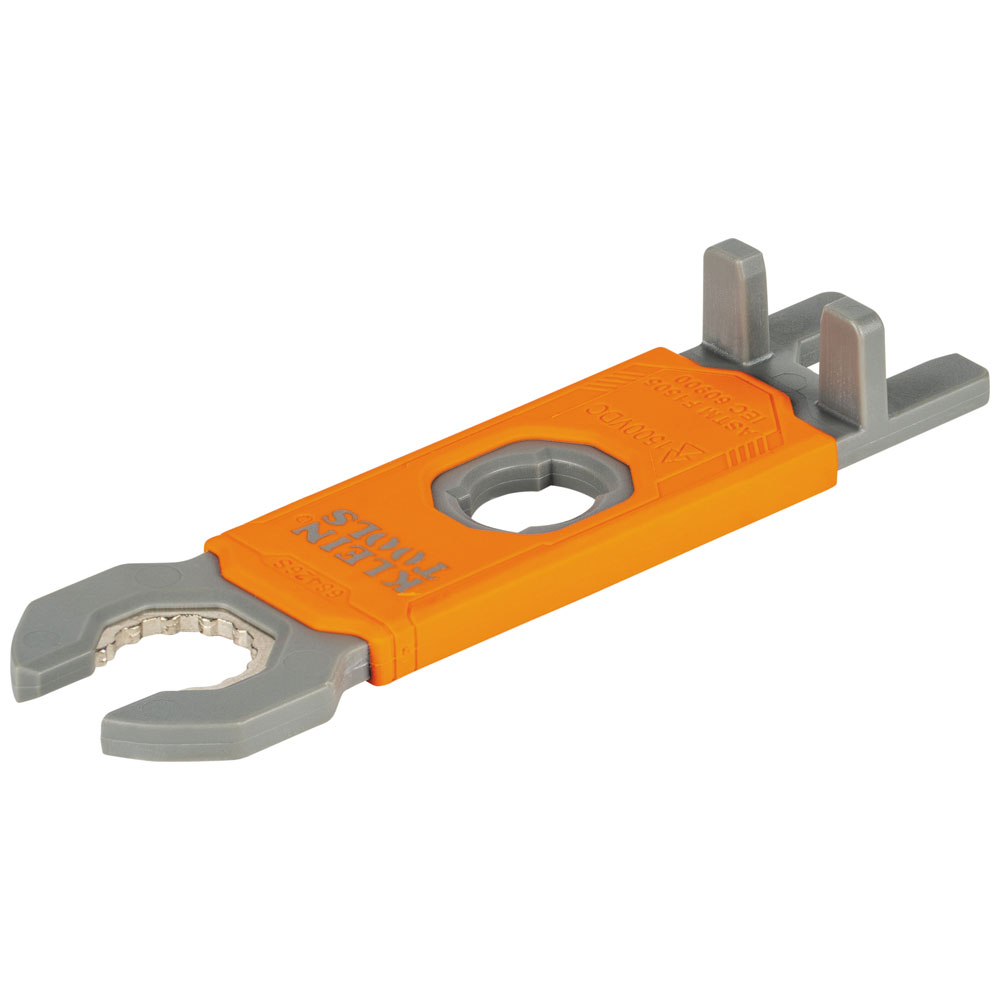

Solar Insulating Wrench for MC4® Connectors

Klein Tools' Solar Insulating Wrench was designed for MC4® connectors. Durable steel inserts in wrench helps prevent warping. TPE overmold on the tool for extra comfort while on the jobsite.

Warnings

• DO NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always wear approved eye protection
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• See instruction manual for additional warnings
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.

Features

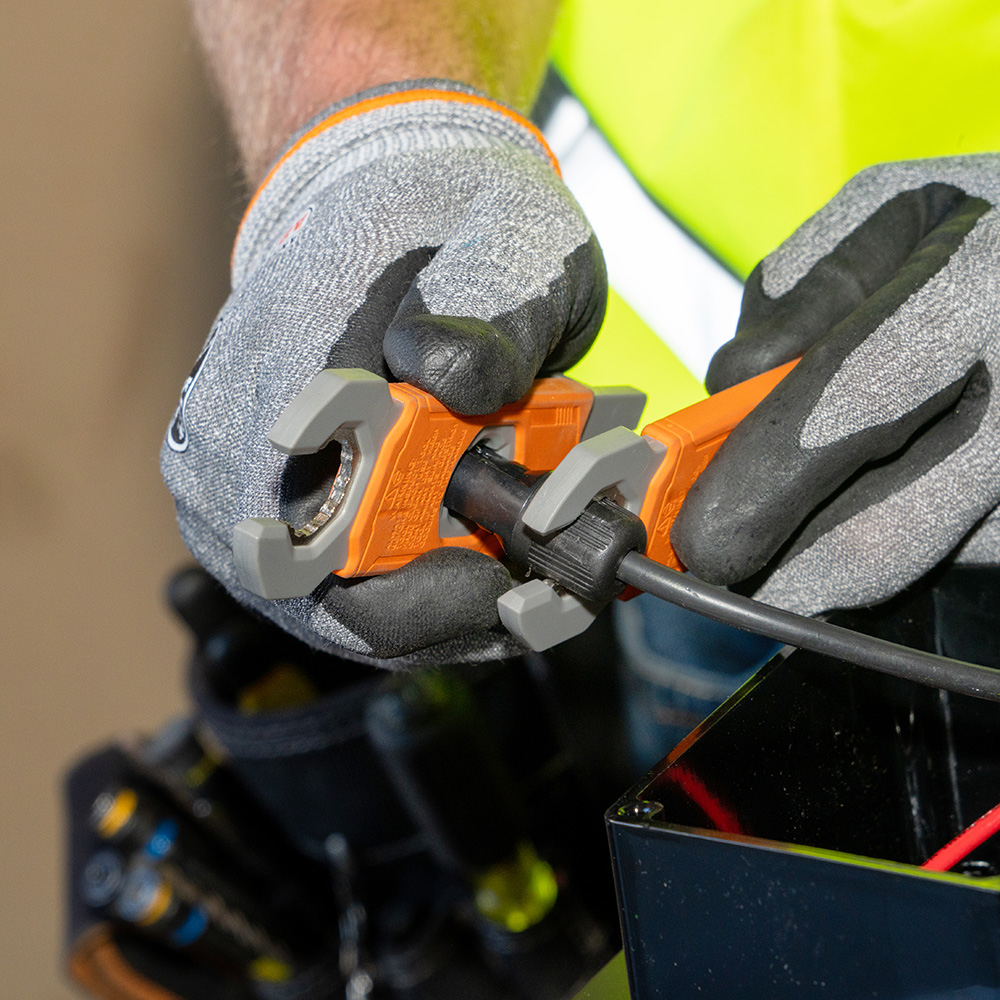

• Assembly and disassembly wrenches for MC4® style PV connectors
• Durable steel inserts prevent wrenches from warping over time

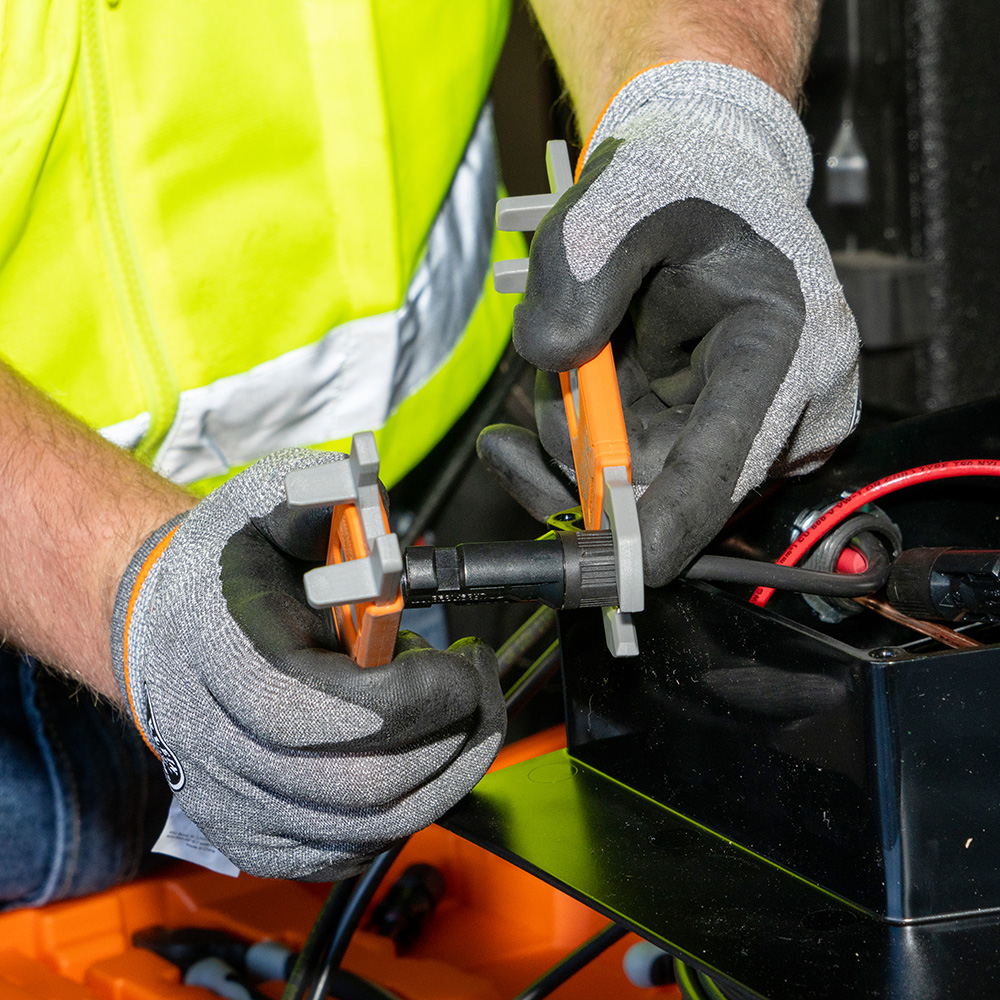

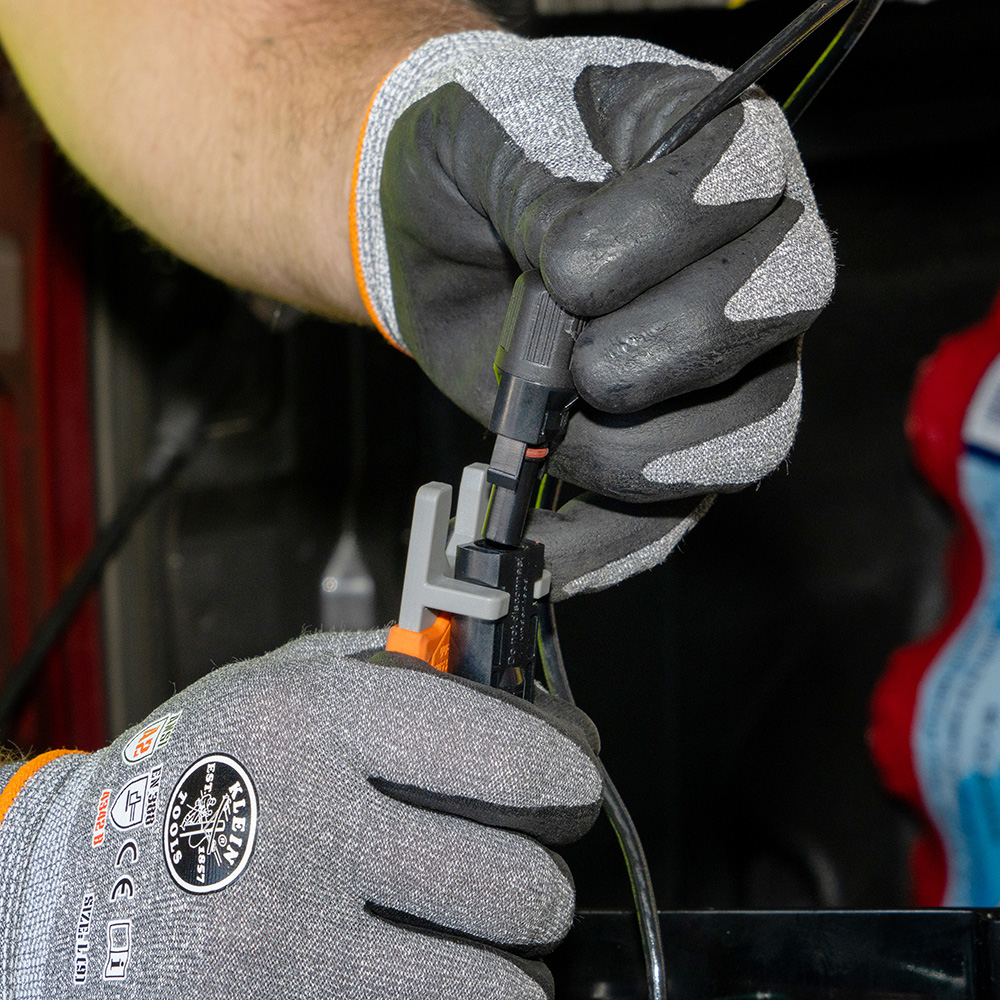

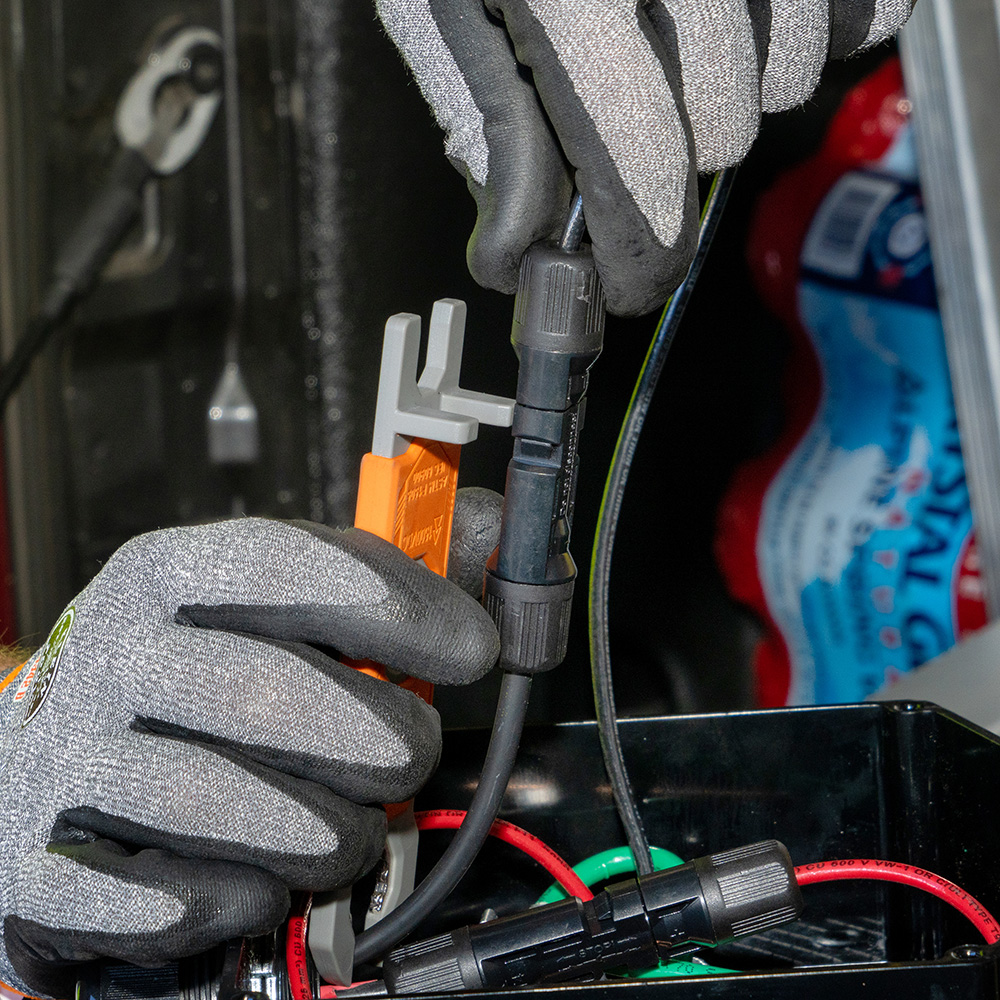

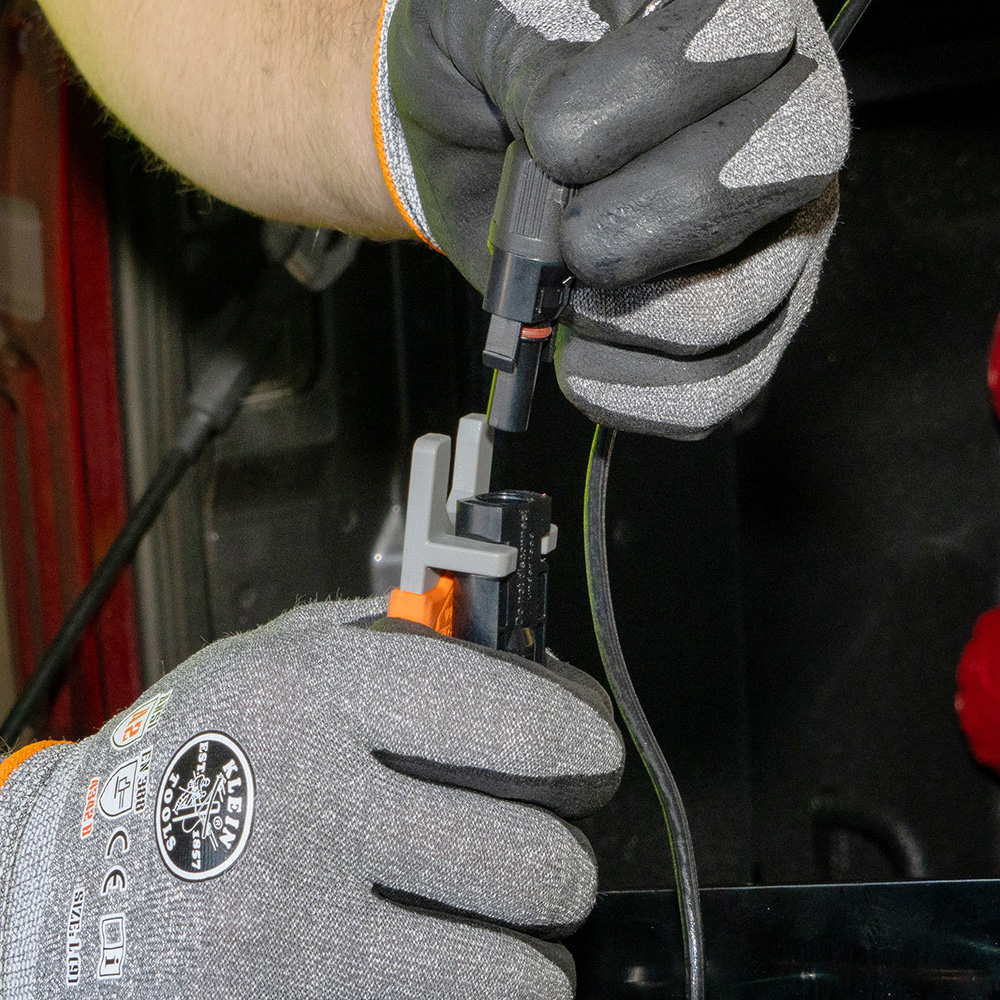

• Dual pins on each wrench for disassembling MC4® style connectors in tight spaces
• Non-marring center hole to hold pins steady during assembly
• TPE overmold provides added hand comfort

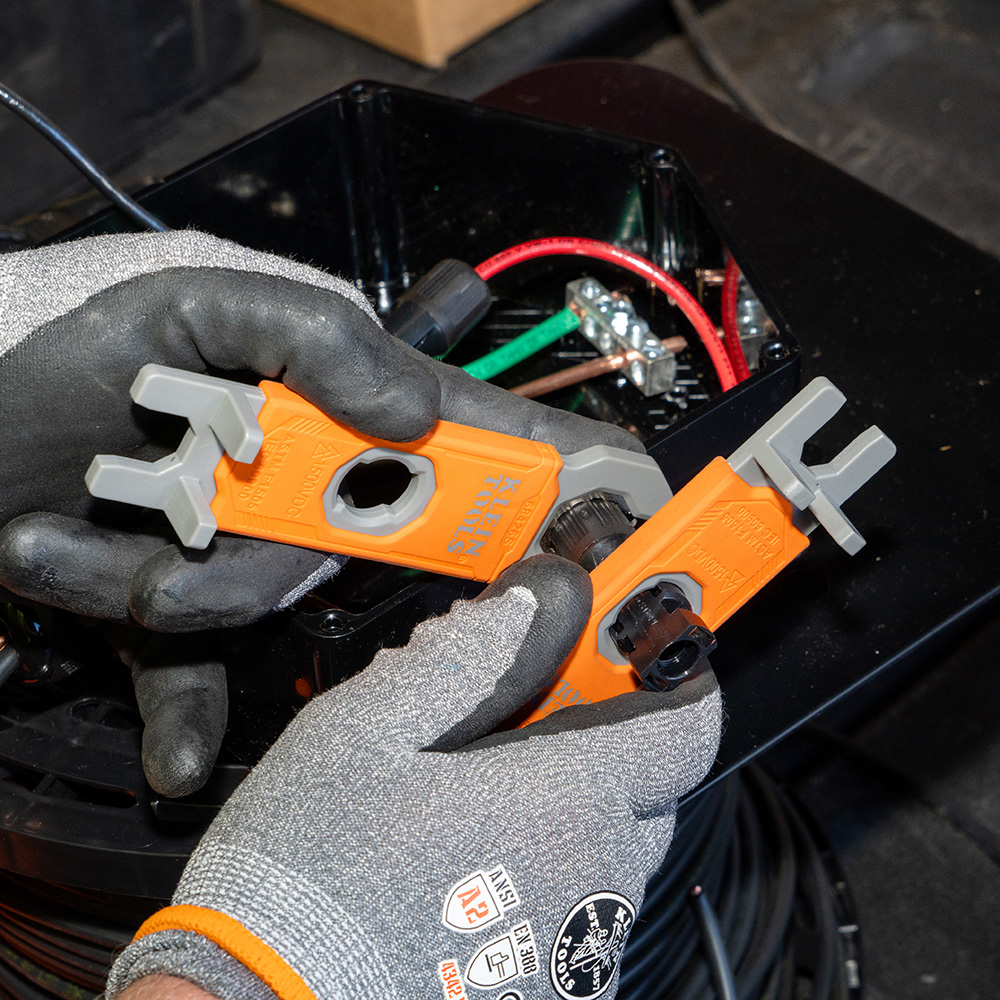

• 2-Piece pack for use as a pair
• 1500V DC rated insulation meets or exceeds IEC 60900:2018 and ASTM F1505-16(2021) standards for insulated tools to protect against electrical shock
• TPE Overmold, Durable Steel Inserts, Non-marring Center Hole

Specifications

• Width: 1.6800 in
• Overall Height (cm): 2.2
• Handle Length: 2.19" (5.6 cm)
• Overall Height (Inch): 0.86
• Standard: ASTM F1505
• Jaw Capacity (Inch): 0.71
• Weight (kg): 2.5
• Overall Width (cm): 4.3
• Handle Color: Orange Pantone 165C insulation
• Weight: 0.3500 lbs
• Jaw Capacity (cm): 1.8
• Depth: 5.7000 in
• Reversible: No
• Overall Width (Inch): 1.68
• Weight (lb): 5.6
• Overall Length (Inch): 5.72
• Height: 0.7800 in
• Overall Length (cm): 14.5
• Type: Solar Tools
• Handle Finish: Smooth
• Material: Steel
• Application: Insulating Wrenches for use with PV Connectors
