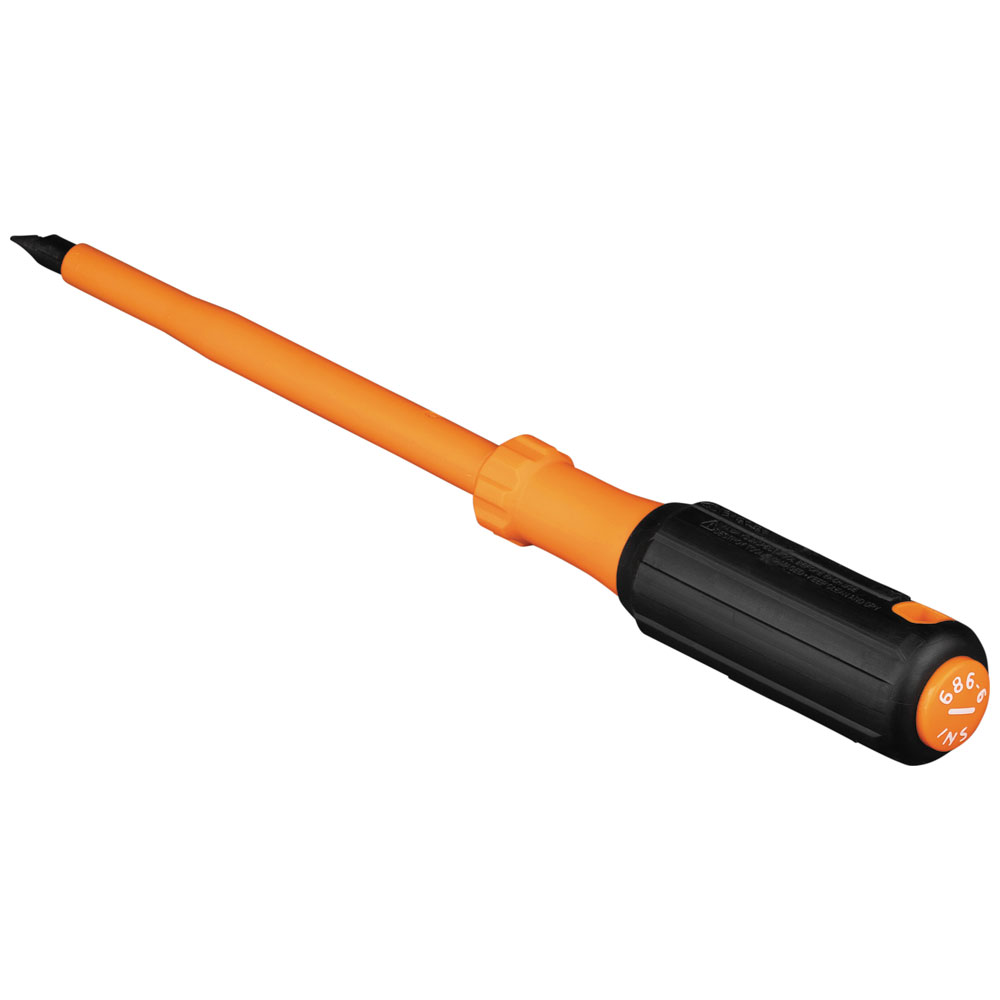

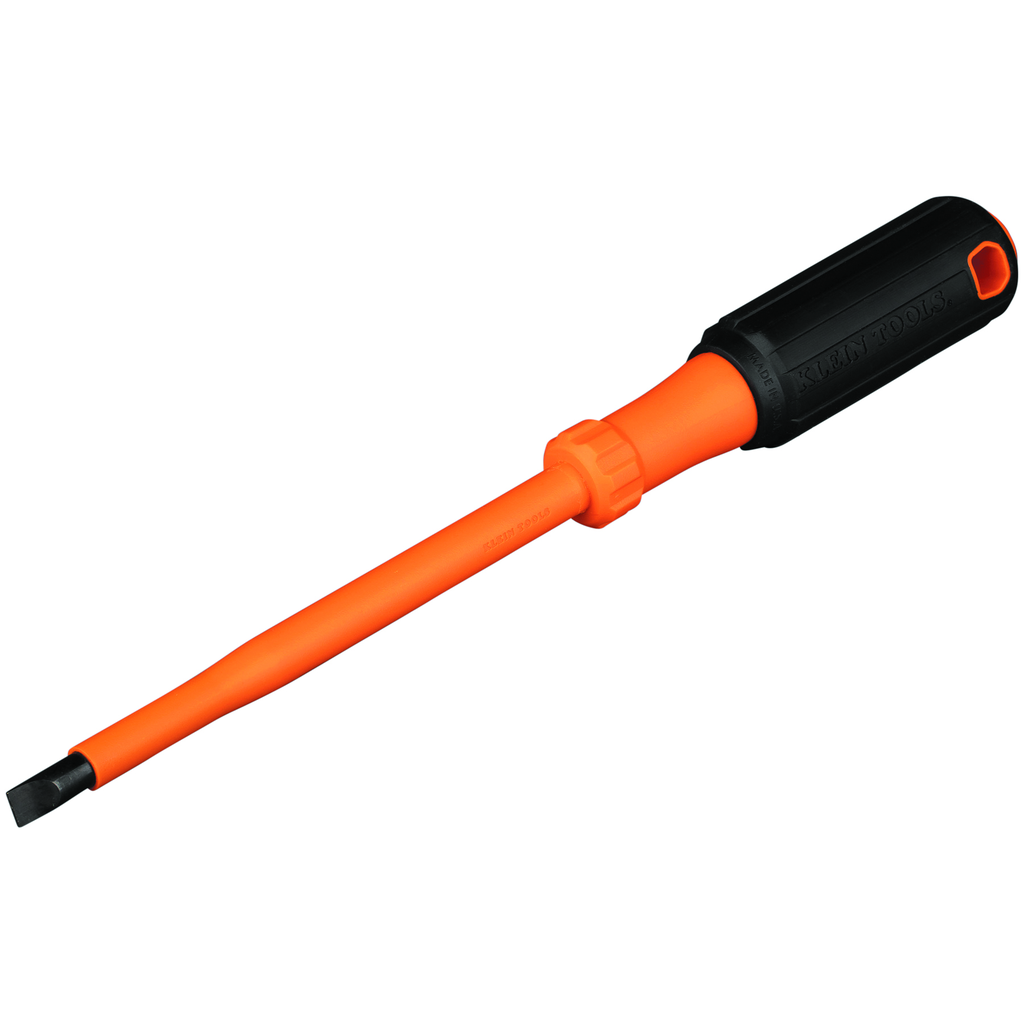

Insulated Screwdriver, 5/16-Inch Cabinet, 6-Inch Round Shank

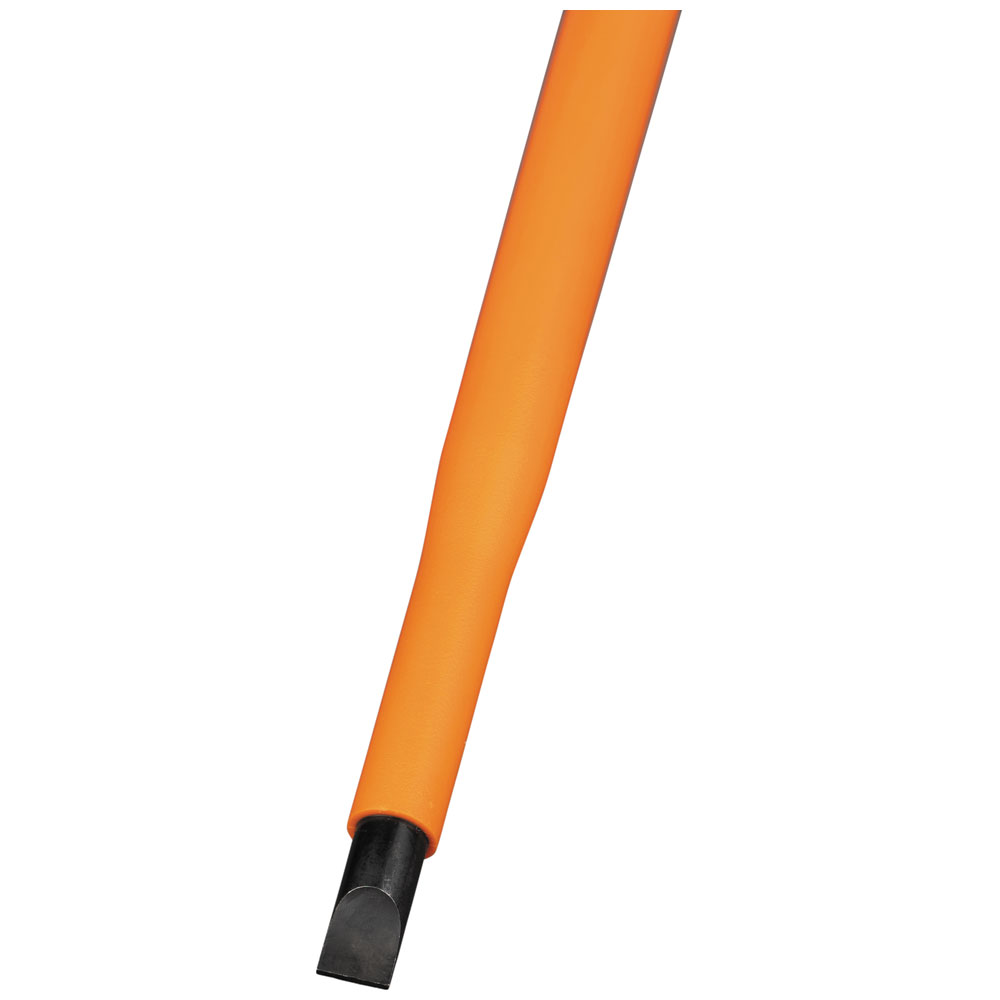

This 1000V rated screwdriver features a layer of bright orange impact and flame resistant insulation to protect from electric shock. Each tool is individually tested to exceed the IEC 60900 and ASTM F1505 standards for insulated tools. Made in the USA.

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.
• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.

Features

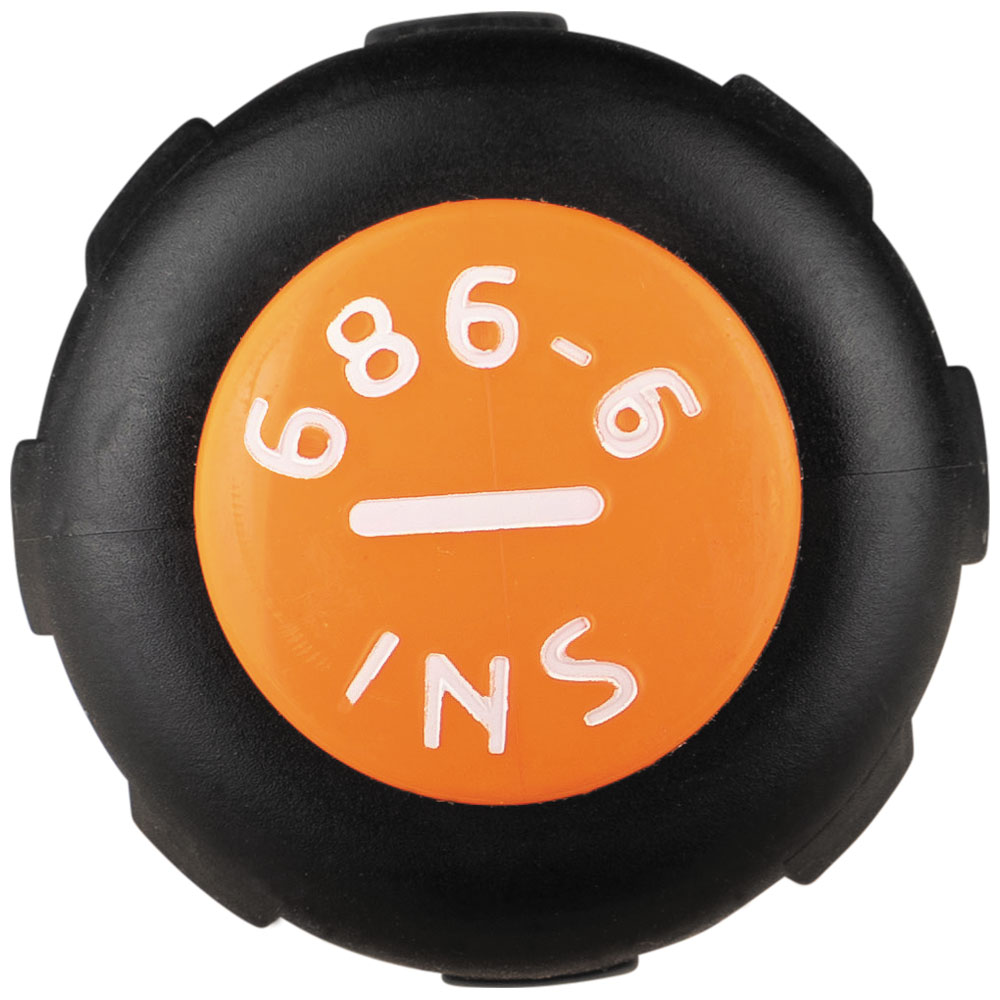

• Tip-Ident® quickly identifies the screwdriver tip orientation so you can easily engage the screwdriver tip with the screw
• Cushion-Grip™ handle for greater torque and comfort
• Tether hole for added safety when working at height
• Made in the USA
• Meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018
• Insulated Screwdriver with 5/16-Inch Cabinet tip protects against electric shock up to 1000V
• Flame Retardant and Impact Resistant Handle, Tip-Ident® Handle
• 1000V rated screwdriver features a layer of bright orange impact and flame resistant insulation to protect from electrical shock

Specifications

• Tip Size: 5/16"
• Type: Driver
• Overall Height (cm): 28.1
• Weight: 0.1500 lbs
• Overall Length (cm): 28.1
• Handle Diameter: 1.24" (3.2 cm)
• Overall Length (Inch): 11.07
• Handle Length (Inch): 1.24
• Magnetic: No
• Shank Type: Round
• Weight (oz): 5.15
• Handle Color: Black
• Depth: 11.0700 in
• Application: For Work Near Energized Sources
• Standard: ASTM F1505-16(2021)
• Tip Type: Cabinet
• Overall Width (cm): 3.1
• Height: 1.2500 in
• Shank Length: 6" (15.2 cm)
• Color Code: Orange
• Insulated: Yes
• Material: Steel, Plastic
• Handle Material: Plastic
• Overall Width (Inch): 1.24
• Handle Length (cm): 3.1
• Weight (g): 146
• Overall Height (Inch): 11.07
• Width: 1.2500 in
