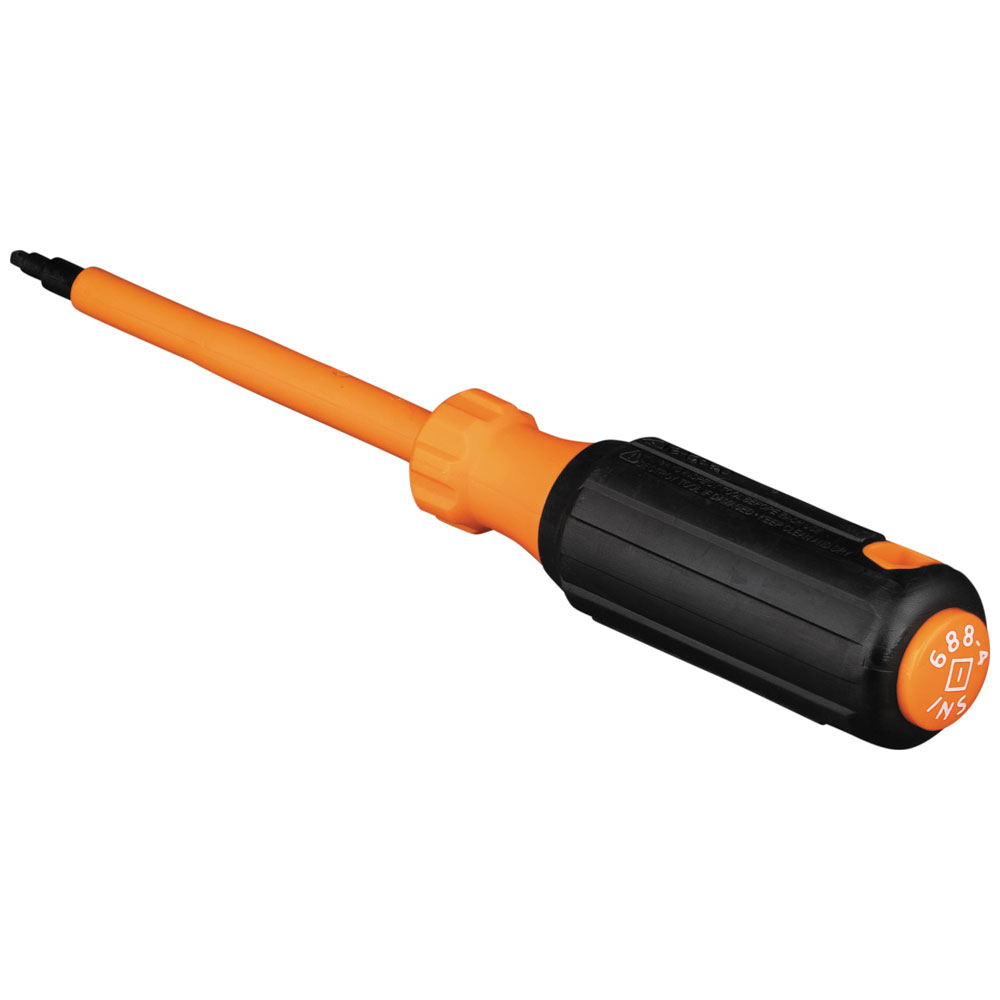

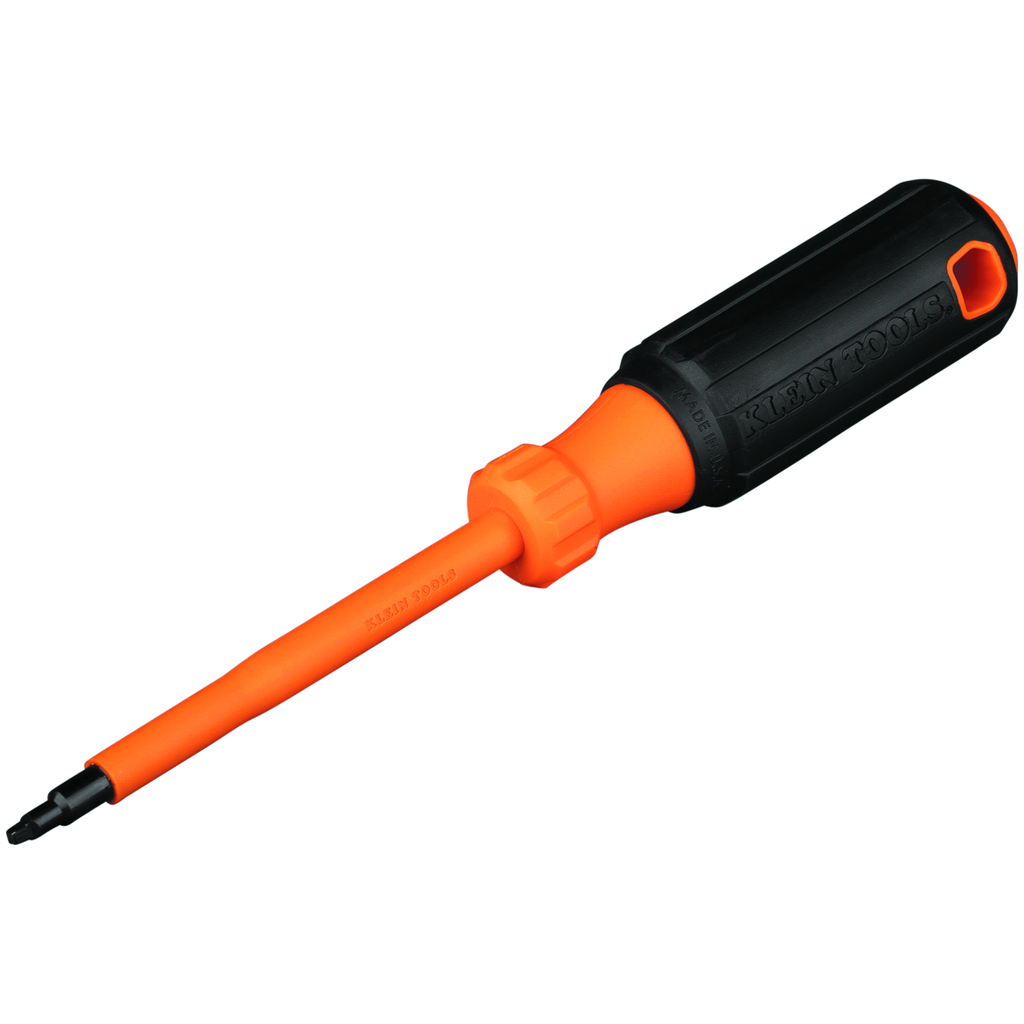

Insulated Screwdriver, #1 Square, 4-Inch Round Shank

Klein Tools' Insulated Screwdrivers feature a bright orange coating of flame and impact resistant insulation to protect against electrical shock. These tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000V rating symbol. The tether hole in the handle provides added safety when working at height. Available in 4-Inch and 6-Inch round shanks with a variety of tips.

Features

• Tether hole for added safety when working at height
• 1000V rated screwdriver features a layer of bright orange impact and flame resistant insulation to protect from electrical shock
• Flame Retardant and Impact Resistant Handle, Tip-Ident® Handle
• Meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018
• Made in the USA

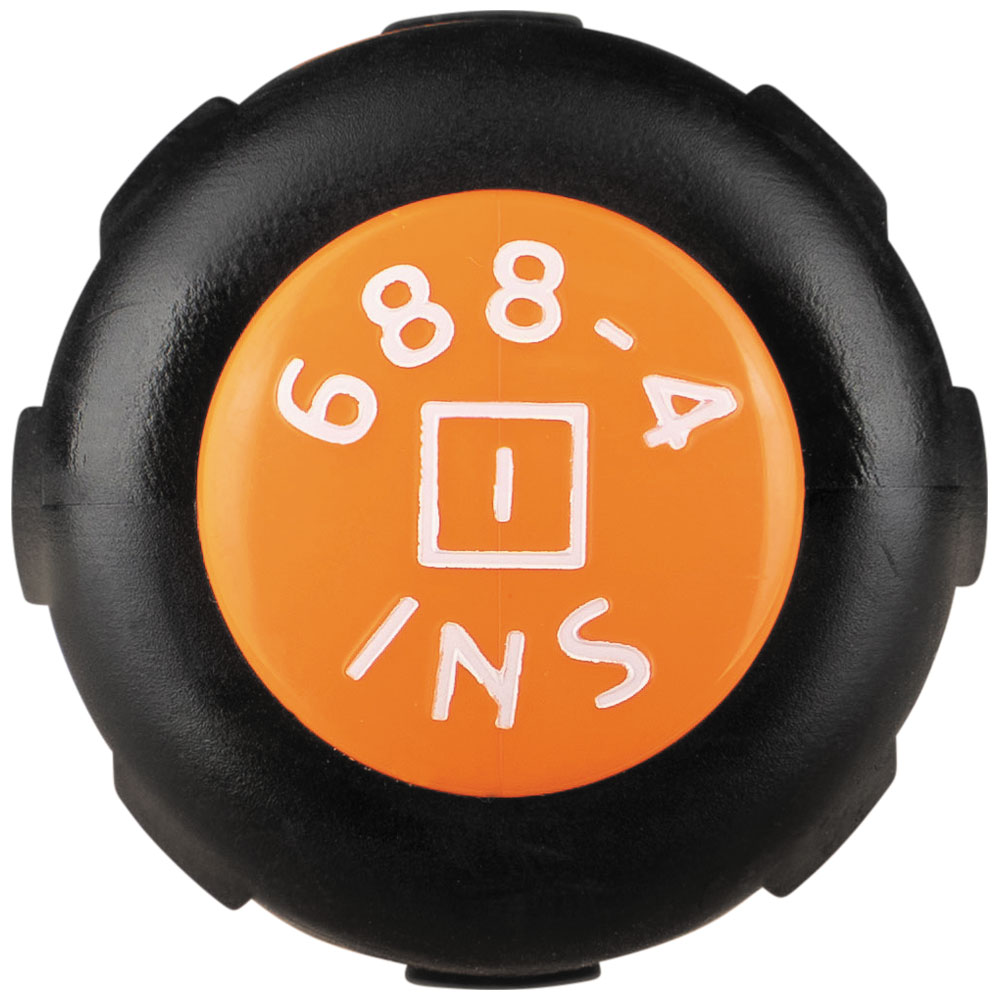

• Tip-Ident® quickly identifies the screwdriver tip orientation so you can easily engage the screwdriver tip with the screw
• Cushion-Grip™ handle for greater torque and comfort

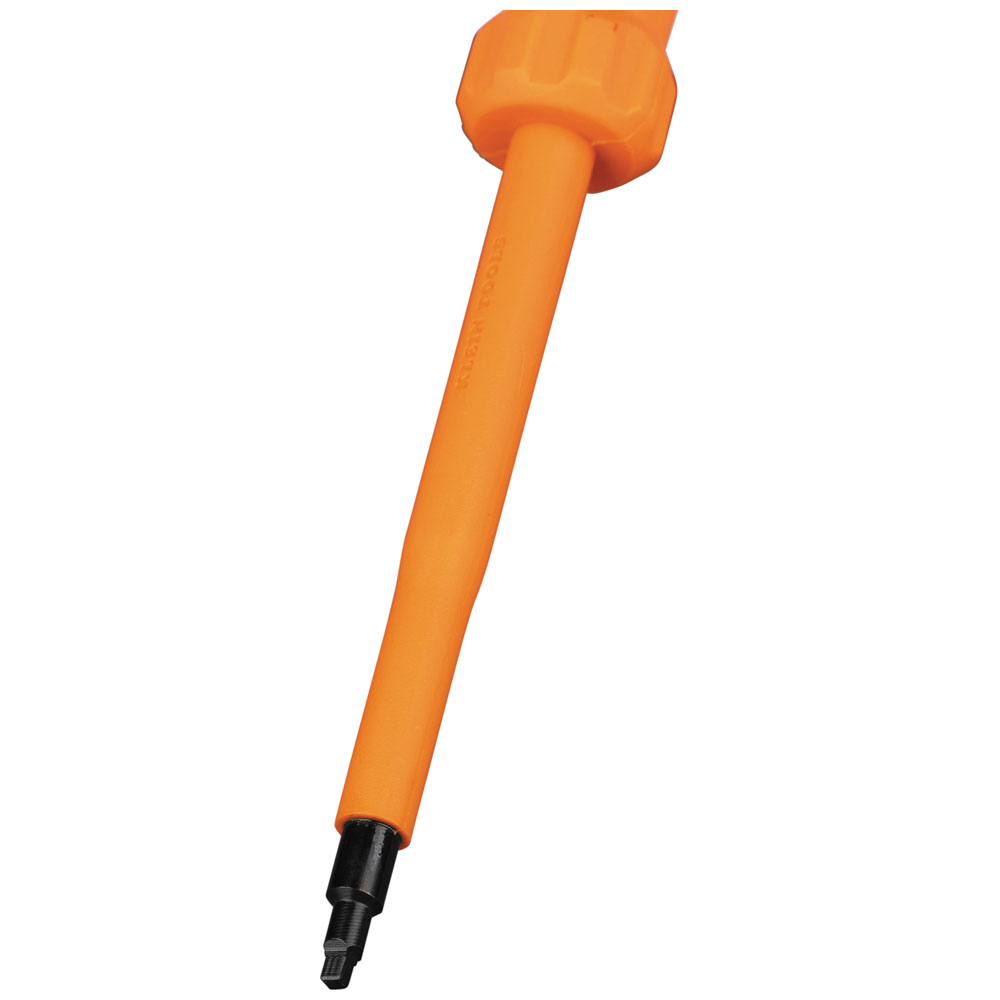

• Insulated Screwdriver with a 4-Inch (10 cm) round shank, #1 Square tip

Warnings

• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.

Specifications

• Handle Length (cm): 10.9
• Overall Width (cm): 3.1
• Depth: 8.3200 in
• Overall Height (cm): 21.1
• Handle Color: Black
• Width: 1.2500 in
• Shank Length: 4" (10.2 cm)
• Weight (g): 91
• Material: Steel, Plastic
• Color Code: Orange
• Handle Length (Inch): 4.31
• Application: For Work Near Energized Sources
• Overall Height (Inch): 8.32
• Weight: 0.1500 lbs
• Magnetic: No
• Insulated: Yes
• Standard: ASTM F1505-16(2021)
• Type: Driver
• Handle Diameter: 1.24" (3.2 cm)
• Overall Width (Inch): 1.24
• Tip Type: Square
• Tip Size: #1
• Overall Length (Inch): 8.32
• Overall Length (cm): 21.1
• Handle Material: Rubber
• Shank Type: Round
• Weight (oz): 3.2
• Height: 1.2500 in
