K-Type Temperature Pipe Clamp

Specific for HVAC applications, this Temperature Pipe Clamp (and other Klein K-Type Accessories) extend working temperature ranges for Klein's HVAC Digital Multimeters and Clamp Meters. These accessories work with all Klein digital multimeters and clamp meters that measure temperature, as well as any other brand with meters that measure temperature. Other accessories include High Temperature Thermocouple Wire, Temperature Probe and Banana Plug Adapter.

Features

• Works with any digital multimeter that measures temperature
• Accuracy of the thermocouple is dependent on the accuracy of the meter being used

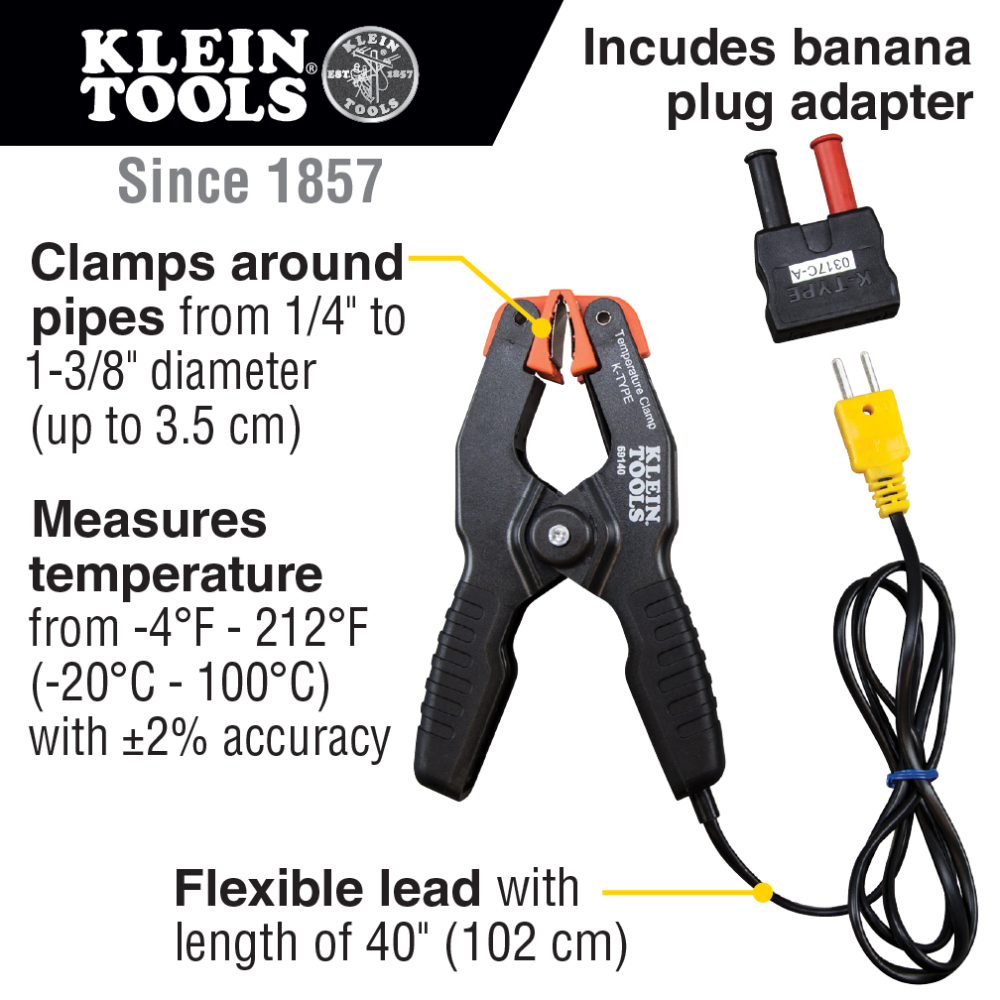

• Measures temperature from -4 to 212-degrees F (-20 - 100-degrees C) with ±2% accuracy
• Clamps around pipes from 1/4 to 1-3/8-Inch diameter (up to 3.5 cm)
• Ideal for Pipes 1/4" to 1-3/8" (6.4 to 34.9 mm); Works with Any Digital Multimeter or Clamp Meter that Measures Temperature
• Works with any clamp meter that measures temperature
• Banana plug adapter also sold separately (Cat. No. 69146)
• Banana plug adapter included with this clamp
• Flexible lead with length of 40-Inches (102 cm)

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

• Type: K-Type Clamp
• Application: HVAC
• Weight: 0.3900 lbs
• Overall Height: 1.9 cm (0.75 Inch)
• Temperature Range: -4 to 212°F (-20 to 100°C) with +/-2% accuracy
• Height: 0.9000 in
• Overall Width: 7.6 cm (3 Inch)
• Overall Length: 13.3 cm (5.25 Inch)
• Depth: 5.3000 in
• Material: ABS
• Width: 3.0000 in
• Package Quantity: 1
