K-Type High Temperature Thermocouple

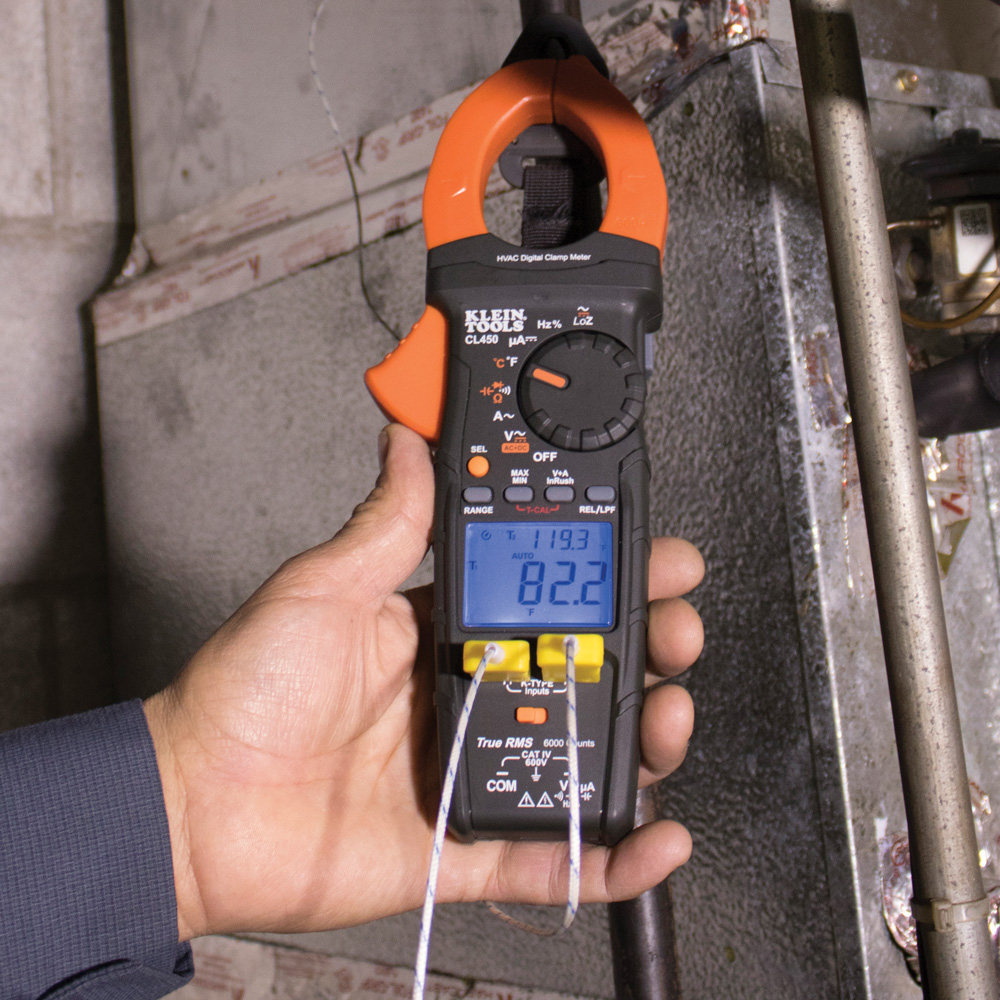

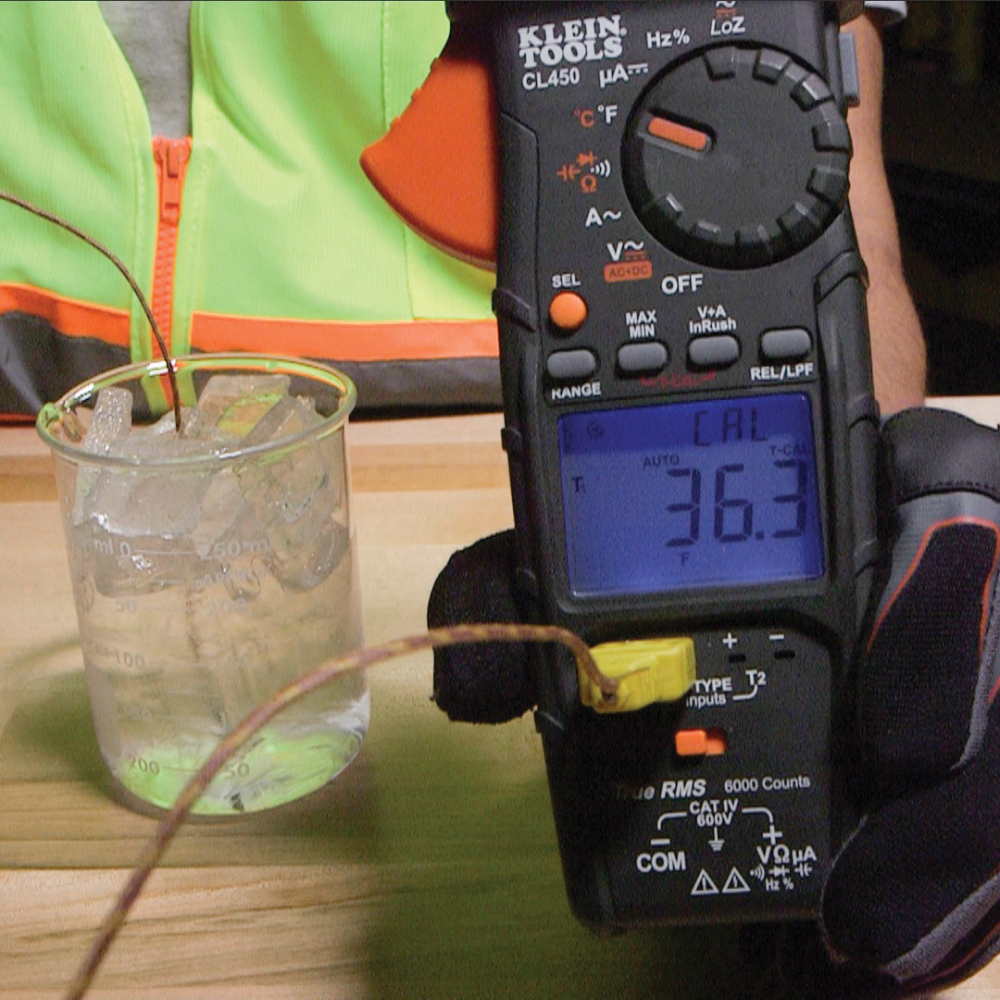

Specific for HVAC applications, this High Temperature Thermocouple (and other Klein K-Type Accessories) extend working temperature ranges for Klein’s HVAC Digital Multimeters and Clamp Meters. These accessories work with all Klein digital multimeters and clamp meters that measure temperature, as well as any other brand with meters that measure temperature. Other accessories include Temperature Pipe Clamp, Temperature Probe and Banana Plug Adapter.

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Features

• Coiled lead with length of 3 feet
• Measures temperature from 32 to 896° F (0 to 480° C)

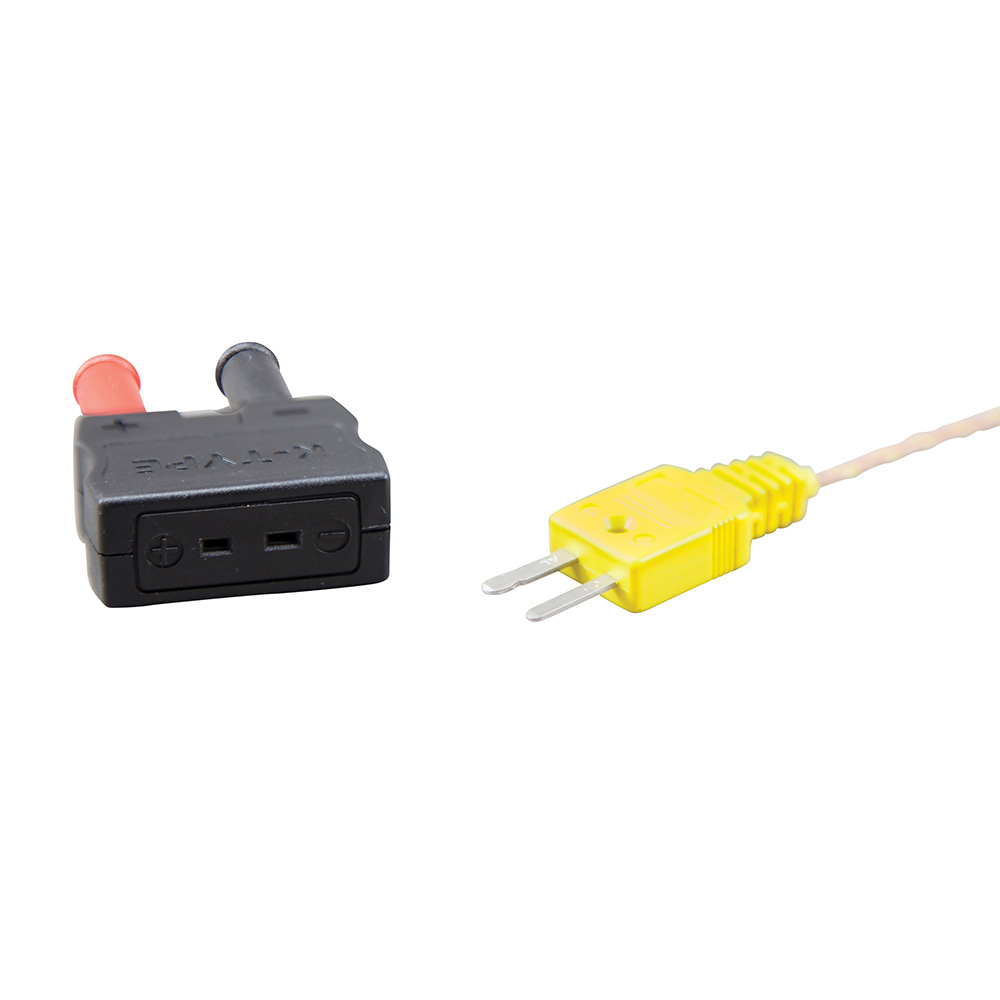

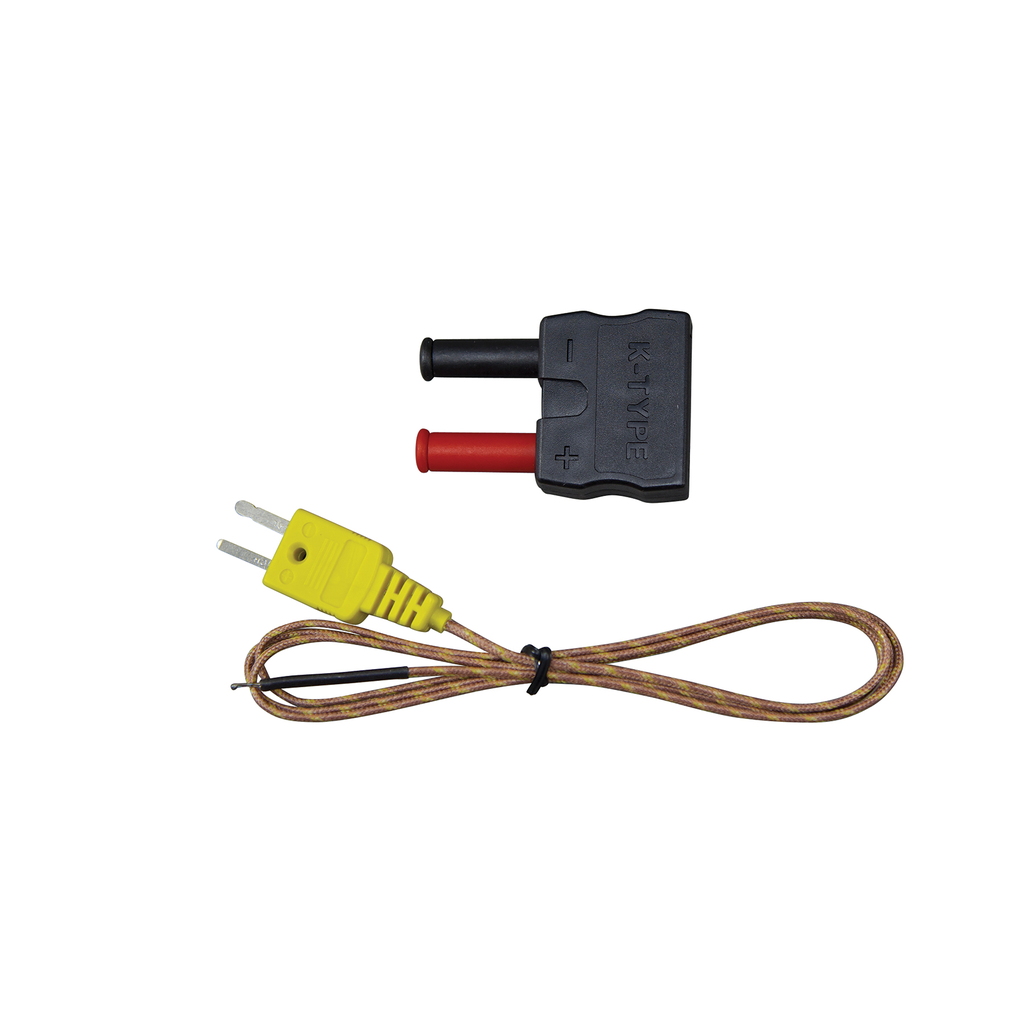

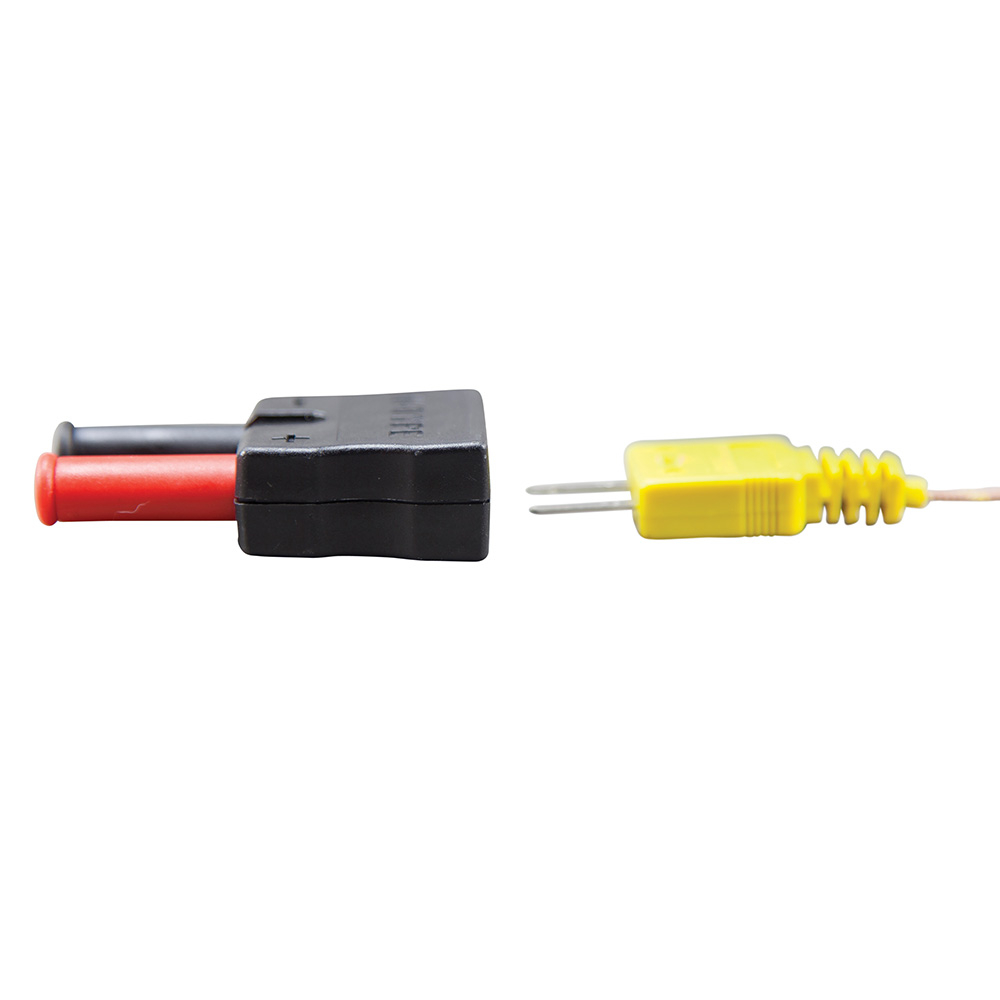

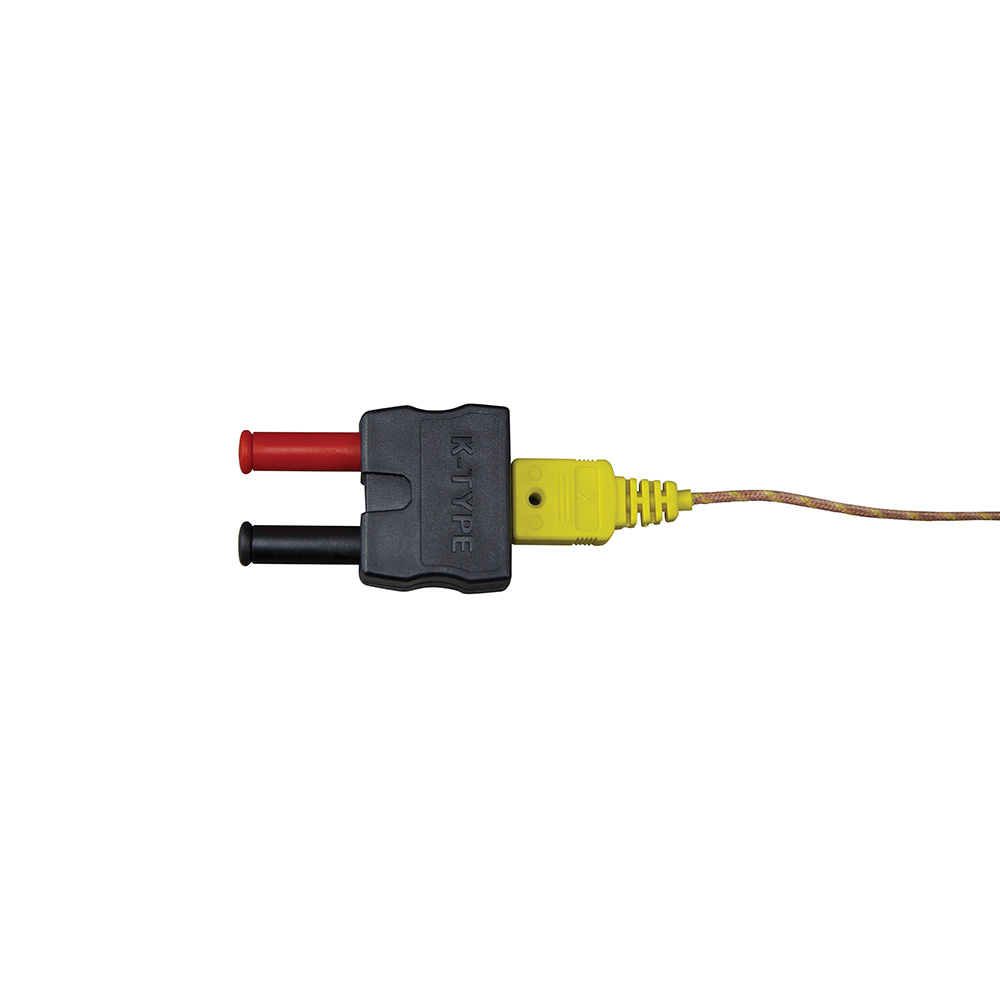

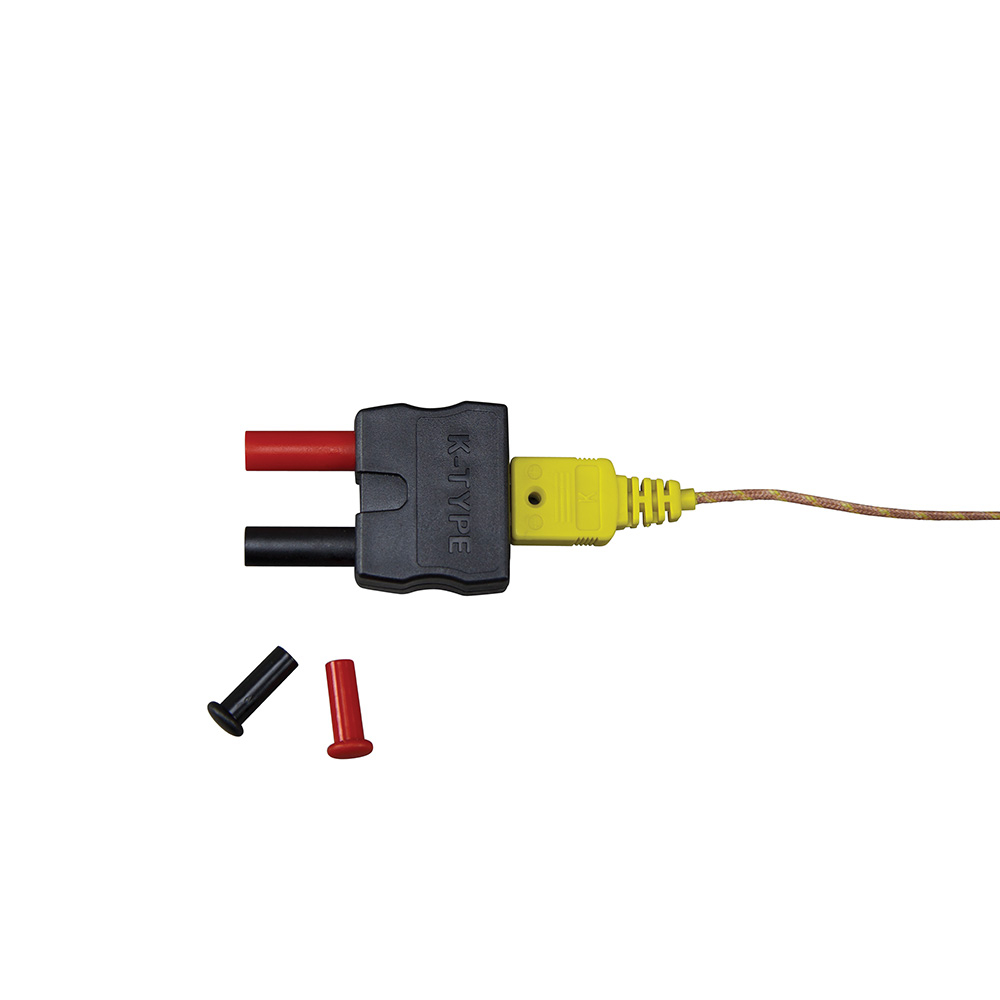

• Includes K-Type High Temperature Thermocouple and 1 banana plug adapter
• Accuracy of the thermocouple is dependent on the accuracy of the meter being used
• Adapter also available separately (Cat. No. 69146)
• Works with any digital multimeter or clamp meter that measures temperature
• High Temperature Range
• Excellent for higher temperature measurements for HVAC applications
• Banana plug adapter included

Specifications

• Height: 0.1000 in
• Overall Width: 1.50" (3.8 cm)
• Weight: 0.1000 lbs
• Width: 4.0000 in
• Material: Thermocouple Wire with PVC Connector
• Overall Height: 0.50" (1.3 cm)
• Depth: 6.0000 in
• Temperature Range: 32 to 896°F (0 to 480°C)
• Package Quantity: 1
• Overall Length: 40" (101.6 cm)
• For Use With: Any Clamp or Digital Multimeter that Measures Temperature
• Country of Origin: China
• Style Name: K-Type High Temperature Thermocouple
• Application: HVAC
• Type: K-Type Thermocouple, High Temperature with Adapter
