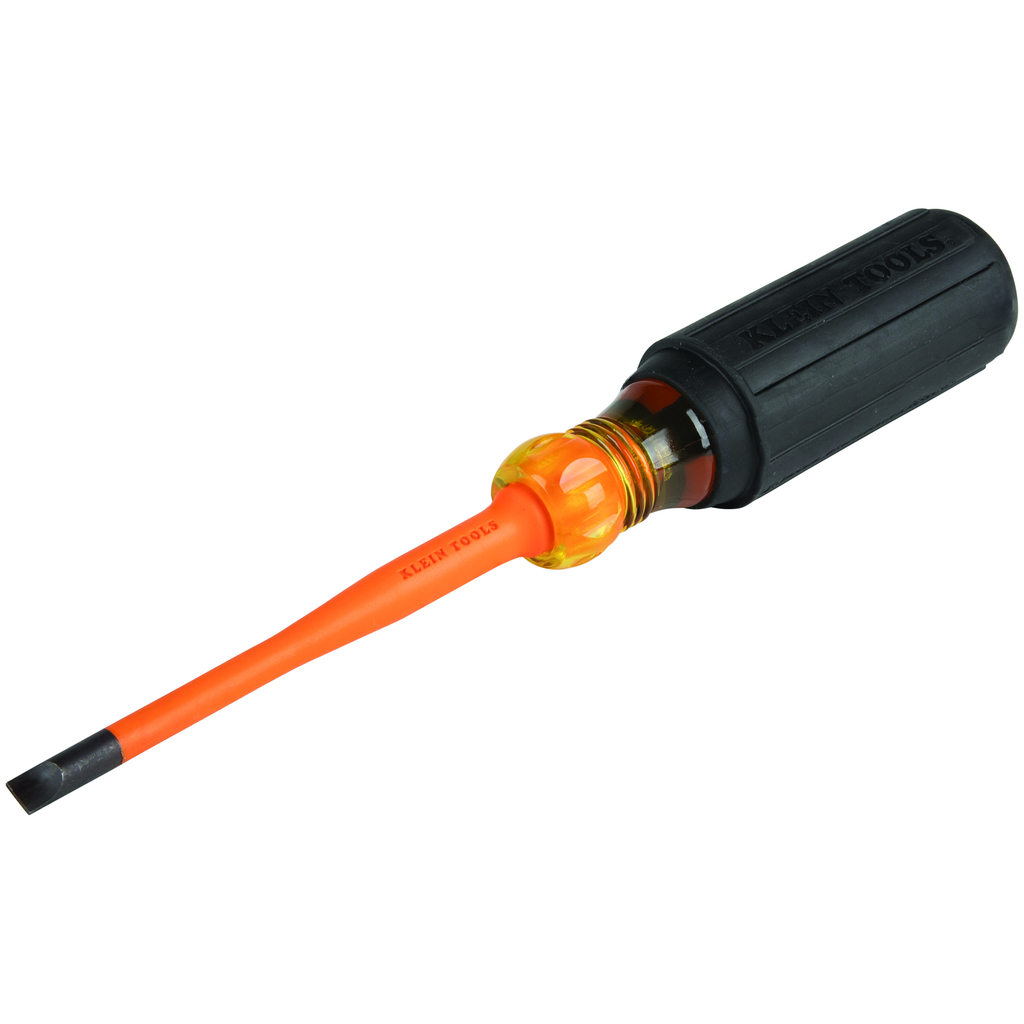

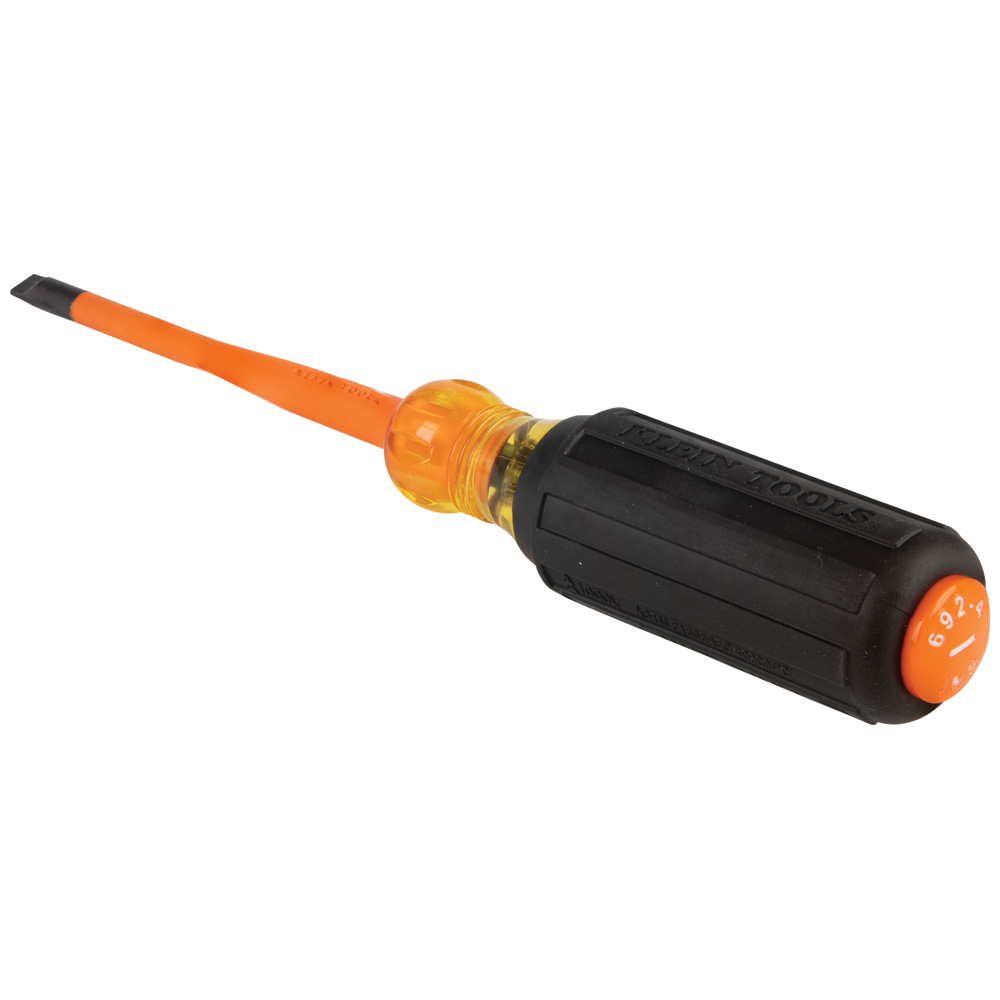

Slim-Tip Insulated Screwdriver, 1/4-Inch Cabinet, 4-Inch Round Shank

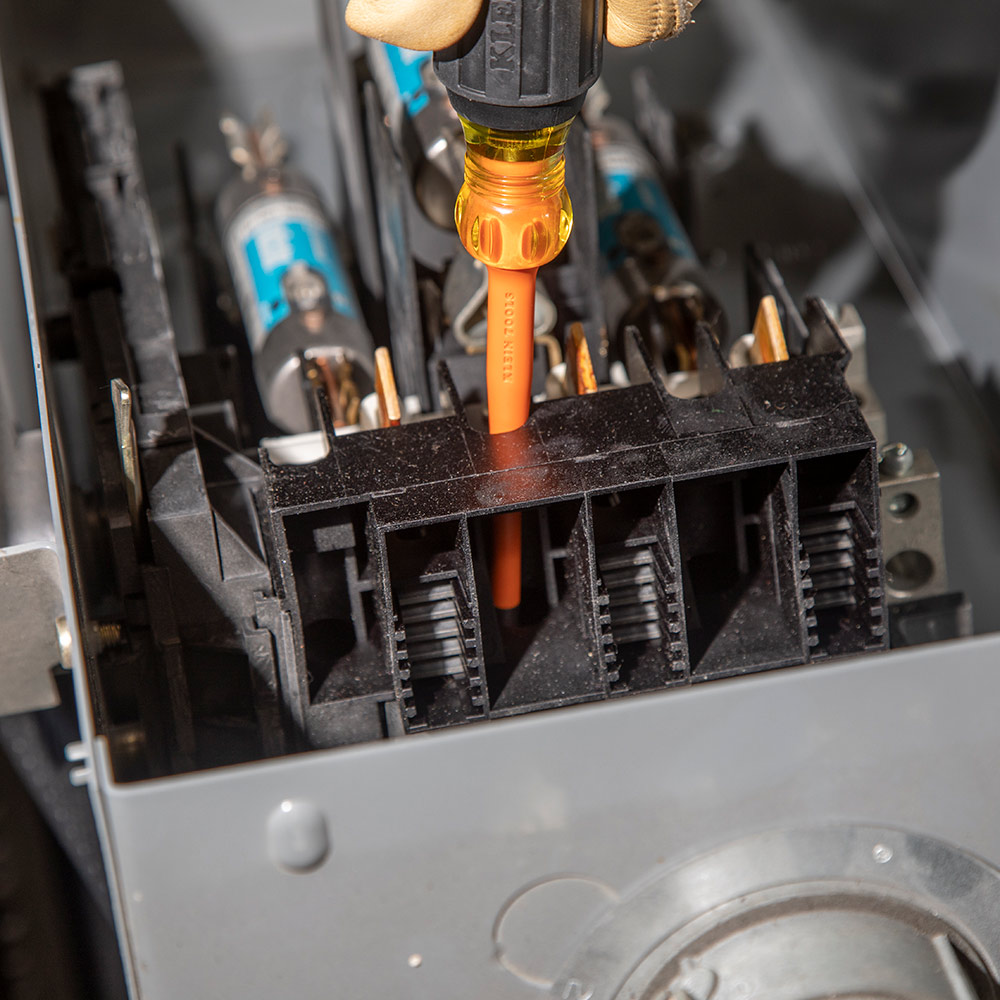

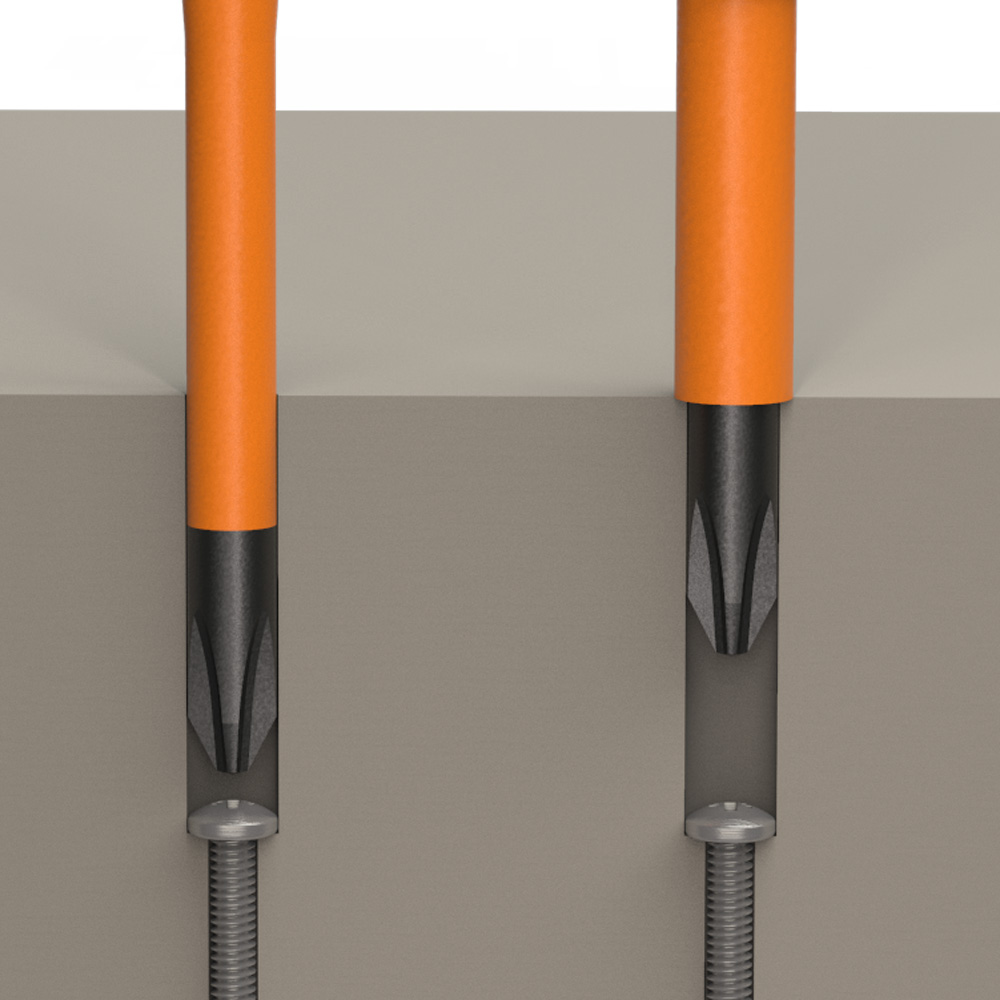

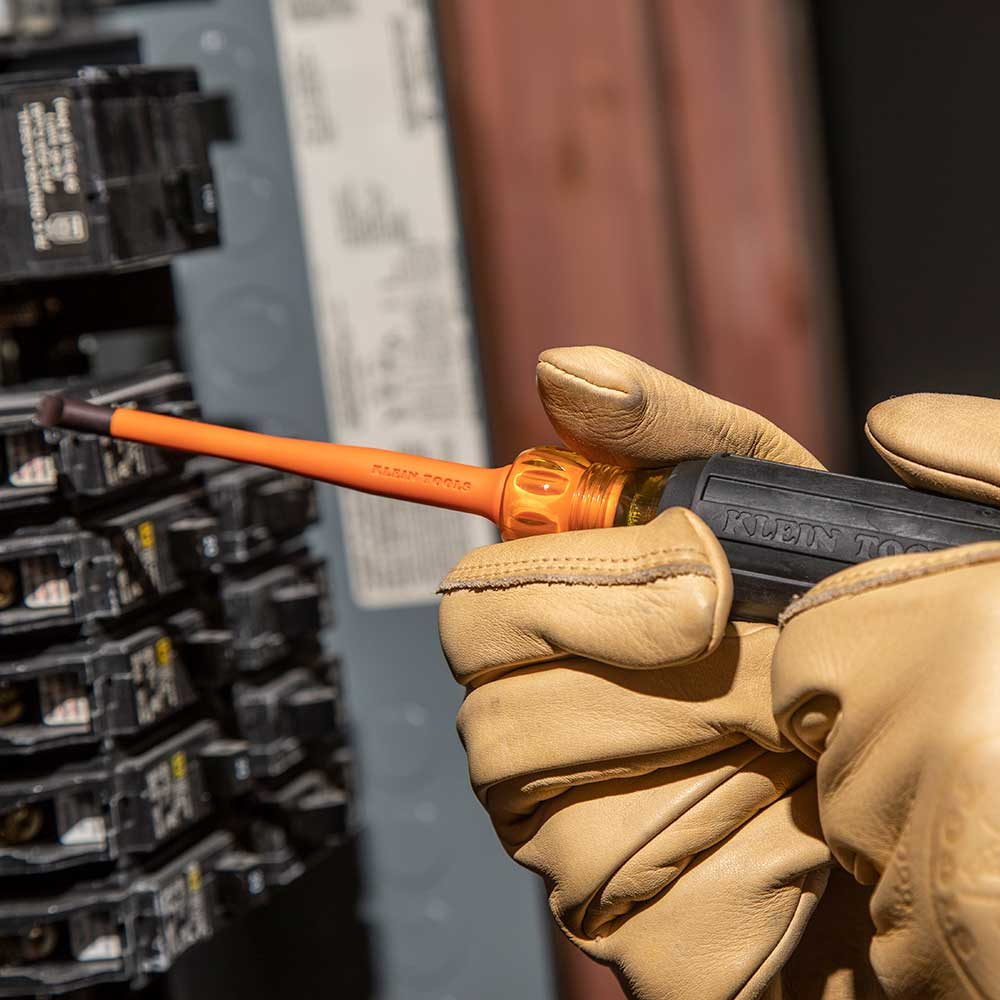

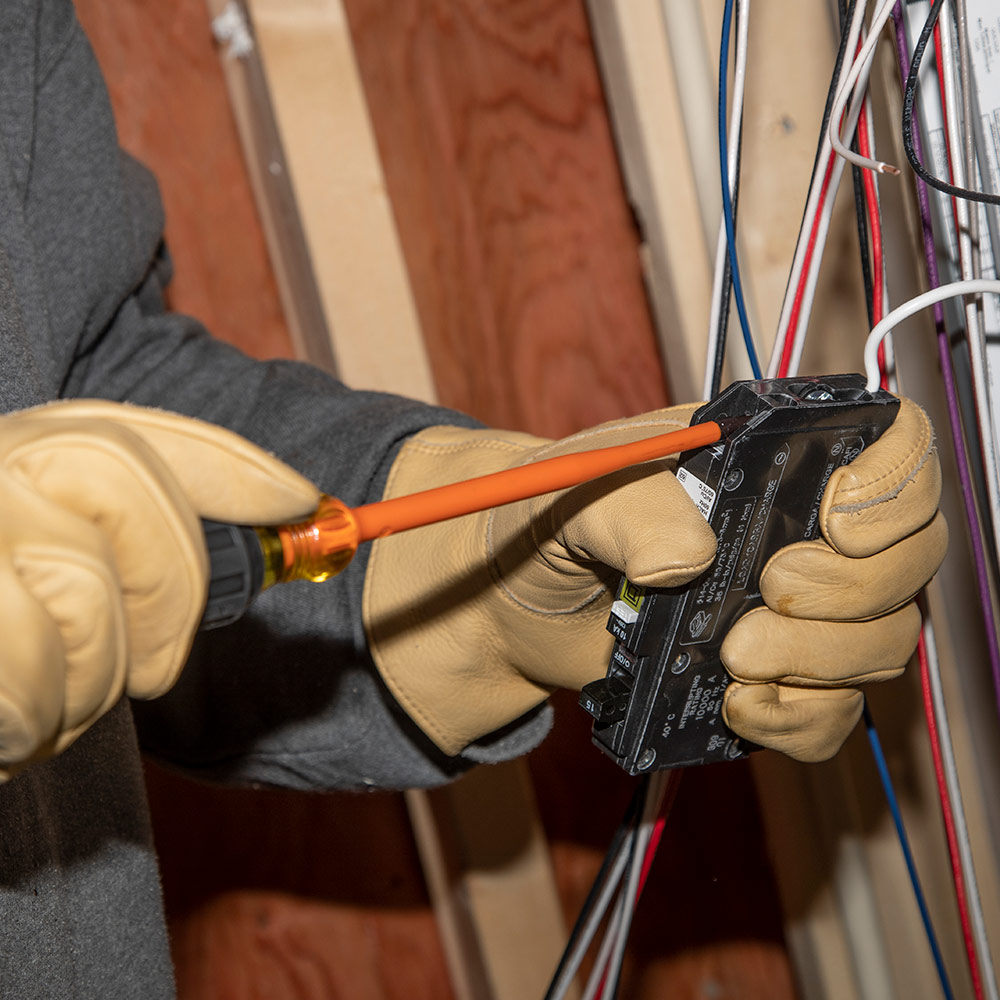

Klein Tools' Slim-Tip Insulated Screwdrivers have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energized sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-Volt rating symbol. A must-have for any electrician's tool bag, these screwdrivers are available in 4-Inch round shank #2 Phillips as well as 6-Inch round shank in a 3/16-Inch Cabinet tip and #2 Square tip.

Warnings

• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always inspect your tools before use.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.

Features

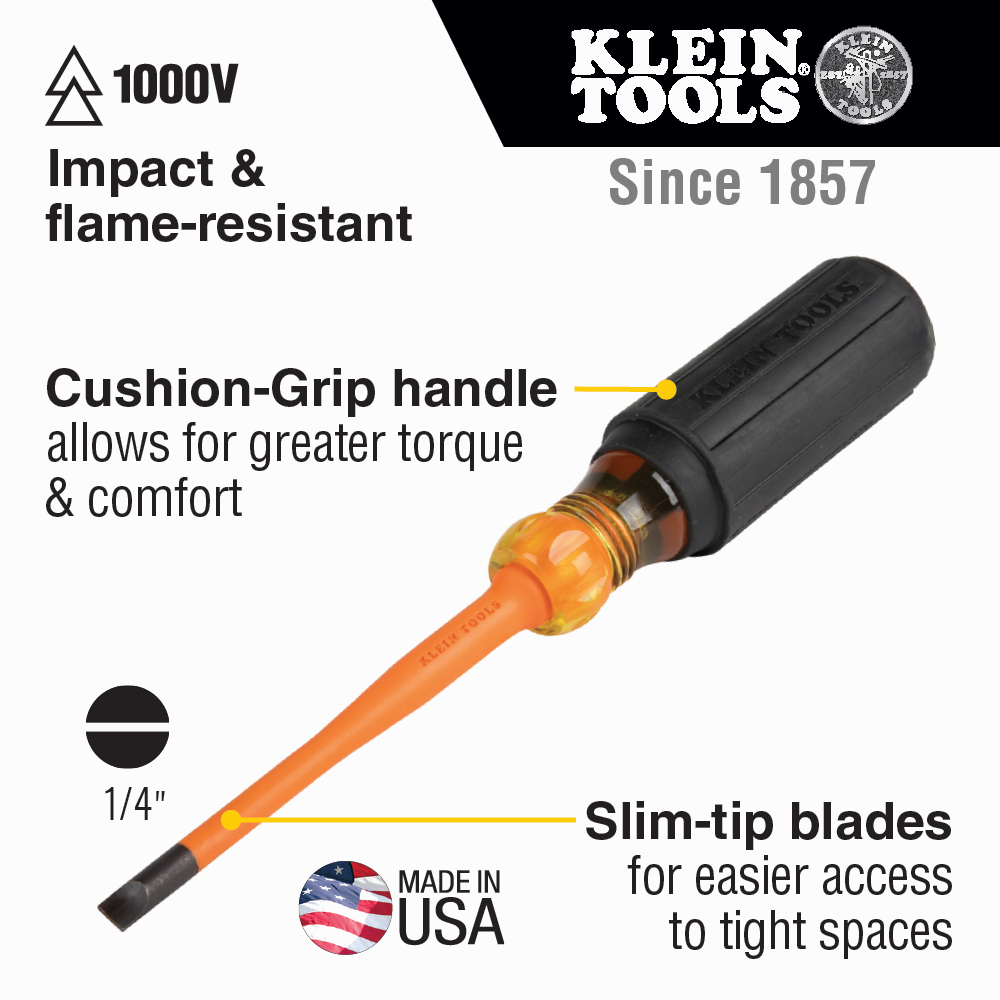

• Slim Profile Tip

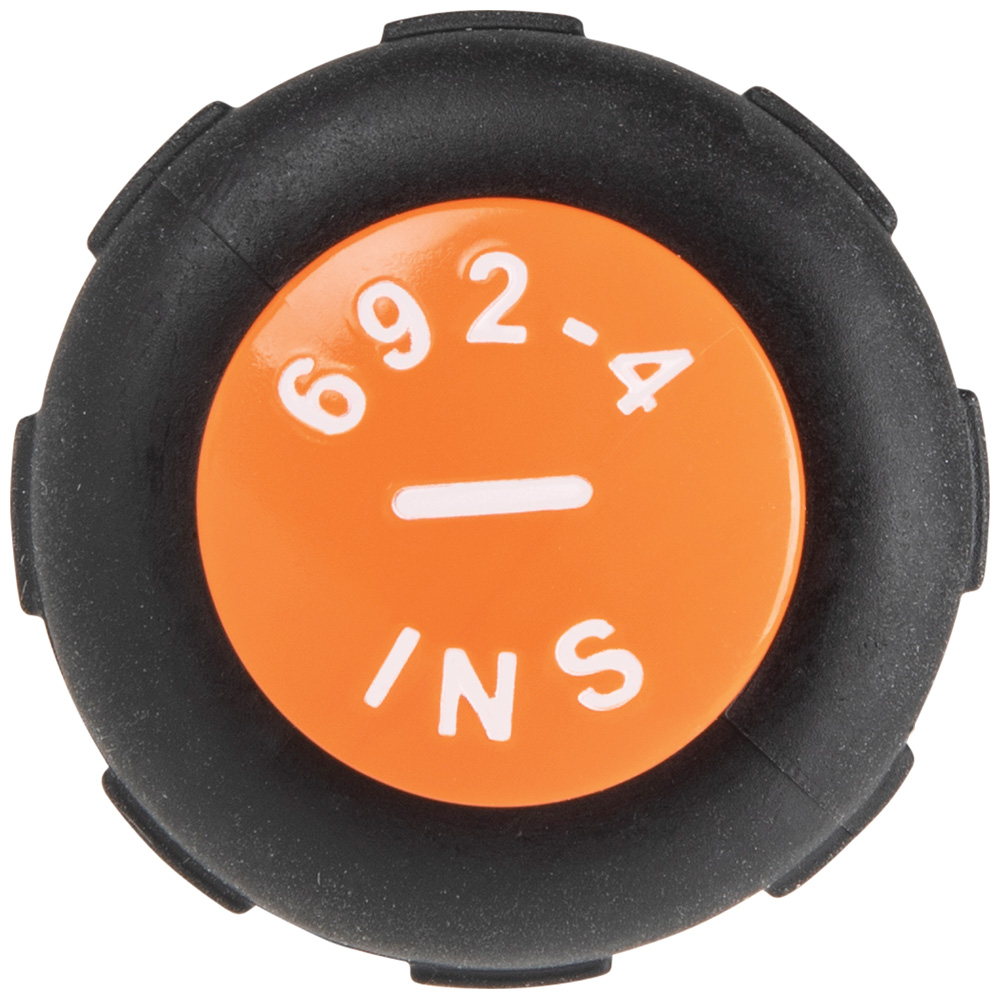

• Tip-Ident® quickly identifies the tip type and orientation
• 4-Inch round shank, 1/4-Inch Cabinet tip, insulated screwdriver with a slim tip that allows for greater access into tight spaces
• Made in USA
• 1000-Volt rated layer of orange impact and flame-resistant insulation protects from energized sources
• Cushion-Grip™ handles for greater torque and comfort
• Meets or exceeds ASTM F-1505-16 and IEC 60900:2018

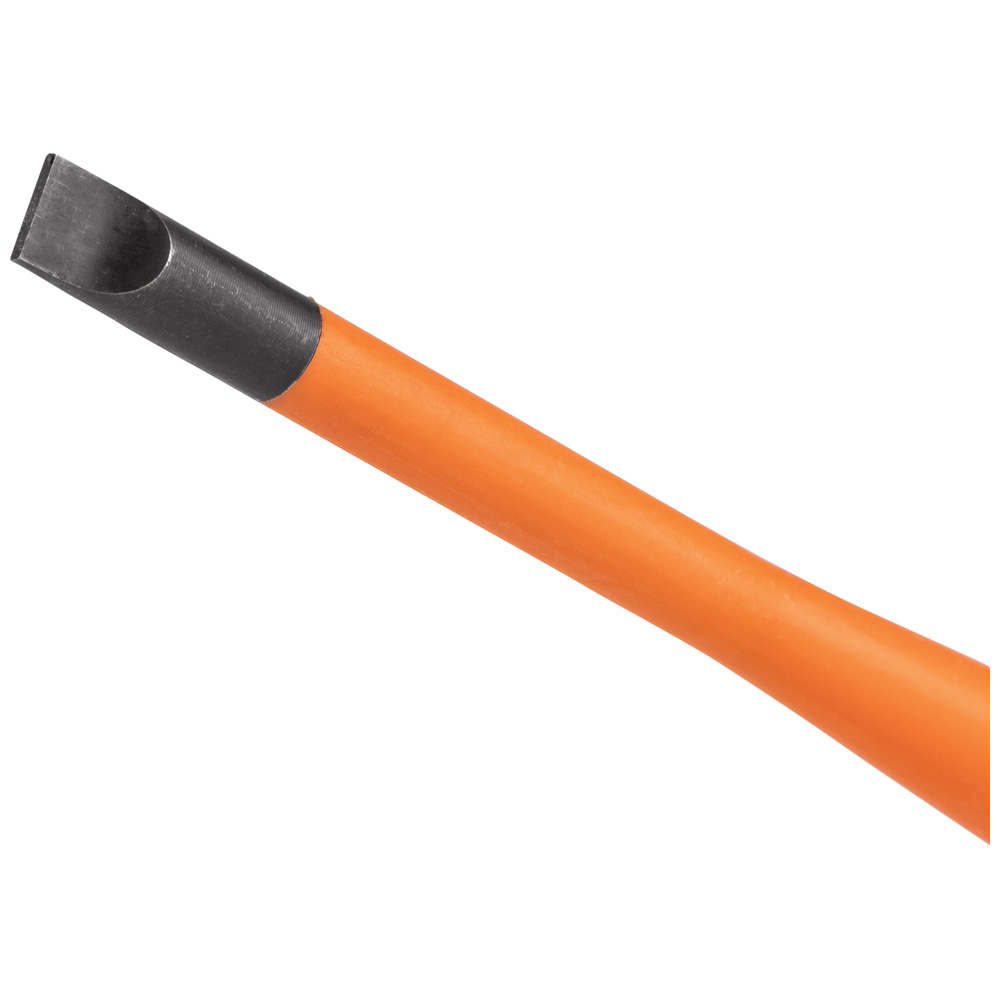

• Insulated blade is flush with the tip to help reduce nicking the insulation

Specifications

• Weight (oz): 2.4
• Overall Width (Inch): 1.24
• Depth: 8.0000 in
• Height: 1.0000 in
• Overall Length (Inch): 8.31
• Overall Width (cm): 3.1
• Handle Diameter: 1.24" (3.2 cm)
• Overall Height (cm): 3.1
• Handle Length (Inch): 4.31
• Application: For Work Near Energized Sources
• Weight (g): 68
• Material: Steel, Plastic
• Color Code: Orange
• Shank Type: Round
• Overall Length (cm): 21.1
• Weight: 0.1500 lbs
• Handle Material: Rubber
• Type: Slim-Tip Insulated Screwdriver
• Handle Length (cm): 10.9
• Insulated: Yes
• Tip Size: 1/4" (6.4 mm)
• Shank Length: 4" (10.2 cm)
• Tip Type: Cabinet
• Overall Height (Inch): 1.24
• Magnetic: No
• Standard: ASTM F-1505-16, IEC 60900:2018
• Width: 1.0000 in
• Handle Color: Black
