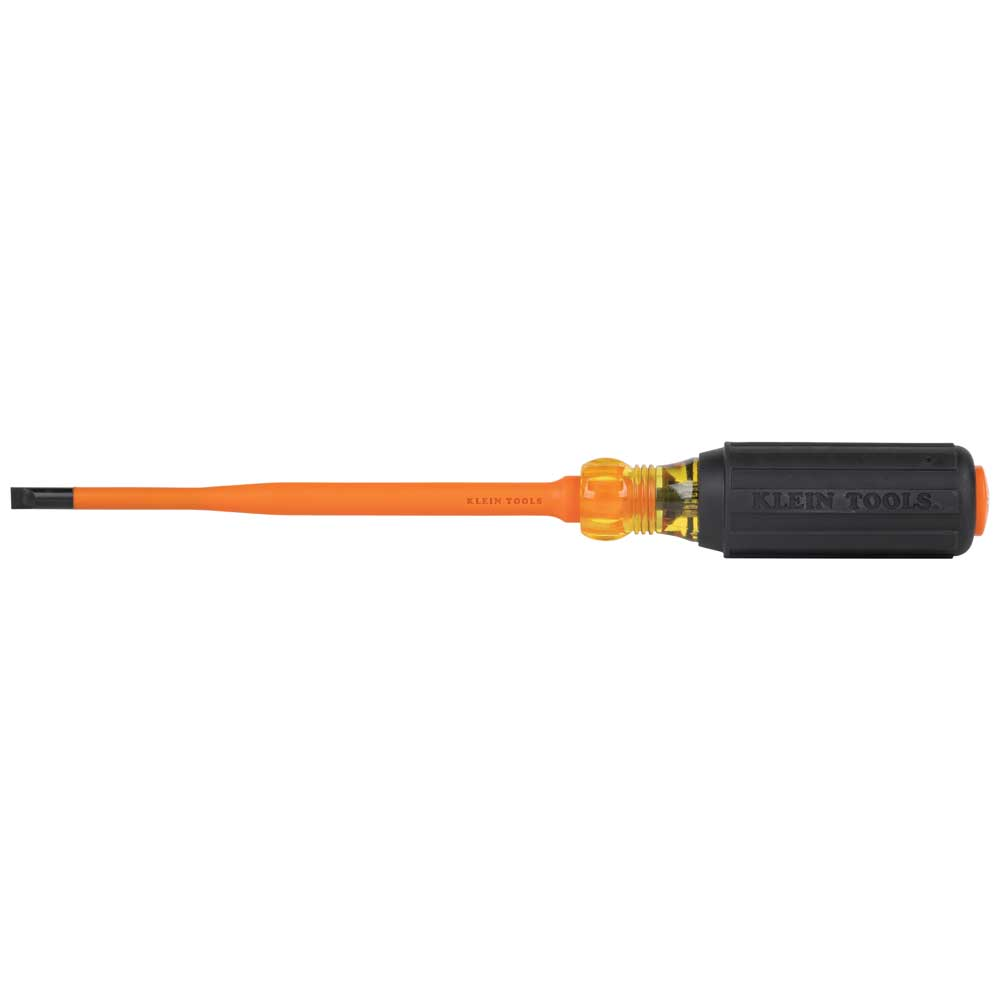

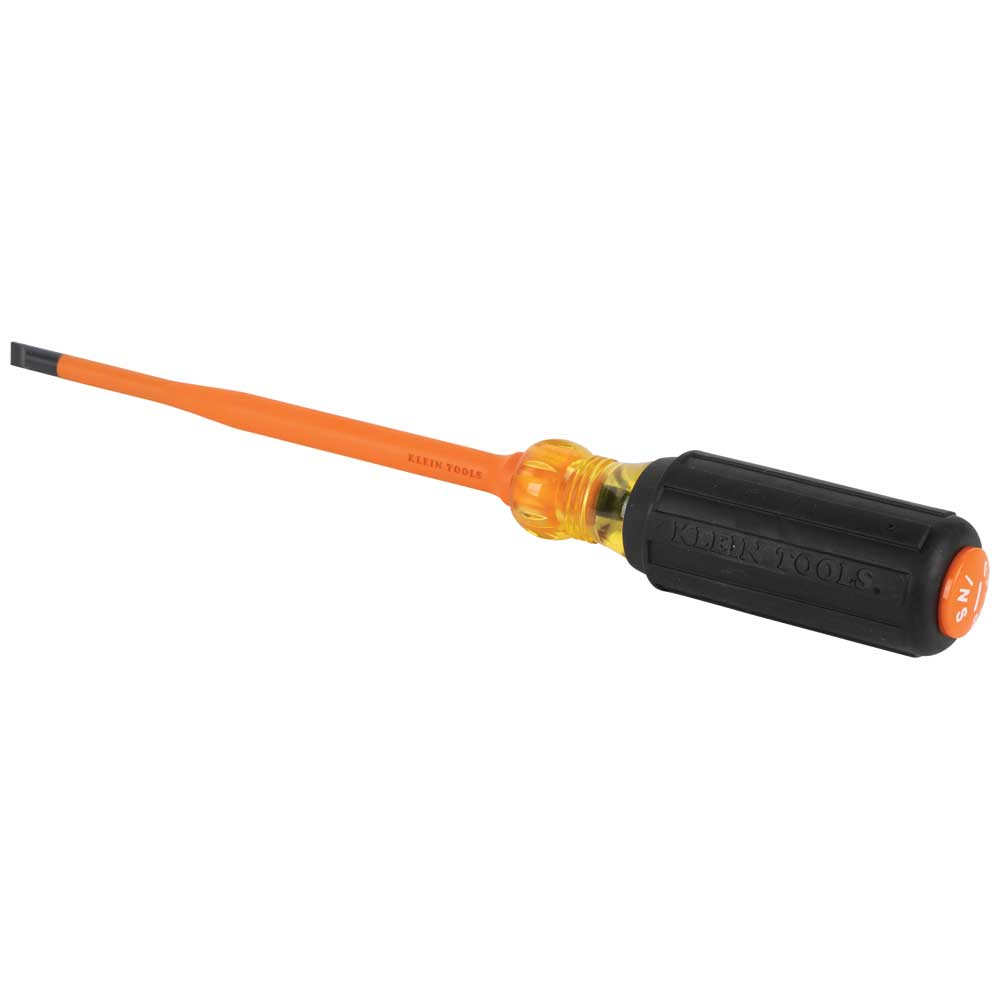

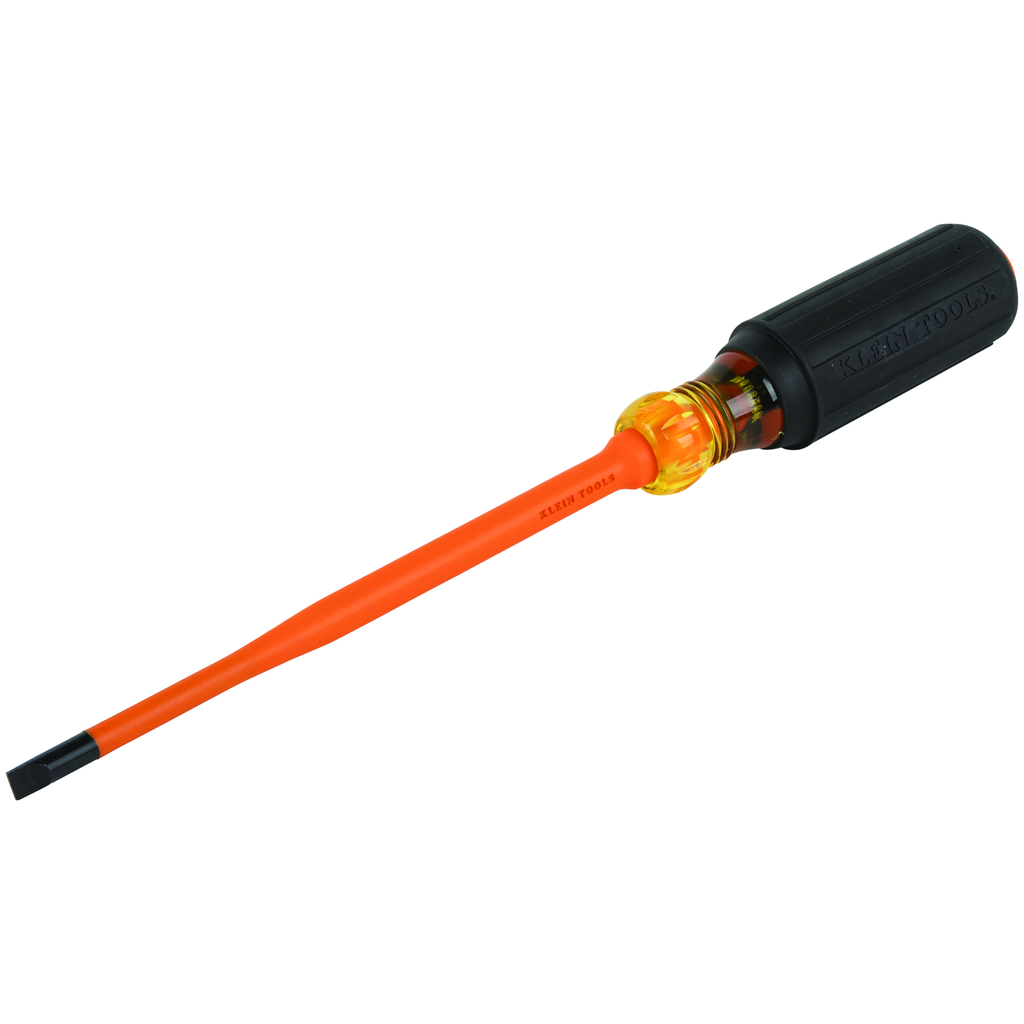

Slim-Tip 1000V Insulated Screwdriver, 1/4-Inch Cabinet, 6-Inch

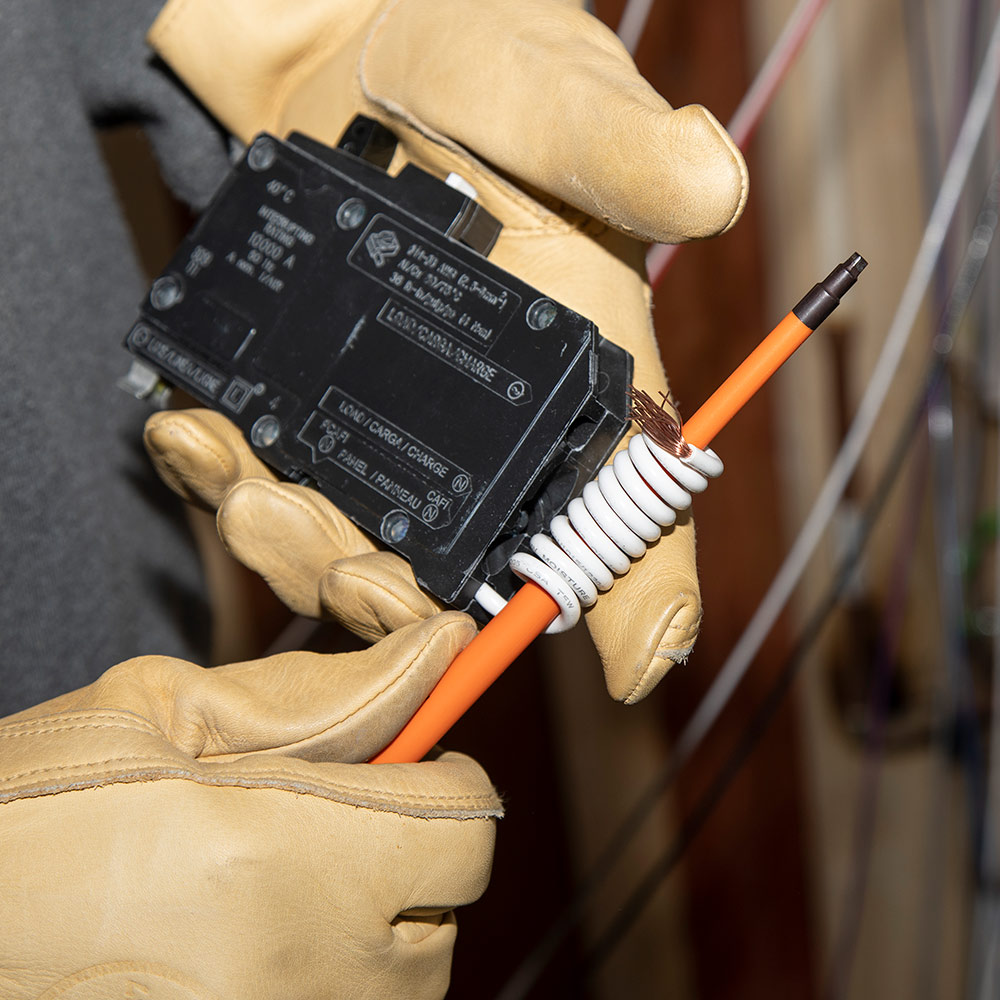

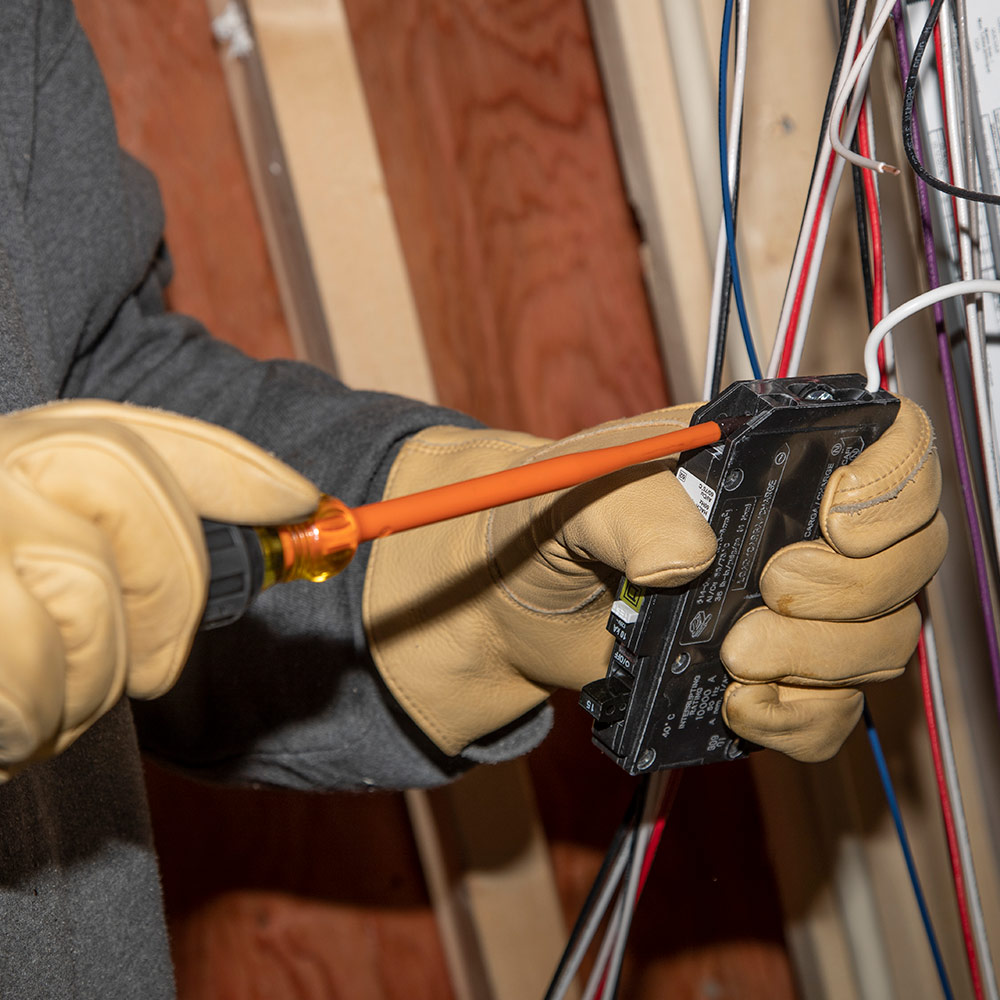

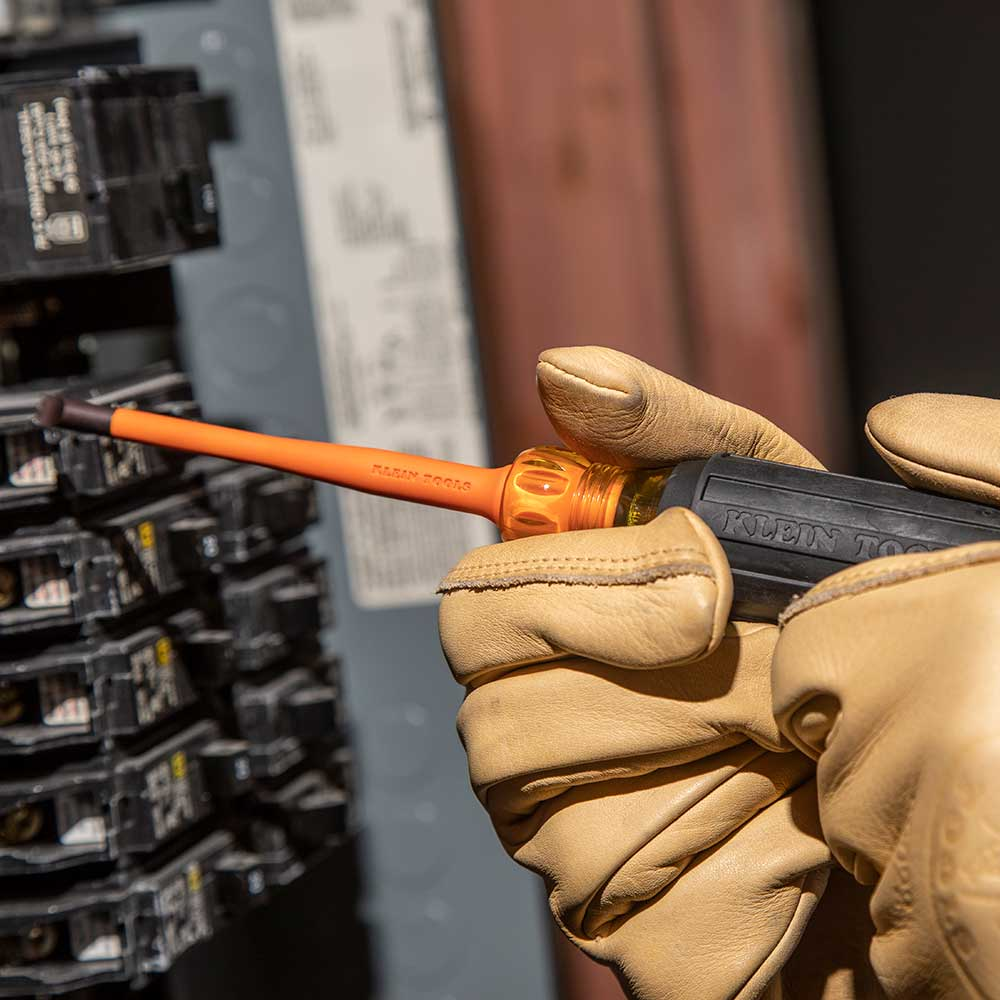

Klein Tools' Slim-Tip Insulated Screwdrivers have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energized sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000V rating symbol. A must-have for any electrician's tool bag, these screwdrivers are available in 4-Inch and 6-Inch lengths with a variety of tips.

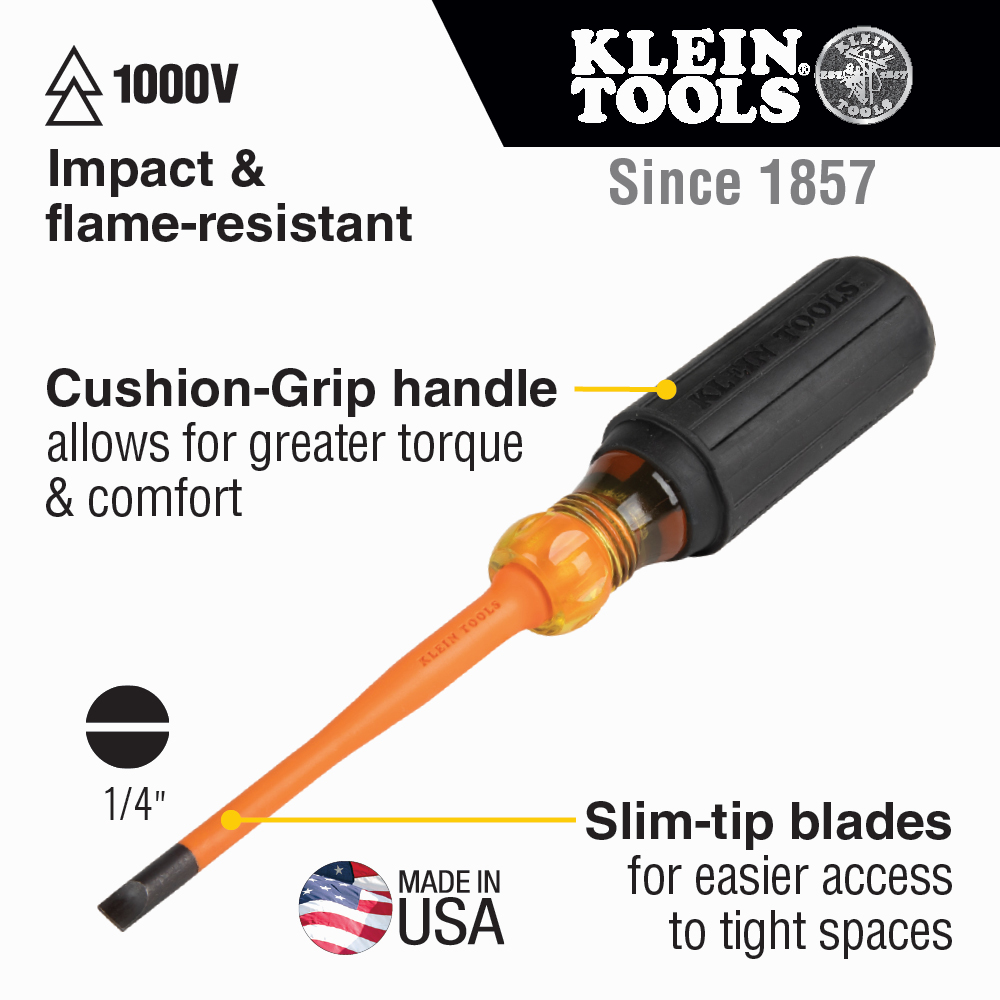

Features

• Made in USA
• Slim Profile Tip
• 1000V rated layer of orange impact and flame-resistant insulation protects from electrical shock

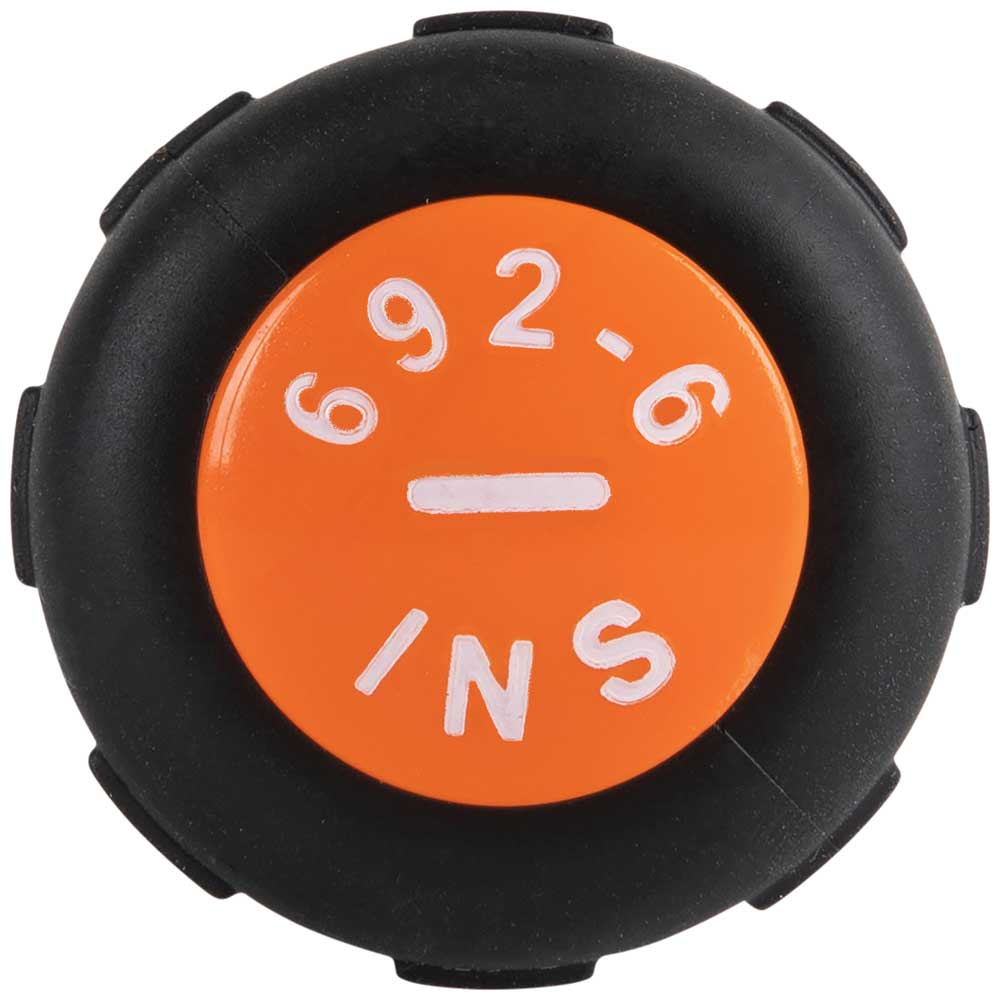

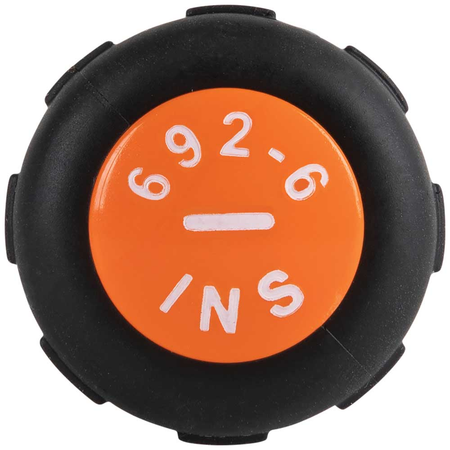

• Tip-Ident® quickly identifies the tip type and orientation
• 6-Inch round shank, 1/4-Inch Cabinet tip, insulated screwdriver with a slim tip that allows for greater access into tight spaces
• Cushion-Grip™ handles for greater torque and comfort
• Meets or exceeds ASTM F1505-16 and IEC 60900:2018

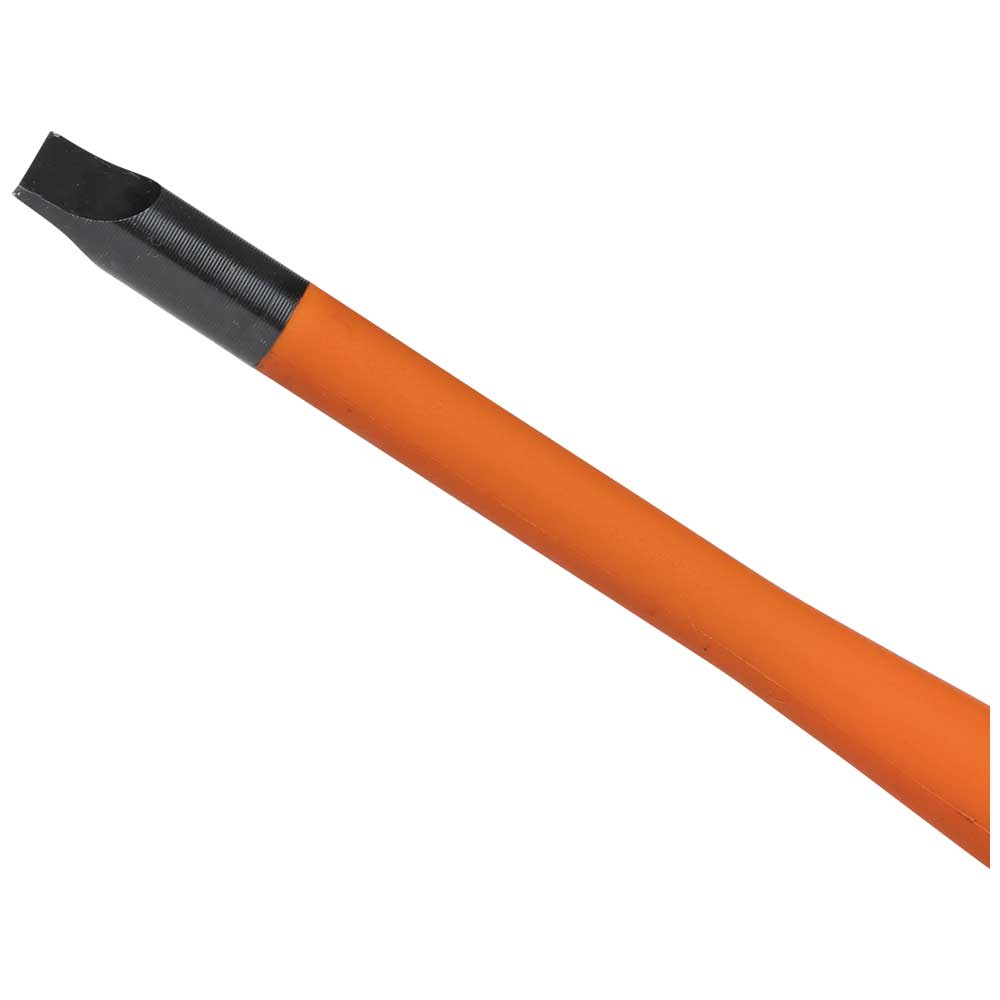

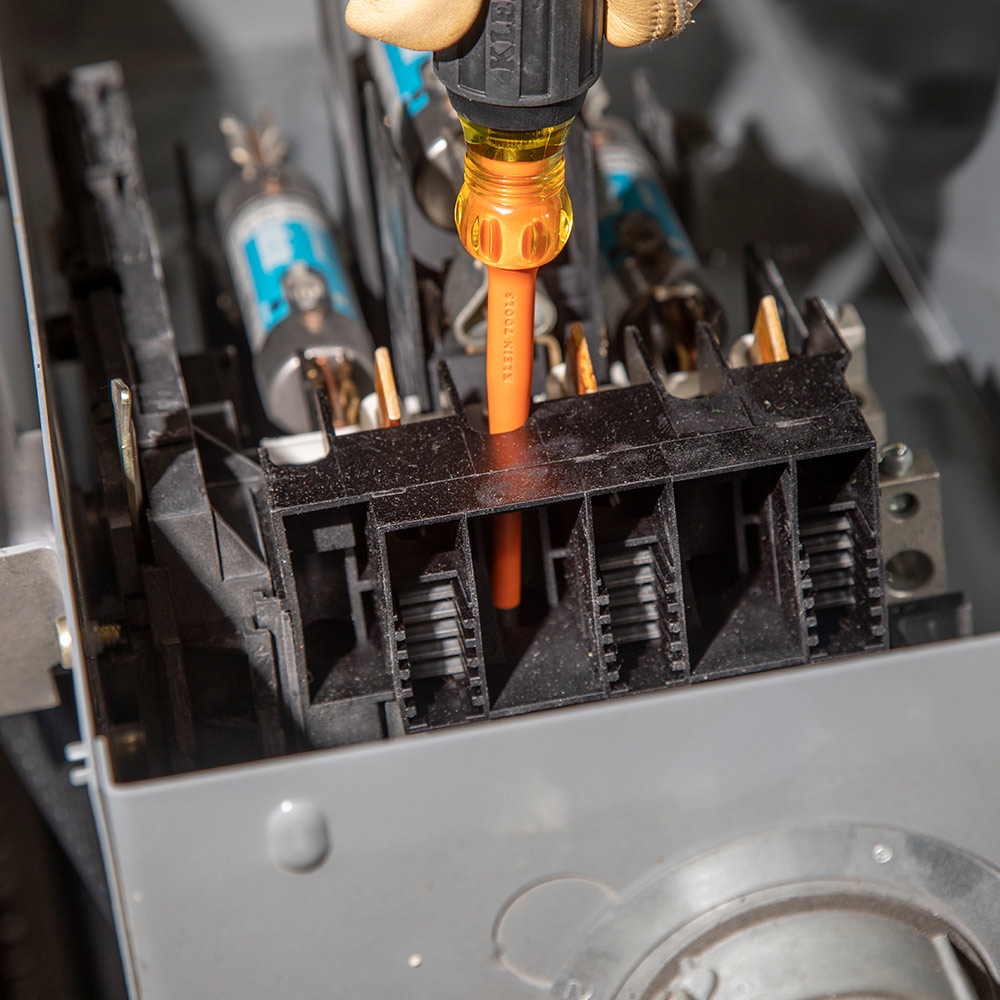

• Insulated blade is flush with the tip to help reduce nicking the insulation and gain access into tight terminal blocks

Warnings

• Always inspect your tools before use.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Keep tool clean, dry and free of any surface contaminants.

Specifications

• Depth: 8.7500 in
• Application: For Work Near Energized Sources
• Magnetic: No
• Handle Diameter: 1.25" (3.2 cm)
• Handle Color: Black
• Weight (oz): 7.5
• Insulated: Yes
• Handle Length (Inch): 4.31
• Overall Length (cm): 26.2
• Tip Size: 1/4" (6.4 mm)
• Standard: ASTM F-1505-16, IEC 60900:2018
• Shank Length: 6" (15.2 cm)
• Overall Height (Inch): 1.25
• Weight (g): 213
• Overall Length (Inch): 10.31
• Overall Width (Inch): 1.25
• Width: 1.2500 in
• Weight: 0.3000 lbs
• Handle Material: Rubber
• Shank Type: Round
• Type: Slim-Tip Insulated Screwdriver
• Handle Length (cm): 10.9
• Overall Width (cm): 3.2
• Material: Steel, Plastic
• Color Code: Orange
• Overall Height (cm): 3.2
• Tip Type: Cabinet
• Height: 1.2500 in
