Premium Electrical Tool Set with Multimeter, Volt Tester, Outlet Tester

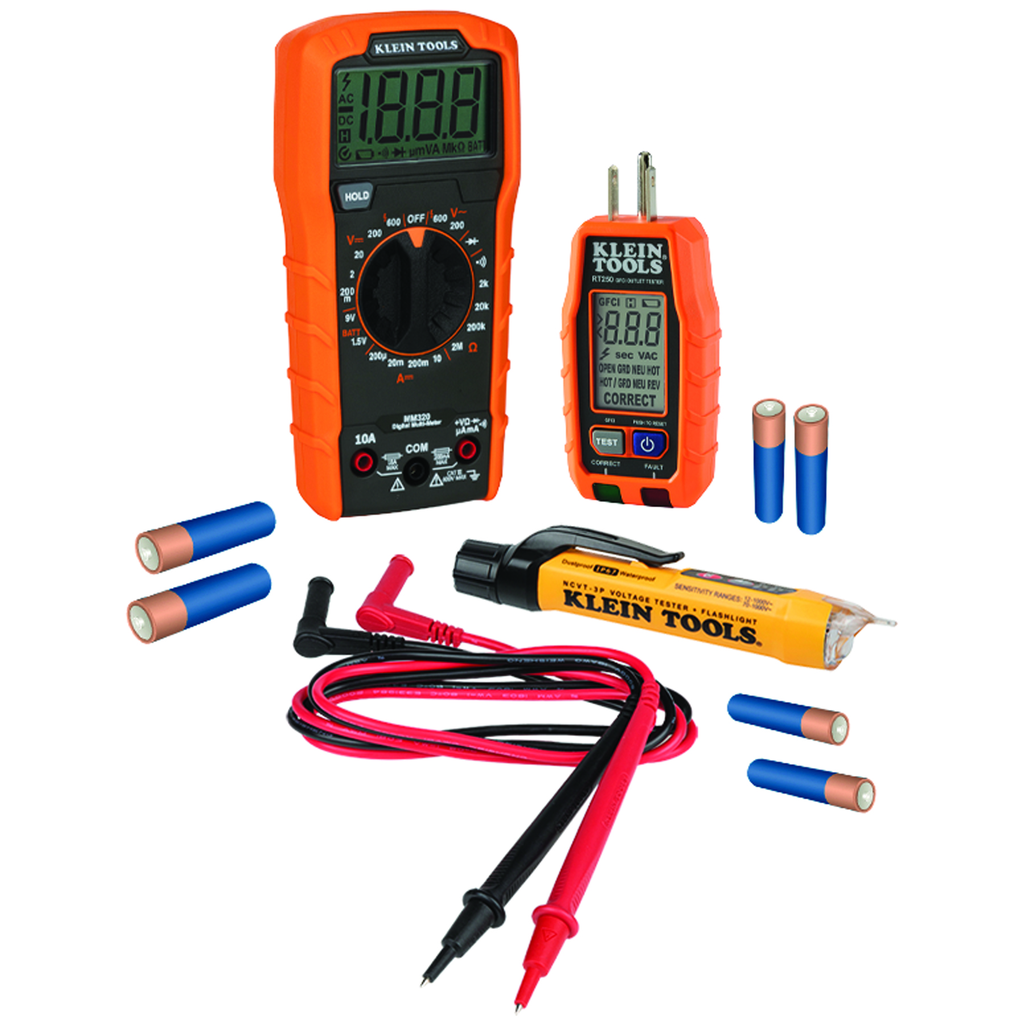

Klein Tools Premium Electrical Test Kit includes a Manual-Ranging Digital Multimeter (Cat. No. MM320) with right-angle test leads, Dual Range Non-Contact Voltage Tester with Flashlight, 12 to1000 VAC (Cat. No. NCVT3P), and a GFCI Receptacle Tester with LCD (Cat. No. RT250). This convenient kit features products for a variety of applications with safety and reliability in mind. Comes with all required batteries.

Features

• Electrical Kit with Premium Testers solve various electrical applications; Manual-Ranging Digital Multimeter, Dual Range Non-Contact Voltage Tester with Flashlight, and GFCI Receptacle Tester with LCD

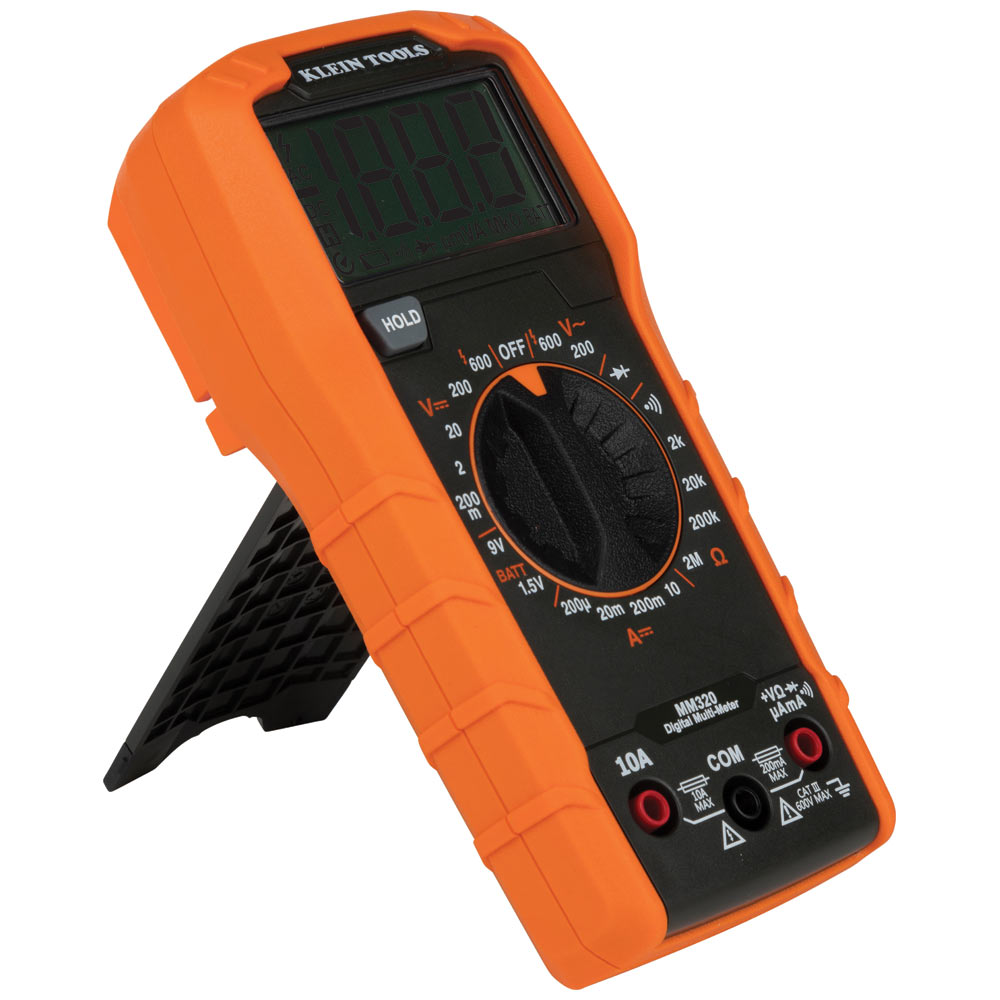

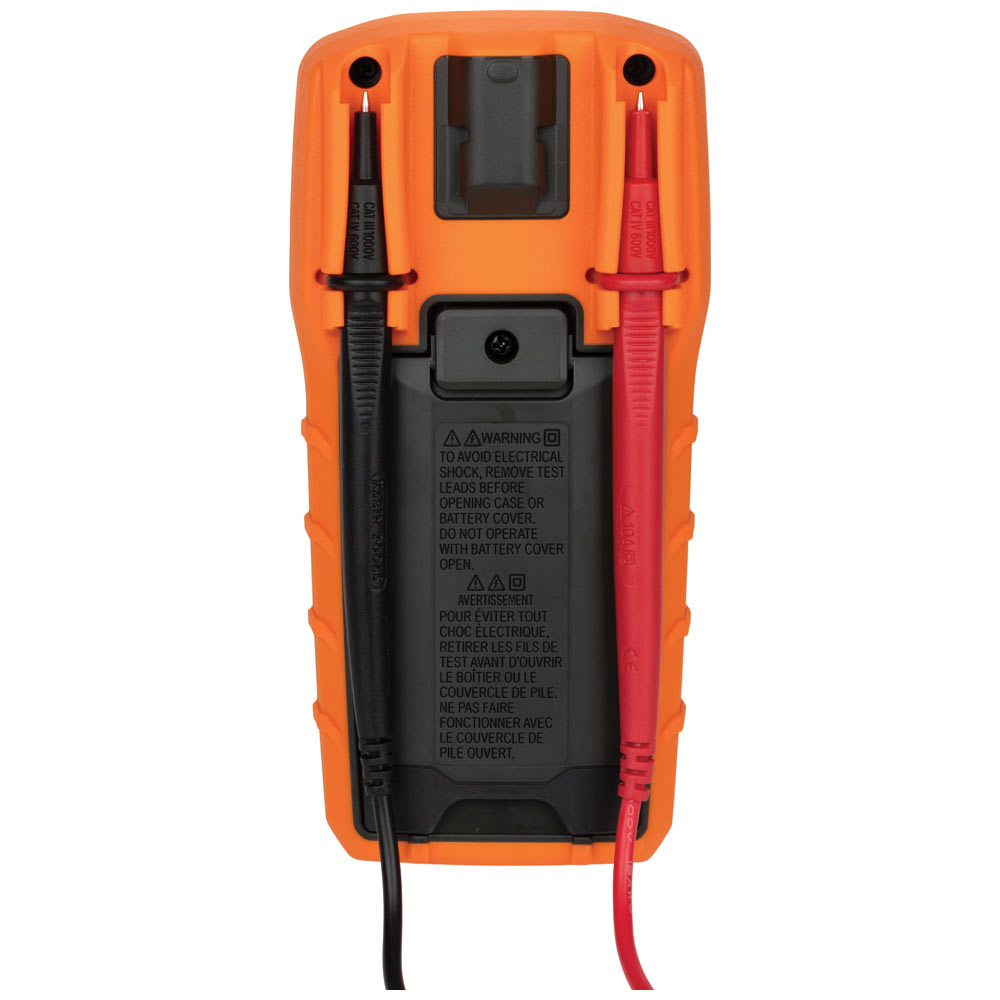

• Digital Multimeter MM320 includes right-angle test leads and all required batteries

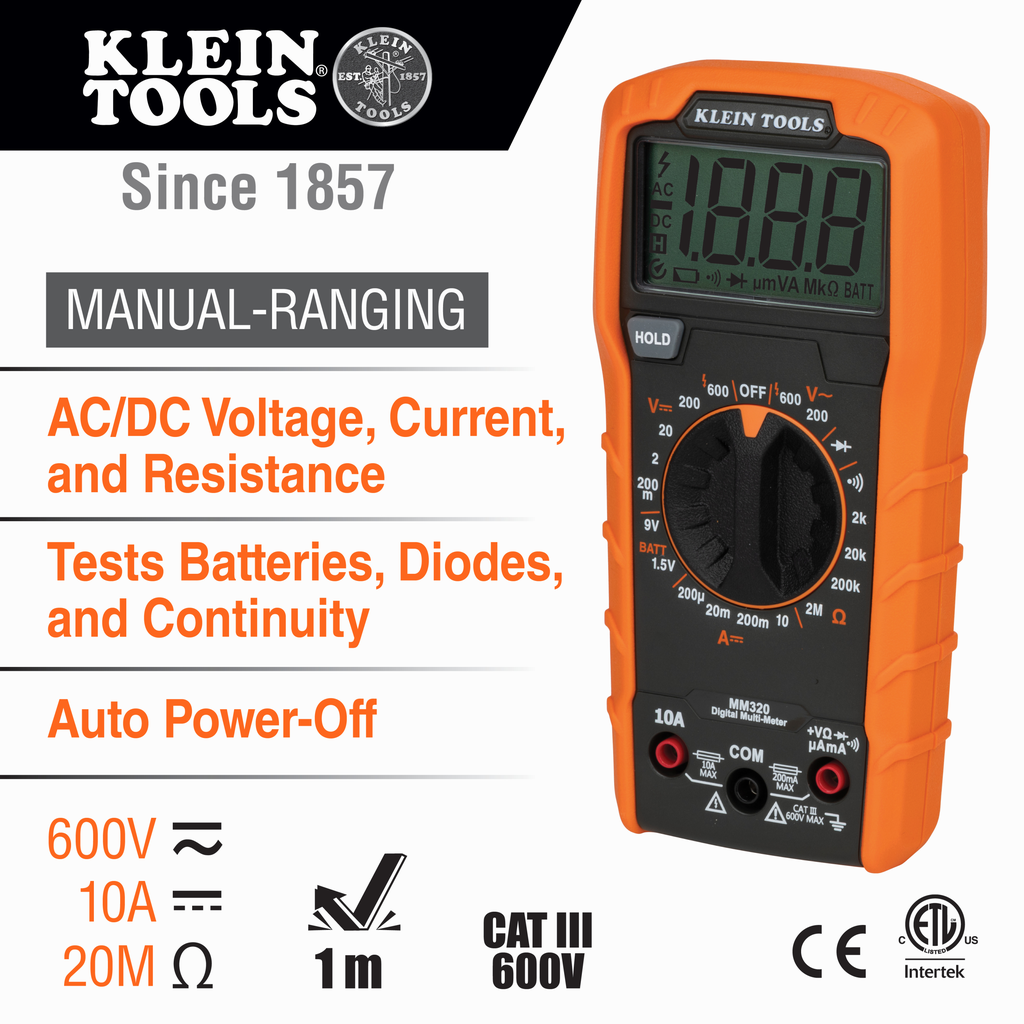

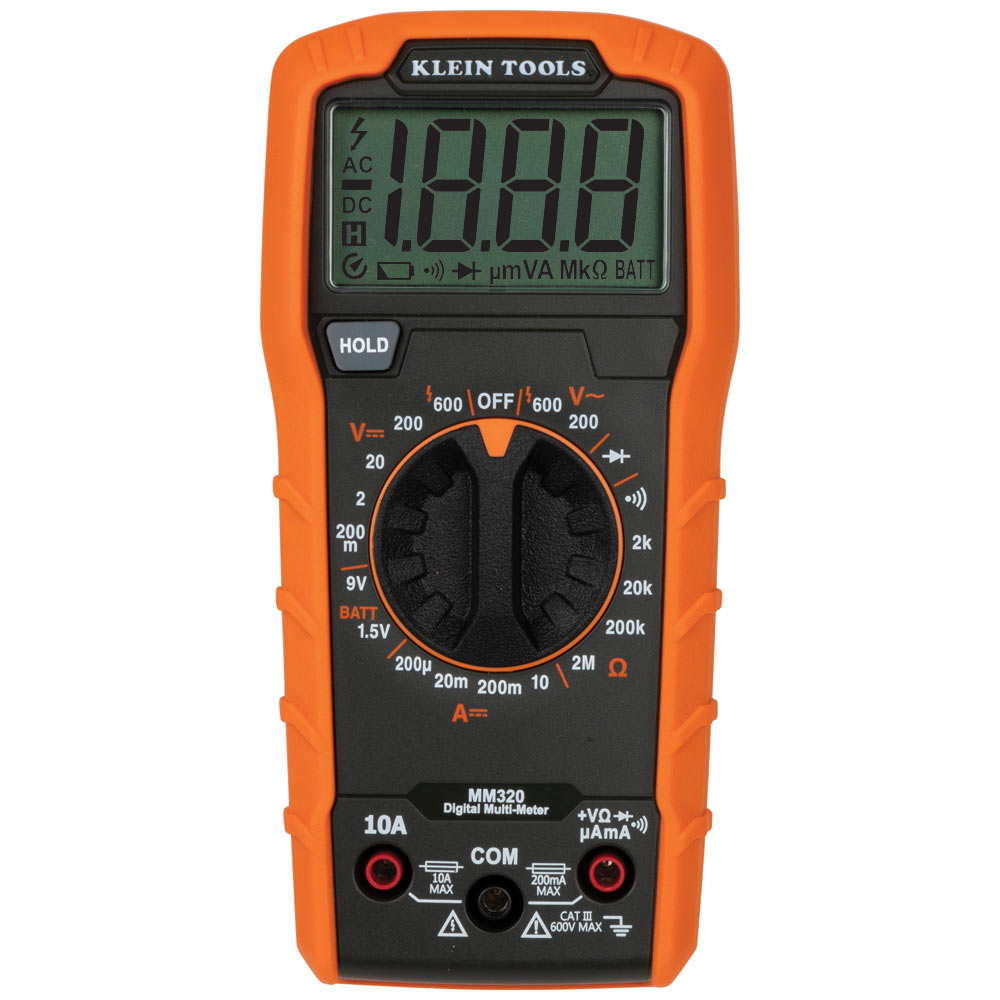

• Digital Multimeter MM320 measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance; also tests batteries, diodes, and continuity
• MM320 is CAT III safety rated for 600V

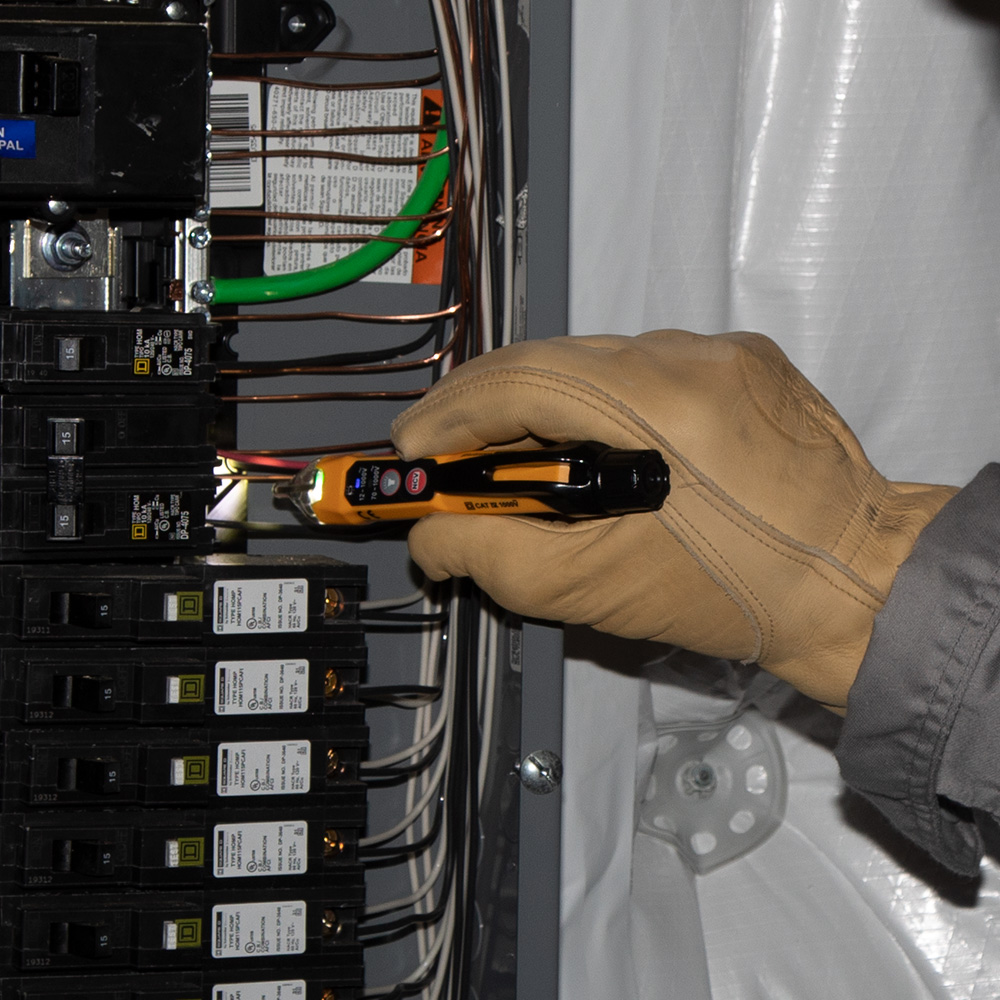

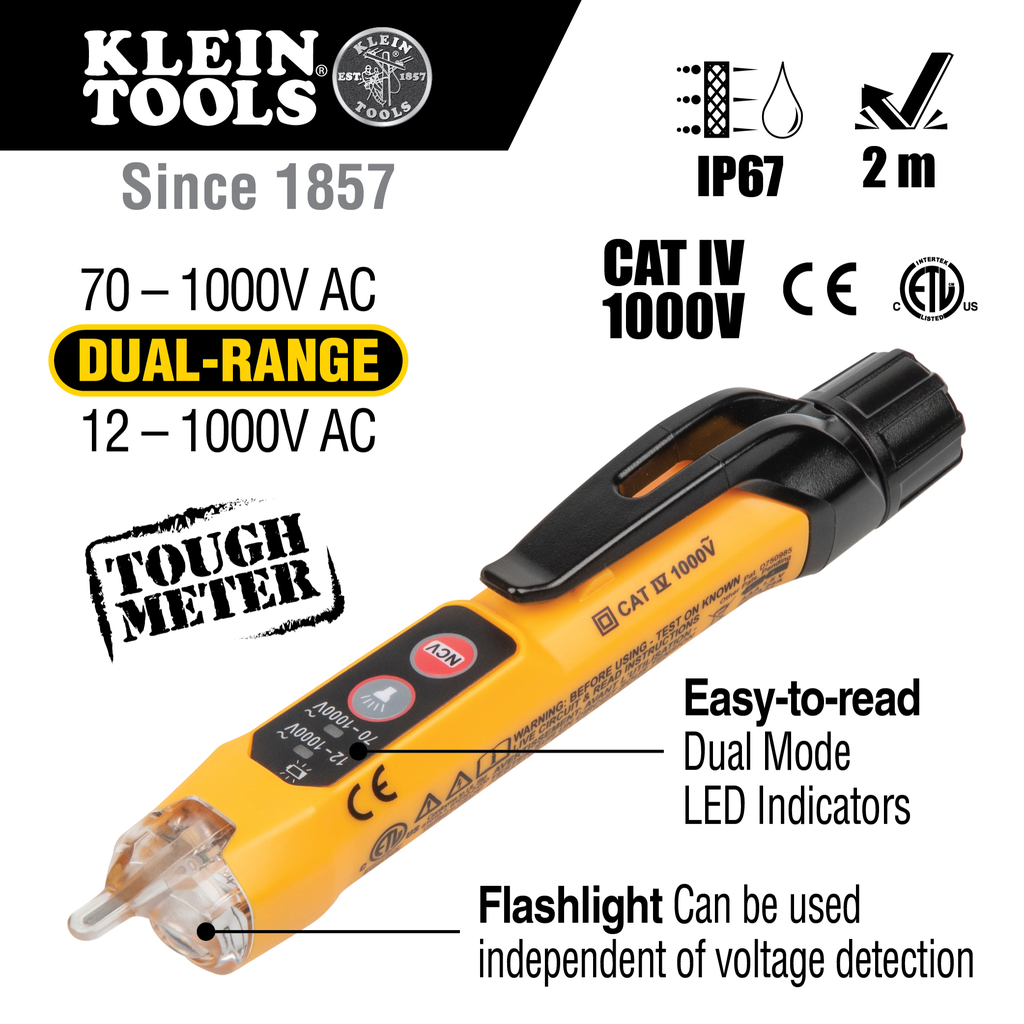

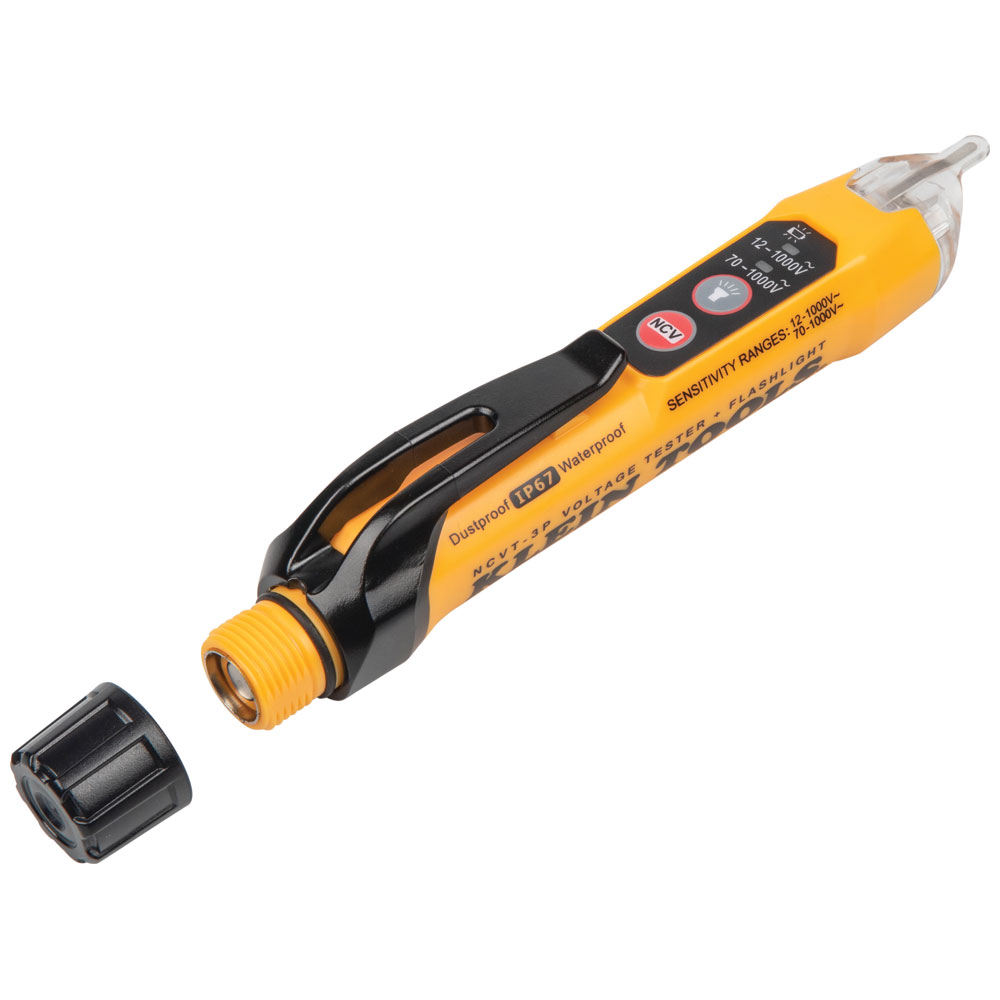

• Voltage Tester NCVT3P has dual-range capabilities to detect from 12 to 1000 VAC or 70 to 1000 VAC for a broad variety of low-voltage or standard voltage applications
• Bright flashlight illuminates work area and may be used independent of voltage detection function

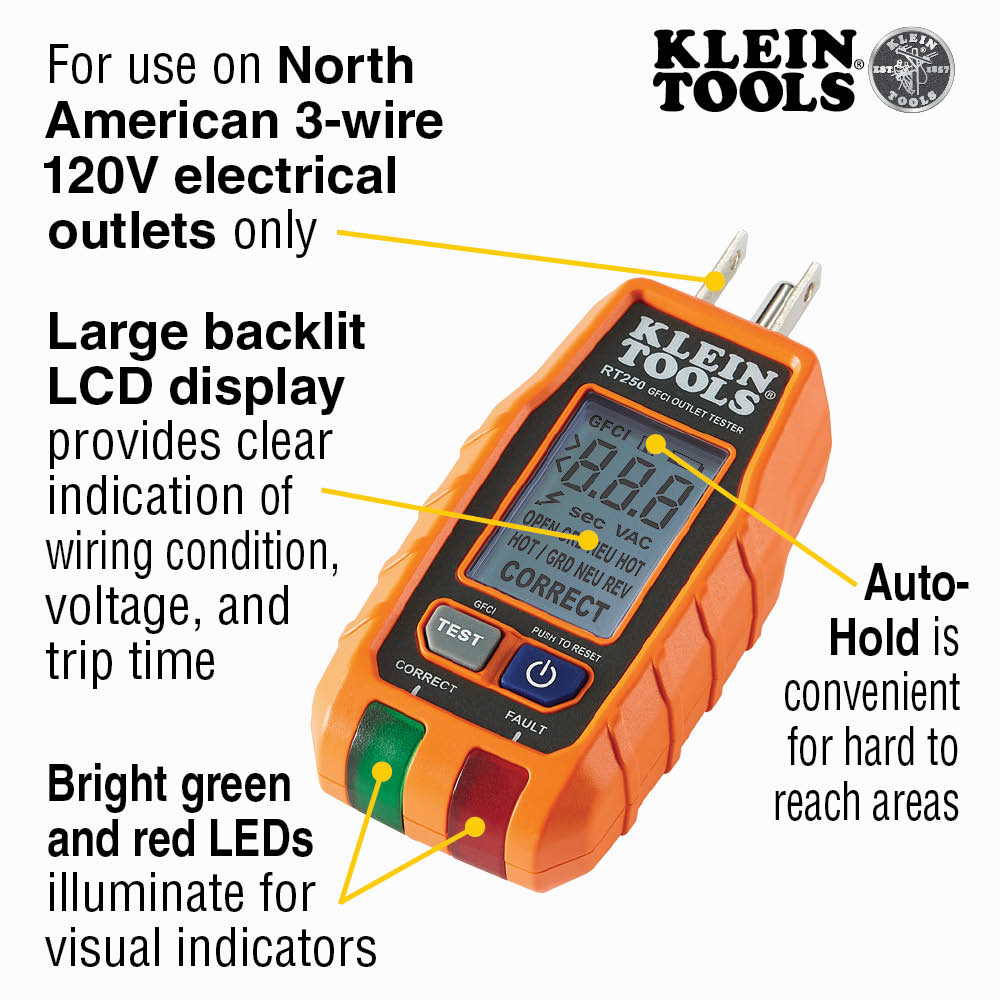

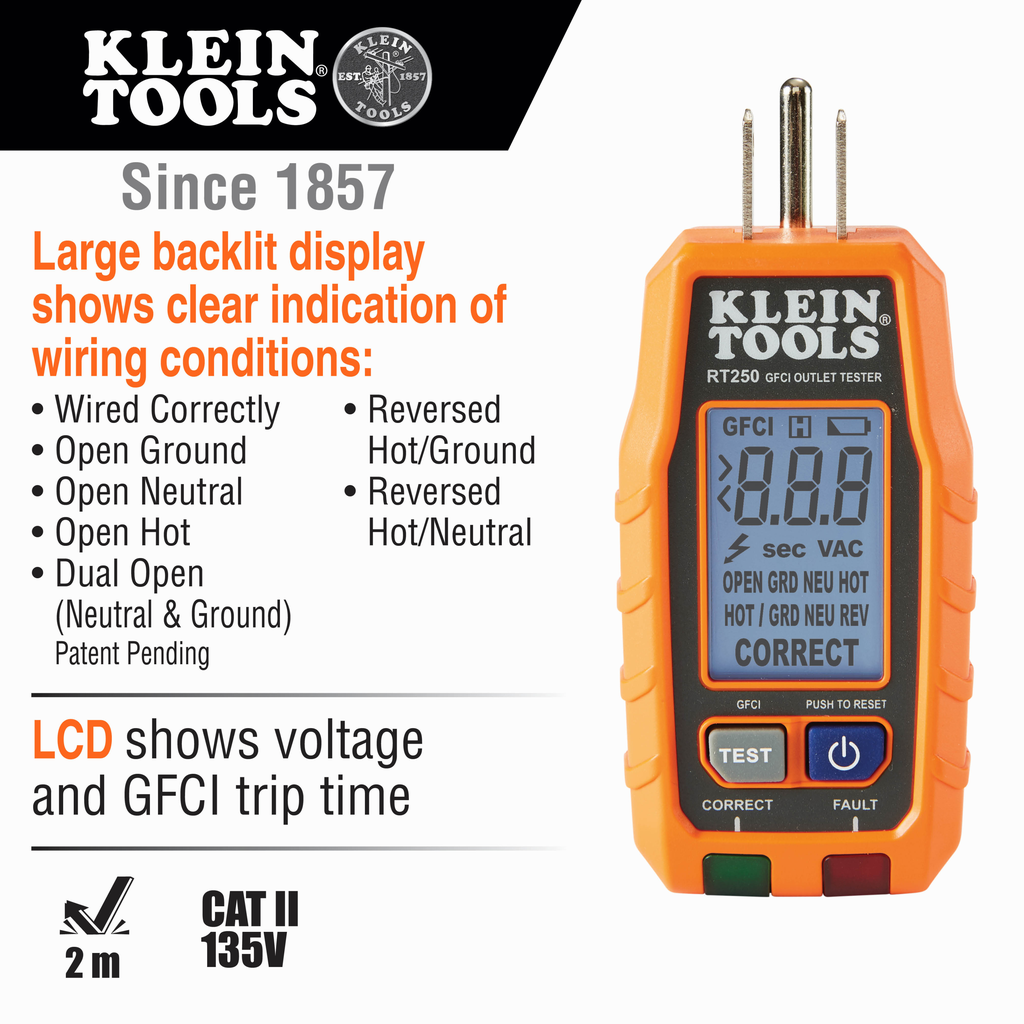

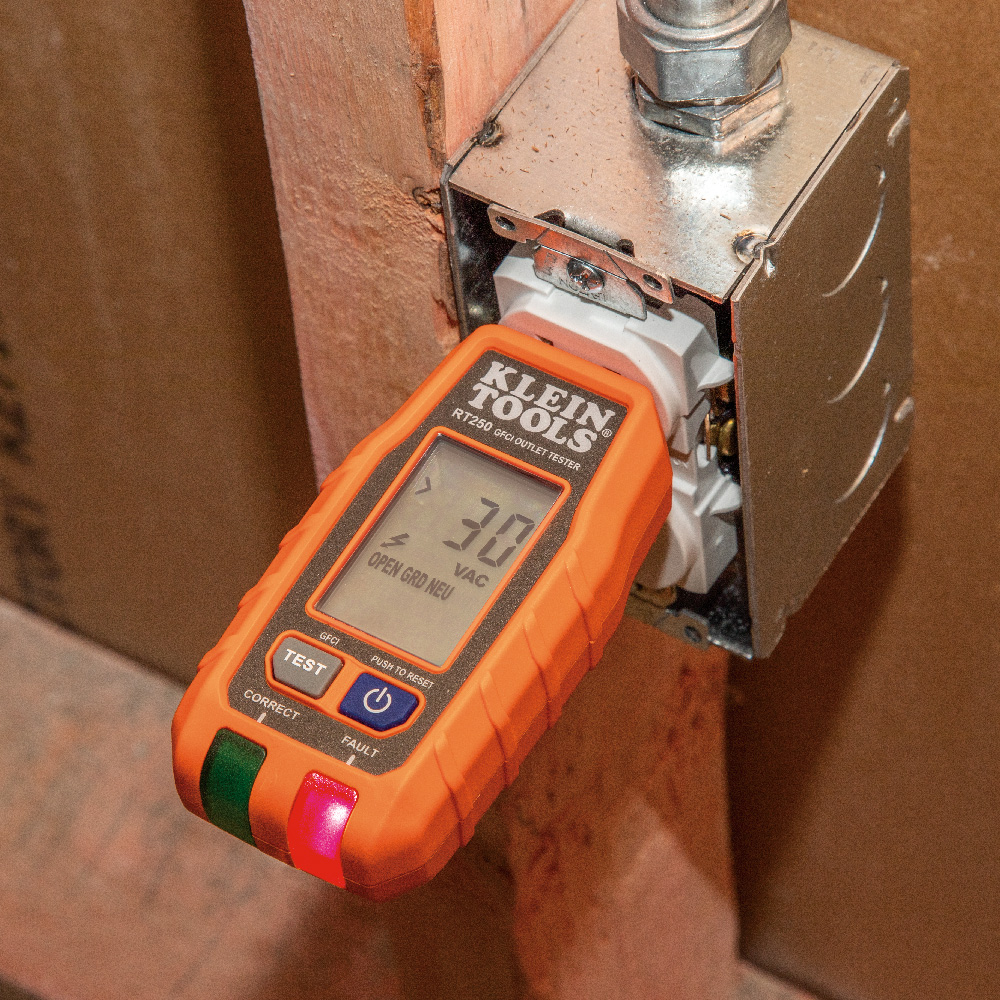

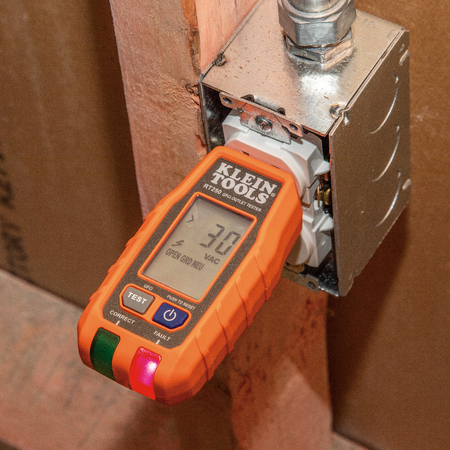

• GFCI Receptacle Tester RT250 features a large backlit LCD readout of voltage, and clear indication of wiring conditions, including patent pending detection of Open Neutral / Open Ground wiring faults
• LCD readout on receptacle tester shows the time required to trip a GFCI device; for use on 3-wire, North American 120V electrical outlets only
• Auto Power-Off on MM320 Multimeter

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Do not attempt to measure resistance or continuity on live circuits.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Specifications

• Overall Height (Inch): 1.8
• Weight (oz): 8.2
• Weight (g): 232
• Functions: Hold
• Weight: 1.1500 lbs
• Overall Length (cm): 16.2
• Type: Electrical Test Kit
• Overall Width (cm): 7.9
• Batteries: MM320 - 2 x AAA
• Ohms (Resistance): 2MΩ
• Display: MM320 - 2000 Count LCD
• Overall Height (cm): 4.6
• Depth: 11.4200 in
• Voltage: MM320 - 600V AC/DC
• Height: 3.3500 in
• Width: 6.6900 in
• Included: MM320 Manual-Ranging Digital Multimeter with Right-angle Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; RT250 GFCI Receptacle Tester with LCD; Instructions; and All Required Batteries
• Standard: MM320: CAT III 600V; CE; UKCA
• Current: 10A
• Drop Protection: MM320 - 3.3' (1 m)
• Overall Width (Inch): 3.12
• Material: ABS/Electronics
• Application: Multimeter Measures up to 600V AC/DC Voltage, 10A DC Current and 2MΩ Resistance. Tests Batteries, Diodes, and Continuity
• Overall Length (Inch): 6.39
