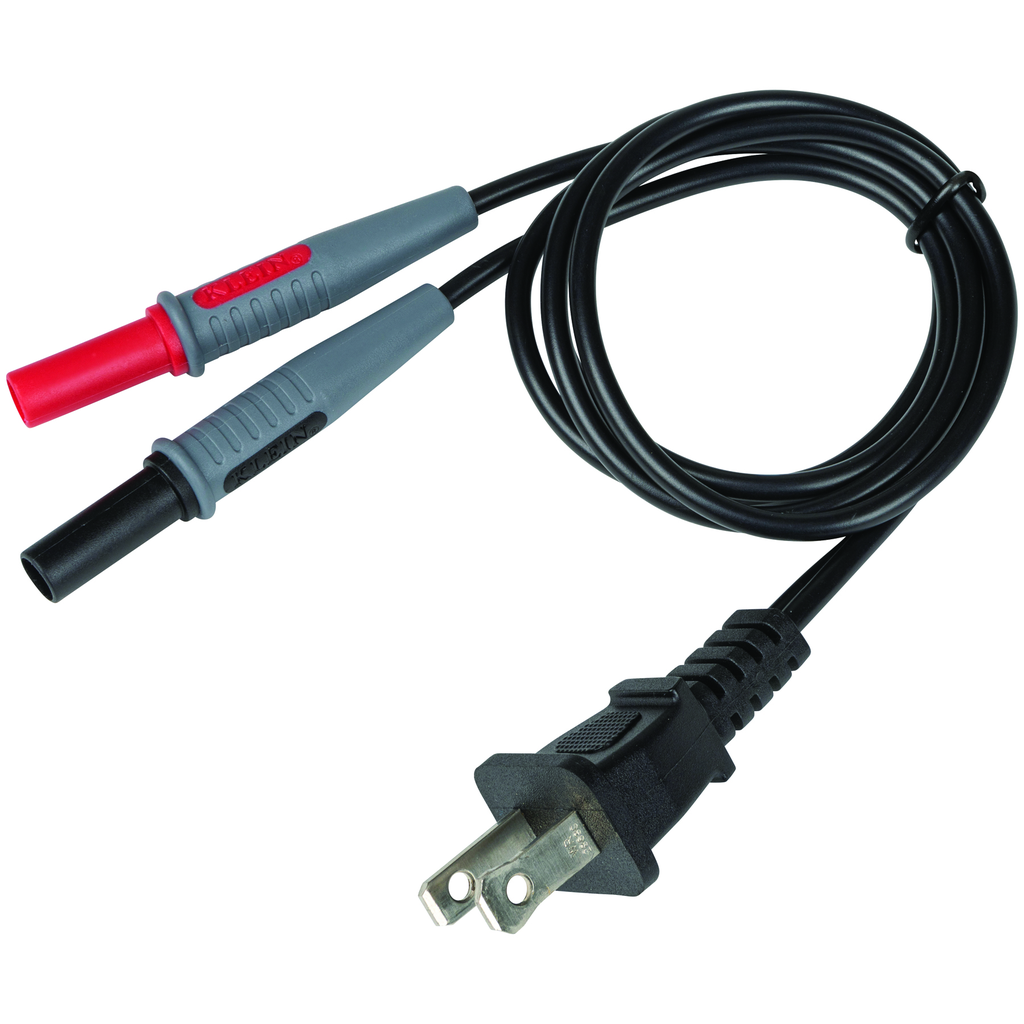

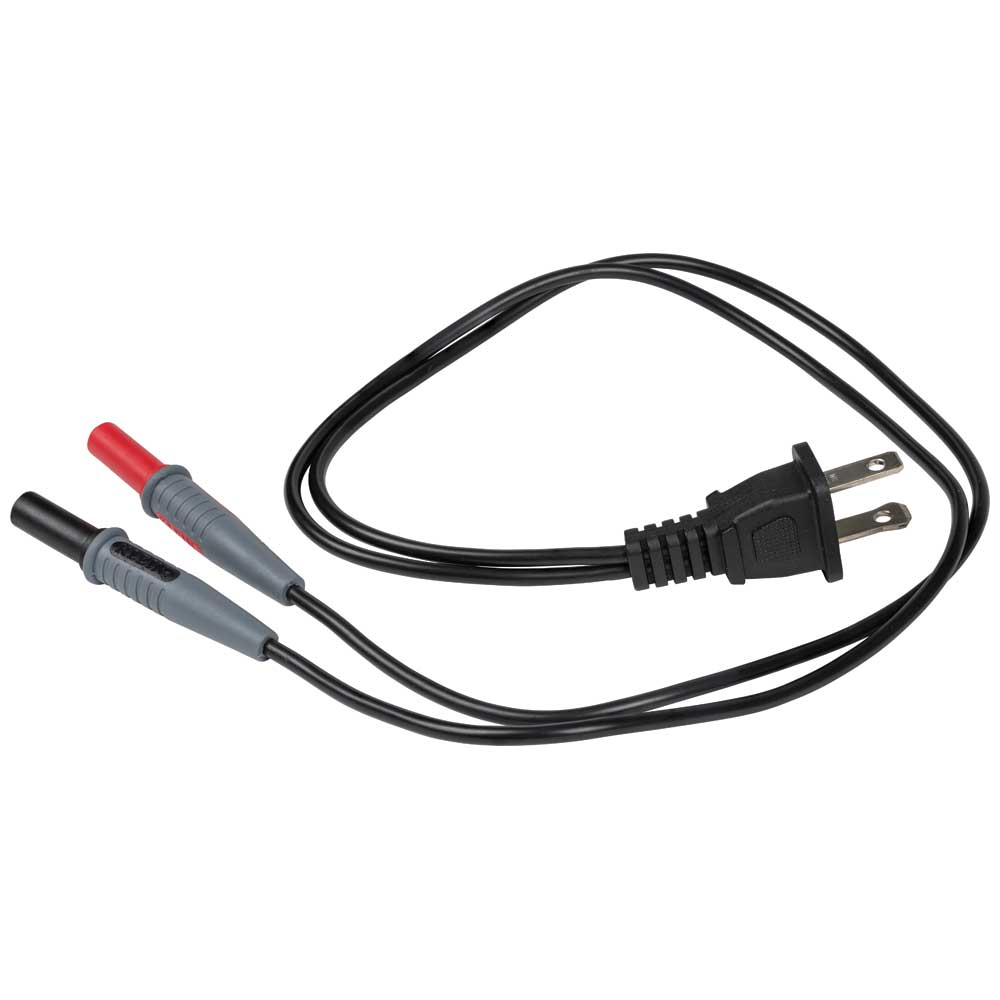

AC Plug to Banana Jacks

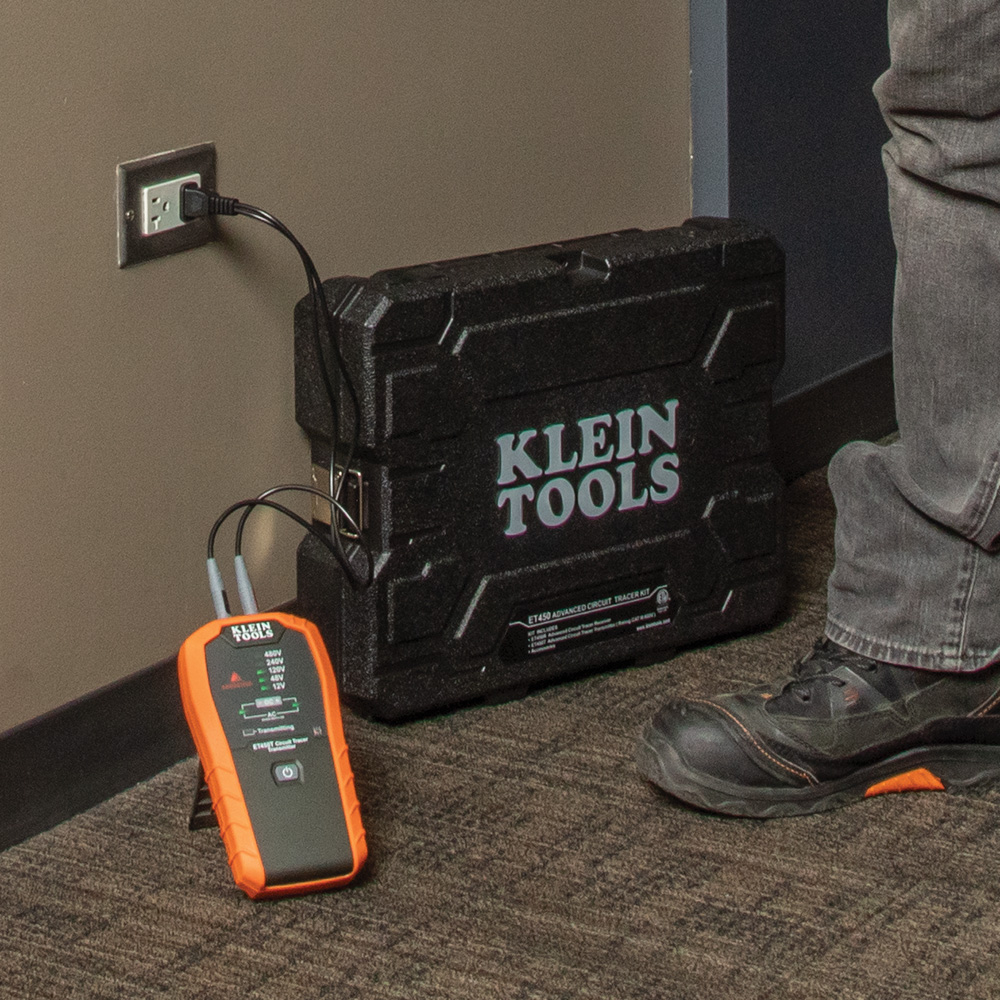

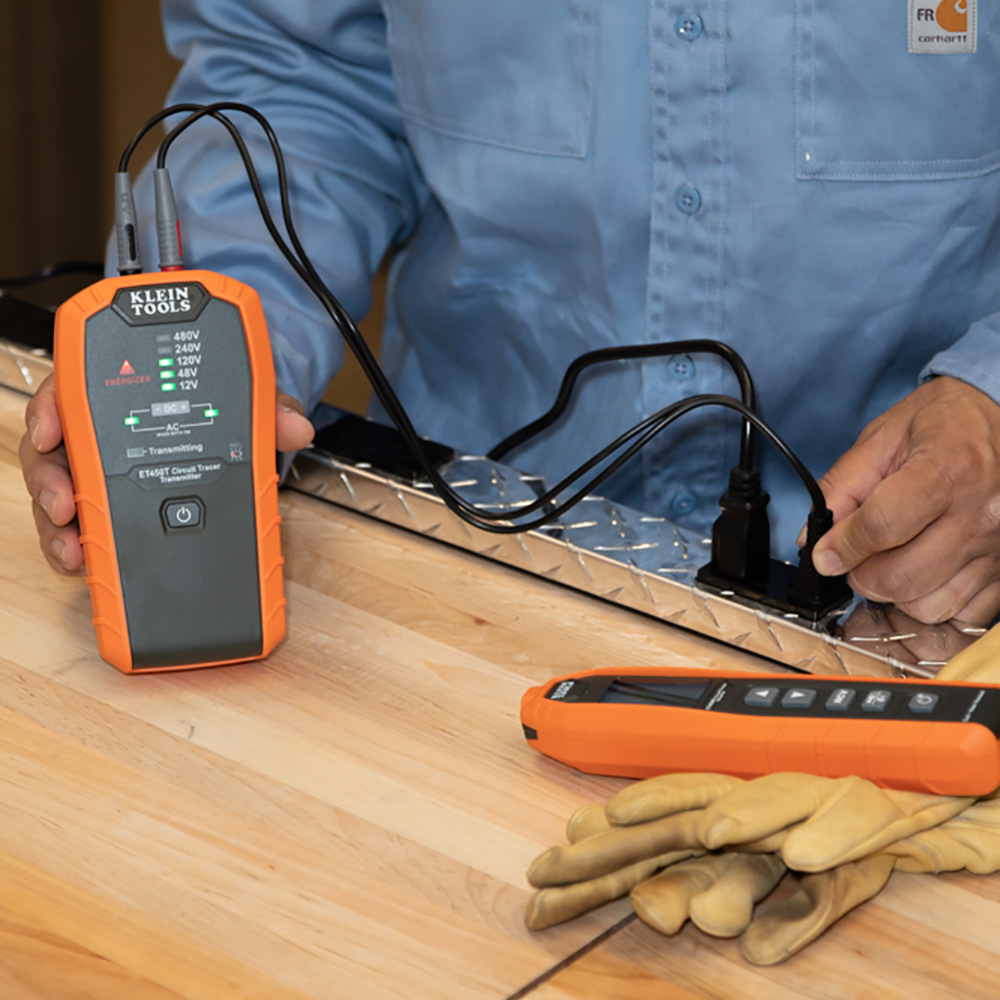

The Klein Tools AC Plug to Banana Jacks accessory is compatible with products that have banana-type input jacks. Attach the Banana Jack connectors to the meter and easily plug into an outlet for measuring or tracing a circuit. They are part of a full line of Klein Tools meters and testers, designed by electricians for electricians.

Features

• For use on North American 120V electrical outlets only

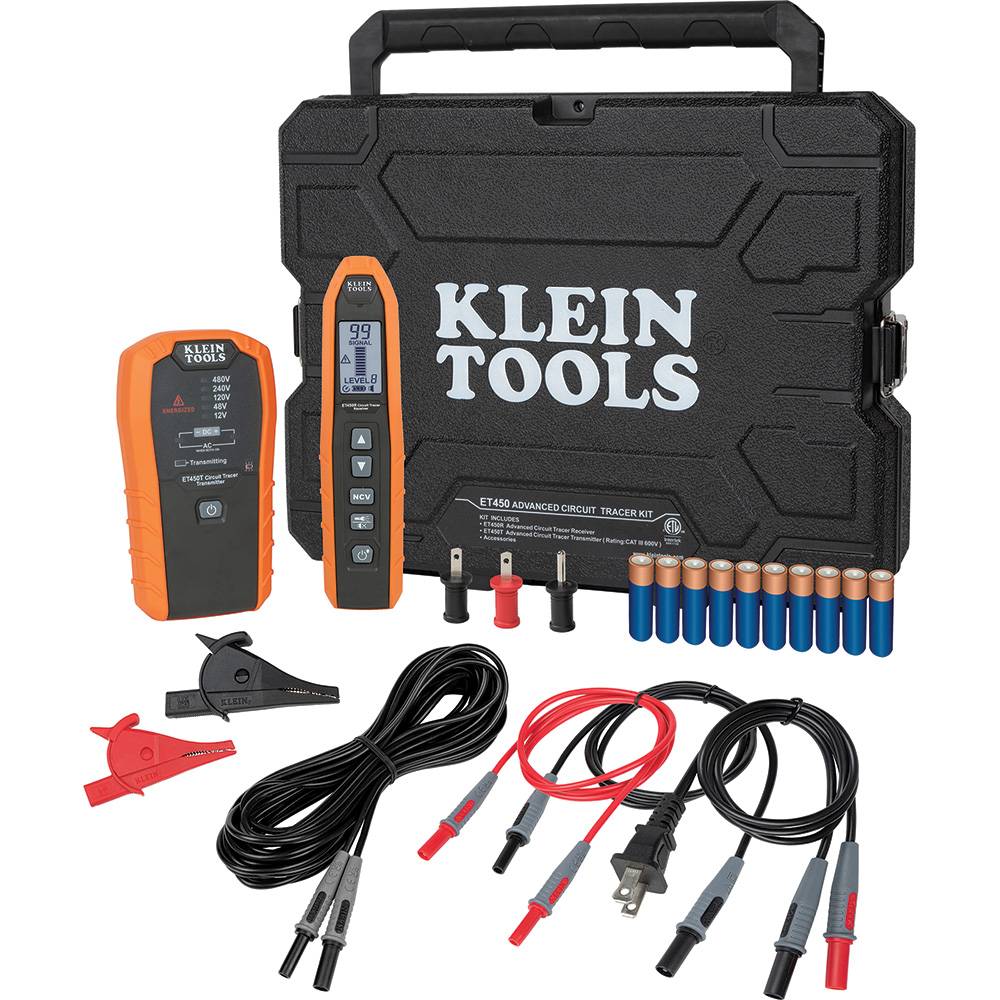

• For use with the Advanced Circuit Tracer Kit (Cat. No. ET450) or any brand of meter with banana-type connectors

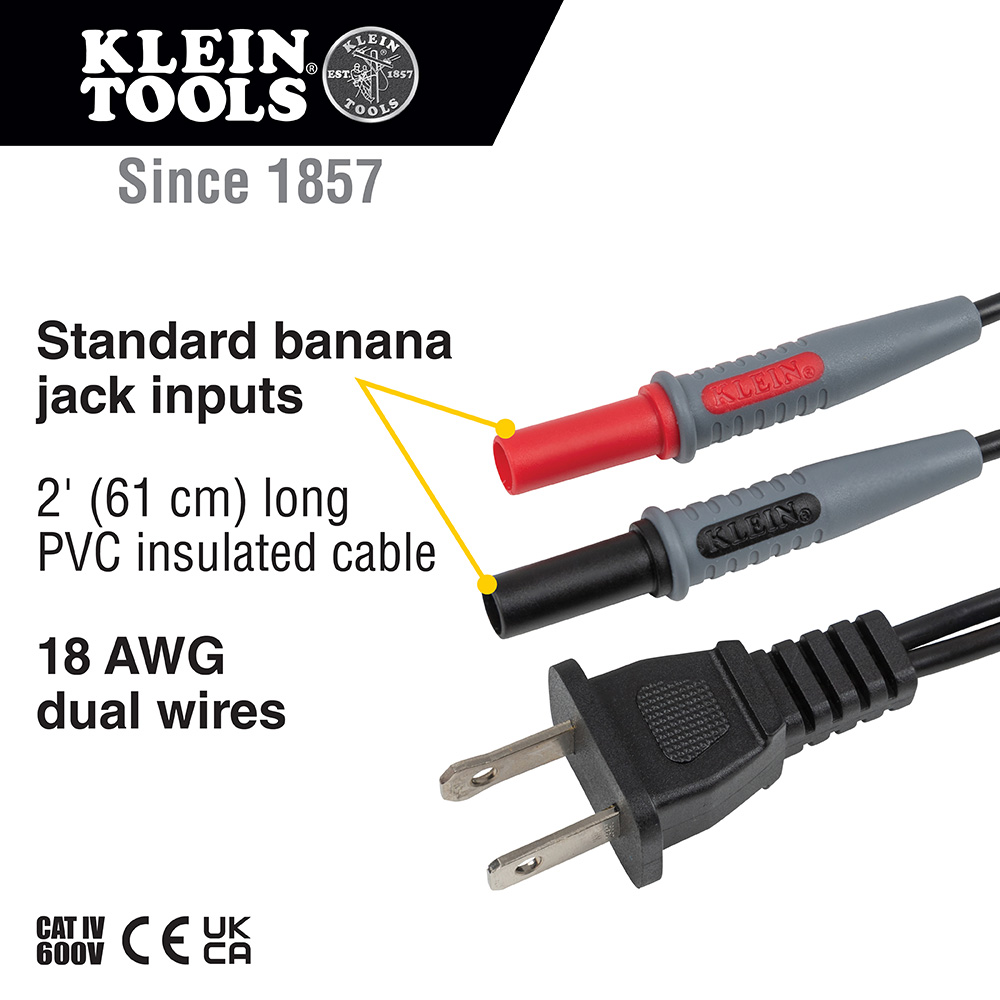

• Test cable is PVC insulated 18 AWG dual wires

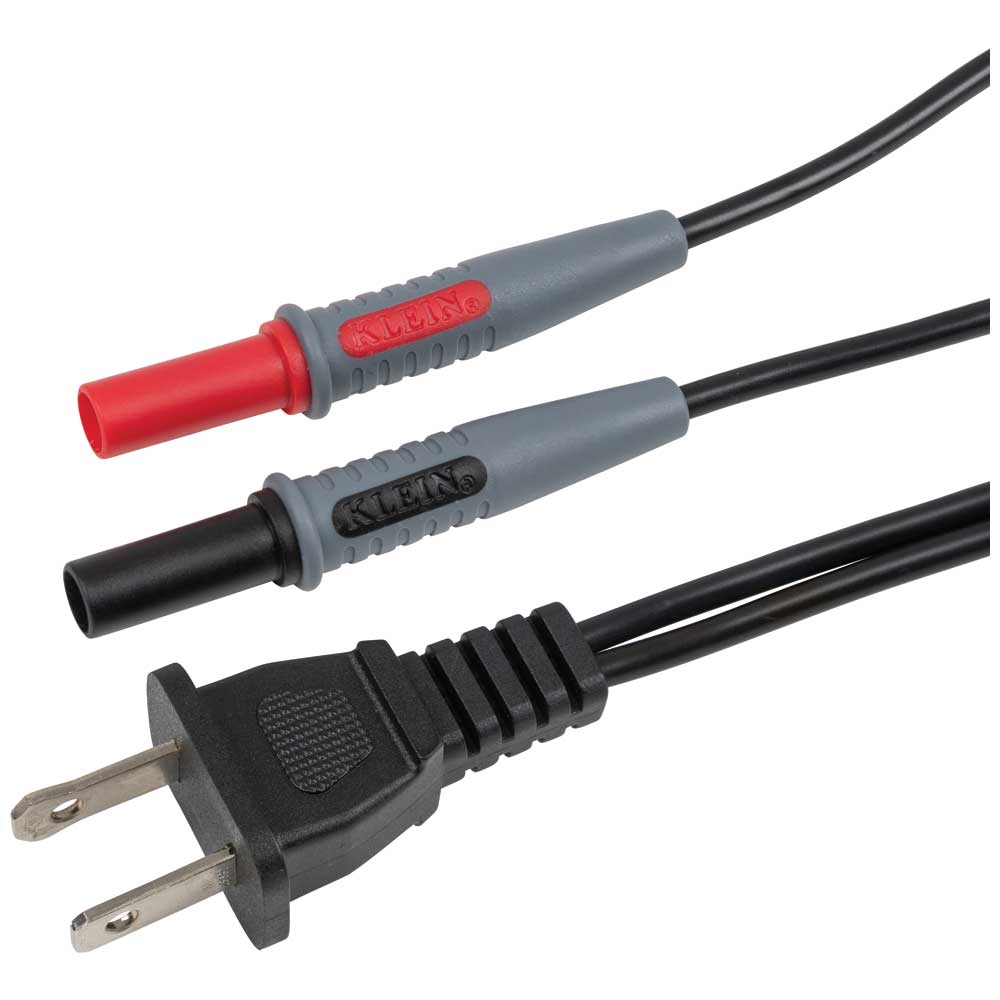

• Standard banana-type inputs attach to the meter and the AC Plug connects to circuit for measuring or tracing a circuit
• Double Insulated
• Cable length is 2-Foot (61 cm) long
• Compatible with any Brand of Meter with Banana-Type Connectors
• Safety rated: CAT III 1000V/CAT IV 600V safety rating

Warnings

• Read, understand, and follow all warnings and instructions before operating testers.
• Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

Specifications

• Depth: 7.8700 in
• For Use With: Cat. No. ET450 Electrical Test Kit and any Model with Standard Banana-Type Inputs
• Material: PVC and Berillium Copper
• Overall Height: 13 Inch (33 cm)
• Connector Type: Banana Plug
• Width: 5.9100 in
• Height: 1.0900 in
• Type: AC Plug to Banana Jacks
• Overall Width: 0.8 cm (0.33 Inch)
• Application: Electrical Tracing or Testing
• Overall Length: 0.33 Inch (0.8 cm)
• Included: One Cable with AC Plug for Outlet and Banana Jacks to Attach to Meter
• Weight: 0.1100 lbs
