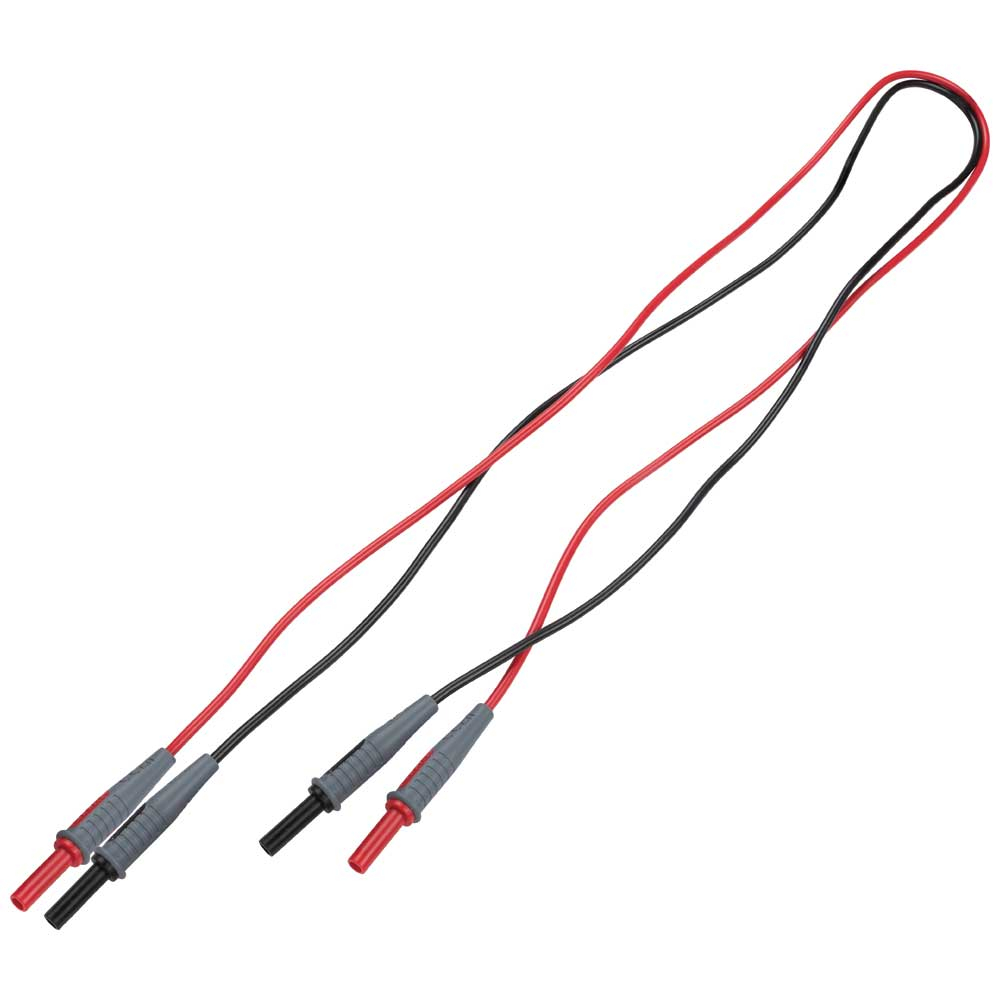

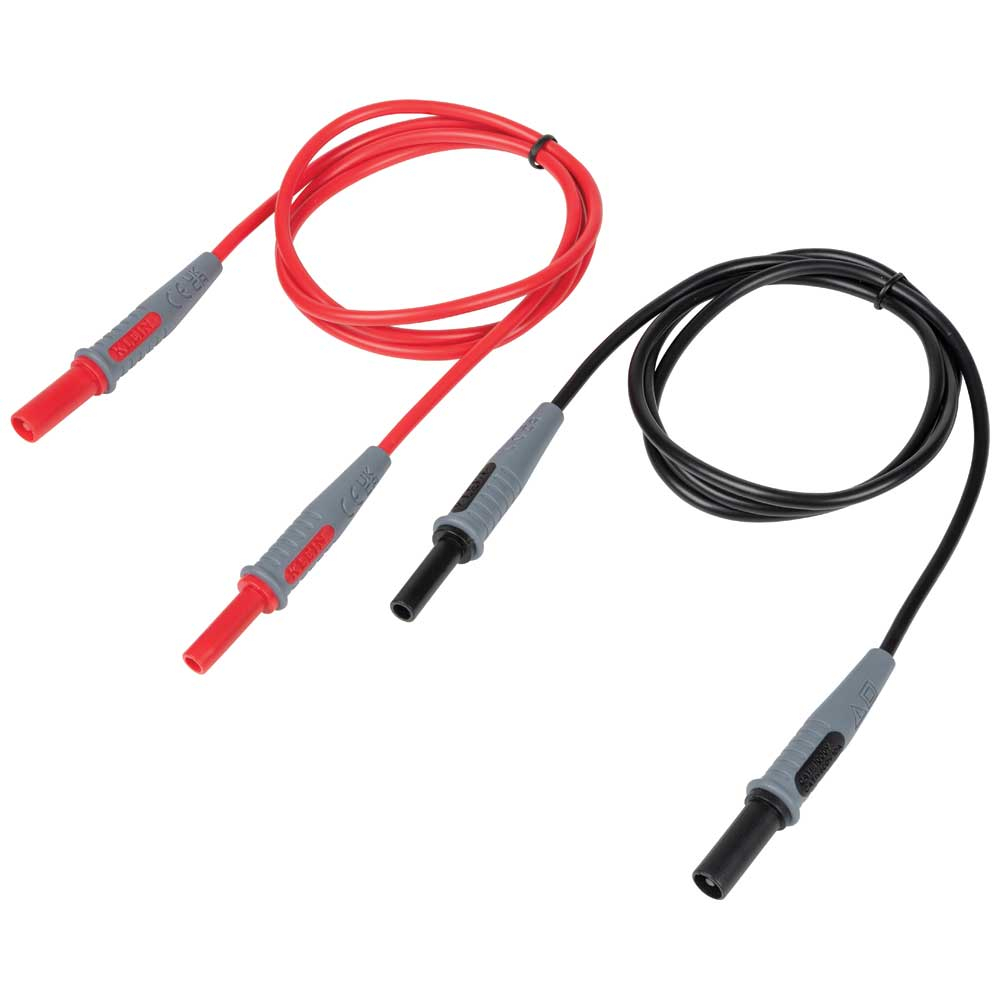

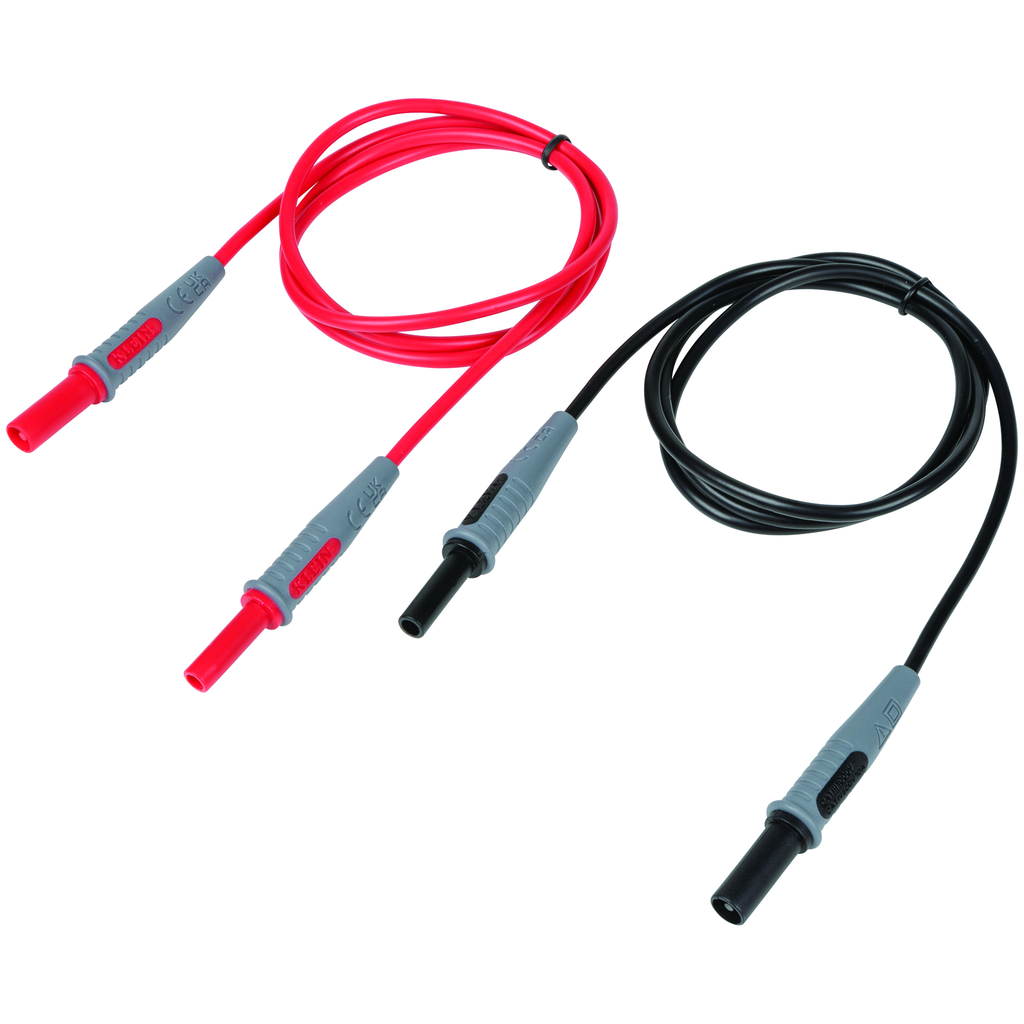

Lead Adapters, Red and Black, 3-Foot

The Klein Tools pair of 3-Foot Lead Adapters, in red and black, are compatible with products that have banana-type input jacks. The 3-Foot cables allow connection to an alligator clip or outlet tabs/prongs for different options to attach to a circuit. They are part of a full line of Klein Tools meters and testers, designed by electricians for electricians.

Features

• Safety rated: CAT III 1000V/CAT IV 600V
• Lead Adapters are perfect for using an alligator clip or outlet tabs/prongs to attach to a circuit

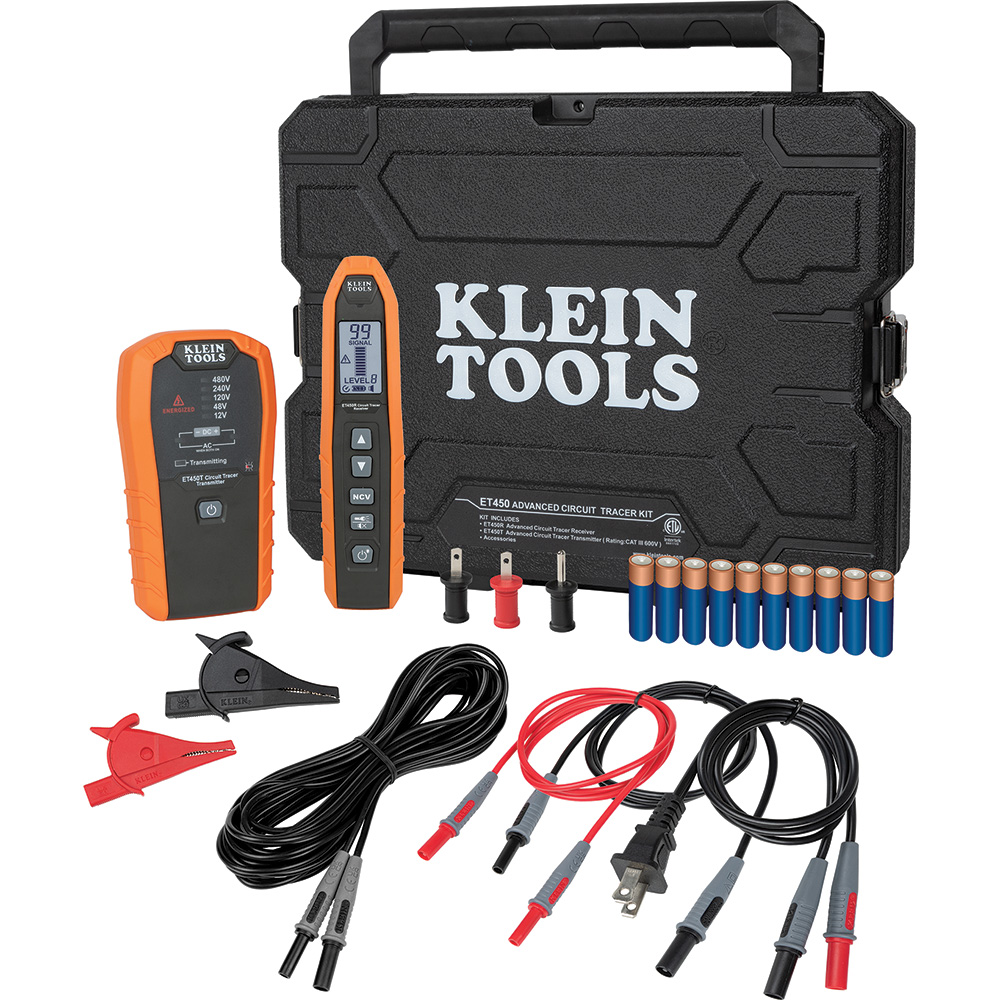

• For use with the Advanced Circuit Tracer Kit (Cat. No. ET450) or any brand of meter with banana-type connectors
• Compatible with any Brand of Meter with Banana-Type Connectors
• This pair of red and black cables come with protective caps for connectors
• Provides options for connectivity to a circuit for the ET450 or a meter with Banana-type input jacks

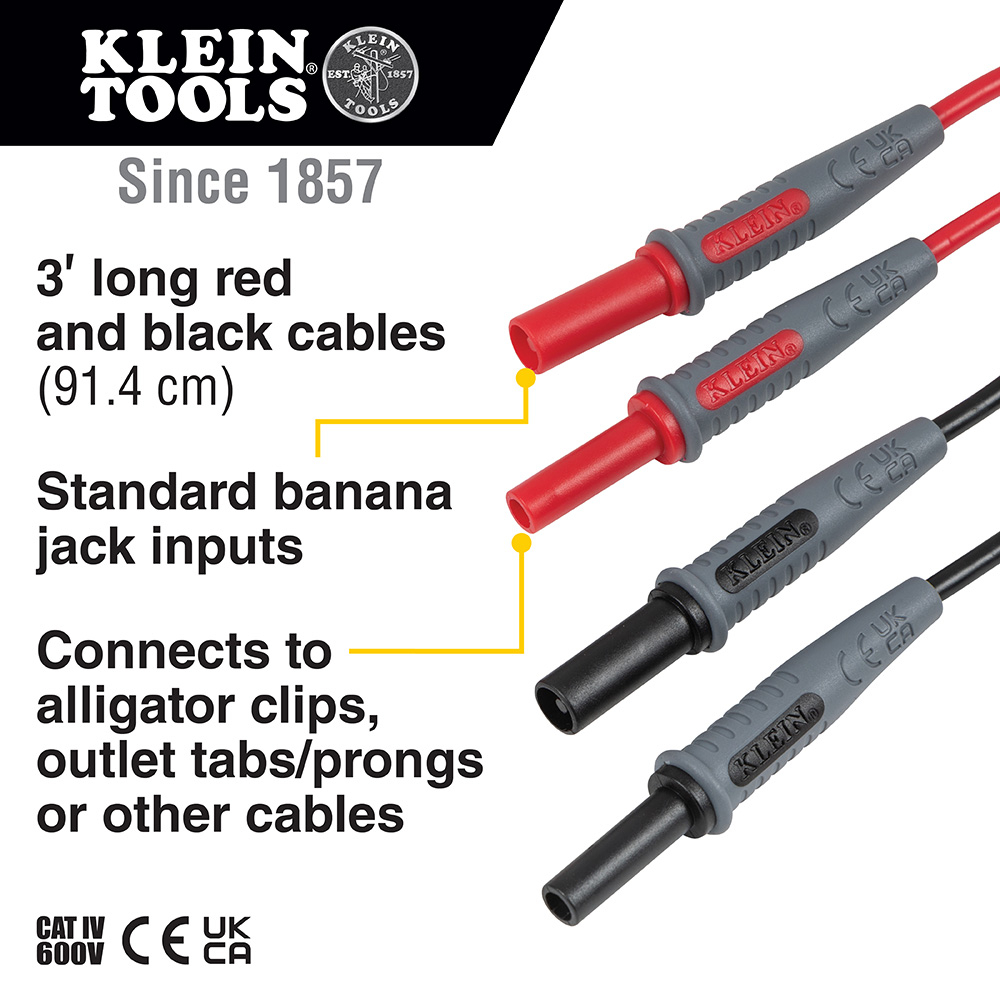

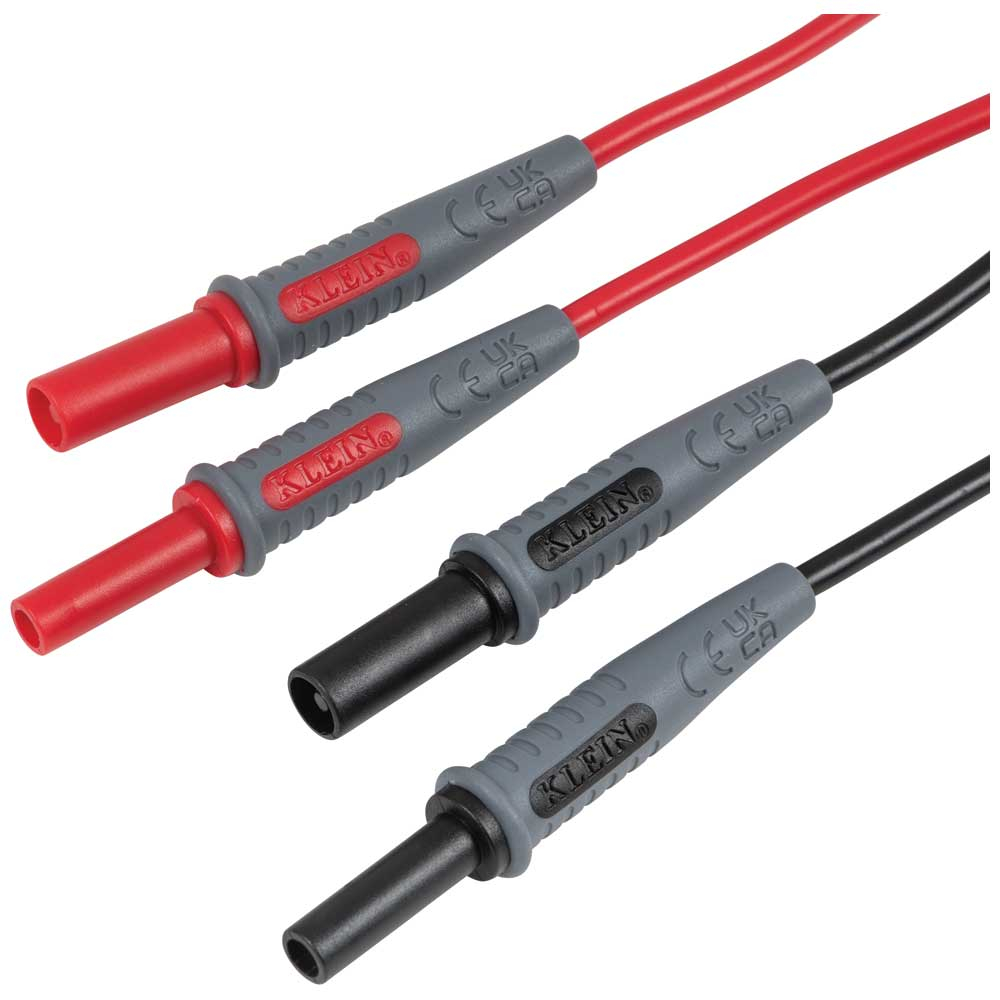

• One side of cable has standard Banana Jack type inputs to attach to the meter, the other side has a smaller diameter connectors to attach alligator clips, outlet tabs/prongs, or additional cables
• Double Insulated

Warnings

• Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Read, understand, and follow all warnings and instructions before operating testers.

Specifications

• For Use With: Cat. No. ET450 Electrical Test Kit and any Model with Standard Banana-Type Inputs
• Connector Type: Banana Plug
• Height: 1.4200 in
• Overall Length: 41.1" (104.4 cm)
• Included: One-Pair Lead Adapters
• Weight: 0.1500 lbs
• Country of Origin: China
• Material: PVC and Berillium Copper
• Overall Height: 0.31" (0.8 cm)
• Overall Width: 0.31" (0.8 cm)
• Type: Lead Adapter
• Width: 5.9100 in
• Depth: 7.8700 in
• Application: Electrical Tracing or Testing

Downloads

Instructions
