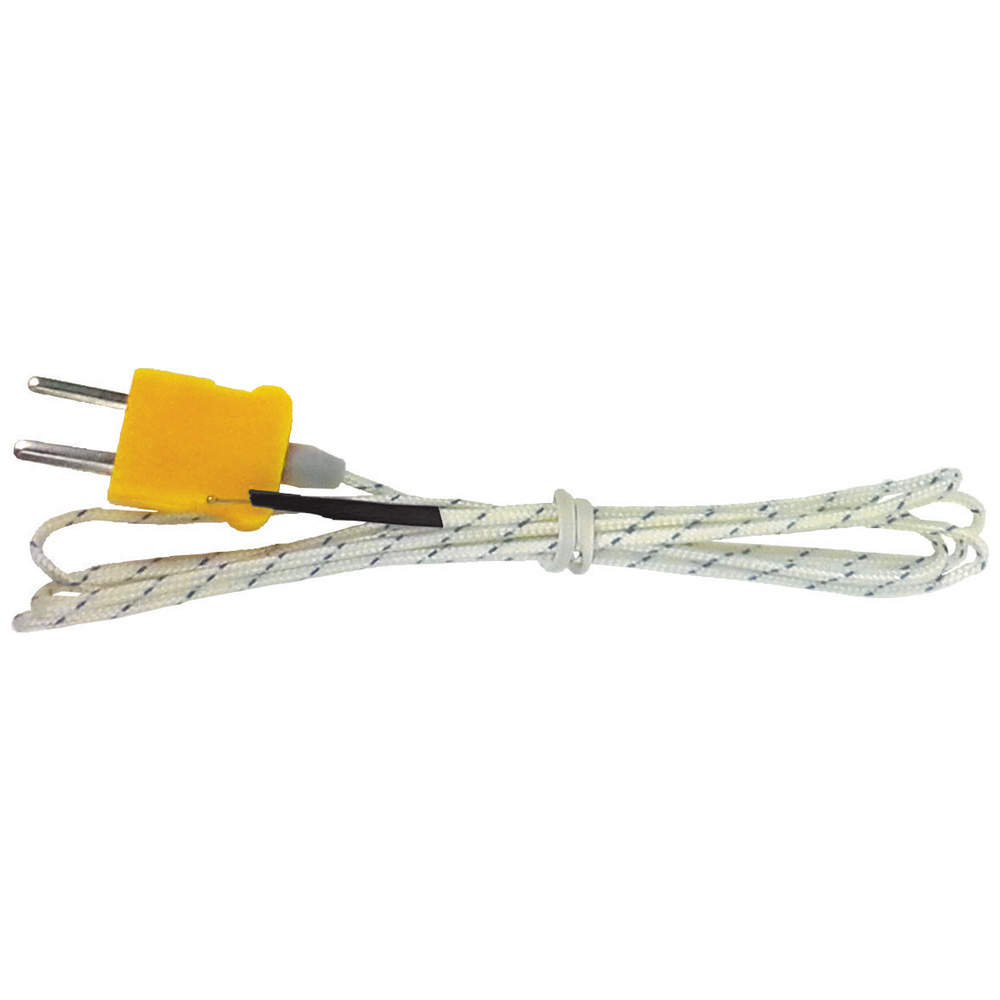

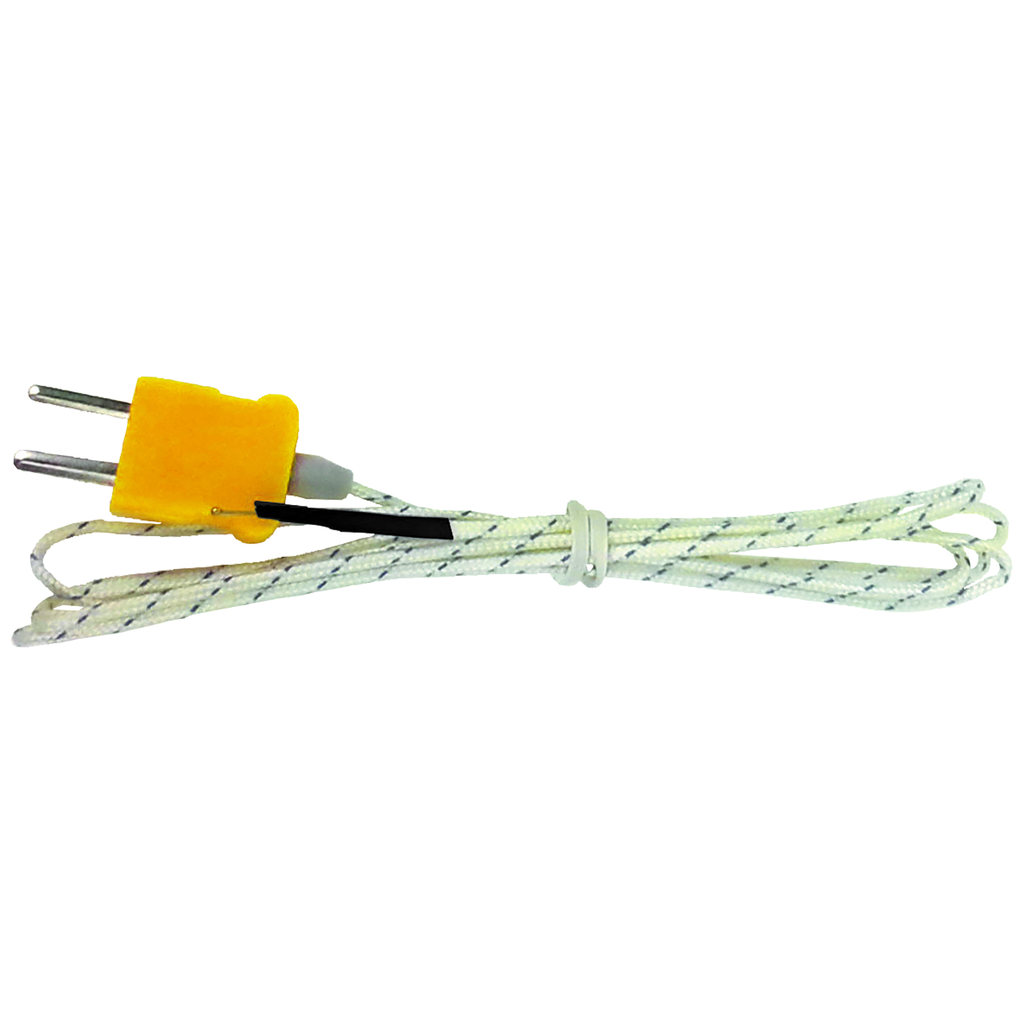

Replacement K-Type Thermocouple

The Klein Tools K-Type Thermocouple is intended for use as a replacement for meters with mini-plug inputs for thermocouples, such as Cat. Nos.CL440, CL445 and IR10. It also works with any clamp meters or digital multimeters measuring temperature with lead inputs (banana plug adapter Cat. No. 69146 required). The 40-Inch wire measures temperature from 32 to 482-degree F (0 to 250-degree C). This replacement K-Type thermocouple is part of a full line of Klein Tools meters and testers, designed by electricians for electricians.

Features

• Excellent for temperature measurements for HVAC applications

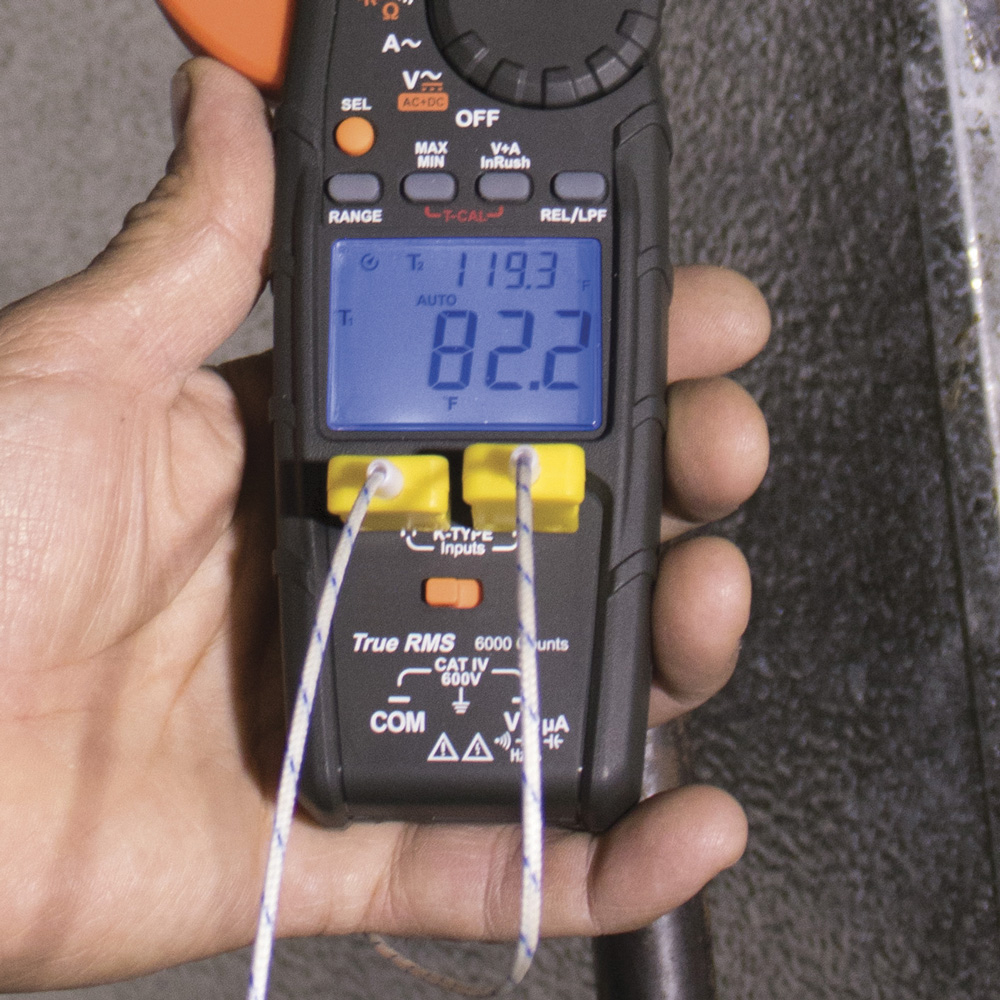

• Works on any meter with mini-plug inputs for thermocouples
• Extended reach with length of 40-Inch
• Works on any clamp meters or digital mutlimeters measuring temperature with lead inputs (banana plug adapter Cat. No. 69146 required)
• Works on any clamp meters or digital multimeters measuring temperature with lead inputs (banana plug adapter Cat. No. 69146 required)
• Yellow PVC Type K plugs
• Direct replacement for CL450 and IR10 meters
• 40 Inches of Cord
• Direct replacement for CL440, CL445 and IR10 meters
• Measures temperature from 32 to 482-degree F (0 to 250-degree C)

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

• Overall Height: 0.5" (1.3 cm)
• Height: 0.2500 in
• Depth: 4.0000 in
• Overall Length: 40" (101.6 cm)
• Material: Thermocouple Wire with PVC Connector
• Style Name: Mini Plug Type K Connectors
• Width: 2.0000 in
• Country of Origin: China
• For Use With: Any Clamp or Digital Multimeter that Measures Temperature
• Application: Temperature Measurement for Clamp and Digital Multimeters
• Weight: 0.2500 lbs
• Type: K-Type Thermocouple
• Overall Width: 1.5" (3.8 cm)
• Temperature Range: 32 to 482° F (0 to 250° C)
