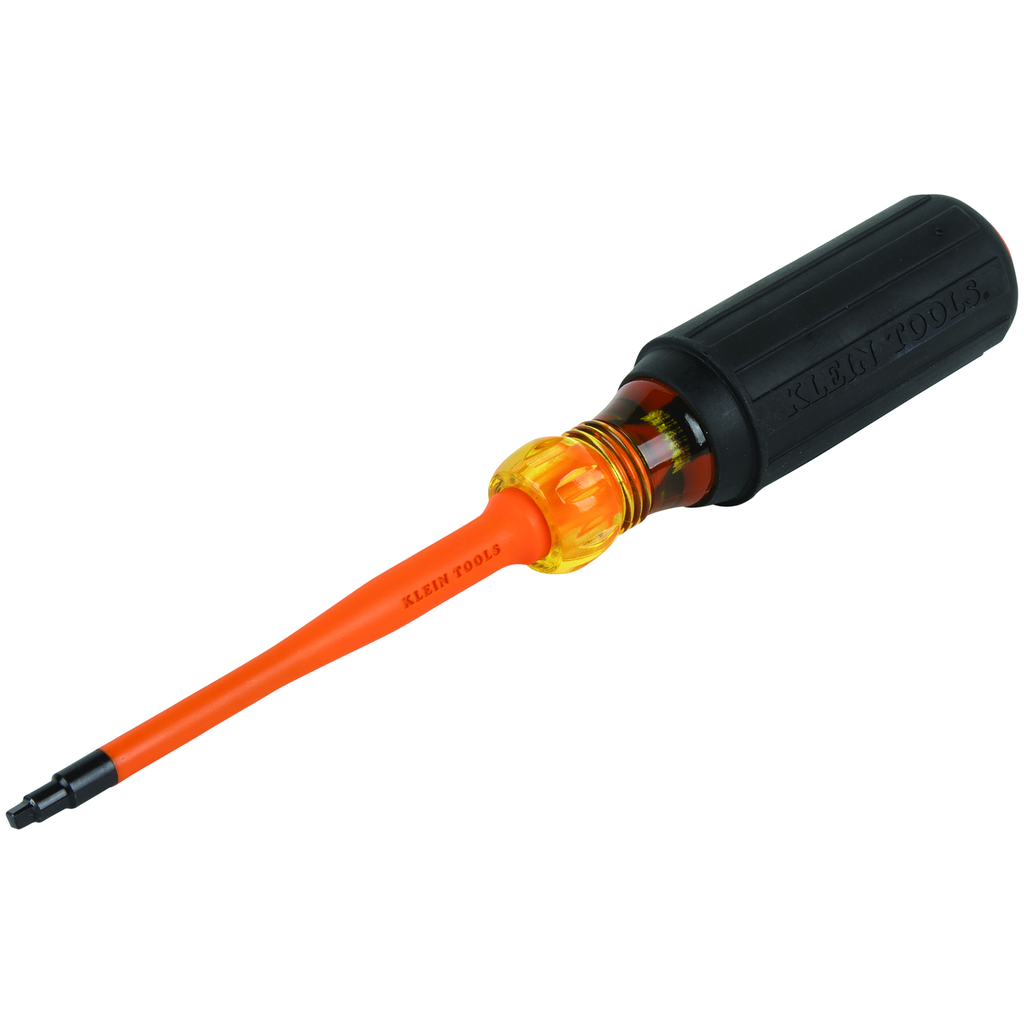

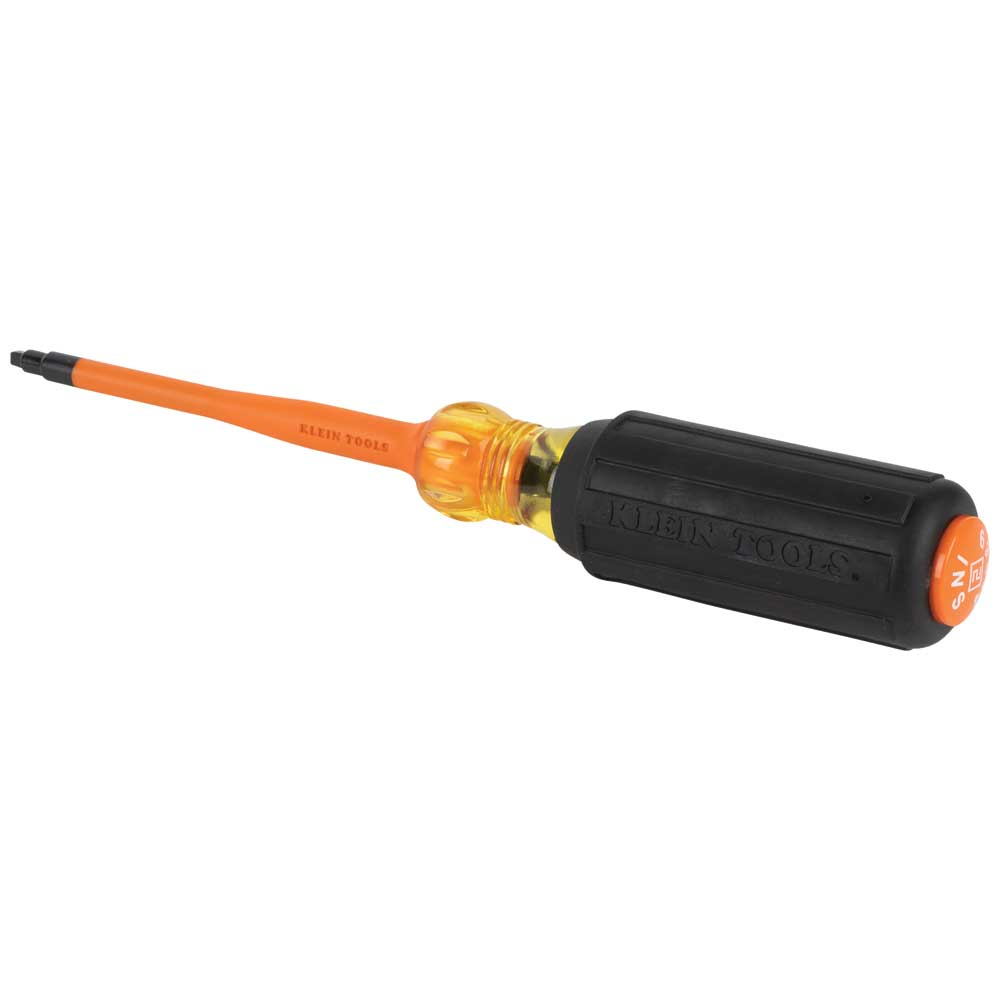

Slim-Tip 1000V Insulated Screwdriver, #2 Square, 4-Inch Round Shank

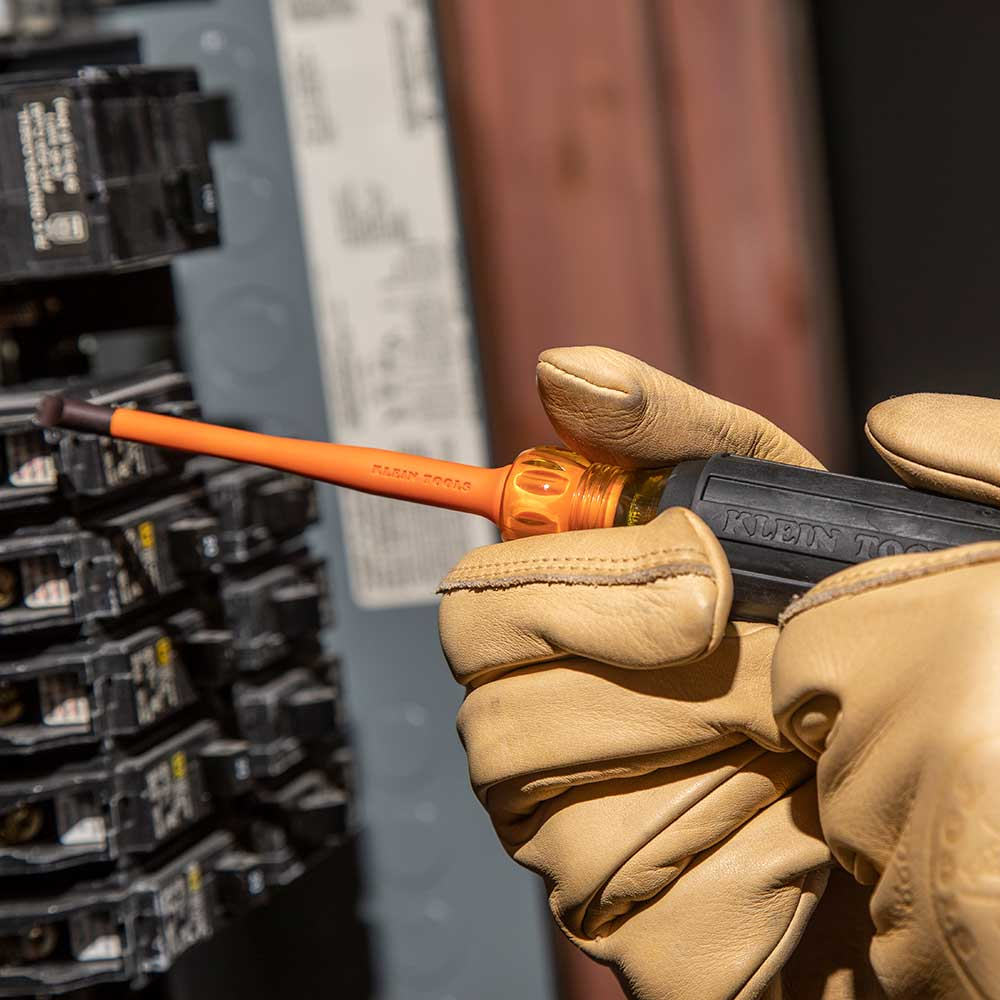

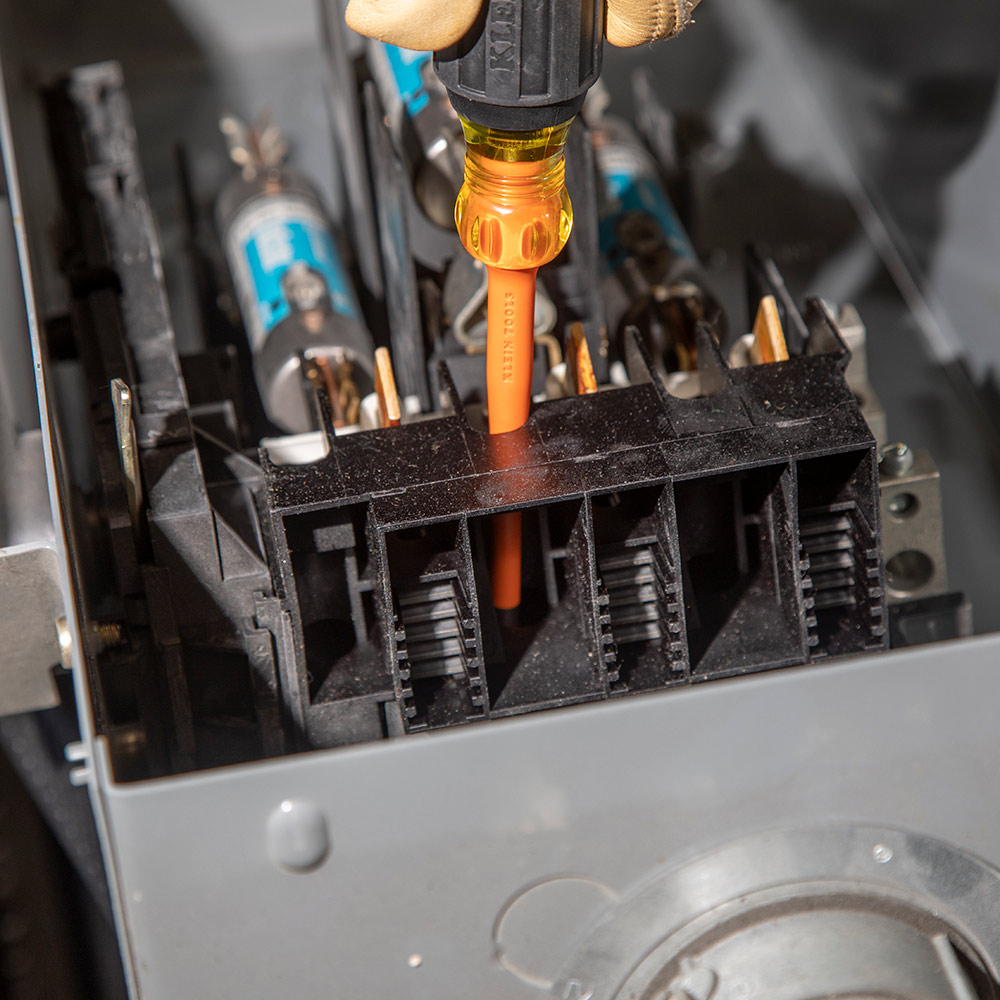

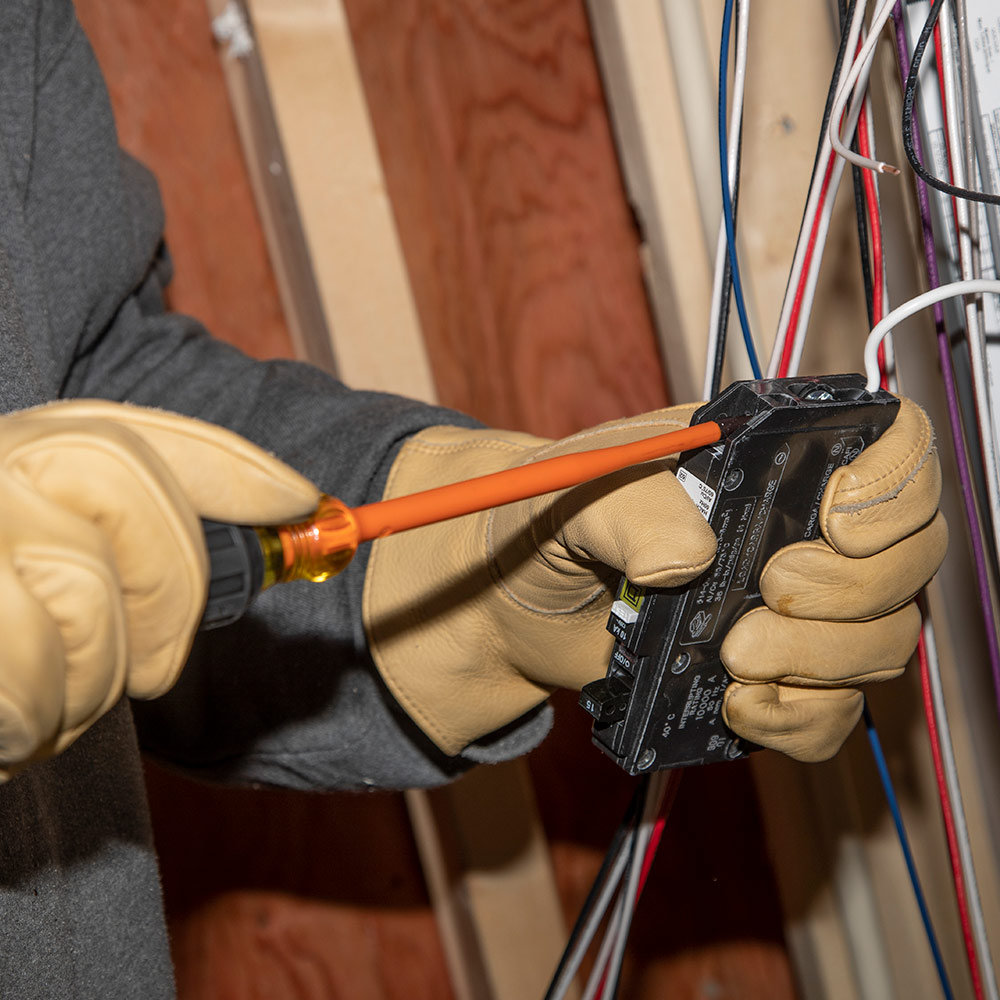

Klein Tools' Slim-Tip Insulated Screwdrivers have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energized sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000V rating symbol. A must-have for any electrician's tool bag, these screwdrivers are available in 4-Inch and 6-Inch lengths in a variety of tips and sizes.

Features

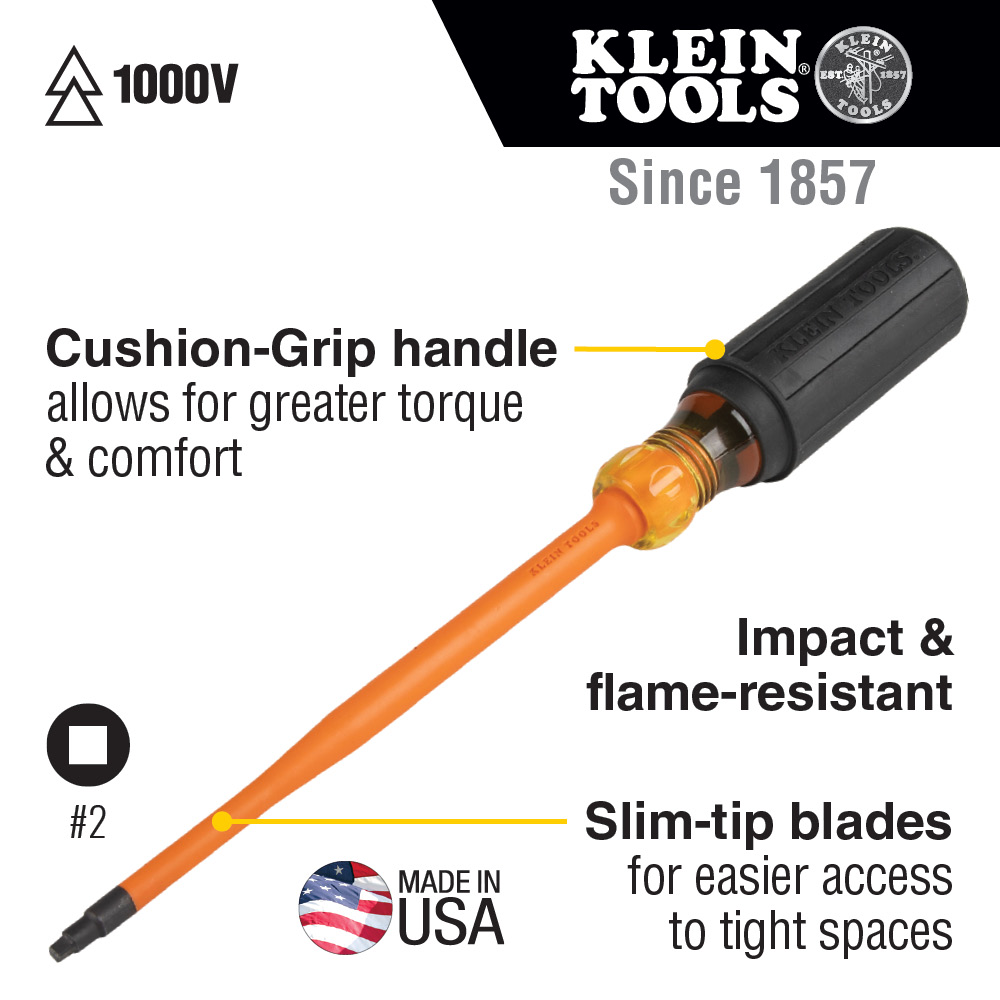

• Cushion-Grip™ handles for greater torque and comfort

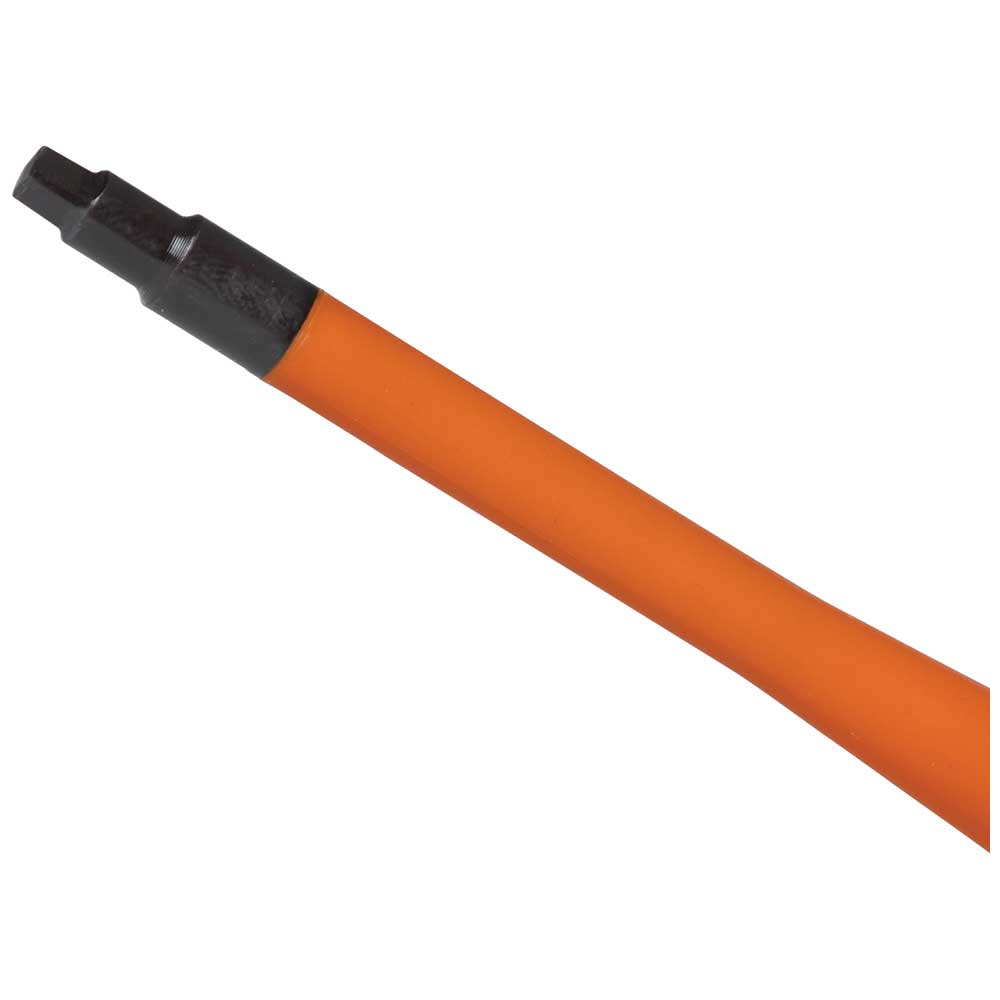

• Insulated blade is flush with the tip to help reduce nicking the insulation and gain access into tight terminal blocks
• 1000V rated layer of orange impact and flame-resistant insulation protects from electrical shock
• 4-Inch round shank, #2 Square, insulated screwdriver with a slim tip that allows for greater access into tight spaces
• Meets or exceeds ASTM F1505-16 and IEC 60900:2018

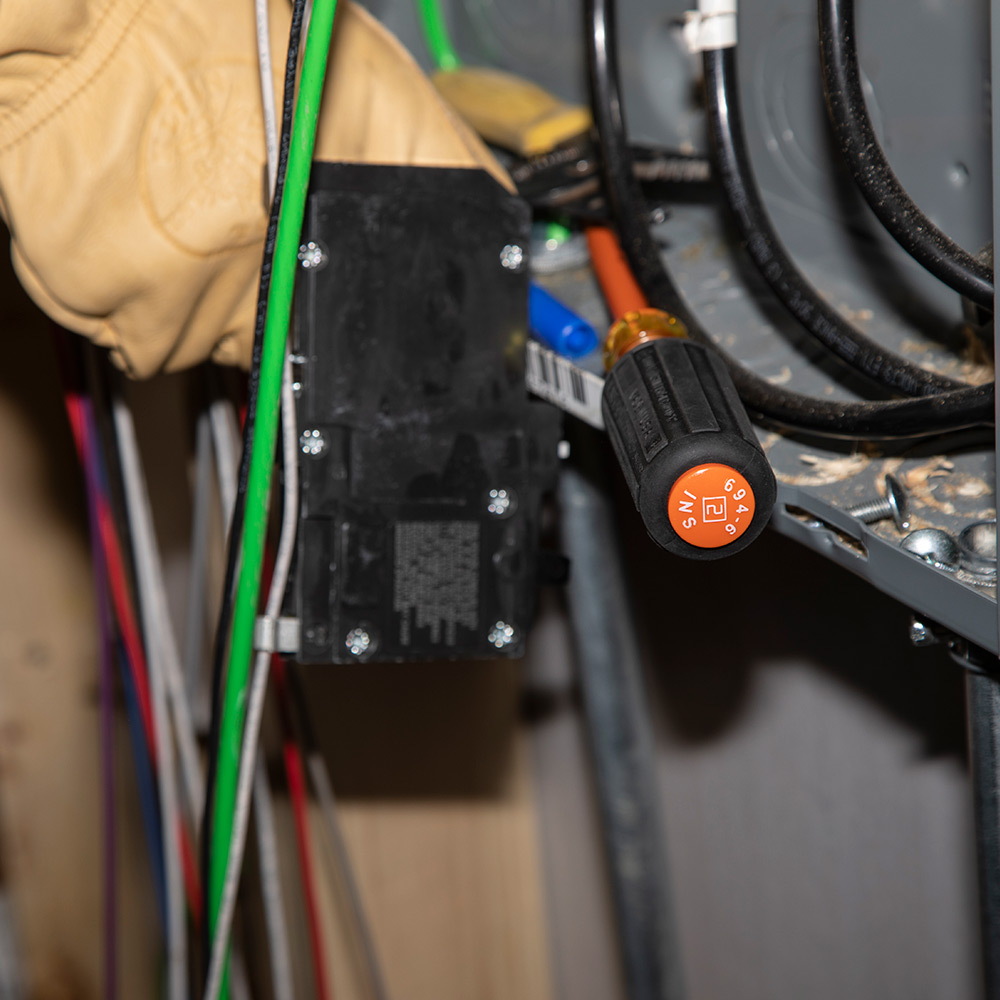

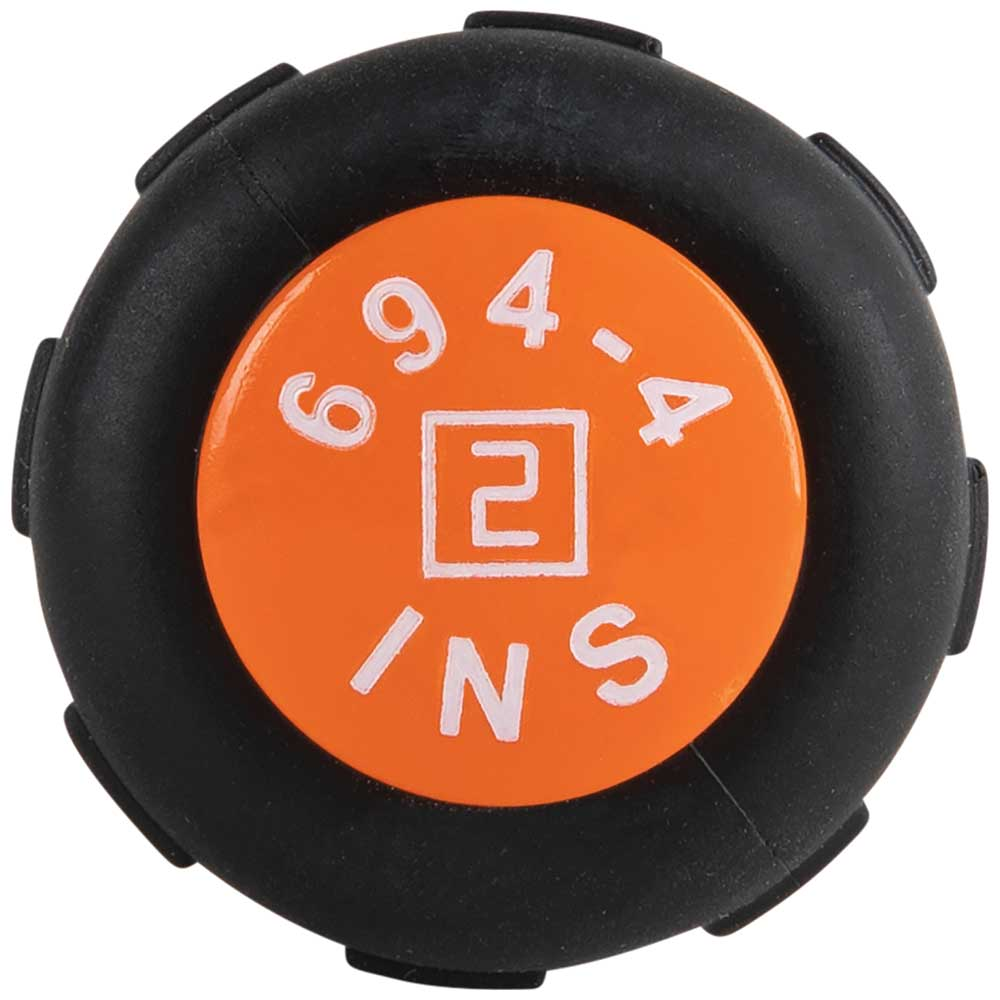

• Tip-Ident® quickly identifies the tip type and orientation
• Slim Profile Tip
• Made in USA

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Keep tool clean, dry and free of any surface contaminants.

Specifications

• Handle Length (cm): 10.9
• Material: Steel, Plastic
• Overall Height (cm): 3.2
• Insulated: Yes
• Weight: 0.3000 lbs
• Handle Color: Black
• Weight (g): 179
• Handle Length (Inch): 4.31
• Color Code: Orange
• Handle Material: Rubber
• Overall Length (Inch): 8.31
• Standard: ASTM F-1505-16, IEC 60900:2018
• Handle Diameter: 1.25" (3.2 cm)
• Overall Length (cm): 21.1
• Type: Slim-Tip Insulated Screwdriver
• Tip Size: #2
• Height: 1.2500 in
• Overall Height (Inch): 1.25
• Shank Length: 4" (10.2 cm)
• Weight (oz): 6.3
• Application: For Work Near Energized Sources
• Shank Type: Round
• Tip Type: Square
• Overall Width (Inch): 1.25
• Magnetic: No
• Width: 1.2500 in
• Depth: 6.7500 in
• Overall Width (cm): 3.2
