Replacement Lead Kit for TDR Cable Length Meter

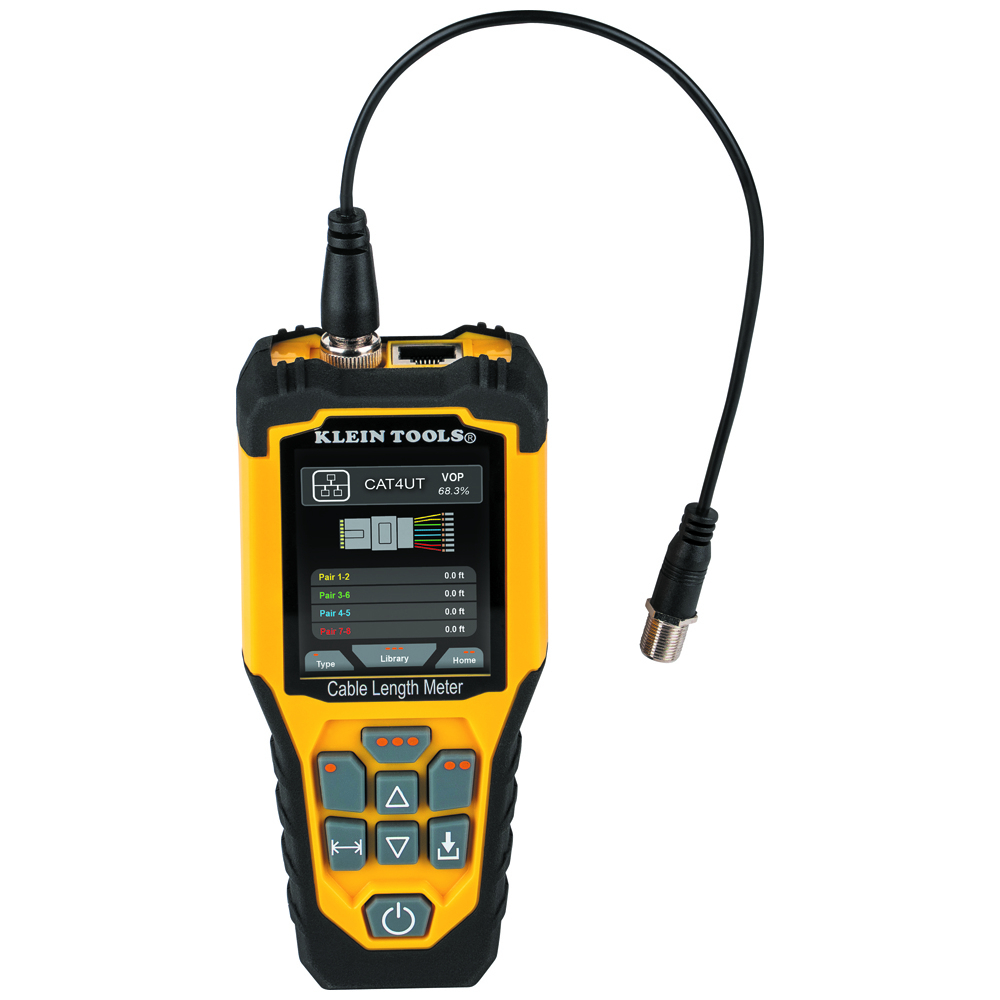

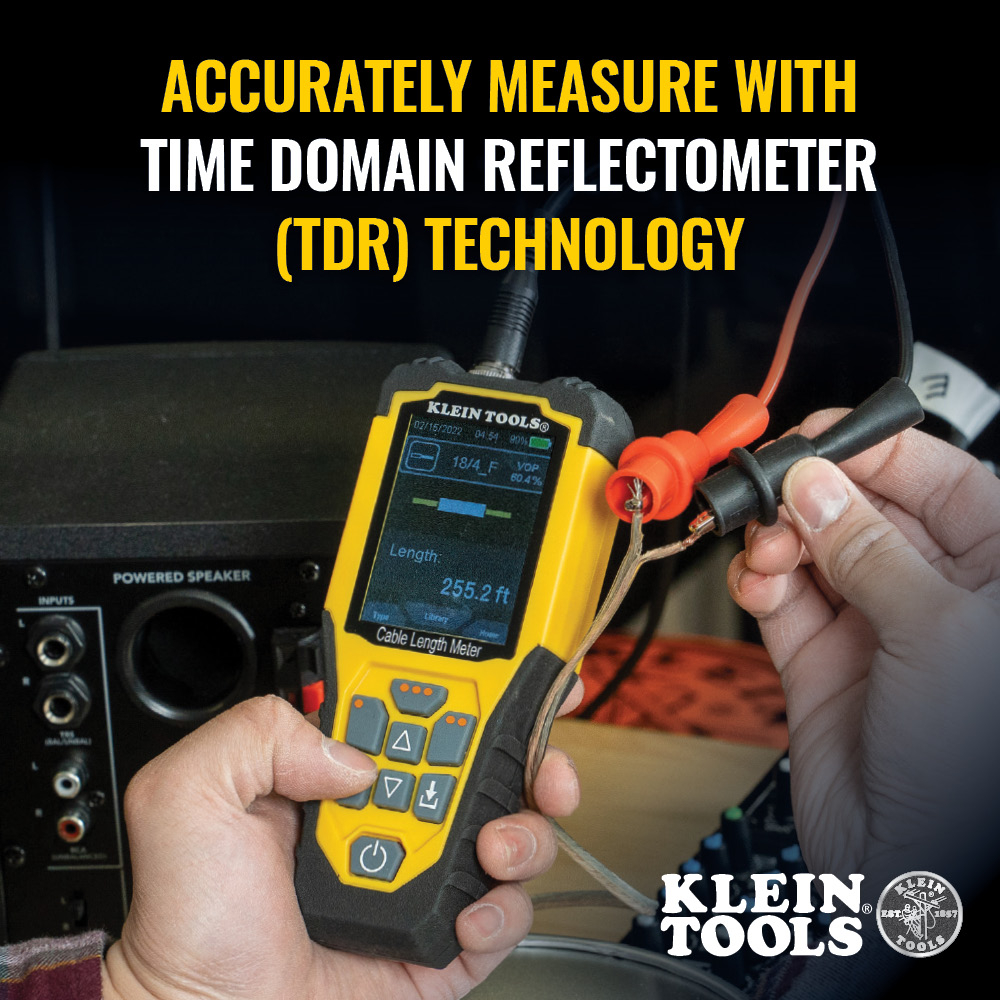

The Klein Tools Replacement Lead Kit for TDR Cable Length Meter is comprised of 5 lead types for use with the TDR Cable Length Meter (Cat. No. 501-915). Designed to measure cable length, calibrate Velocity of Propagation (VoP) values, find distance to faults, with built-in tone generation for cable tracing (tracing probe Cat. No. VDV500-123 sold separately) for a wide variety of cable types.

Features

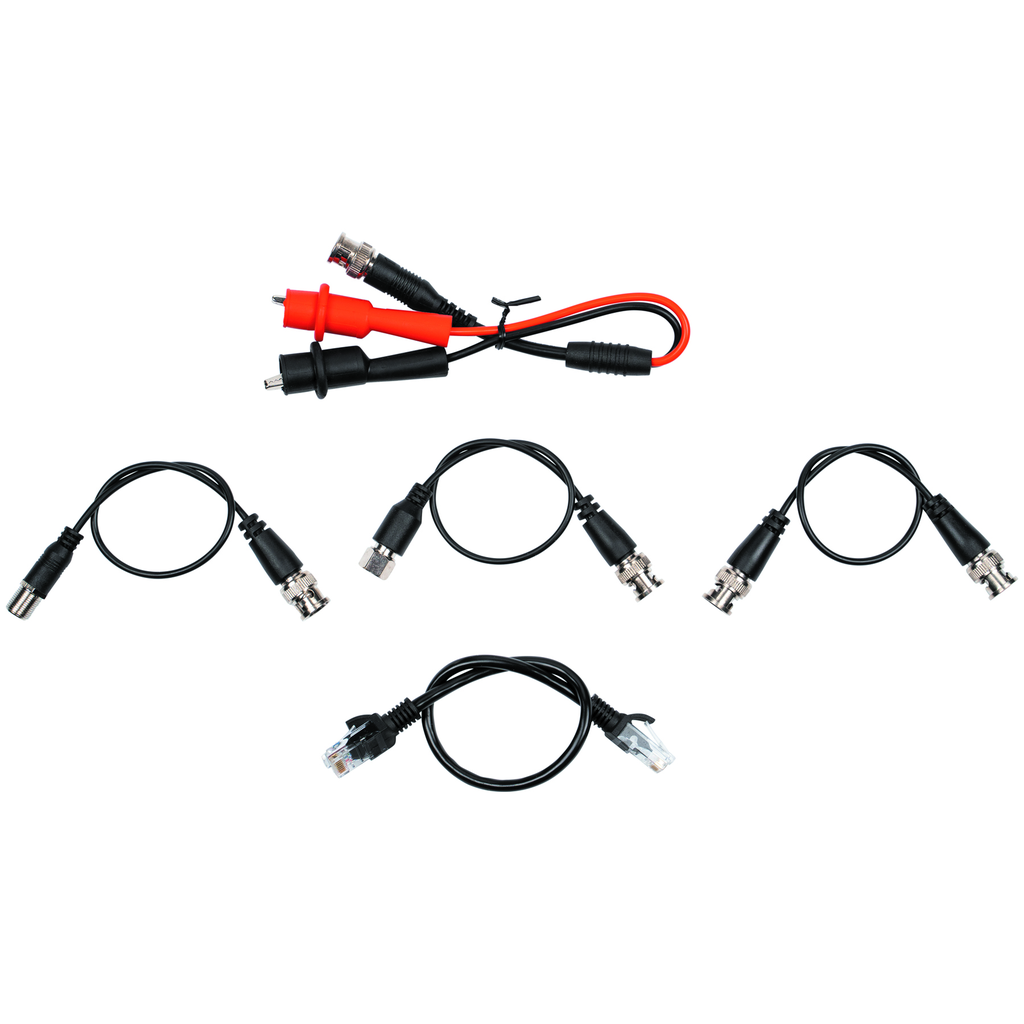

• Male Coax-BNC to Female Coax-F
• Replacement leads for TDR Cable Length Meter
• Male Coax-BNC to Male Coax - BNC
• Includes one pair of 5 test leads
• Male Coax-BNC to Male Coax-F
• Measures Cable Length
• Male Coax-BNC to Alligator Clips

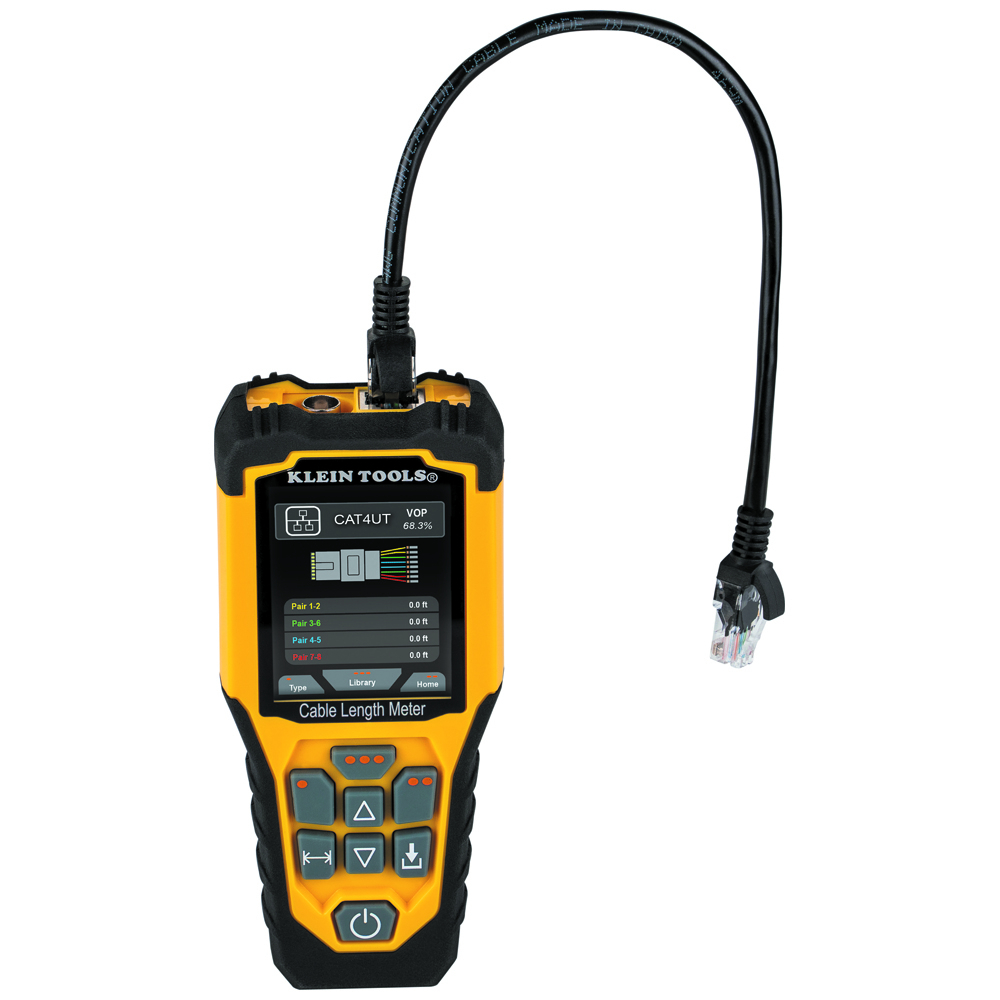

• CAT-6 RJ45 to CAT-6 RJ45

Specifications

• Type: Cable Meter
• Overall Length: 5.12" (13 cm)
• Overall Height: 7.08" (18 cm)
• Application: Cable Length Measurement
• Width: 0.5000 in
• Country of Origin: China
• Height: 7.0800 in
• Cable Type: Coaxial, Data, Electrical
• Depth: 5.1200 in

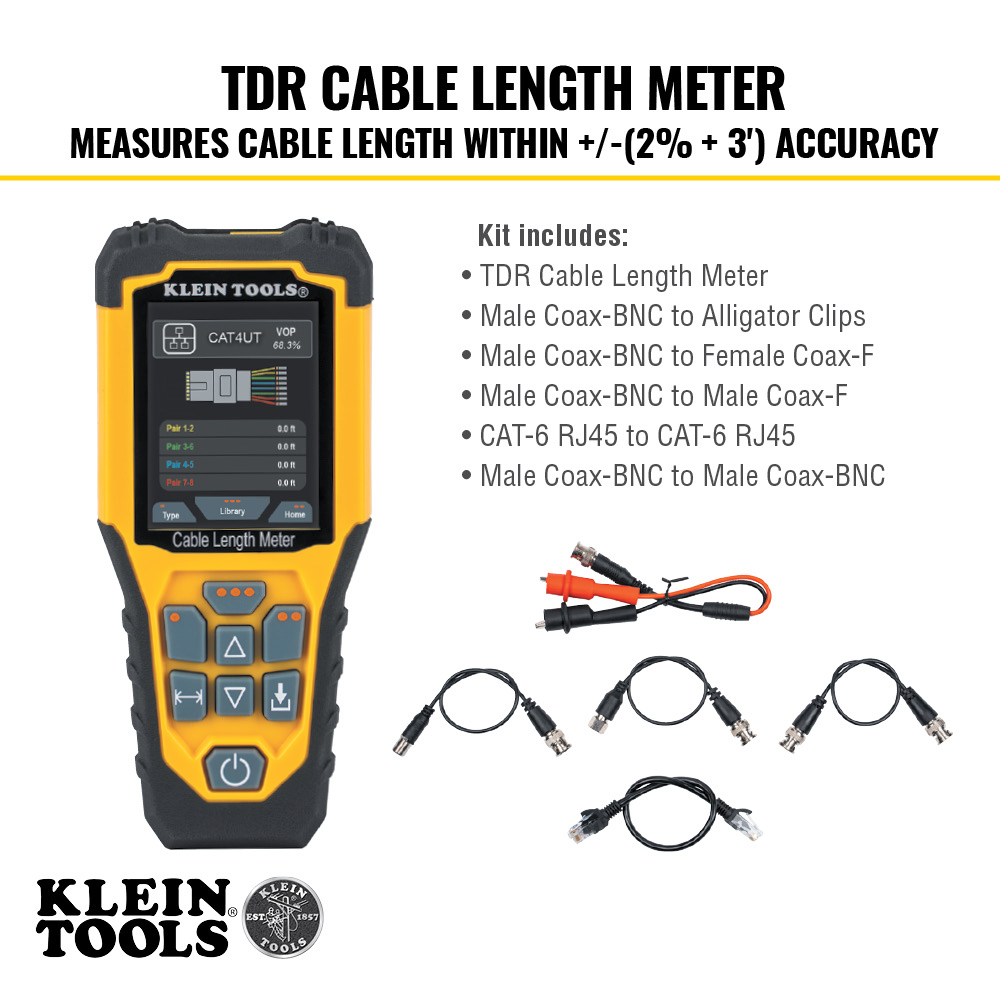

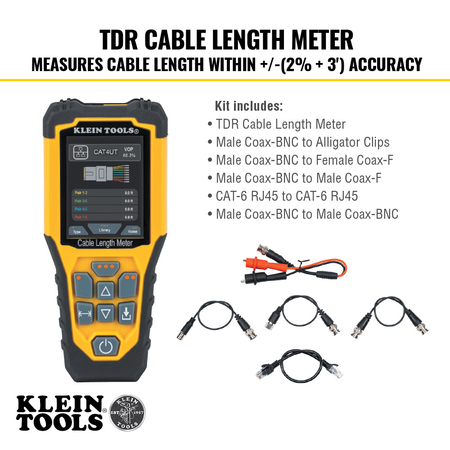

• Configuration End 1: Male-BNC to Alligator Clips; Male-BNC to Female-F; Male-BNC to Male-F; RJ45 to RJ45; Male-BNC to Male-BNC
• Weight: 0.2000 lbs
• Overall Width: 0.5" (1.3 cm)
• Material: Brass
