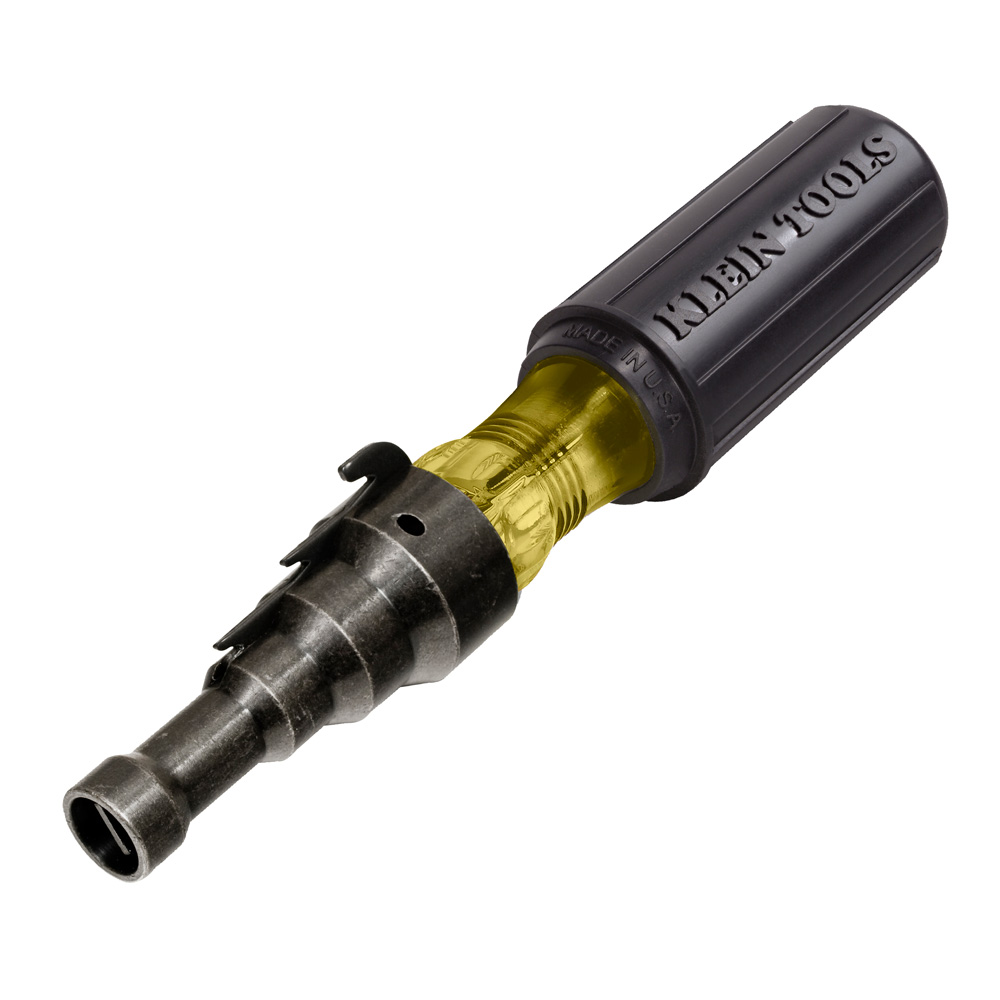

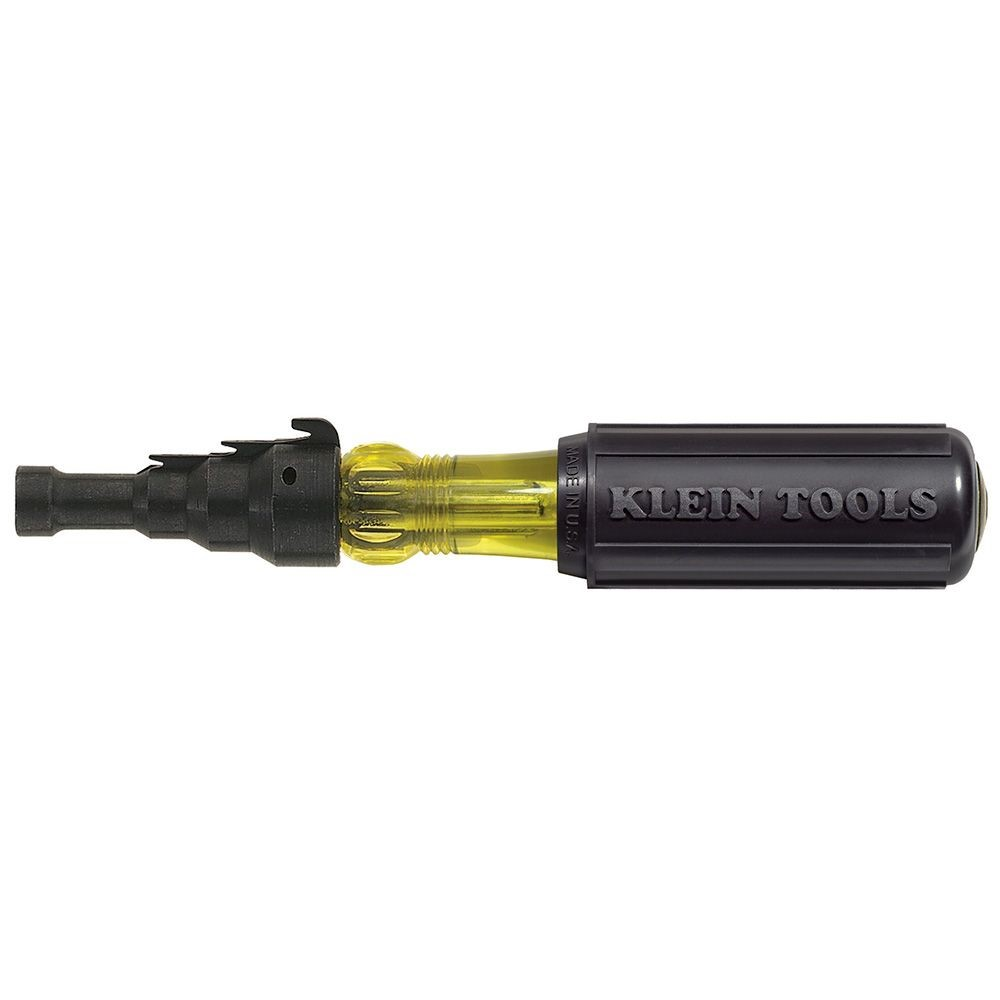

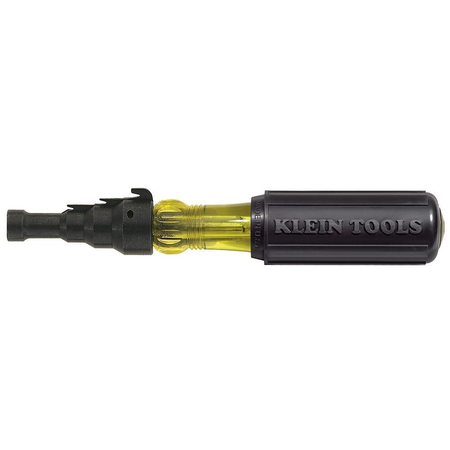

Conduit Fitting and Reaming Screwdriver

The Klein Tools Conduit-Fitting and Reaming Screwdriver can ream and smooth 1/2'' (13 mm), 3/4'' (19 mm), and 1'' (25 mm) thin-wall conduit. It features a hooded-blade design that keeps the screwdriver tip from slipping out of screws, which is especially handy when tightening hard-to-reach conduit fittings. This screwdriver has a longer Cushion-Grip™ handle for even more comfort and torque while reaming.

Warnings

• Always wear approved eye protection.
• Do NOT use to pry or chisel.
• NOT insulated. Will NOT protect against electrical shock

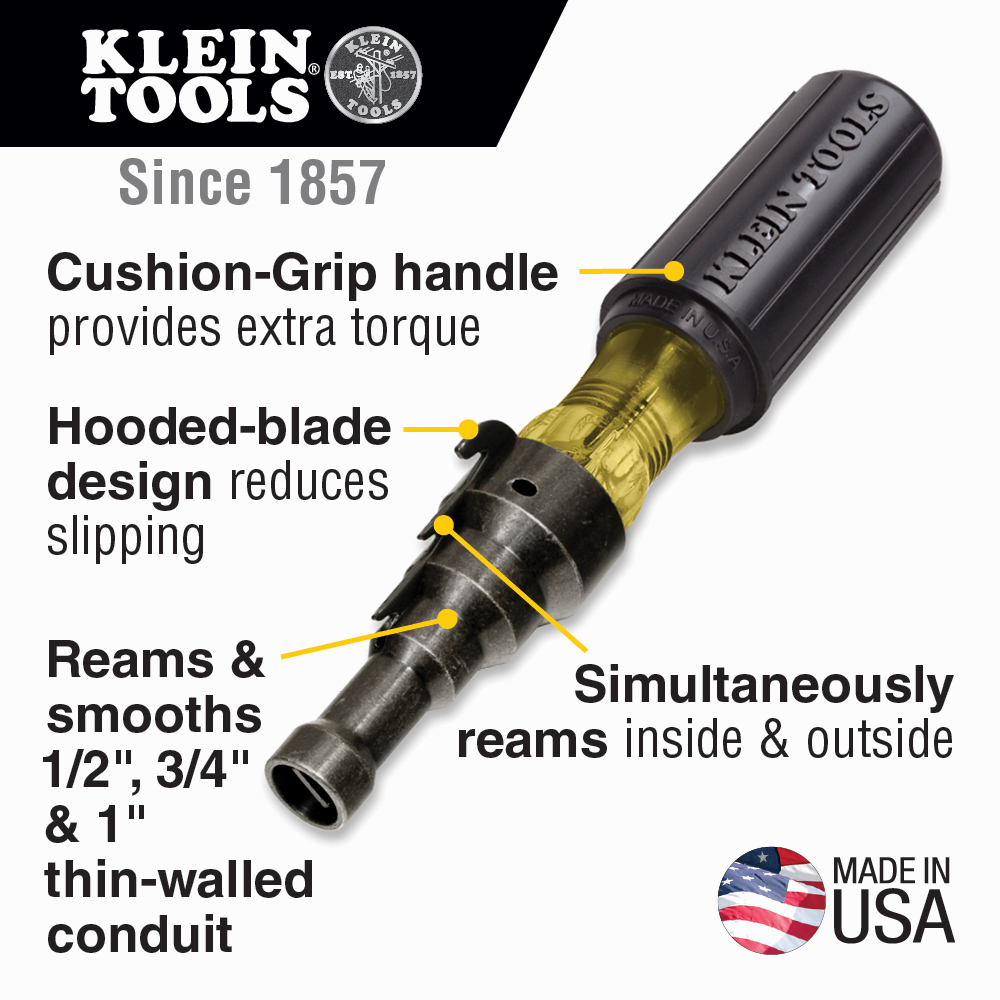

Features

• Replaceable reaming blade is now held in place with a 1/16-Inch hex socket set screw
• Designed to be used on Electrical Metallic Tubing (EMT)
• Longer Cushion-Grip™ handle provides comfort and more torque for reaming

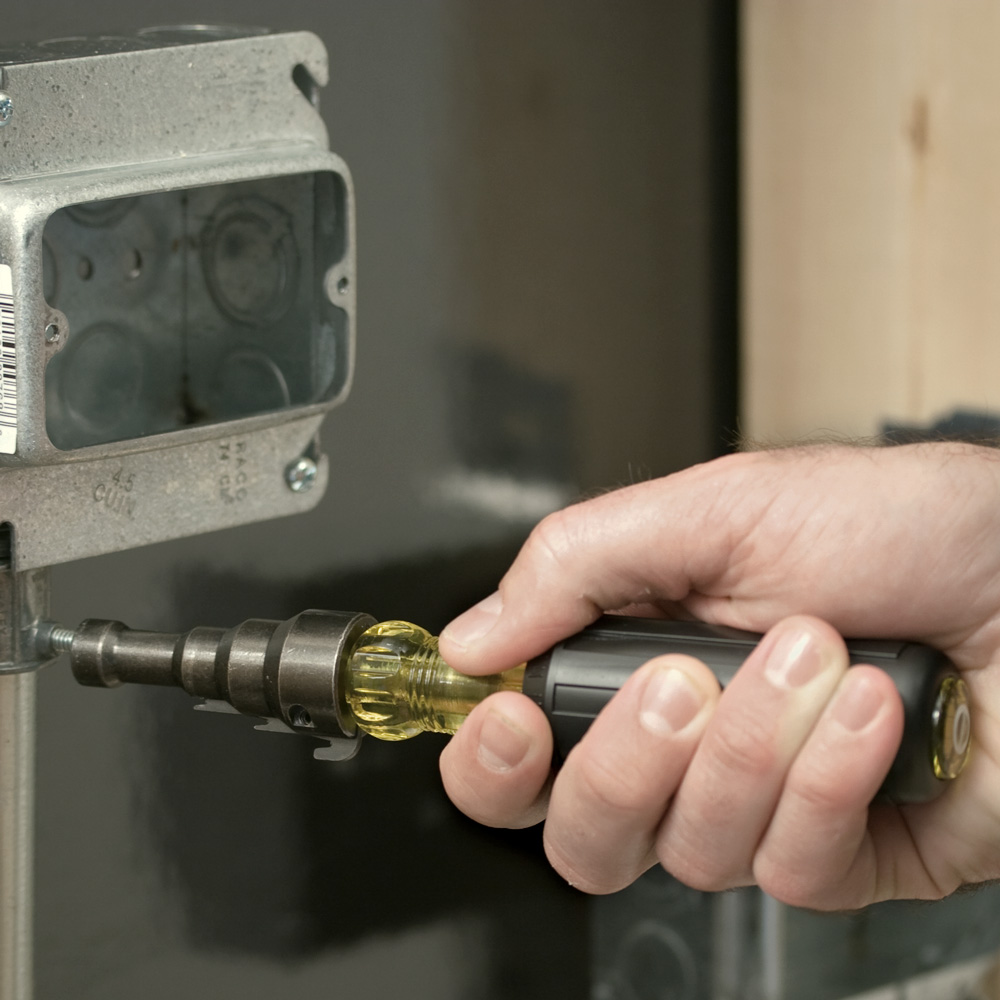

• Reamer's hooded-blade design keeps tip from slipping out of screws, especially when tightening hard-to-reach conduit fittings; thicker hood is designed for rugged use

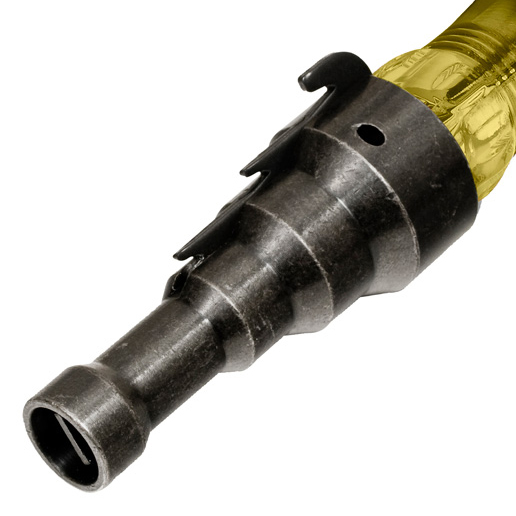

• Reams both the inside and outside of the conduit at the same time
• Reams and smooths 1/2-Inch (13 mm), 3/4-Inch (19 mm), and 1-Inch (25 mm) thin-wall conduit ends to protect wire and permit correct installation of fittings
• Thinner screwdriver blade allows easier access to screw heads
• Made in USA

Specifications

• Depth: 7.5000 in
• Weight (g): 227
• Weight (oz): 8
• Weight: 0.5000 lbs
• Application: Electrical Metallic Tubing (EMT)
• Tip Size: 5/16" (7.9 mm)
• Shank Length: 2.5" (6.4 cm)
• Conduit Size: 1/2", 3/4", 1" (1.3 cm, 1.9 cm, 2.5 cm)
• Height: 1.0000 in
• Width: 1.0000 in
• Overall Length (cm): 19.1
• Overall Length (Inch): 7.5
