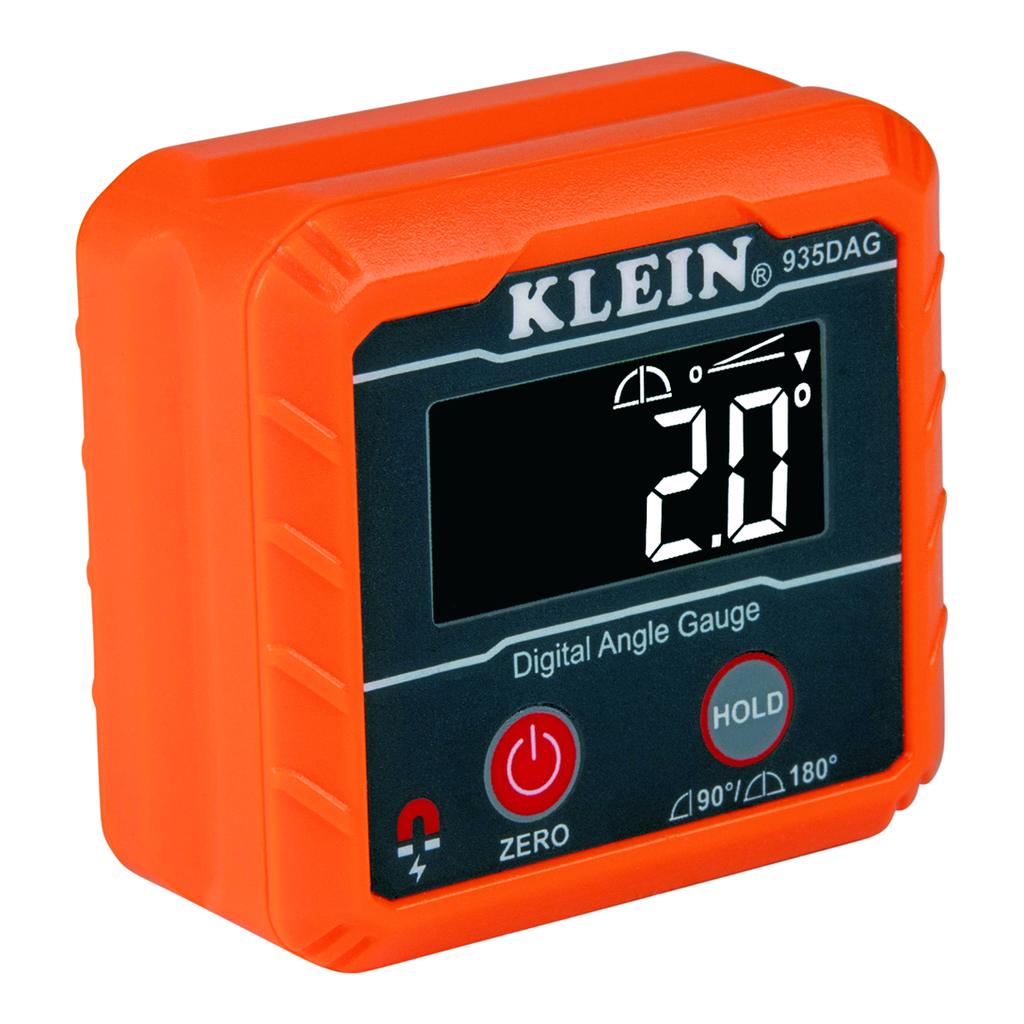

Digital Angle Gauge and Level

The Klein Tools Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. Along with dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree, this tool has a high visibility reverse contrast display for easy viewing.

Features

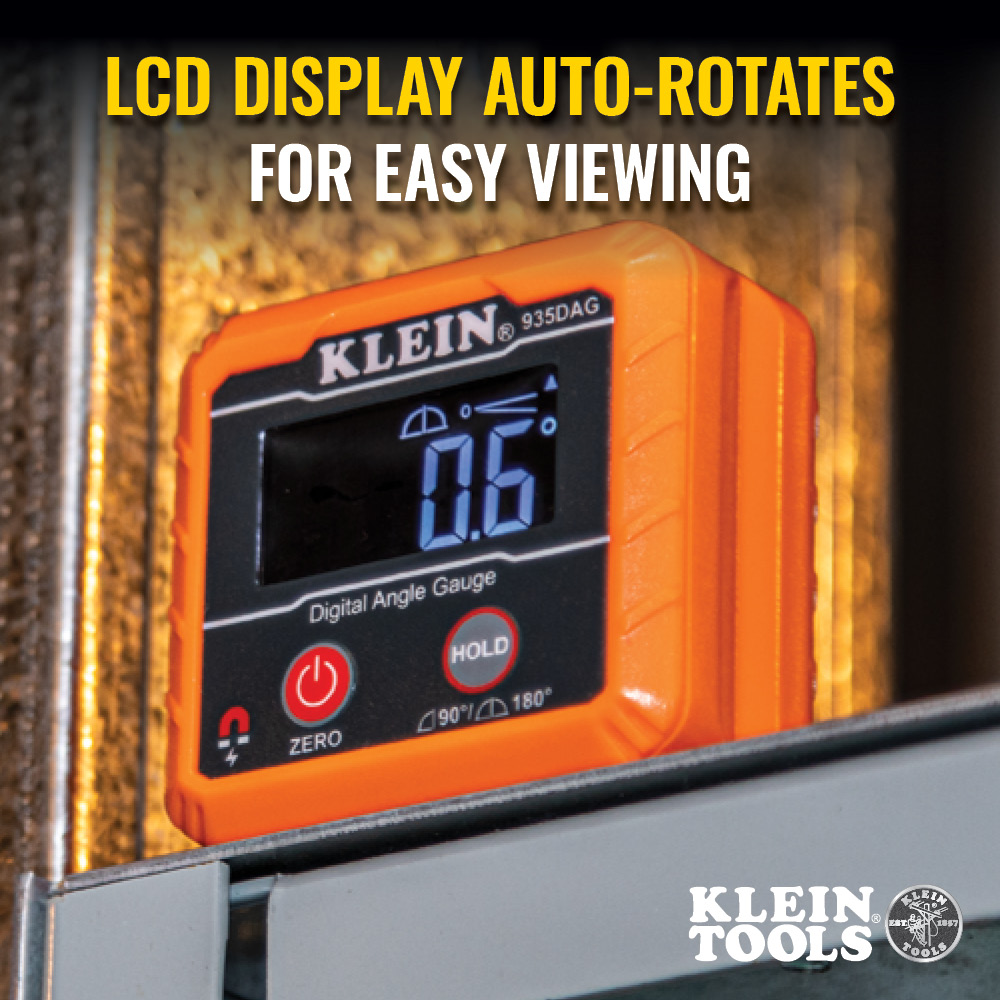

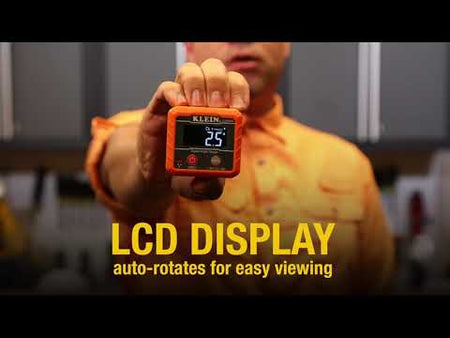

• Display auto-rotates when upside-down for easy viewing
• Water and dust resistant with rating of IP42
• Soft carrying case and two AAA batteries included
• High visibility reverse contrast display improves visibility in dimly lit work environments

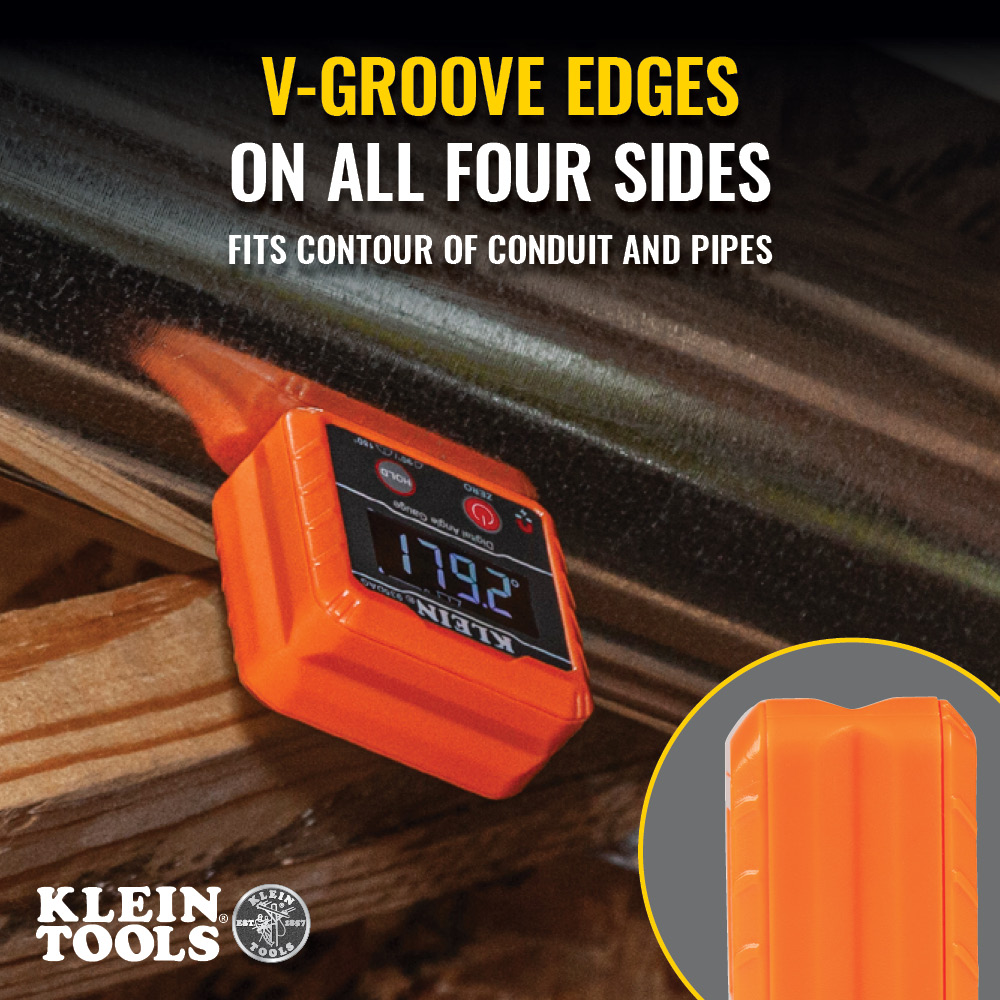

• V-groove edges enable optimal alignment on conduits and pipes for bending and alignment

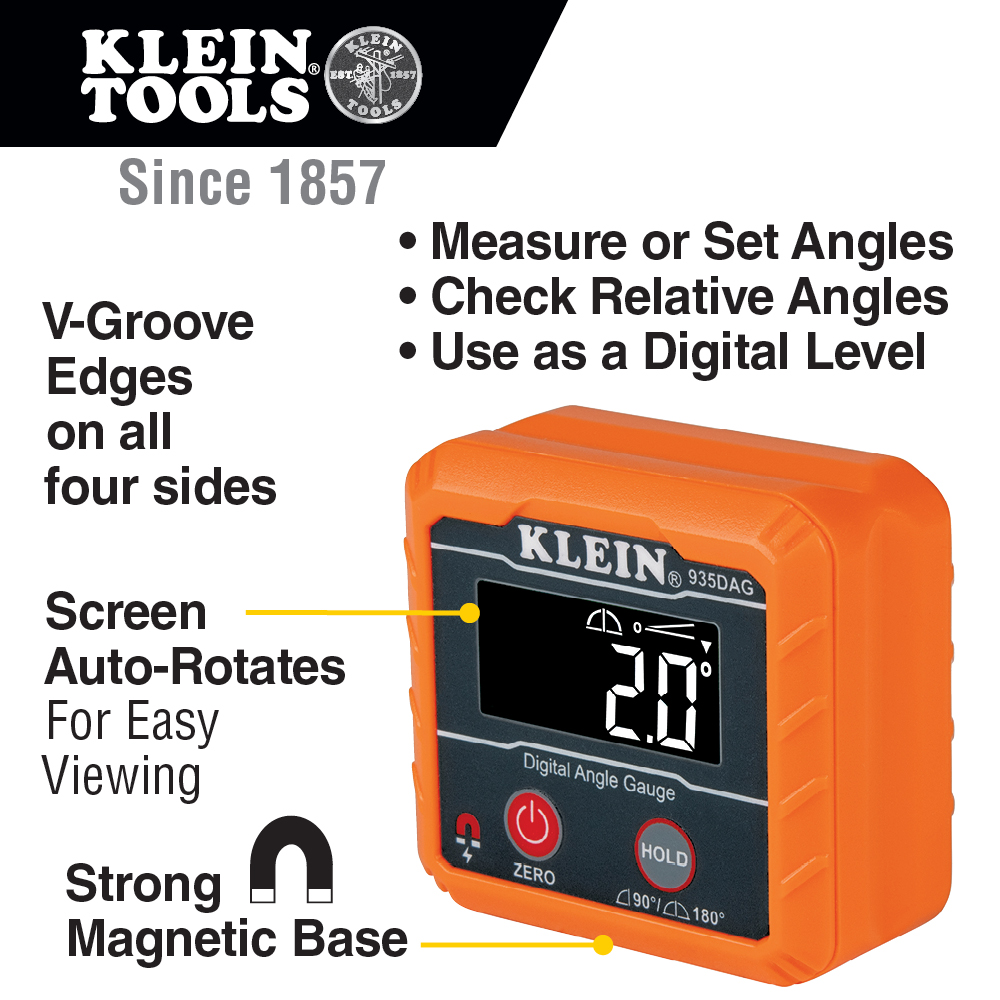

• Digital Angle Gauge and Level can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level

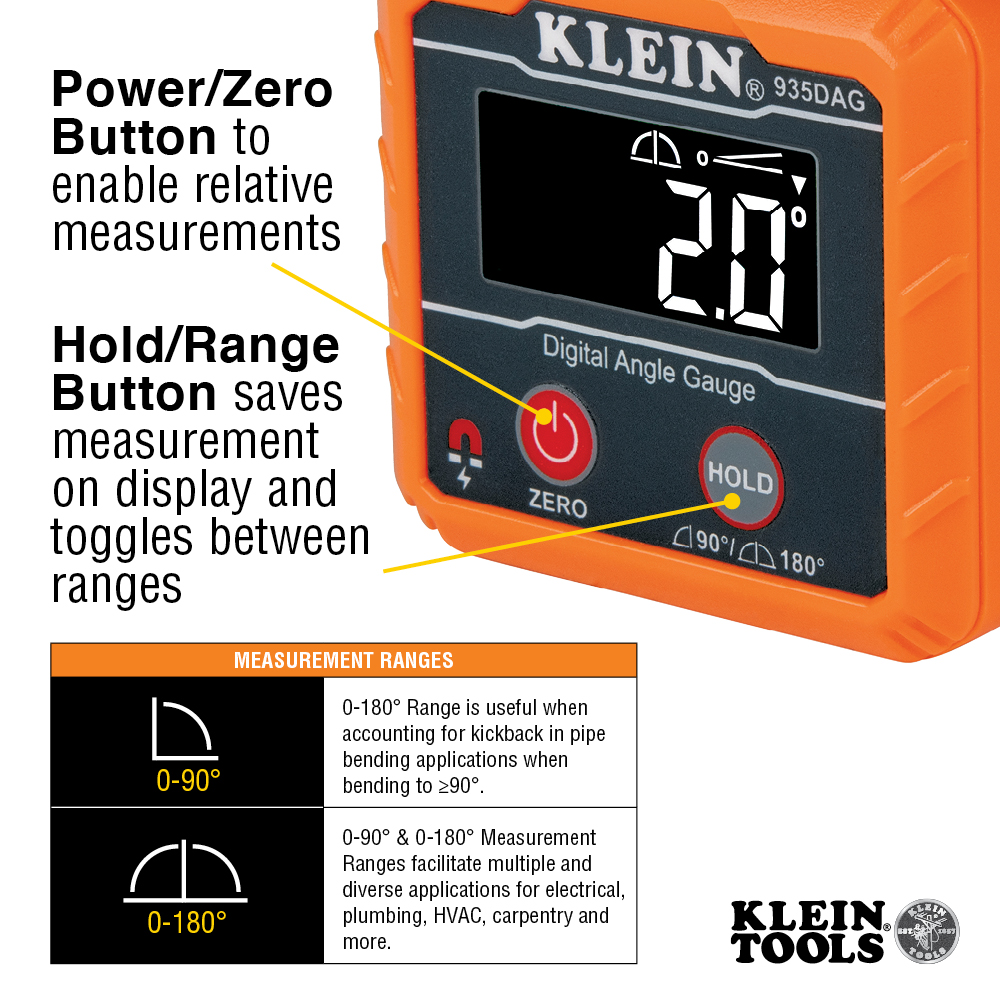

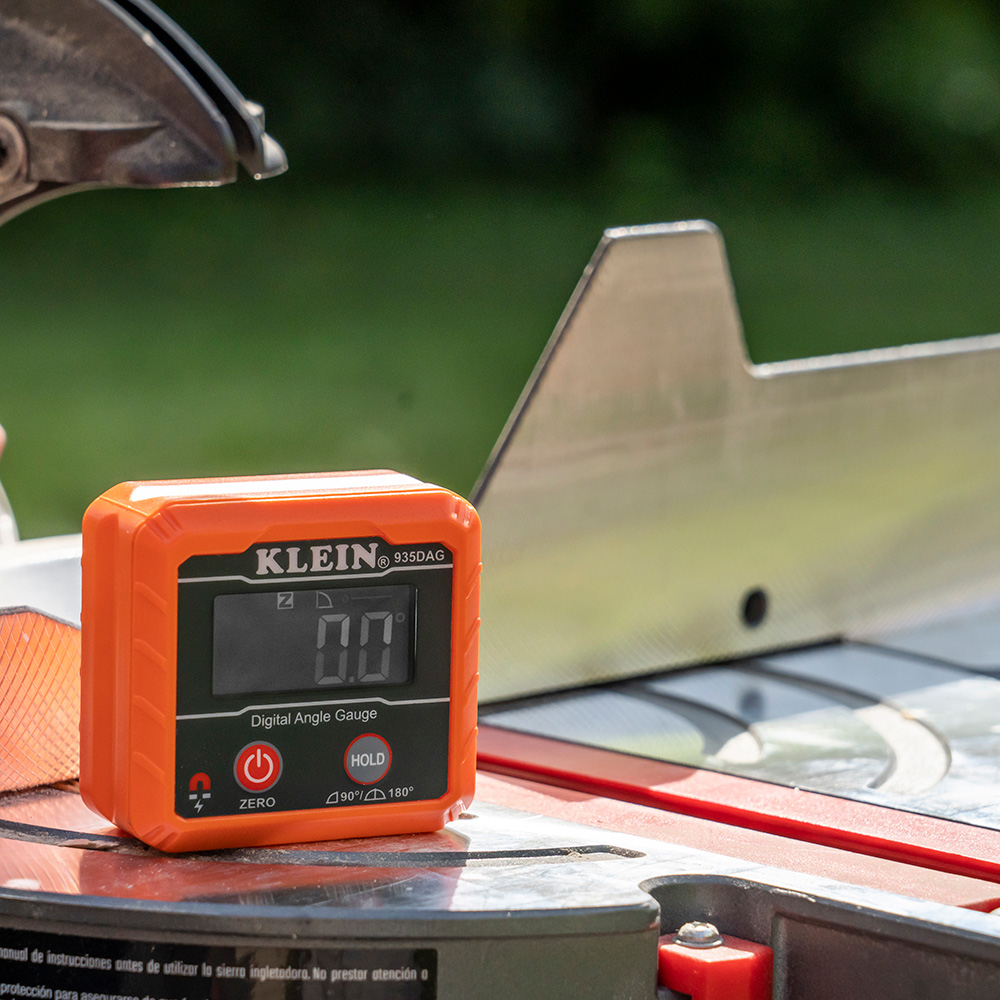

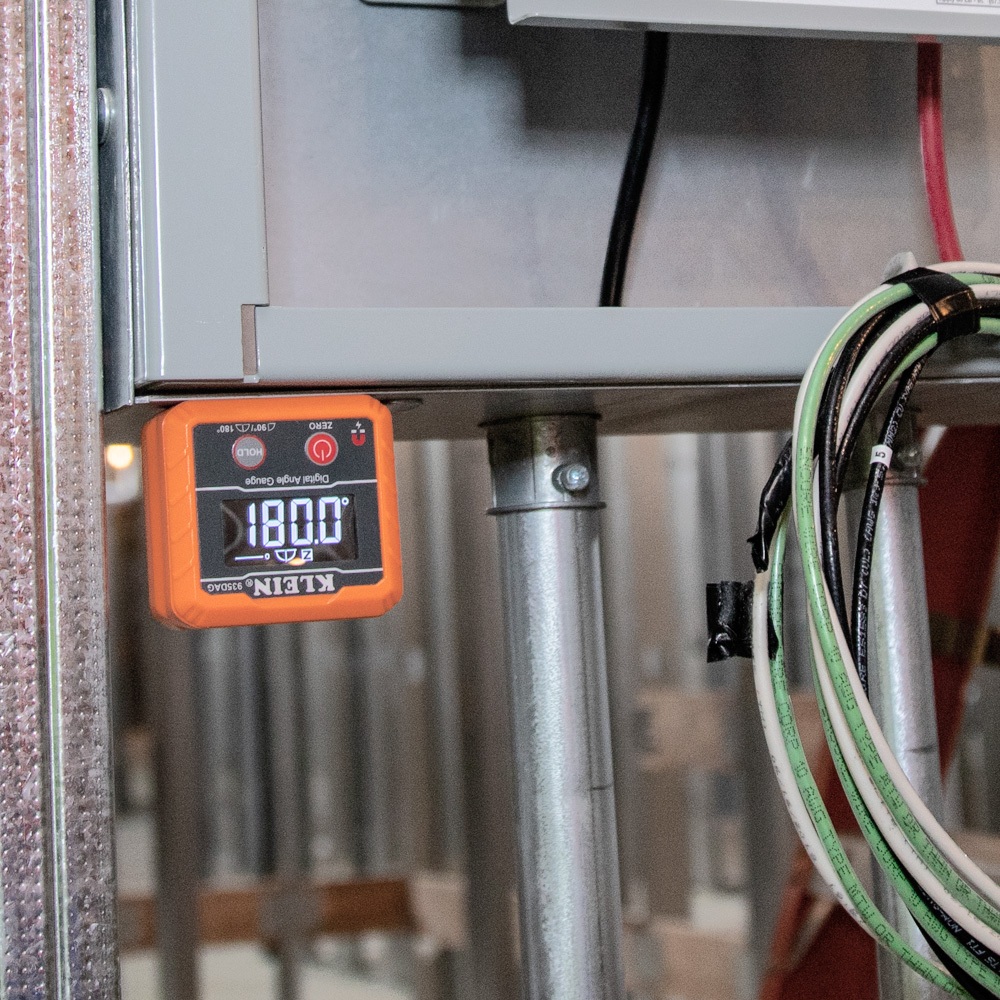

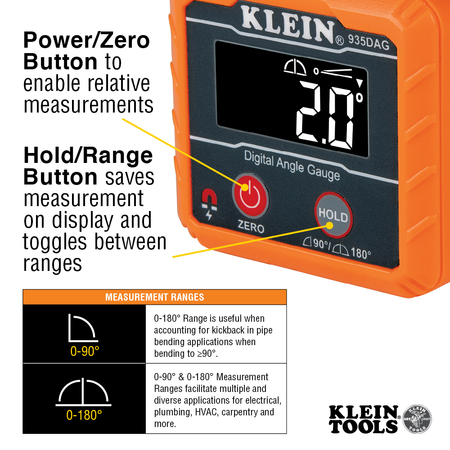

• 0 to 90-Degree and 0 to 180-Degree measurement ranges provide easy use in applications such as woodworking, bending conduit, installing electrical panels, and working on machinery
• 0 to 180-Degree range is useful when accounting for kickback in pipe bending applications when bending to 90-Degree or more
• V-grooves Around Entire Perimeter, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast

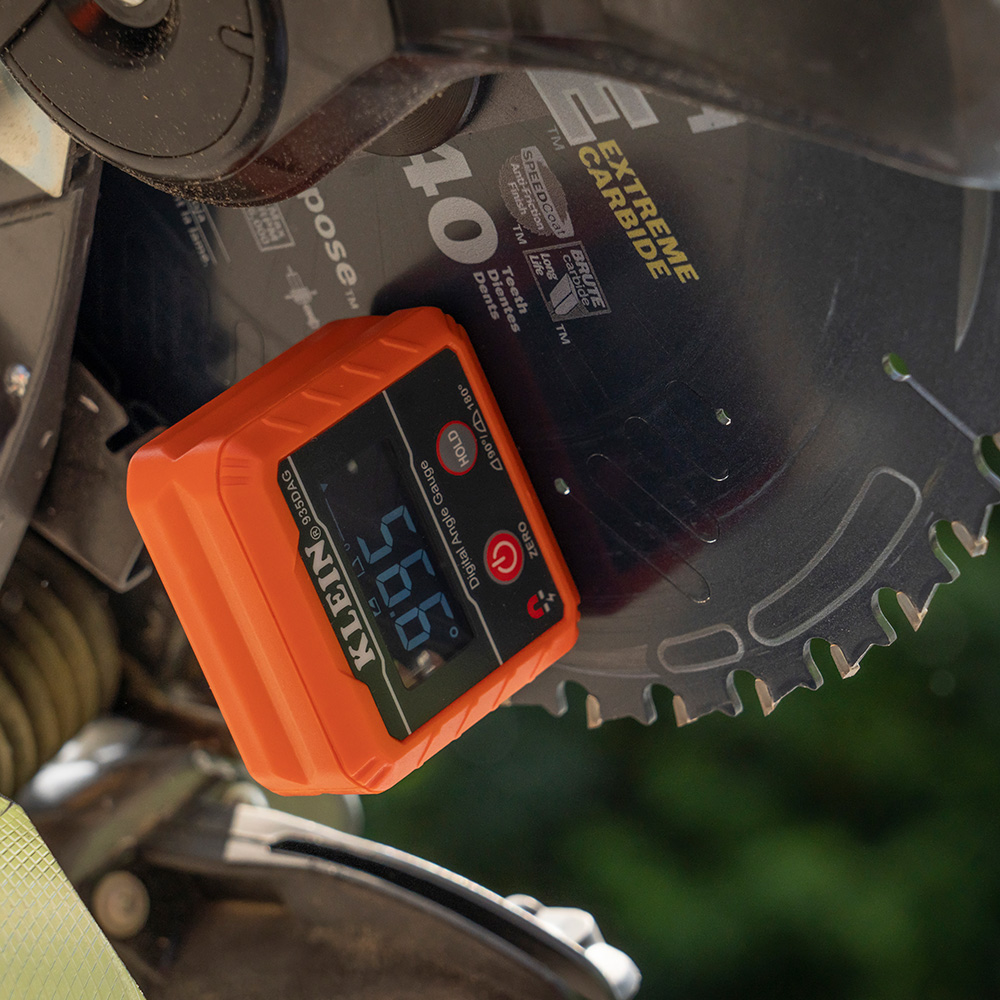

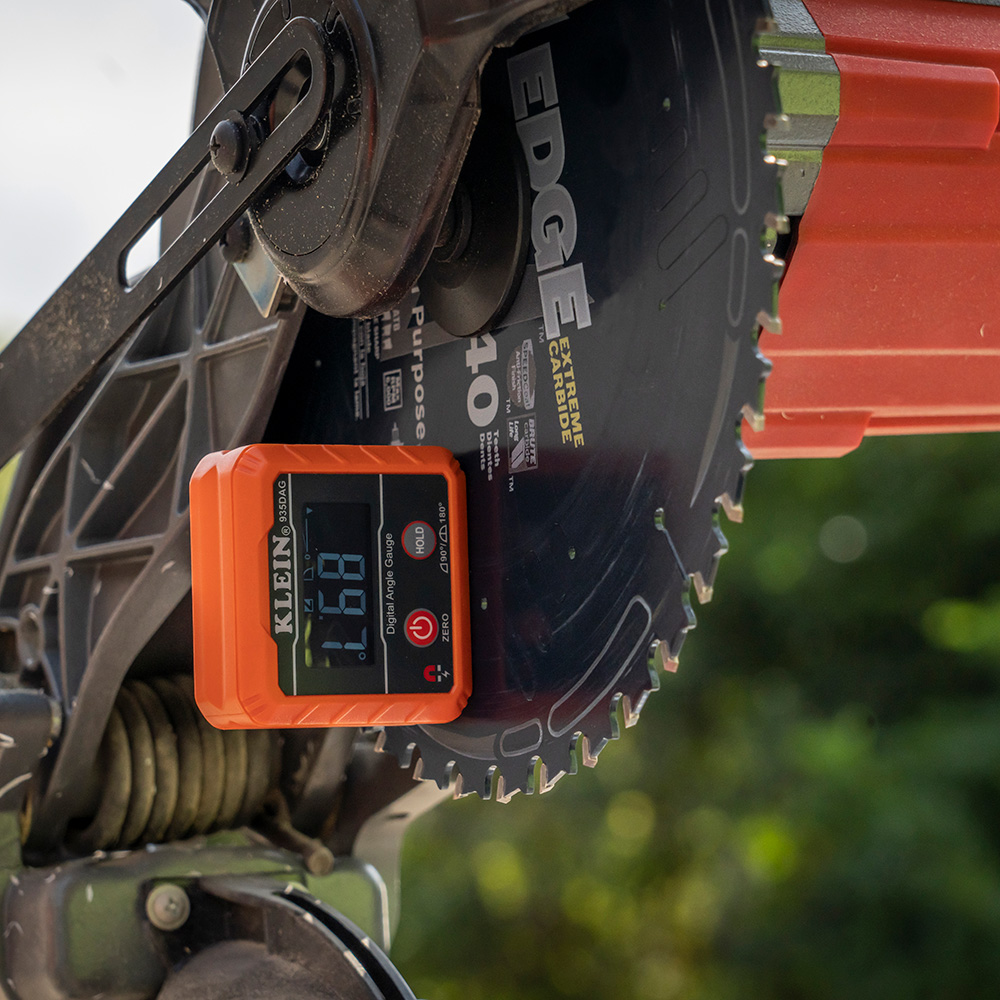

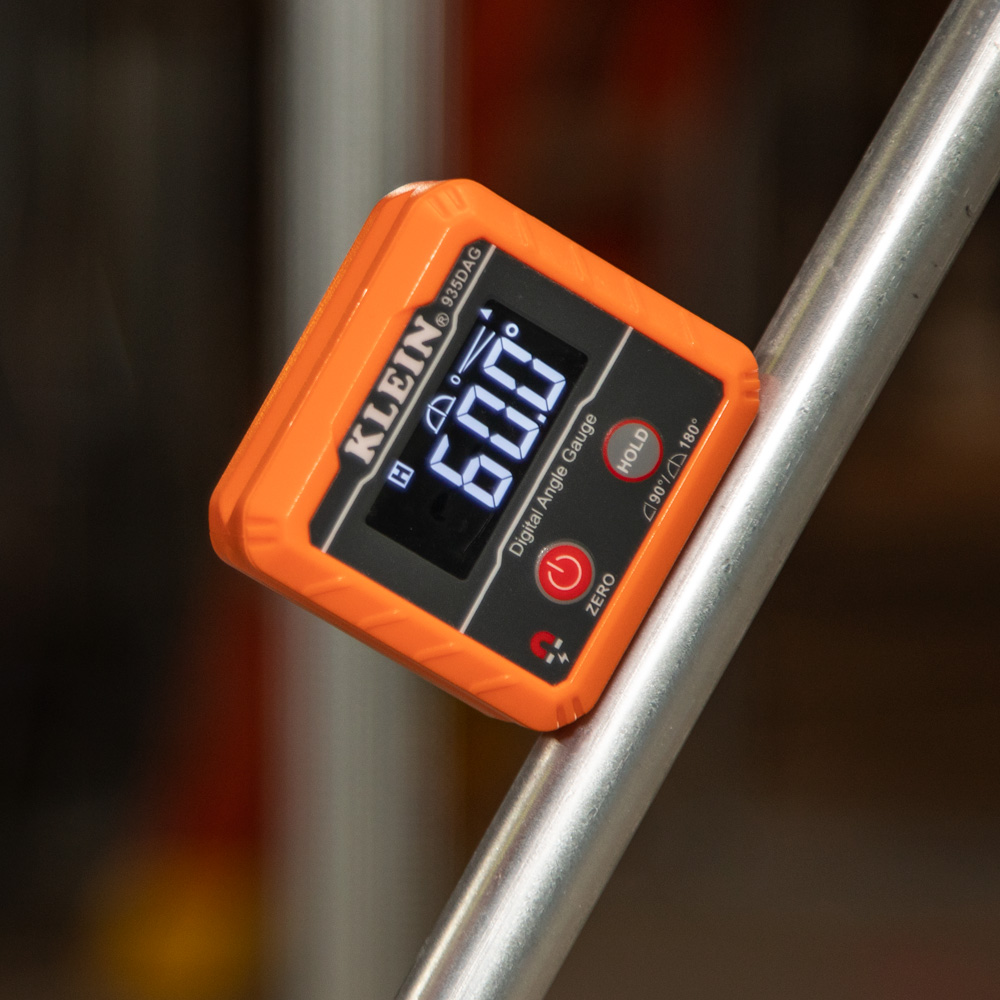

• Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces

Warnings

• Read, understand, and follow instructions to ensure safe operation
• Always wear approved eye protection
• See instruction manual for additional warnings

Specifications

• Overall Length (cm): 6
• Overall Height (cm): 5.6
• Overall Width (Inch): 1.2
• Material: ABS Plastic Housing and Electronic Components
• Magnet Type: Permanent Rare Earth
• Depth: 2.3600 in
• Application: Measure or Set Angles, Check Relative Angles, or Use as a Digital Level

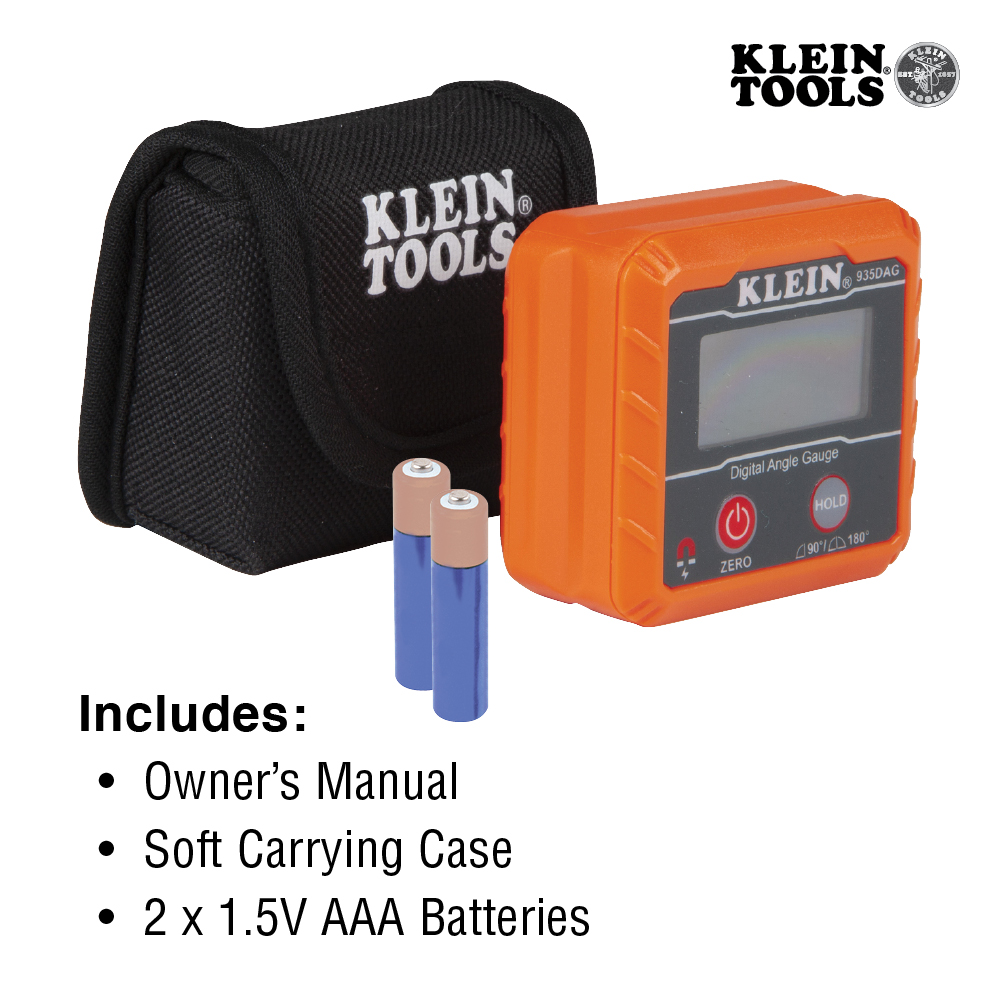

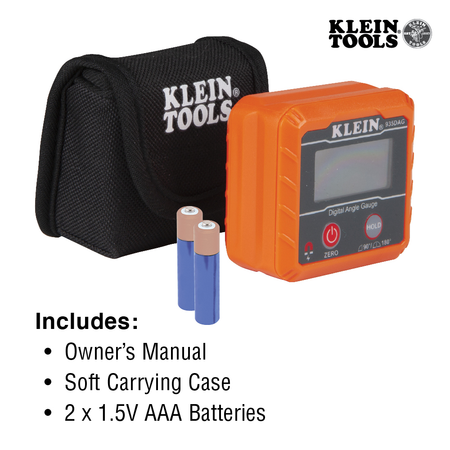

• Included: Digital Angle Gauge and Level; Soft Carrying Case; Instruction Manual; Batteries
• Weight (oz): 3.5
• Height: 1.2000 in
• Width: 2.2000 in
• Ingress Protection: IP42 - Water and Dust Resistant
• Batteries: 2 x 1.5 AAA
• Accuracy: +/- 0.1° from 0° to 1°, 89° to 91°, 179° to 180°; +/- 0.2° at All Other Angles
• Type: Digital Level
• Overall Width (cm): 3
• Overall Height (Inch): 2.2
• Weight (g): 99
• Overall Length (Inch): 2.36
• Drop Protection: 6.6' (2 m)
• Weight: 0.1700 lbs
