Digital Level with Programmable Angles

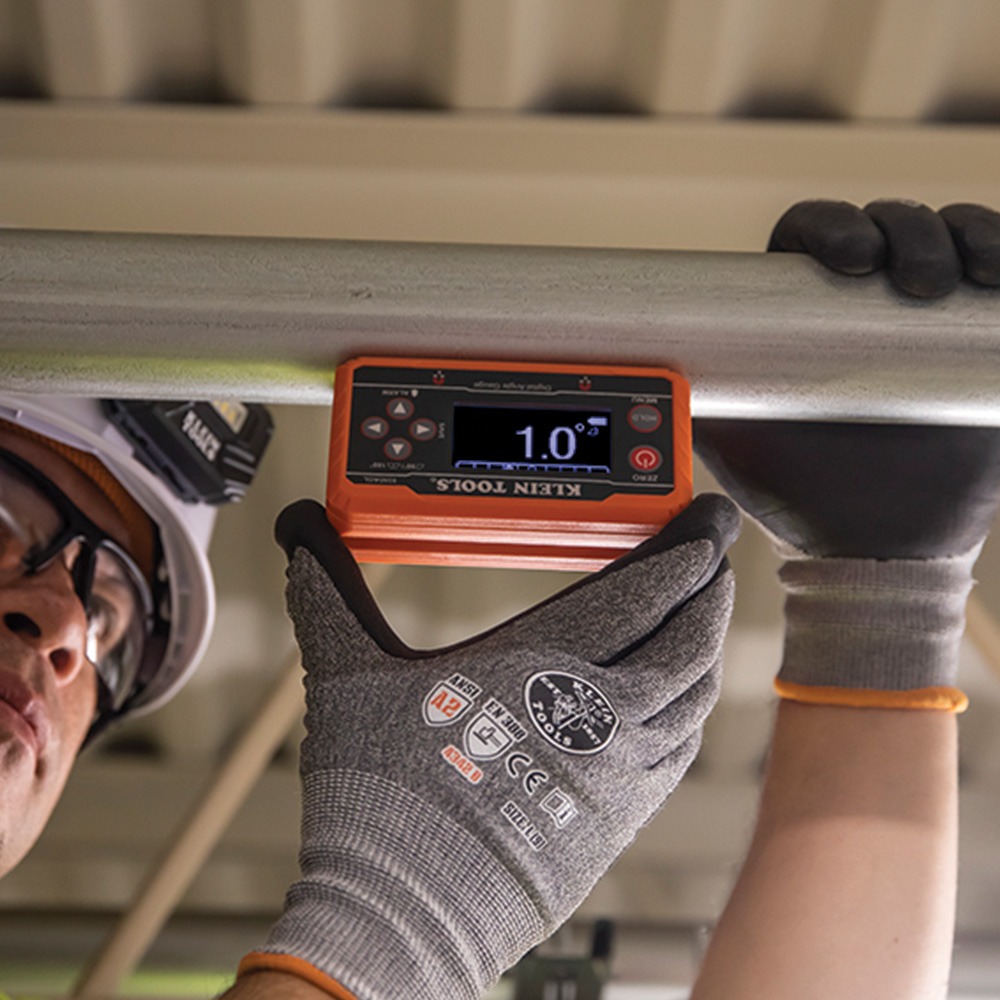

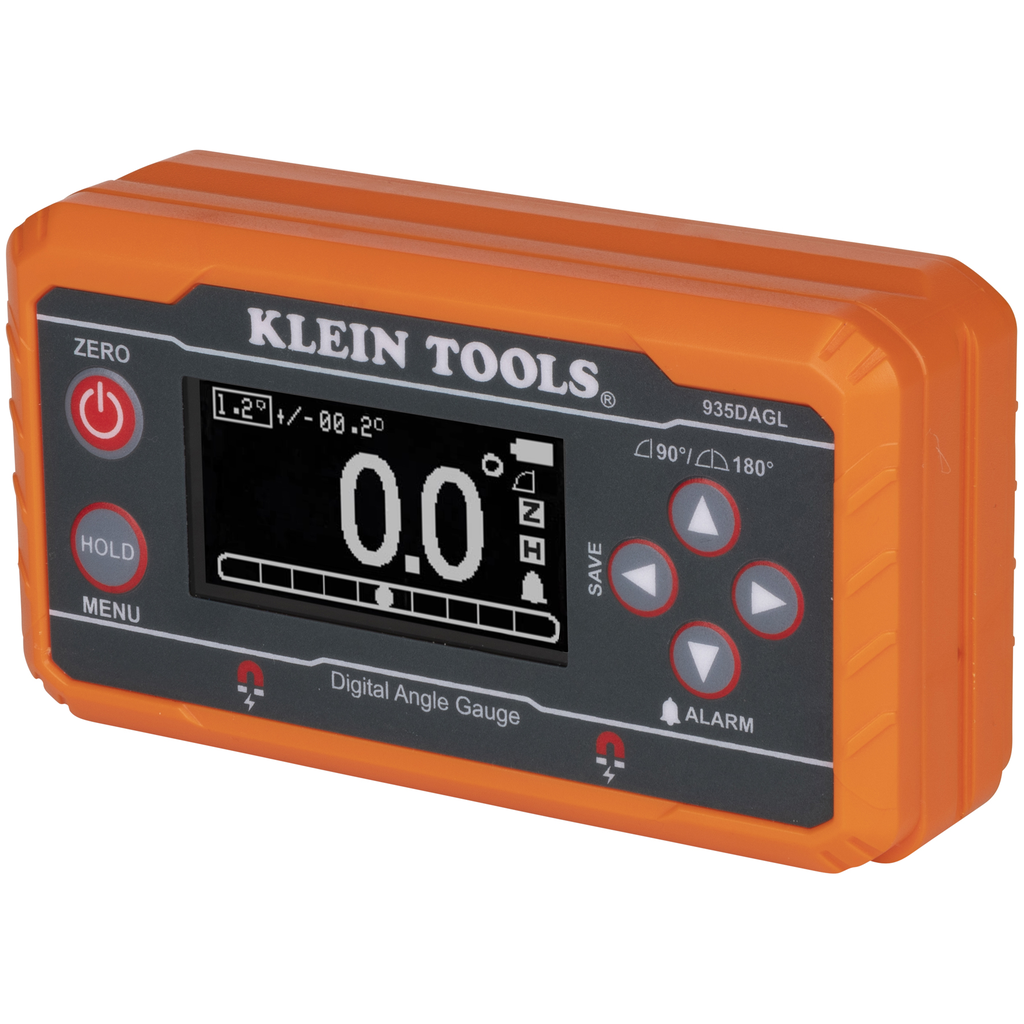

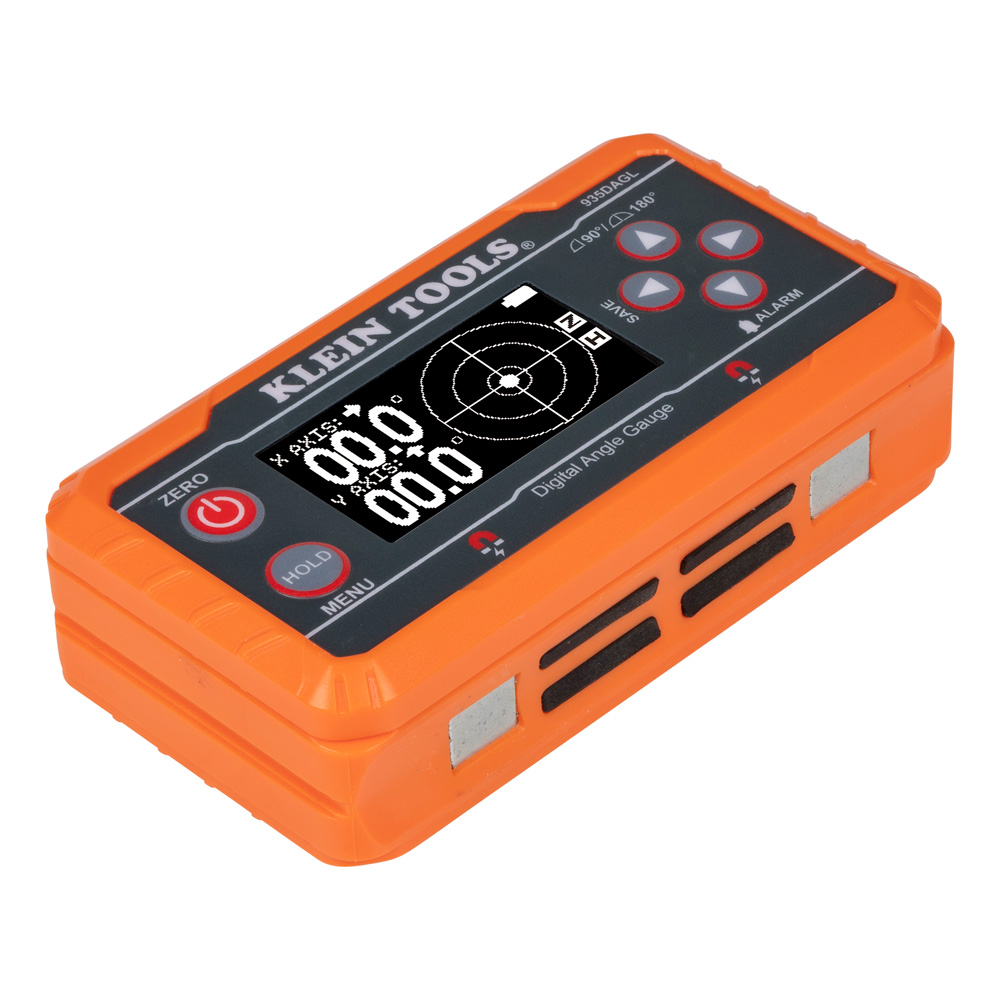

The Klein Tools 935DAGL is a digital level tool that detects and measures angles much more accurately than traditional spirit bubble levels. This inclinometer can measure ranges from 0 to 90-Degree or 0 to 180-Degree with a display that rotates when used in vertical or horizontal orientations. A target angle with audible alarm can be set, allowing the user even greater efficiency. The V-groove magnetic base can attach to a miter saw, table saw, conduit, pipe, and other round or ferromagnetic surfaces.

Features

• Audible Alarm, Magnetic Base, V-Grooves on Top and Bottom

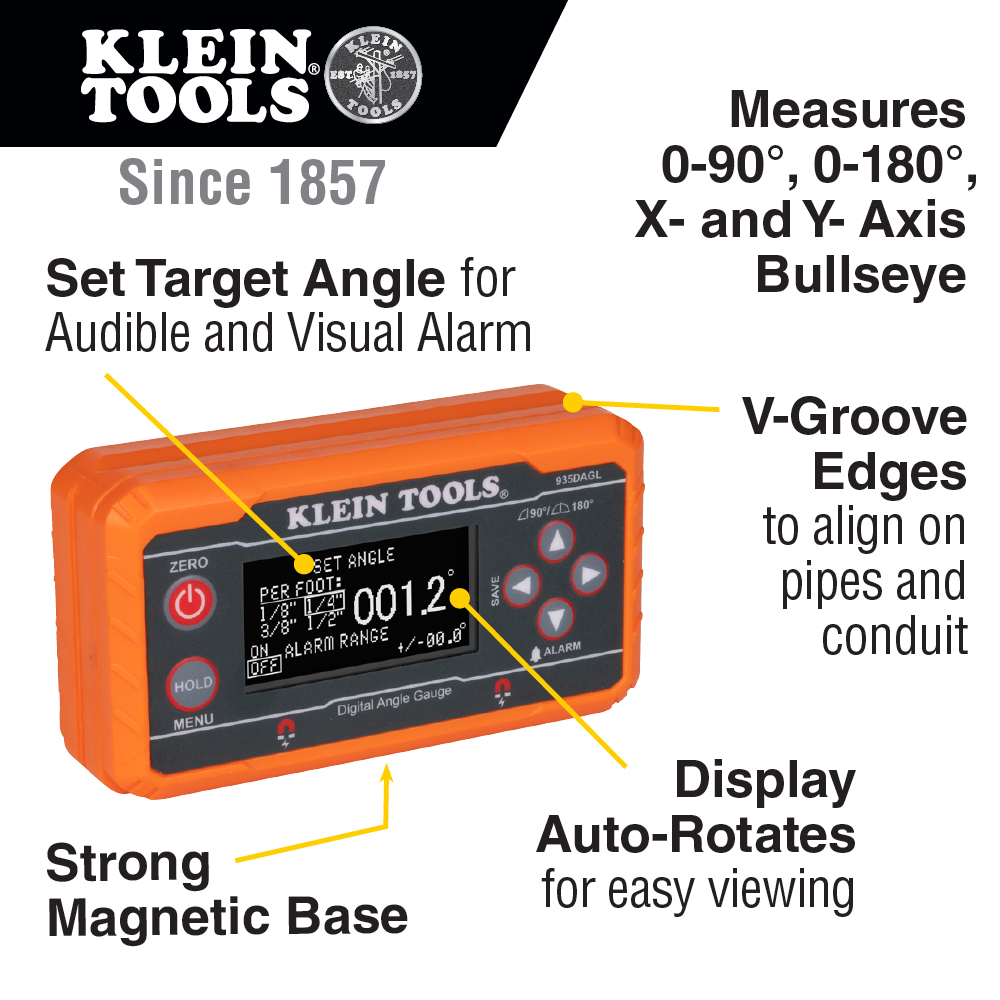

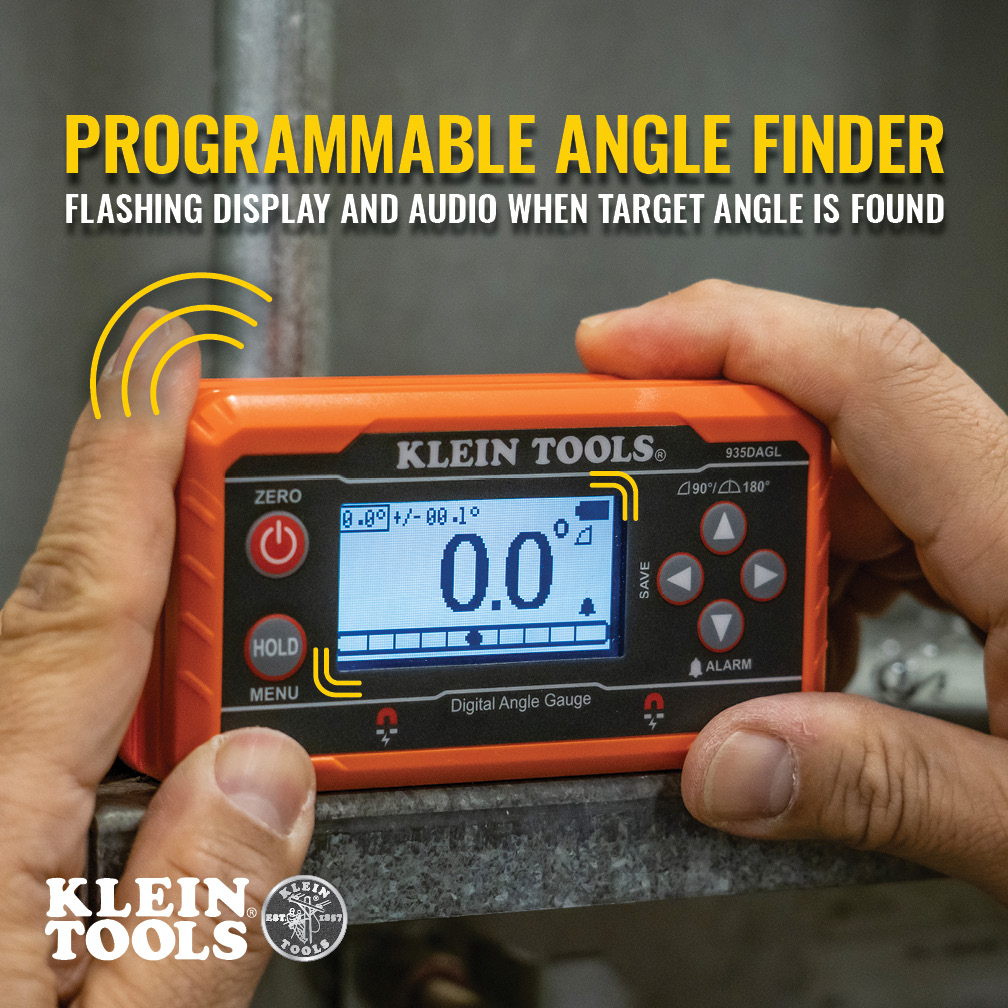

• Easily achieve target angle by setting an audible alarm; LCD will change color as a visual indicator of reaching the set target angle
• High visibility reverse contrast display improves visibility in dimly lit work environments

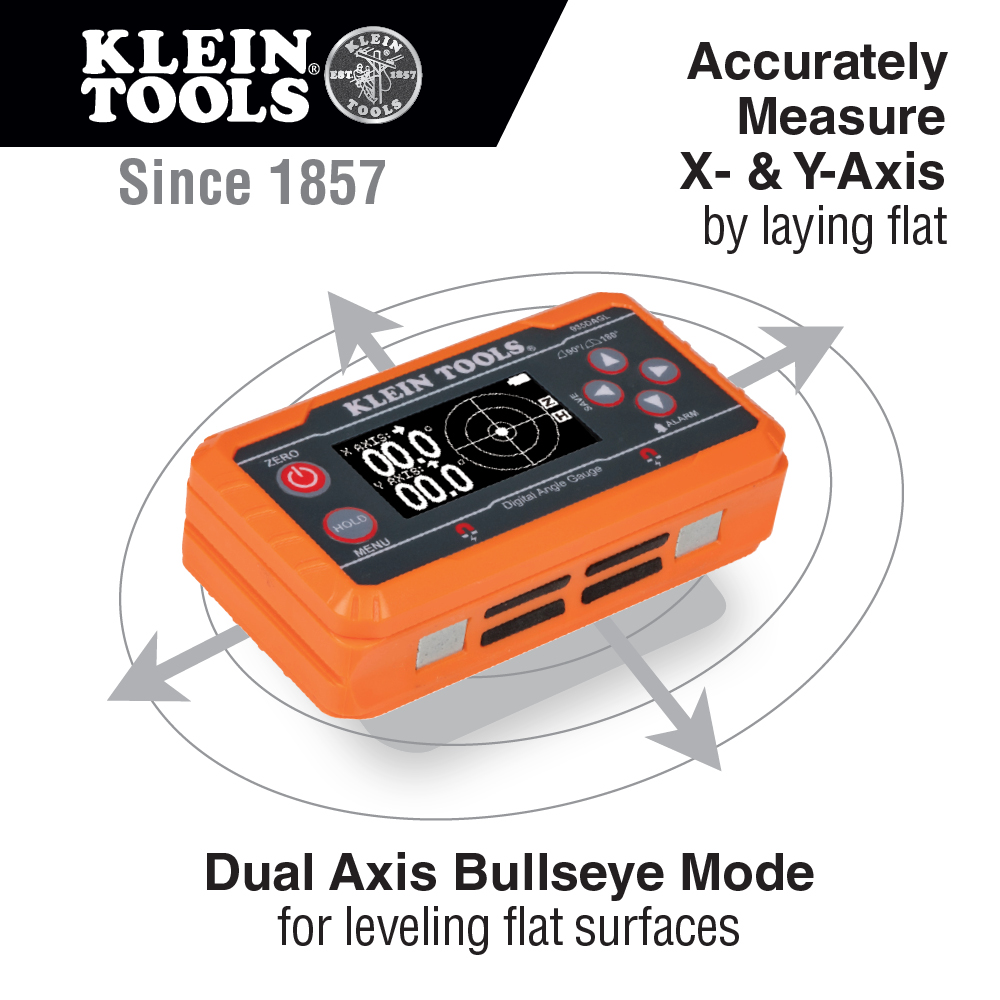

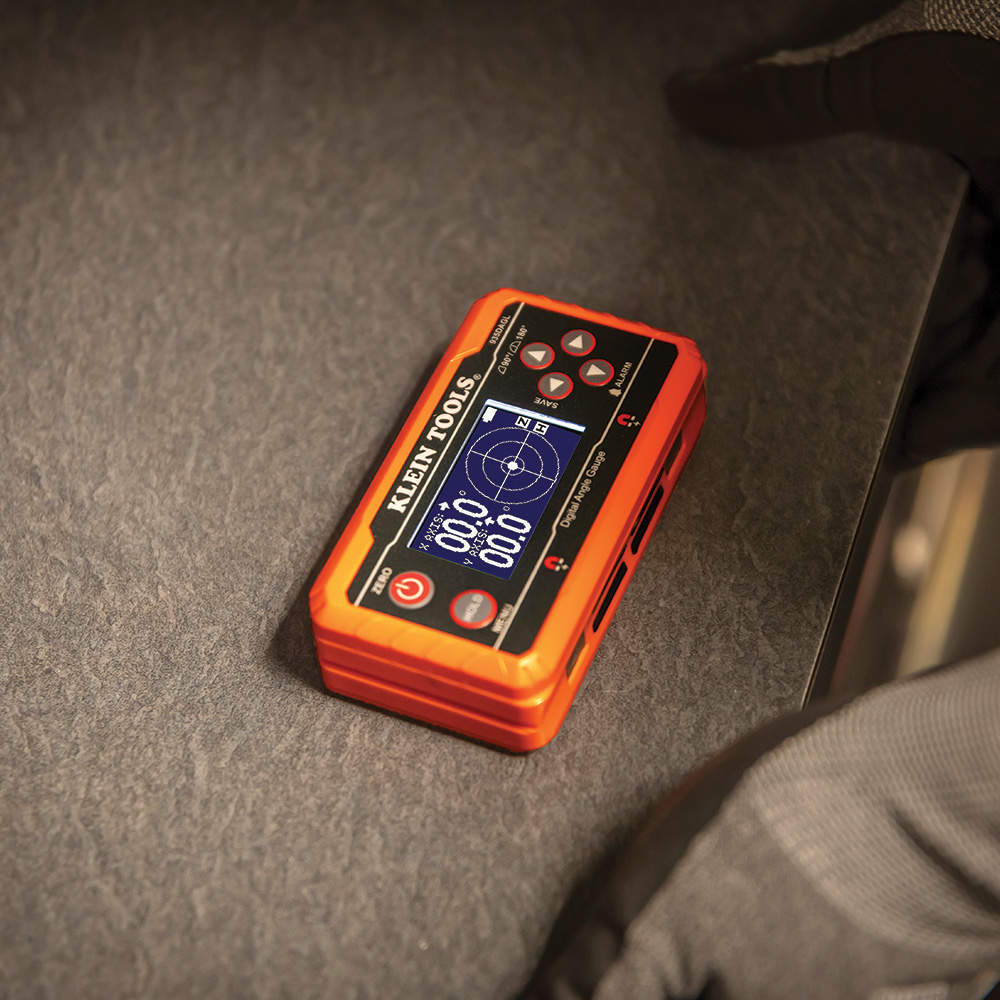

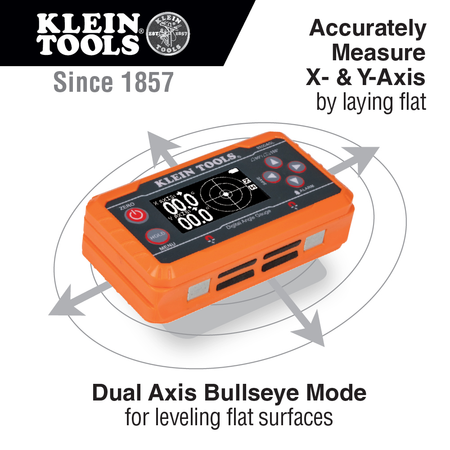

• Use in bullseye orientation to accurately determine X- and Y-axis
• Soft carrying case and 2 x AA batteries included
• Pre-programmed commonly used target pitches for efficiency and ease-of use: 1/8-Inch, 1/4-Inch, 3/8-Inch and 1/2-Inch per foot

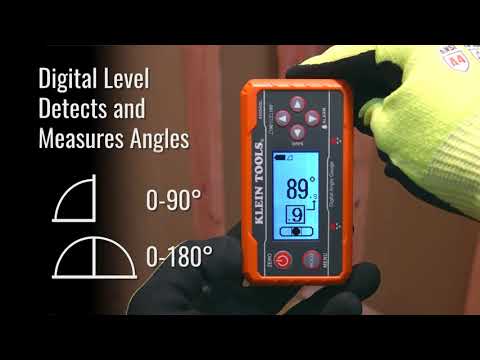

• Digital level measures 0 to 90-Degree, 0 to 180-Degree, or dual axis bullseye ranges
• Language selectable menu for English, Spanish, and French

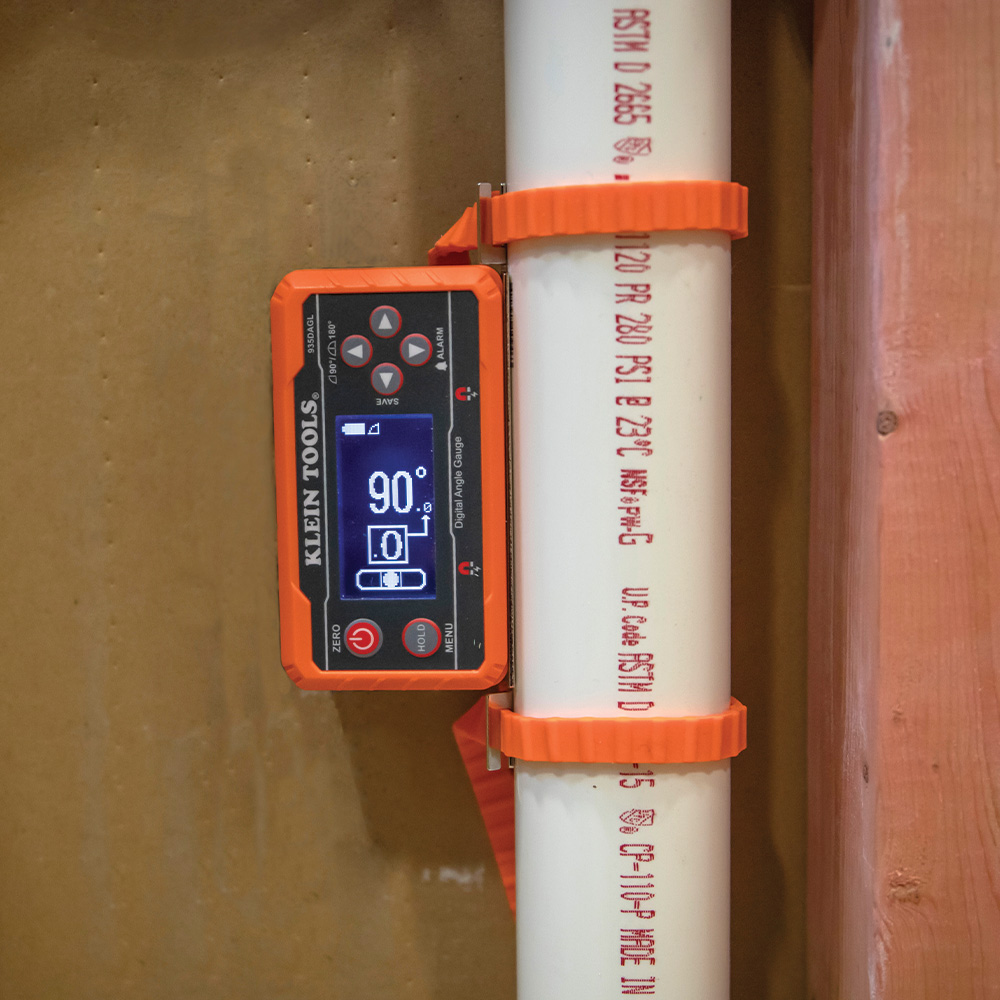

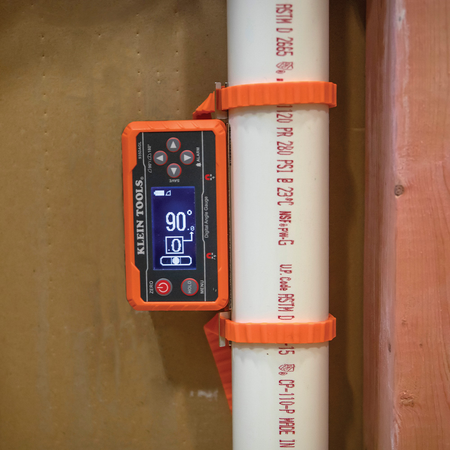

• Optional Plumber's Kit (Cat. No. 69346) allows the level to be used with PVC and other non-magnetic pipes and Conduit, up to 6 inches of outer diameter
• Strong magnetic base attaches to ferromagnetic surfaces

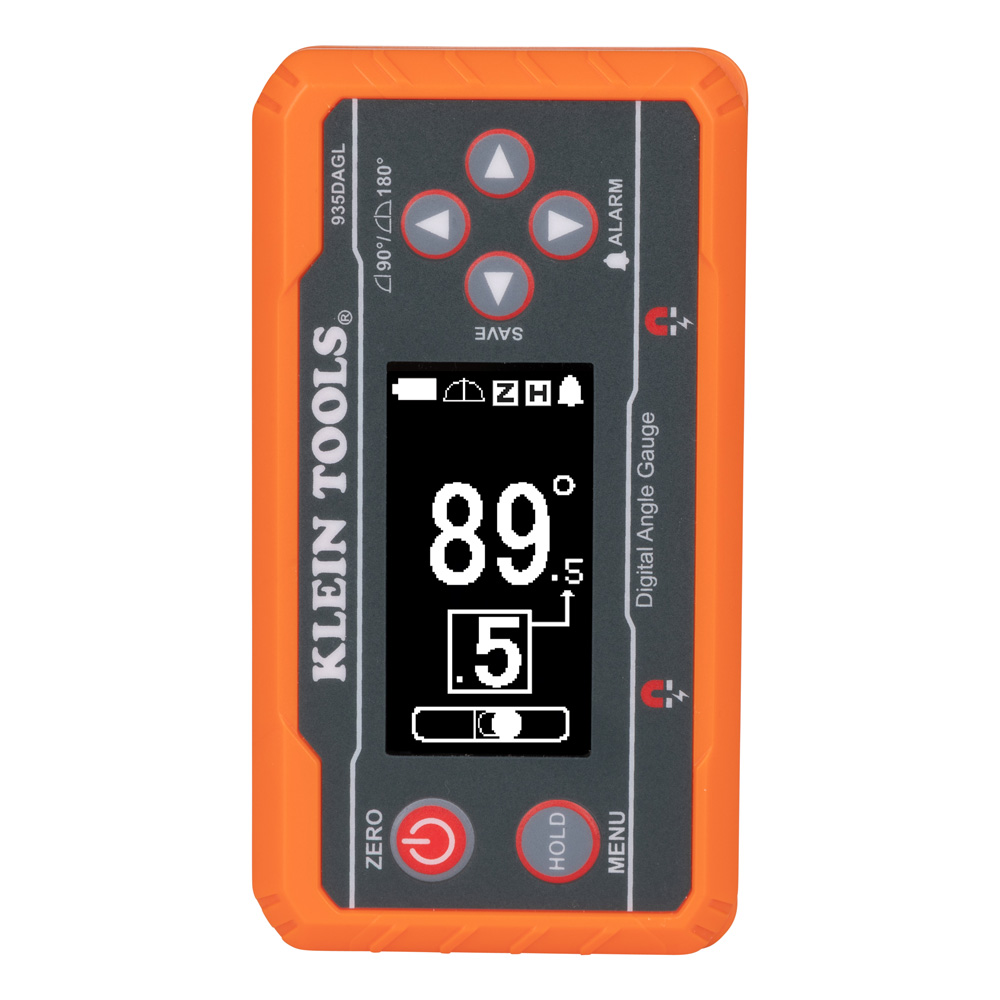

• Display auto-rotates when used in horizontal or vertical orientation

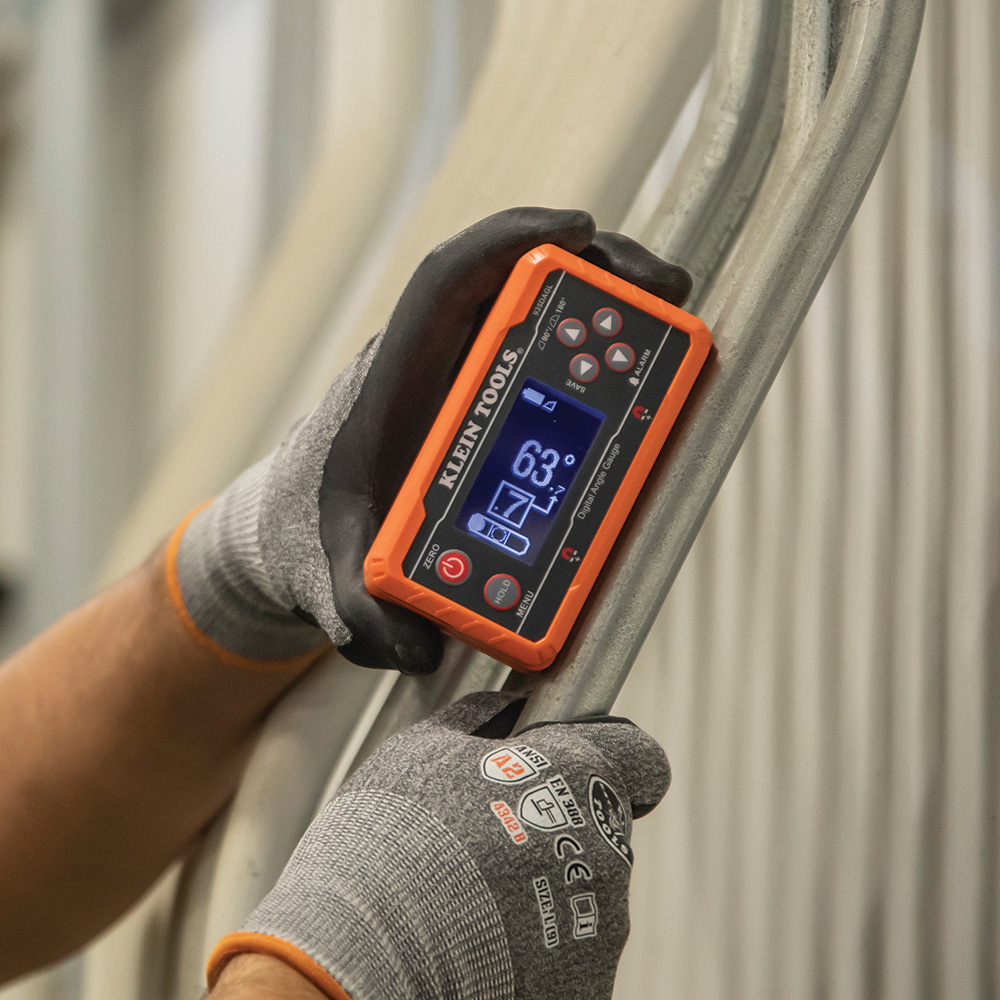

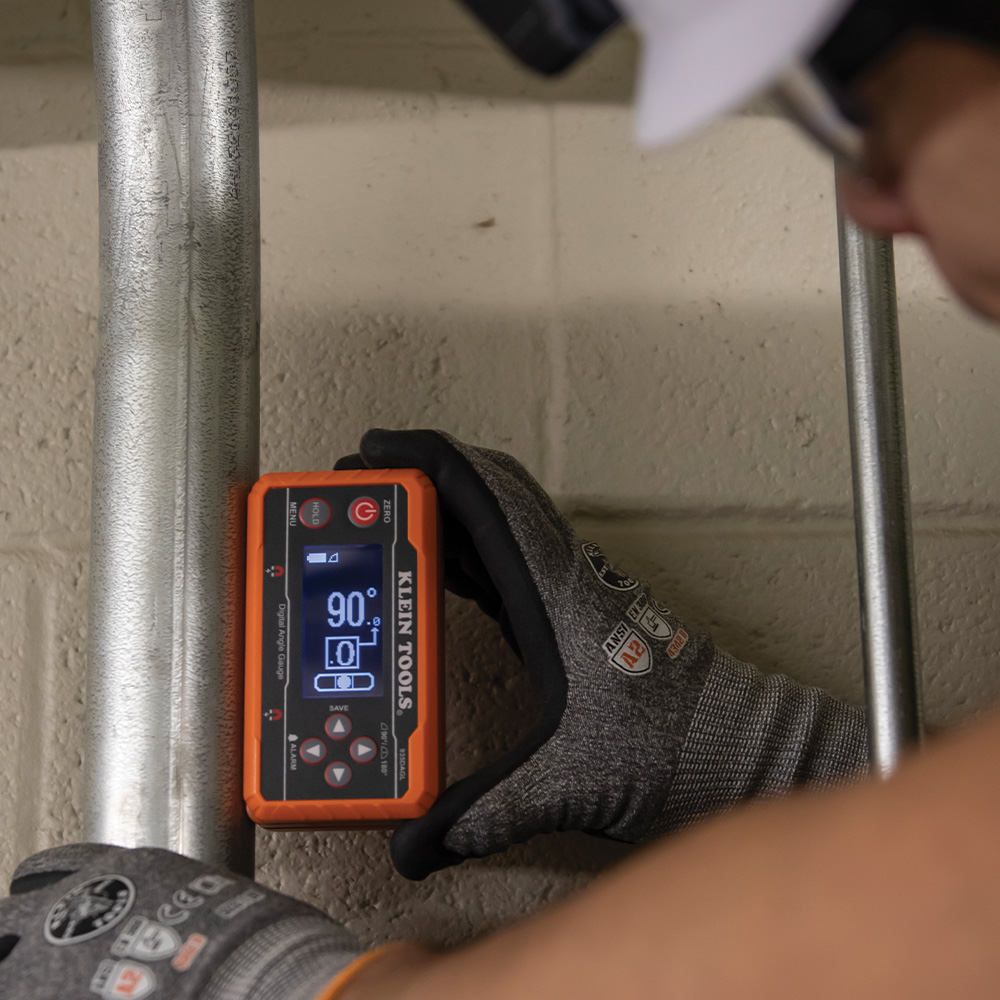

• V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment

Warnings

• See instruction manual for additional warnings
• Read, understand, and follow instructions to ensure safe operation
• Always wear approved eye protection

Specifications

• Width: 1.3600 in
• Height: 2.4800 in
• Application: Measures Angles; Use as a Digital Level
• Magnet Type: Permanent Rare Earth
• Drop Protection: 6.6' (2 m)
• Type: Digital Level
• Batteries: 2 x AA
• Material: ABS Plastic Housing and Electronic Components
• Overall Width (Inch): 1.36
• Ingress Protection: IP42 Dust and Water Resistant
• Overall Height (cm): 6.3
• Low Battery Alarm: No
• Overall Length (cm): 11.6
• Overall Length (Inch): 4.57
• Weight (g): 198
• Overall Height (Inch): 2.48
• Accuracy: Vertical and Horizontal Orientation - +/- 0.2°; Bullseye Orientation - +/- 0.5°
• Weight (oz): 7
• Depth: 4.5500 in
• Overall Width (cm): 3.5
• Weight: 0.3700 lbs
• Included: Digital Level; Soft Carrying Case; Instruction Manual; Batteries
