Rechargeable Self-Leveling Green Cross-Line Laser Level with Red Plumb

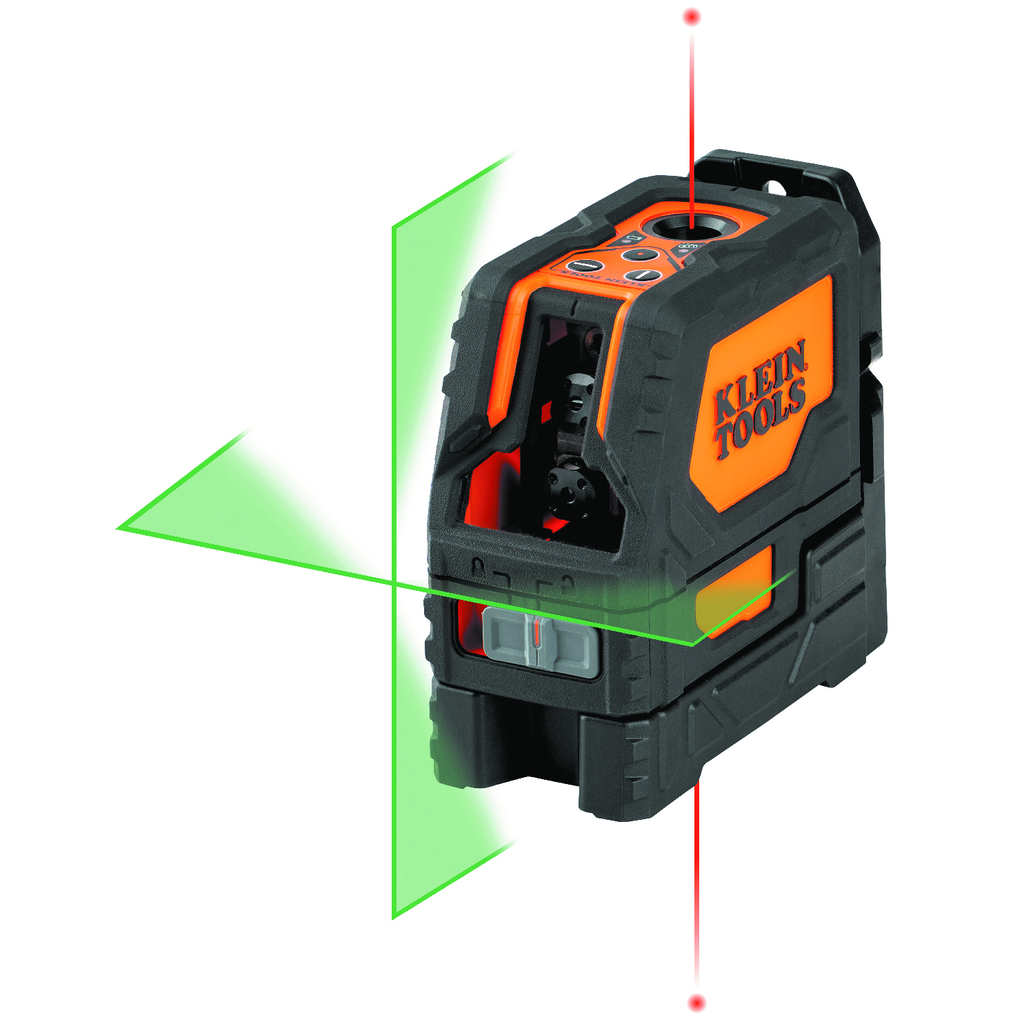

The Klein Tools Green Rechargeable Laser Level is a high-performance Class 2 (<= 1mW @ 510-530 nm) laser leveling and alignment tool for professionals with a rechargeable battery. This level provides a reliable pendulum self-leveling system with clear, bright green laser level lines, and red plumb up/down spots. Equipped with an integrated magnetic mount and an additional ceiling grid clamp , Klein's cross-line laser level enables a multitude of alignment and layout applications.

Warnings

• Laser Radiation - Do Not Stare Into Beam.
• Class II Laser Product.
• See instruction manual for additional warnings.

Features

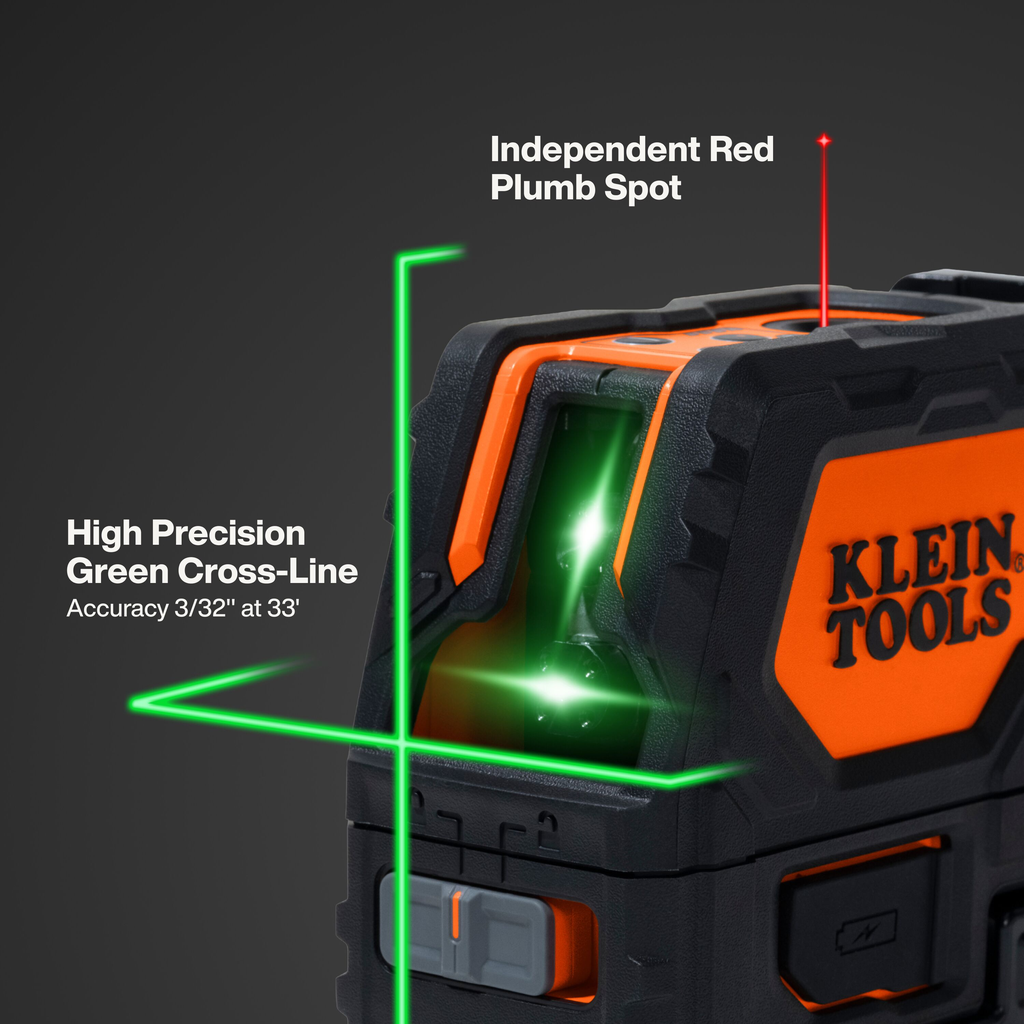

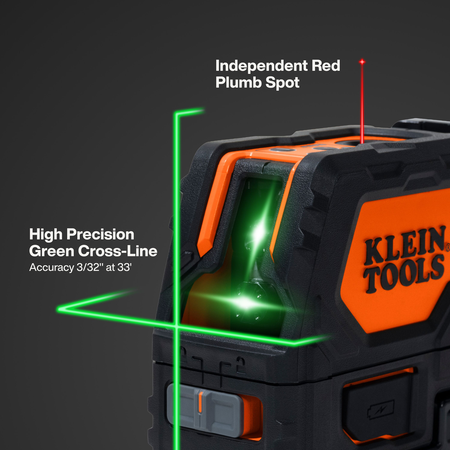

• Projects high precision horizontal and vertical lines and plumb up/down spots independently or together to address various alignment tasks with accuracy up to 3/32-Inch at 33 feet (10.1 m)

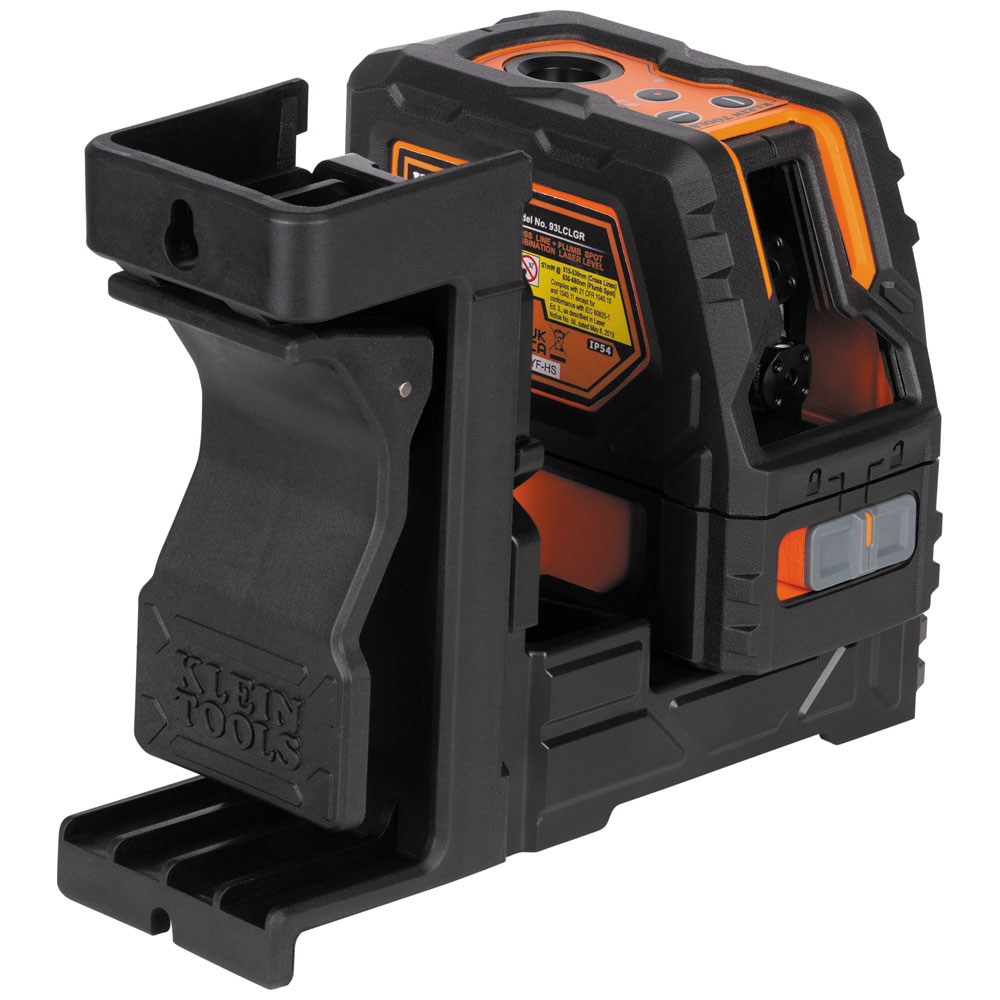

• Additional mounting clamp attachment for use on ceiling grid applications
• Rugged body provides IP54 water and dust resistance for job site durability

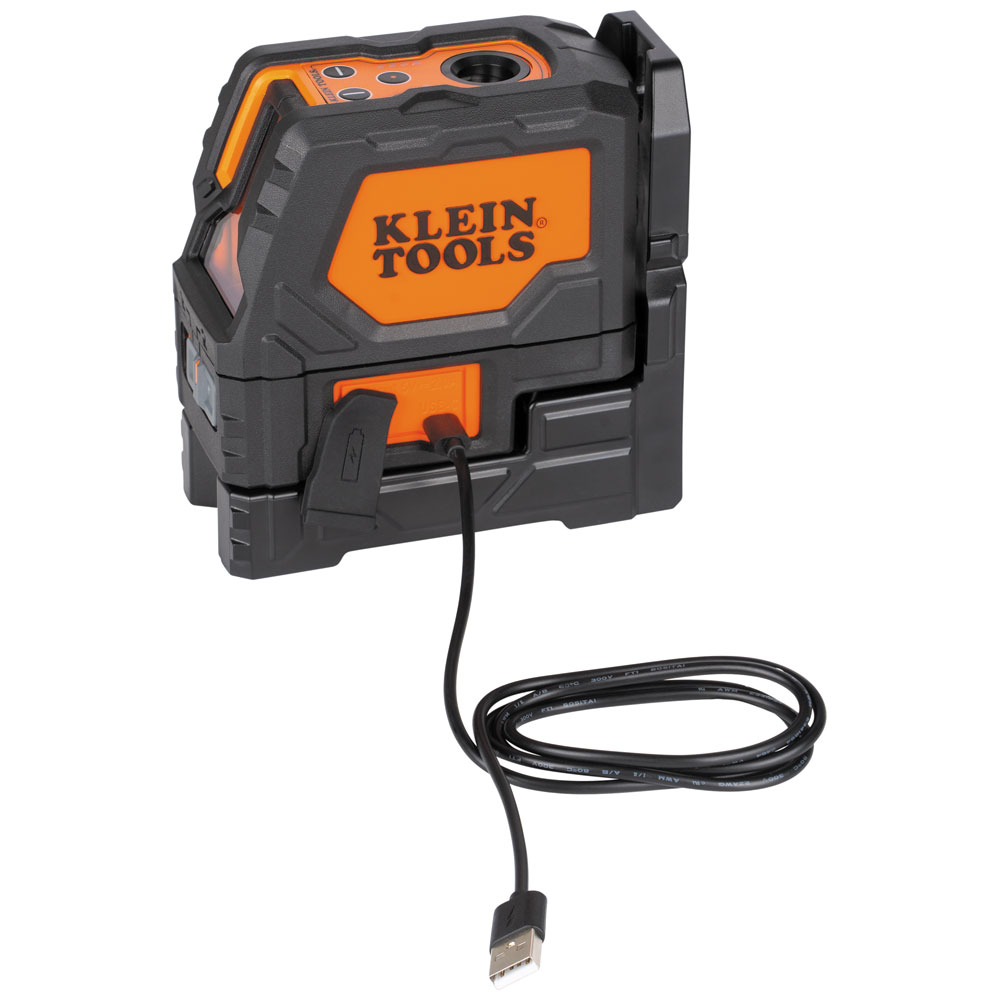

• Includes protective hard plastic carrying case, USB-A to USB-C charging cable, mounting clamp, and instruction manual

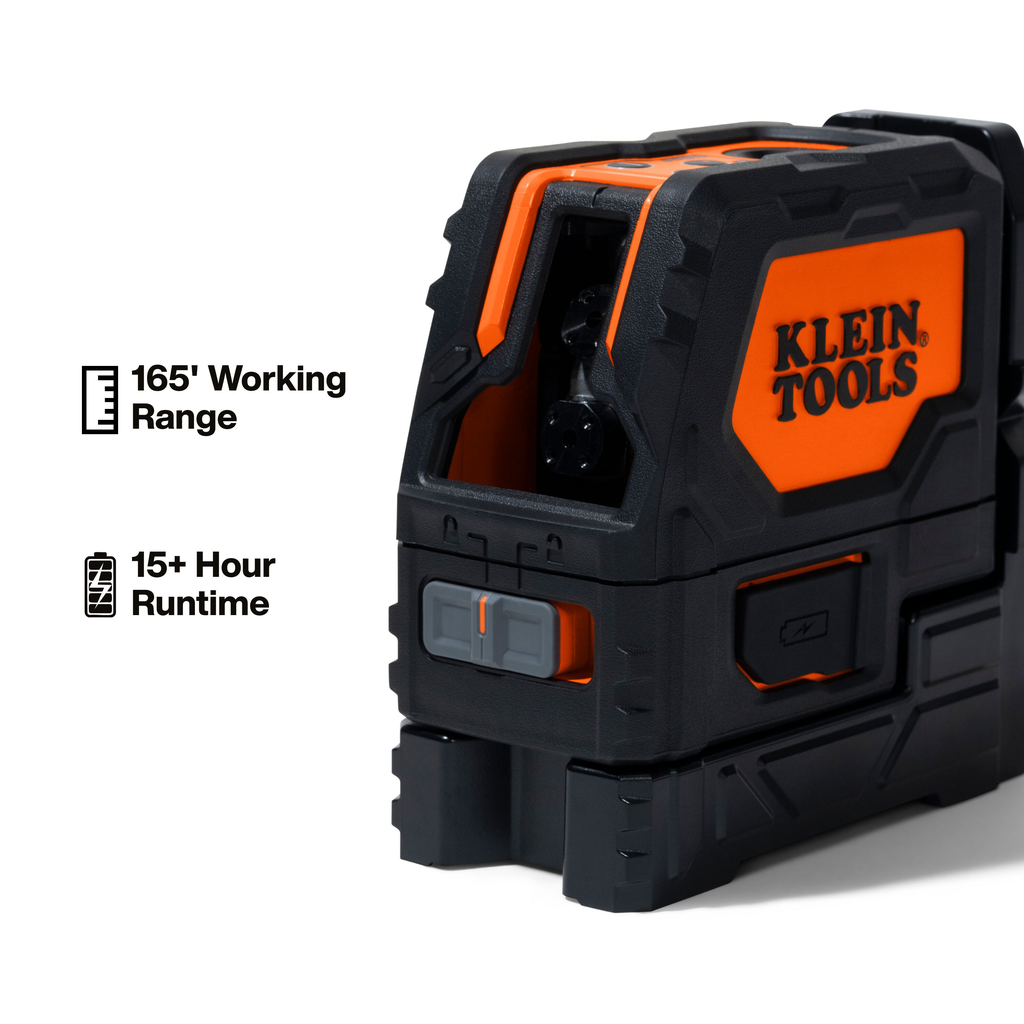

• High capacity rechargeable Li-ion battery powers all lasers with more than 15 hours of run time

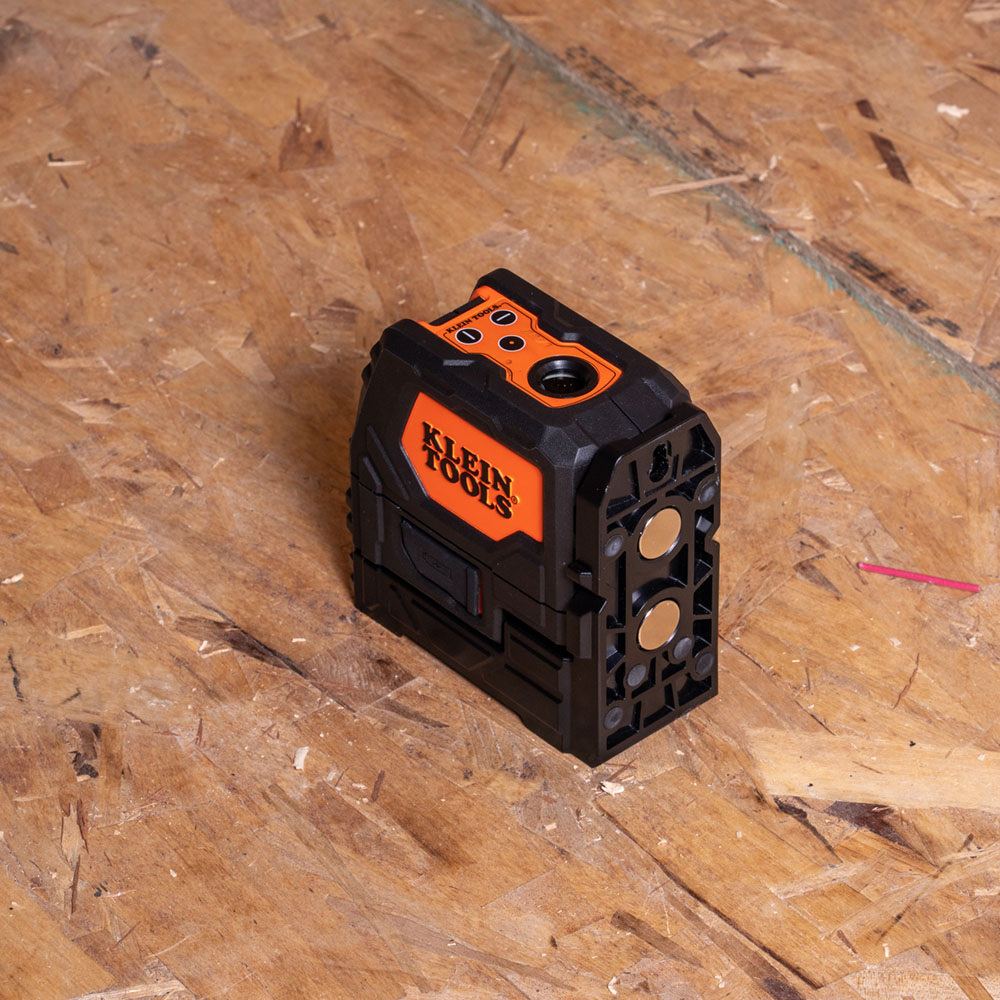

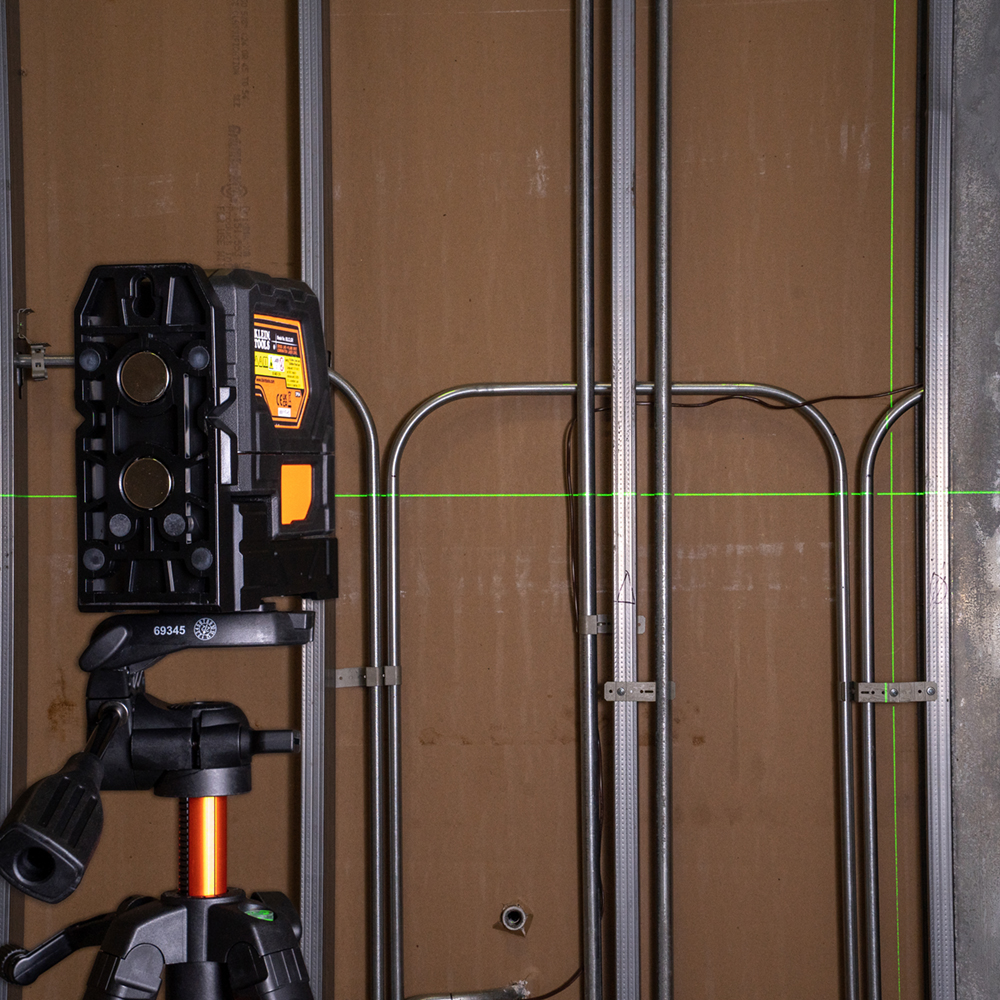

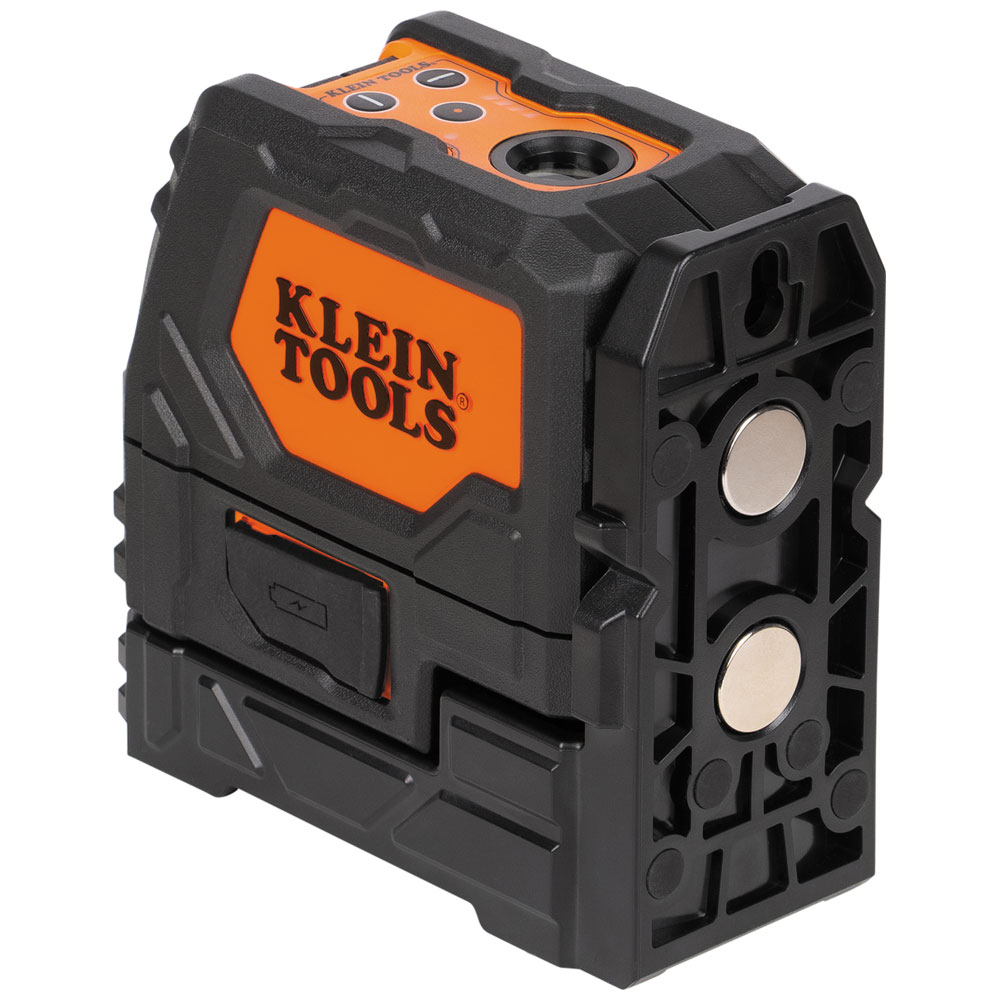

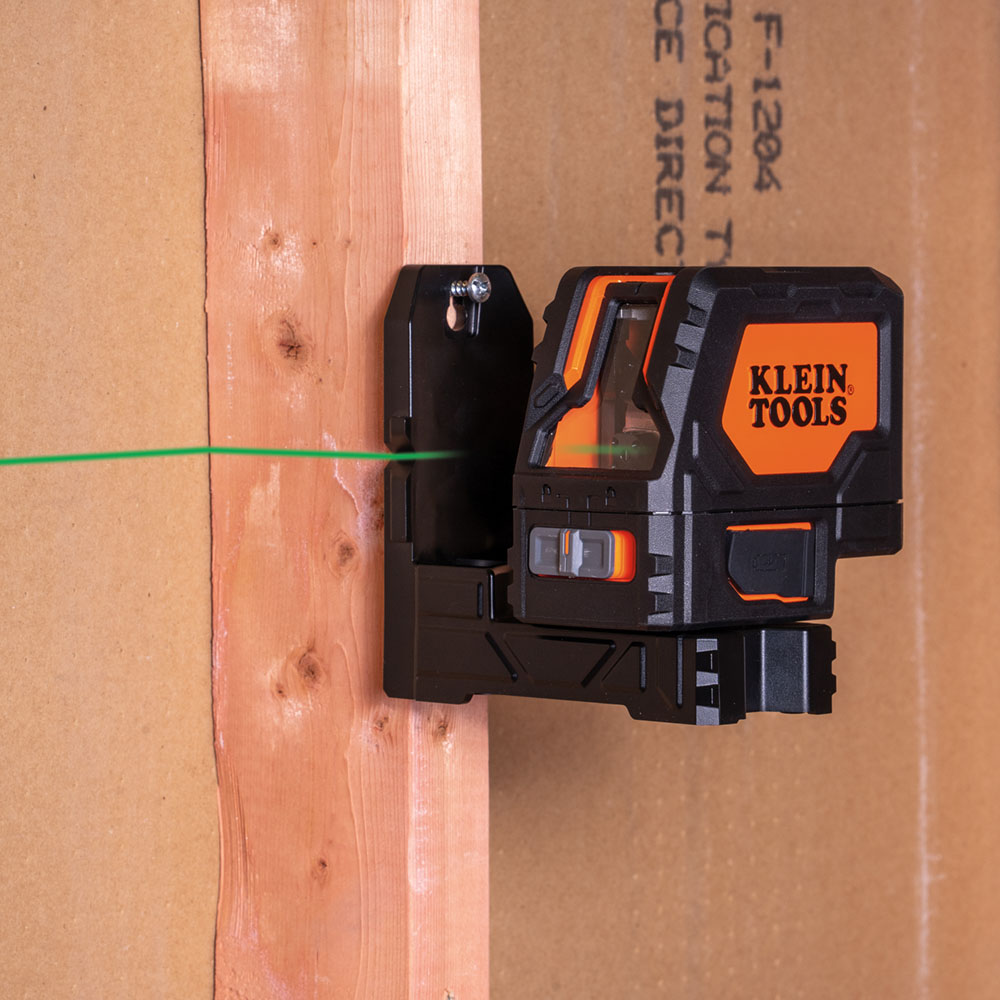

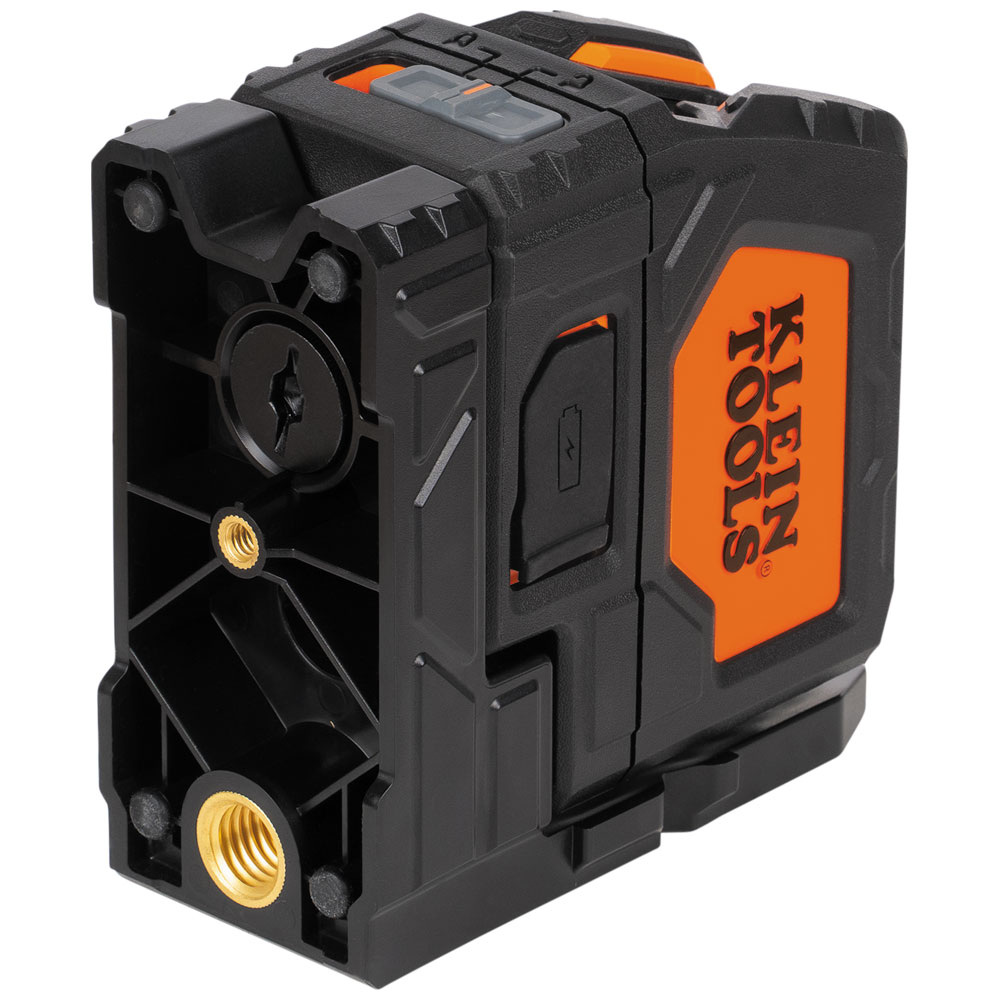

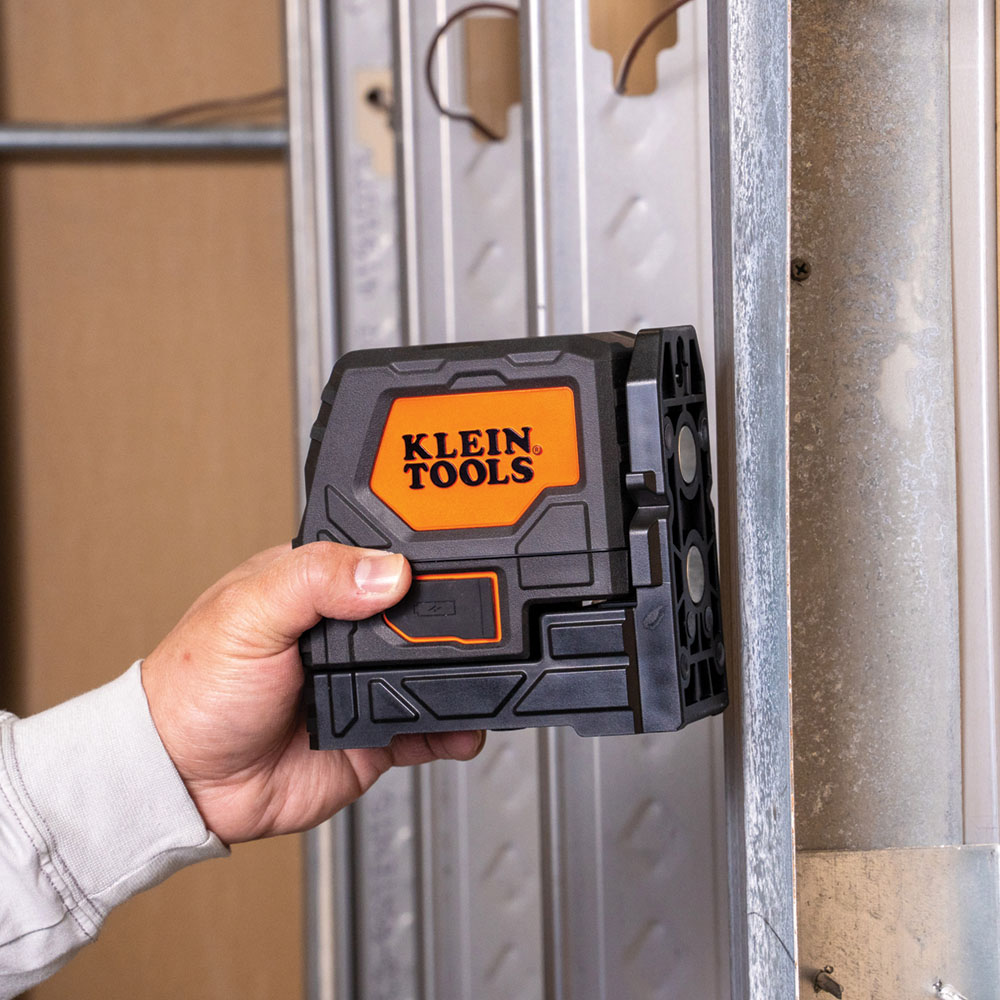

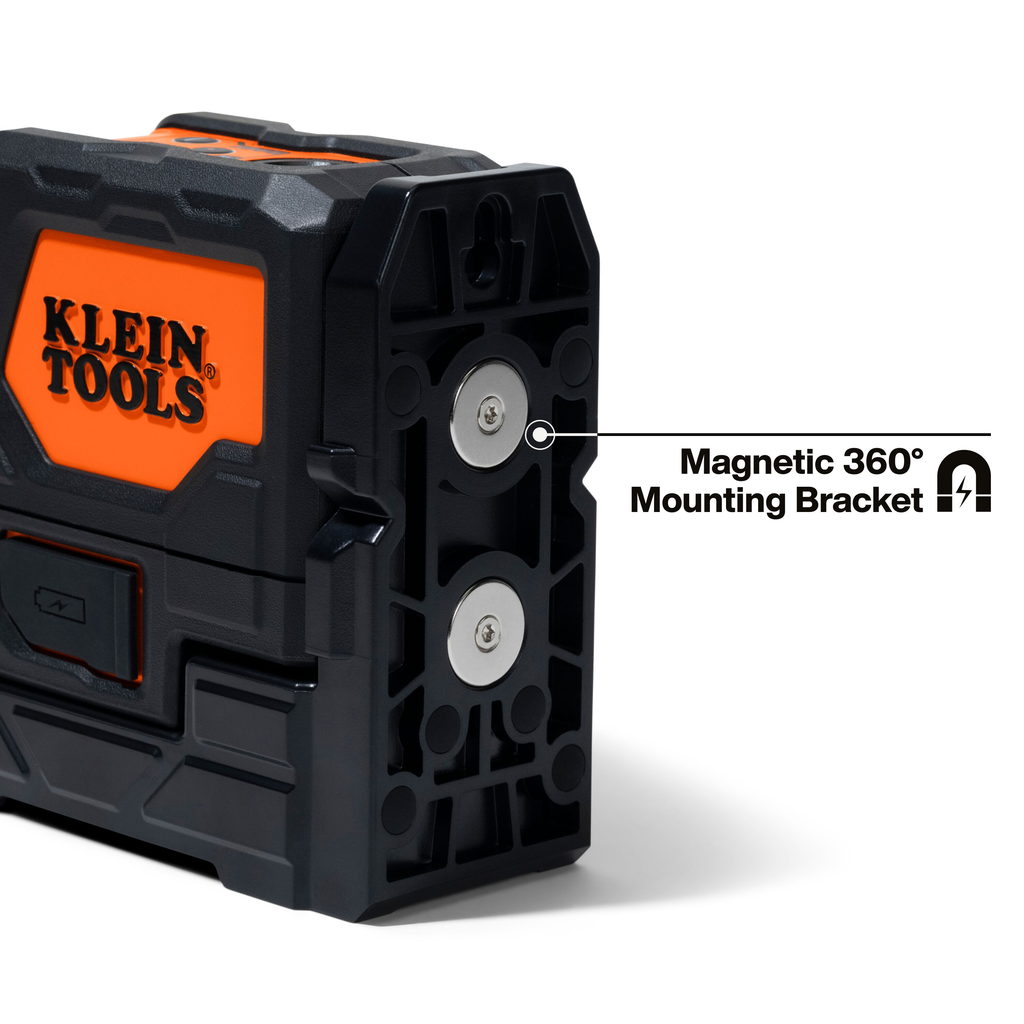

• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads facilitates attachment to ferromagnetic objects
• Rechargeable self-leveling laser level is easy-to-read with high-visibility green horizontal and vertical laser lines and red plumb spot lasers with a working range of 165-Foot (50.3 m)
• This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power <=1mW @ 510-530 nm)

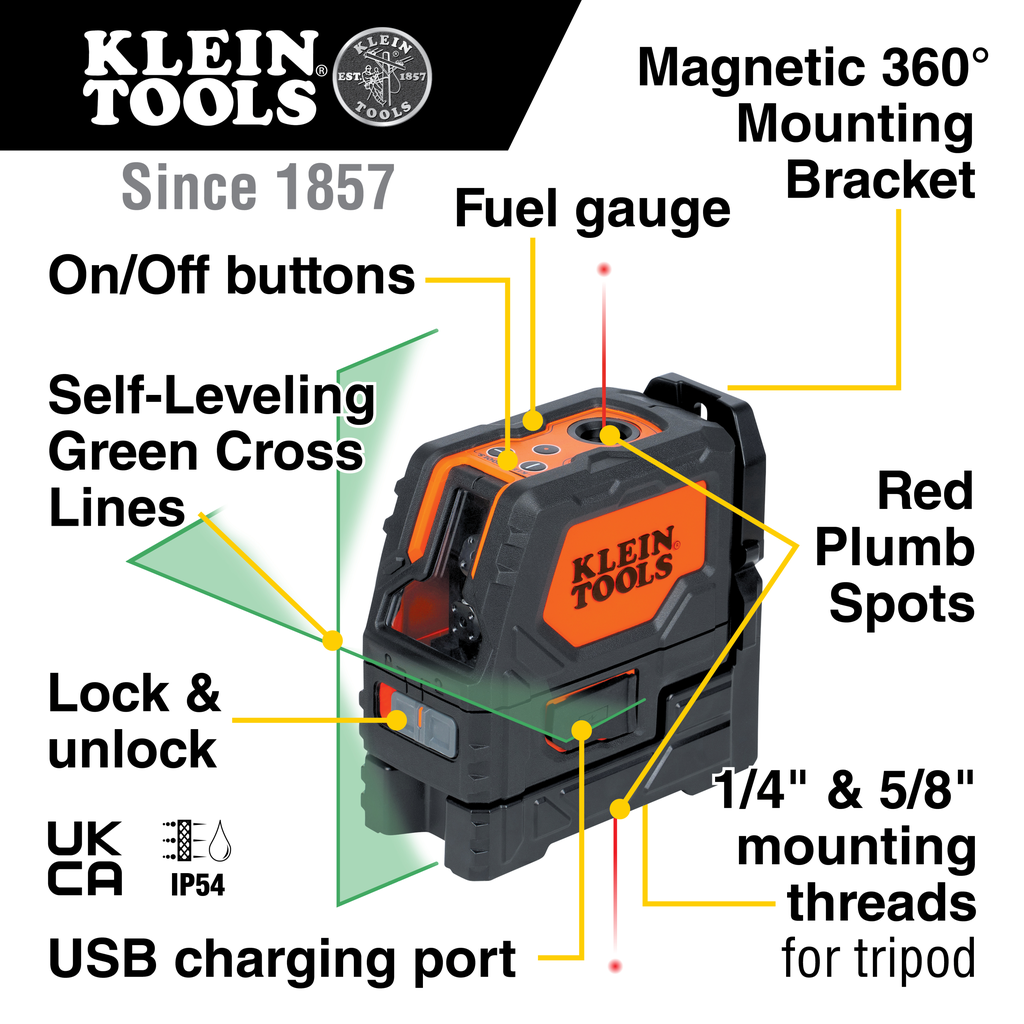

• Integrated Magnetic 360° Mounting Bracket with 1/4" and 5/8" Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator

Specifications

• Low Battery Indicator: Yes
• Included: Laser Level; Hard Carrying Case; Instruction Manual; Mounting Clamp; Charging Cable
• Laser Wavelength: 515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
• Number of Vials: 0
• Standard: EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
• Width: 2.5600 in
• Laser Color: Cross Line - Green; Plumb - Red
• Overall Height: 13.5 cm (5.3 Inch)
• Weight: 1.9400 lbs
• Out-of-Level Indicator: No
• Plumb Laser: Yes
• Height: 5.2200 in
• Maximum Distance: 50.3 m (165 Feet)
• Type: Self-Leveling Laser Level
• Magnet Type: Permanent Rare Earth
• Drop Protection: 3.3' (1 m)
• Ingress Protection: IP54 - Water and Dust Resistant
• Low Battery Alarm: Yes
• Application: Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
• Overall Width: 2.6 Inch (6.6 cm)
• Accuracy: ±3/32" per 33' (±2 mm per 10 m) Vertical & Horizontal Beams, ±1/8" per 33' (±3 mm per 10 m) Plumb Up Spot, ±5/32" per 33' (±4 mm per 10 m) Plumb Down Spot
• Laser Class: Class 2
• Number of Beams: Four; Horizontal, Vertical, Plumb Up, Plumb Down
• Mounting Type: Magnetic, Tripod, Hang-Hole
• Laser mW: ≤1mW Each Beam

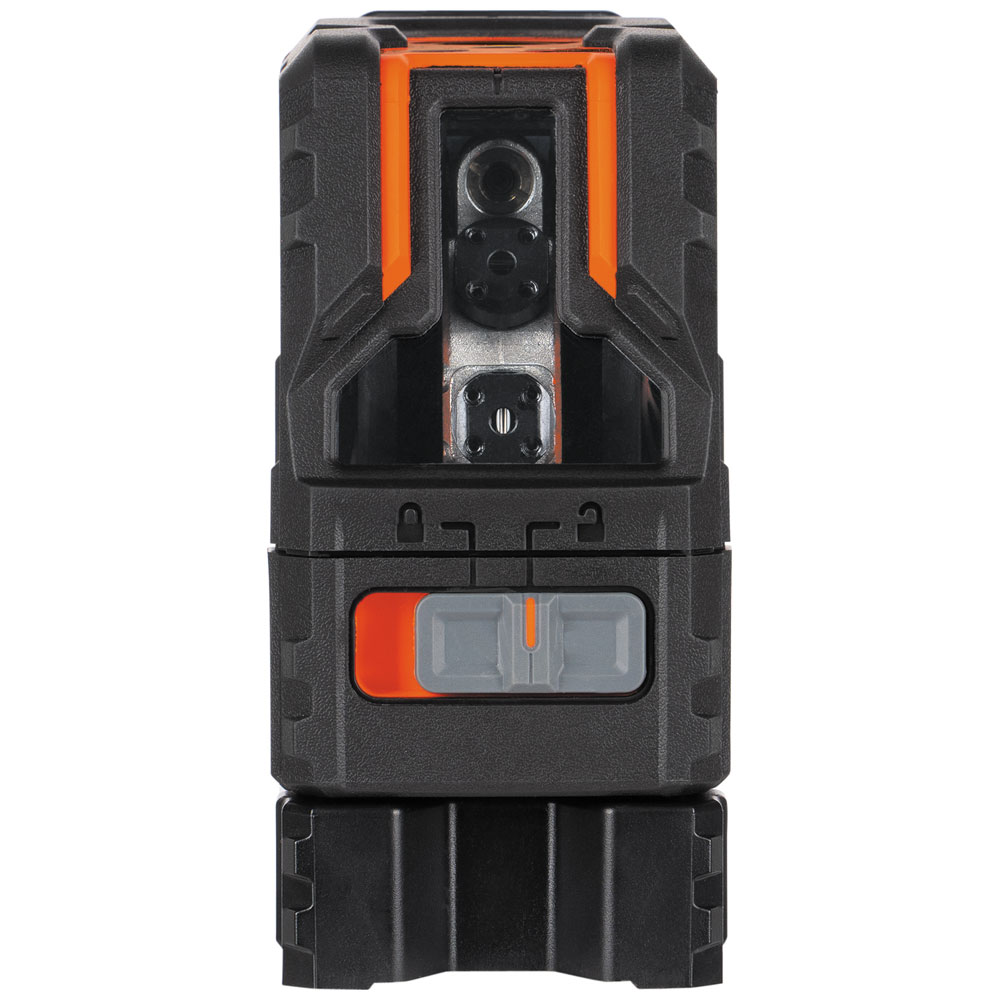

• Transit Locking Mechanism: Yes
• Overall Length: 13.2 cm (5.2 Inch)
• Indoor Range: 165' (50.3 m)
• Receiver: No
• Depth: 5.2900 in
• Battery Life: More Than 12 Hr
• Batteries: Lithium-Ion
• Pulse Mode: No
• Bag or Case: Hard Carrying Case
• Material: ABS Housing and Electronic Components
