Compact Laser Distance Measure

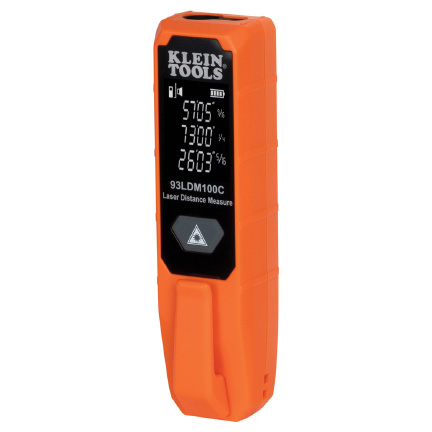

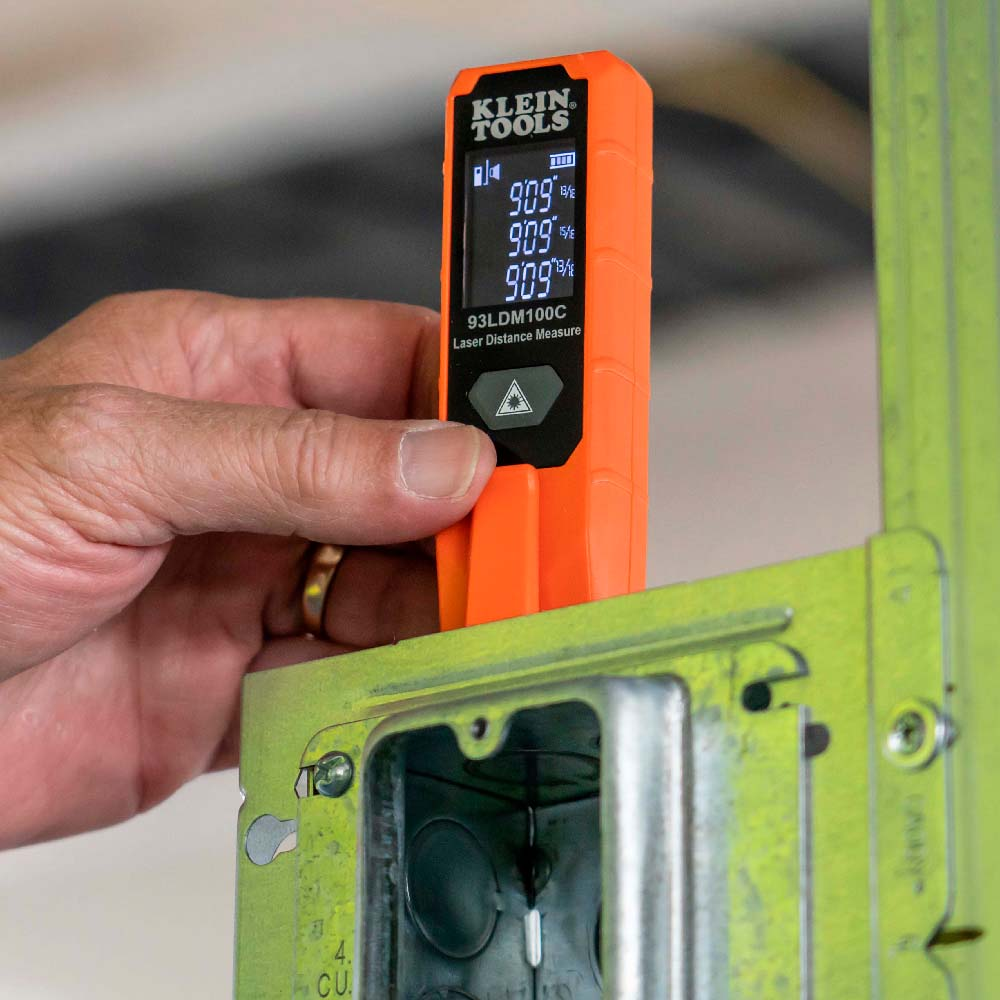

Klein Tools Compact Laser Distance Measure ( 1mW/ Laser Class 2) provides fast and accurate measurements up to 100 feet (30.5 m) with 1/8-Inch (0.3 cm) accuracy and an accuracy of 1/16-Inch (0.2 cm) for the first 30 feet. This compact design fits in a safety vest or shirt pocket to easily carry around a jobsite. The unit automatically saves the last two measurements on the LCD display screen to quickly compare past measurements.

Features

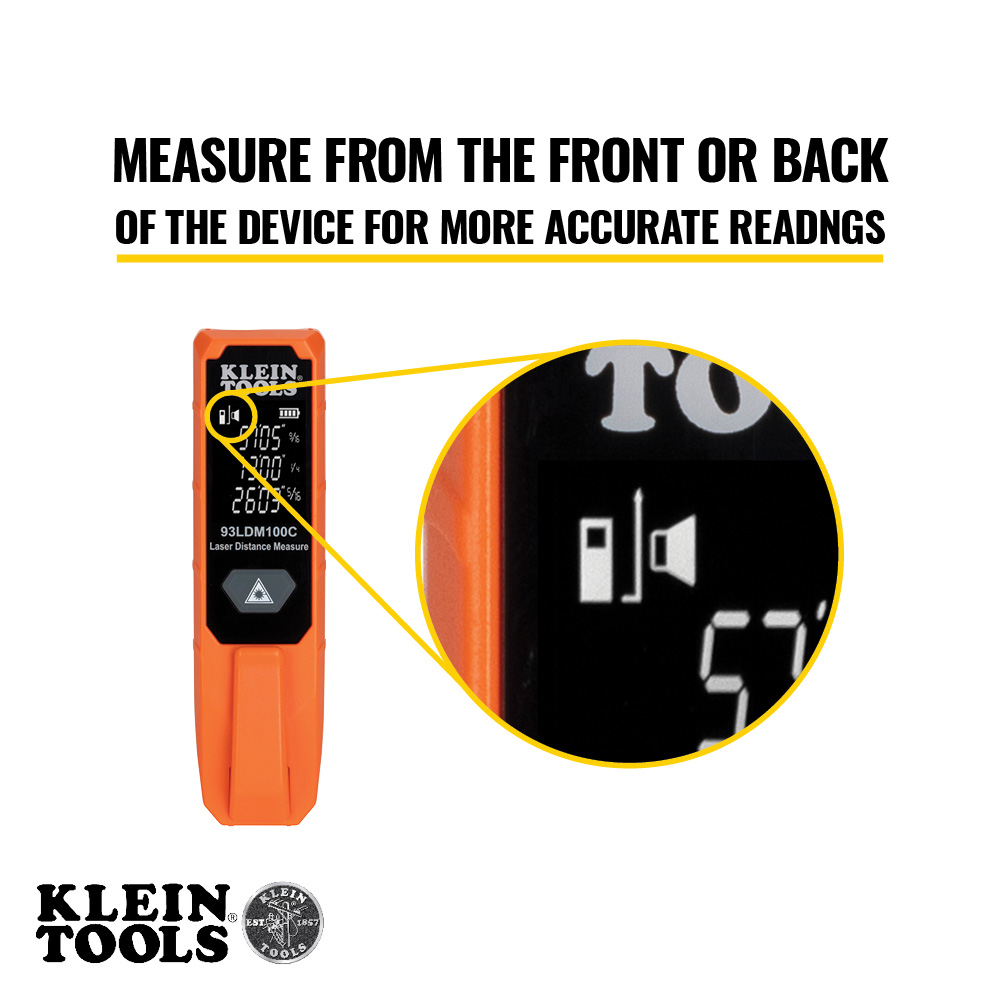

• Change the measurement starting point from the top or bottom of the device for faster readings
• Designed with a lanyard anchor to attach the unit to a tool bag or tool belt; lanyard not included

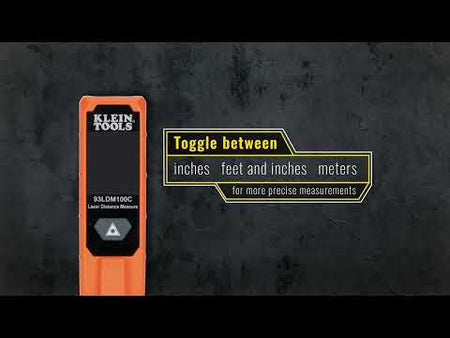

• Toggle between inches, feet and inches, and meters for more precise measurements
• Reverse Contrast LCD Display; Auto-Off

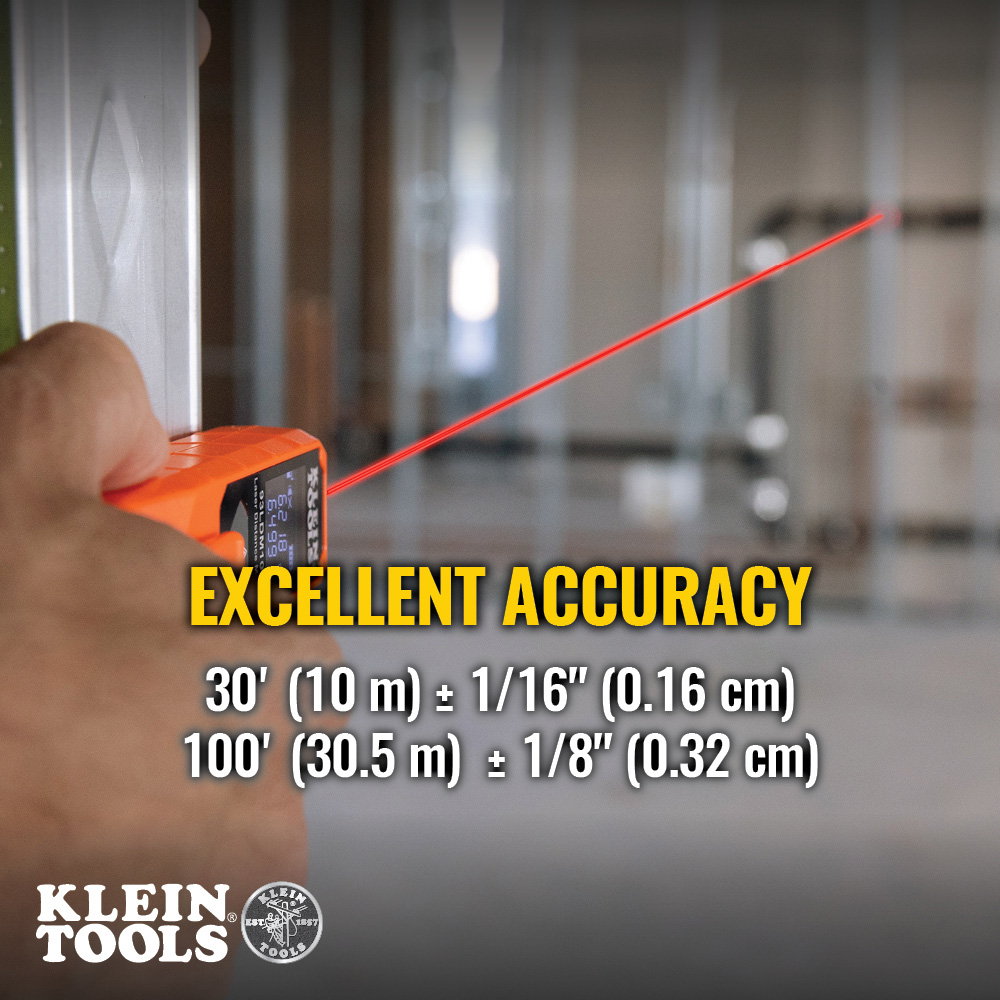

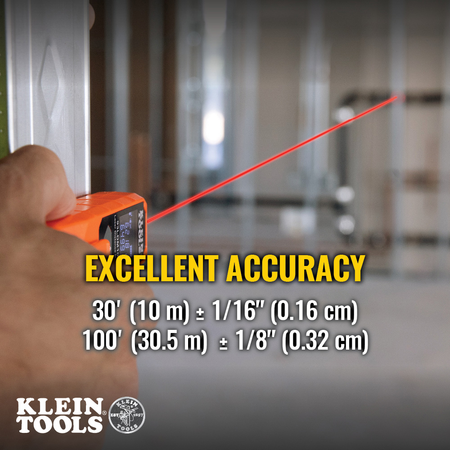

• Measures from 2-Inch (5.1 cm) up to 100-Foot (30.5 m) with 1/16-Inch (0.16 cm) accuracy for the first 30 feet and accurate to 1/8-Inch (0.32 cm) up to 100 feet (30.5 m)
• Quickly compare the latest measurement with the last 2 measured distances that were automatically saved on the LCD screen

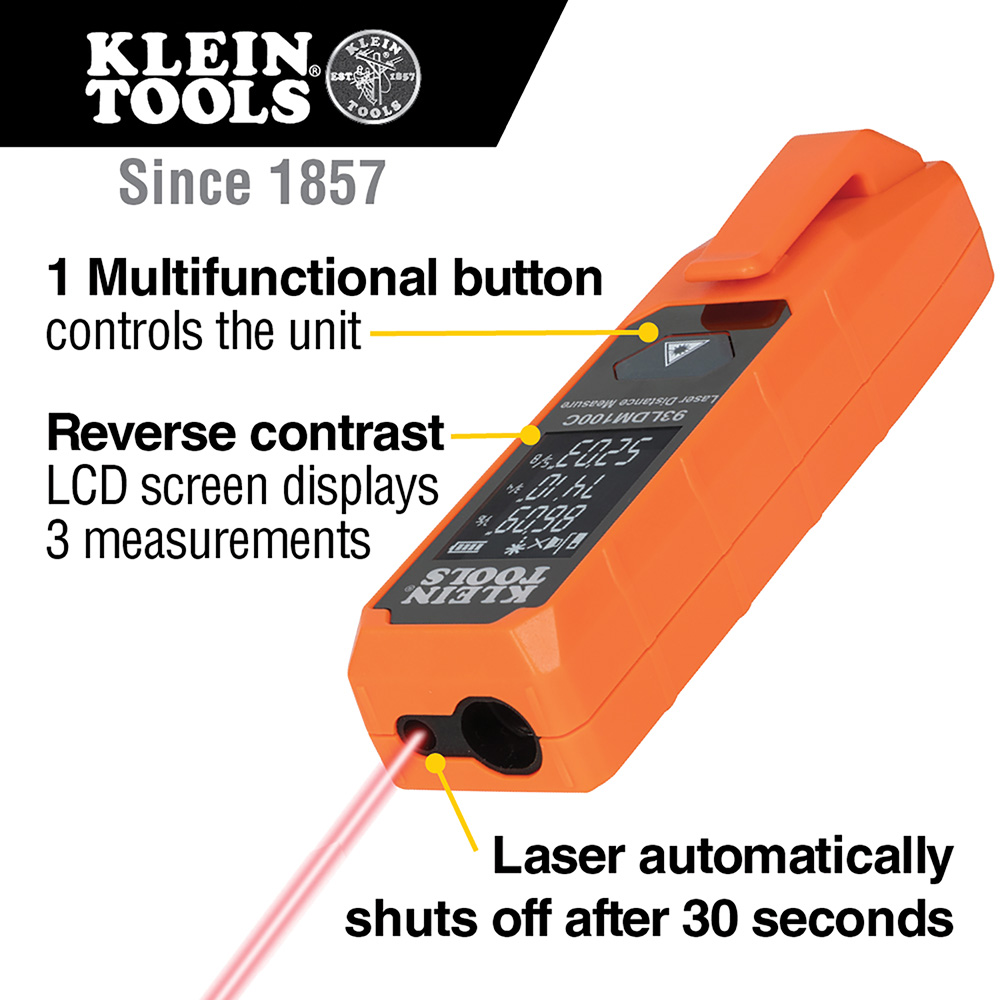

• Class 2 Laser automatically shuts off after 30 seconds to save battery
• Audio alerts when measurement is taken and sound can be disabled
• Highly visible reverse contrast LCD display for improved viewing in low light conditions
• Record a single-distance measurement or continuous measurements with a click of a button

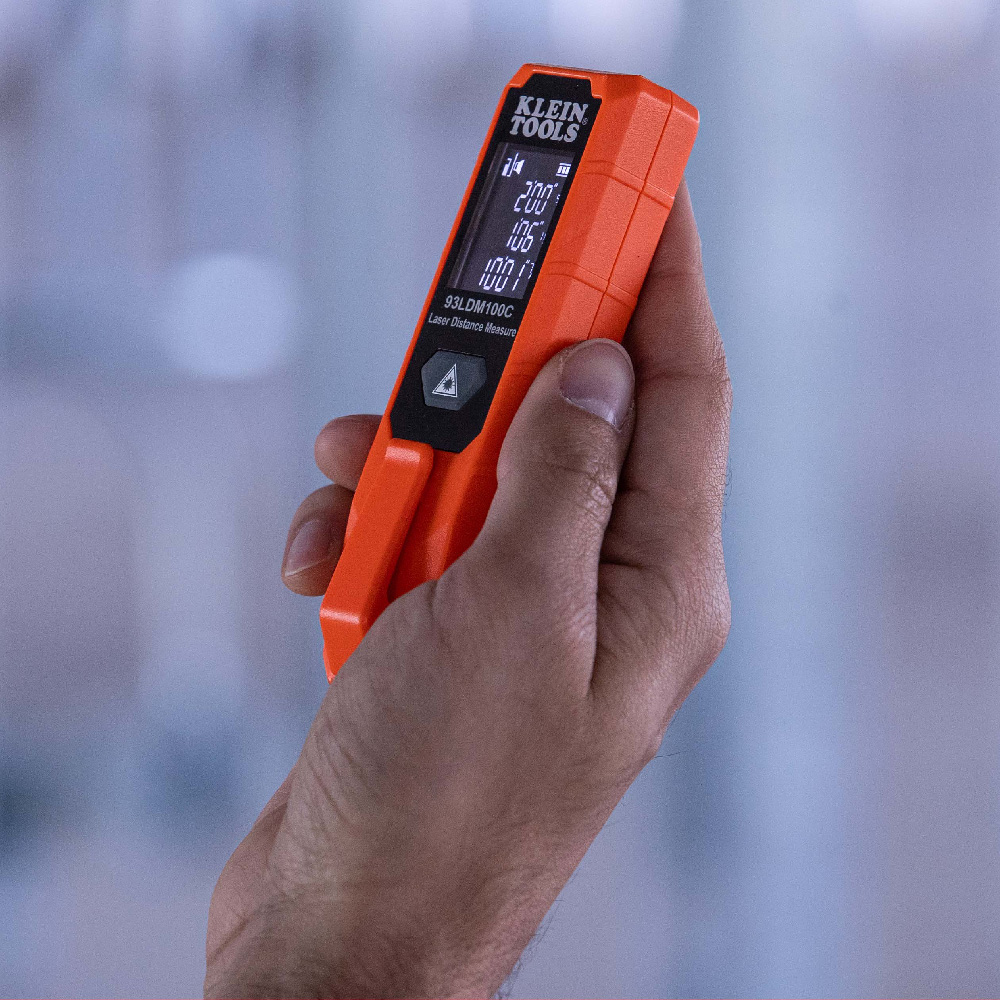

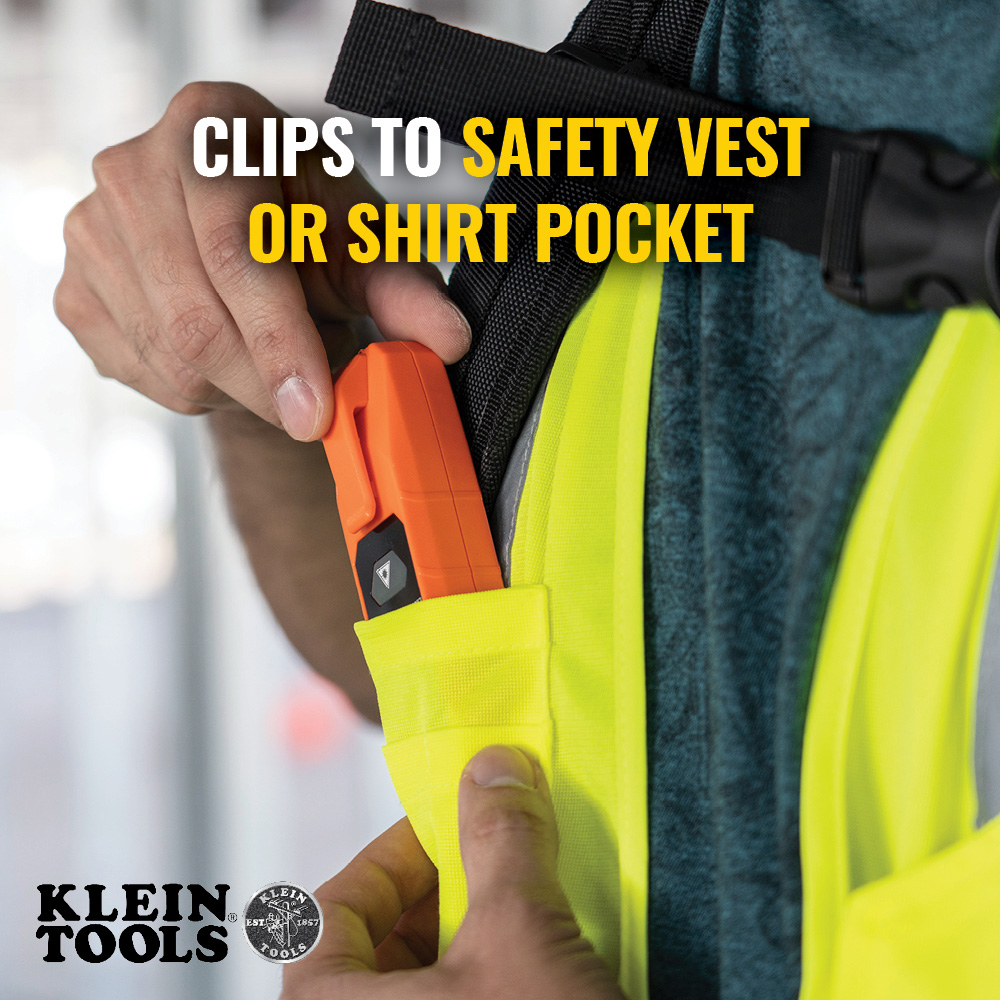

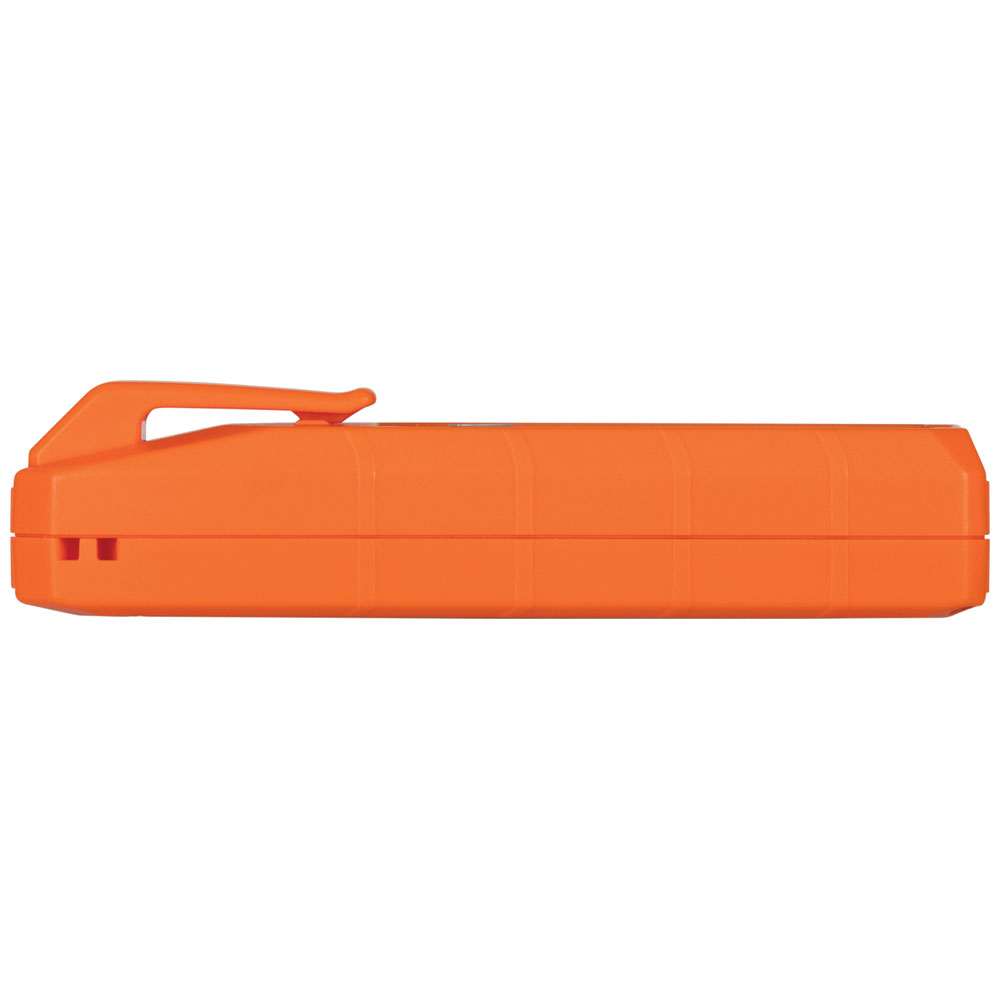

• Laser Distance Measure has lightweight design with pocket clip that makes it easy to carry around a jobsite

Warnings

• See instruction manual for additional warnings.
• DO NOT modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
• DO NOT use the instrument if it appears to be damaged.
• Exposing eyes to laser radiation can result in severe and permanent eye injuries. NEVER look directly into the laser beam emitted by this instrument.

Specifications

• Depth: 4.7000 in
• Batteries: 2 x AAA
• Laser Class: Class 2
• Laser mW: ≤ 1mW
• Weight: 0.1370 lbs
• Overall Width (cm): 2.8
• Height: 1.2600 in
• Measurement Standard: Metric, SAE
• Application: Measures Length
• Case Included: No
• Standard: IP54
• Accuracy: +/- 1/16" up to 33' (+/-0.2 cm to 10 m); +/- 1/8" up to 100' (+/-0.3 cm to 30 m)
• Range: 2" to 100' (5.1 cm to 30.5 m)
• Overall Length (cm): 3.3
• Overall Height (cm): 11.9
• Material: PC/ABS; Silicone Rubber
• Weight (g): 65
• Display: Reverse Contrast LCD Display
• Overall Width (Inch): 1.1
• Included: Laser Distance Measure, 2 x AAA Batteries, Manual
• Overall Length (Inch): 1.3
• Weight (oz): 2.3
• Overall Height (Inch): 4.7
• Width: 1.1300 in
• Type: Laser Reflection
