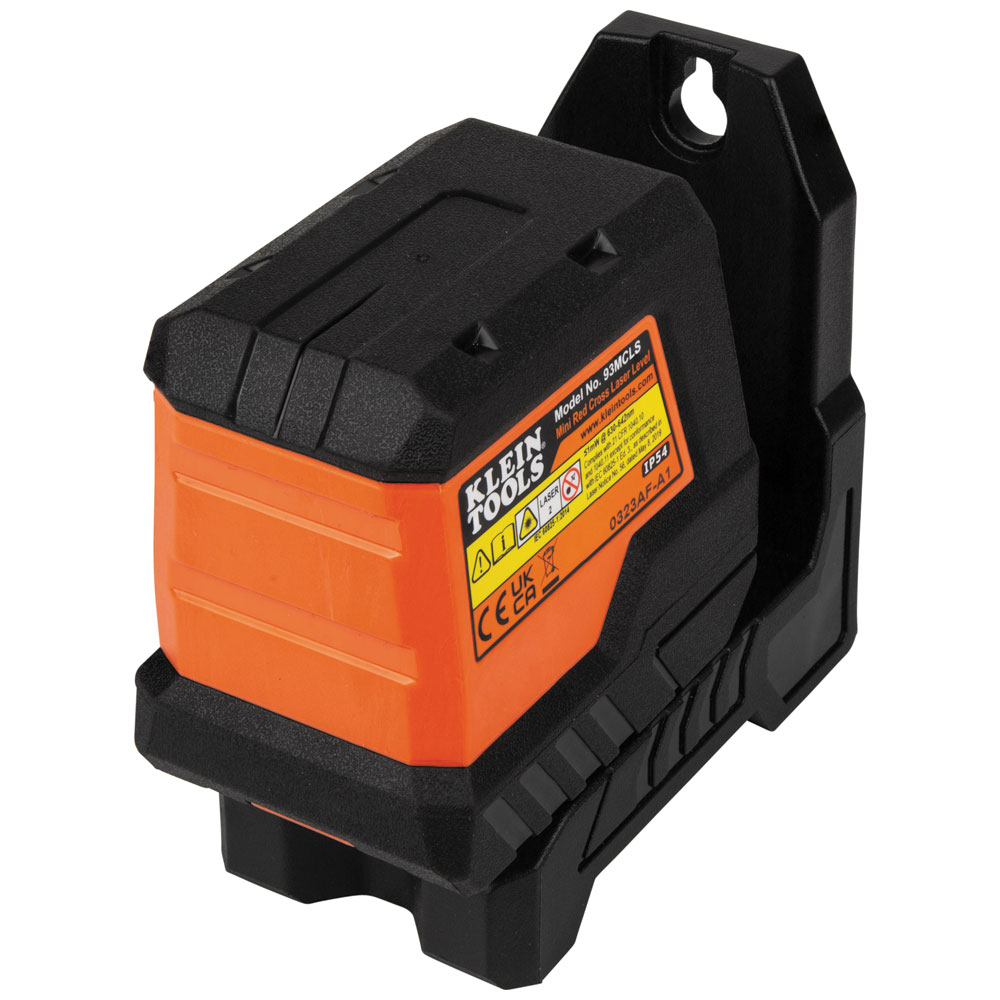

Red Compact Cross-Line Self-Leveling Laser Level, 35-Foot

The Klein Tools Mini Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals with over 18 hours of runtime with a Class 2 laser (IEC 60825-1 Ed. 3.) with an output power of less than or equal to 1mW at 630-642 nm. This level provides a reliable pendulum self-leveling system with red laser level lines. Equipped with a magnetic mounting bracket and overmold design that protects from water and dust

Features

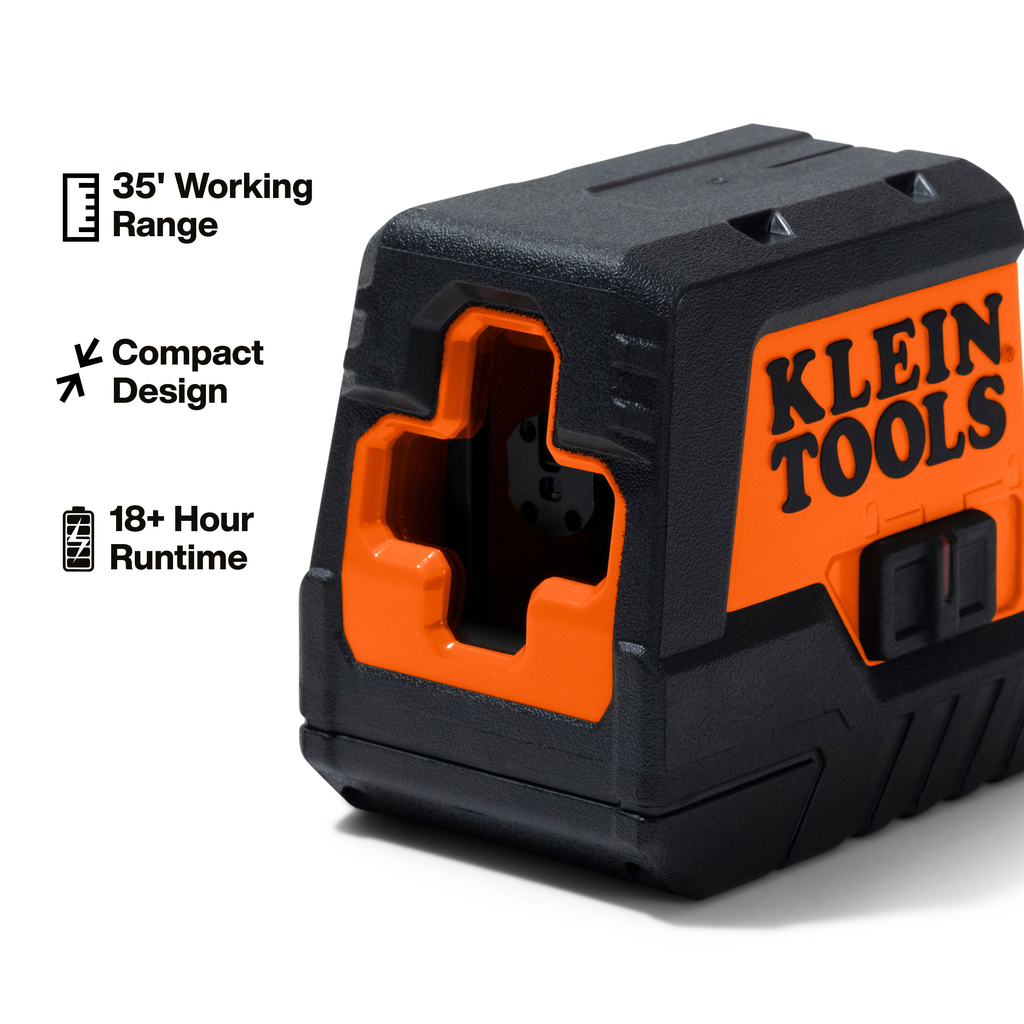

• Compact and lightweight design is easy to use in tight areas and to store when not in use

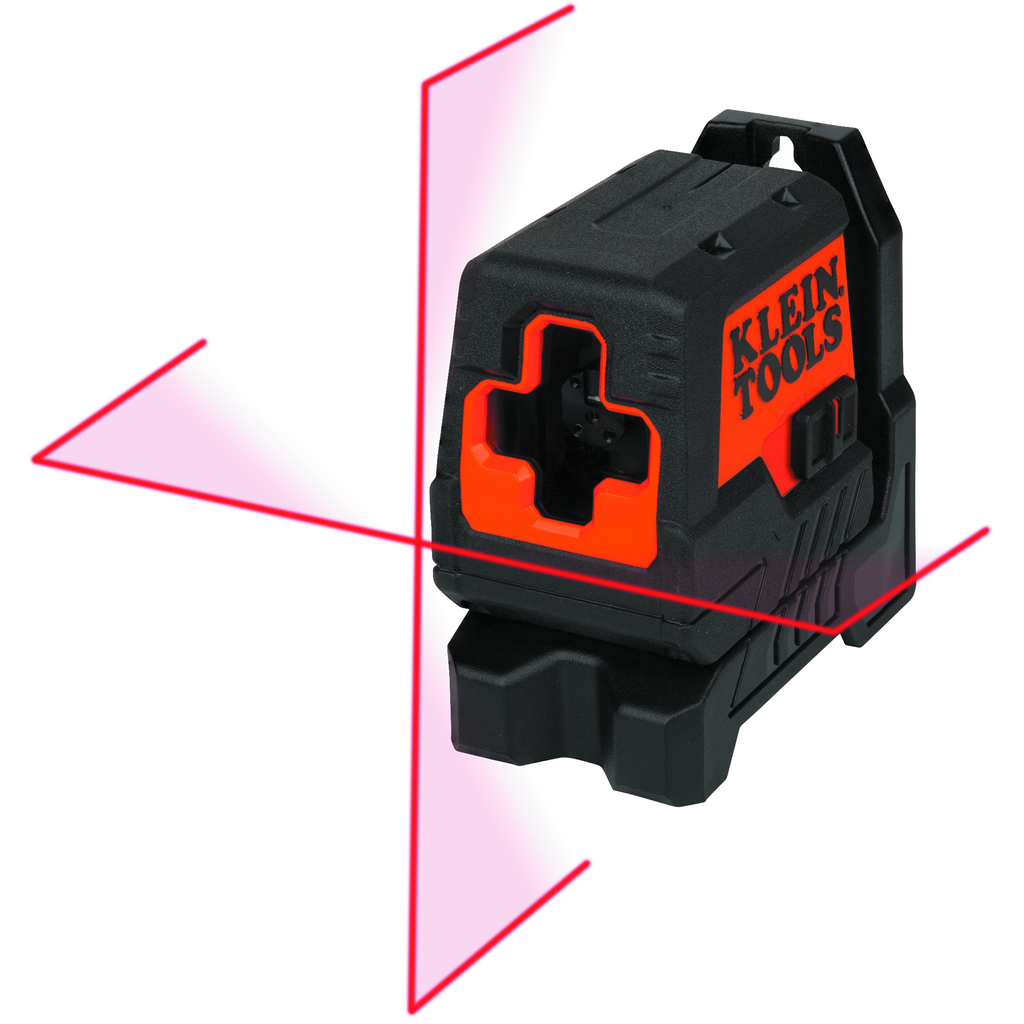

• Projects horizontal and vertical lines to address various alignment tasks
• Over 18 hours of runtime provides enough laser power to ensure extended all day use

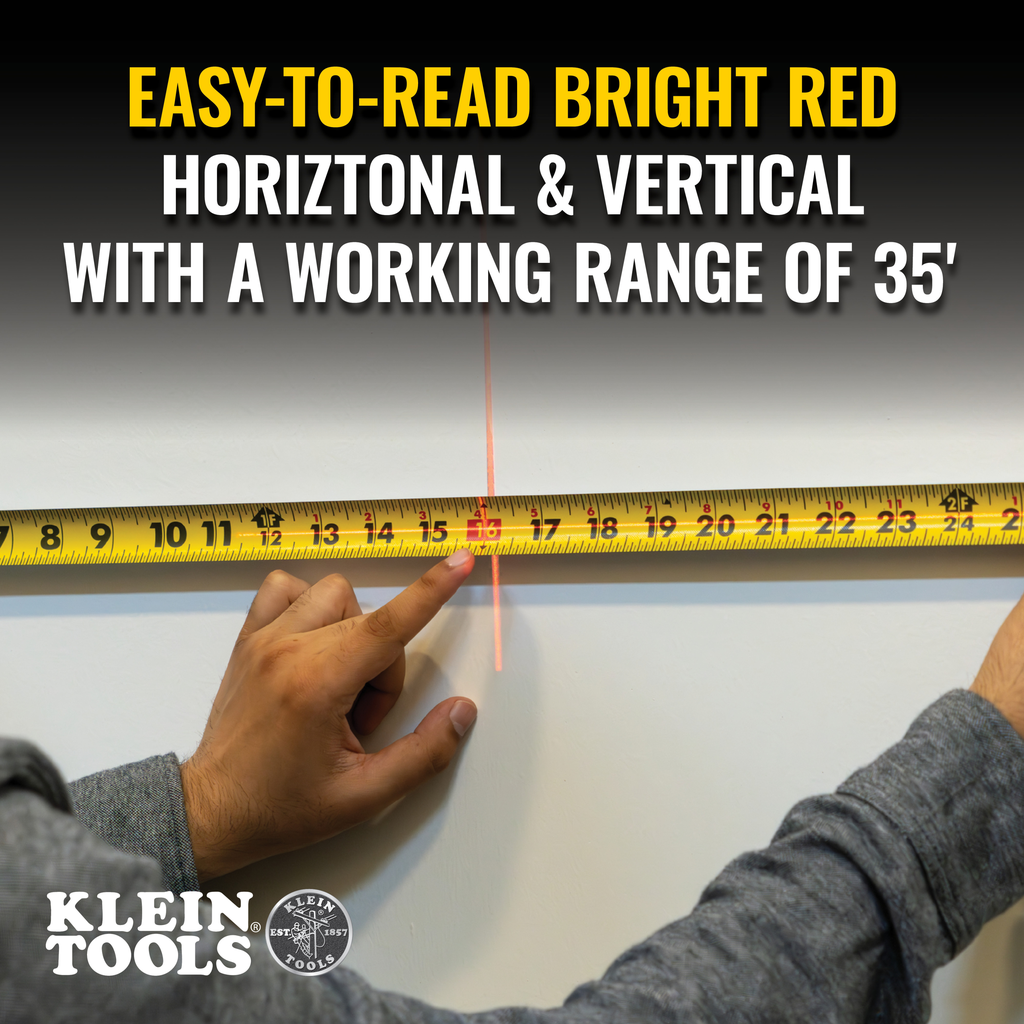

• Self-Leveling Red Laser Level has easy-to-read, horizontal and vertical lines, optimized for indoor lighting conditions with a working range of 35 feet (10.7 m)
• Durable overmold design that is IP54 rated protects the laser level from water and dust

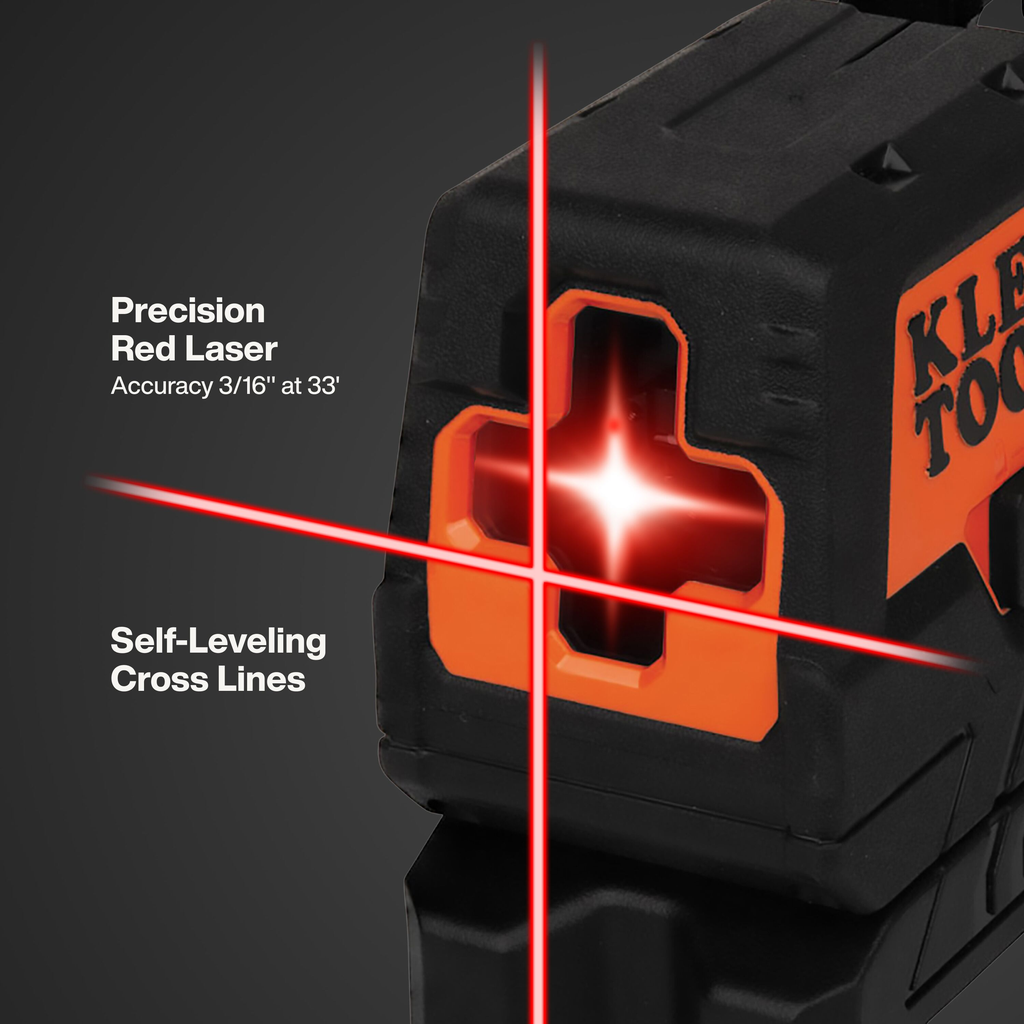

• High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level

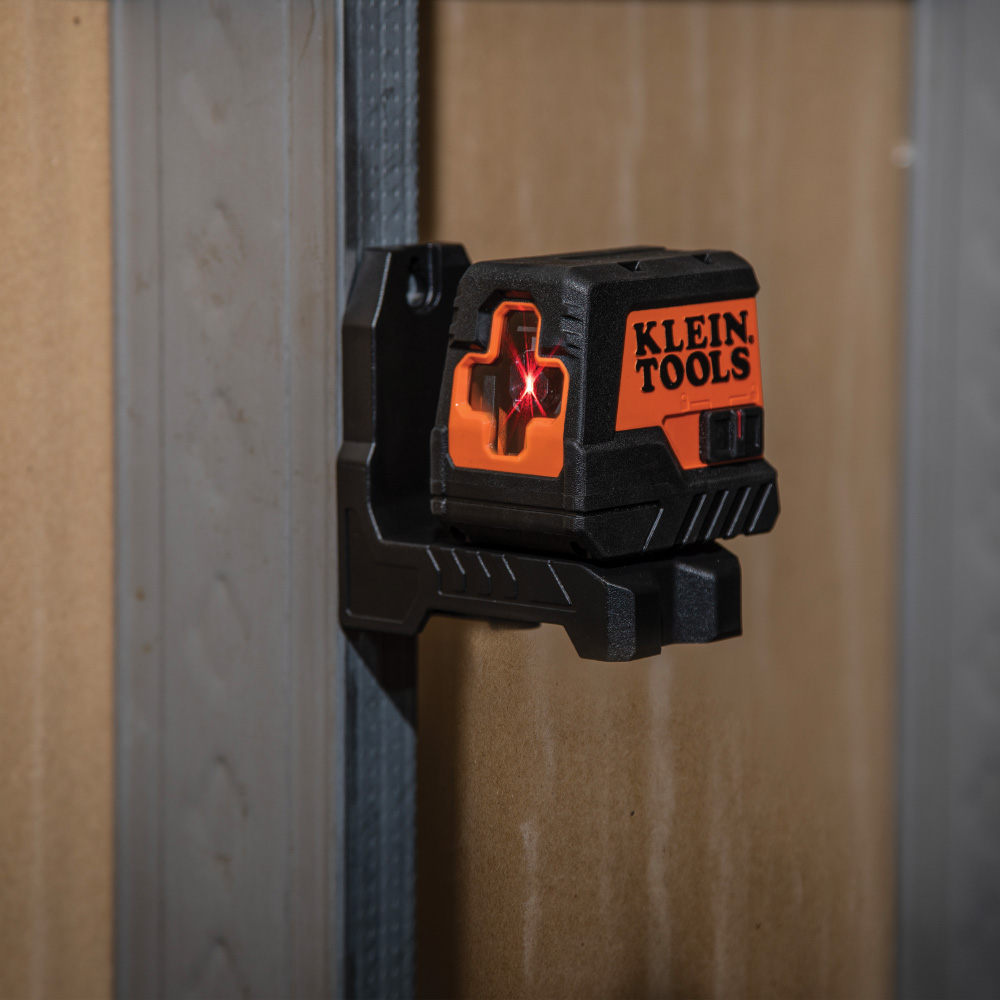

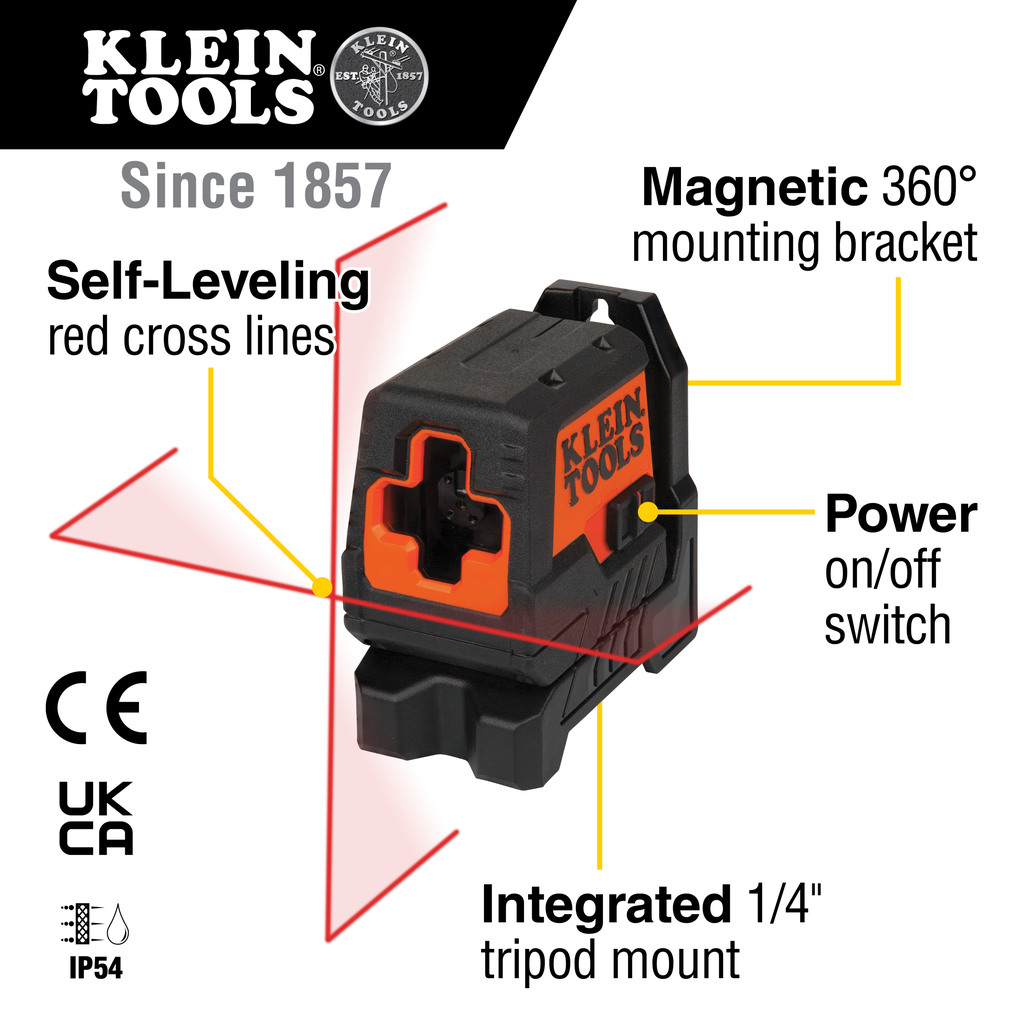

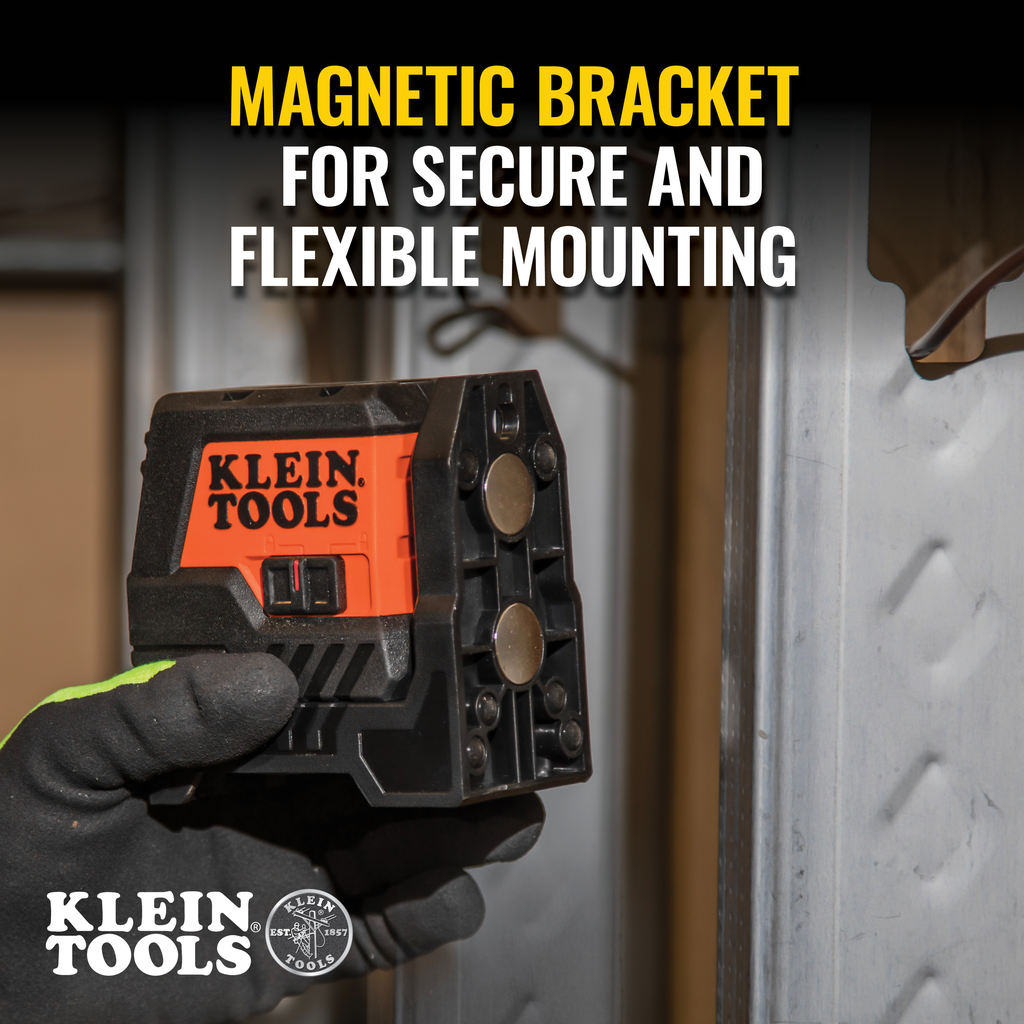

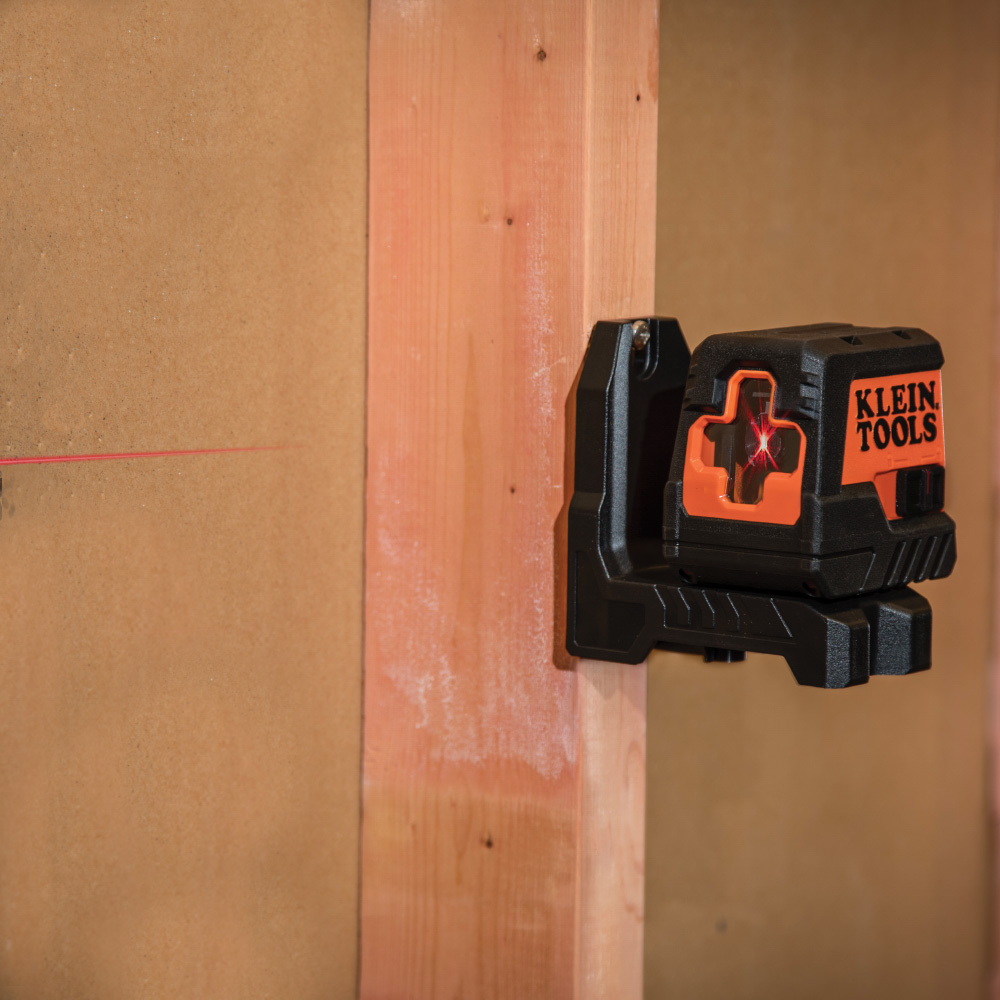

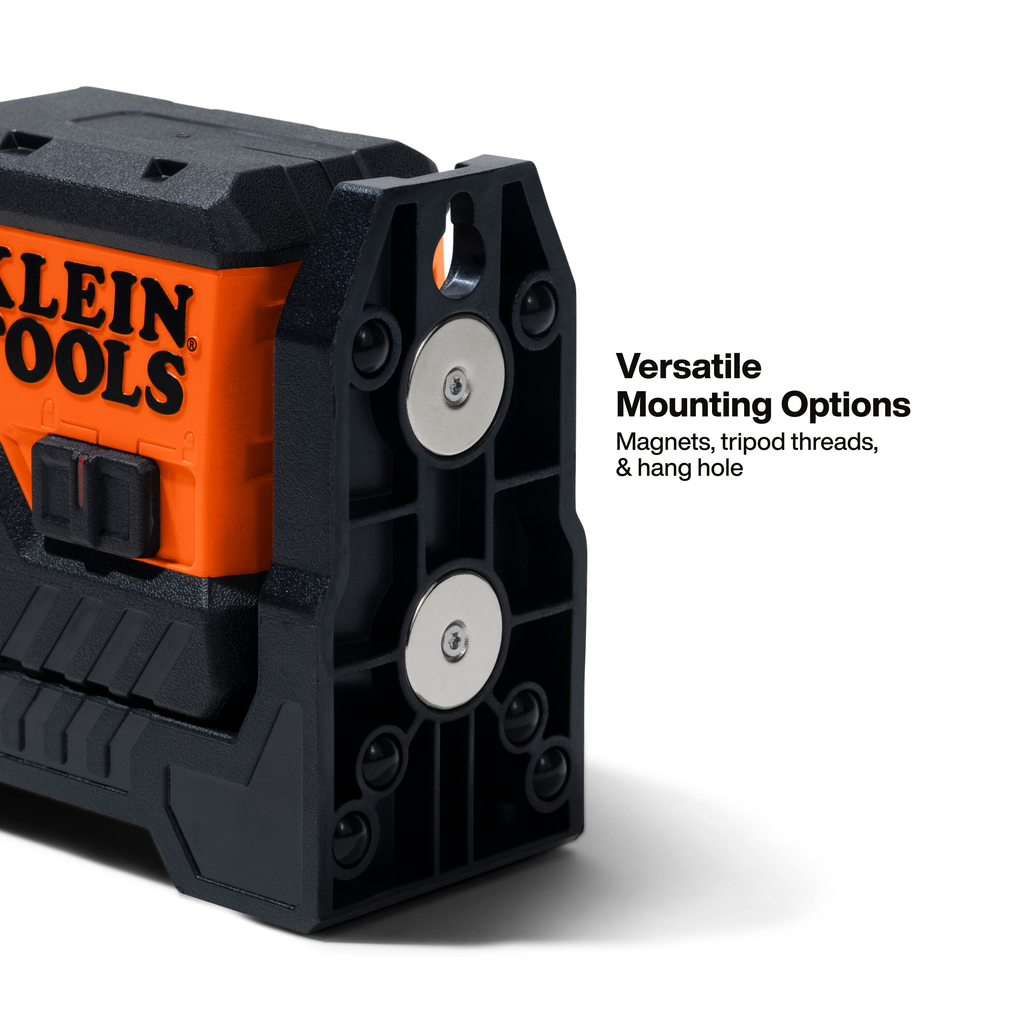

• Magnetic Mounting Bracket with 1/4'' Tripod Mount; Mounting Clamp Attachment; Out-of-Level Detection, Low Battery Indicator

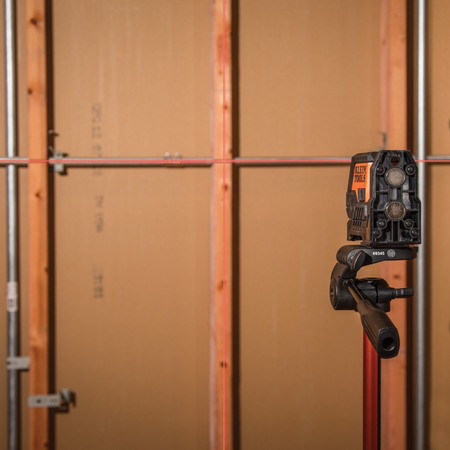

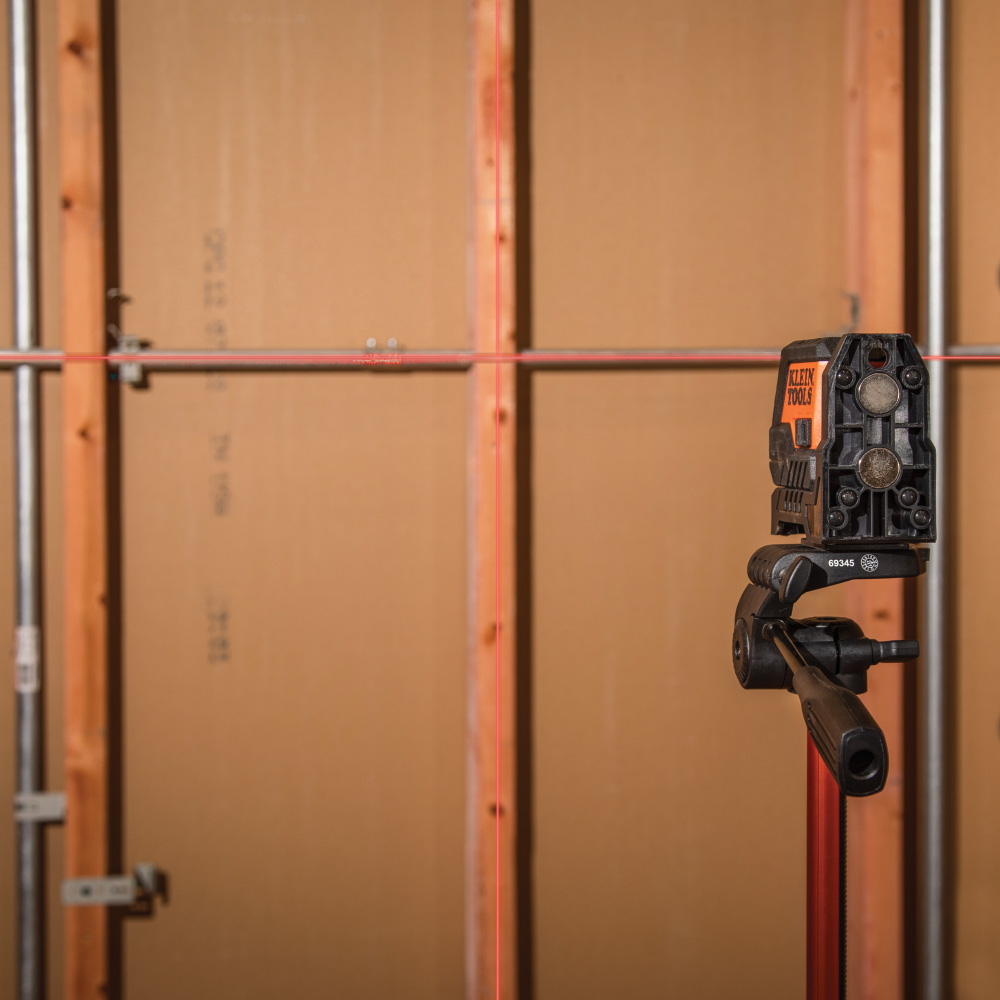

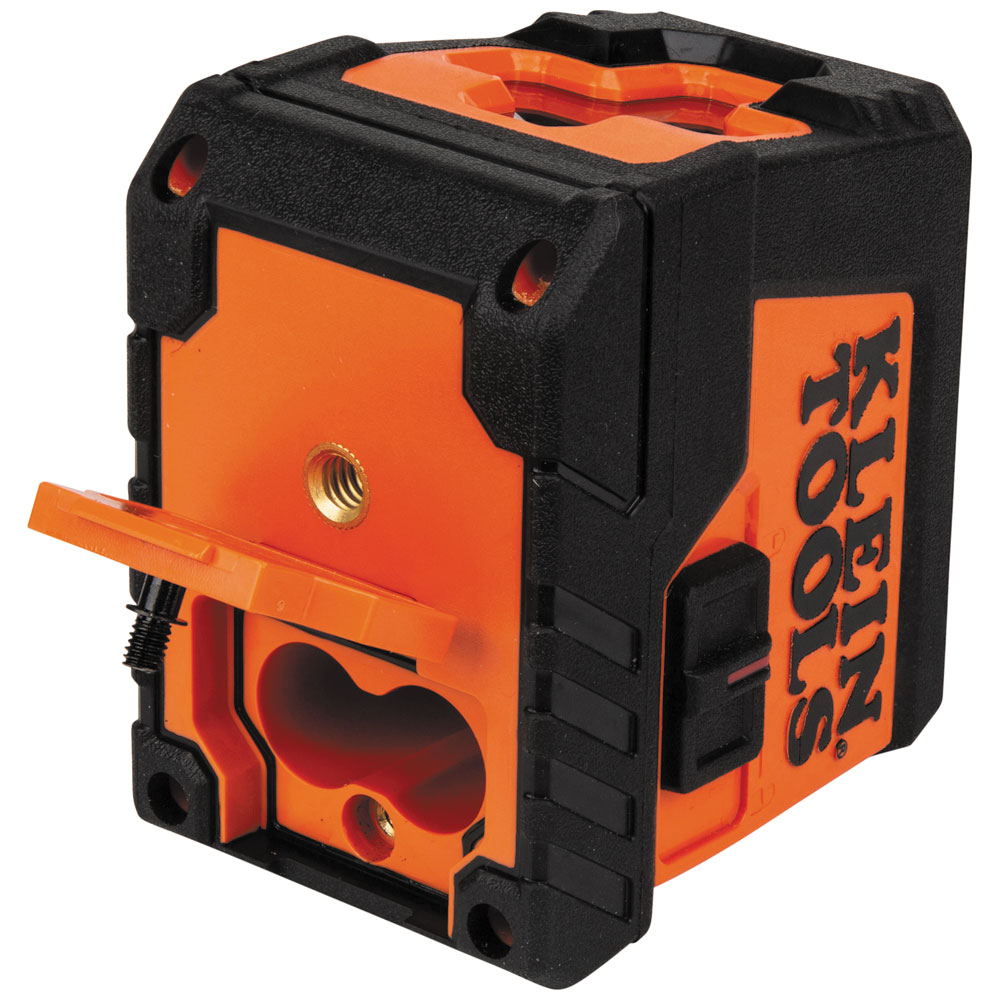

• Magnetic mounting bracket screws into integrated 1/4-Inch-20 tripod mount

Warnings

• Class II Laser Product.
• Laser Radiation - Do Not Stare Into Beam.
• See instruction manual for additional warnings.

Specifications

• Laser Wavelength: ≤ 1mW 630 - 642 nm
• Depth: 3.1900 in
• Laser Class: Class 2
• Bag or Case: Soft Case
• Overall Height (cm): 10.2
• Batteries: 2 x AA
• Material: PC + ABS + TPE
• Drop Protection: 3' (1 m)
• Overall Width (cm): 8.1
• Number of Vials: 0
• Application: Self-Leveling Laser Alignment Tool
• Overall Length (cm): 10.7
• Number of Beams: 2
• Mounting Type: Magnetic Bracket, Tripod Mount
• Overall Width (Inch): 3.2
• Pulse Mode: No
• Overall Height: 4" (10.2 cm)
• Overall Height (Inch): 4
• Width: 2.2300 in
• Receiver: No
• Magnet Type: Rare Earth - Neodymium
• Weight (kg): 0.4
• Type: Laser
• Height: 2.9800 in
• Weight: 0.4600 lbs
• Low Battery Alarm: Yes
• Battery Life: 18 hr
• Display: No
• Low Battery Indicator: Yes
• Standard: Conforms to EN61326-1:2013, EN60825-1:2014
• Maximum Distance (m): 10.7
• Laser mW: ≤ 1mW
• Accuracy: +/- 3/16" per 33' (10 m)
• Overall Length (Inch): 4.2

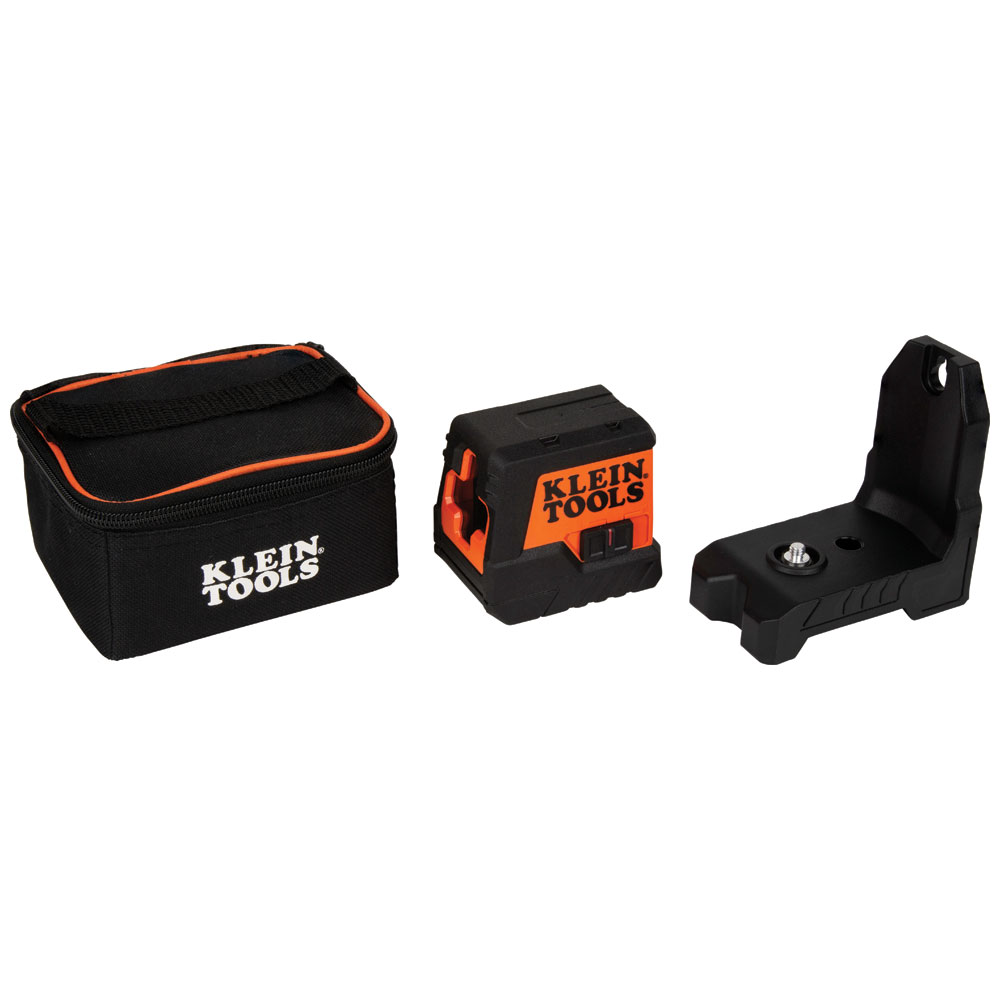

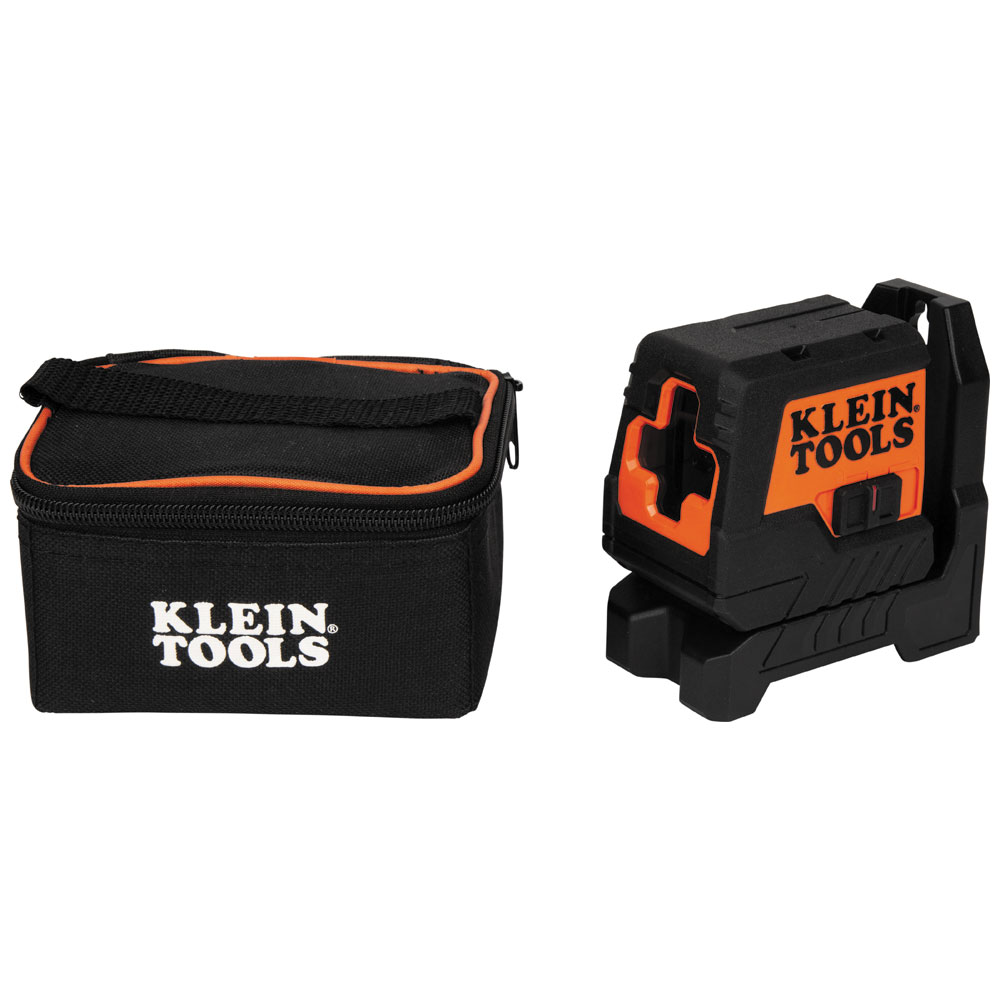

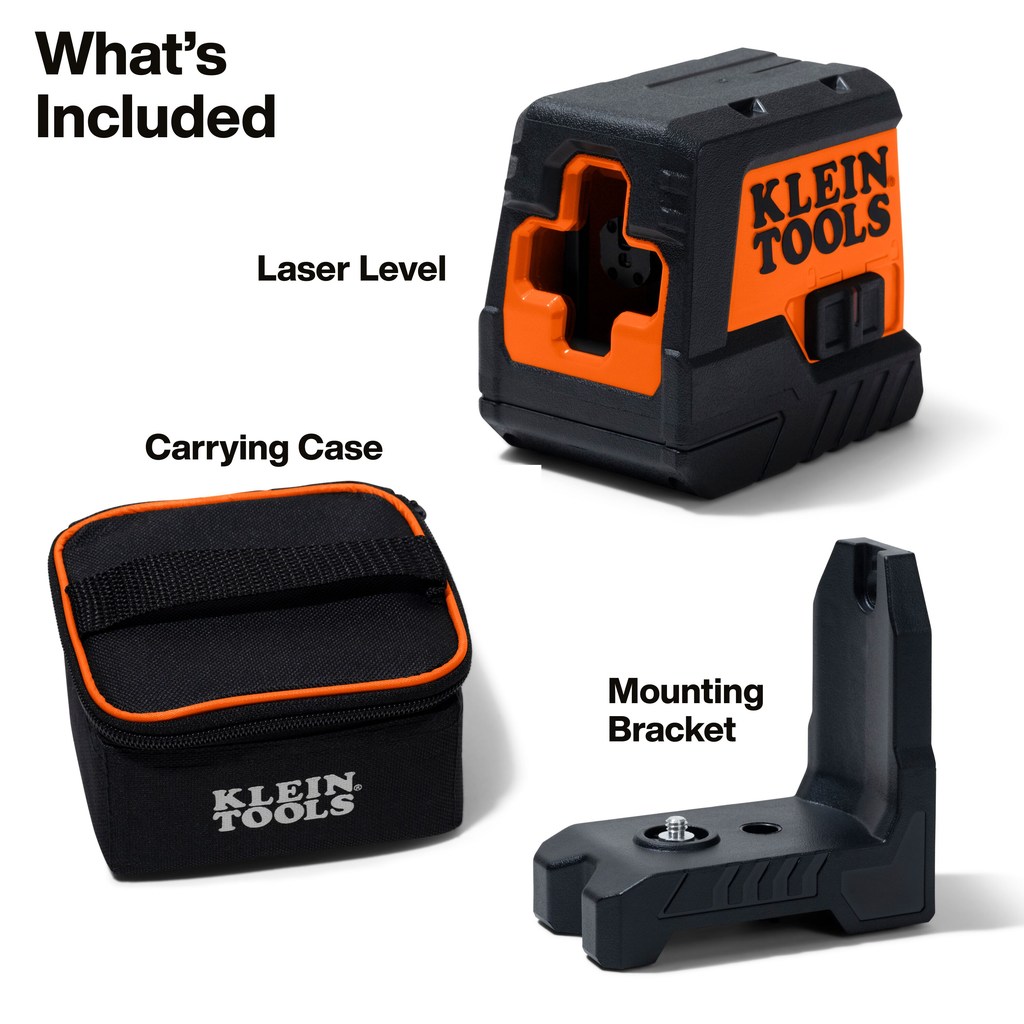

• Included: Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp; 2 x AA 1.5V Alkaline Batteries
• Weight (lb): 0.88
• Laser Safety: Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
• Transit Locking Mechanism: Yes
• Indoor Range: 35' (10.7 m)
• Ingress Protection: IP54 - Water and Dust Resistant
• Laser Color: Red
• Out-of-Level Indicator: Yes
• Maximum Distance (Feet): 35
• Plumb Laser: No
