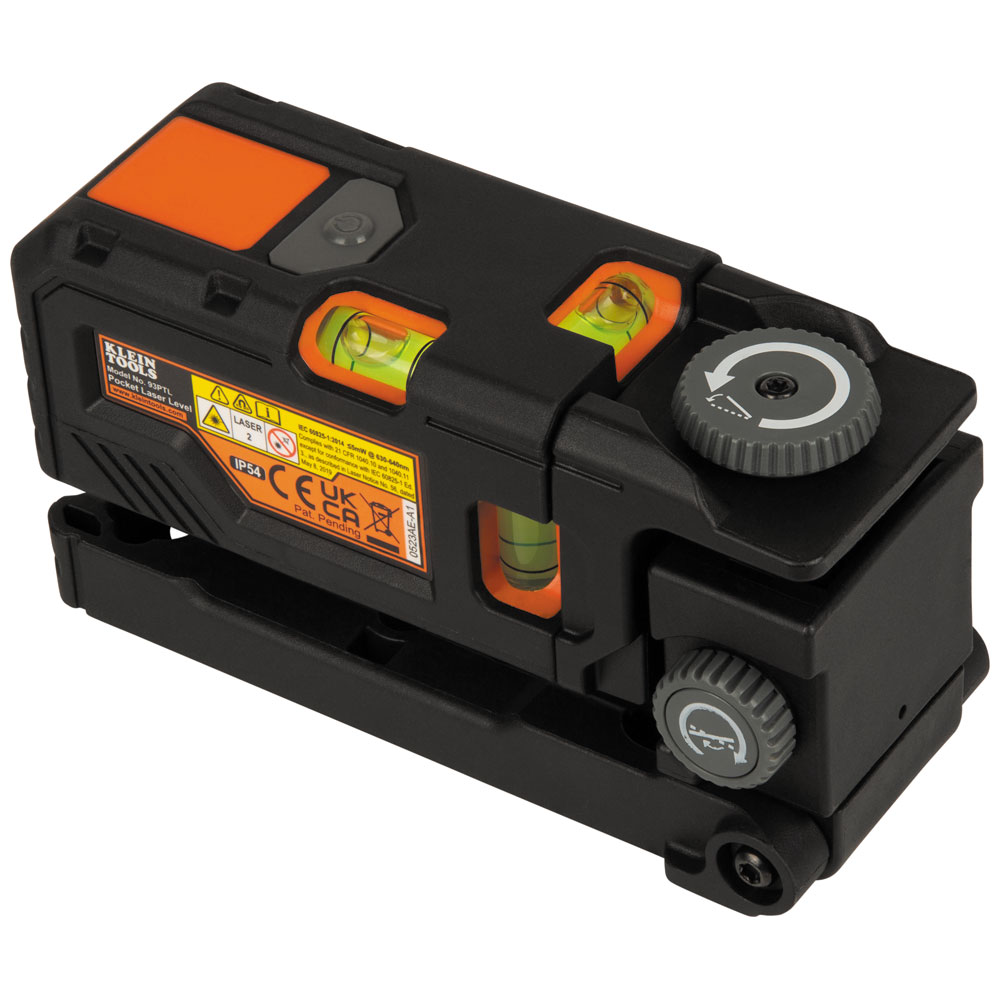

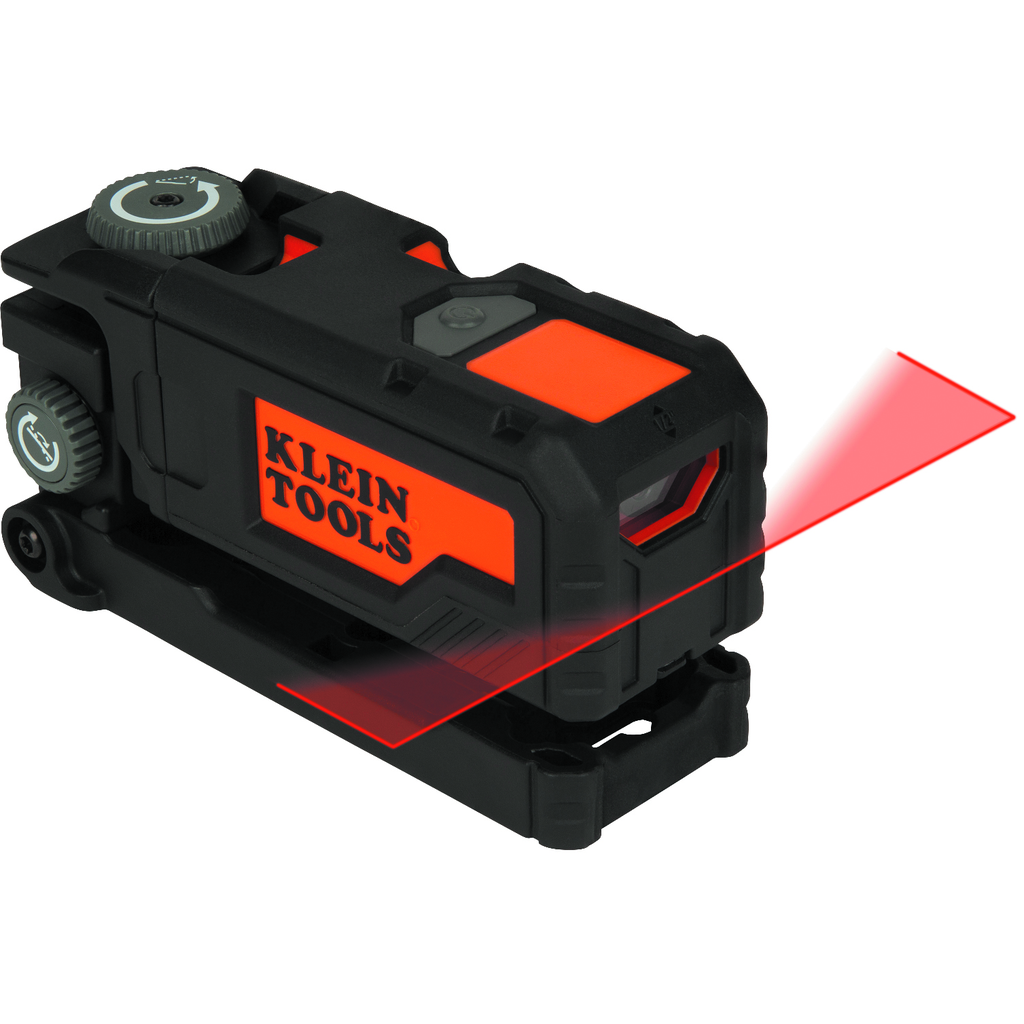

Red Pocket Laser Level

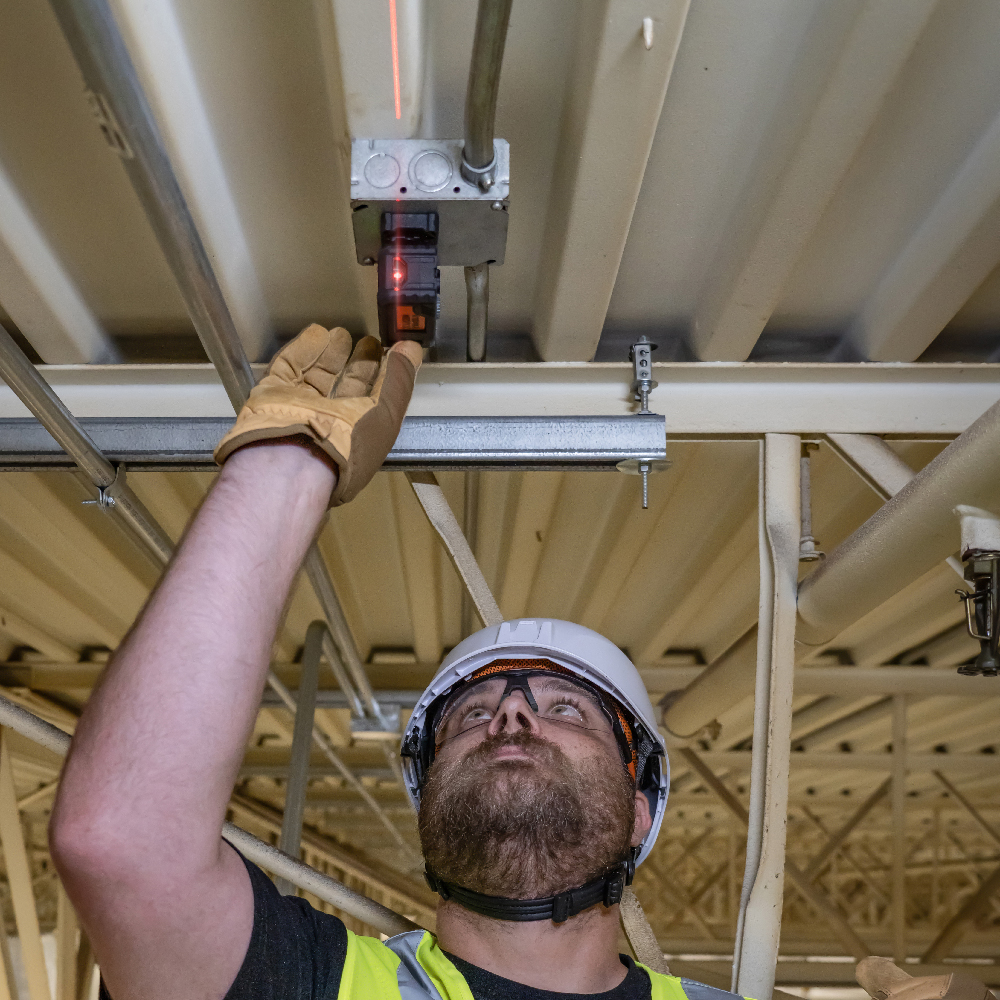

The Klein Tools Red Pocket Laser Level is a high-performance laser leveling and alignment tool for DIY'ers and professionals alike with a Class 2 laser (IEC/EN 60825-1:2014) with an output power of less than or equal to 1mW at 630-640nm. The powerful red laser line is easy to see in indoor lighting conditions and is perfect for applications like hanging pictures or shelving. The adjustable body and three-axis lighted bubble vials allow a user to project laser lines at any angle the user needs.

Warnings

• Do not use the instrument if it appears to be damaged.
• Exposing eyes to laser radiation can result in severe and permanent eye injuries.
• See instruction manual for additional warnings.
• Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
• Strong magnetic field.

Features

• Projects single red laser line up to 30 feet (9.1 m) indoors, providing ample coverage for a wide range of applications,optimized for indoor lighting conditions
• Over 12-Hour runtime with 2 AAA alkaline batteries and low battery warning

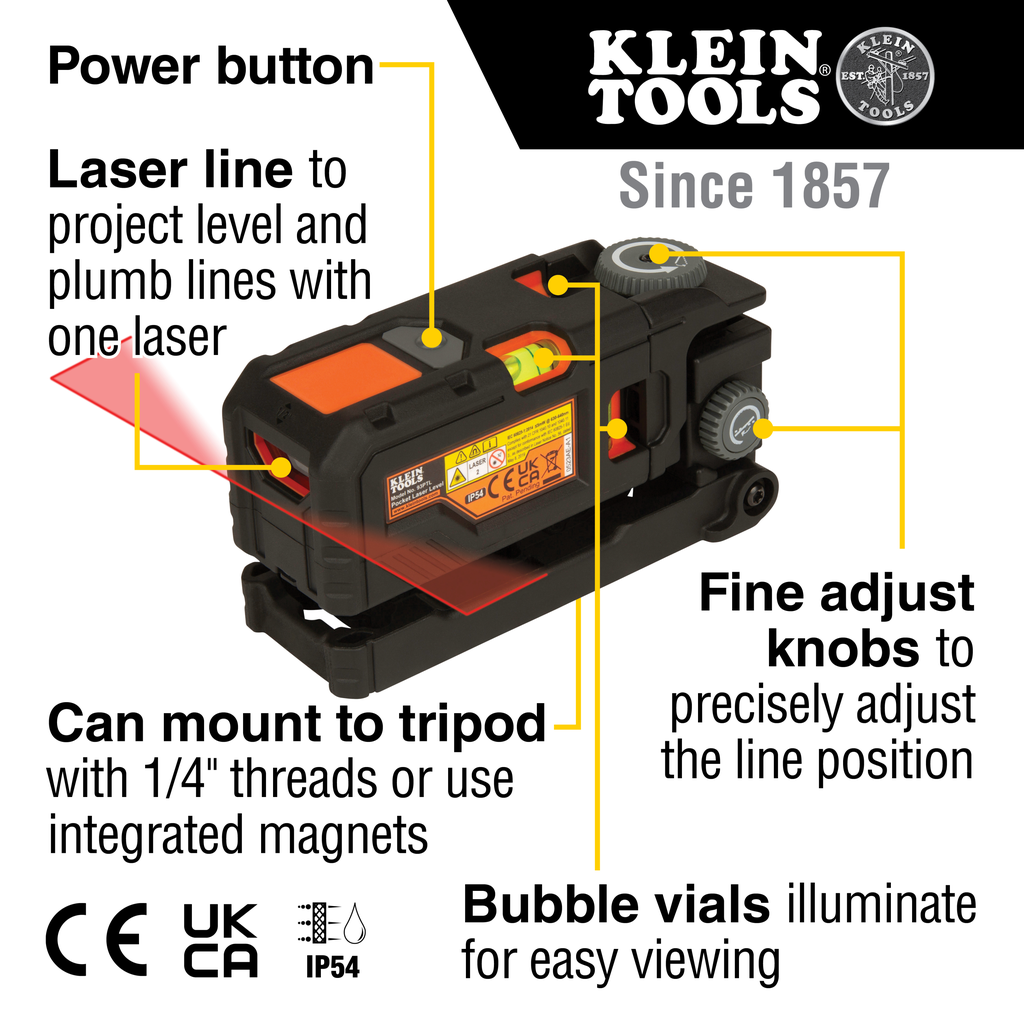

• Embedded Kickstand, 3-Axis Vials, Fine Adjust Knobs

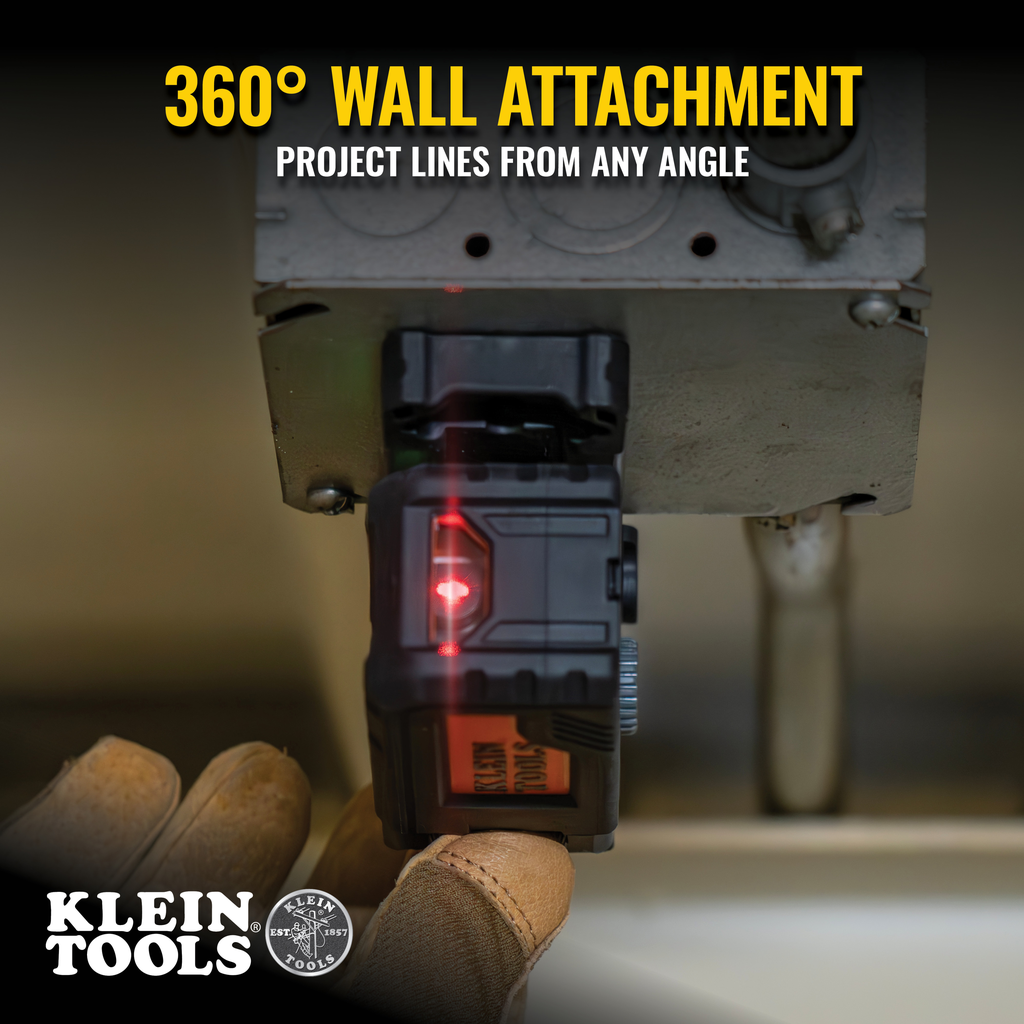

• Laser body has a 360-Degree rotation for projecting lines at any angle

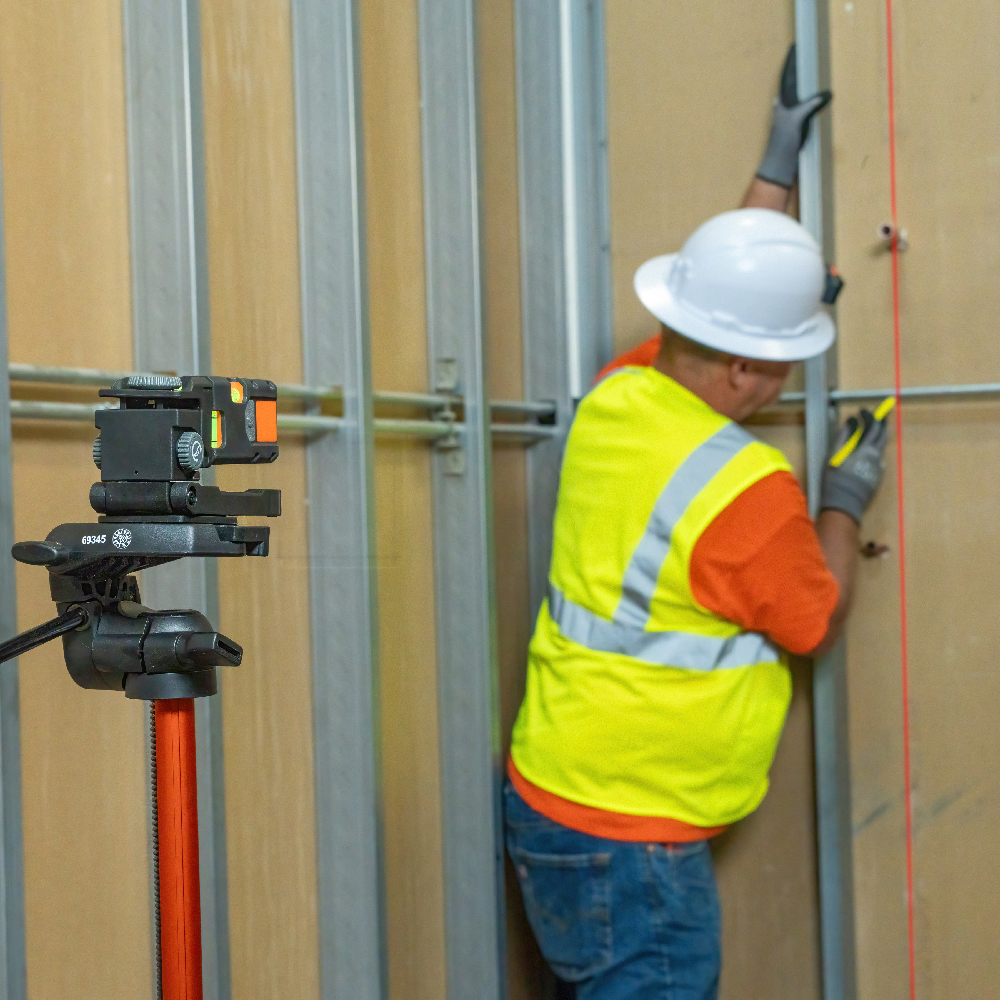

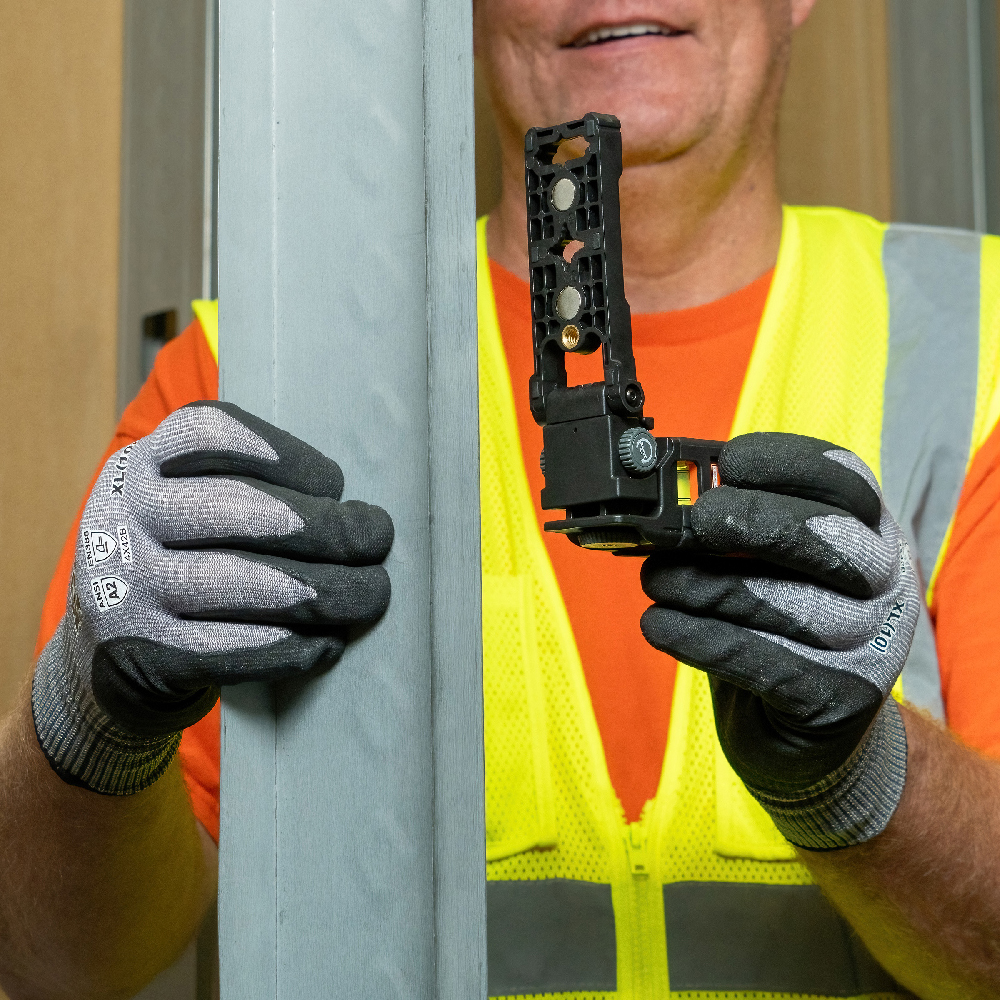

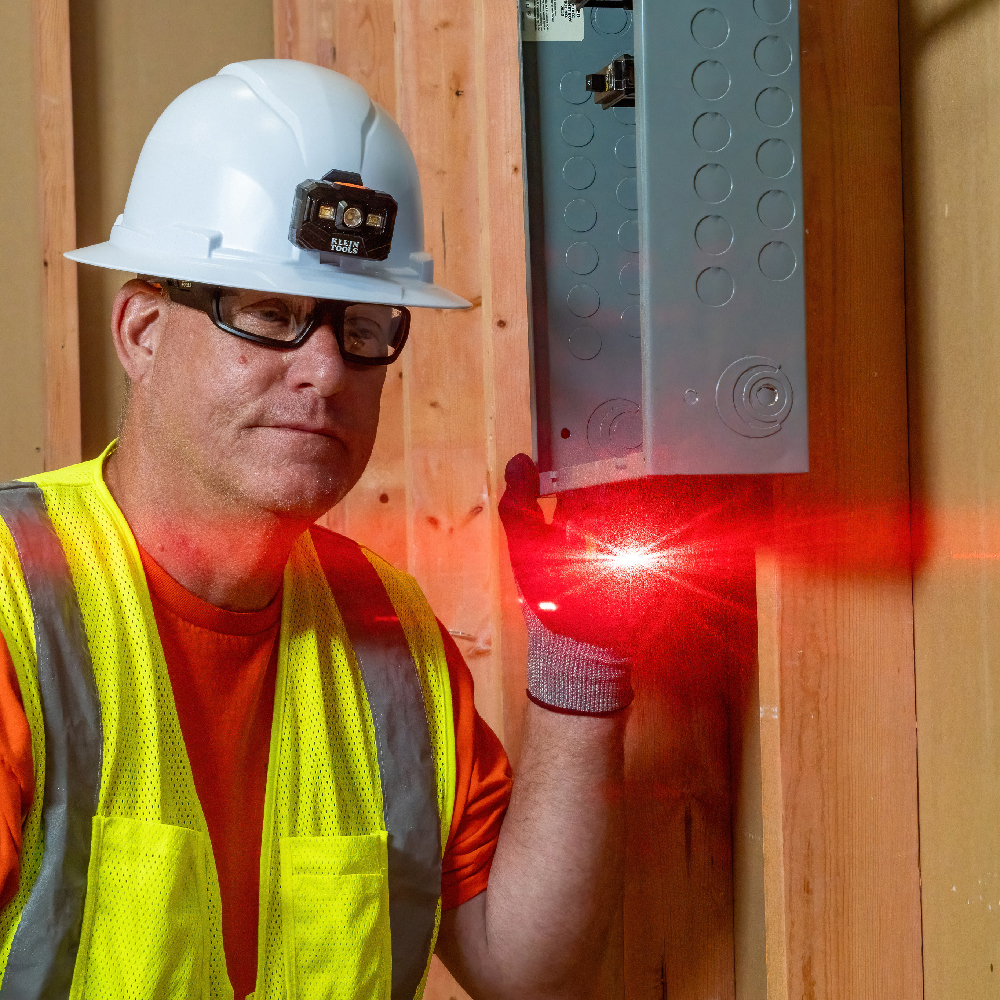

• Two powerful magnets, 1/4-Inch-20 thread tripod mounting, a hang hole, and built-in kickstand give a variety of mounting options
• 3-axis bubble vials illuminate for enhanced viewing and leveling
• Horizontal and vertical fine adjust knobs allow for easier precision adjustment of the laser line without having to move the unit

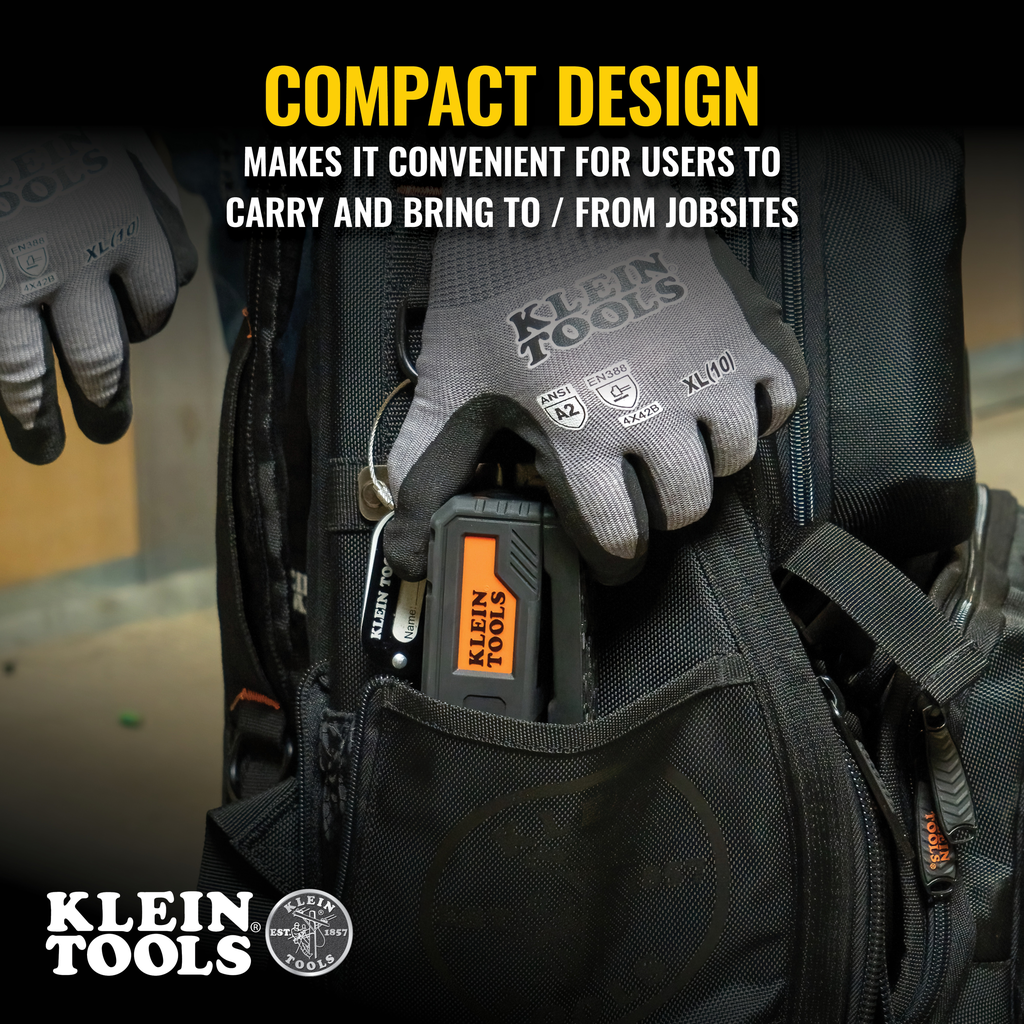

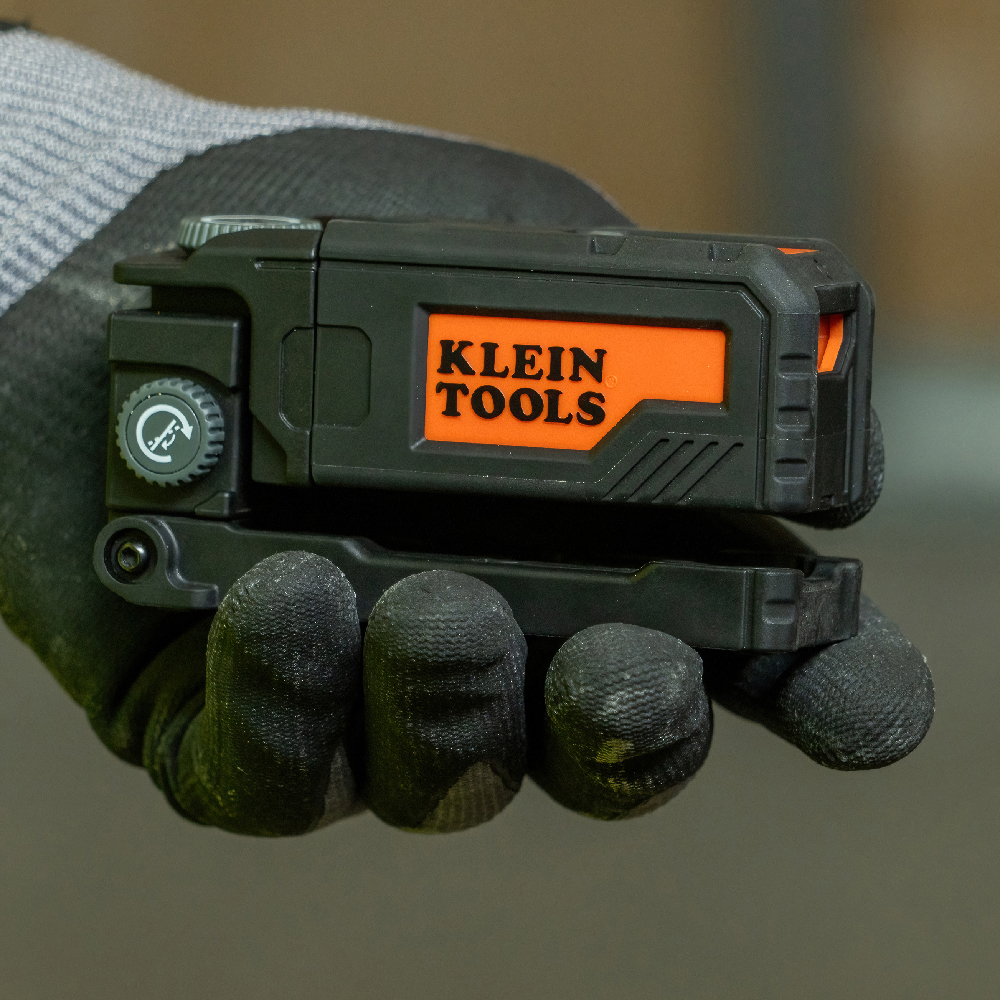

• Compact design is easy to use and transport at home, on the job, or anywhere in between

Specifications

• Bag or Case: No
• Laser Class: Class 2
• Standard: Complies with 21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
• Maximum Distance (m): 9.1
• Laser mW: ≤ 1mW
• Accuracy: Vials; 0.043-Degree (0.75mm/1,000mm)
• Weight: 0.4100 lbs
• Included: Batteries, Manual
• Laser Color: Red
• Width: 1.7400 in
• Overall Length (cm): 10.8
• Maximum Distance (Feet): 30
• Height: 2.2600 in
• Number of Vials: 3
• Overall Height (cm): 5.8
• Overall Width (Inch): 1.76
• Overall Height (Inch): 2.3
• Weight (kg): 0.2
• Plumb Laser: No
• Material: Resins, Elastomers, Metalic
• Receiver: No
• Depth: 4.3000 in
• Weight (lb): 0.41
• Mounting Type: Magnetic Bracket
• Display: No
• Ingress Protection: IP54
• Magnet Type: Rare Earth - Neodymium
• Number of Beams: 1
• Type of Vials: Lighted Bubble
• Type: User Adjustable Pocket Laser Level
• Application: Leveling Alignment Tool
• Overall Width (cm): 4.5
• Laser Safety: IEC 60825-1 -2014/A11 -2021, EN 50689 -2021
• Pulse Mode: No
• Indoor Range: 30' (9.1 m)
• Laser Wavelength: 630-640nm
• Low Battery Alarm: Yes
• Overall Height: 2.3" (5.8 cm)
• Out-of-Level Indicator: No
• Overall Length (Inch): 4.27
• Transit Locking Mechanism: No
• Drop Protection: 3' (1 m)
• Batteries: 2 x AAA
• Low Battery Indicator: Yes
• Battery Life: 12 hr
