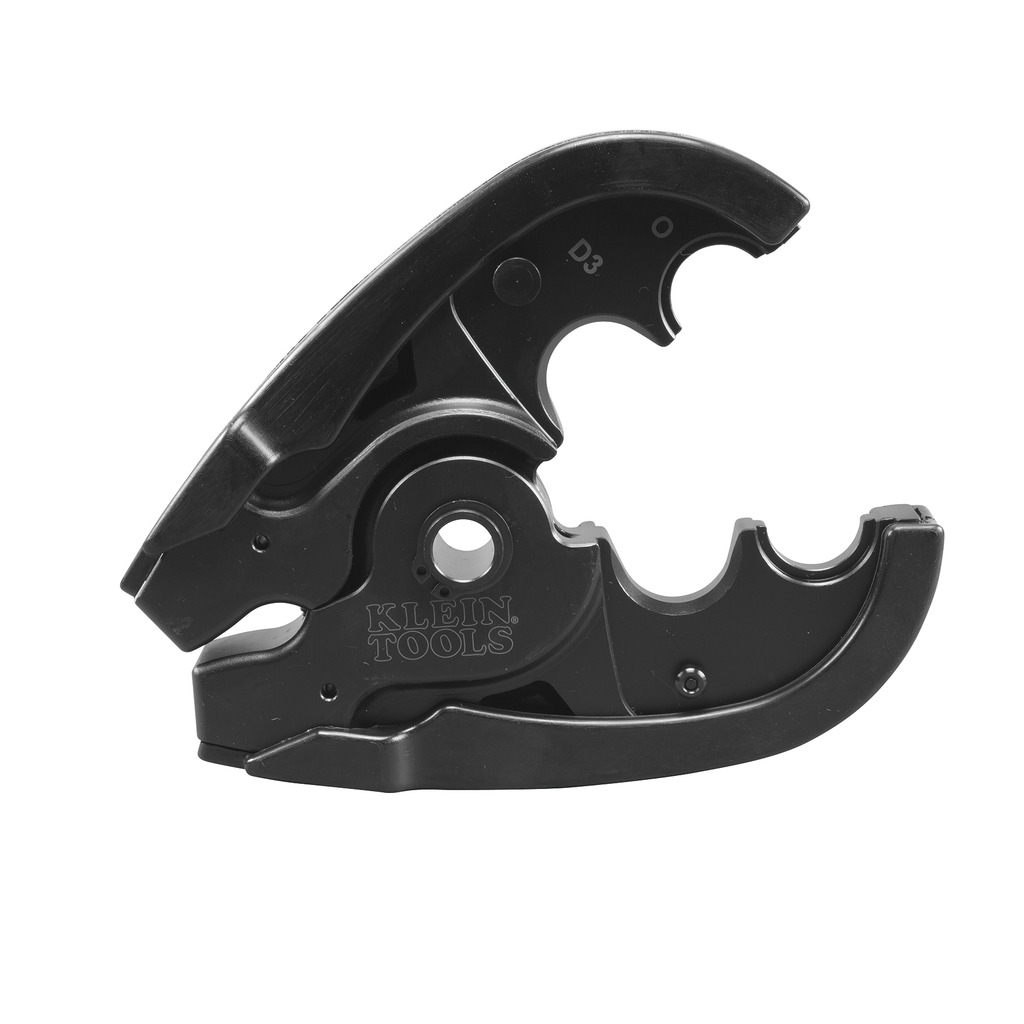

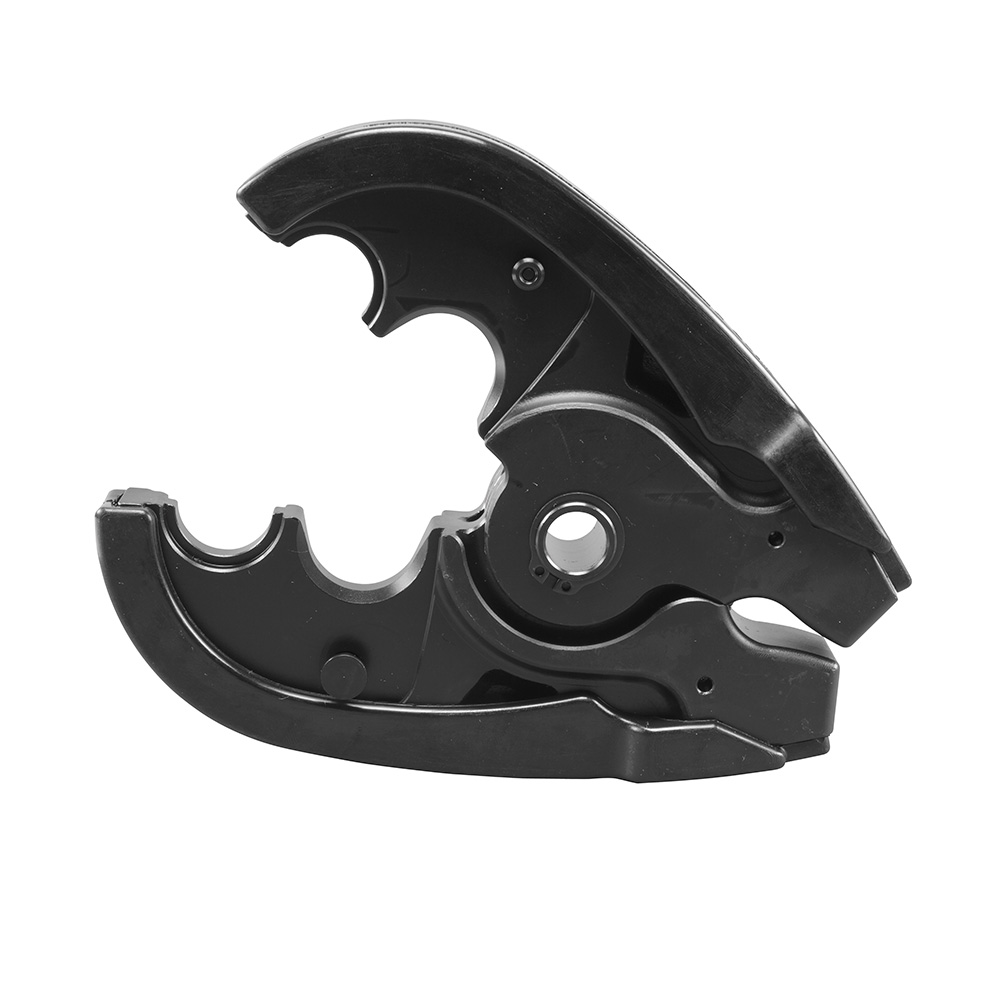

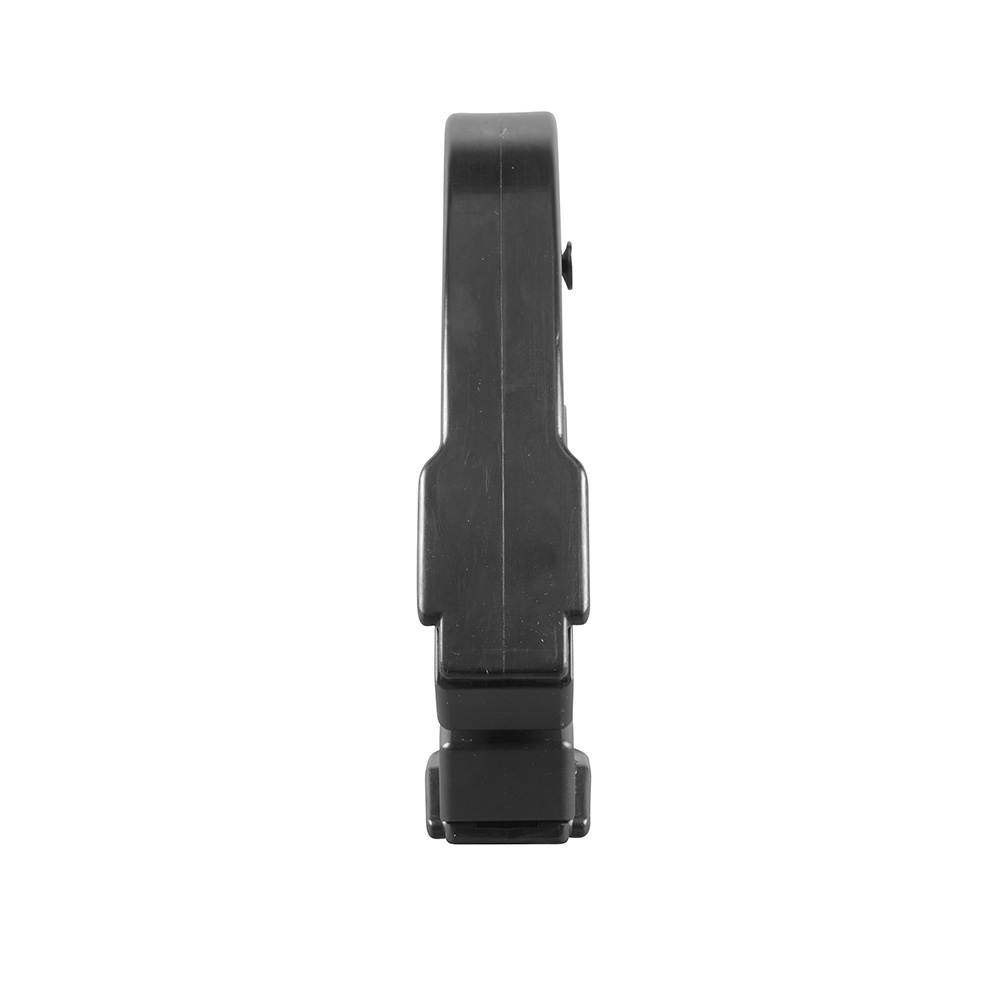

Crimping Jaw, Fixed O Die/D3 Groove

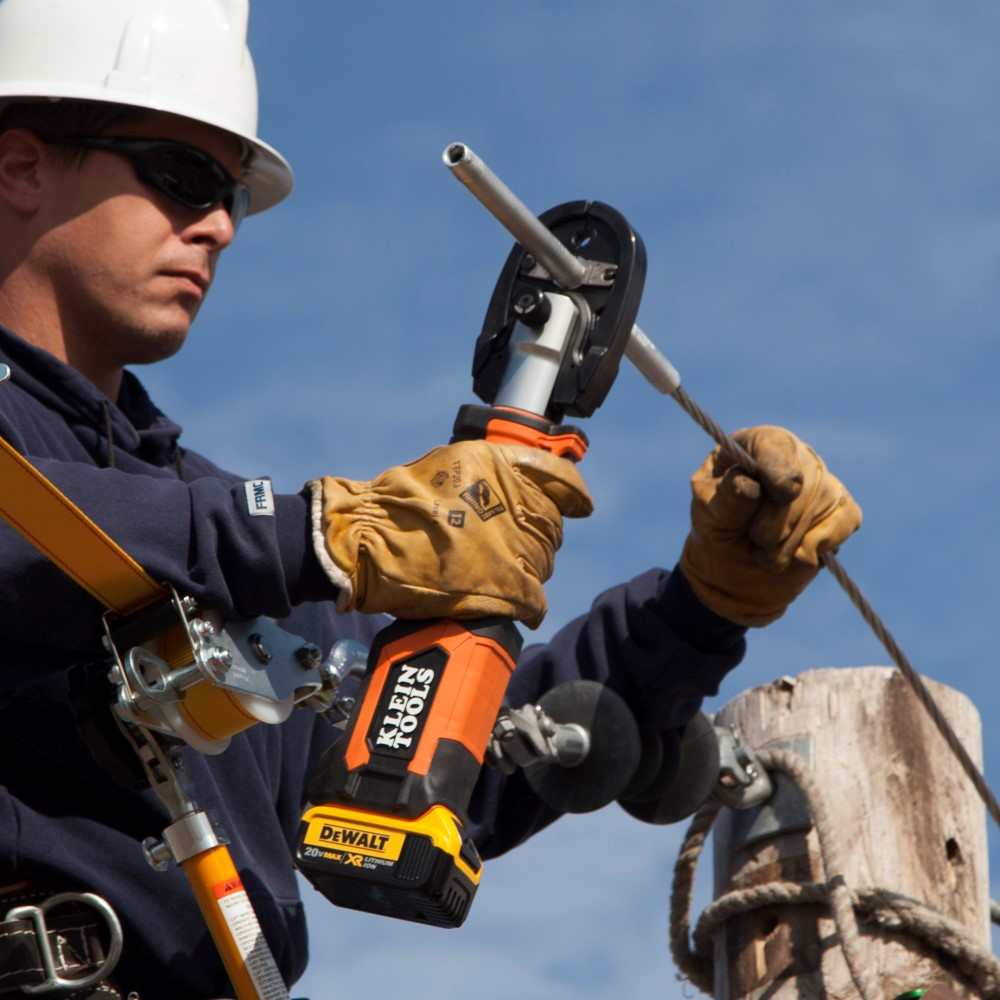

This crimping jaw works with Klein's battery-operated cable crimper (BAT20-7T). Crimps 600 copper, 350 aluminum and 477 ACSR cable. Features O Fixed Die and D3 Groove head. Compatible with industry standard W-style dies.

Features

• For Use with Tools Powered by DeWALT 20V Lithium-ion Batteries

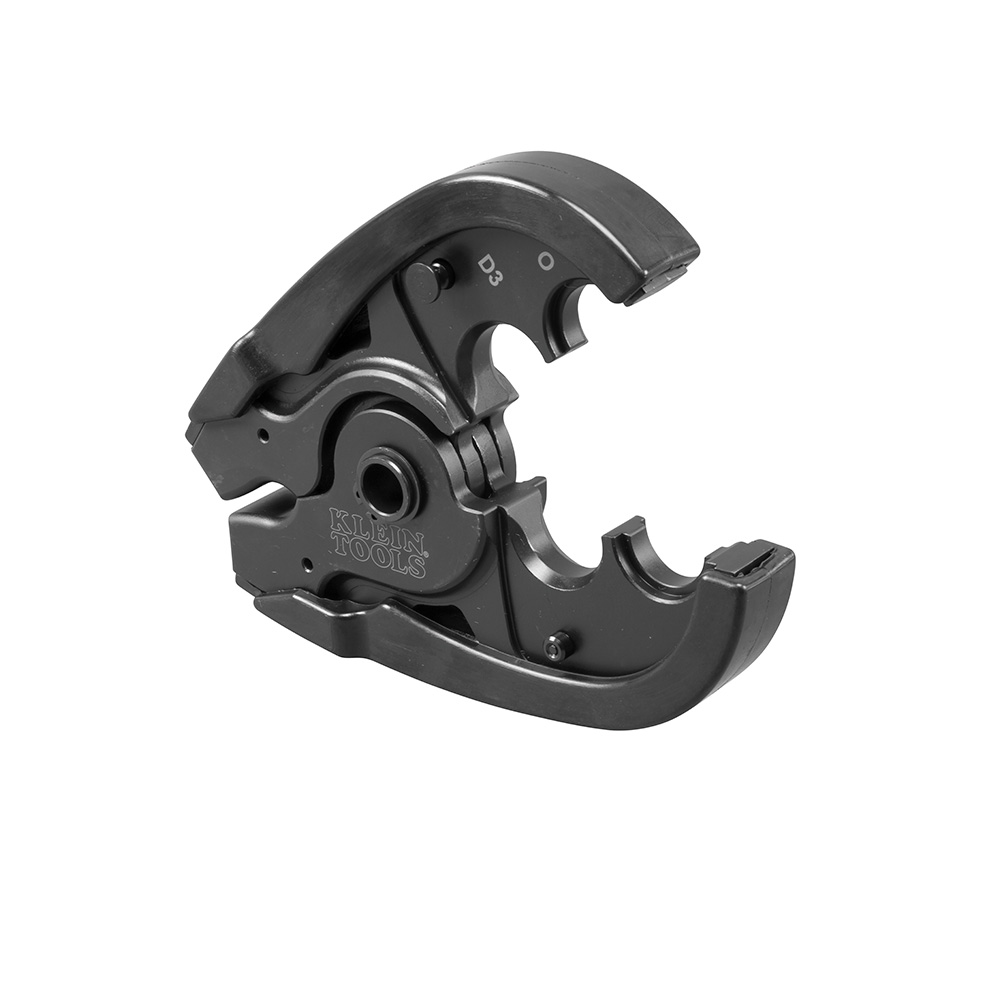

• Features an O fixed die and D3 groove
• Crimps 477 MCM ACSR cable
• 7 ton hydraulic force provides 15-Percent more crimping power
• Compatible with industry standard W-style dies
• Crimps 600 MCM copper cable

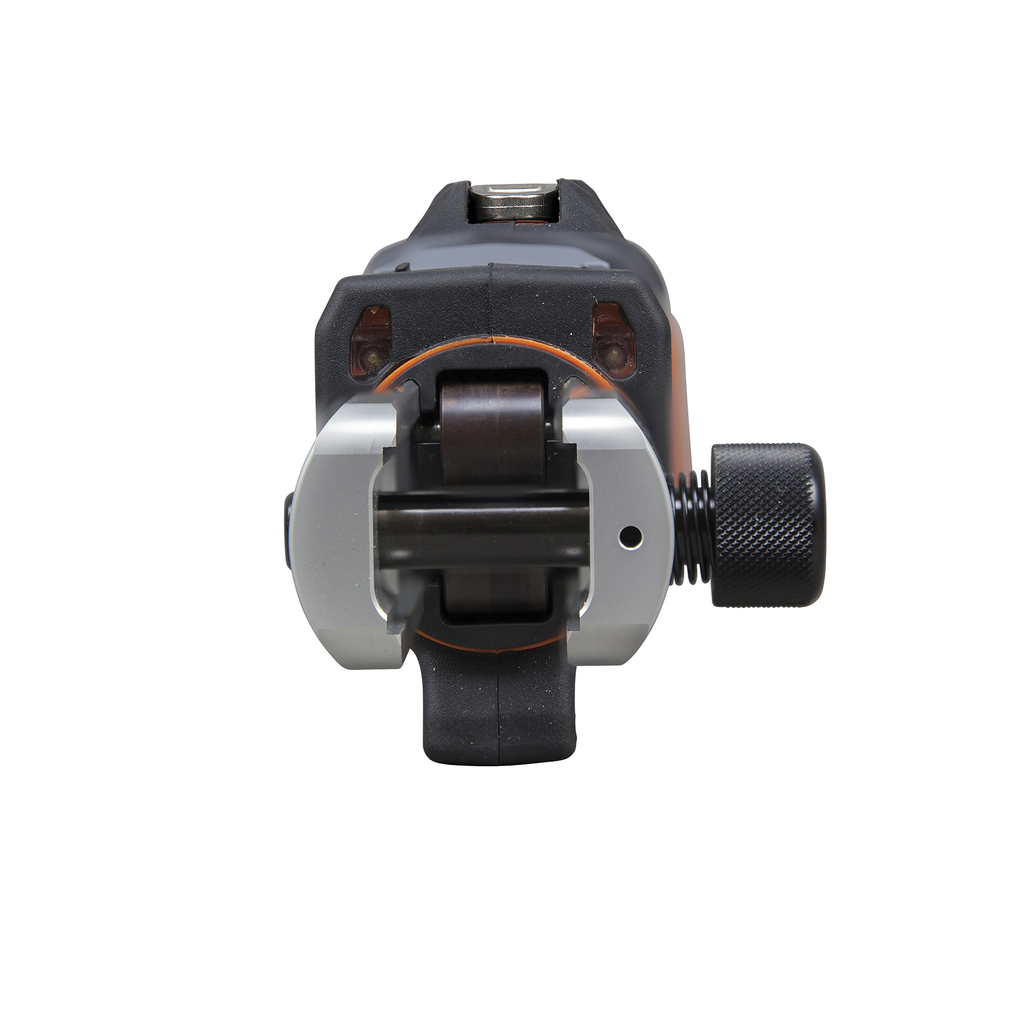

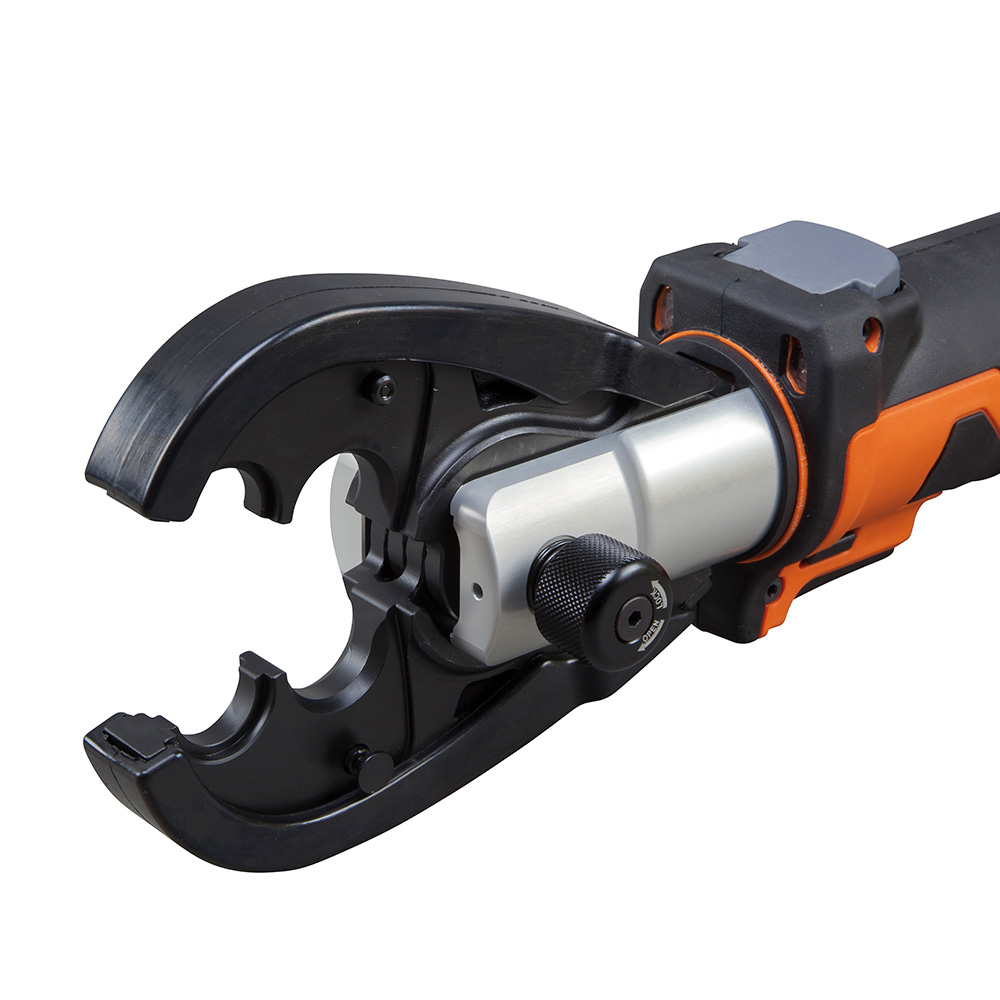

• Replacement crimping jaw for Klein's battery-operated cable cutter/crimper (BAT20-7T)
• Crimps 350 MCM aluminum cable

Warnings

• Not insulated. Will not protect against electrical shock.
• Always use approved eye protection.
• Do not use to pry or chisel.

Specifications

• Overall Length: 6.25" (15.9 cm)
• Maximum Cable Capacity (Copper): 600 MCM
• Maximum Cable Capacity (ACSR): 477 MCM
• Type: For Battery Operated Tools
• Weight: 3.1800 lbs
• Application: Cable Crimping
• Width: 1.5000 in
• Maximum Cable Capacity (Aluminum): 350 MCM
• Depth: 6.2500 in
• Overall Height: 6.5" (16.5 cm)
• Overall Width: 1.5" (3.8 cm)
• Height: 6.5000 in
