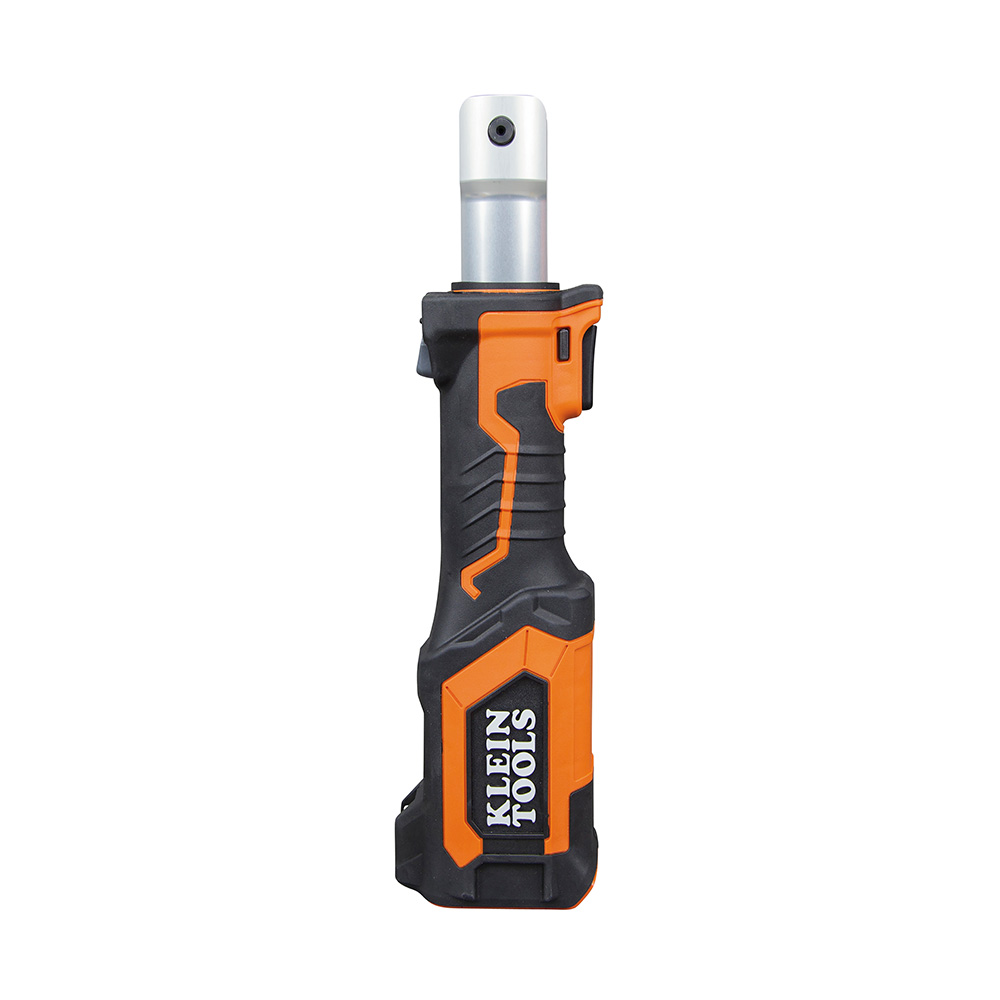

Battery-Operated Cutter/Crimper Kit, 2 Ah

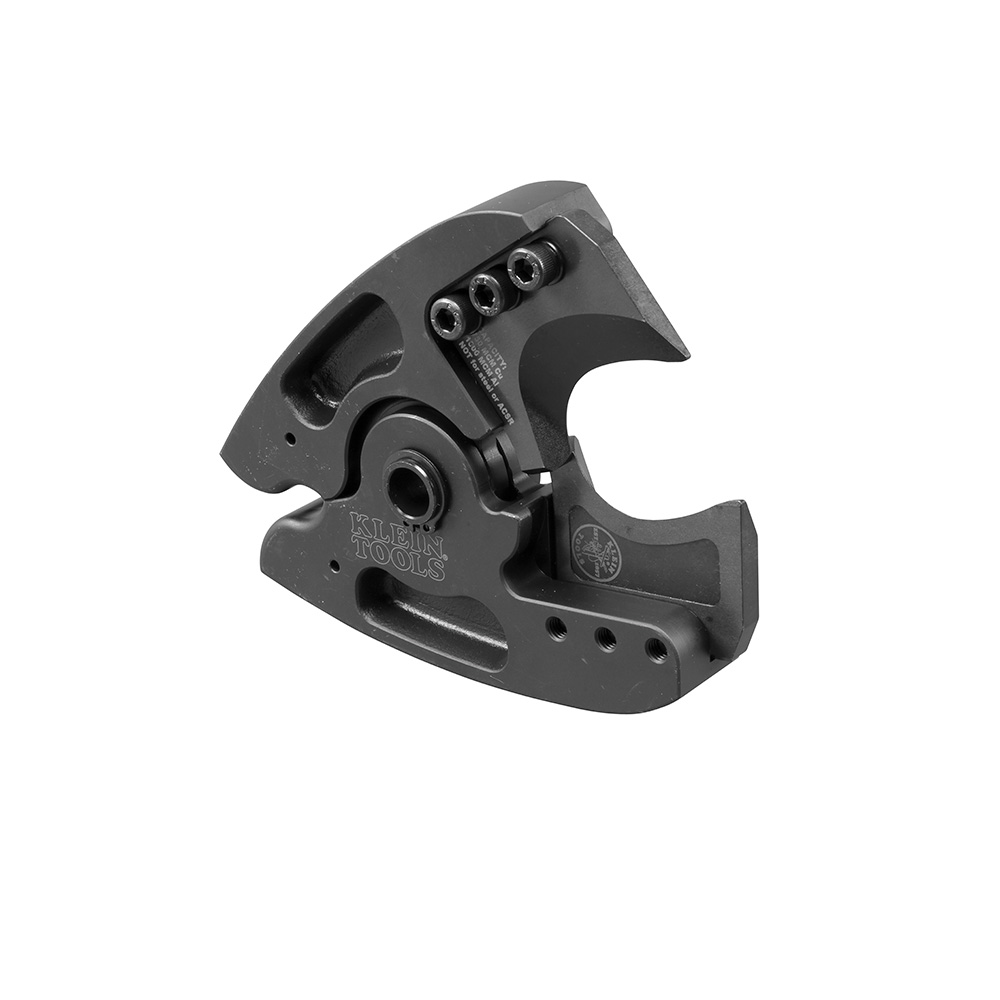

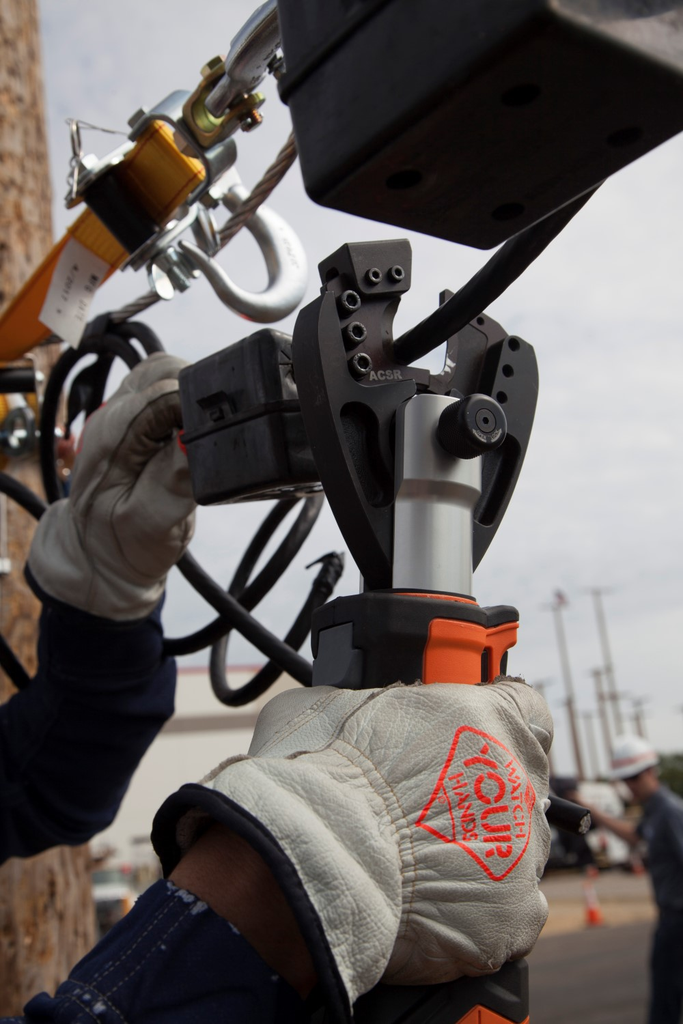

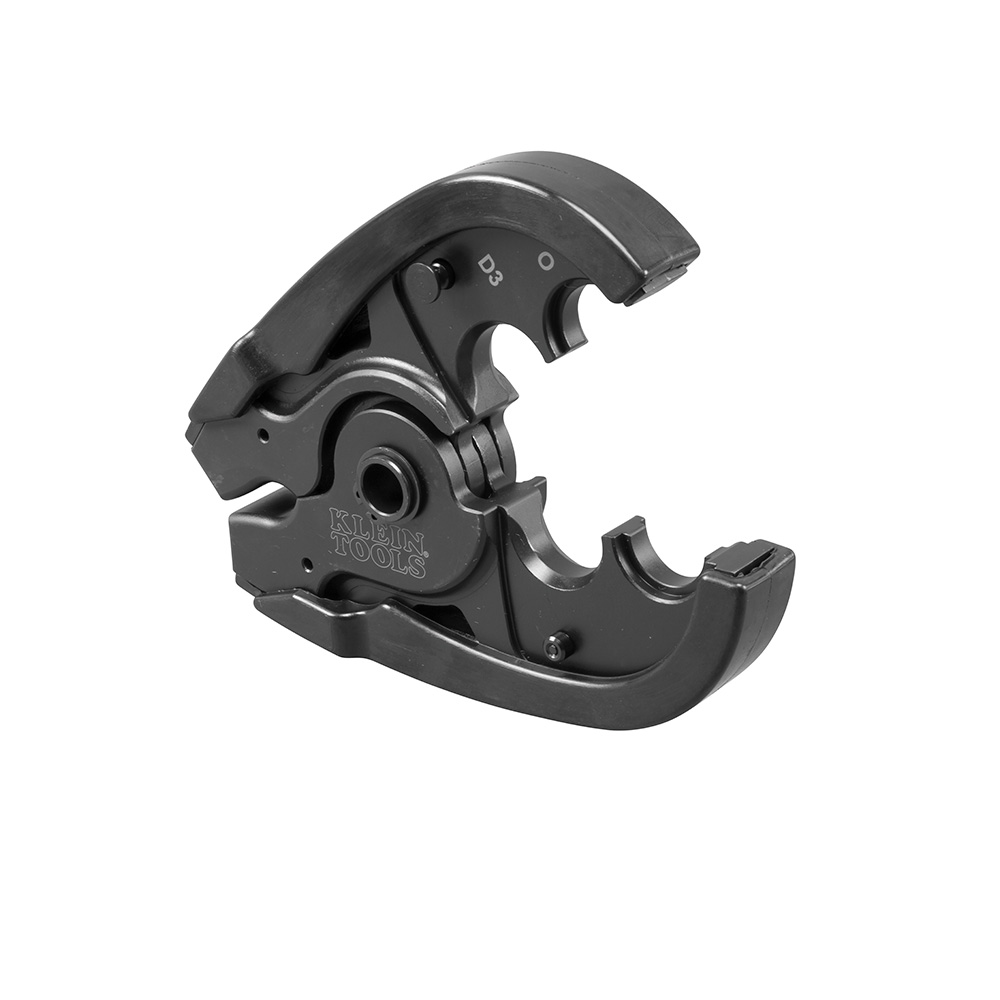

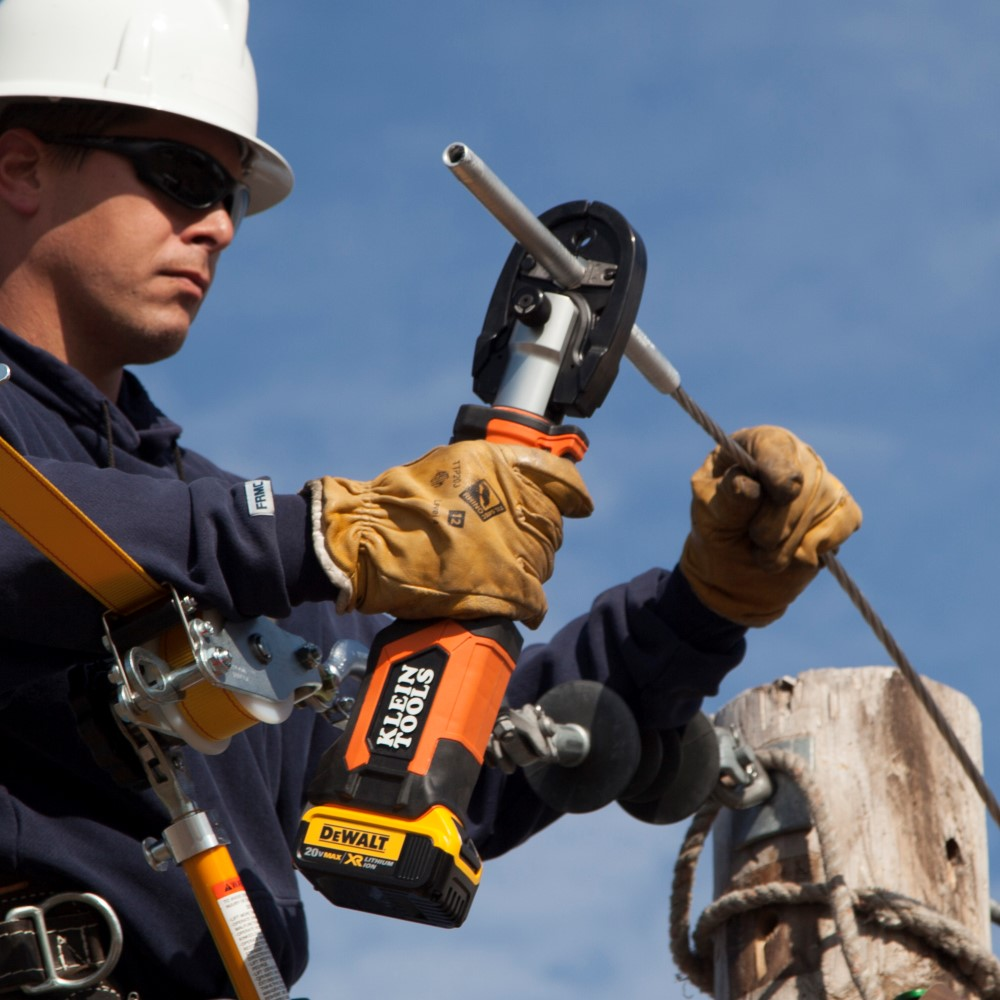

Klein's battery-operated cable cutter/crimper is engineered to make linemen's work more efficient by reducing the time and effort needed on the job. Alternate between 6 heads according to what the job requires. 7-tons of hydraulic force cut and crimp a larger capacity faster than similar models on the market. Compatible with industry standard W-style dies. Powered by a DeWALT lithium-ion battery. Includes 3 cutting heads, 3 crimping heads, two 2 Ah batteries, a charger and a bag.

Features

• Cuts 750 MCM copper, 1000 MCM aluminum, 556 ACSR cable and 7/16-Inch EHS
• DeWALT is a registered trademark of the Black & Decker corporation
• Crimps 600 MCM copper, 350 MCM aluminum and 477 ACSR cable

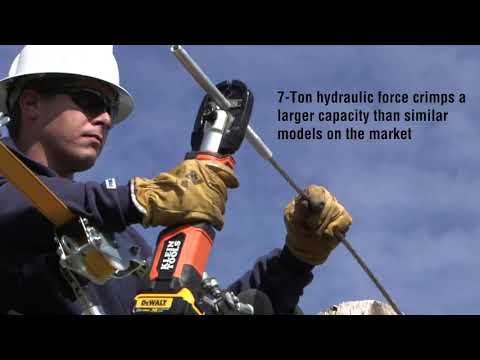

• 7-Ton hydraulic force cuts and crimps a larger capacity faster than similar models on the market
• Compatible with industry standard W-style dies

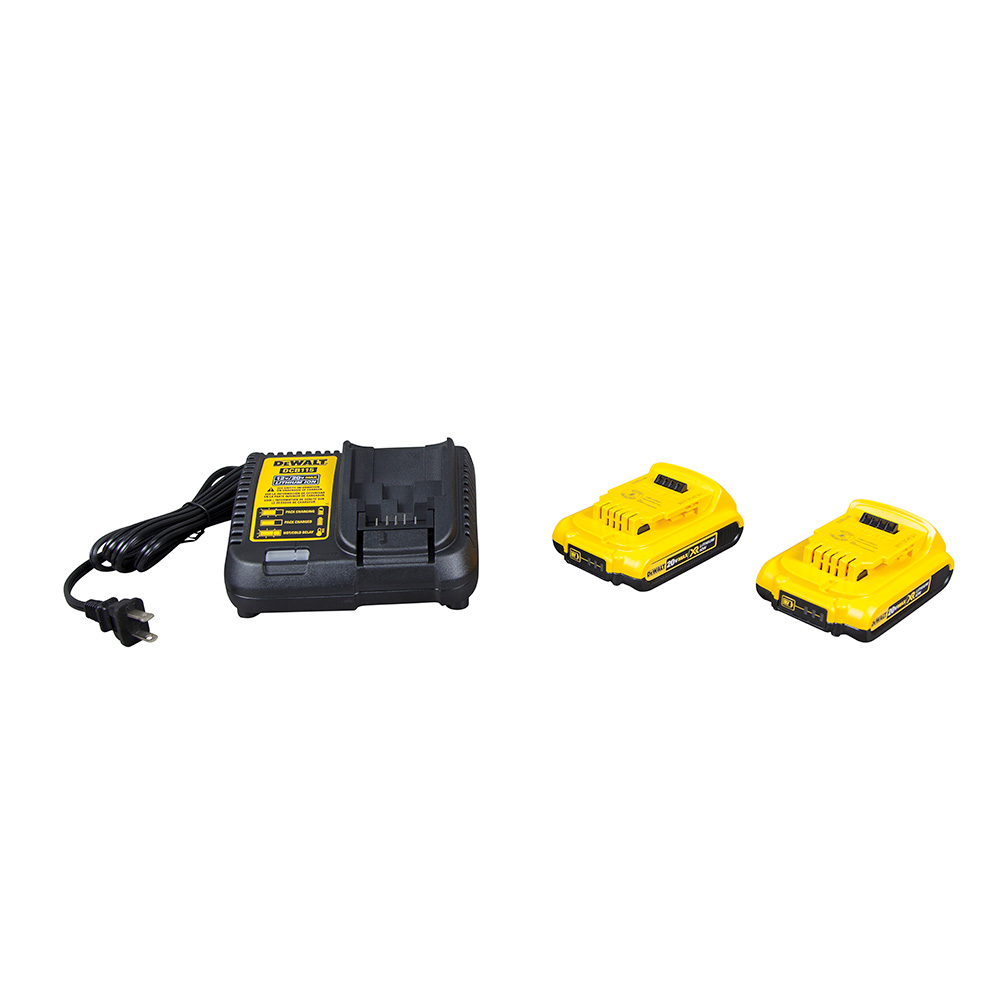

• Includes tool, 3 cutting jaws, 3 crimping jaws, two 2 Ah batteries, charger and bag

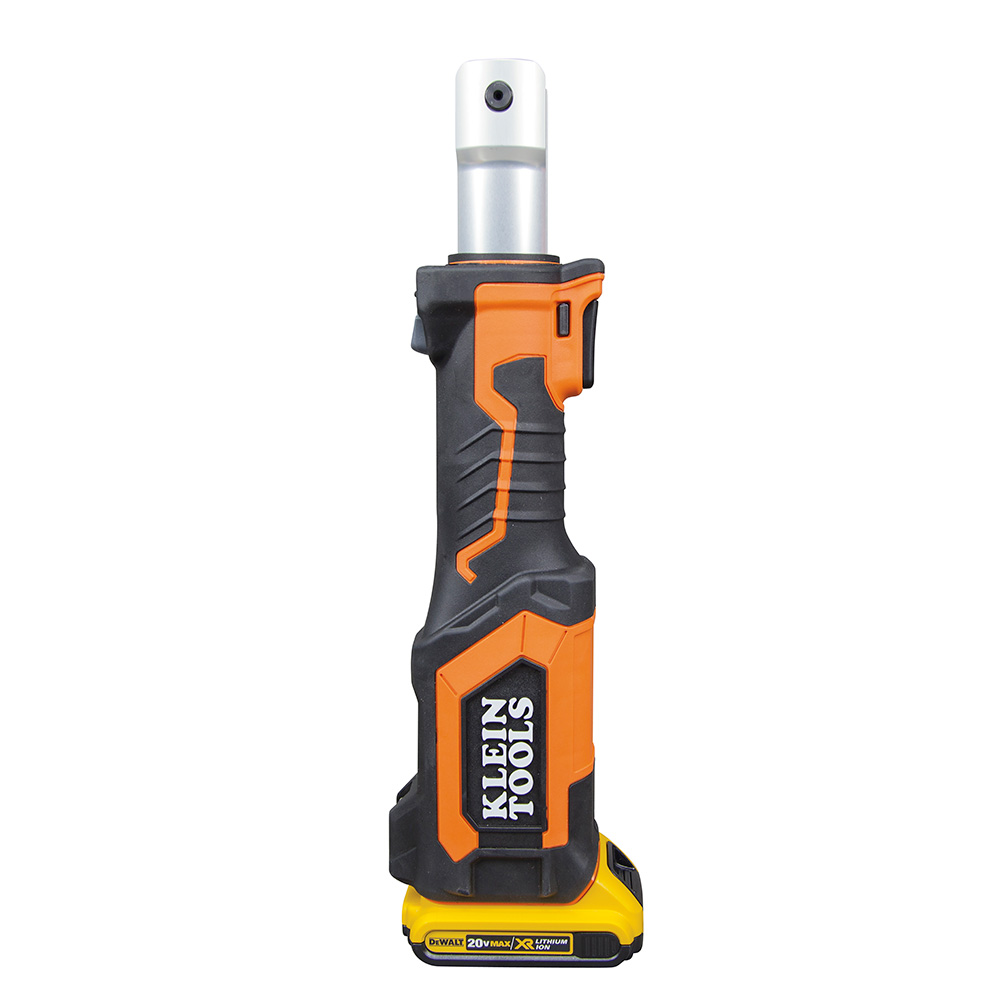

• Powered by DeWALT 20V lithium-ion batteries (2 Ah)
• Two work lights illuminate darker spaces
• Green light indicator confirms a good crimp has been made
• Powered by DeWALT 20V Lithium-ion Batteries (2 Ah)
• Replacement blades available

Warnings

• Not insulated. Will not protect against electrical shock.
• Always use approved eye protection.
• Do not use to pry or chisel.

Specifications

• Application: Cable Cutting/Crimping
• Maximum Cable Capacity (Copper): 750 MCM Cut; 600 MCM Crimp
• Bolt Maximum Capacity: 3/8" Grade 8
• Overall Height: 12" (30.5 cm)
• Maximum Cable Capacity (Guy Strand): 7/16" EHS
• Weight: 32.0600 lbs
• Batteries: Lithium-Ion
• Maximum Cable Capacity (Aluminum): 1000 MCM Cut; 350 Crimp
• Material: ABS, PA6, GF, TPE
• Width: 6.0000 in
• Maximum Cable Capacity (ACSR): 556 MCM Cut; 477 Crimp
• Height: 12.0000 in
• Overall Width: 6" (15.2 cm)
• Voltage: 20V
• Overall Length: 26" (66 cm)

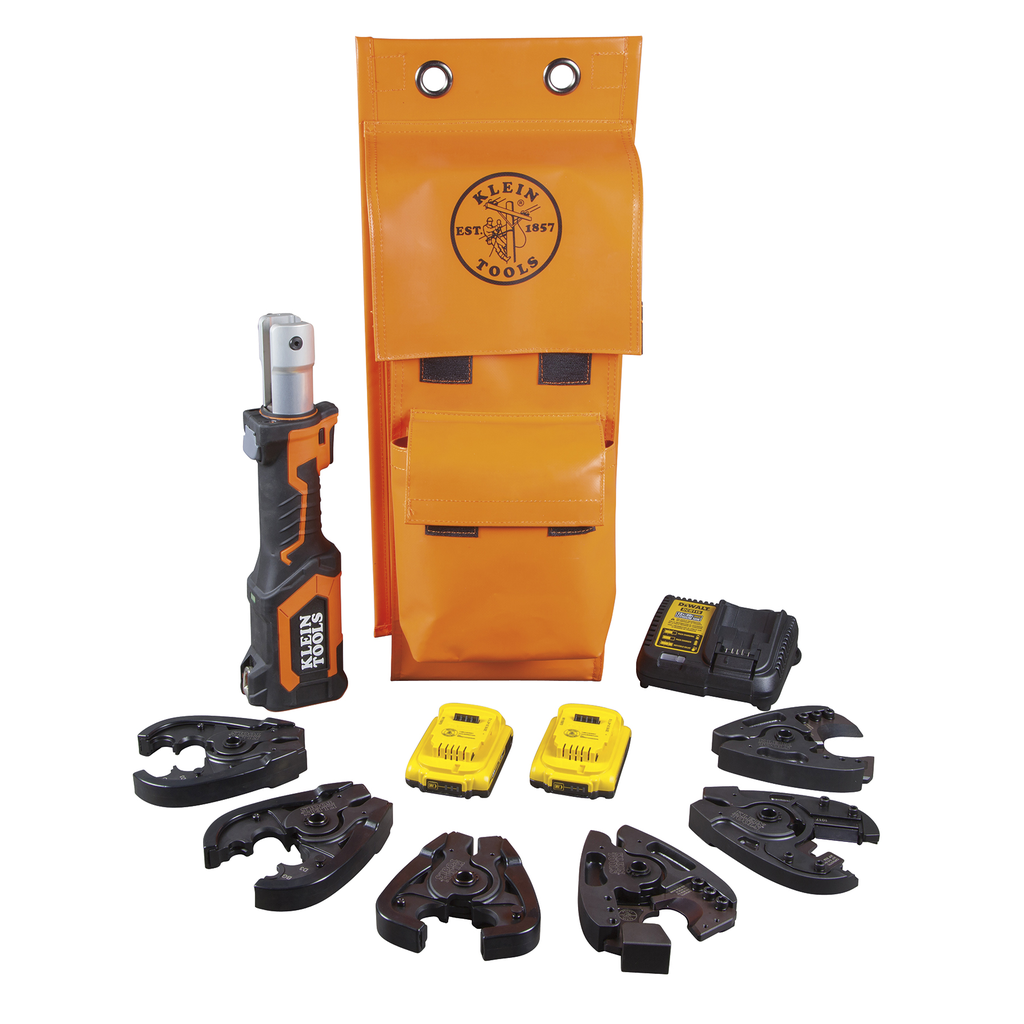

• Included: Cutter/Crimper; (3) Cutting Jaws; (3) Crimping Jaws; (2) 2 Ah Batteries; Charger; Carry Bag
• Depth: 26.0000 in
• Type: Battery Operated
• Number of Batteries: 2
