Battery-Operated Crimper, BG Die/D3 Groove, 4 Ah

Klein's battery-operated Cable Crimper is engineered to make linemen's work more efficient by reducing the time and effort needed on the job. Crimps up to 600 MCM copper, 350 MCM aluminum and 477 ACSR cable. 7-ton hydraulic force crimps a larger capacity faster than similar models on the market. Compatible with industry standard W-style dies. Powered by a DeWALT 20V lithium-ion battery (4 Ah). Includes cutting jaw, two 4 Ah batteries, charger and bag.

Features

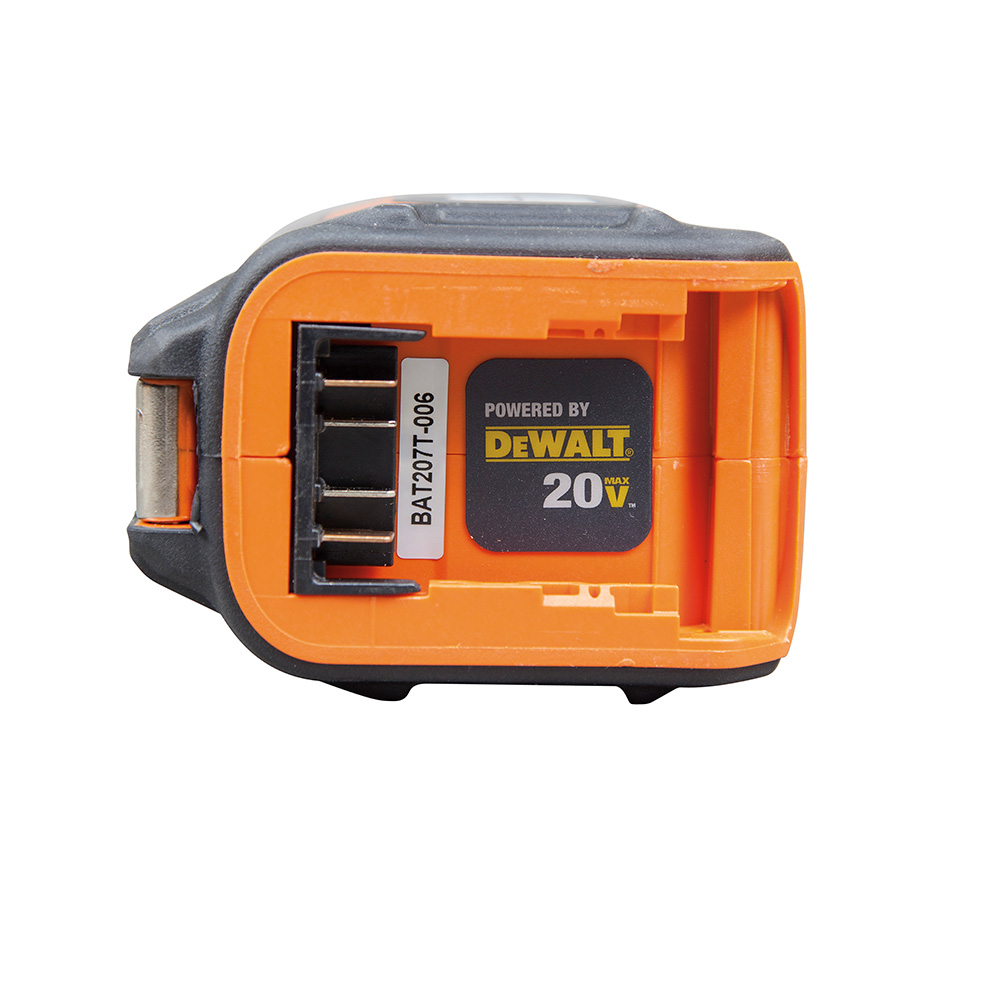

• Powered by DeWALT 20V Lithium-ion Batteries
• Compatible with industry standard W-style dies

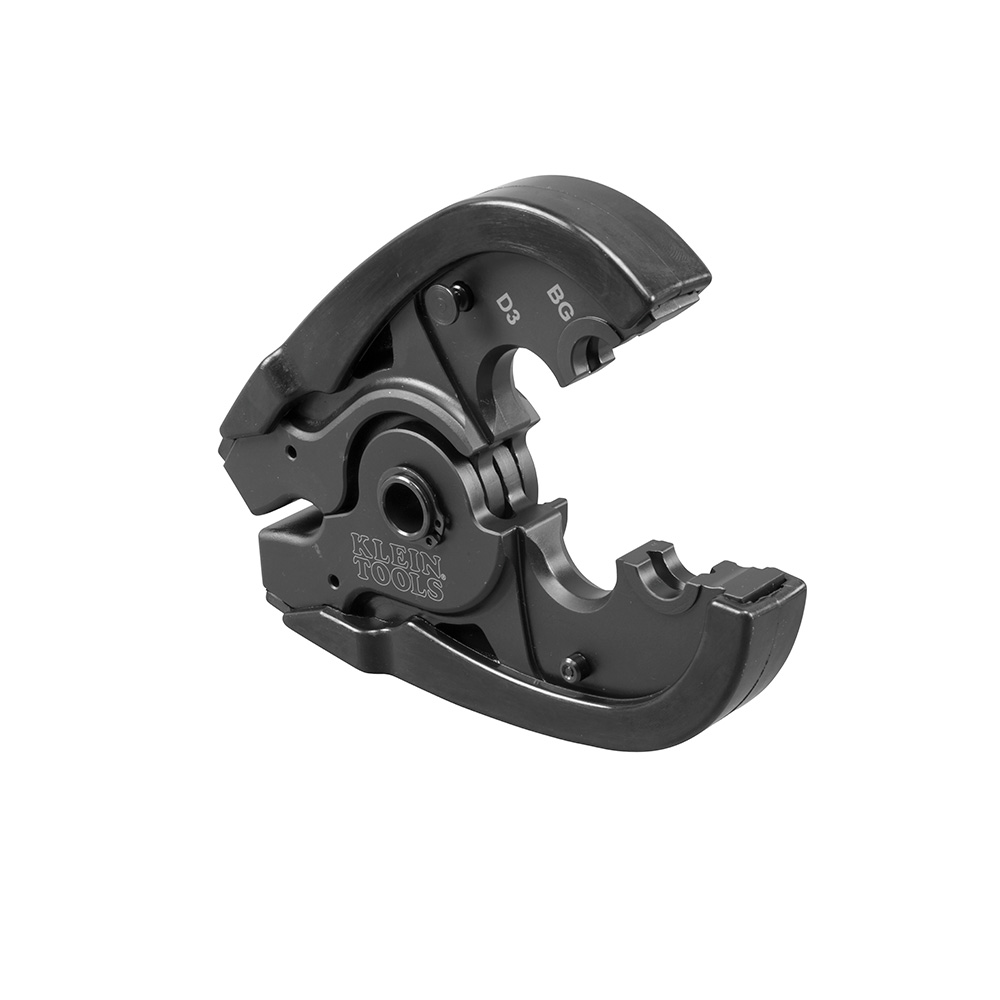

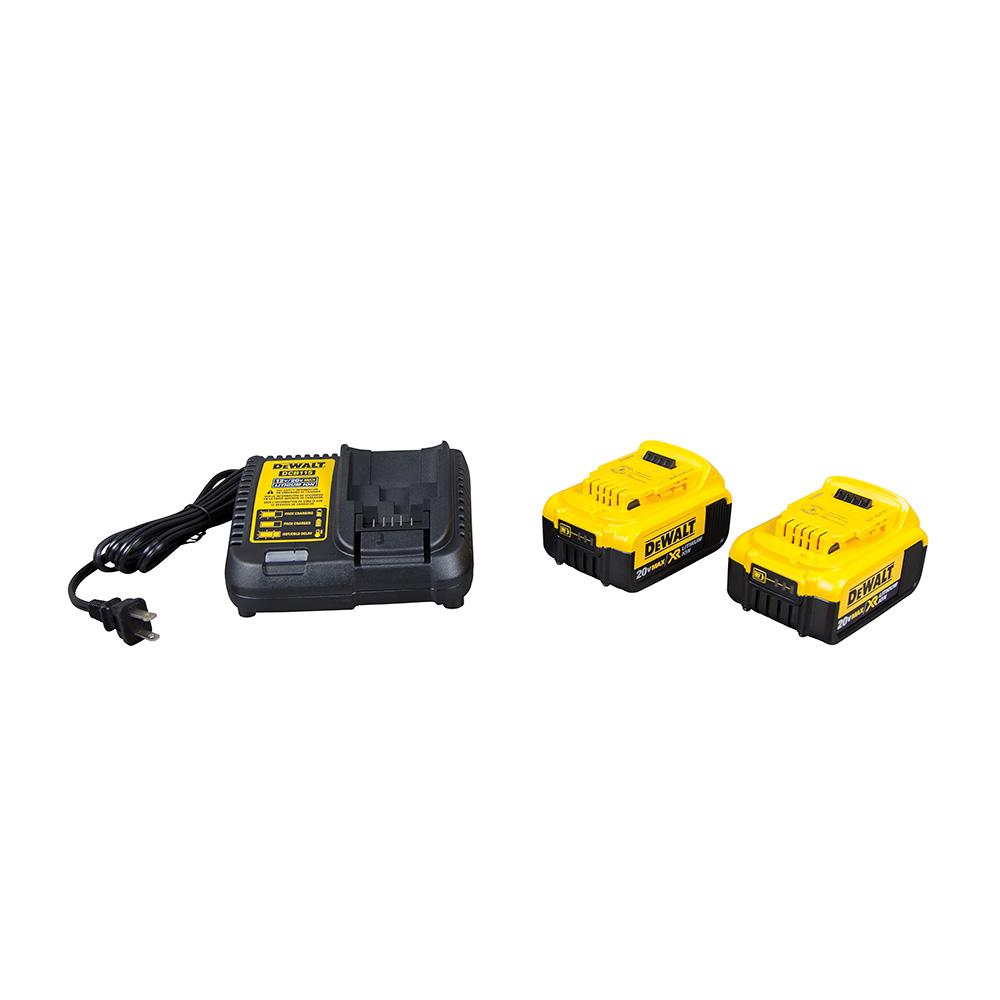

• Includes BG fixed die and D3 groove head, two 4-hour batteries, charger and bag
• 7 ton hydraulic force crimps a larger capacity faster than similar models on the market
• Green light indicator confirms a good crimp has been made
• Powered by DeWALT 20V lithium-ion batteries (4 Ah)
• DeWALT is a registered trademark of the Black & Decker corporation
• Two work lights illuminate darker spaces
• Crimps 600 MCM copper, 350 MCM aluminum and 477 ACSR cable

Warnings

• Not insulated. Will not protect against electrical shock.
• Always use approved eye protection.
• Do not use to pry or chisel.

Specifications

• Depth: 26.0000 in
• Maximum Cable Capacity (Copper): 600 MCM
• Maximum Cable Capacity (Aluminum): 350 MCM
• Overall Length: 26" (66 cm)
• Overall Height: 12" (30.5 cm)
• Weight: 15.7200 lbs
• Width: 6.0000 in
• Height: 12.0000 in
• Voltage: 20V
• Number of Batteries: 2
• Material: ABS, PA6, GF, TPE
• Type: Battery Operated
• Batteries: Lithium-Ion
• Application: Cable Crimping

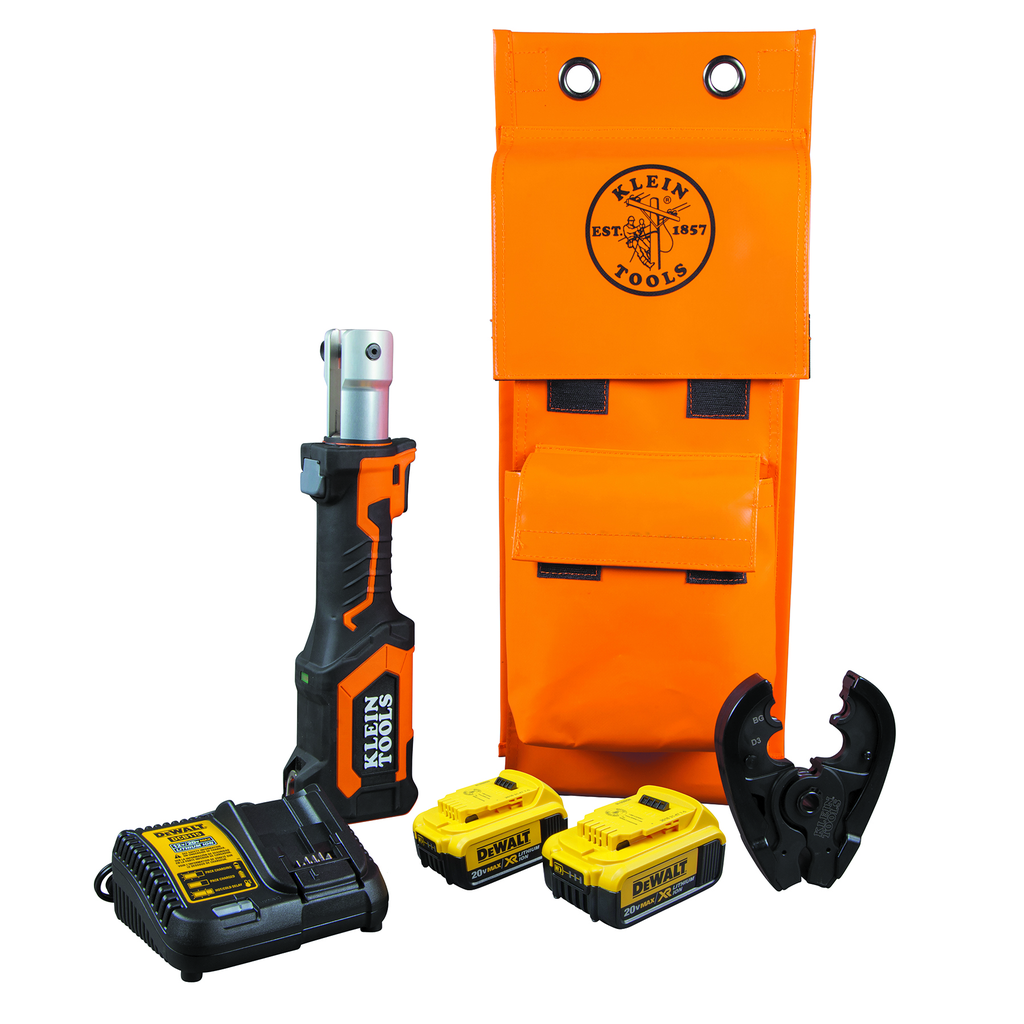

• Included: Crimper; BG Fixed Die and D3 Groove Head; (2) 4 Ah Batteries; Charger; Carry Bag
• Overall Width: 6" (15.2 cm)
• Maximum Cable Capacity (ACSR): 477 MCM
