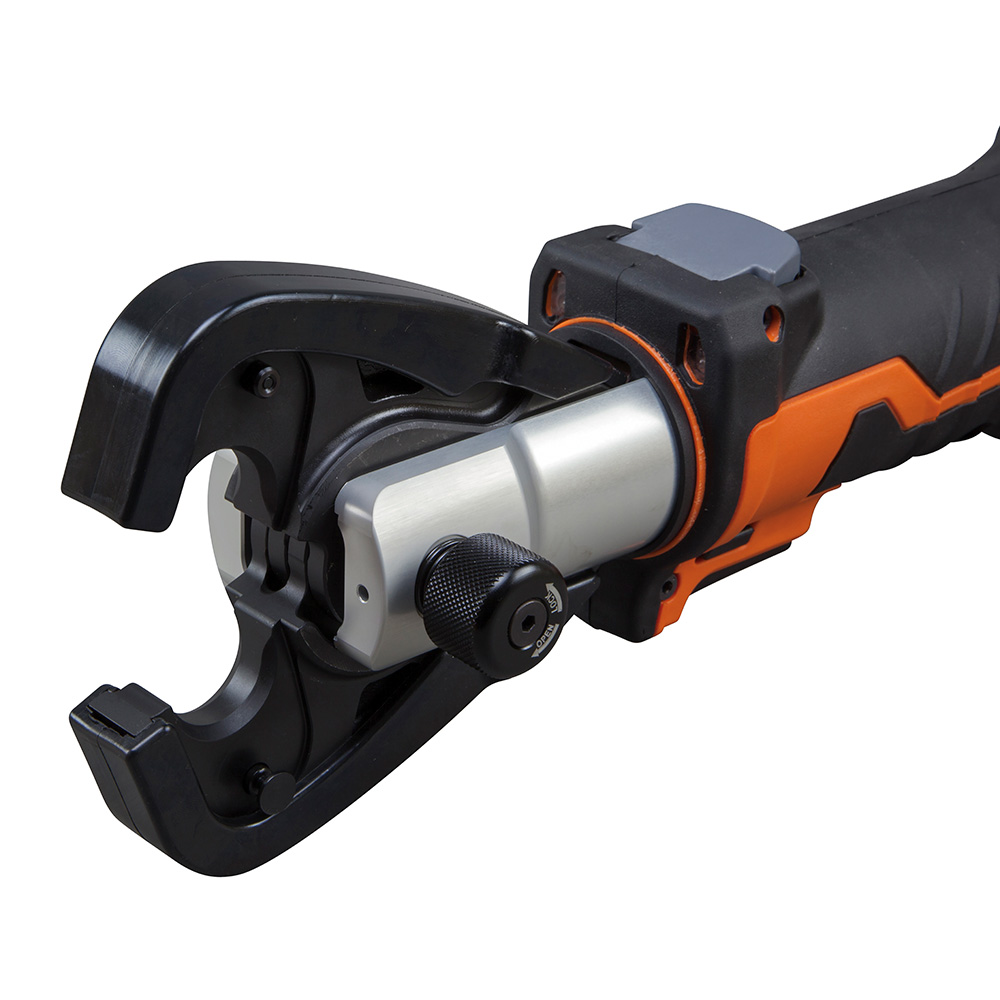

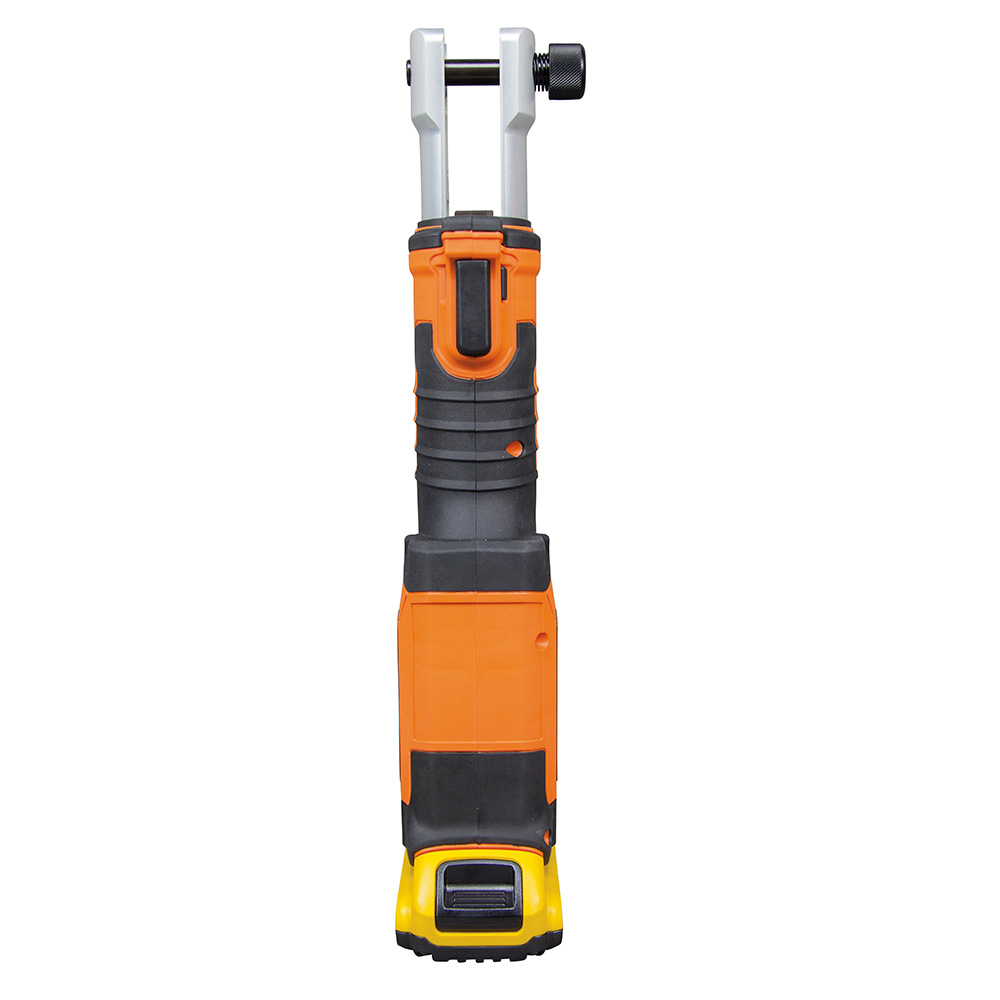

Battery-Operated Crimper, D3 Groove, 4 Ah

Klein's battery-operated cable crimper is engineered to make linemen's work more efficient by reducing the time and effort needed on the job. Crimps up to 600 MCM copper, 350 MCM aluminum and 477 ACSR cable. 7-ton hydraulic force crimps a larger capacity faster than similar models on the market. Compatible with industry standard W-style dies. Powered by DeWALT 20V lithium-ion batteries. Includes cutting jaw, two 4 Ah batteries, charger and bag.

Features

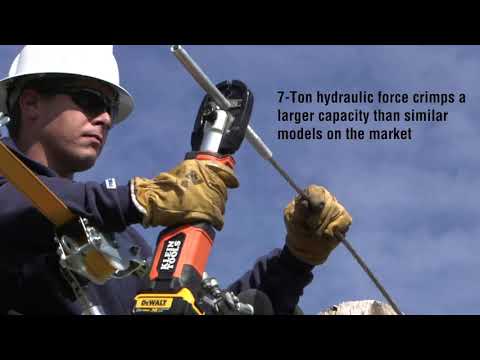

• 7-ton hydraulic force crimps a larger capacity faster than similar models on the market
• Powered by DeWALT 20V Lithium-ion Batteries (4 Ah)
• Includes tool, D3 groove head, two 4 Ah batteries, charger and bag
• Crimps up to 600 MCM copper, 350 MCM aluminum and 477 ACSR cable
• Green light indicator confirms a good crimp has been made
• Compatible with industry standard W-style dies
• Powered by DeWALT 20V lithium-ion batteries (4 Ah)
• Two work lights illuminate darker spaces
• DeWALT is a registered trademark of the Black & Decker corporation

Warnings

• Not insulated. Will not protect against electrical shock.
• Do not use to pry or chisel.
• Always use approved eye protection.

Specifications

• Maximum Cable Capacity (Aluminum): 350 MCM
• Material: ABS, PA6, GF, TPE
• Battery Life: 4 Ah
• Maximum Cable Capacity (Copper): 600 MCM
• Battery Weight: 630.4 g
• Depth: 26.0000 in
• Style Name: D3 Groove
• Application: Cable Crimping
• Overall Height: 12" (30.5 cm)
• Overall Length: 26" (66 cm)
• Width: 6.0000 in
• Lithium Battery Package: Two Batteries in a Brown Box
• Country of Origin: Taiwan
• Batteries: Lithium-Ion
• Size Name: 4 Ah Batteries
• Lithium Content (mAh): 4000 mAh
• Battery Type: Lithium-Ion
• Overall Width: 6" (15.2 cm)
• Voltage: 20V
• Maximum Cable Capacity (ACSR): 477 MCM
• Configuration: 4 Ah Batteries

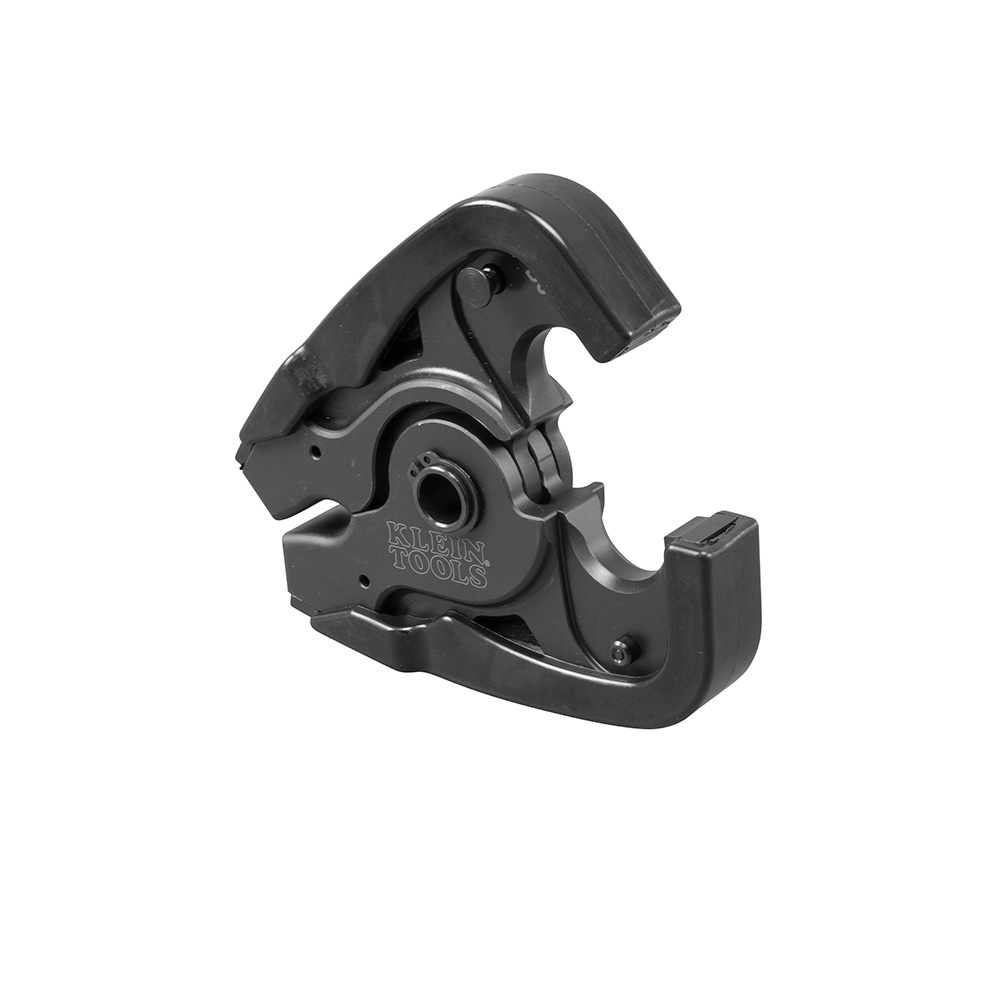

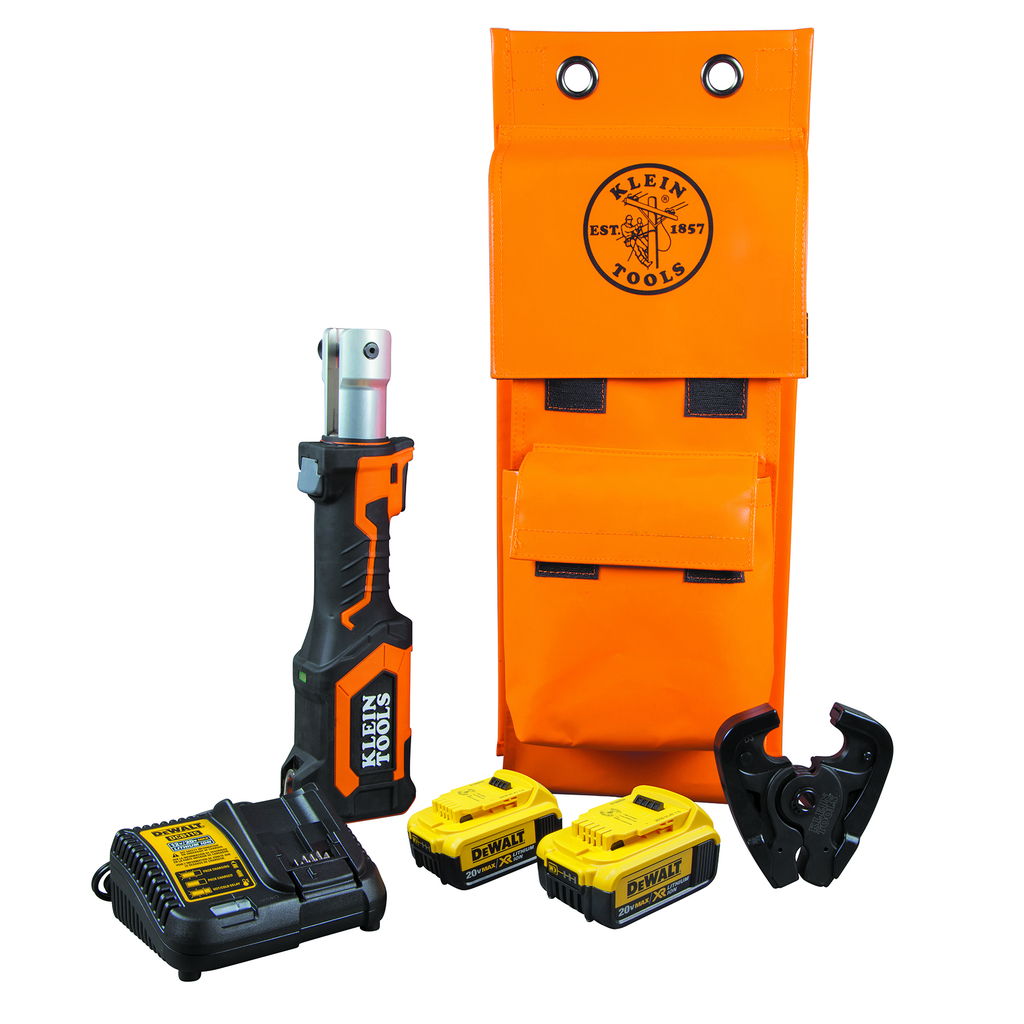

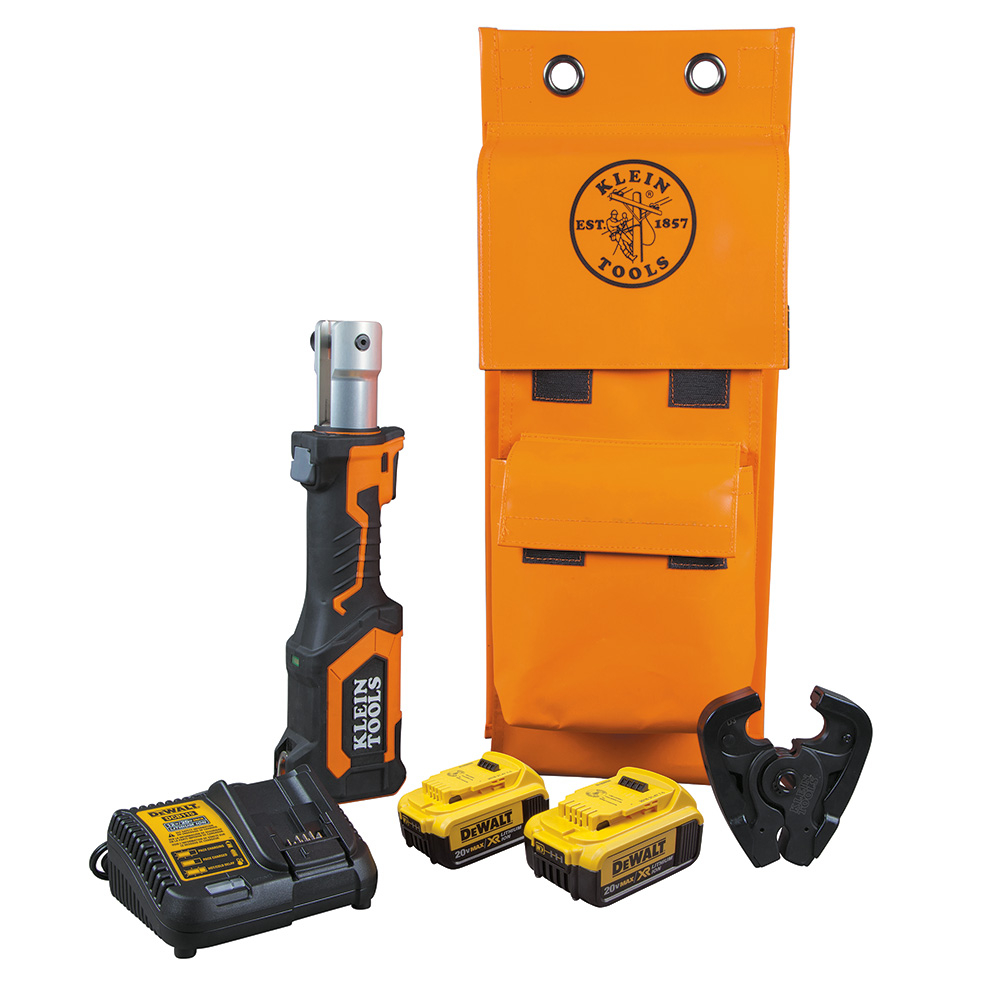

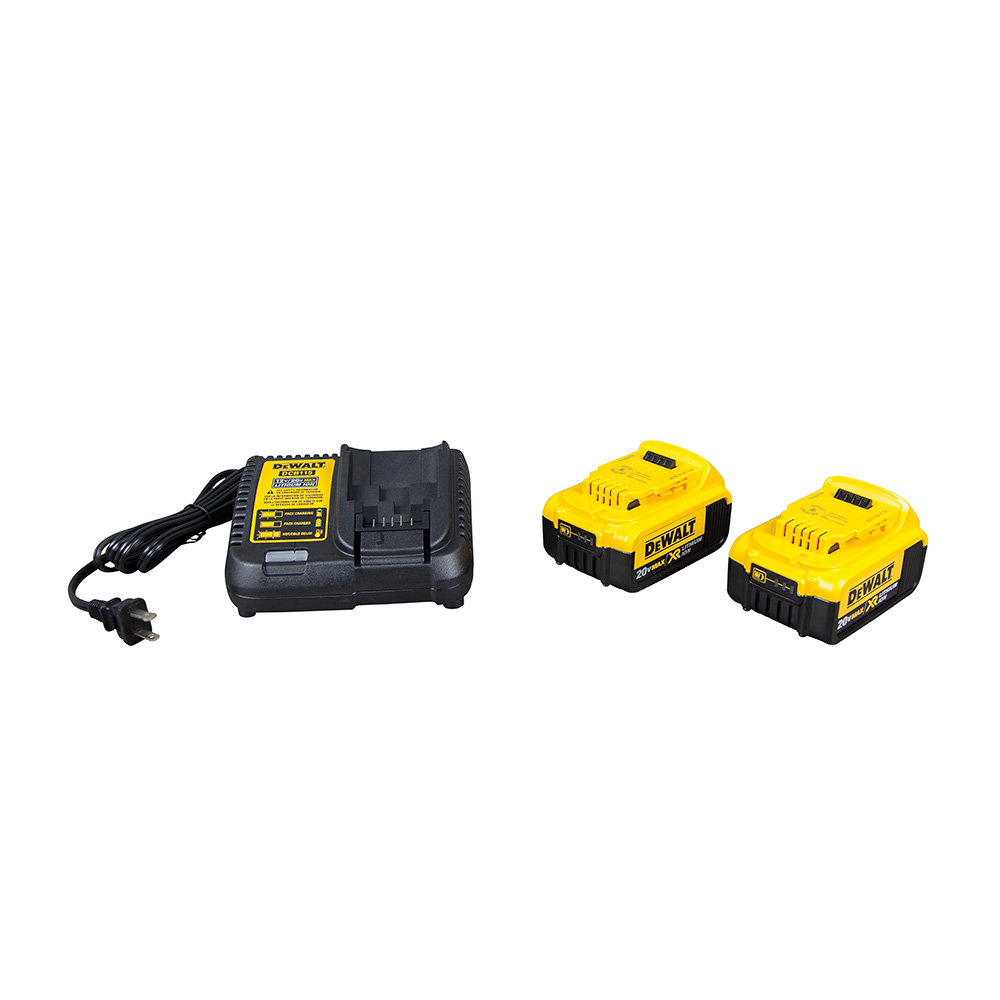

• Included: Crimper; D3 Groove Head; (2) 4Ah Batteries; Charger; Carry Bag
• Number of Batteries: 2
• Height: 12.0000 in
• Type: Battery Operated
• Weight: 15.3800 lbs
