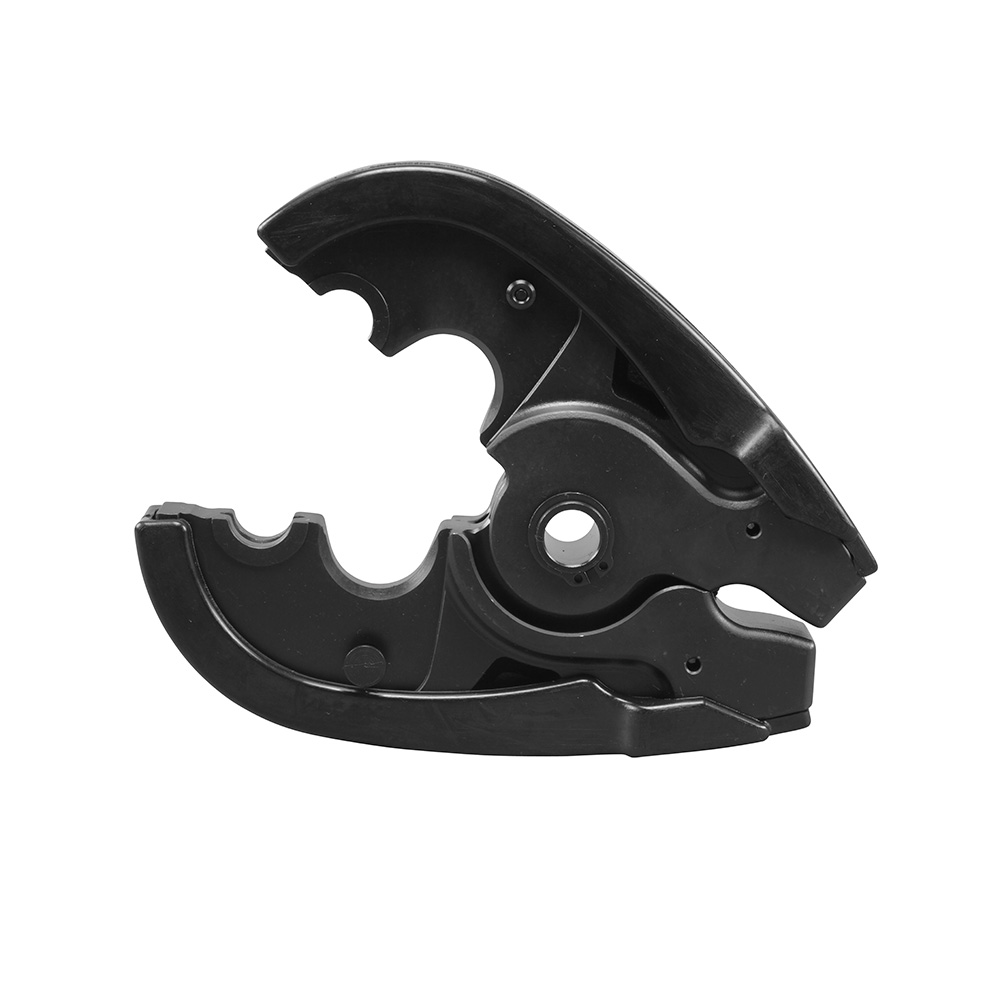

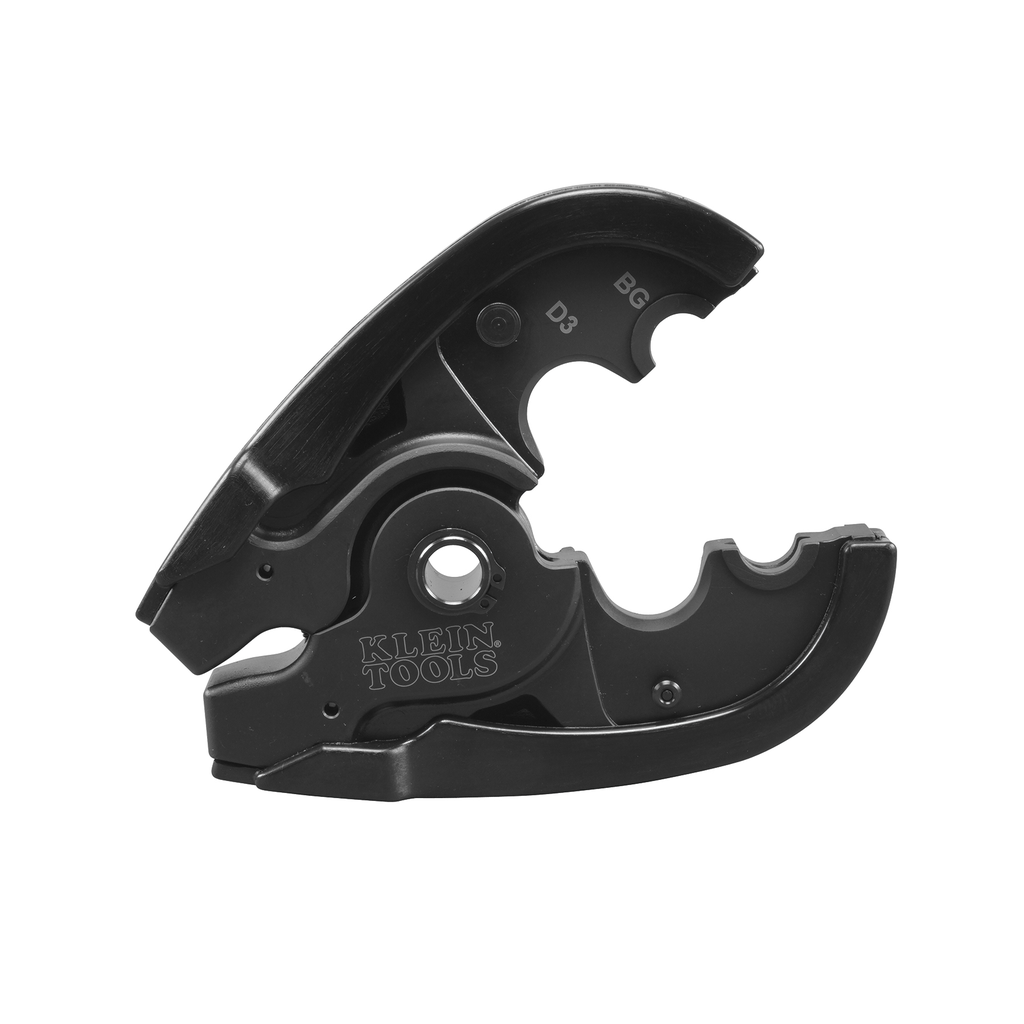

Crimping Jaw, Fixed BG Die/D3 Groove

This crimping jaw works with Klein's battery-operated Cable Crimper (BAT20-7T). Crimps 600 MCM copper, 350 MCM aluminum and 477 NCM ACSR cable quickly and efficiently. Features a BG fixed die and D3 groove. Compatible with industry standard W-style dies.

Features

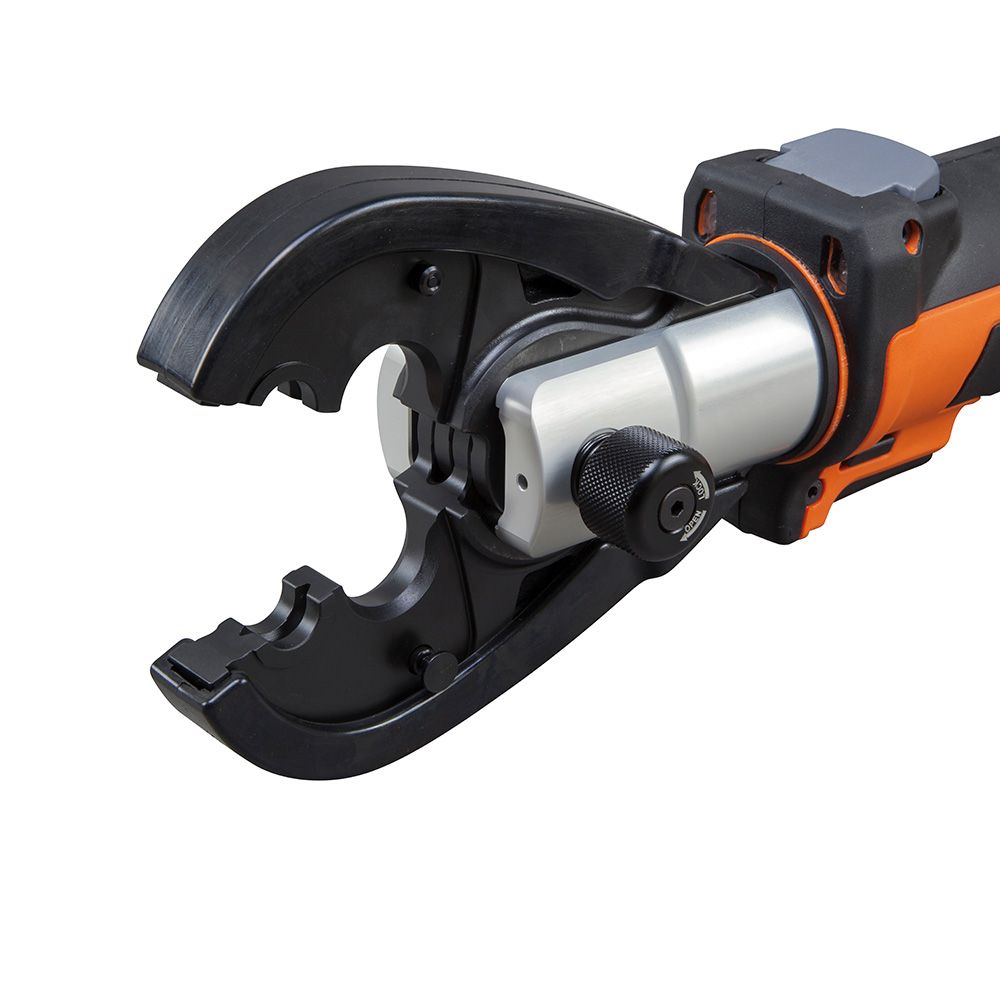

• Replacement crimping jaw for Klein's battery-operated cable crimper (BAT20-7T)
• Crimps 600 MCM copper cable
• 7 ton hydraulic force provides 15-Percent more crimping power
• Crimps 350 MCM aluminum cable

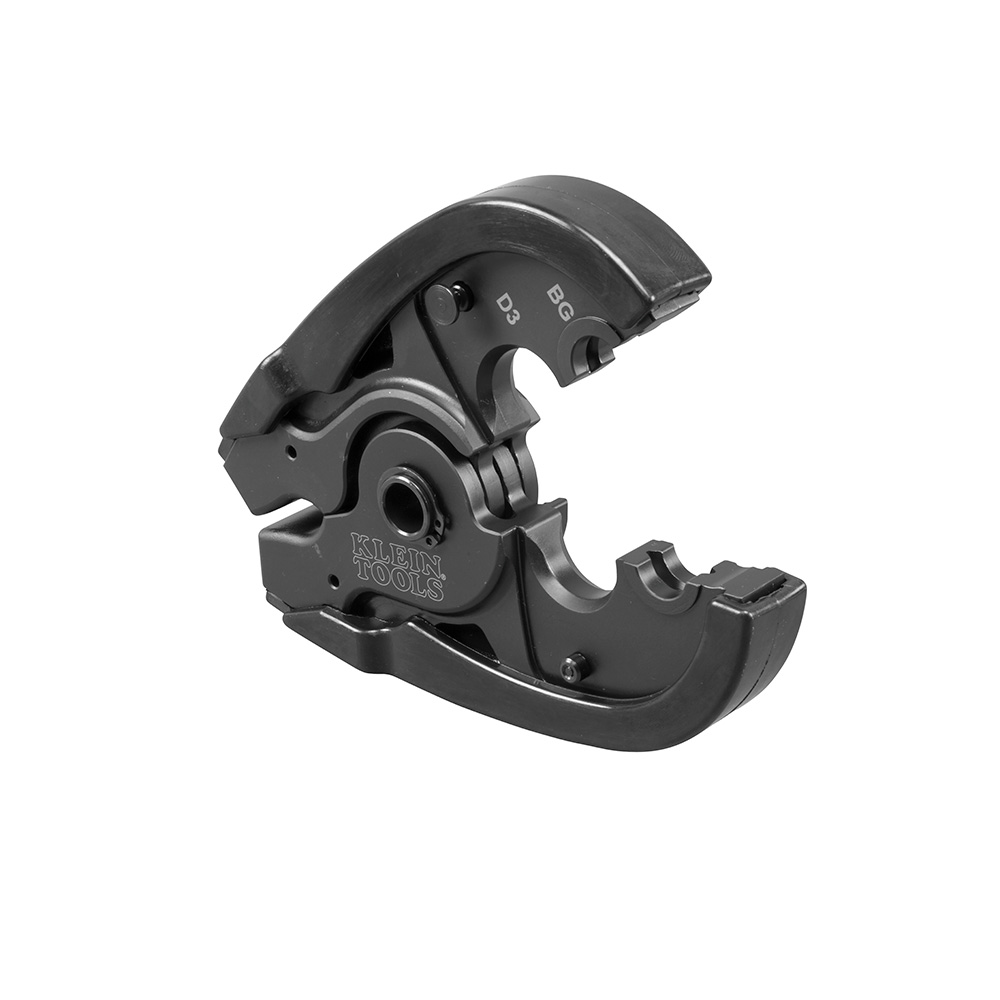

• Features a BG fixed die and D3 groove
• Crimps 477 ACSR cable
• Compatible with industry standard W-style dies

Warnings

• Do not use to pry or chisel.
• Always use approved eye protection.
• Not insulated. Will not protect against electrical shock.

Specifications

• Application: Cable Crimping
• Maximum Cable Capacity (Copper): 600 MCM
• Overall Length: 6.25" (15.9 cm)
• Height: 6.5000 in
• Weight: 3.2300 lbs
• Material: ABS, PA6, GF, TPE
• Maximum Cable Capacity (Aluminum): 350 MCM
• Overall Width: 1.5" (3.8 cm)
• Depth: 6.2500 in
• For Use With: Cat. No. BAT207T
• Maximum Cable Capacity (ACSR): 477 MCM
• Width: 1.5000 in
• Overall Height: 6.5" (16.5 cm)
• Type: Replacement/Alternate Jaw
