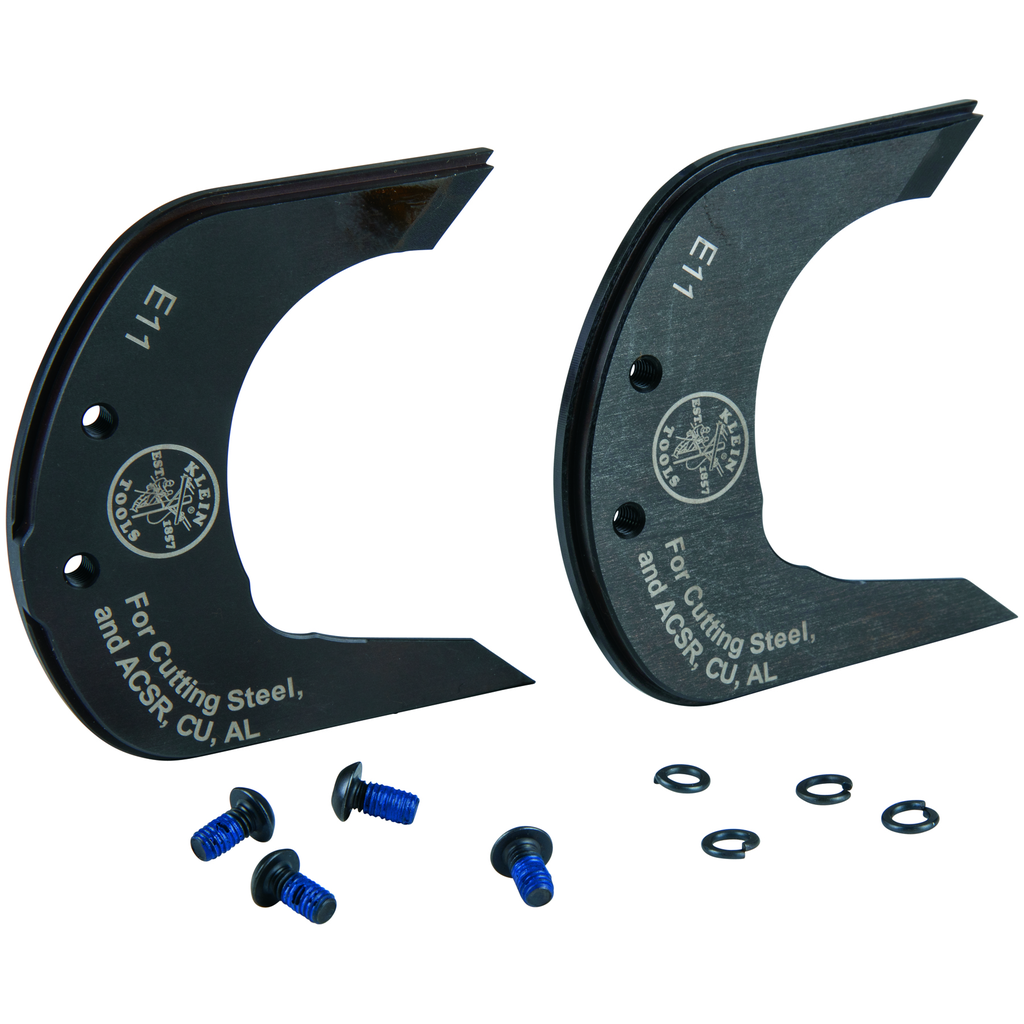

Replacement Blades for EHS Closed-Jaw Cutter

These replacement insert cutting blades work with Klein's Battery-Operated, EHS Closed-Jaw Cable Cutters. One tool cuts copper, aluminum, ACSR and EHS cable. Replaceable blades provide an easy and economical solution for damaged cutting blades. The blades can be easily replaced using two screws. Experience the quality, durable cutting you expect from Klein Tools.

Features

• Replaceable
• Cuts 750 MCM Copper
• Cuts 1/2-Inch EHS
• Cuts 1500 MCM Aluminum
• An easy and economical solution for damaged cutting blades save time and money
• Cuts 1590 ACSR
• Replacement blades for Klein Tools' EHS Closed-Jaw Cable Cutter (BAT20GD1; BAT20GD14H)

Warnings

• Not insulated. Will not protect against electrical shock.
• Always use approved eye protection.
• DO NOT use under wet conditions or in presence of flammable liquids or gases.

Specifications

• Height: 0.5000 in
• For Use With: BAT20GD1; BAT20GD14H
• Overall Width: 3" (7.6 cm)
• Maximum Cable Capacity (Copper): 750 MCM
• Material: Steel
• Depth: 4.5000 in
• Overall Height: 0.5" (1.3 cm)
• Maximum Cable Capacity (Aluminum): 1500 MCM
• Maximum Cable Capacity (Ground Rod): 5/8" (1.6 cm)
• Application: Cable Cutting
• Type: Replacement Blade
• Maximum Cable Capacity (Guy Strand): 1/2" (1.3 cm)
• Included: (2) Blades; (4) Screws; (4) Washers
• Weight: 0.4100 lbs
• Maximum Cable Capacity (ACSR): 1590 MCM
• Overall Length: 4.5" (1.1 cm)
• Width: 3.0000 in
