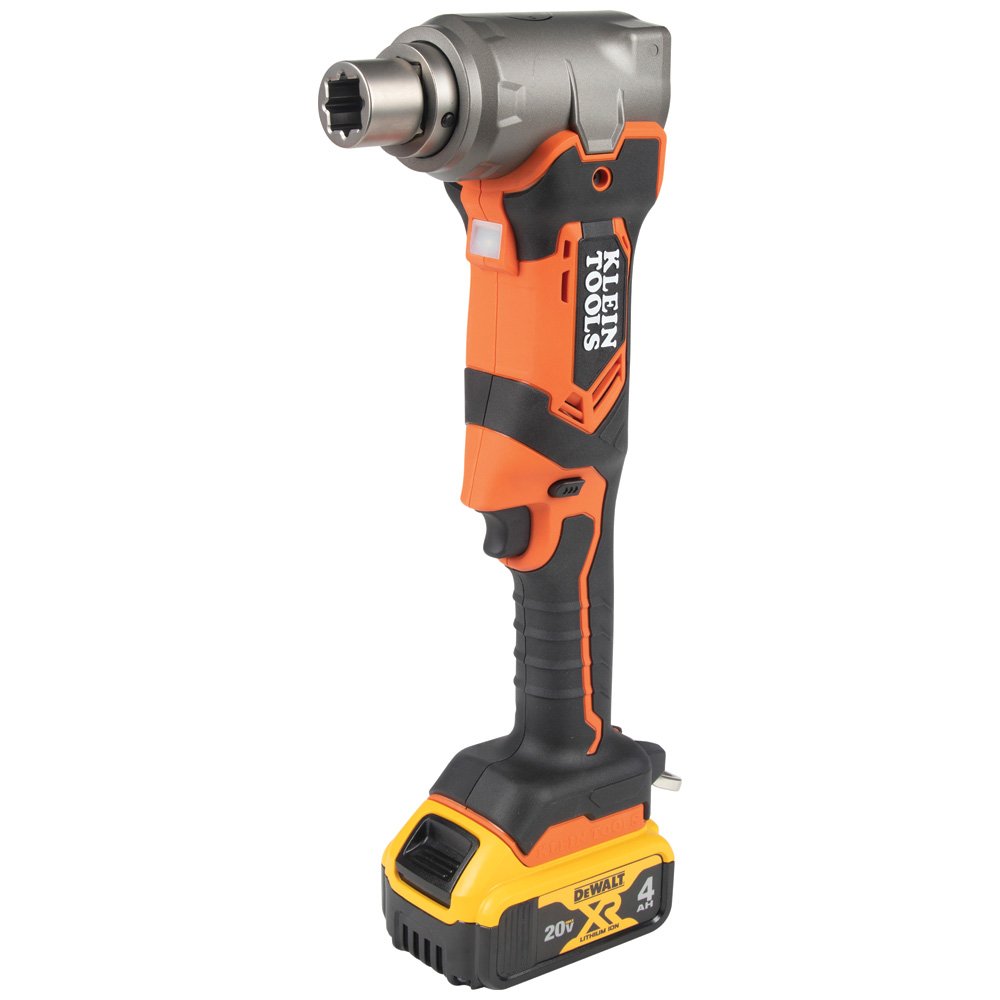

90-Degree Impact Wrench Kit

The 90-Degree Impact Wrench, engineered and designed by Klein Tools in the USA, has a patent pending design that provides a better, more ergonomic way to fasten in the field. The right angle on this tool allows the user to reach around a utility pole easier for better access with less fatigue. 300 ft-lb of max torque for drive fasteners into wood, metal and concrete. It features a variable speed trigger and a variety of square drives (1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch). The kit includes the tool, batteries, charger and carrying case.

Features

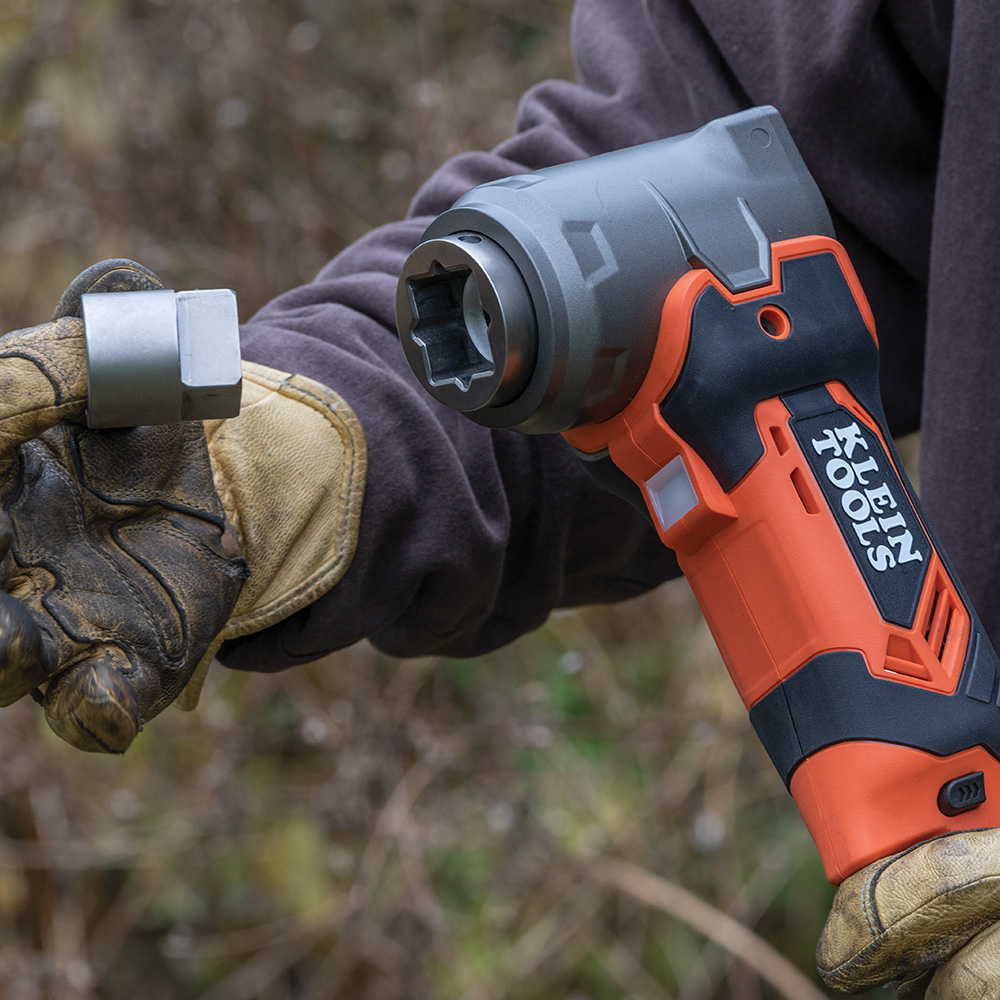

• Insertable socket designed for commonly used 3/4-Inch and 13/16-Inch bolt sizes (Cat. No. BAT20LWS)
• Safety lockout switch
• DeWALT is a registered trademark of the Black & Decker corporation
• Delivers 300 ft-lb of max torque for installing fasteners into wood, metal and concrete

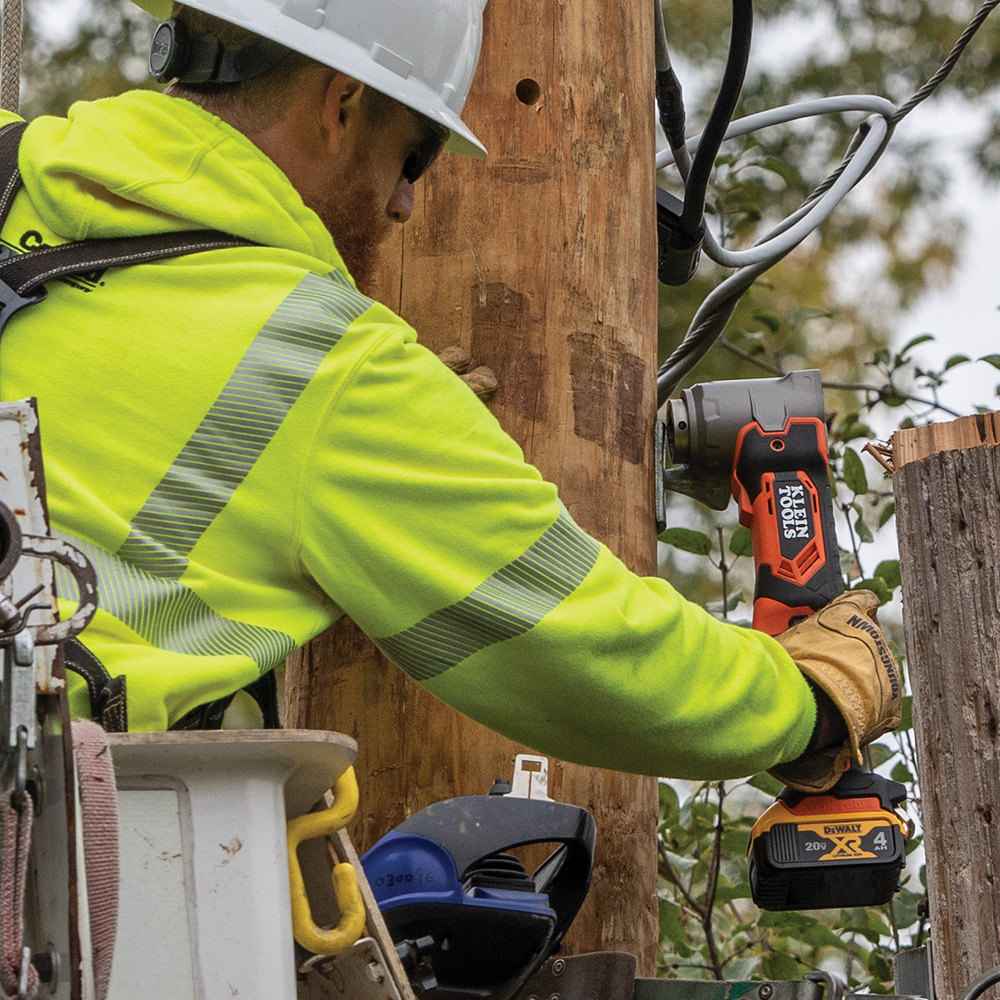

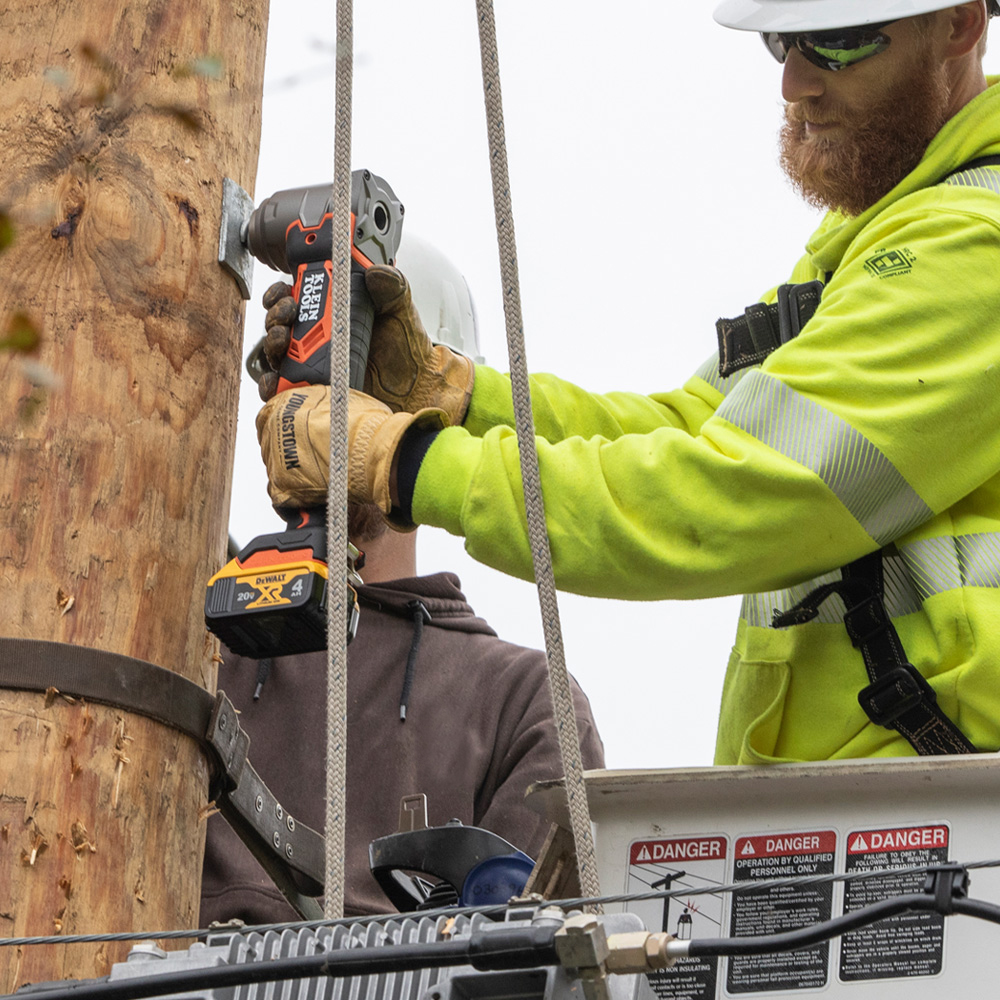

• Impact Wrench's right angle provides versatility for better reach around a utility pole with less effort
• 0 -1800 RPM variable speed trigger for better control
• Featuring 1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch square drives

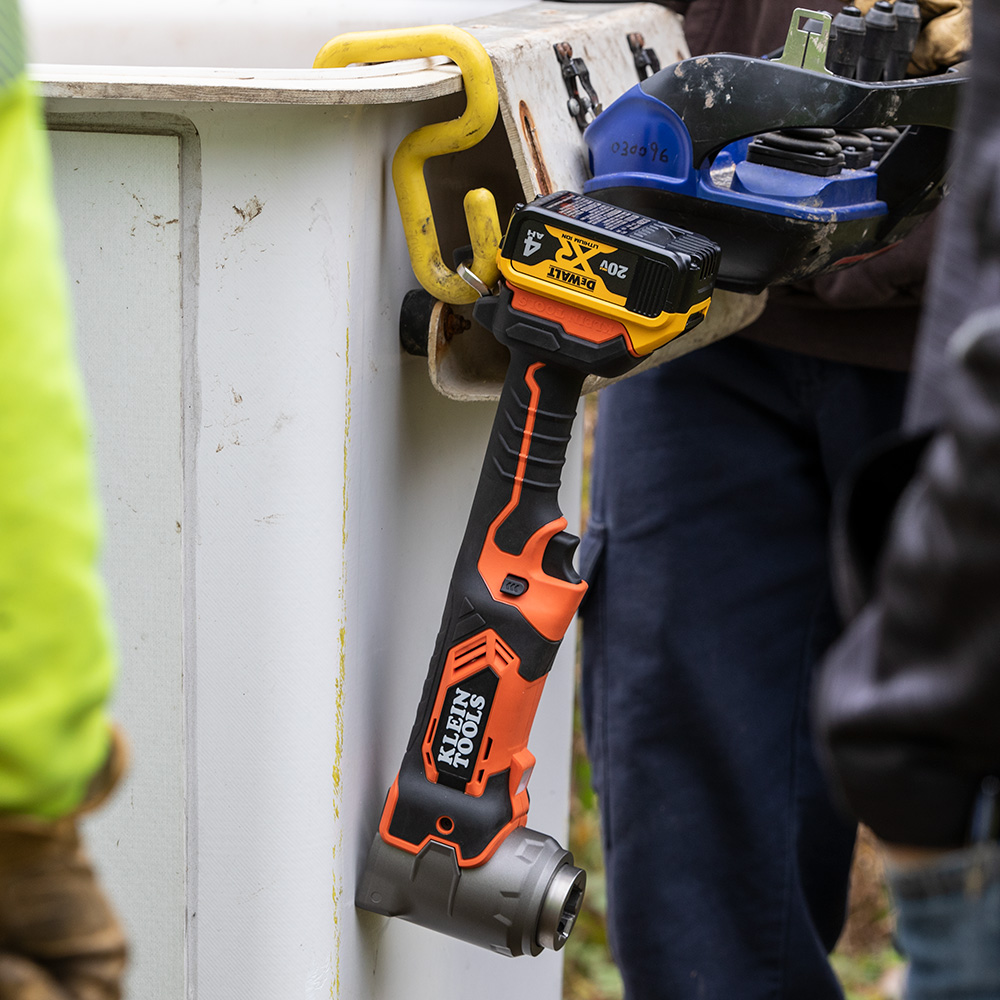

• DeWALT 20V 4 Ah Lithium-ion Batteries
• Engineered and designed by Klein Tools in the USA

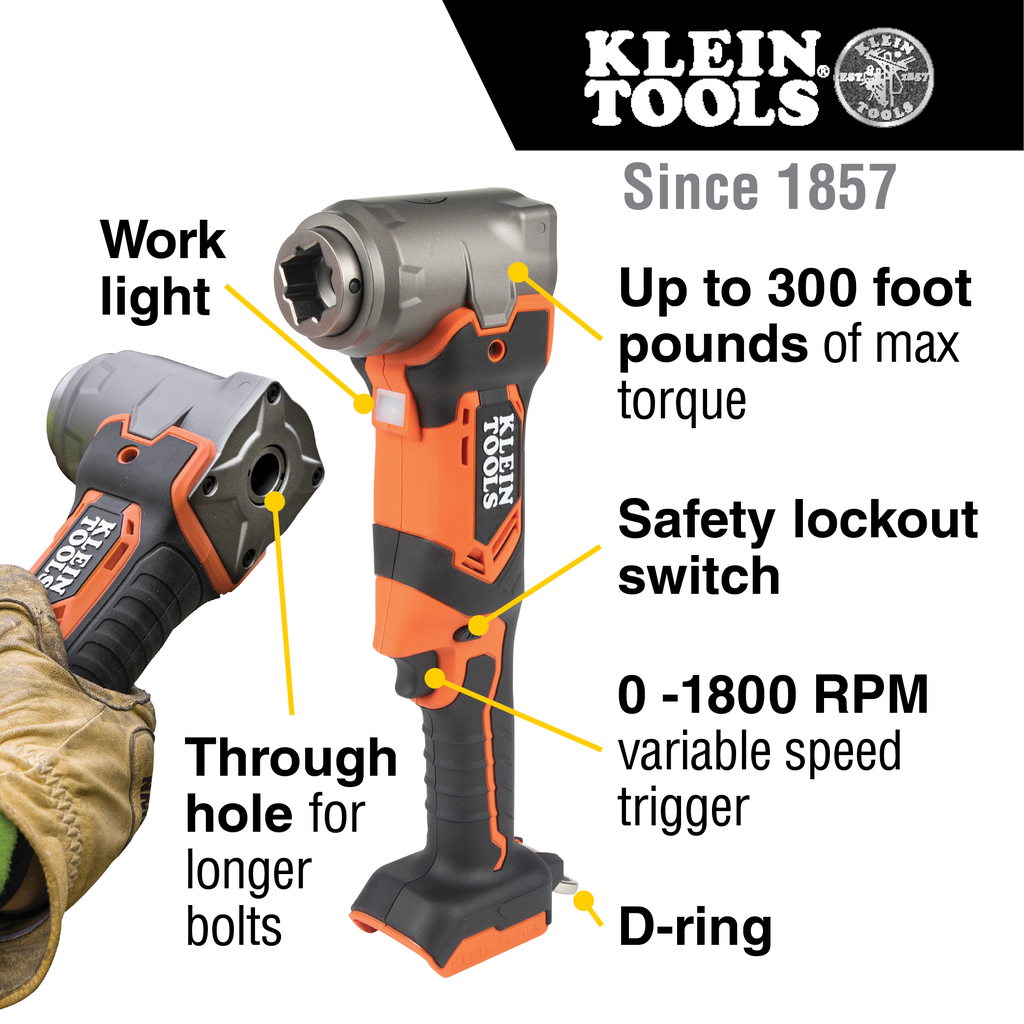

• Work light illuminates darker spaces

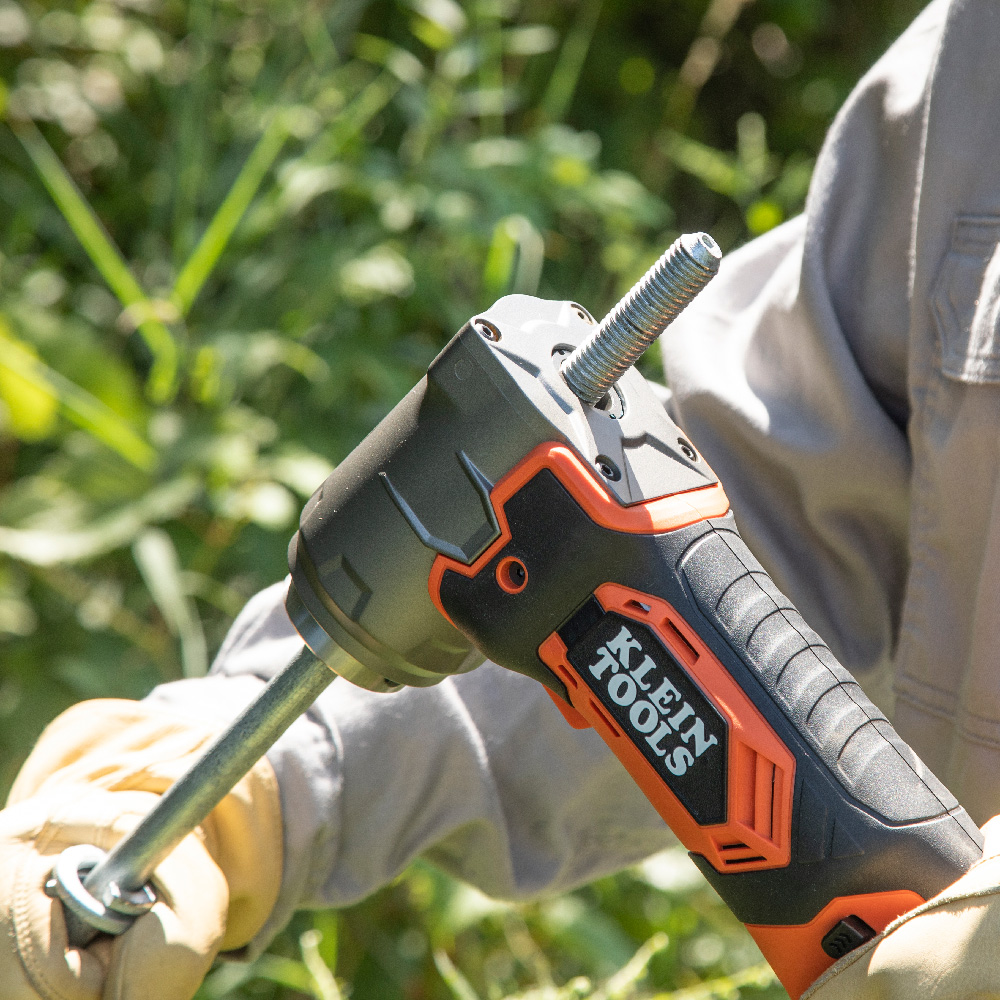

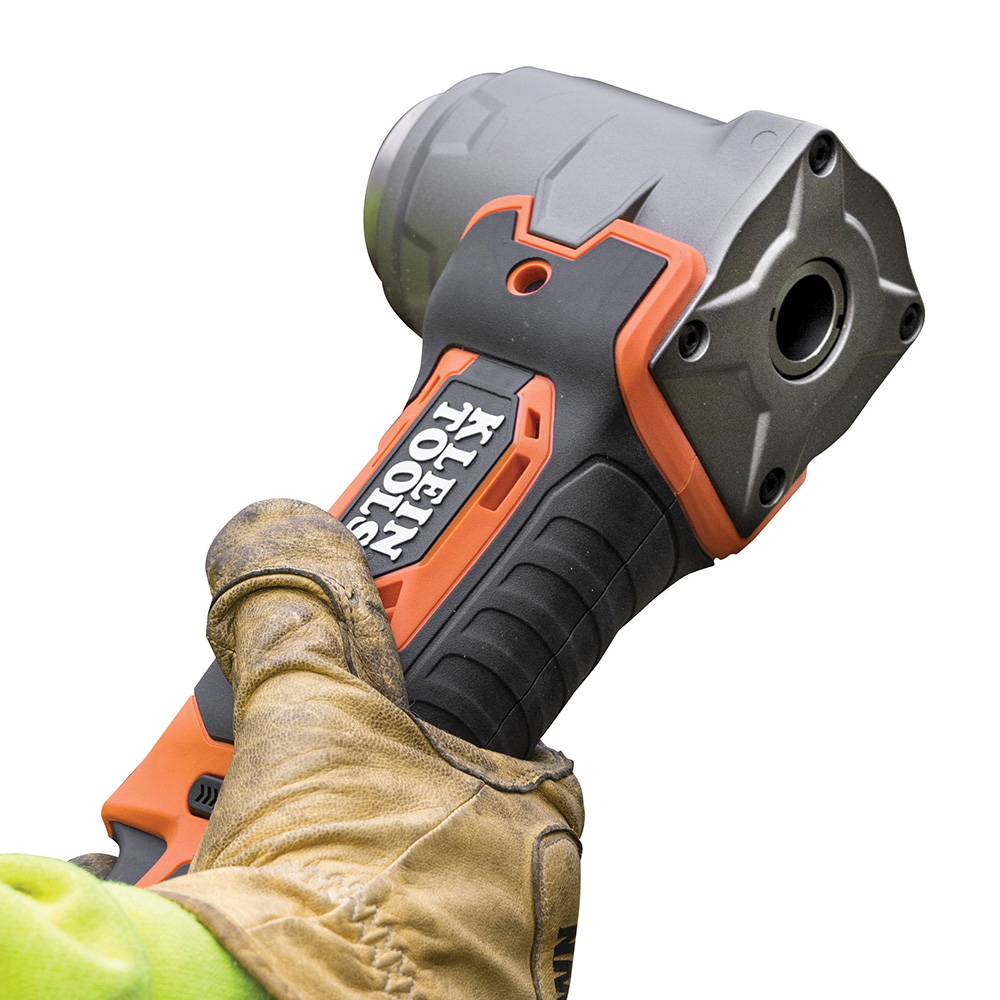

• Patent pending through hole design for longer bolts

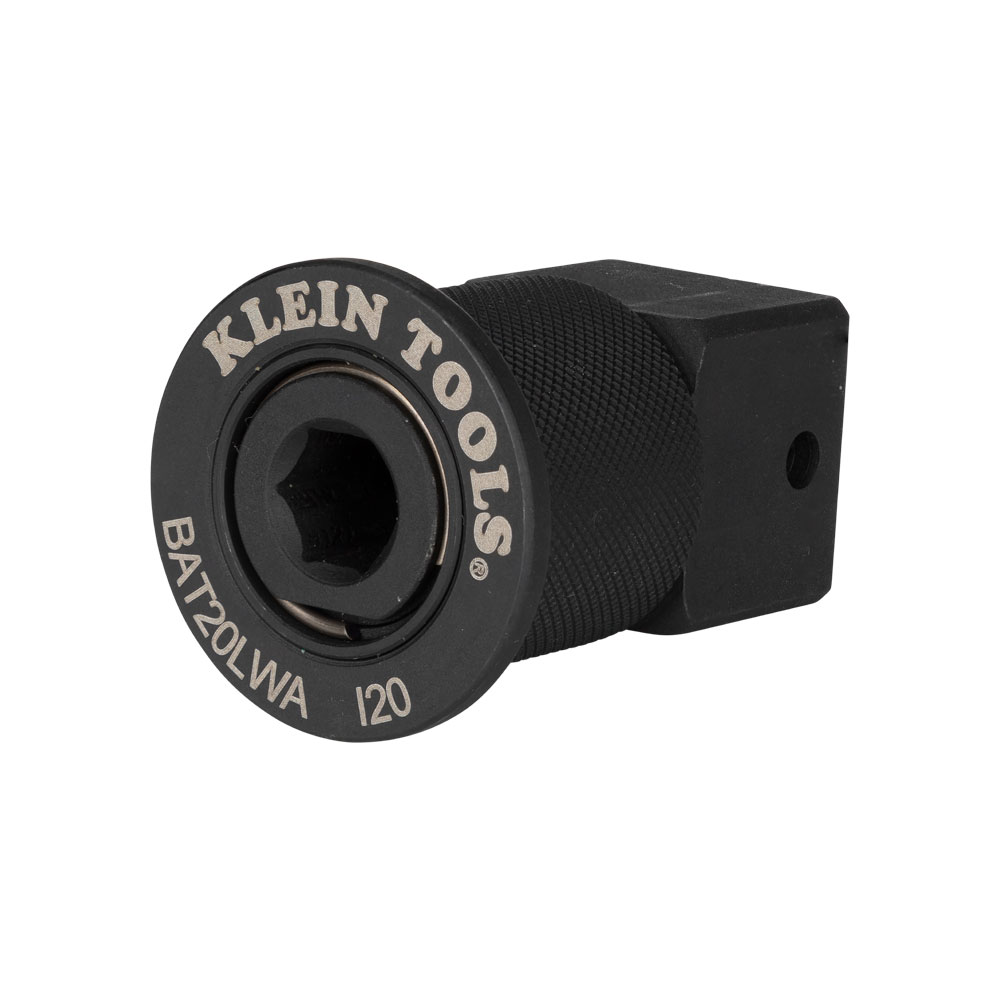

• 7/16-Inch Quick Connect Adapter works with drill bits, sockets and other accessories for added versatility

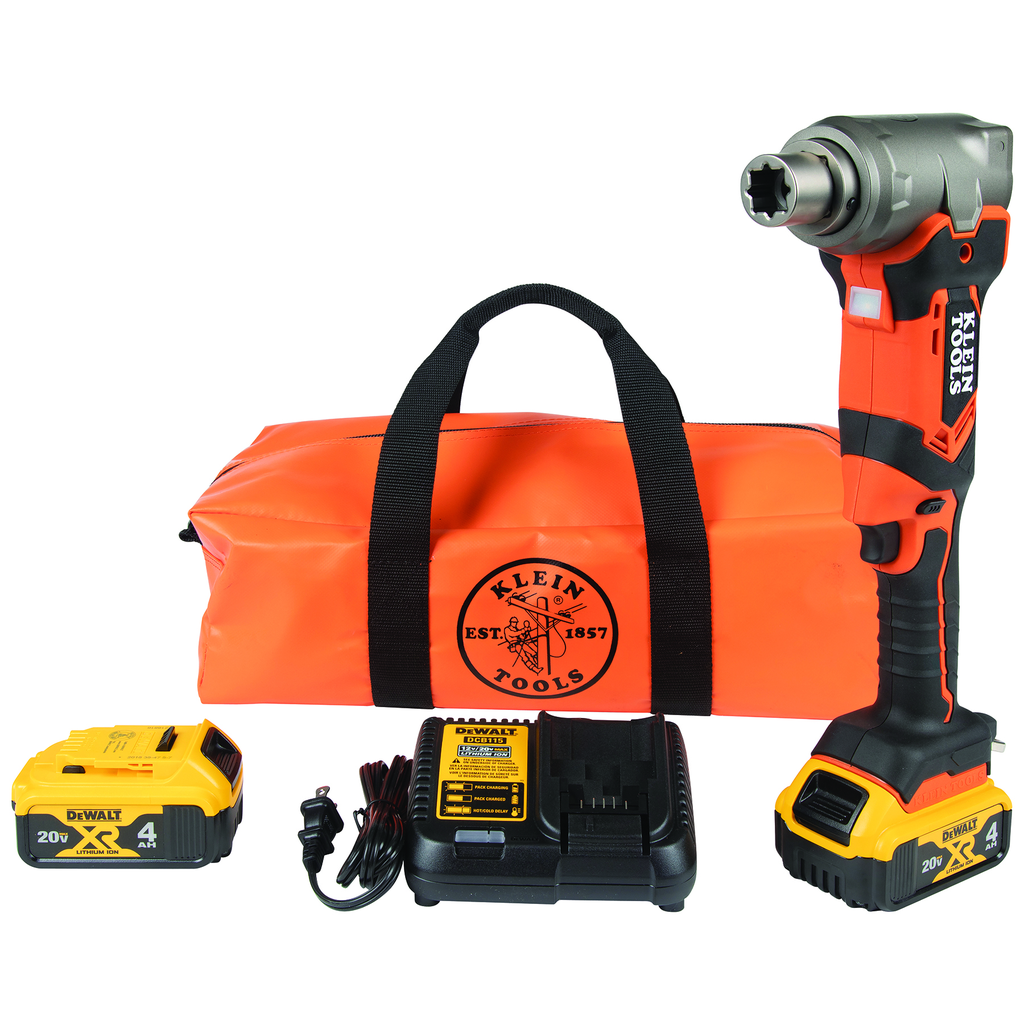

• Includes adapter, batteries, charger and bag
• Powered by DeWALT 20V lithium-ion batteries

Warnings

• Always use approved eye protection.
• Not insulated. Will not protect against electrical shock.
• Do not use to pry or chisel.

• Torque: 300 ft-lb
• Max Speed: 1800 RPM
• Impacts per Minute: 0 - 1800
• Drive Size: 1-1/8 in, 1 in, 13/16 in, 3/4 in Square
• Voltage: 20V Lithium-Ion
• Battery Type: Lithium-Ion 20V, 4 Ah
• Number of Batteries: 2
• Battery Weight: 1.4 lb (630.4 g)
• Overall Length: 11.75 in (30 cm)
• Overall Width: 6.6 in (17 cm)
• Overall Height: 18.75 in (48 cm)
• Weight: 11.45 lbs
• Handle Type: In-Line
• Material: ABS, PA6, GF, TPE
• Brushless Motor: Yes
• Country of Origin: Taiwan
