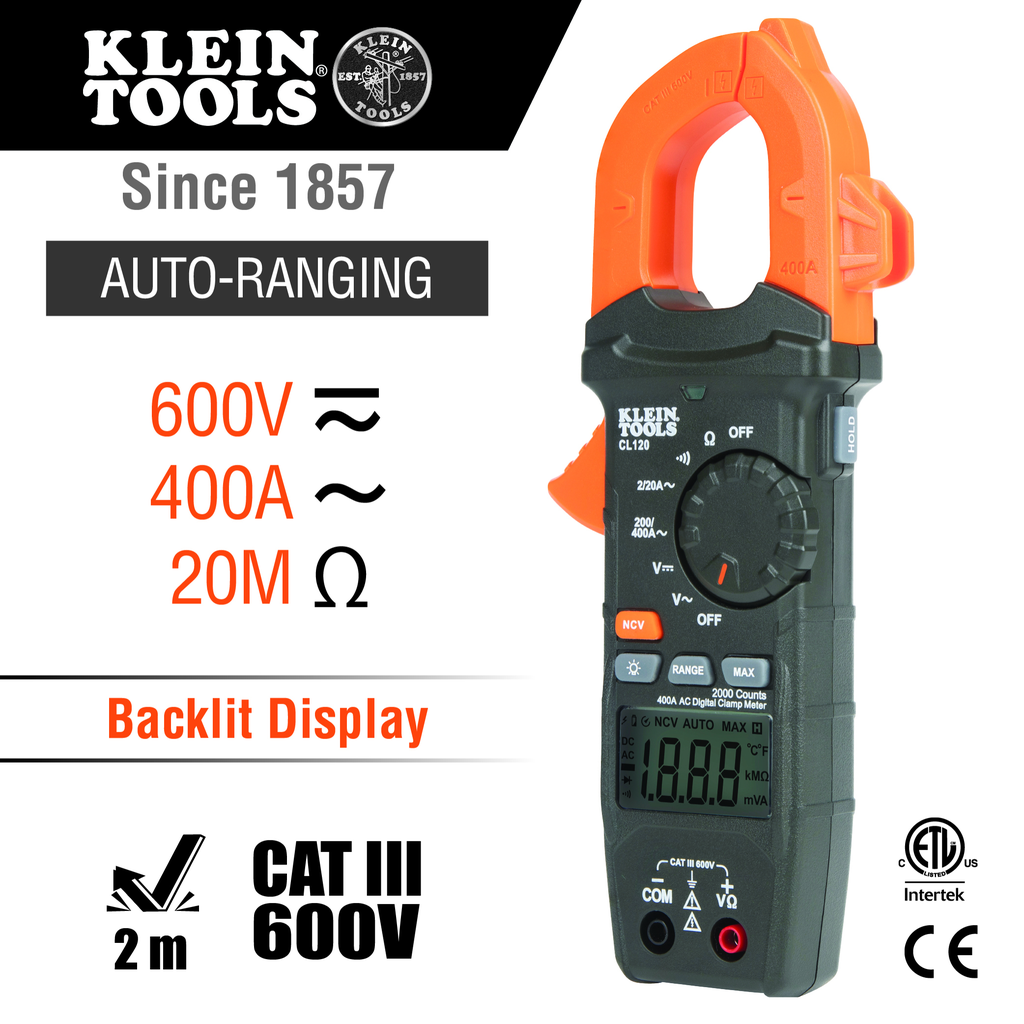

Digital Clamp Meter, AC Auto-Ranging 400 Amp

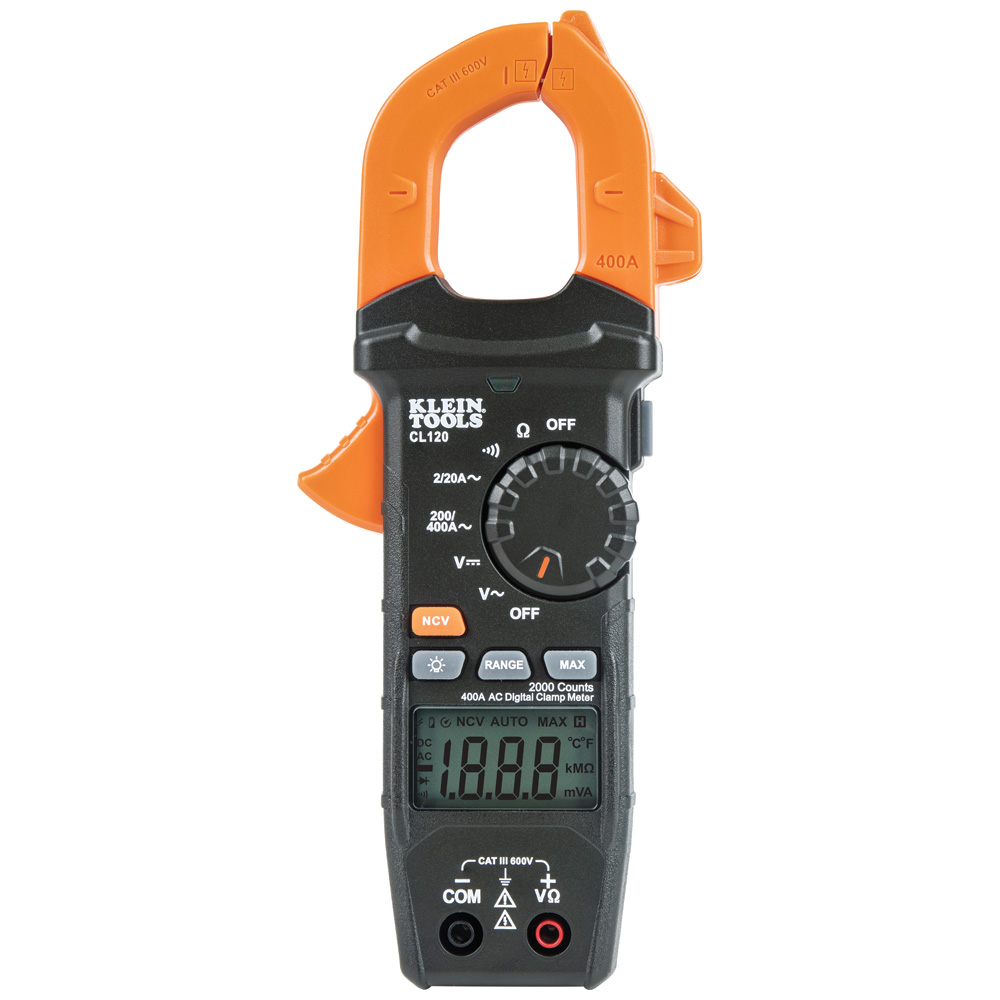

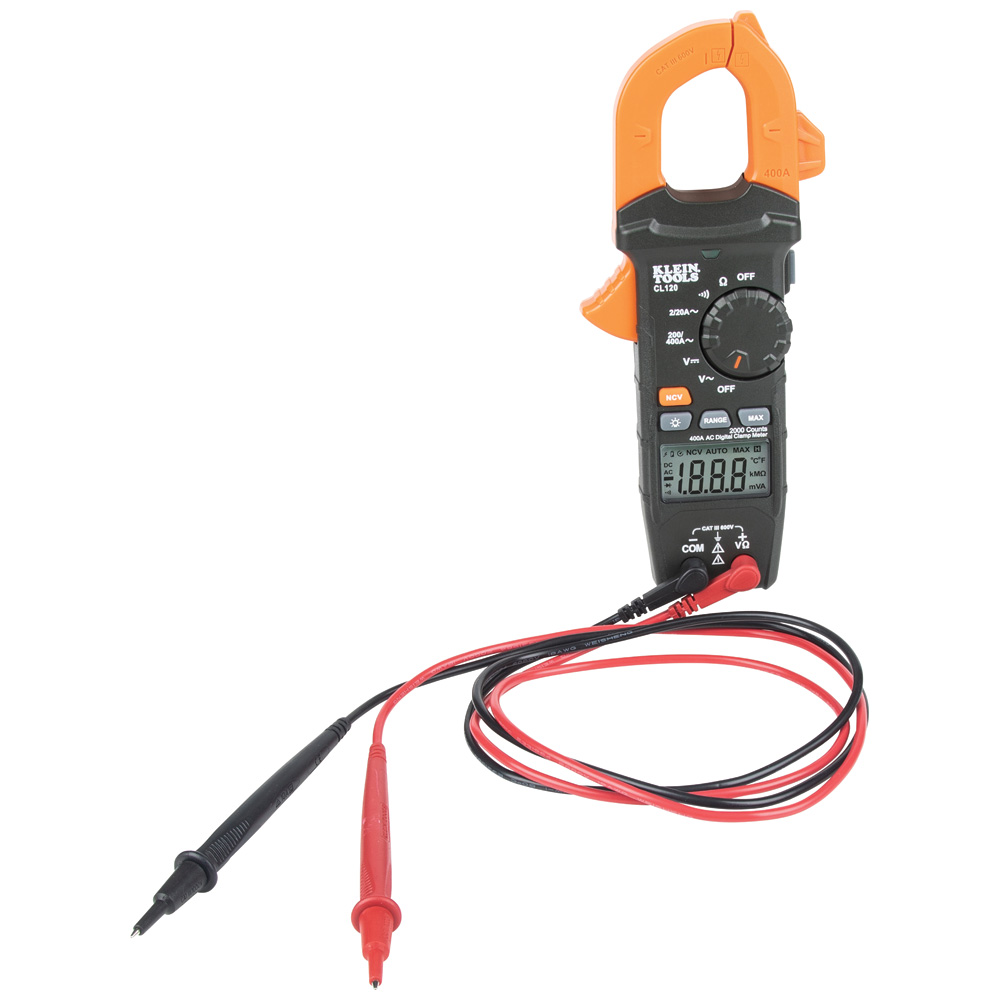

Klein Tools CL120 Clamp Meter is an automatically ranging digital clamp-meter that measures AC current and NCVT via the clamp, and AC/DC voltage, resistance and continuity via test-leads. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with time-saving features.

Features

• Auto-Range, Hold, Data Hold, and Max value
• Non-contact voltage tester integrated into the clamp jaw
• CAT III 600V, Class 2, Double insulation safety rating

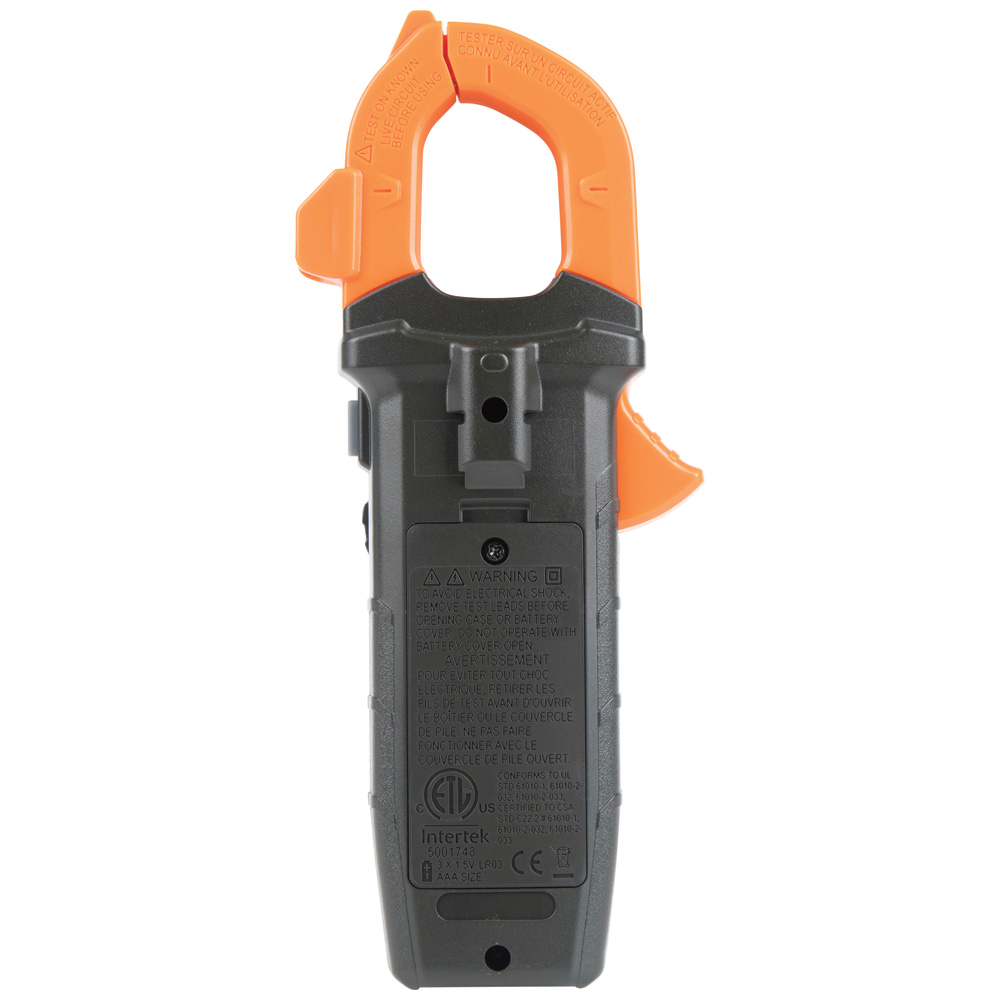

• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands-free operation
• Built to withstand a 6.6-Foot (2 m) drop
• Auto-power off after 10 minutes to conserve battery life
• Durable, multifunction meter
• Backlit LCD for ease of viewing in low light

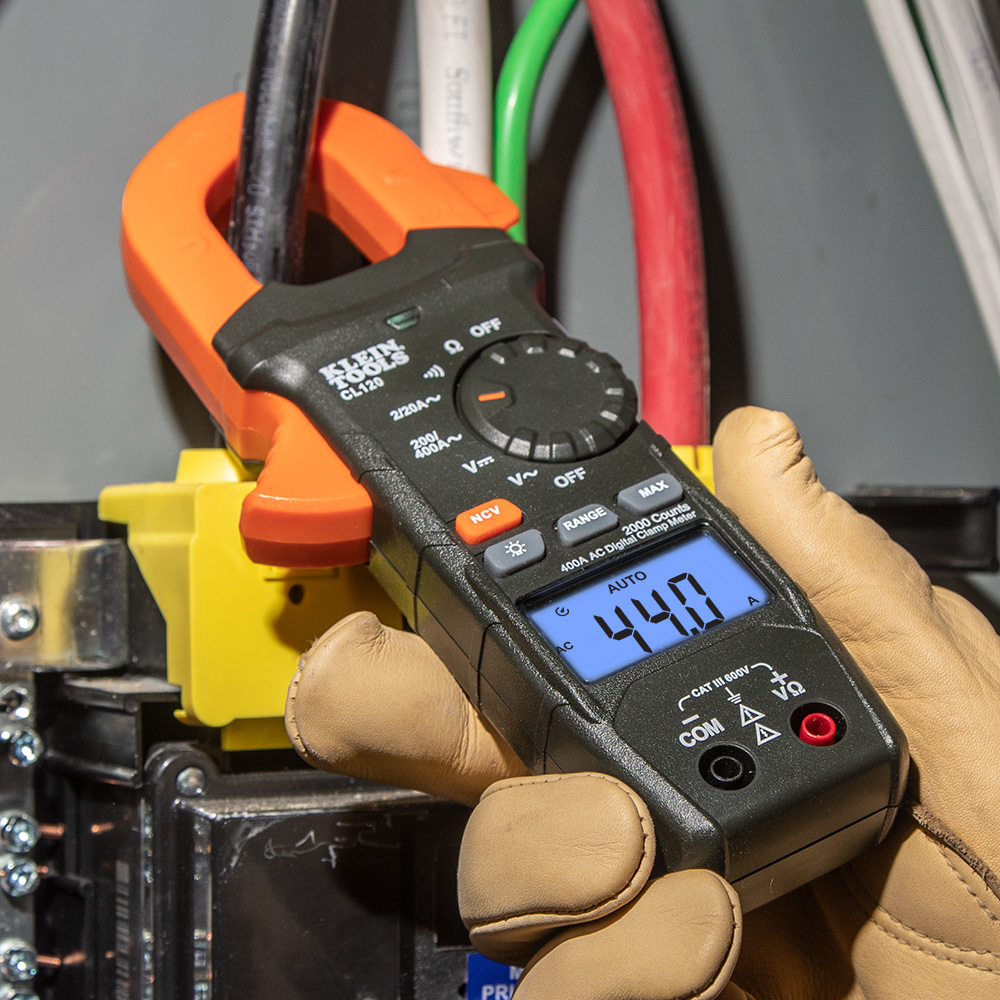

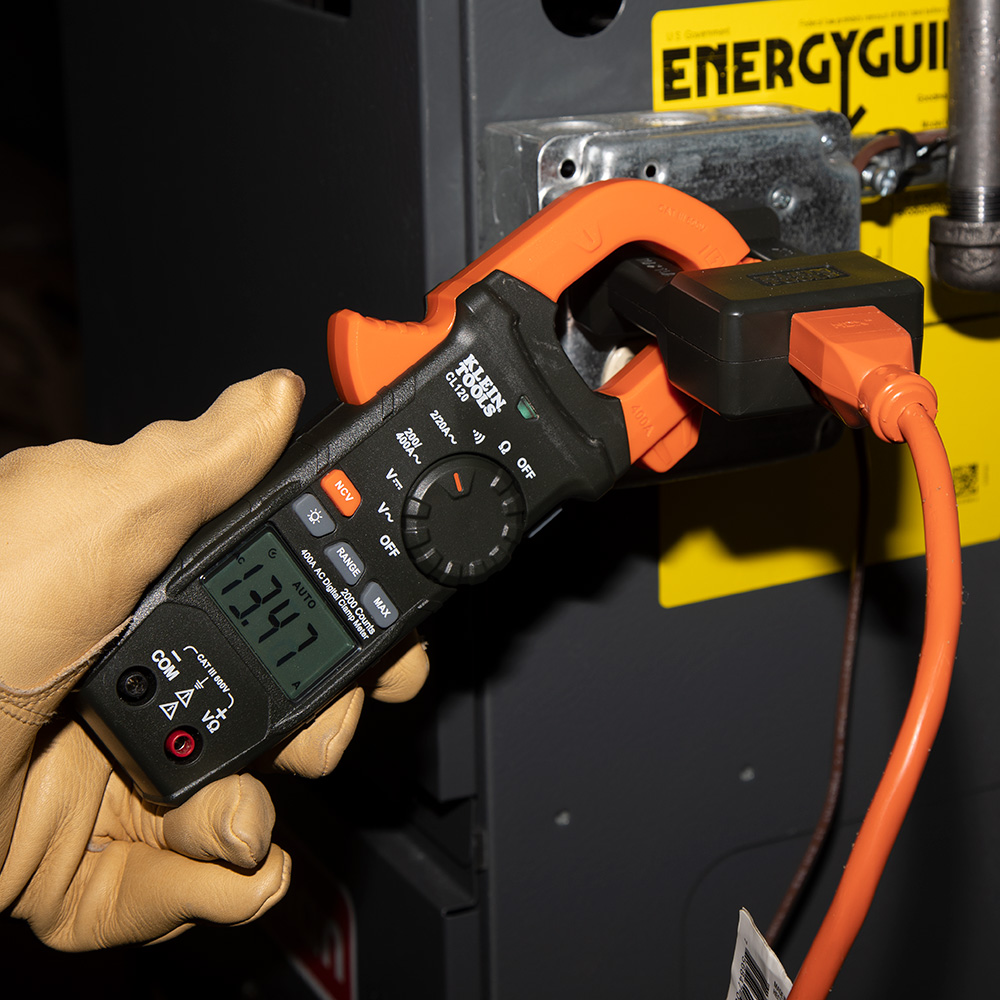

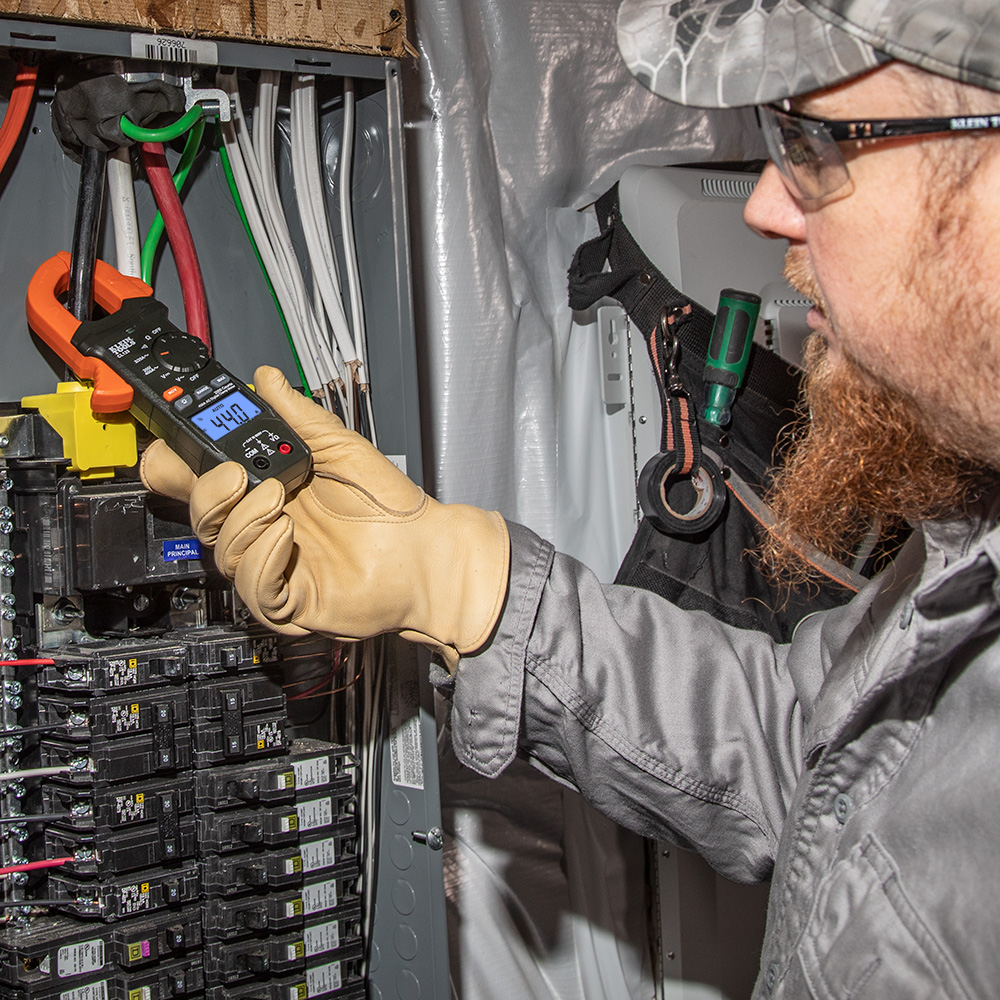

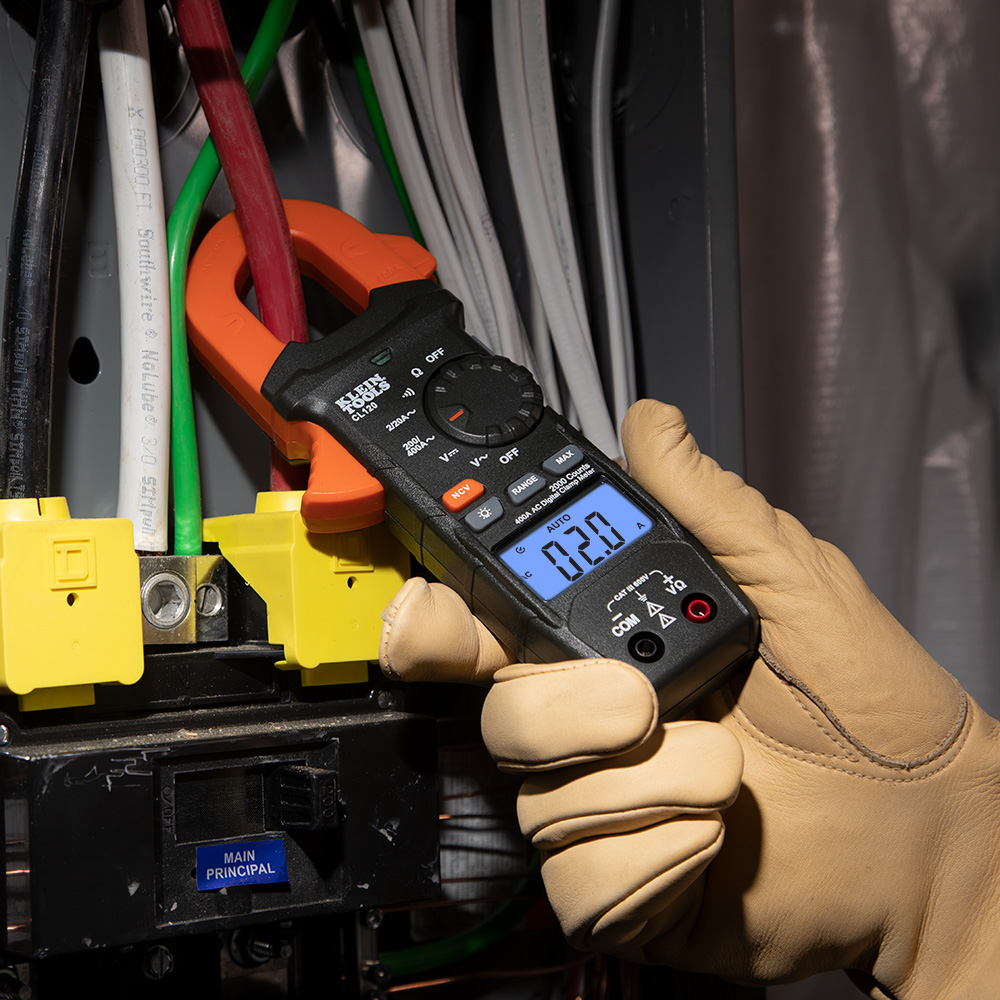

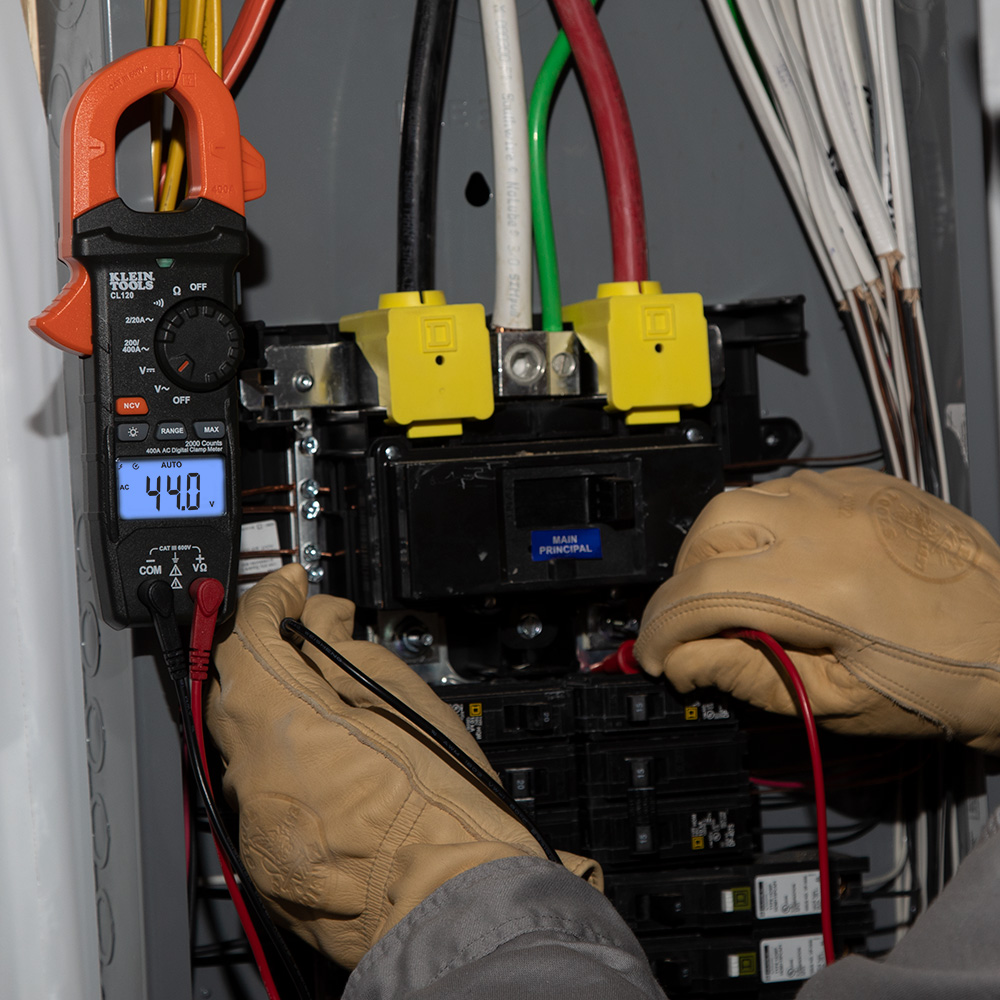

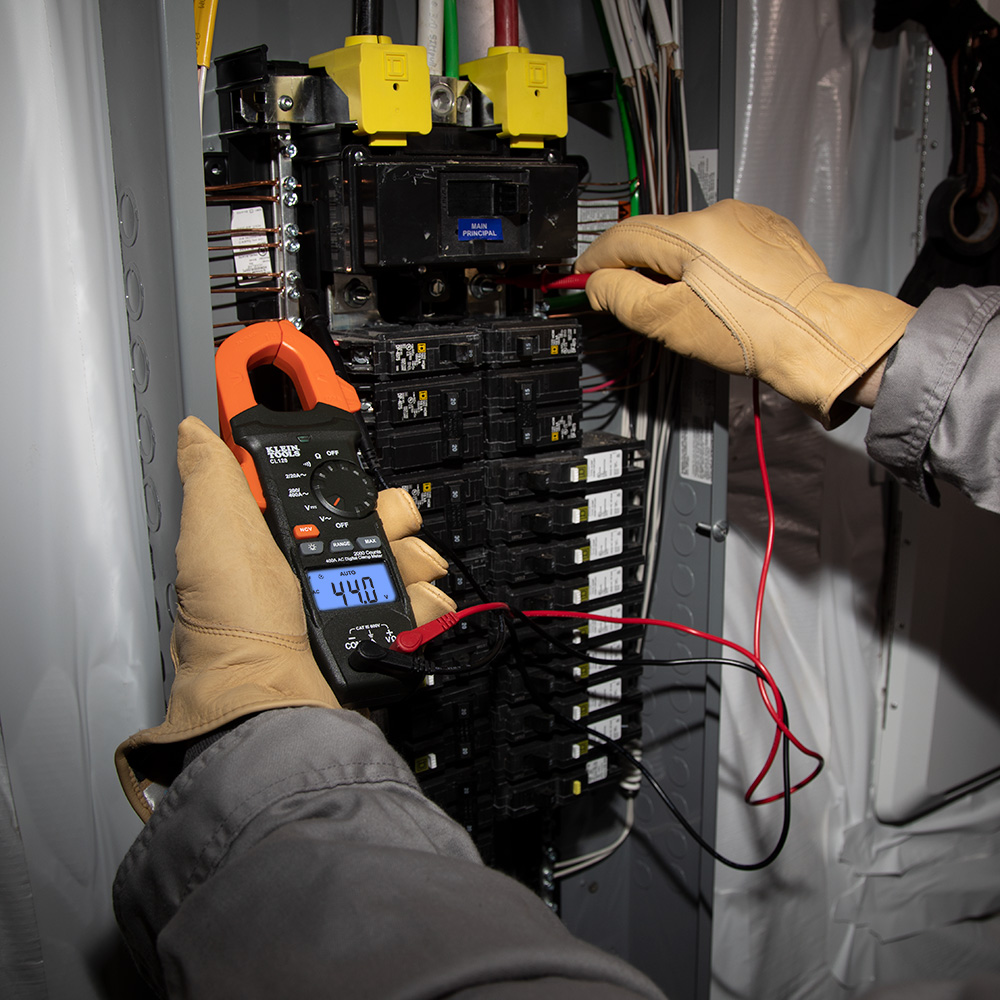

• Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test-leads
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Auto ranging measurements

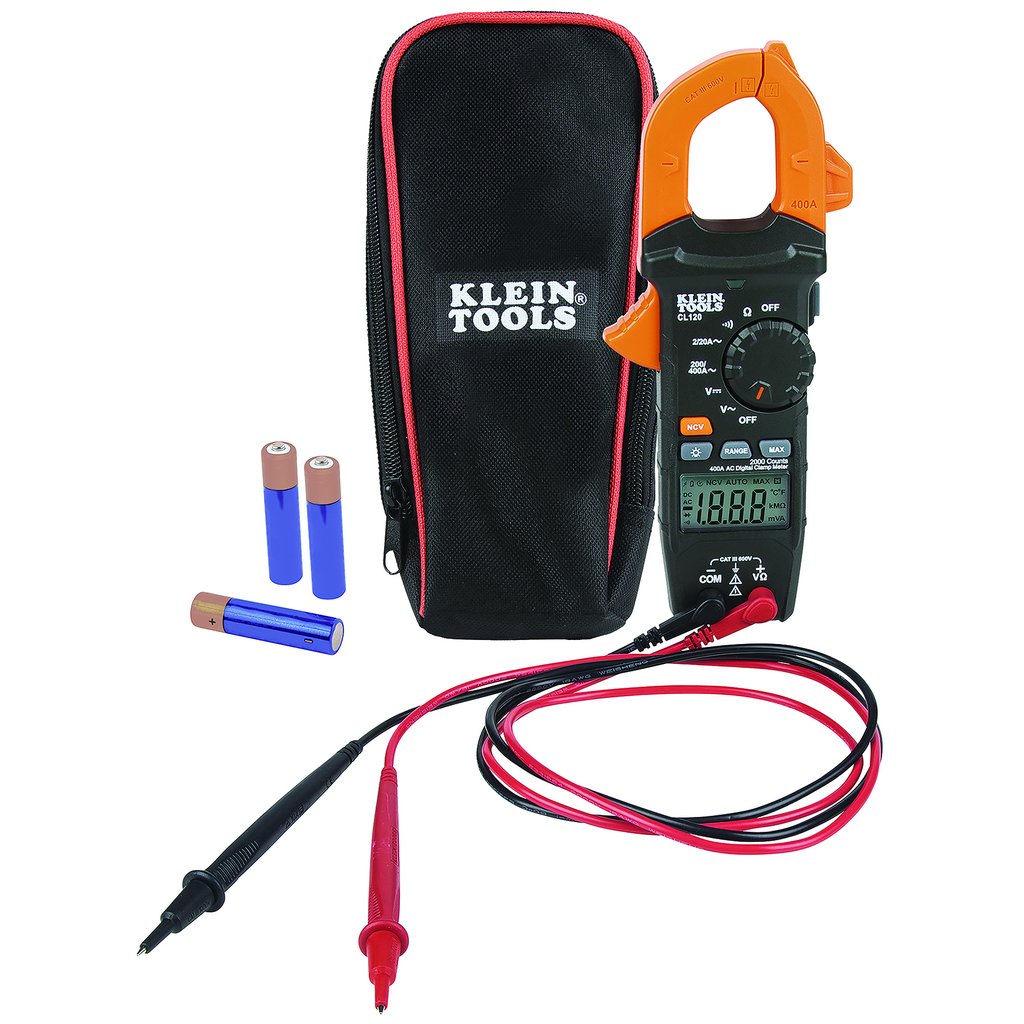

• Includes a carrying case, test leads with CAT III/CAT IV safety caps, Instructions, and 3 x AAA batteries
• Low battery indicator and easily accessible battery compartment
• Automatic Ranging for Measurement; NCVT

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not attempt to measure resistance or continuity on live circuits.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

• Overall Height (cm): 3.8
• Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-Leads
• Weight: 0.6140 lbs
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
• Depth: 8.4500 in
• DC Voltage: 600V
• Drop Protection: 6.6' (2 m)
• Functions: AC Current, NCVT, AC/DC Voltage, Resistance and Continuity
• Batteries: 3 x AAA
• Material: ABS/Electronics
• Overall Length (Inch): 8.45
• Auto-Power Off: Yes
• Overall Width (Inch): 3.5
• Included: Clamp Meter; Carrying Case; Instructions; Test Leads; and Batteries
• Width: 3.5120 in
• Current: 400 A AC
• AC Voltage: 600V
• Height: 1.5060 in
• Jaw Size (cm): 4.1
• Overall Width (cm): 8.9
• Voltage: 600V AC/DC
• Overall Height (Inch): 1.5
• Type: Auto Ranging Clamp
• Overall Length (cm): 21.5
• Accuracy: +/-1.0 + 3 digits
• Ohms (Resistance): 20MO
• DC Polarity Indicator: Yes
• Jaw Size (Inch): 1.6
• Display: 2000 Count Backlit LCD
