Clamp Meter Electrical Test Kit

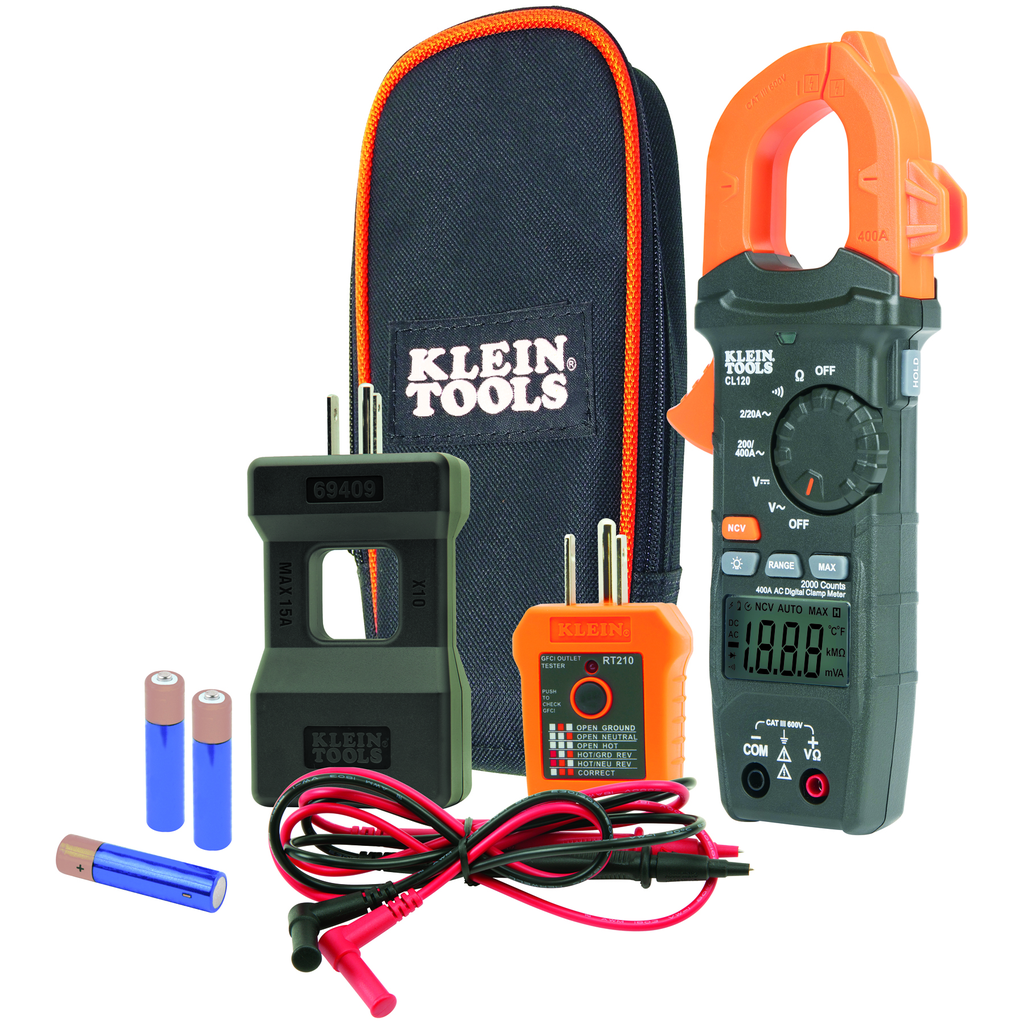

Klein Tools Clamp Meter Electrical Test Kit includes the CL120 400A Auto-Ranging Digital Clamp Meter, RT210 GFCI Receptacle Tester and 69409 Line Splitter 10x. The Electrical Test Kit allows for easy testing of live circuits and measuring of current and voltage. Included is a carrying pouch, test leads and batteries.

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not attempt to measure resistance or continuity on live circuits.

Features

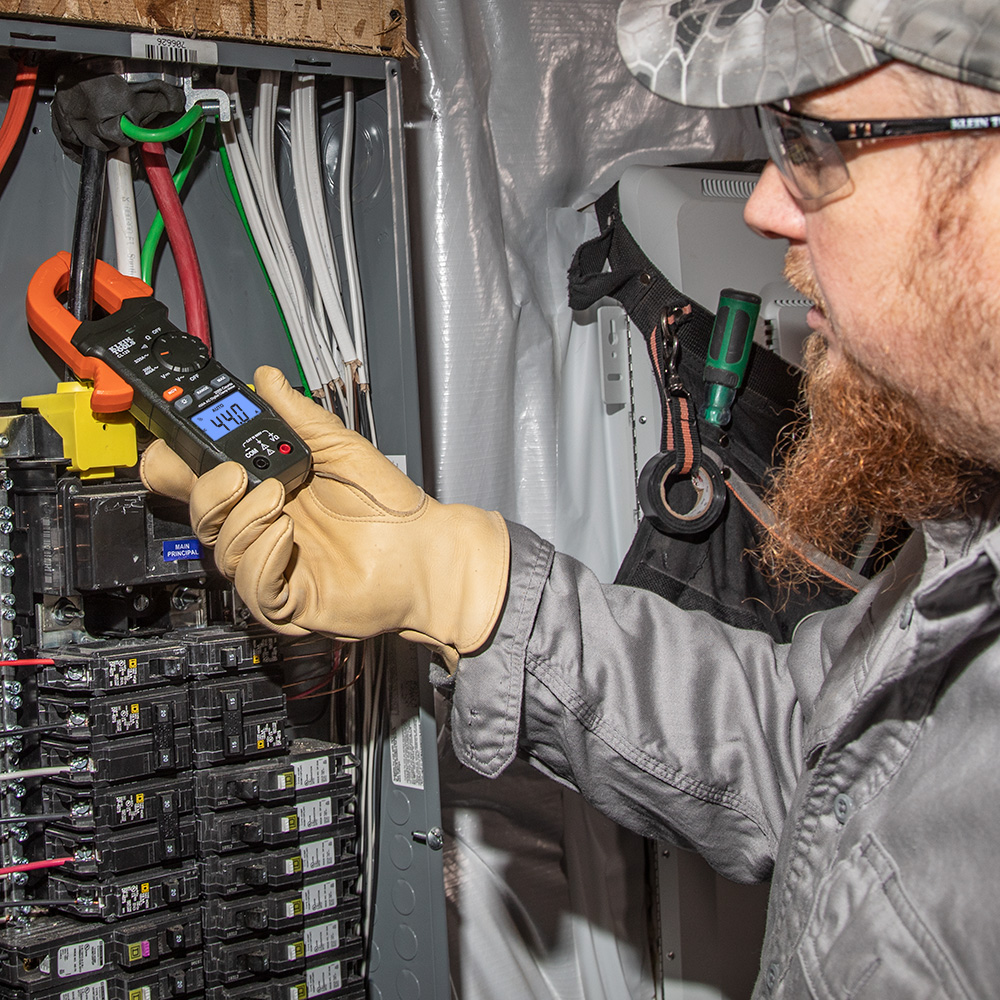

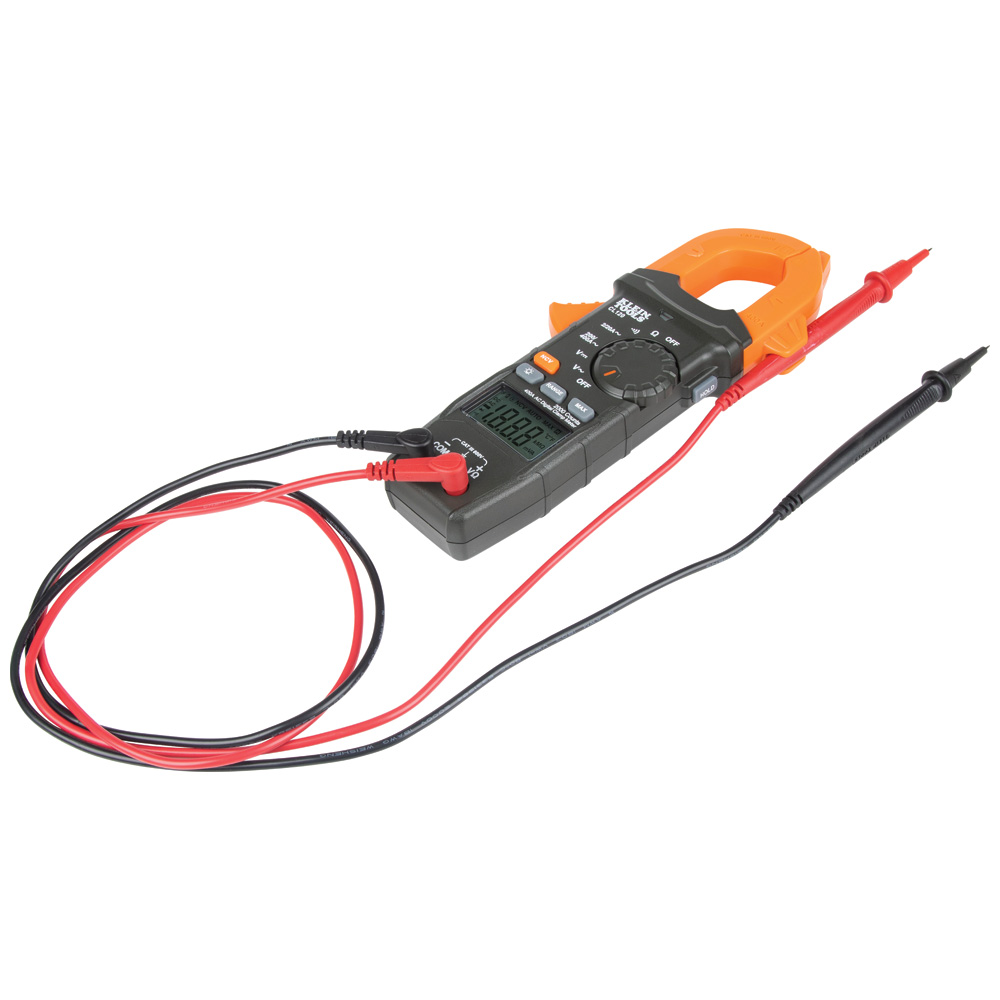

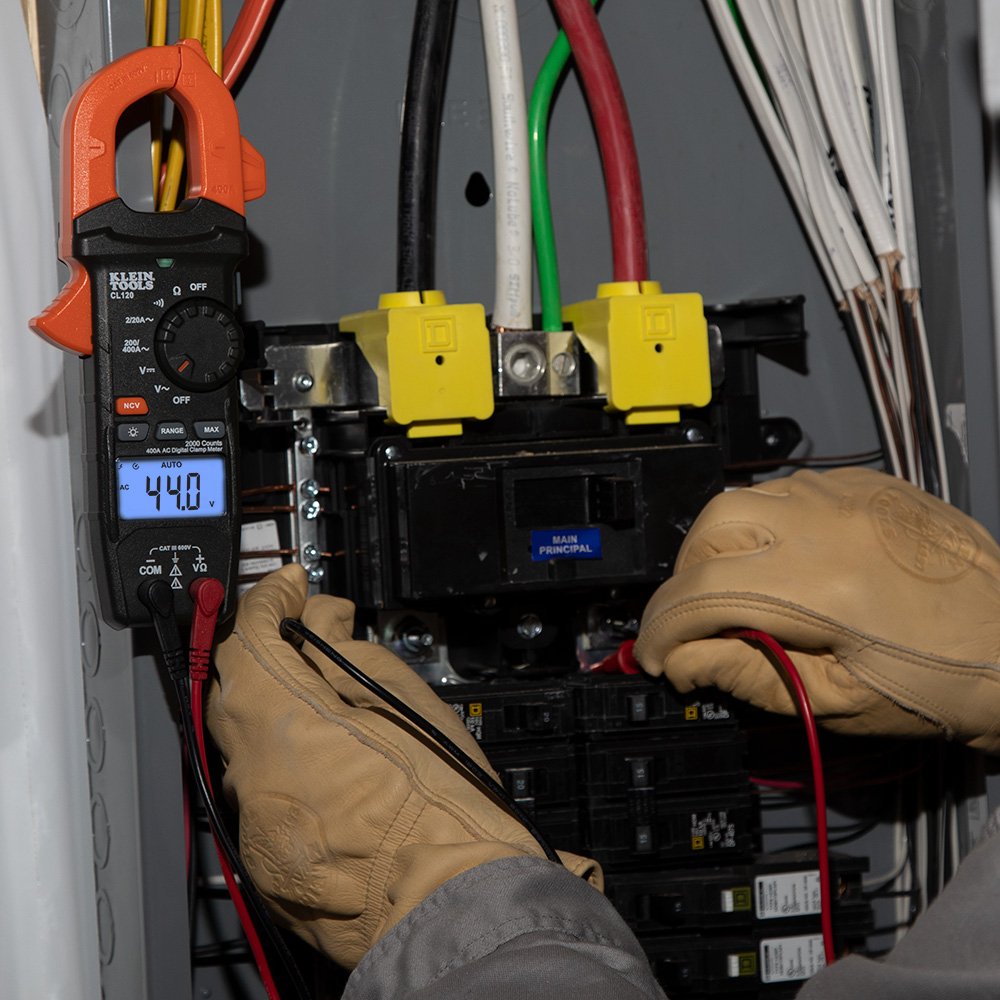

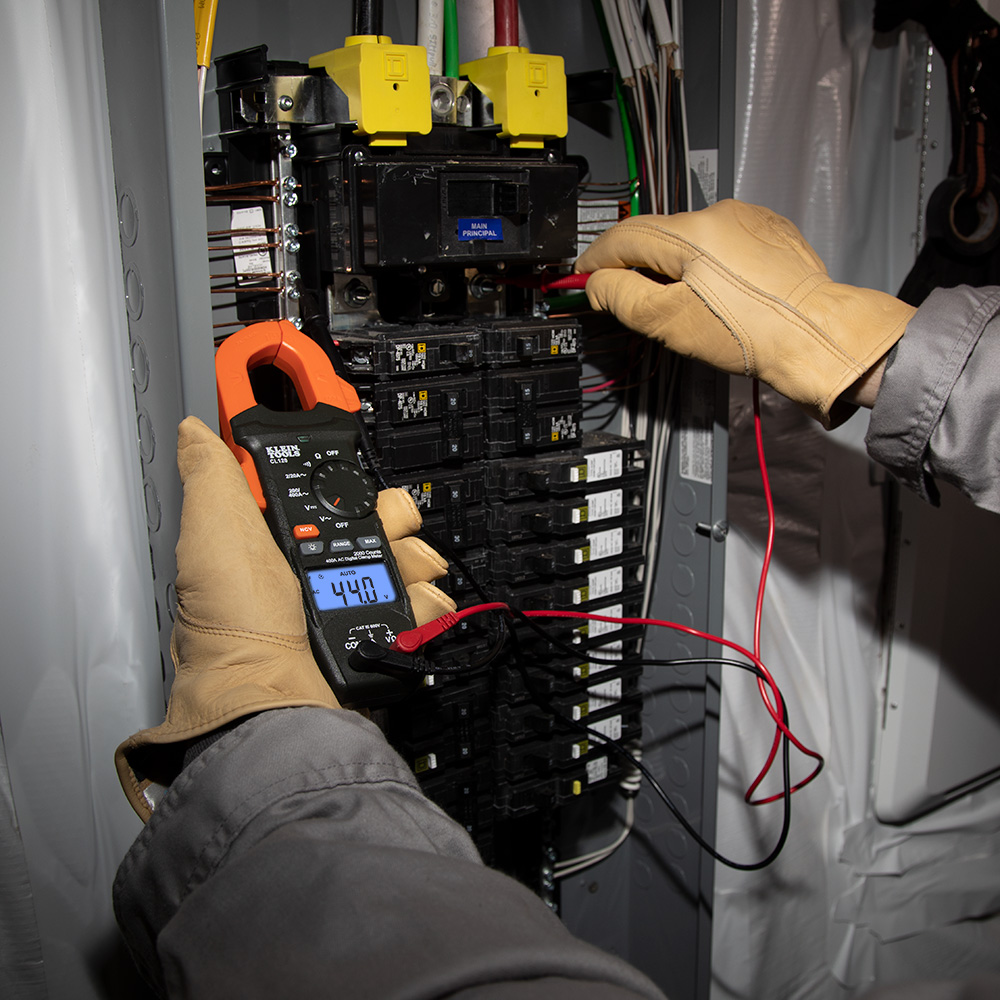

• Measure AC current via the clamp, and AC/DC voltage, resistance and continuity via test leads
• Backlit Display For Clear Readings

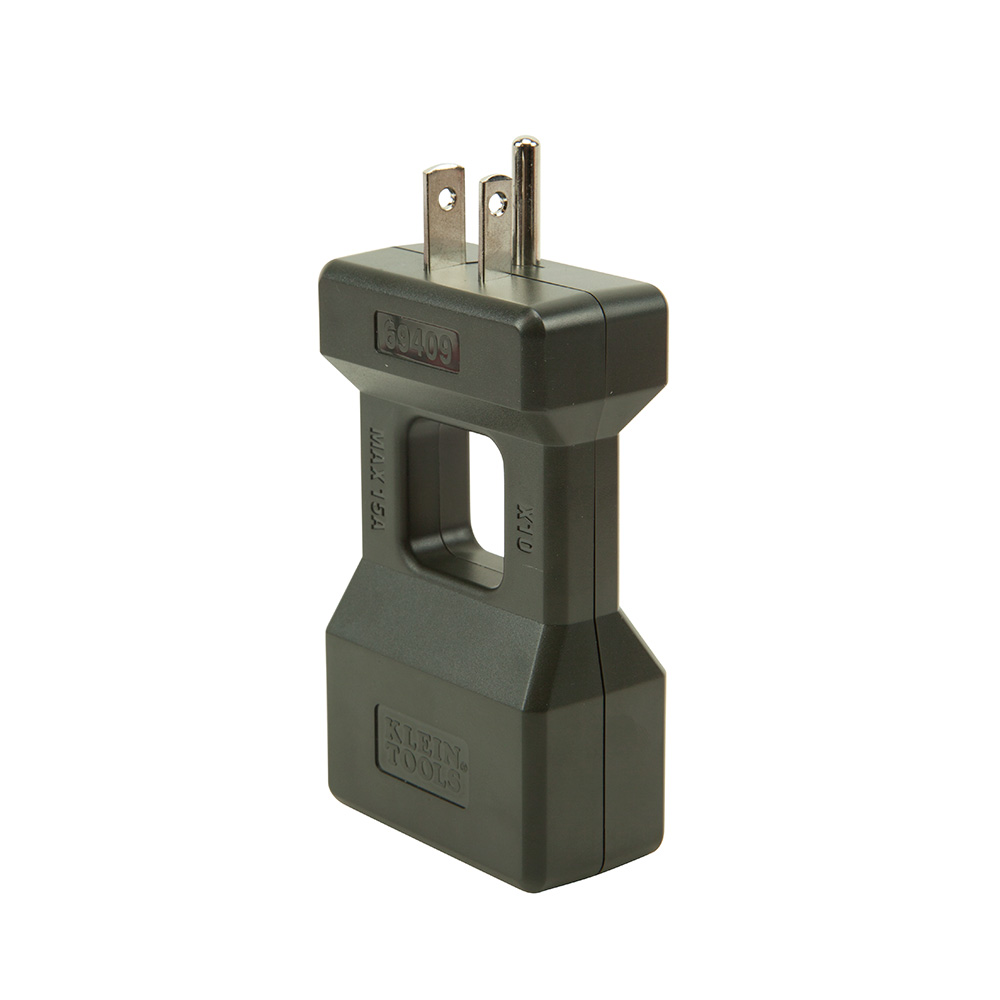

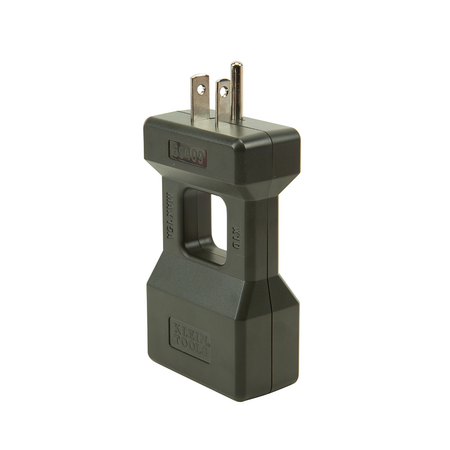

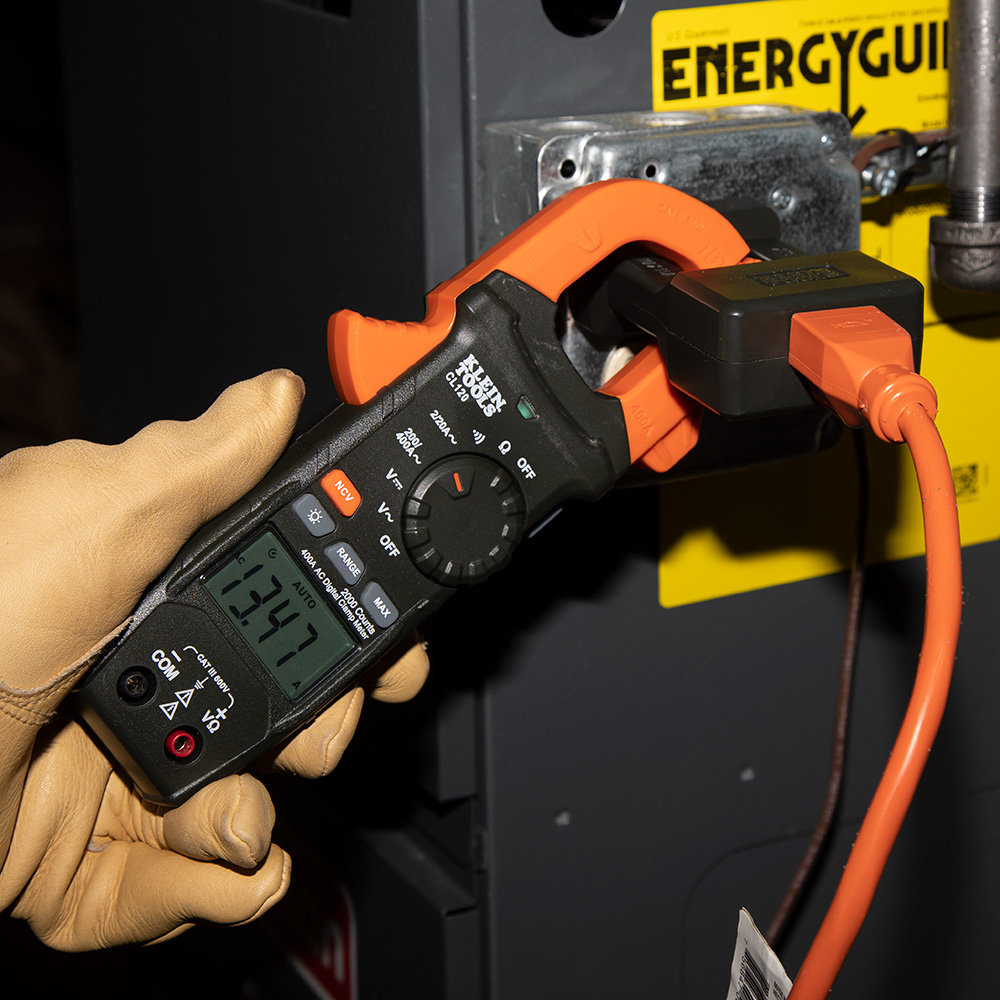

• Line splitter allows the measuring of current draw up to 15A without splitting the load's power cord
• CAT III 600V, Class 2, Double insulation safety rating

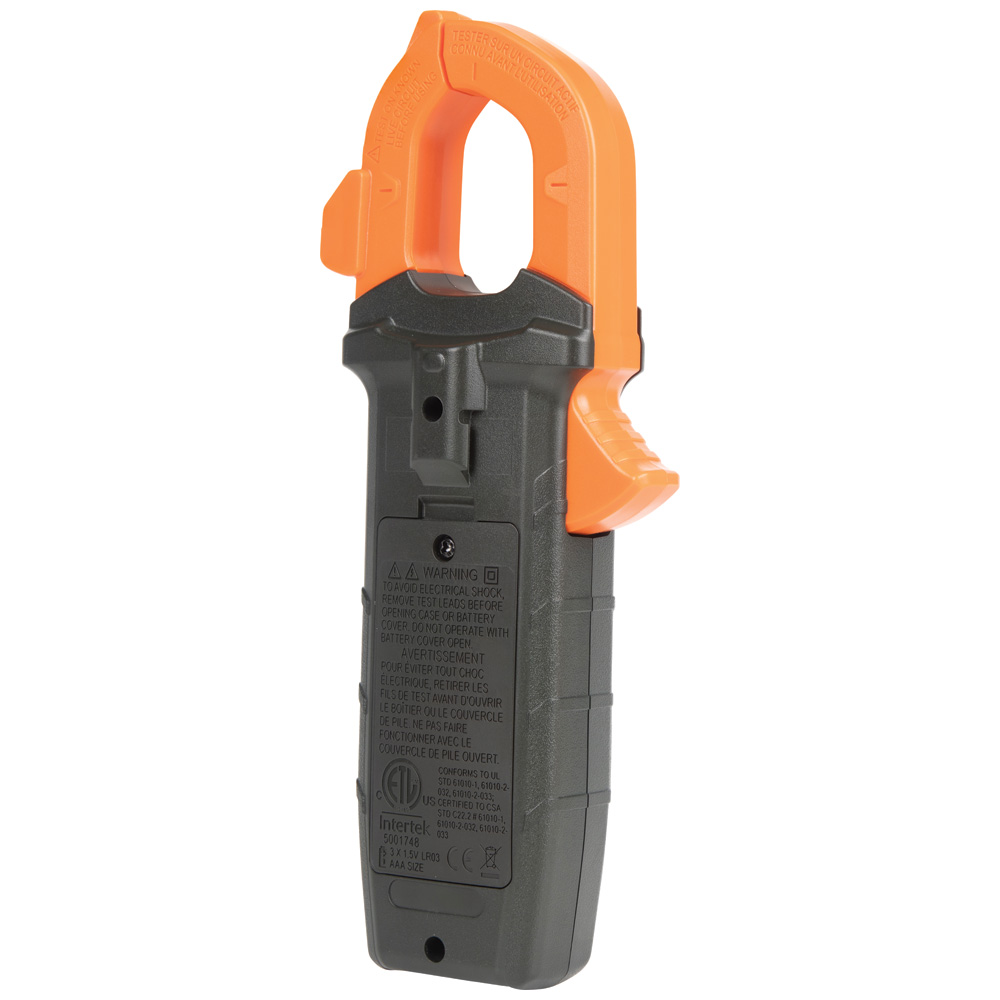

• AC Auto-Ranging 400 amp digital clamp meter

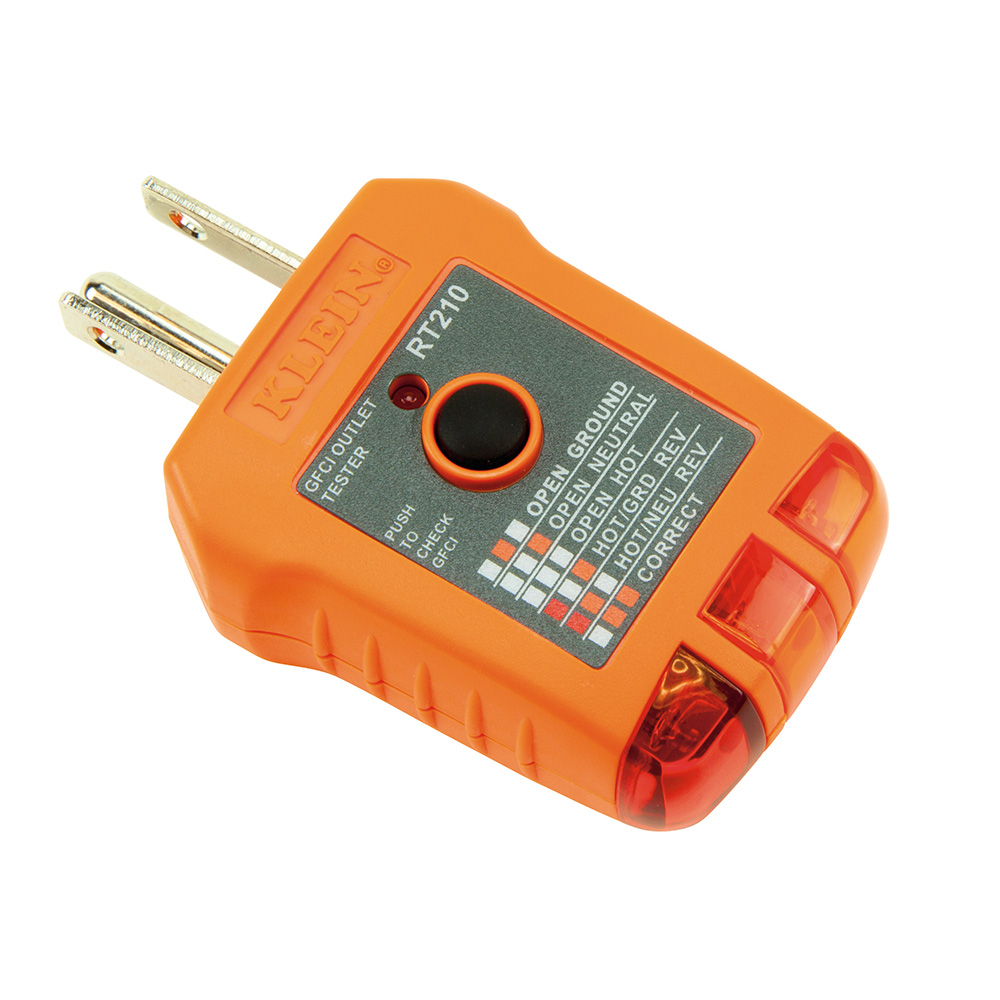

• Detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed
• Includes a case, test leads and batteries
• Backlit display for clear readings

Specifications

• Weight (oz): 15
• Batteries: 3 x AAA
• Width: 7.0100 in
• Jaw Size (Inch): 1.61
• Included: CL120 Digital Clamp Meter with Test Leads; 69409 Line Splitter 10x; RT210 GFCI Receptacle Tester; Carrying Pouch; Instructions; and All Required Batteries
• Display: 2000 Count Reverse Contrast LCD
• Depth: 11.9700 in
• Application: Testing and Measuring Voltage
• Drop Protection: 6.6' (2 m)
• Pollution Degree: 8.7" (22.1 cm)
• Standard: CAT III 600V
• Overall Width (cm): 4.1
• Overall Height (Inch): 8.7
• Overall Height (cm): 22.1
• Jaw Size (cm): 4.1
• Height: 2.8100 in
• Weight (g): 425
• Material: ABS/Electronics
• Voltage: 600 V AC/DC
• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, and Continuity
• Overall Length (Inch): 3.02
• Weight: 1.5750 lbs
• Type: Clamp Meter Kit
• Overall Length (cm): 7.7
• Overall Width (Inch): 1.61

Downloads

Instructions
