Digital Clamp Meter, Non-Contact Voltage Tester Electrical Test Set

The CL120VP Electrical Test Kit from Klein Tools is designed with optimum reliability and safety in mind. Kit comes with 1 meter and 3 testers for a variety of applications and all stored within a convenient padded pouch. The CL120 is an AC auto-ranging 400 Amp AC/DC digital clamp meter. The RT210 Receptacle Tester detects common wiring problems for Standard and GFCI AC electrical outlets. The NCVT-3P is a dual range non-contact tester with flashlight for a broad variety of voltage applications from 12 to 1000V AC or 70 to 1000V AC. Test AC and DC voltage at four commonly used ranges with the ET40 Voltage Tester.

Features

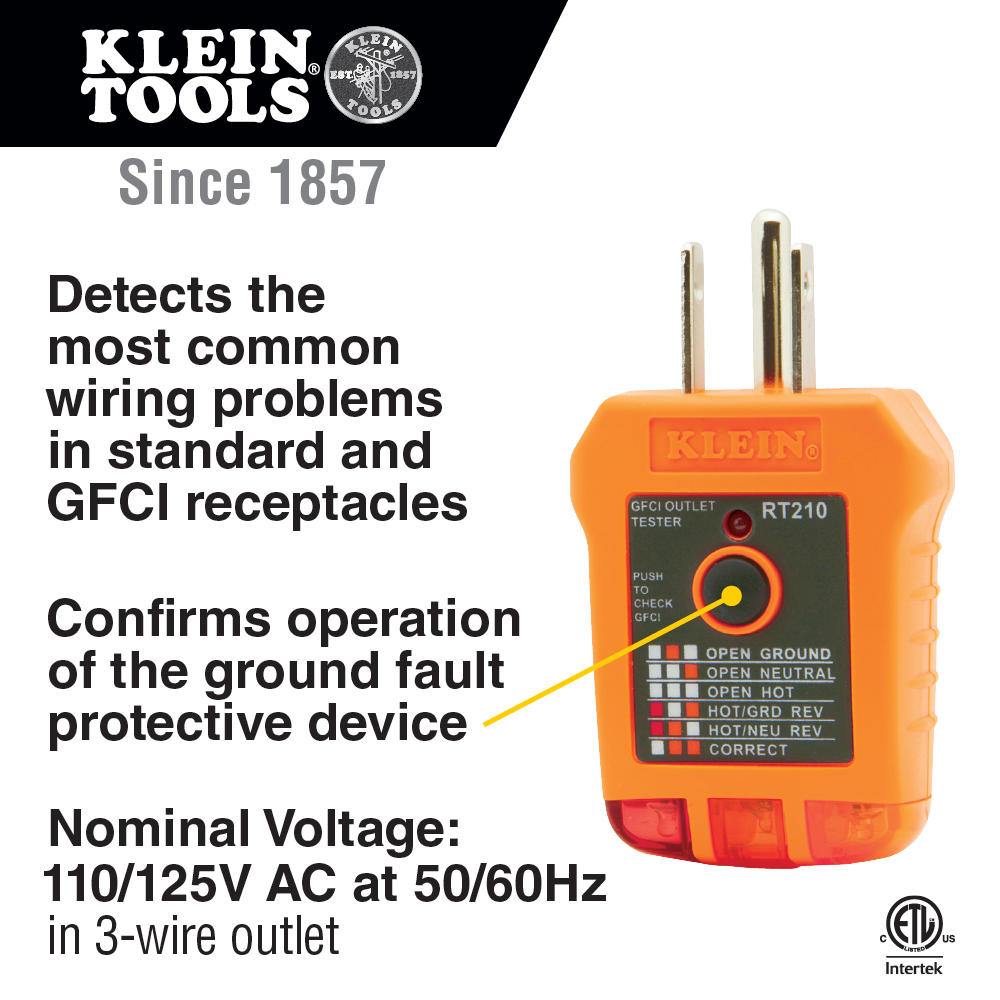

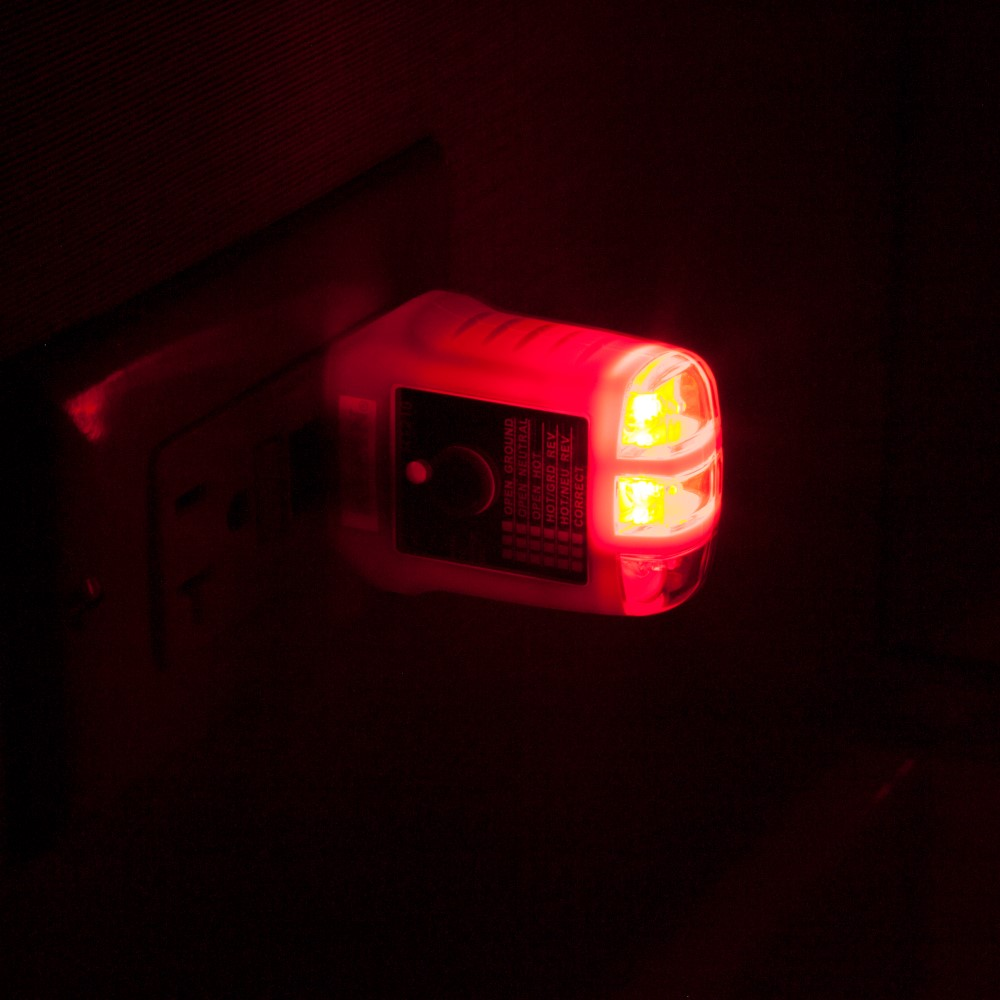

• RT210 detects the most common wiring problems in standard and GFCI receptacles

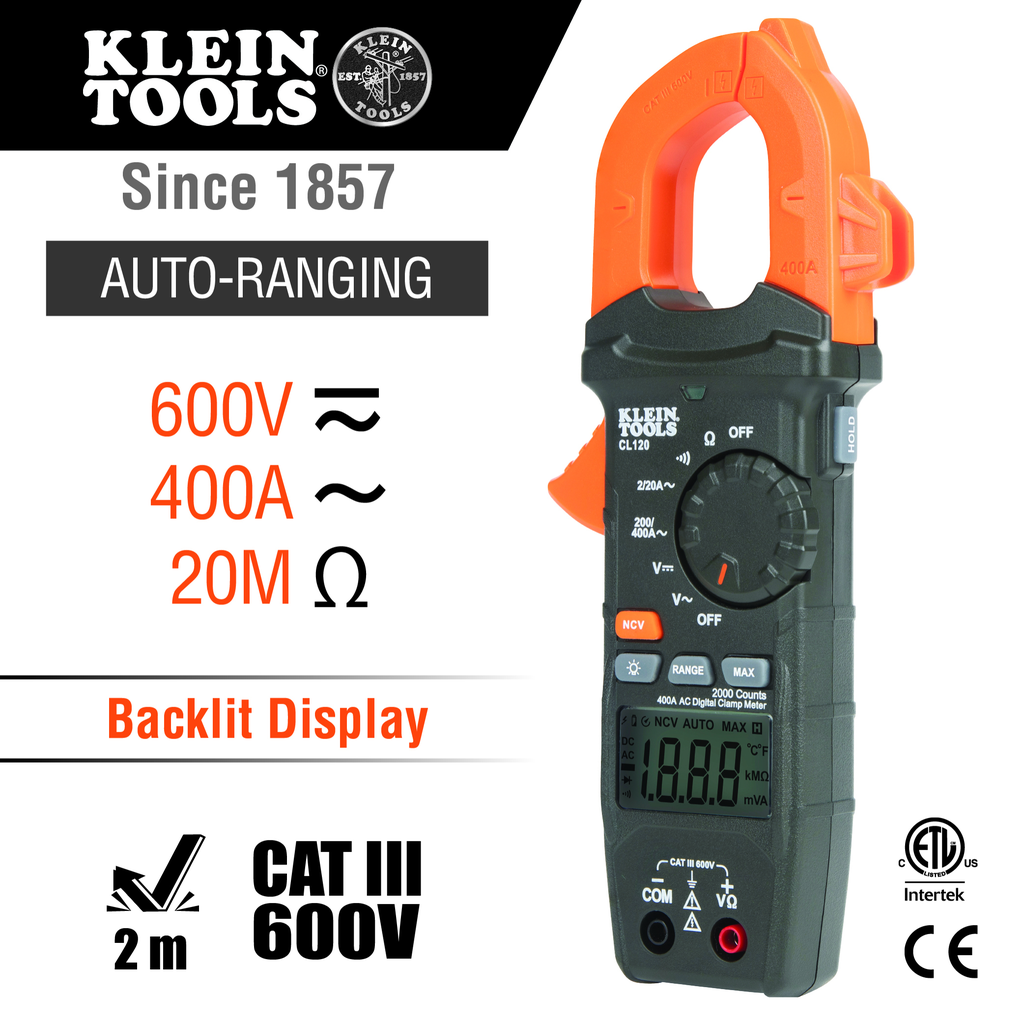

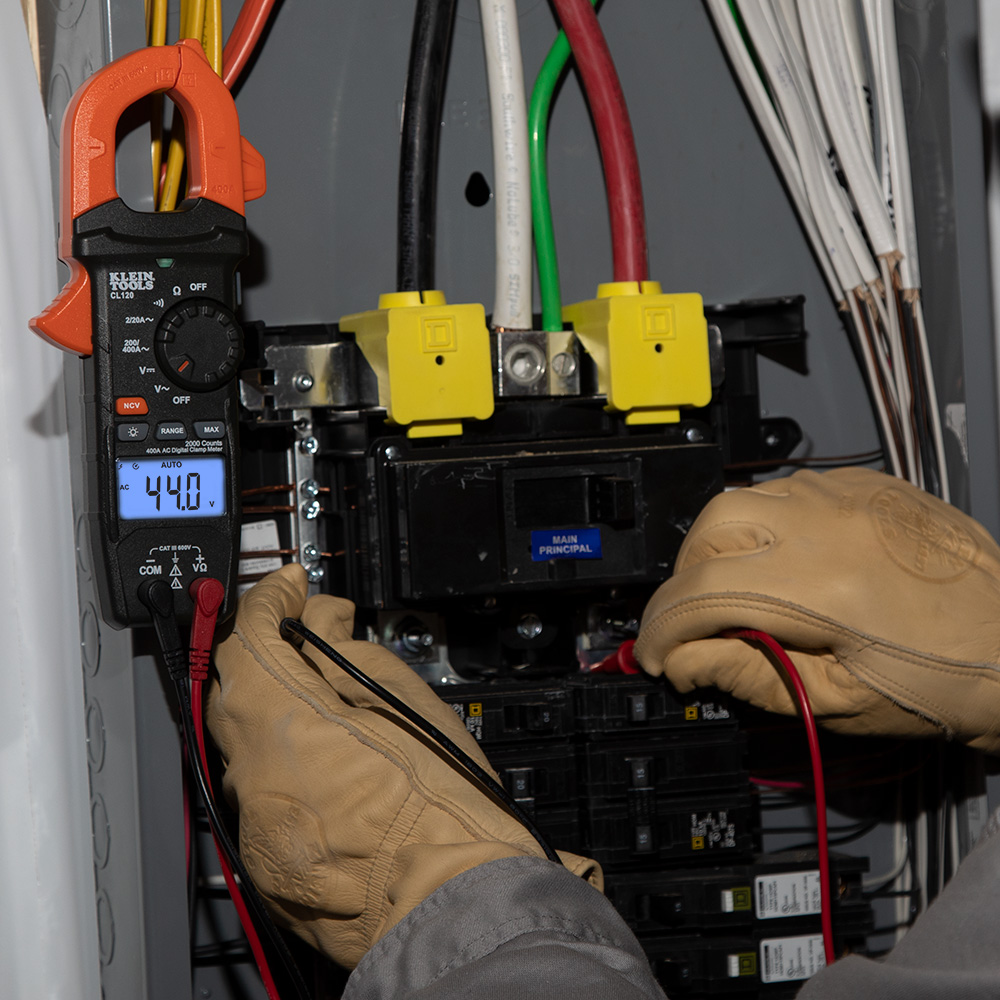

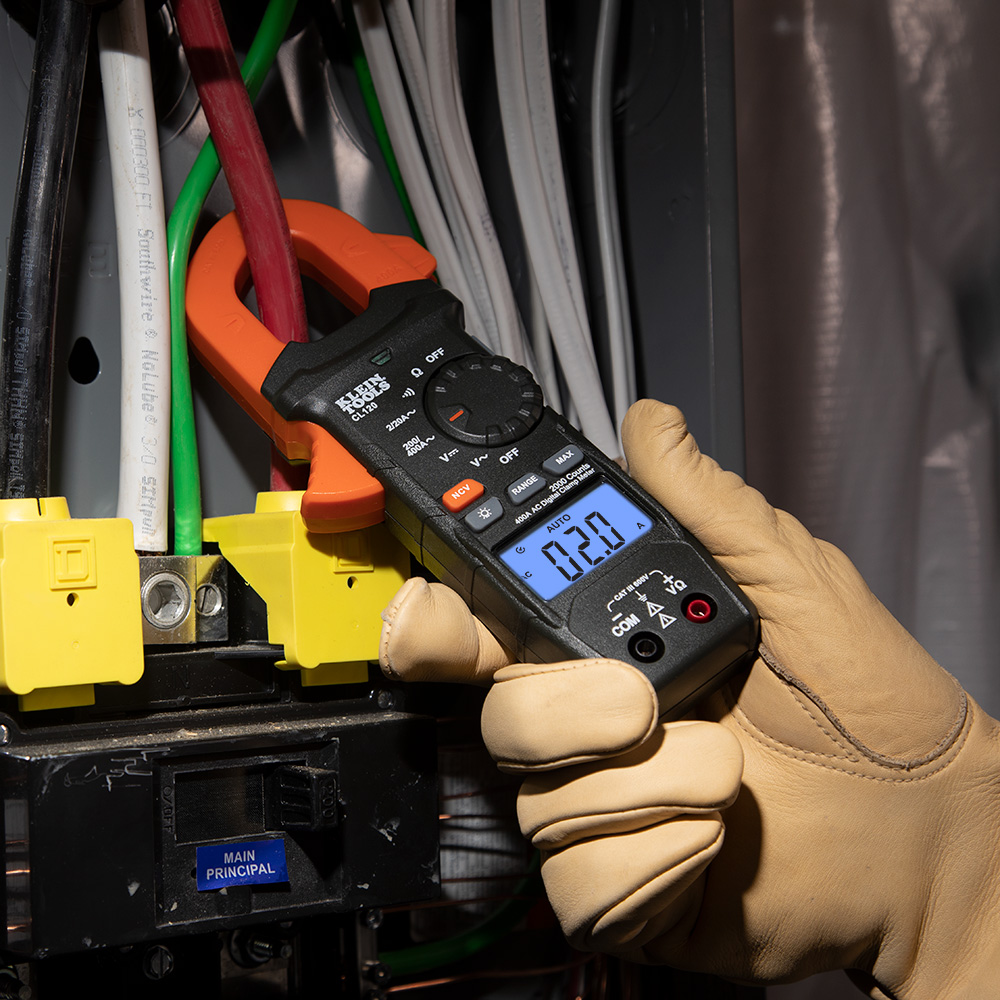

• CL120 Clamp Meter measure AC current via the clamp, and AC/DC voltage, resistance and continuity via test leads

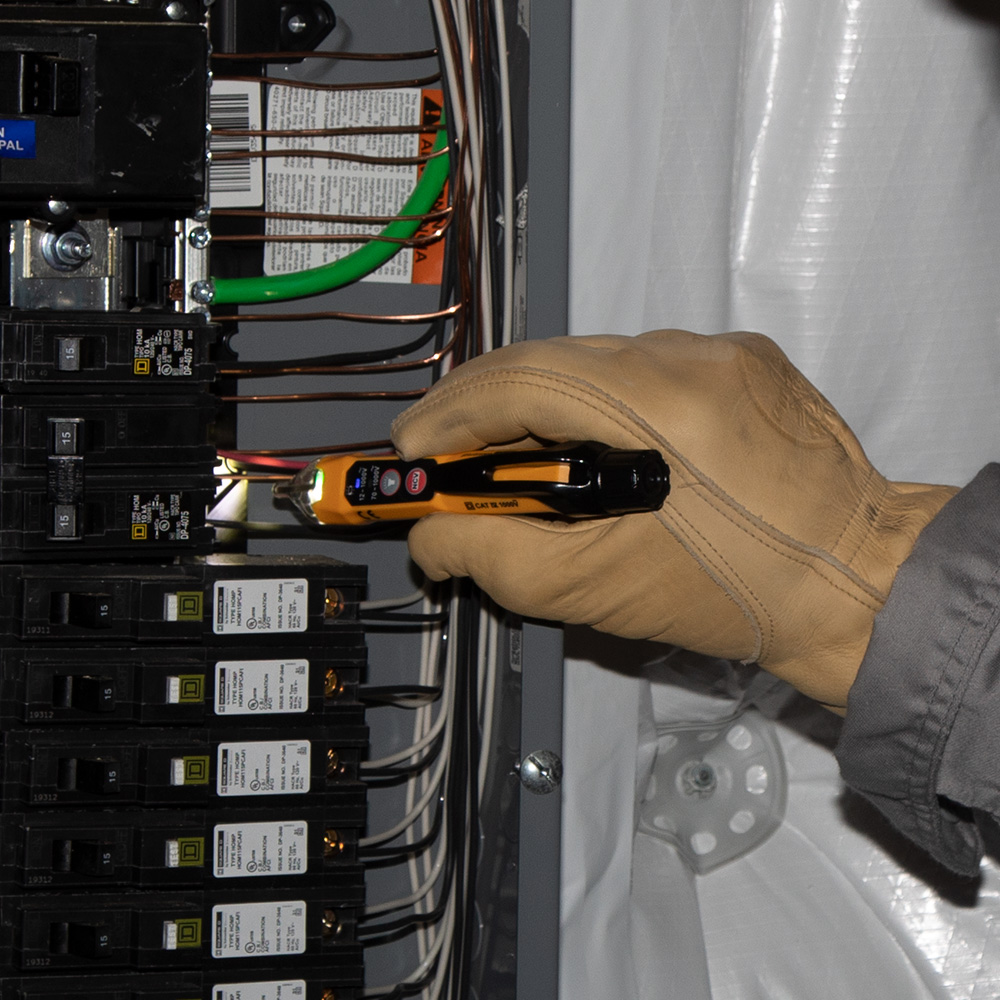

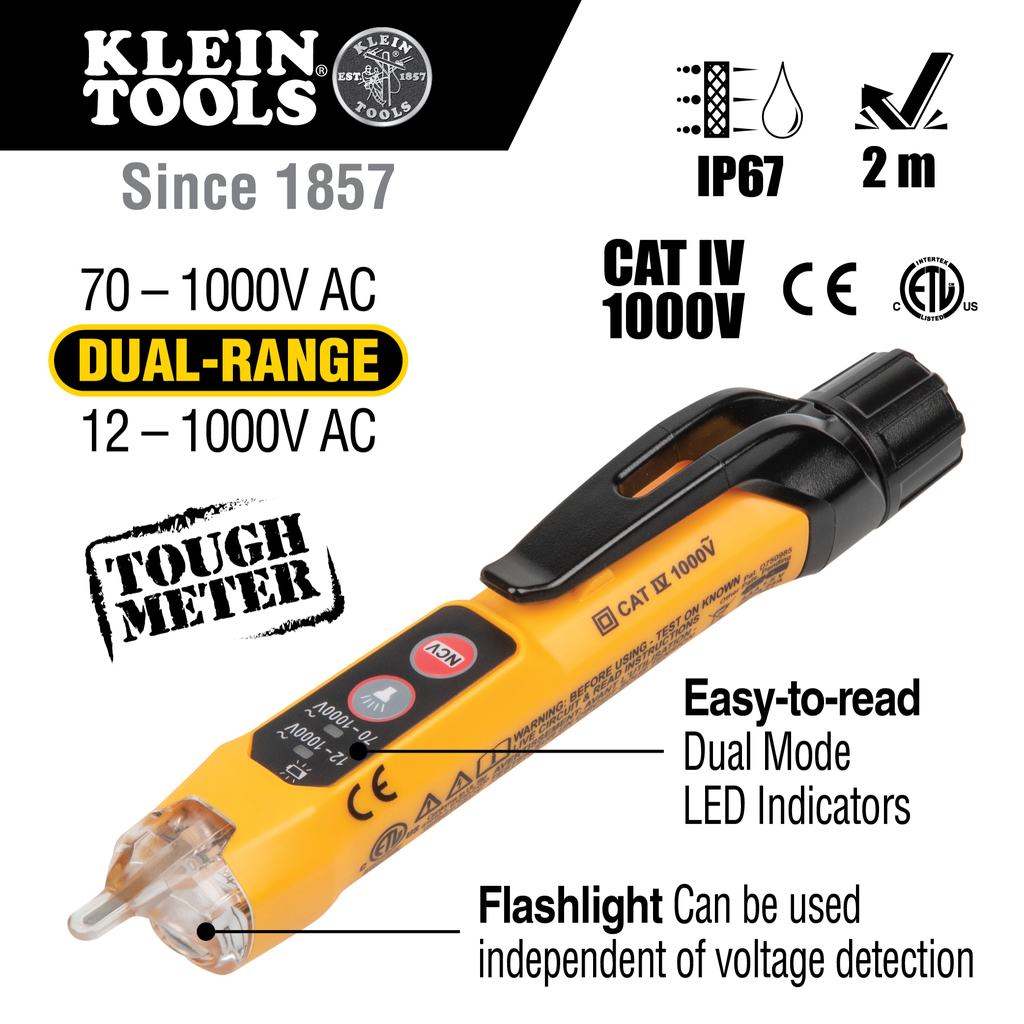

• NCVT-3P has dual-range capabilities to detect from 12 to 1000V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications

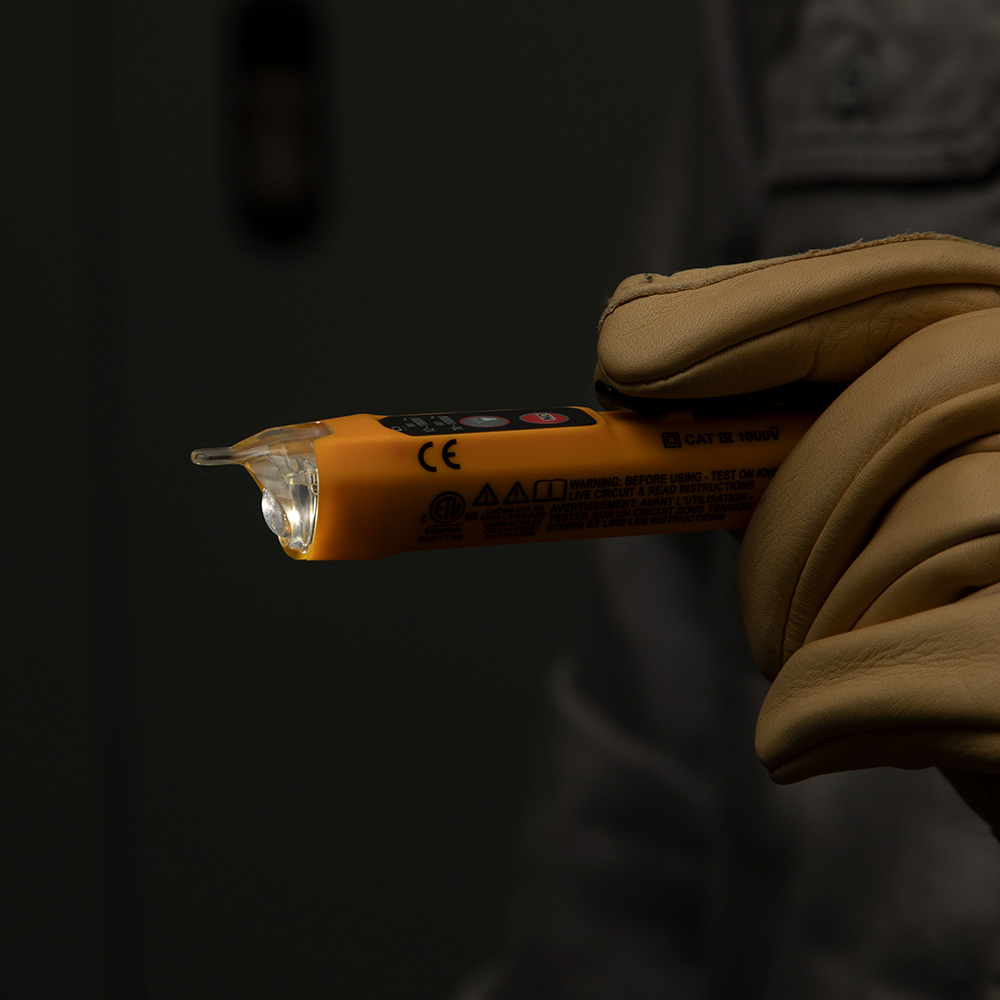

• Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function

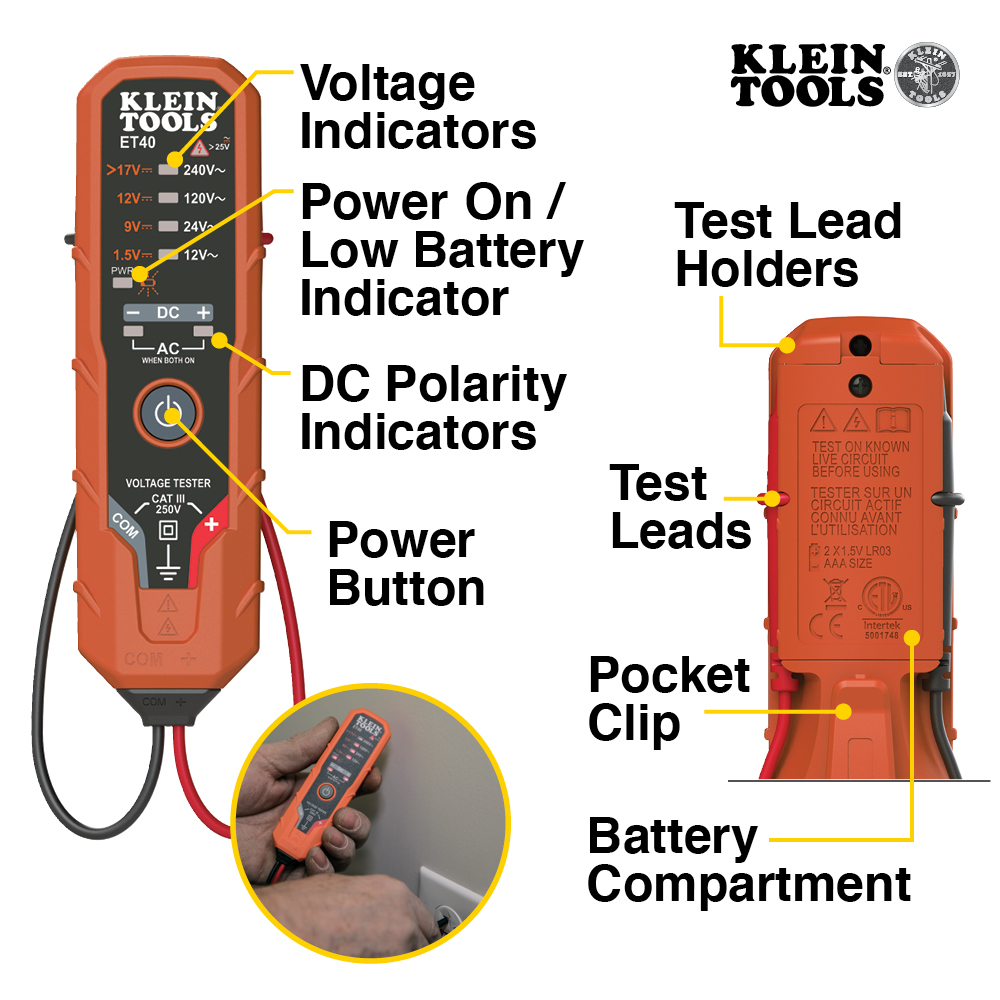

• ET40 also tests DC voltages from 1.5V to greater than 17V to 24V at four common levels
• Meter has backlit LCD for ease of viewing in low light and is CAT III 600V, Class 2 Double Insulated
• A convenient chart on RT210 helps determine wiring conditions: open ground, reverse polarity, open hot, open neutral, and hot/ground reversed
• Clamp Meter is Automatic Ranging for Measurement and has NCVT feature
• ET40 tests AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Do not attempt to measure resistance or continuity on live circuits.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

• Display: 2000 Count Backlit LCD
• Overall Height (cm): 3.8
• Jaw Size (Inch): 1.6
• Pollution Degree: 2
• Overall Height (Inch): 1.5
• Overall Length (Inch): 8.45
• Functions: AC Current, NCVT, AC/DC Voltage, Resistance and Continuity
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
• Overall Width (cm): 8.9
• Type: Auto Ranging Clamp
• Jaw Size (cm): 4.1
• Weight (oz): 11
• Voltage: 600V AC/DC
• Weight: 1.7800 lbs
• Overall Width (Inch): 3.5
• Width: 8.5000 in
• Material: ABS/Electronics
• Application: Testing and Measuring Voltage
• Drop Protection: 6.6' (2 m)
• Height: 2.9530 in
• Batteries: CL120 - 3 x AAA; NCVT3-P - 2 x AAA; ET40 - 2 x AAA
• Weight (g): 312
• Overall Length (cm): 21.5
• Depth: 13.0710 in

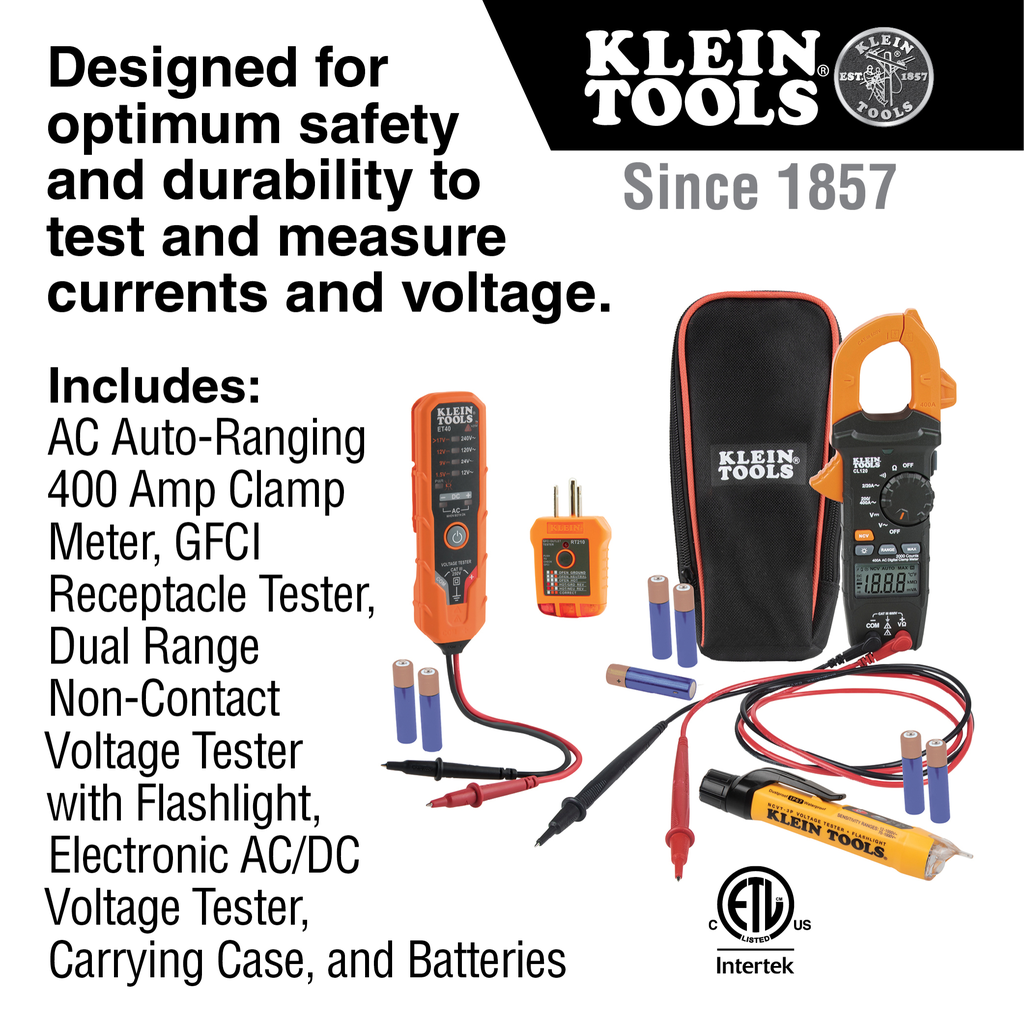

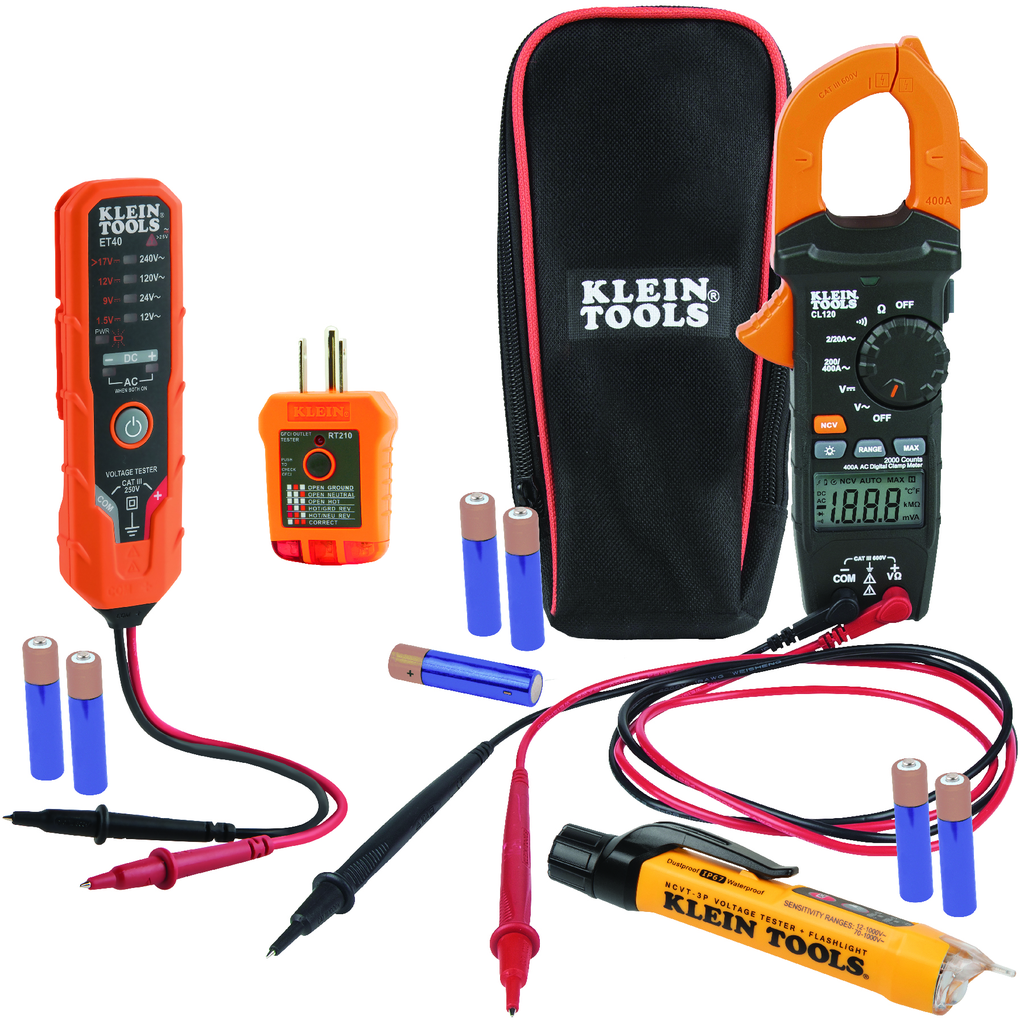

• Included: CL120 Digital Clamp Meter with Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET40 Electronic AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required Batteries
