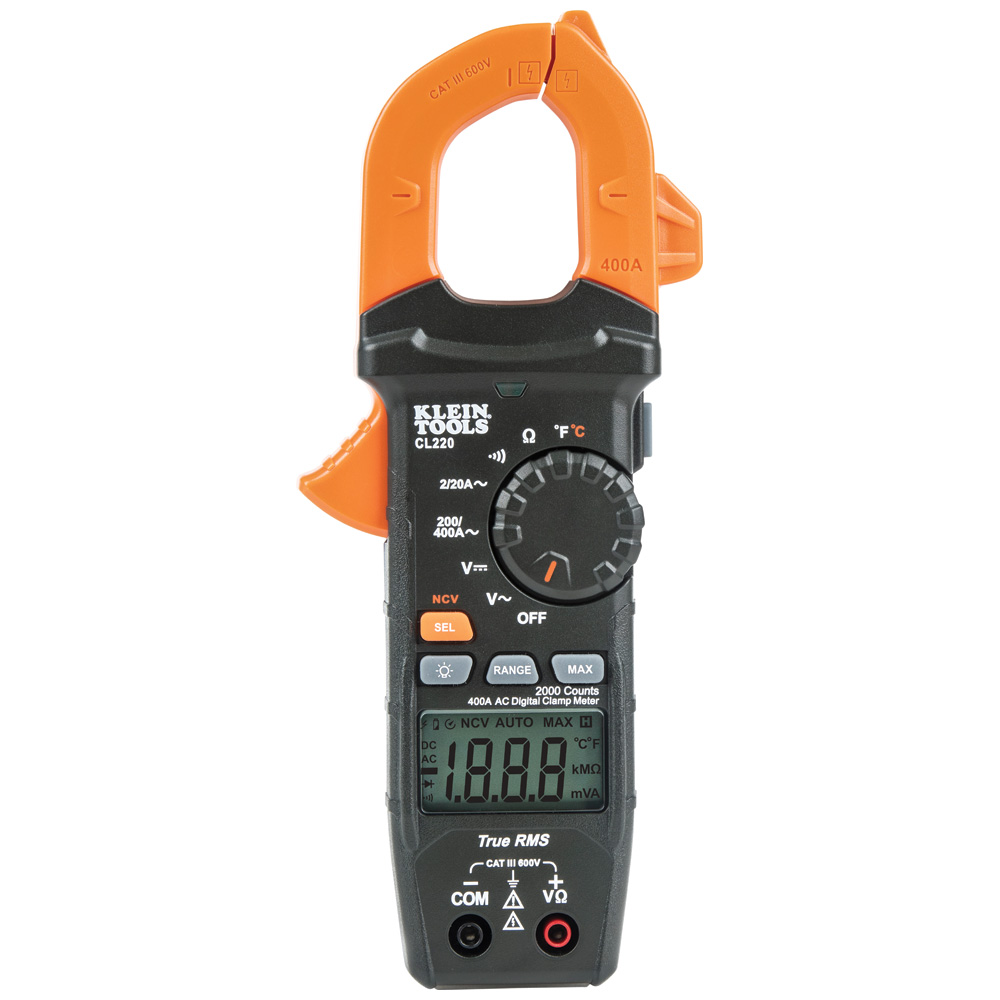

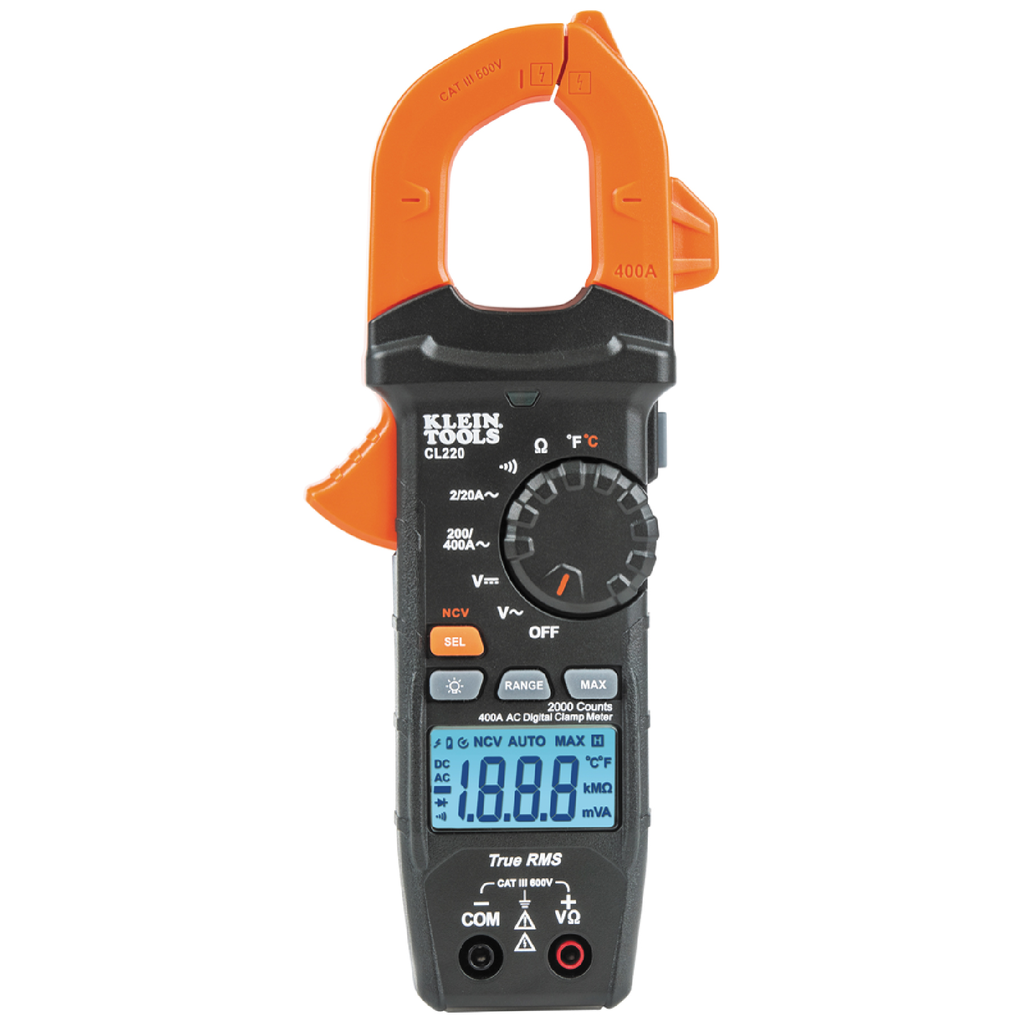

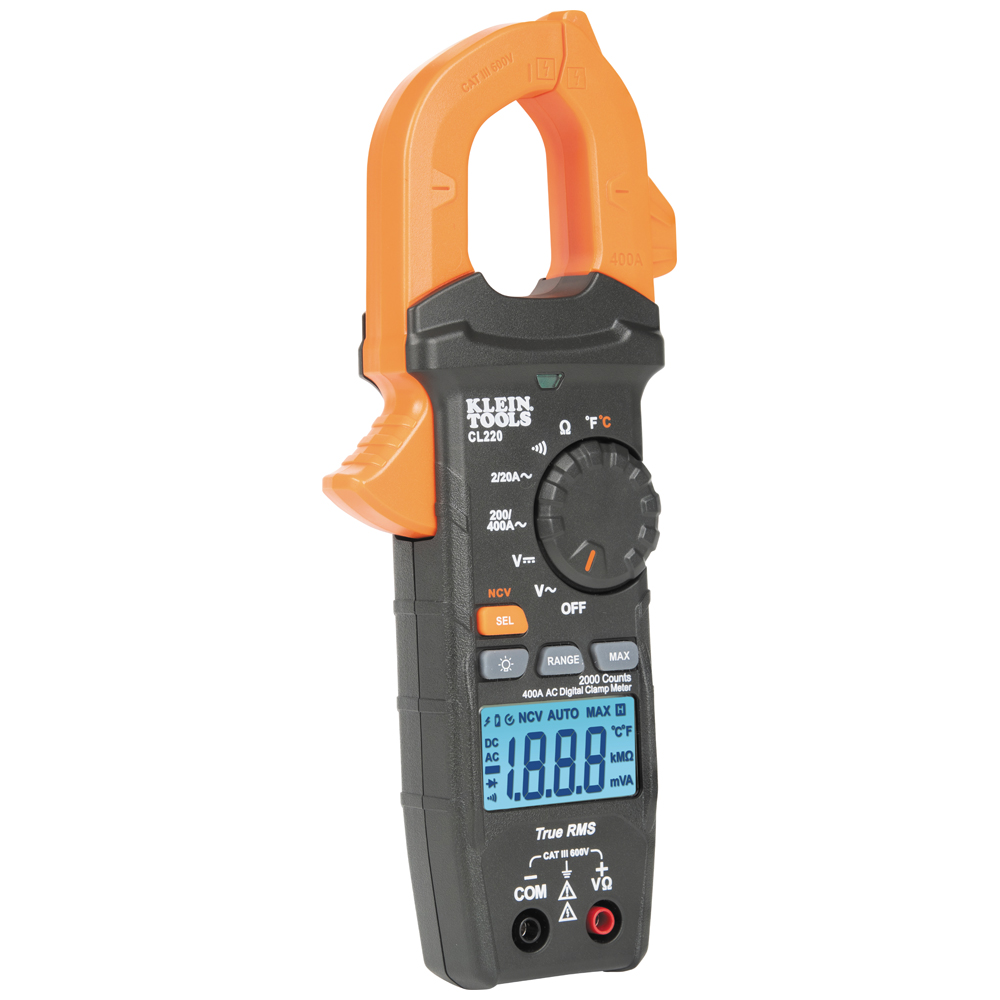

Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

Features

• CAT III 600V, Class 2, Double insulation safety rating
• Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
• Non-contact voltage tester integrated into the clamp jaw
• Auto-power off after 10 minutes to conserve battery life
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Low battery indicator and easily accessible battery compartment
• Auto-Range, Hold, Data Hold, and Max value
• Measures temperature with a K-Type thermocouple probe

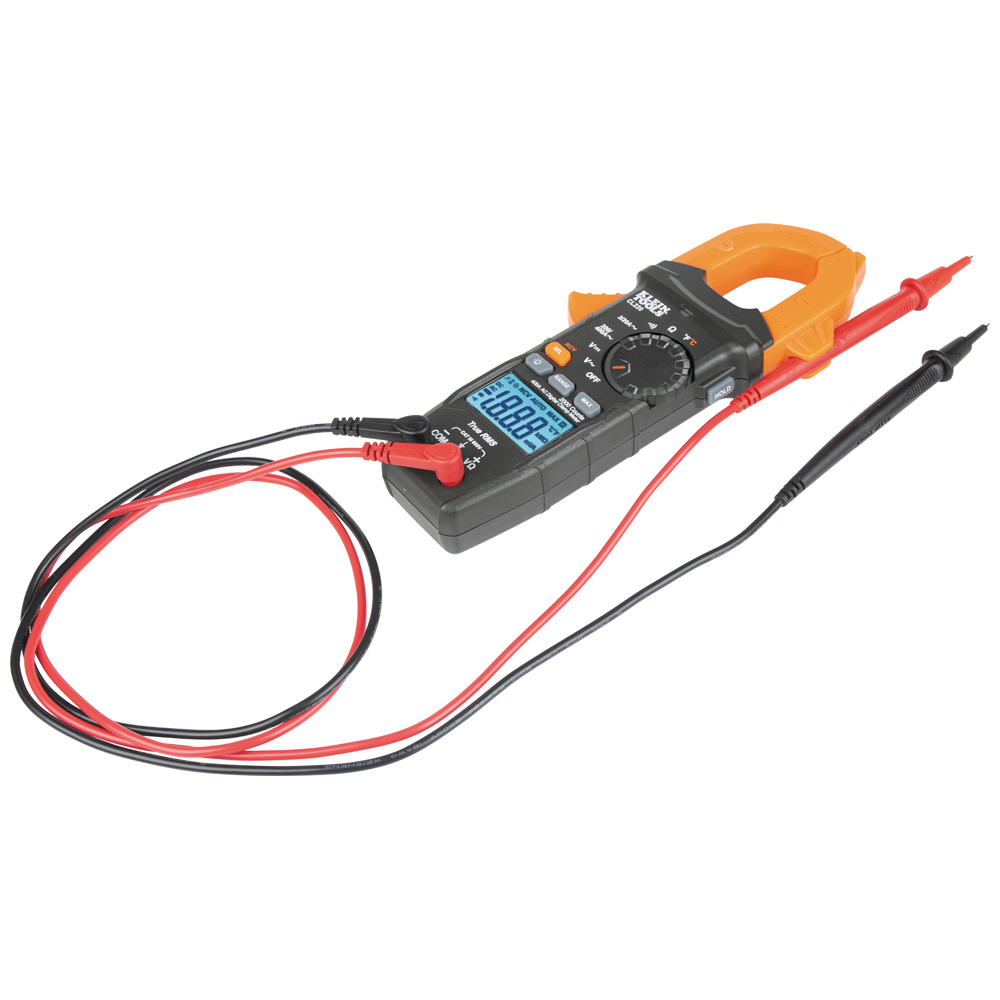

• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Backlit LCD for ease of viewing in low light
• Built to withstand a 6.6-Foot (2 m) drop
• Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation

Warnings

• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Do not attempt to measure resistance or continuity on live circuits.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Before each use verify meter operation by measuring a known voltage or current.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Specifications

• Overall Height (cm): 3.8
• AC Voltage: 600 V
• Batteries: 3 x AAA
• Drop Protection: 6.6' (2 m)
• Overall Height (Inch): 1.5
• DC Voltage: 600 V
• Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
• Material: ABS/Electronics
• Weight: 0.6130 lbs
• DC Polarity Indicator: Yes
• Overall Width (Inch): 3.5
• Included: Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
• Voltage: 600 V AC/DC
• Overall Length (Inch): 8.45
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
• Overall Length (cm): 21.5
• Jaw Size (cm): 4.1
• Auto-Power Off: Yes
• Depth: 8.4500 in
• Width: 3.5120 in
• Jaw Size (Inch): 1.6
• Height: 1.5060 in
• Display: 2000 Count Backlit LCD
• Type: Auto Ranging TRMS Clamp with Temperature
• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
• Overall Width (cm): 8.9
• Ohms (Resistance): 20 MΩ
• Current: 400 A AC
• Temperature Range: -40° - 1832°F (-40° - 1000°C)
