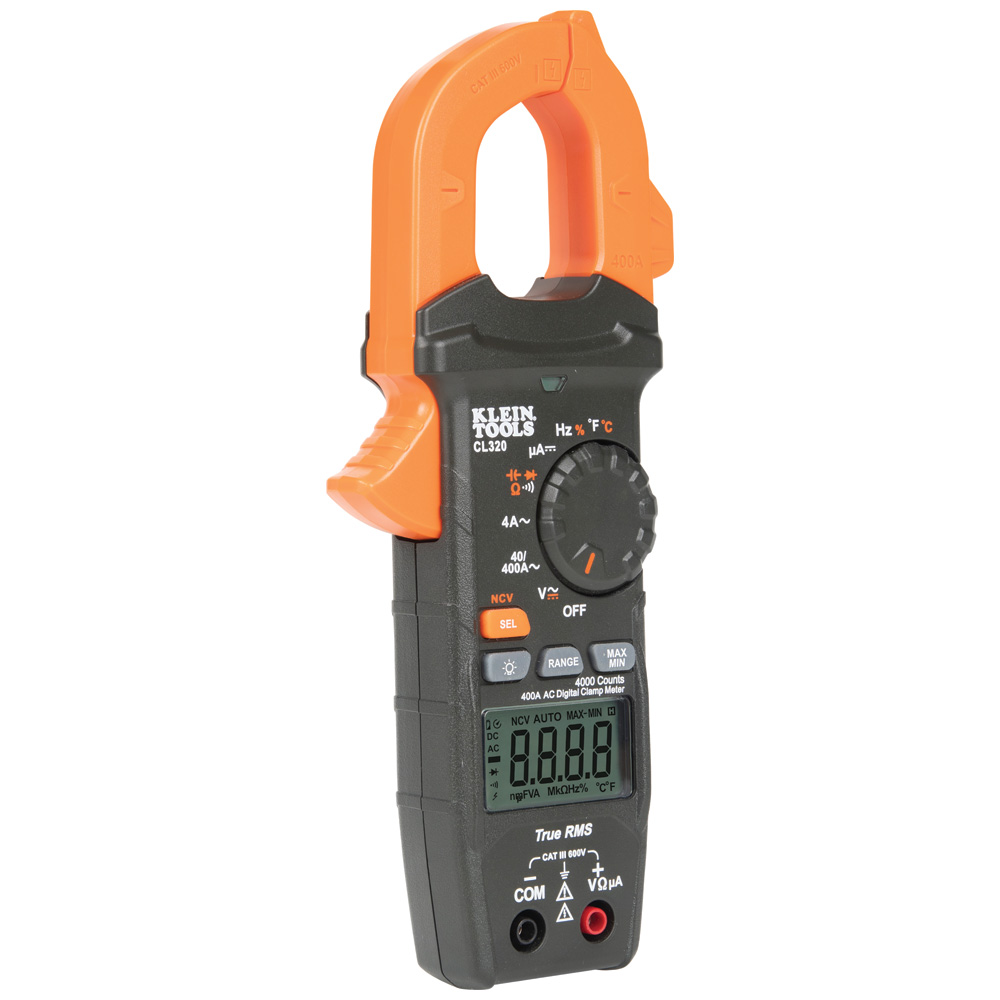

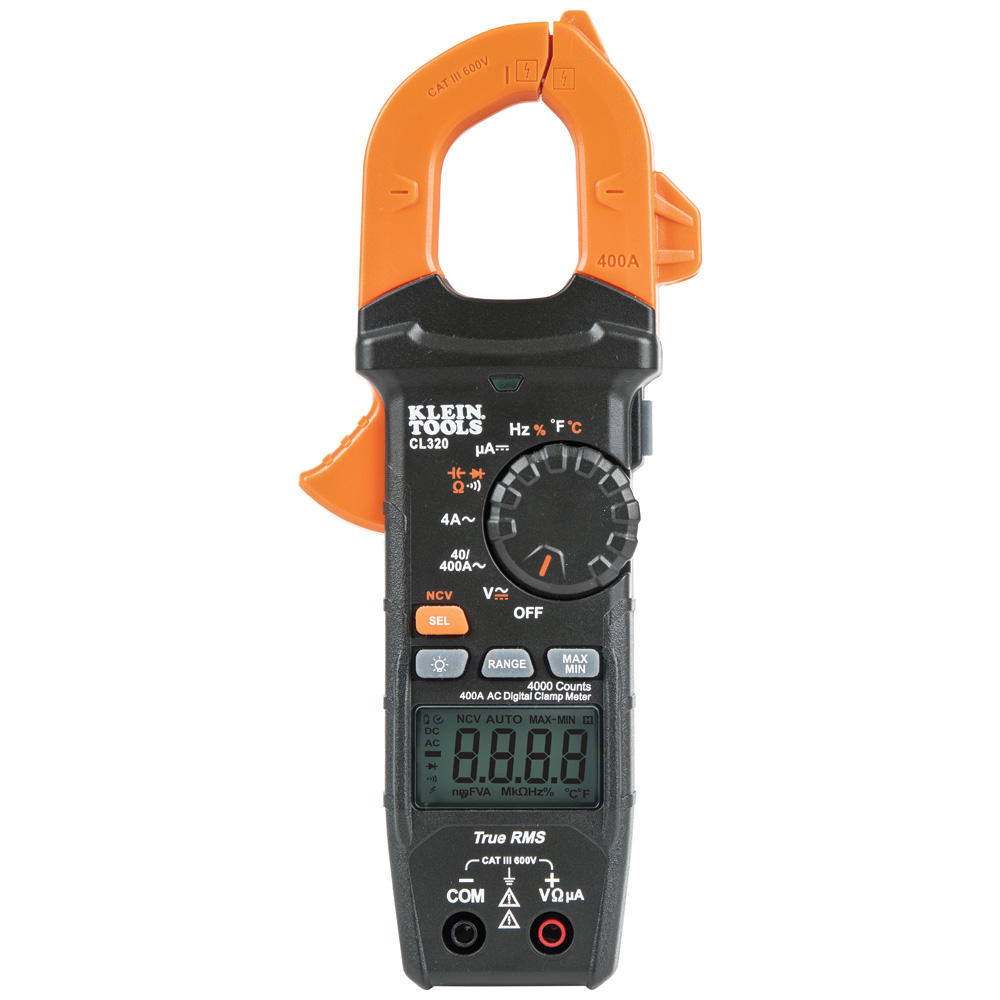

HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp

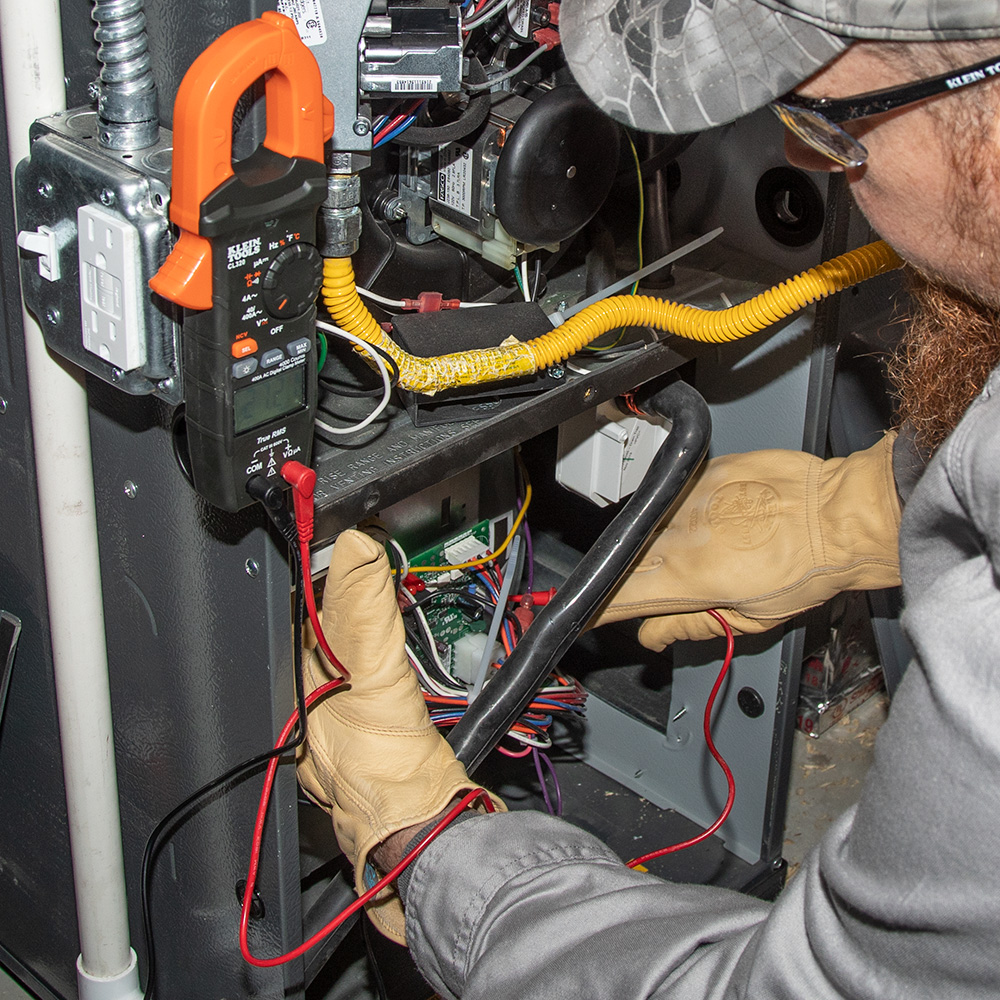

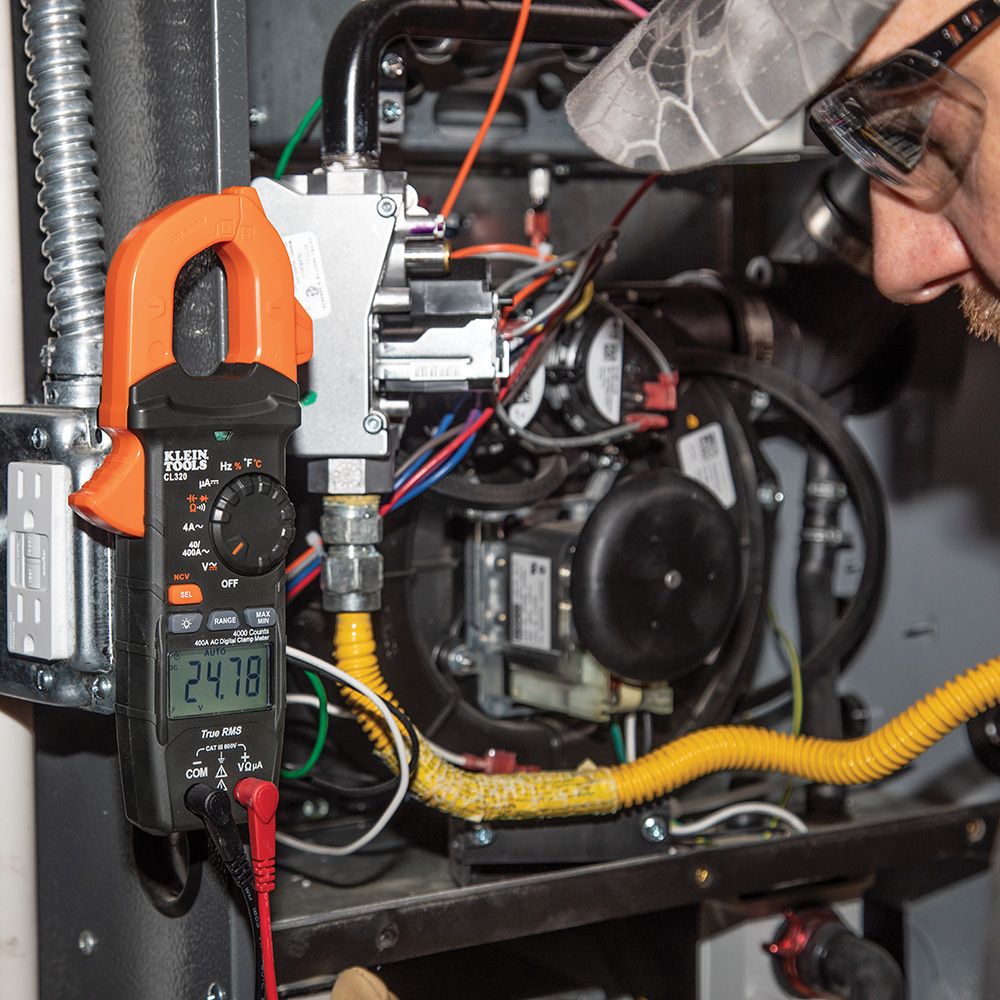

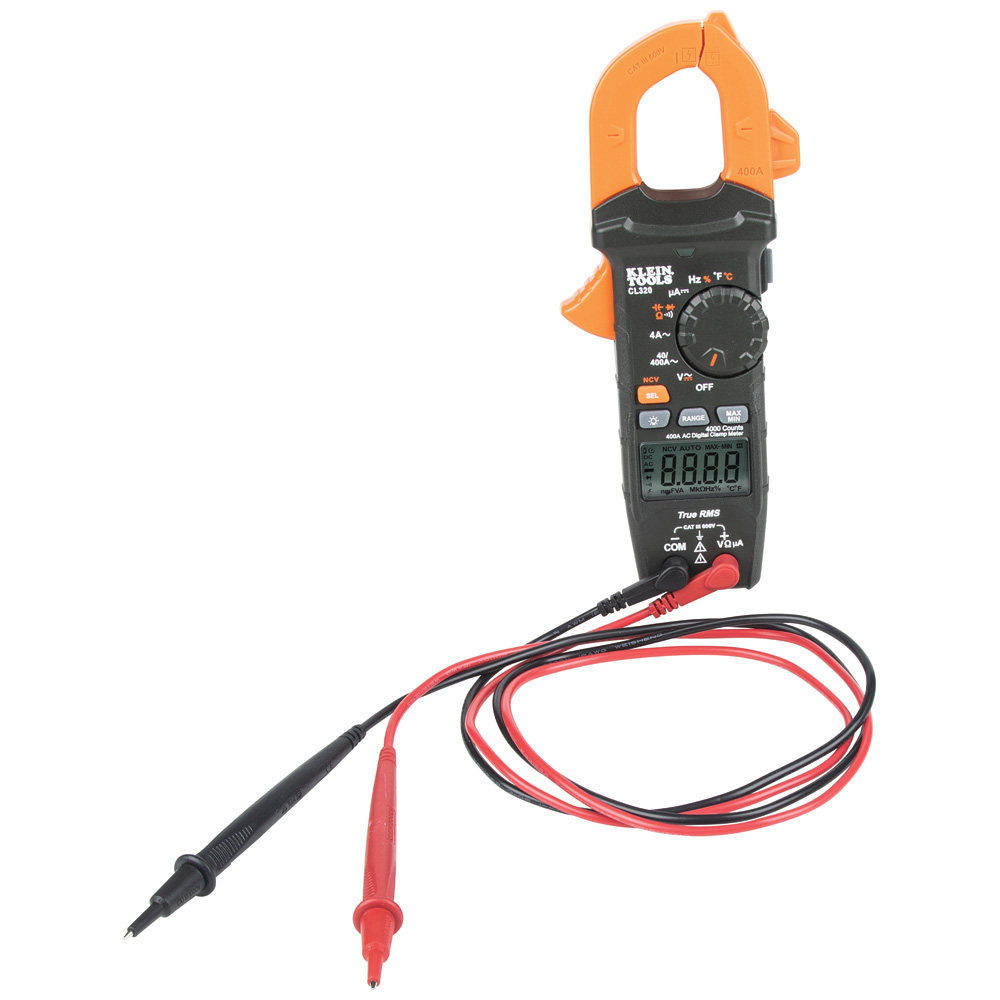

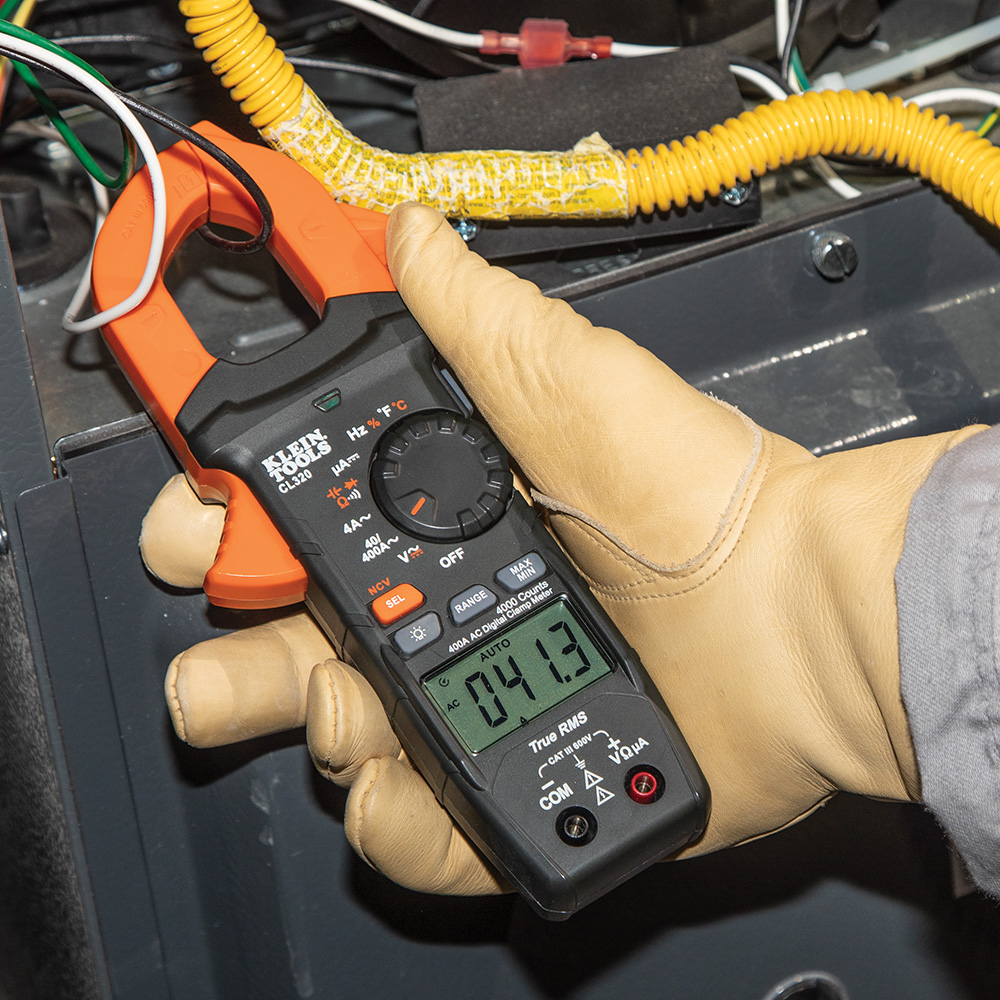

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Features

• Low battery indicator and easily accessible battery compartment
• Backlit LCD for ease of viewing in low light
• Auto-power off after 10 minutes to conserve battery life
• Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications

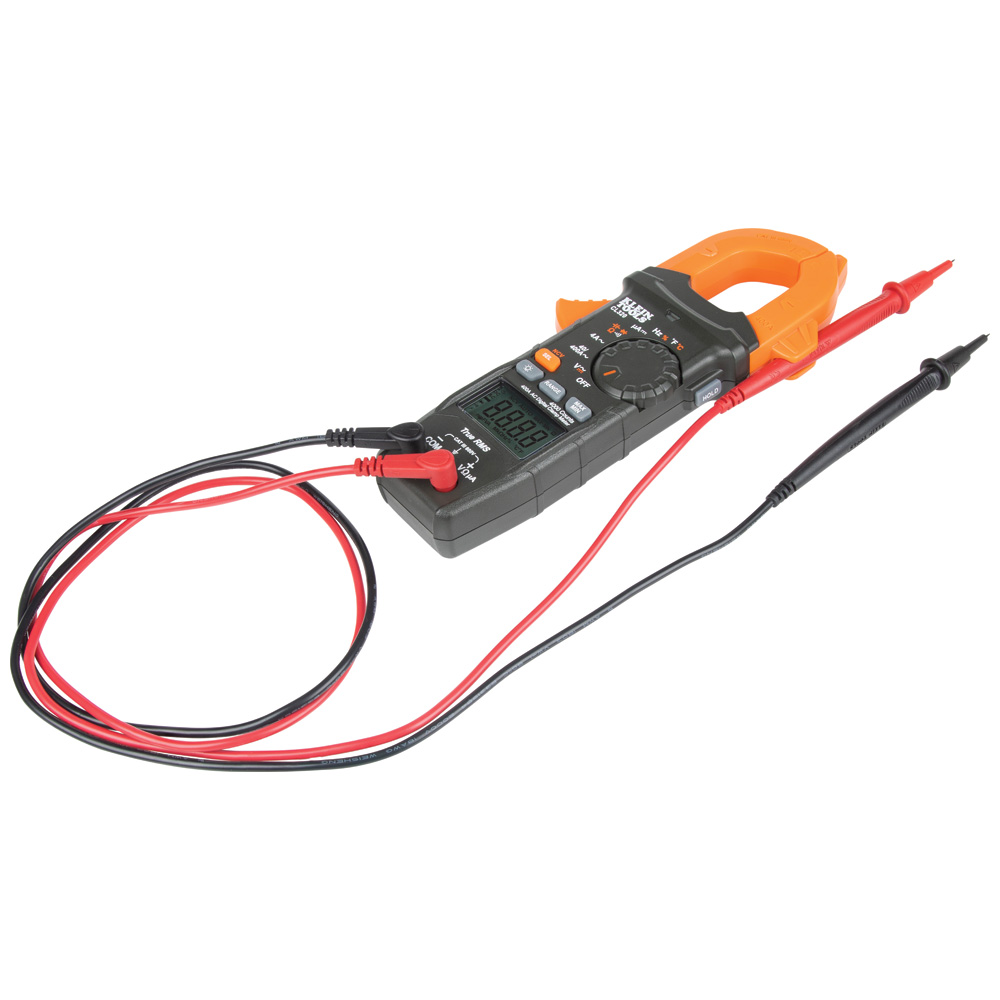

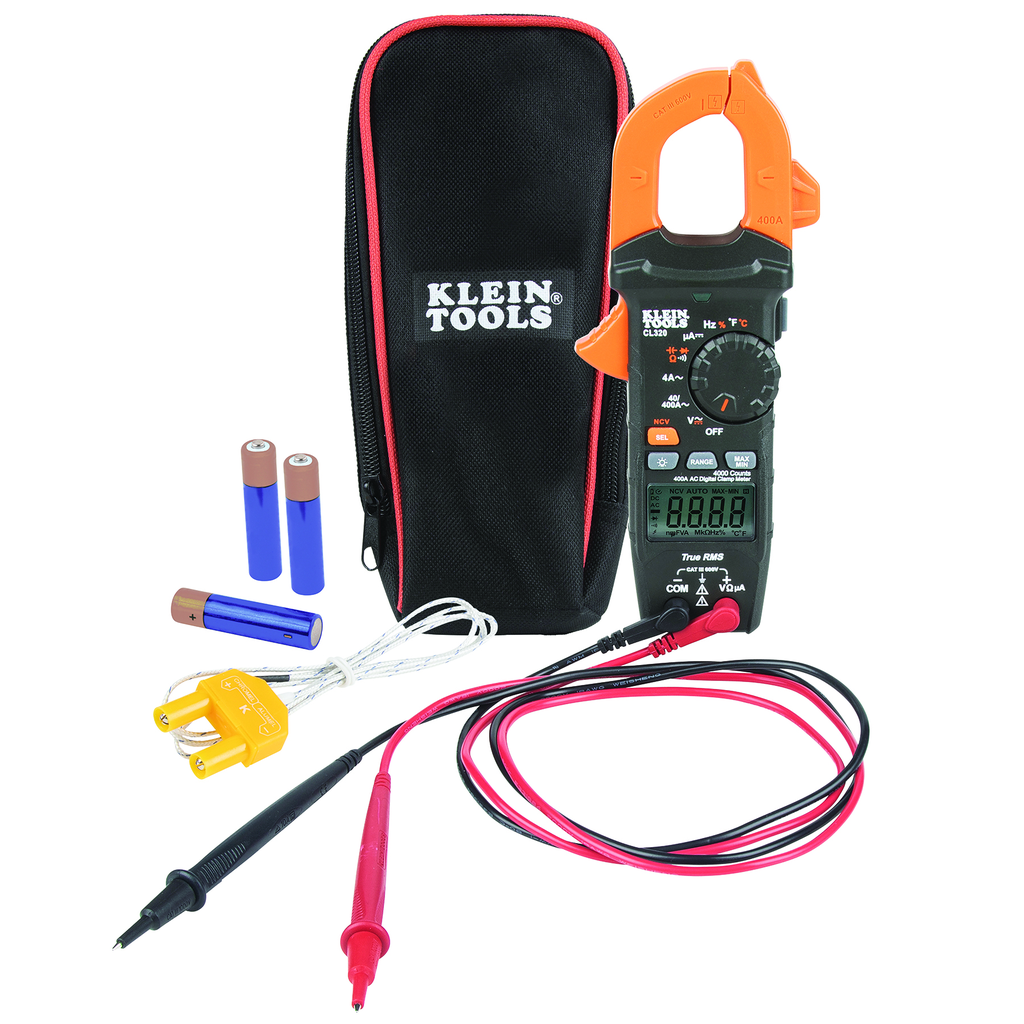

• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• Measures temperature with a K-Type thermocouple probe
• Built to withstand a 6.6-Foot (2 m) drop
• Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Auto-Range, Data Hold, and Max/Min value
• Non-contact voltage tester integrated into the clamp jaw
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• CAT III 600V, Class 2, Double insulation safety rating

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Do not attempt to measure resistance or continuity on live circuits.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

• Application: Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
• Capacitance: 4000 µF
• Depth: 8.4500 in
• DC Polarity Indicator: Yes
• AC Voltage: 600V
• Overall Height (Inch): 1.5
• Auto Ranging: Yes
• Height: 1.5060 in
• Overall Length (cm): 21.5
• Overall Height (cm): 3.8
• Material: ABS/Electronics
• Auto-Power Off: Yes
• Overall Width (Inch): 3.5
• Jaw Size (cm): 4.1
• DC Micro-Amp: 200 μA
• Overall Width (cm): 8.9
• Frequency: 10 Hz -60 kHz
• TRMS: Yes
• Included: Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
• Temperature Range: -40° - 1832°F (-40° - 1000°C)
• Width: 3.5120 in
• Voltage: 600V AC/DC
• Weight: 0.6150 lbs
• DC Voltage: 600V
• Display: 4000 Count Backlit LCD
• Current: 400 A AC
• Drop Protection: 6.6' (2 m)
• Batteries: 3 x AAA
• Type: HVAC TRMS Clamp
• Jaw Size (Inch): 1.6
• Ohms (Resistance): 40MO
• Overall Length (Inch): 8.45
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
