HVAC Electrical Test Kit

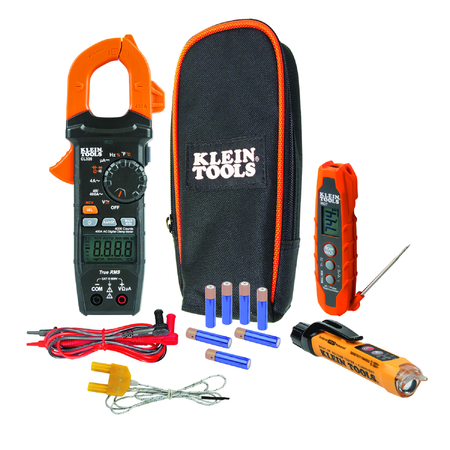

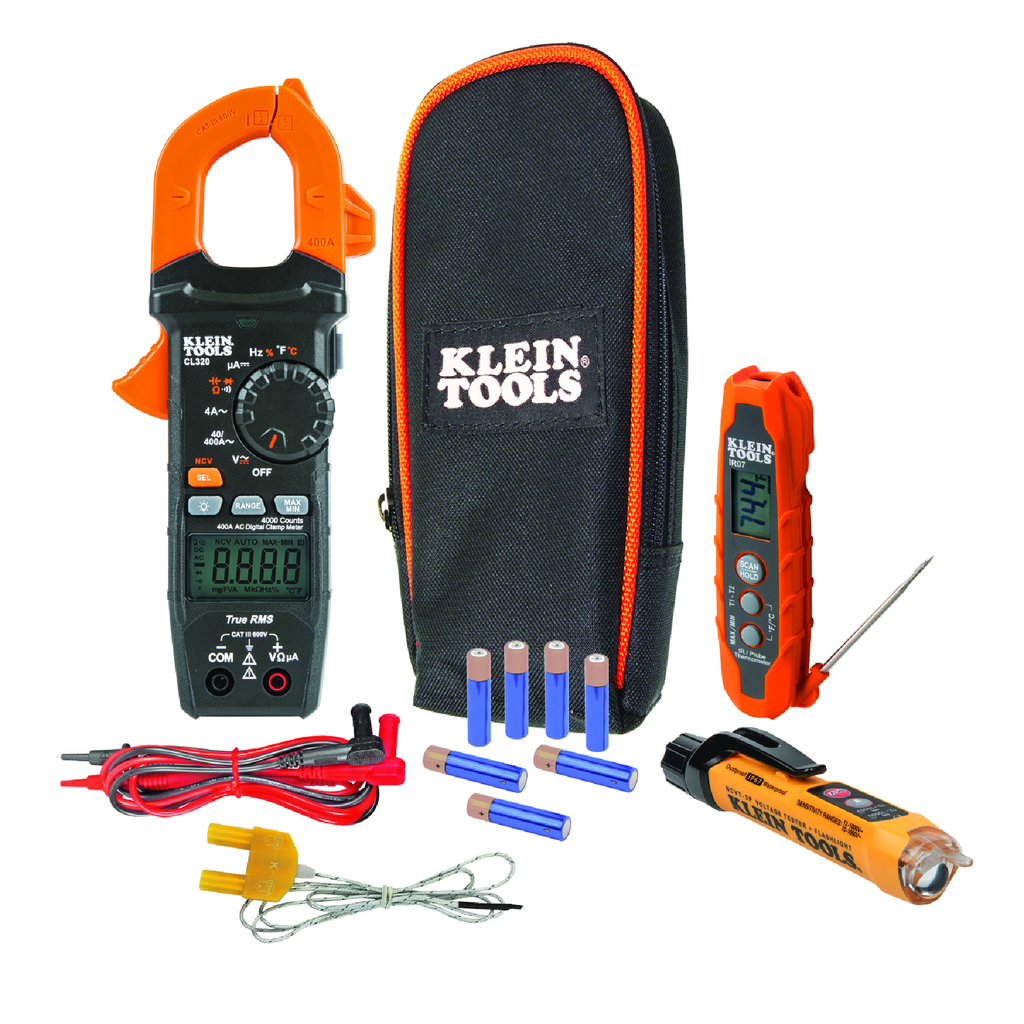

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

Features

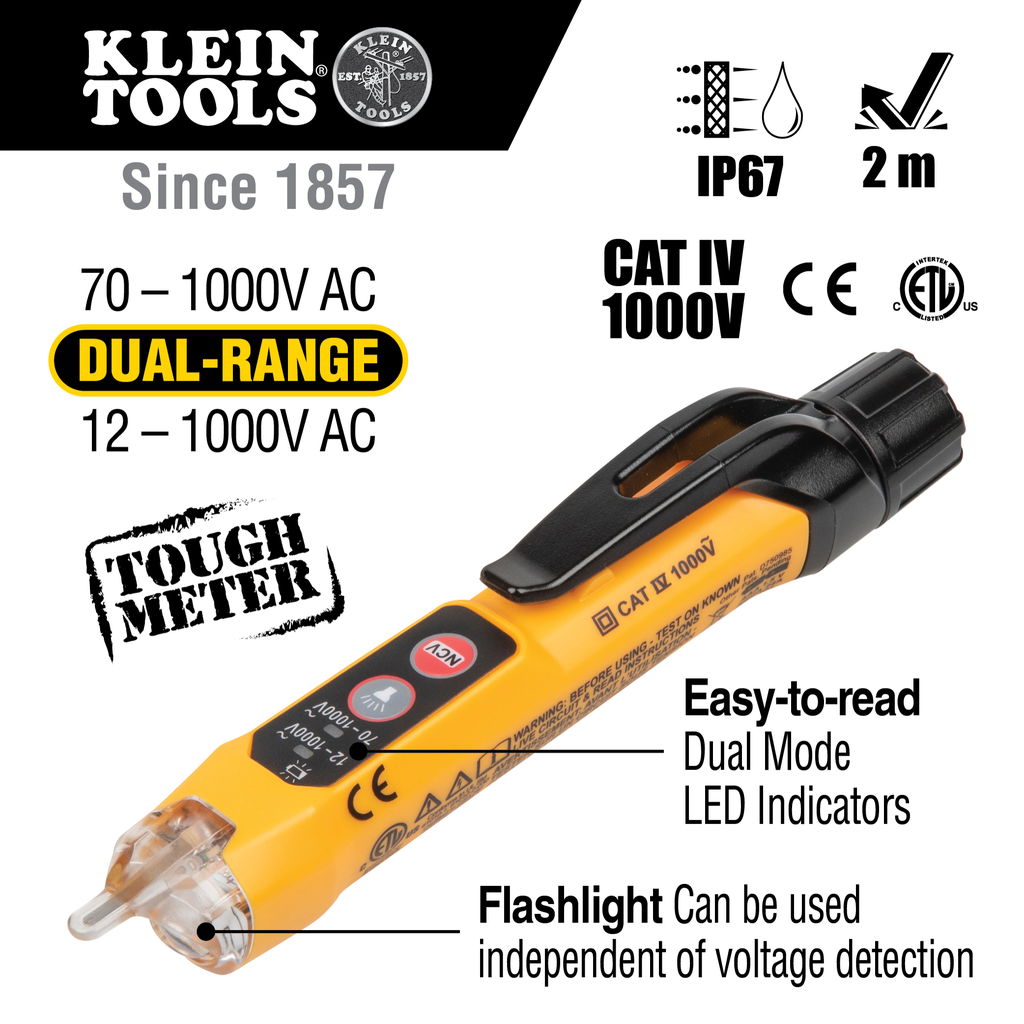

• Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications

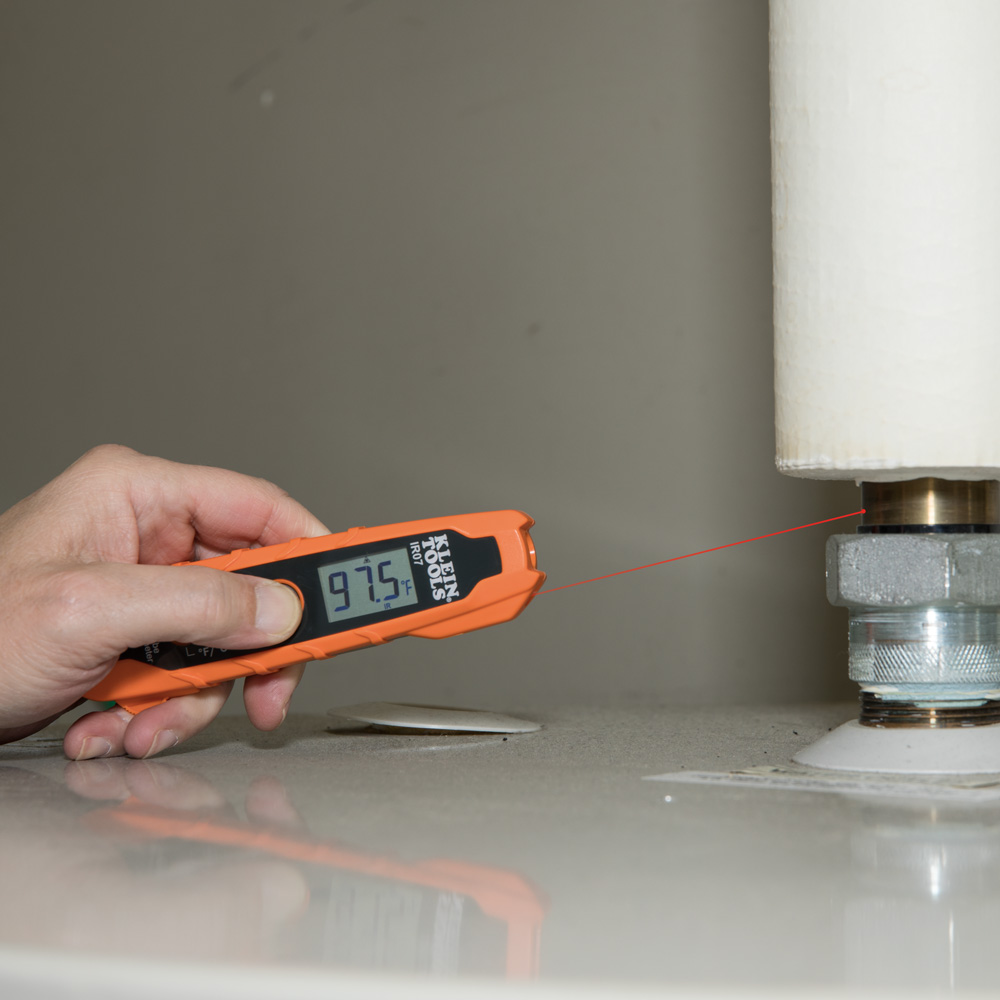

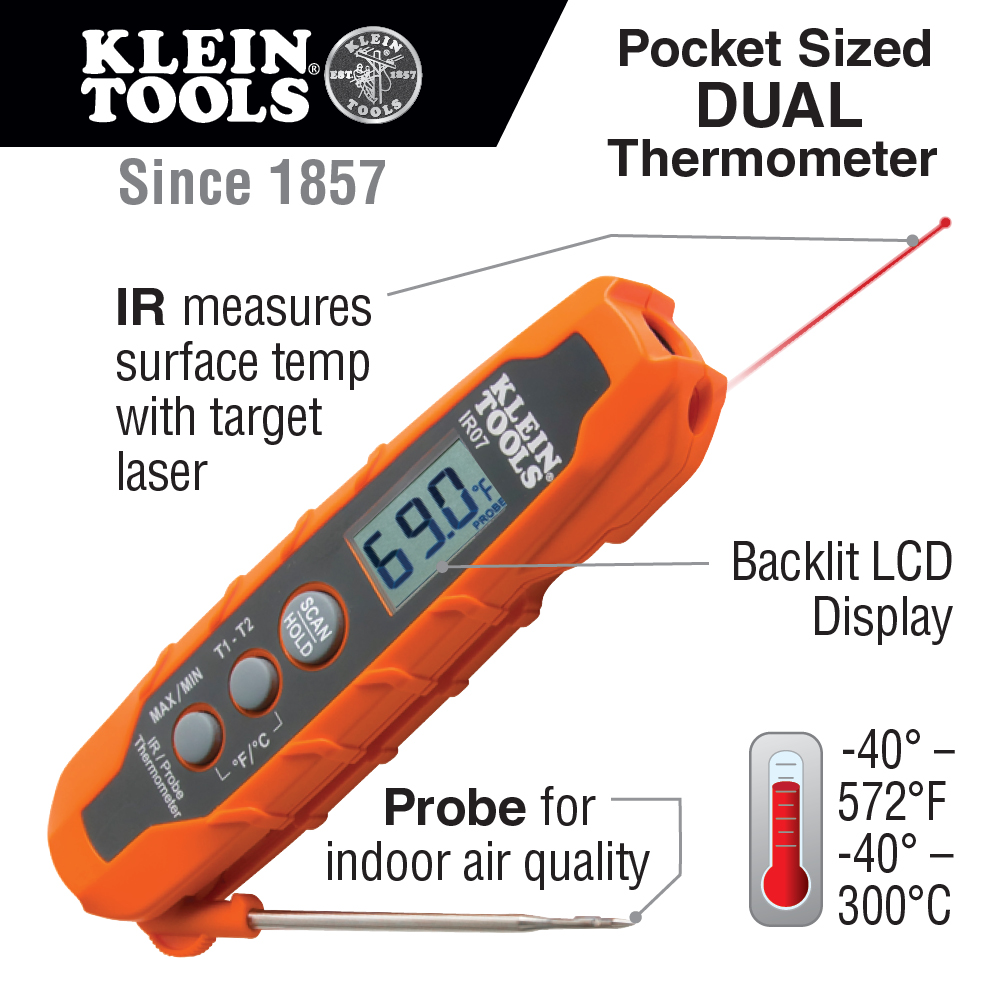

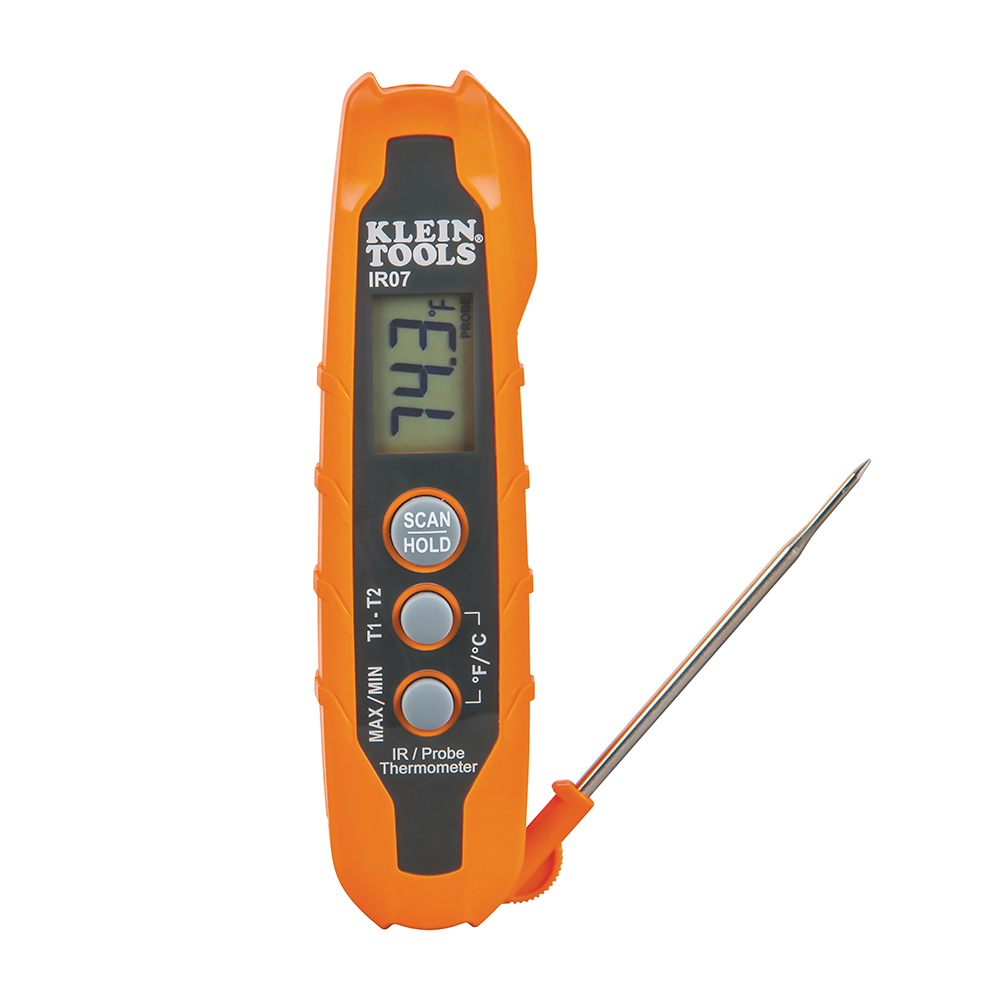

• Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)
• IR07 Thermometer is not a medical device and is NOT intended for use on people or animals

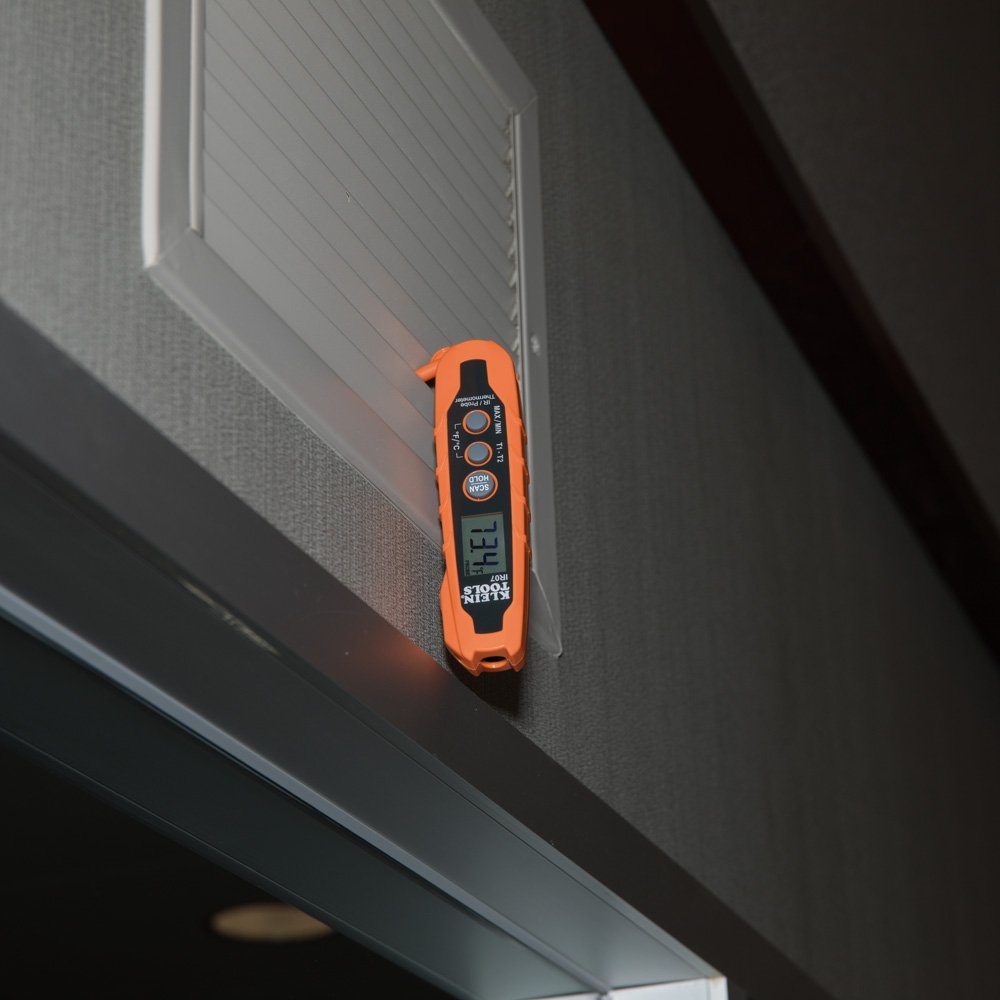

• Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures
• Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection

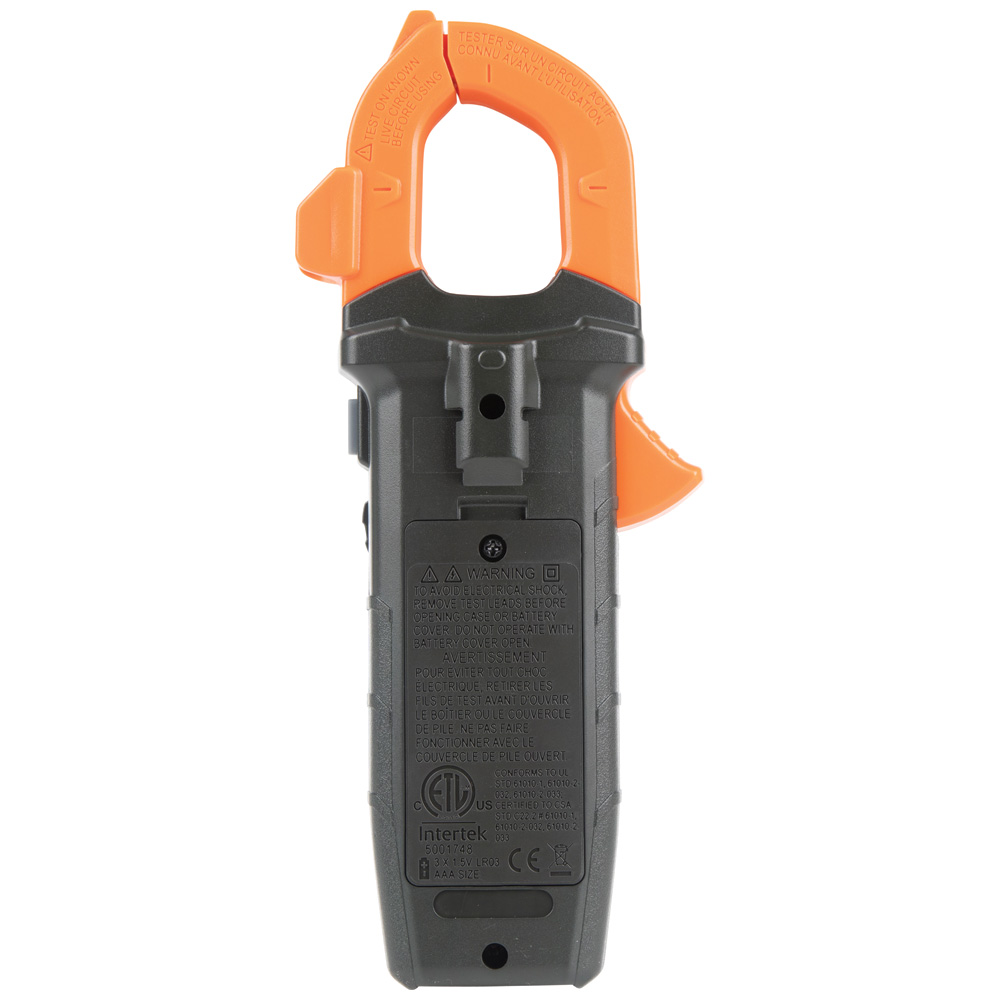

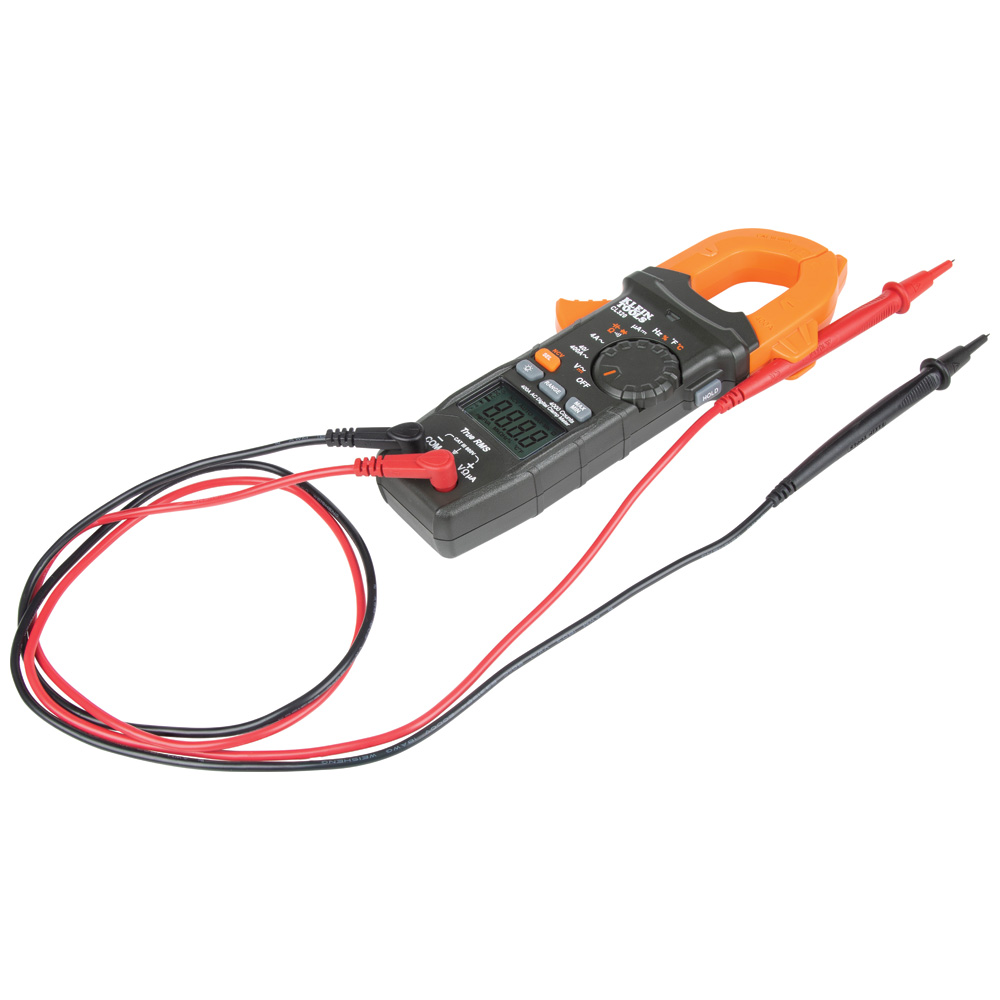

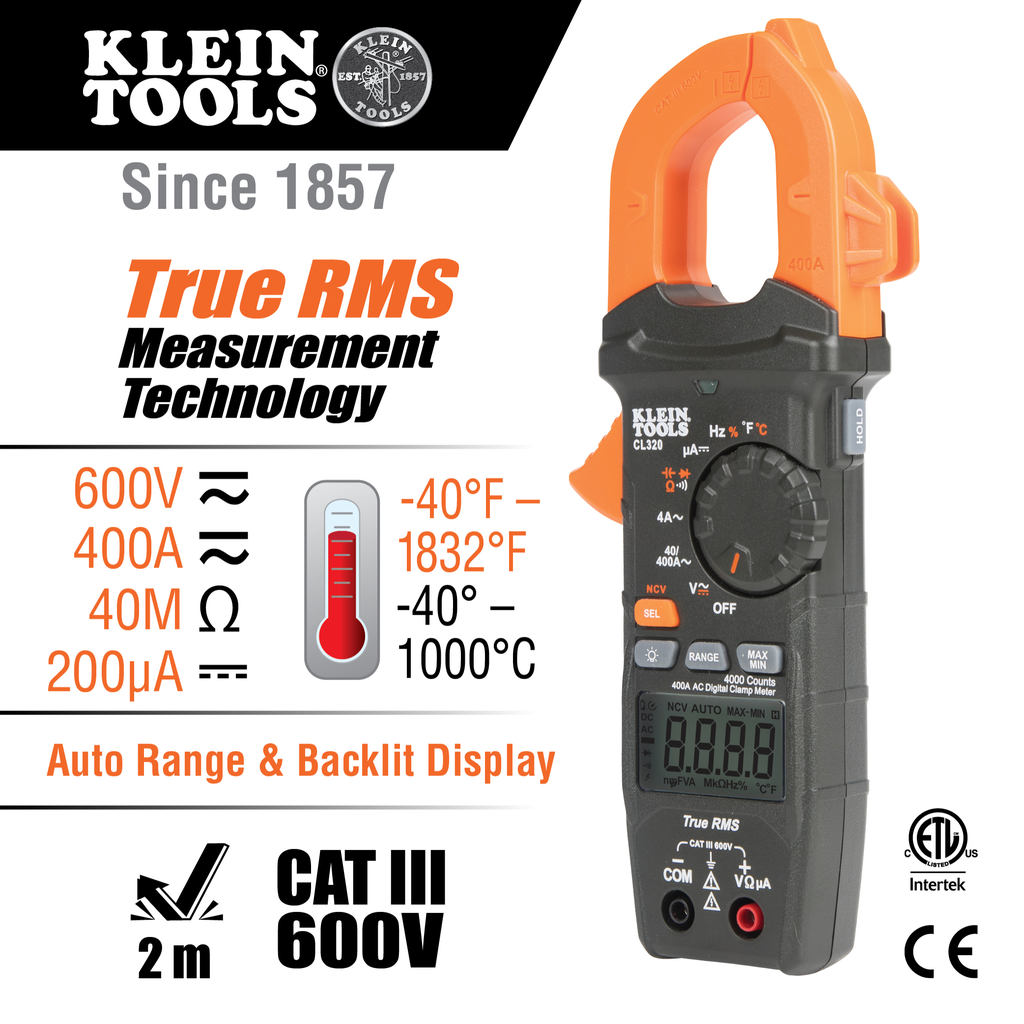

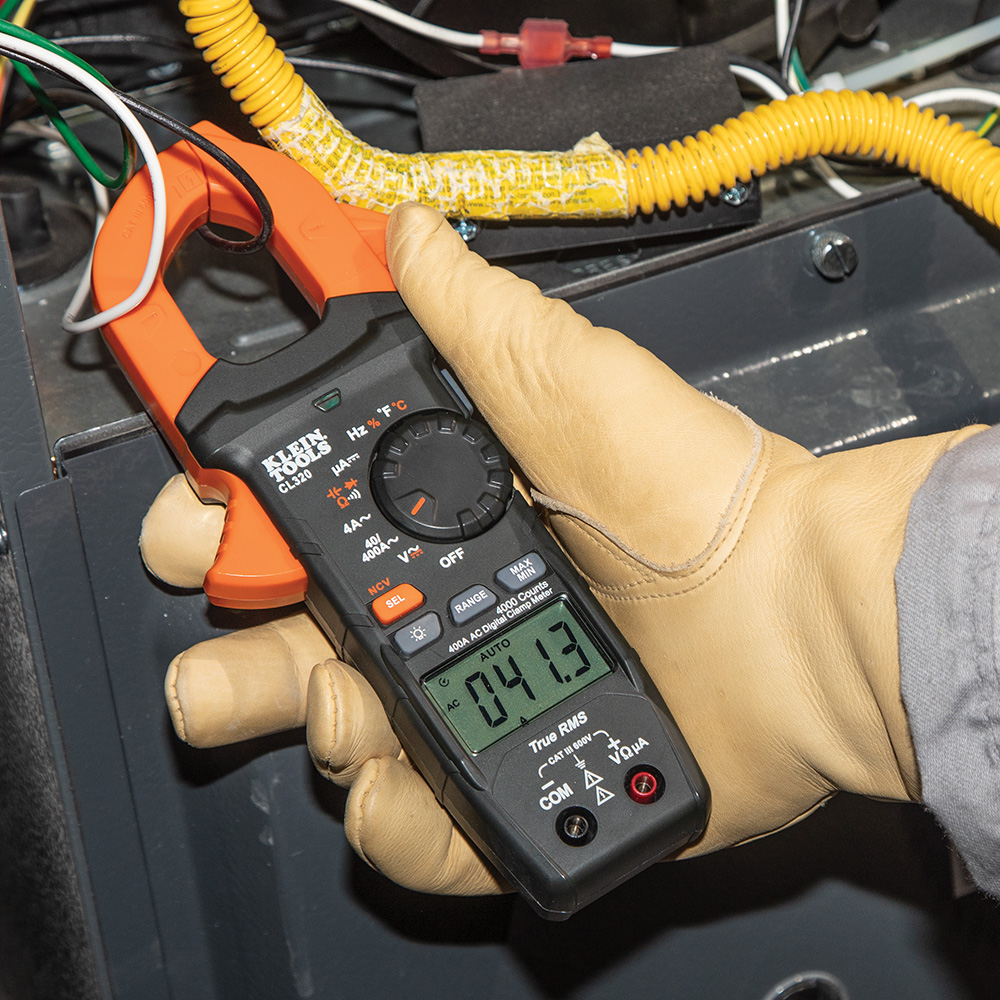

• Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
• HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight

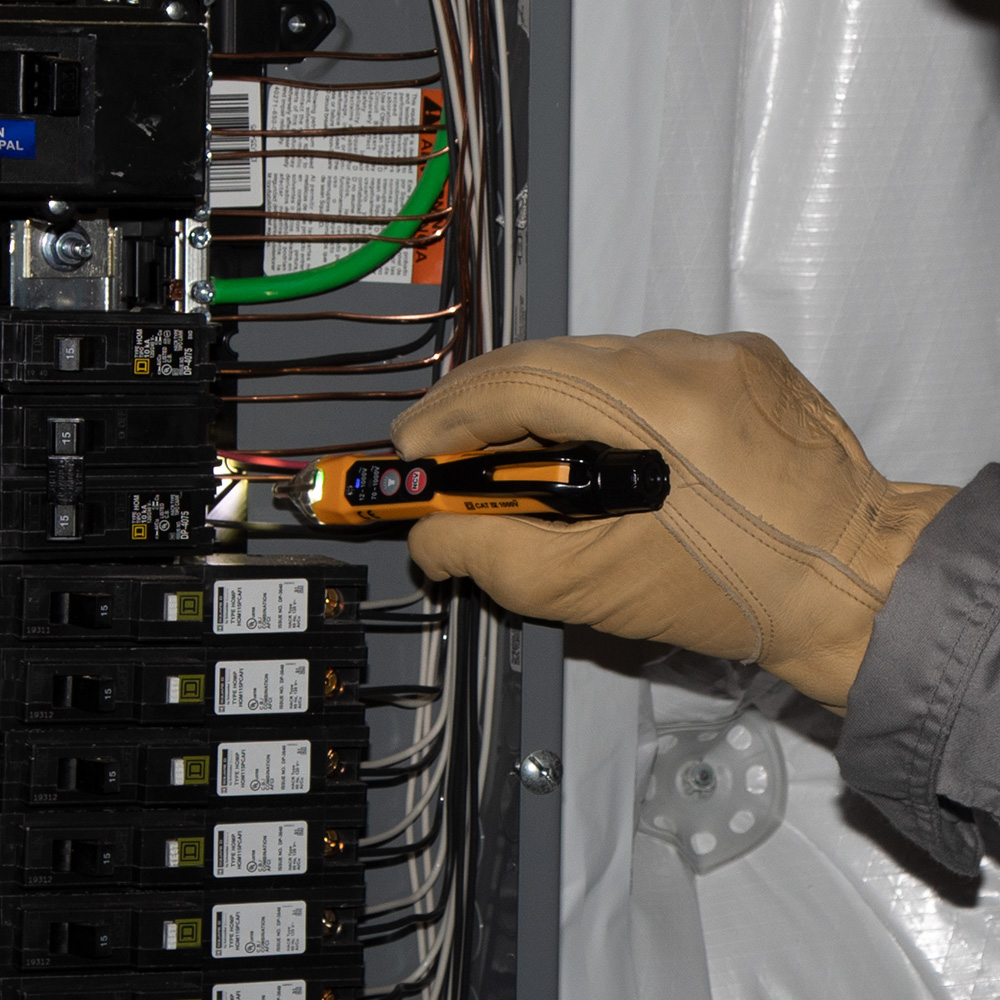

• Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
• Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature

Warnings

• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Do not attempt to measure resistance or continuity on live circuits.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Specifications

• Jaw Size (Inch): 1.6
• Type: HVAC Testers
• Overall Length (cm): 21.5
• Overall Width (cm): 8.9
• Display: 4000 Count Backlit LCD
• Auto Ranging: Yes
• Current: 400 A AC
• Overall Length (Inch): 8.45
• Width: 4.5000 in
• Capacitance: 4000 µF
• Included: CL320 Digital Clamp Meter with Test Leads and Thermocouple; IR07 Dual IR and Probe Thermometer; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; Carrying Pouch; Instructions; and All Required Batteries
• Application: HVAC Electrical and Temperature Testing
• Ohms (Resistance): 40MO
• Overall Height (Inch): 1.5
• TRMS: Yes
• Auto-Power Off: Yes
• Voltage: Cat. No. CL320 - 600V AC/DC; Cat. No. NCVT3P - 1000V AC
• AC Voltage: 600V
• Depth: 11.0000 in
• Batteries: 7 x AAA
• DC Polarity Indicator: Yes
• Frequency: 10 Hz to1 MHz
• Height: 3.2500 in
• Weight: 1.6500 lbs
• Drop Protection: 6.6' (2 m)
• Overall Width (Inch): 3.5
• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
• Jaw Size (cm): 4.1
• Standard: Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000
• DC Micro-Amp: 200 μA
• Overall Height (cm): 3.8
• DC Voltage: 600V
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Material: ABS/Electronics
