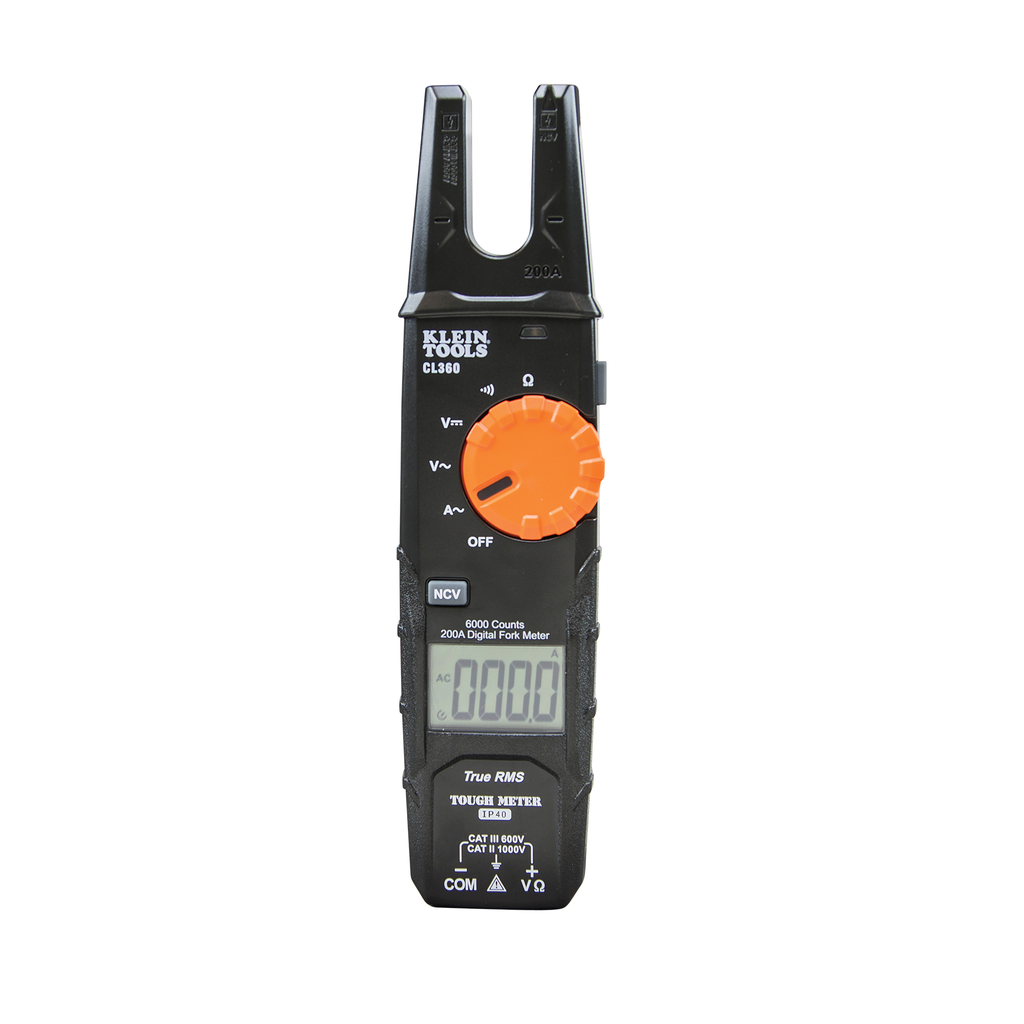

Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

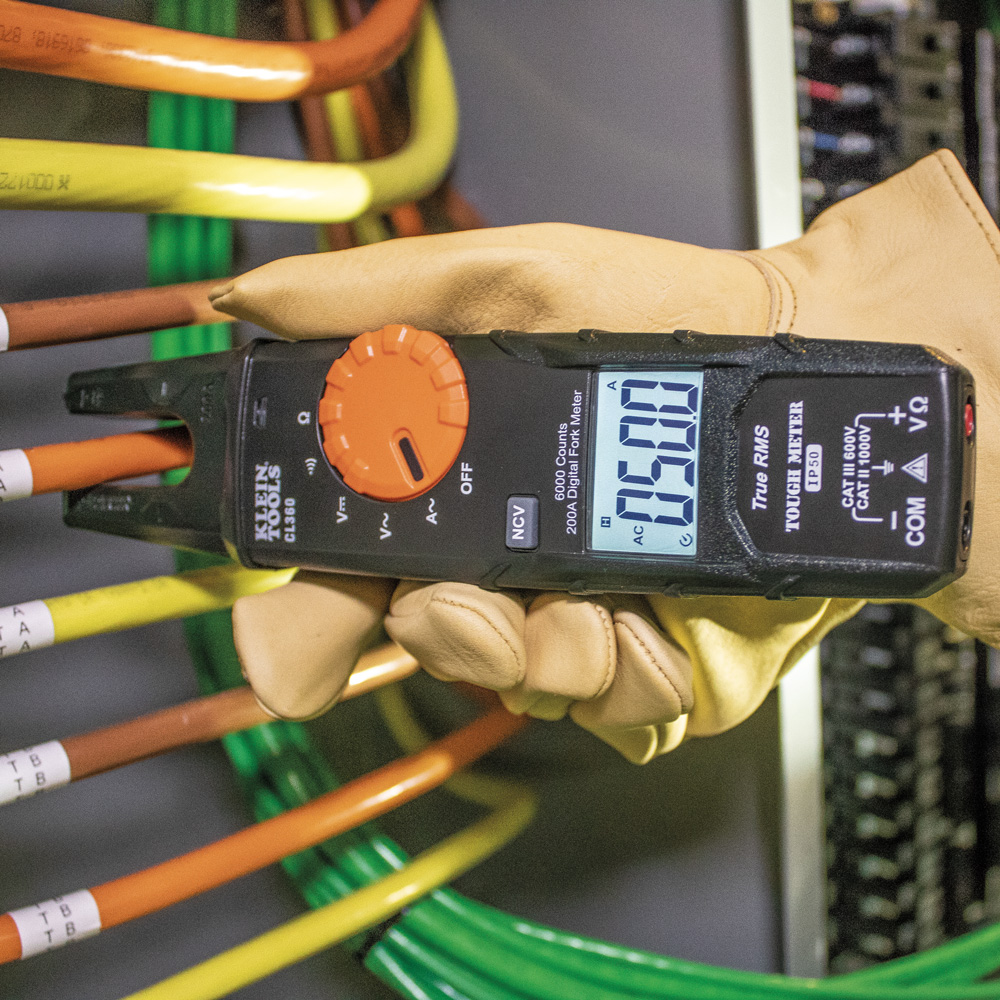

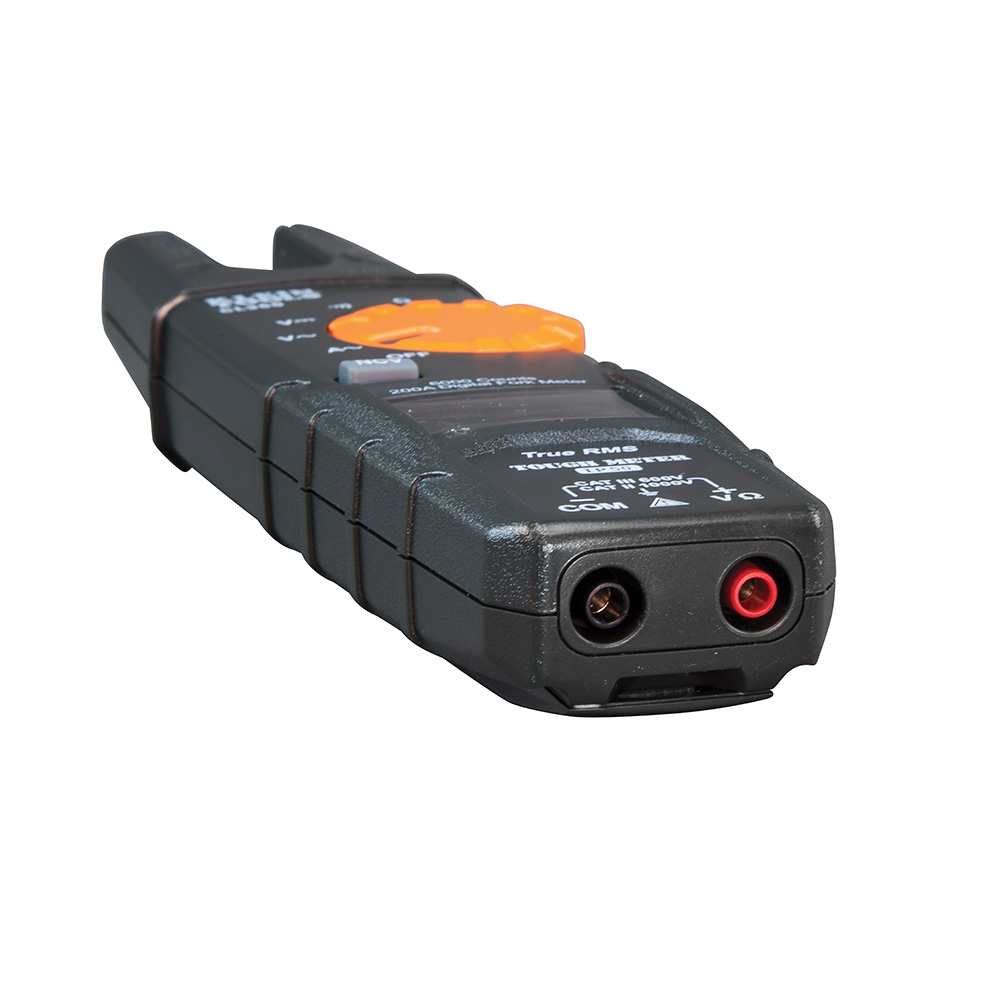

The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.

Features

• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
• Powers off automatically after 15 minutes of non-use to conserve battery life
• Includes a carrying case, test leads and 2 x AAA batteries

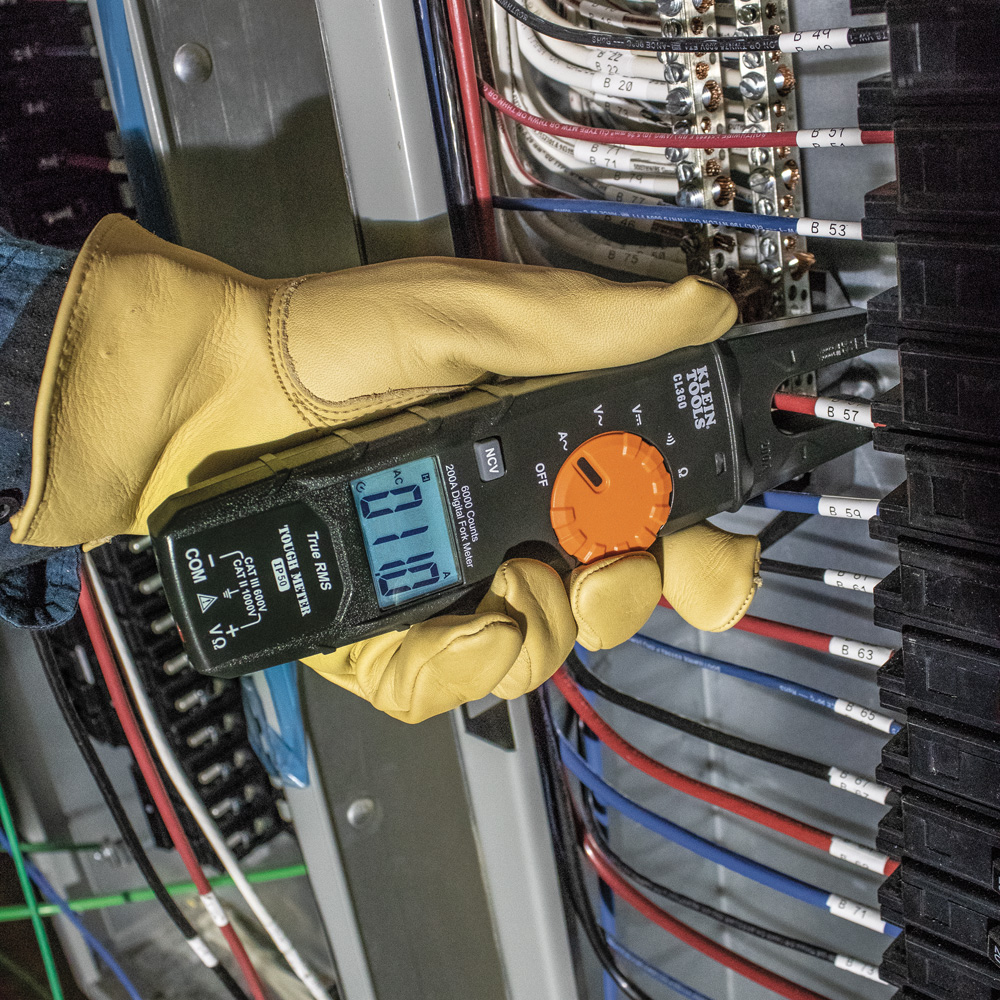

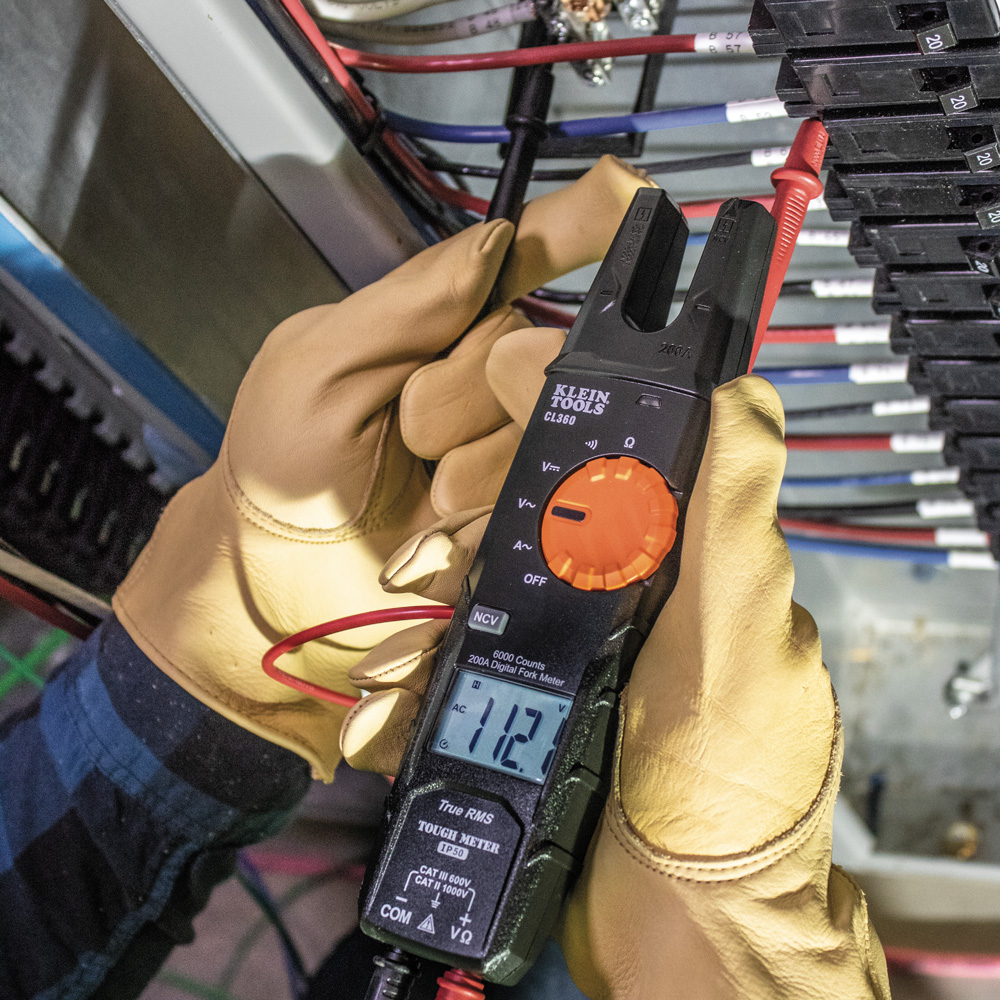

• Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
• Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Low battery indicator and easily accessible battery compartment

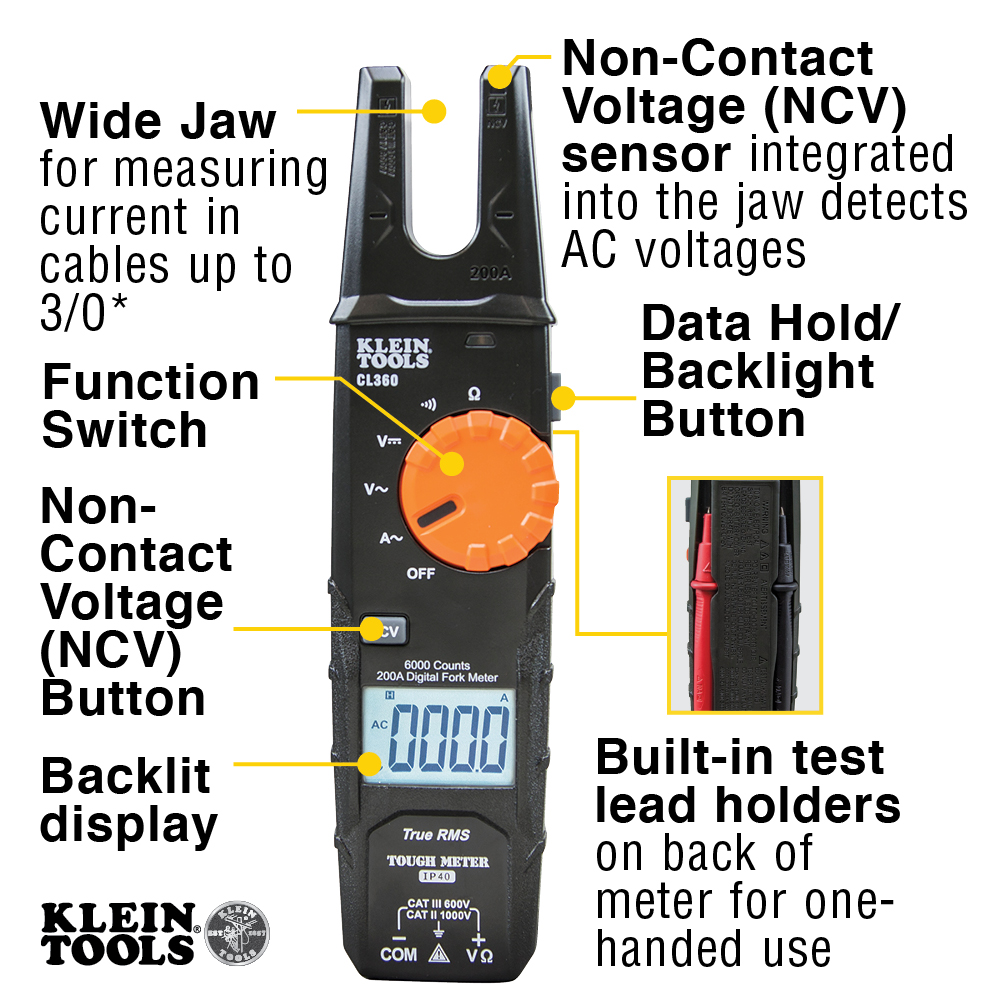

• Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
• Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
• Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
• Non-contact voltage tester integrated into the jaw
• Backlit display for clear readings

Warnings

• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Before each use, verify meter operation by measuring a known voltage or current.

Specifications

• Overall Length (cm): 21.3
• Application: Measures AC Current, AC/DC Voltage, Continuity, Resistance
• Display: 6000 Count LCD
• Weight: 0.4000 lbs
• Overall Length (Inch): 8.39
• Standard: Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V
• Depth: 8.3900 in
• Height: 1.3800 in
• Jaw Size (Inch): 0.58
• AC Voltage: 600V
• Ohms (Resistance): 60MΩ
• Current: 200A AC
• Voltage: 600V AC, 1000V DC
• Overall Height (Inch): 1.38
• Width: 2.1200 in
• DC Voltage: 1000V
• Overall Width (cm): 5.4
• Overall Width (Inch): 2.12
• Batteries: 2 x AAA
• Material: Plastic/Electronics
• DC Polarity Indicator: Yes
• Drop Protection: 9.9' (3m)
• Jaw Size (cm): 1.5
• Ingress Protection: IP40

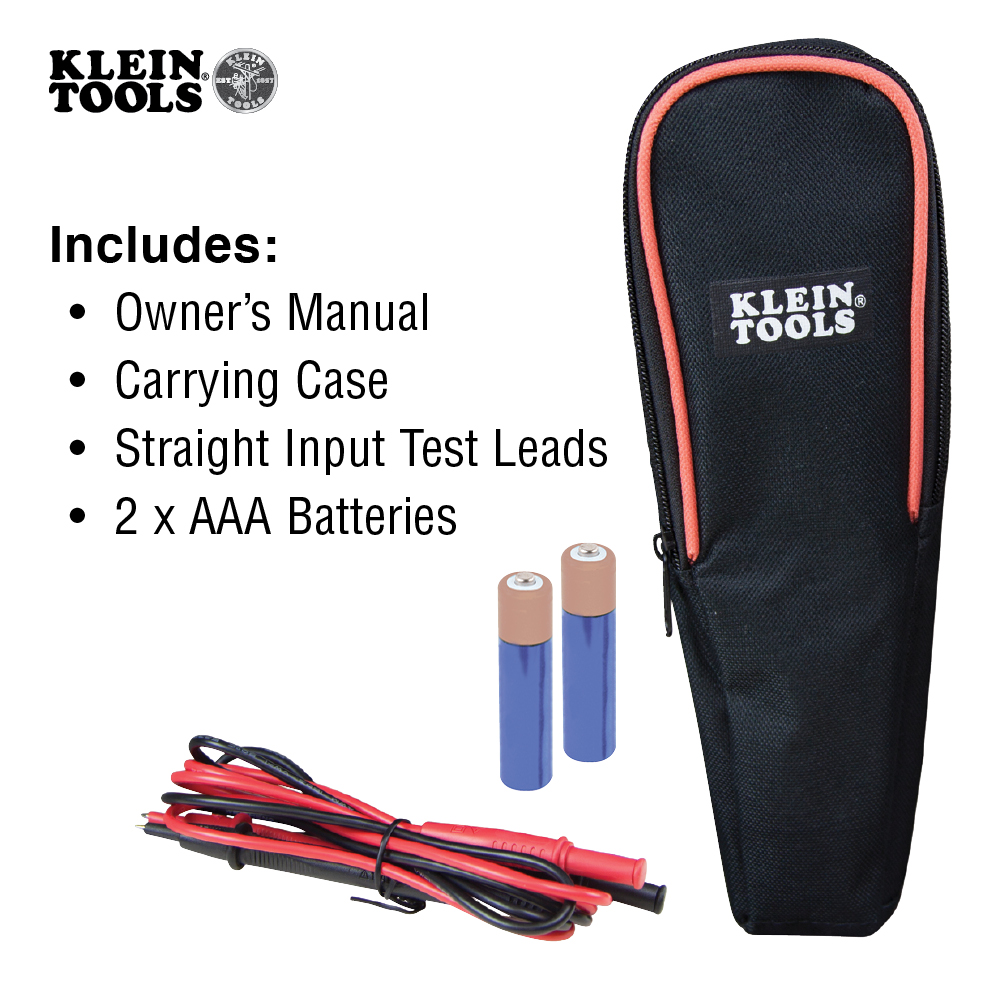

• Included: Electrical Tester; Carrying Case; Instruction Manual; Straight Input Test Leads; and 2 x 1.5V AAA Batteries
• Auto-Power Off: Yes
• Functions: AC Current, AC/DC Voltage, Continuity, Resistance
• Overall Height (cm): 3.5
• Type: Open Jaw Fork Current Meter
