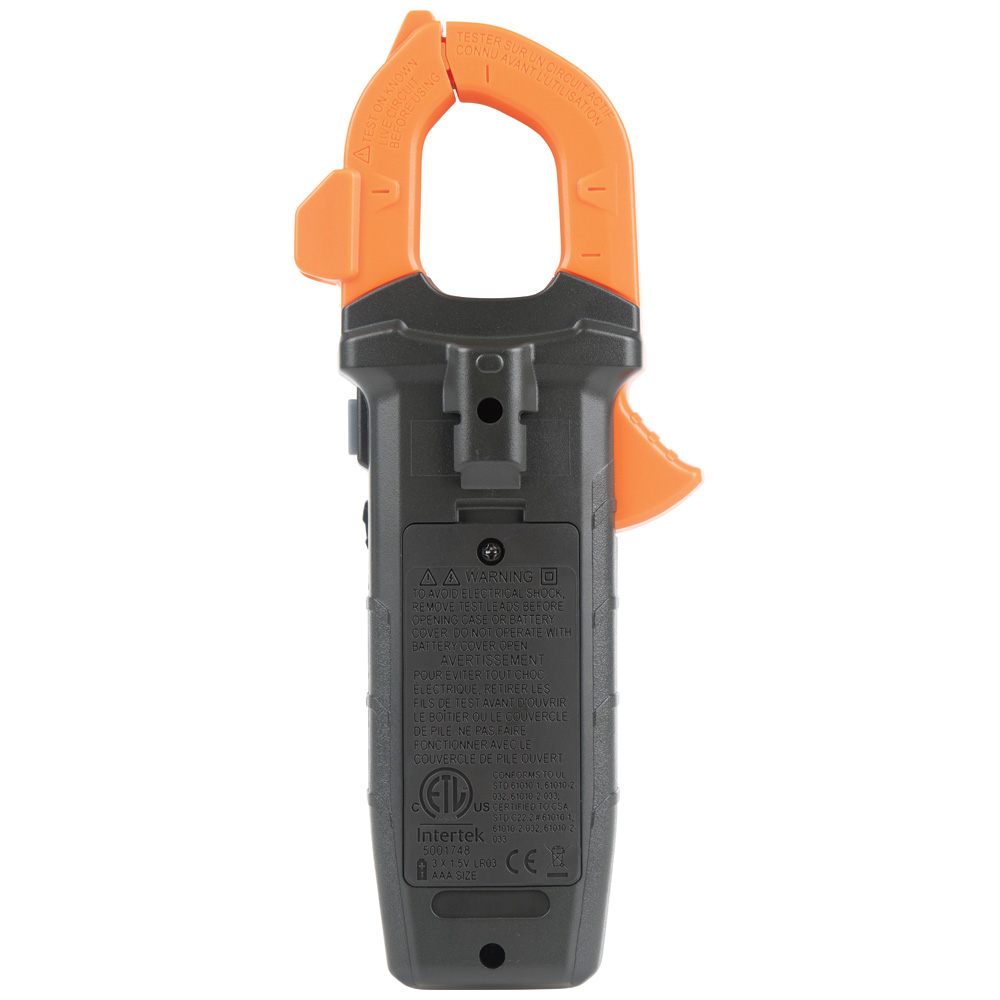

AC/DC Digital Clamp Meter, TRMS Auto-Ranging 400 Amp

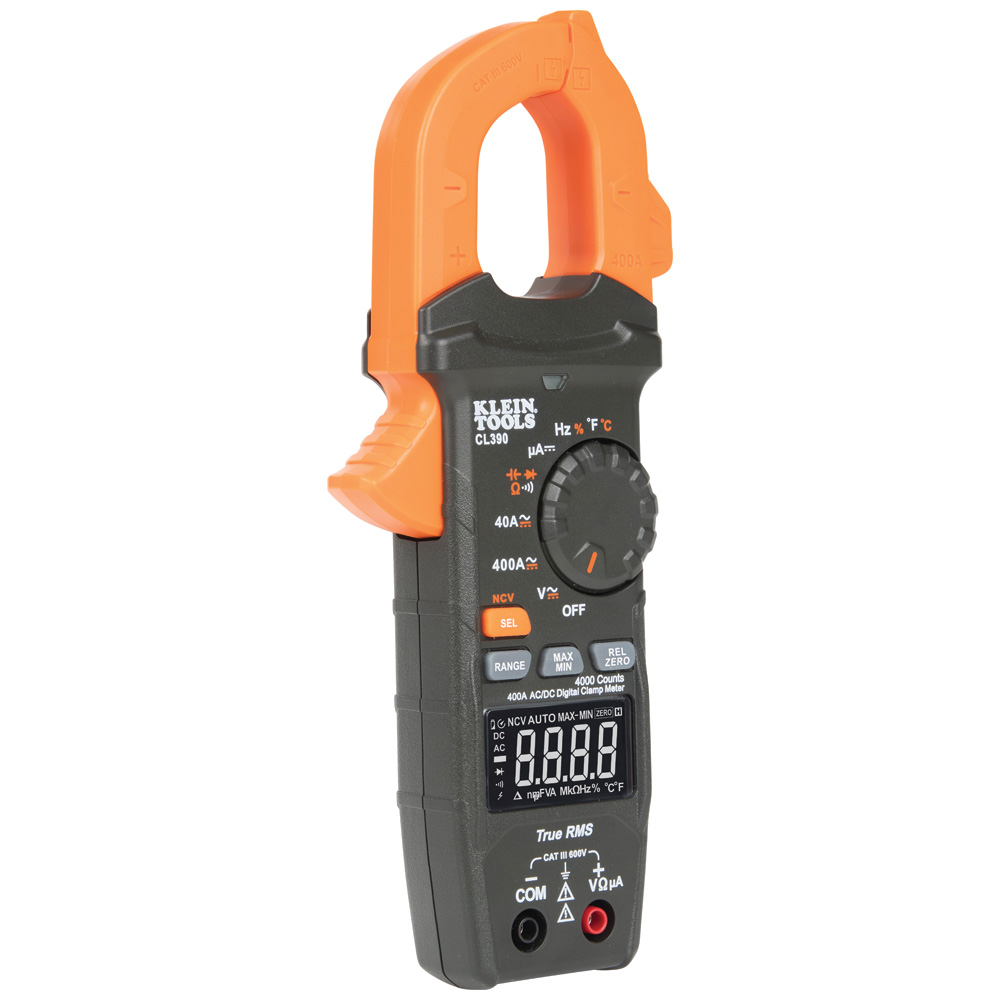

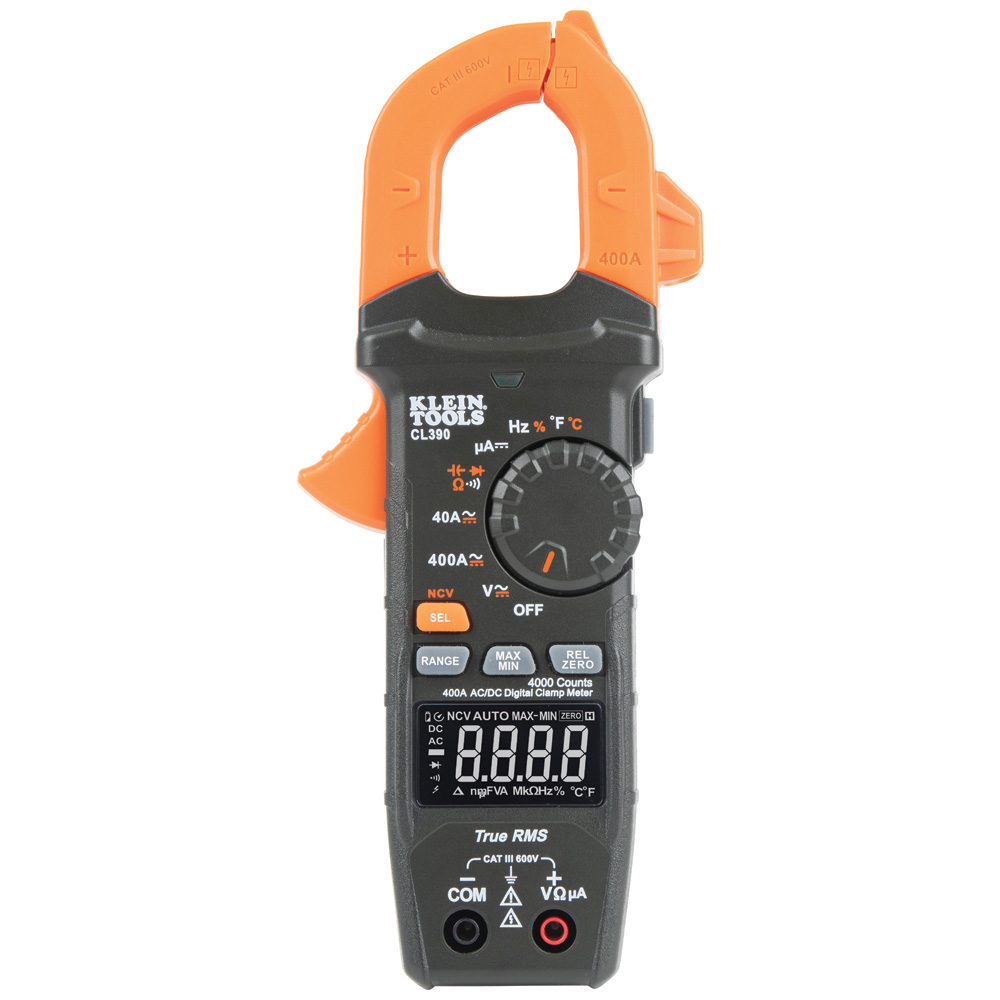

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

Features

• Measures temperature with a K-Type thermocouple probe
• Low battery indicator and easily accessible battery compartment
• Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
• Max/Min, Rel/Zero and Data Hold capability
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• CAT III 600V, Class 2, Double insulation safety rating
• Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Built to withstand a 6.6-Foot (2 m) drop
• Auto-power off after 10 minutes to conserve battery life

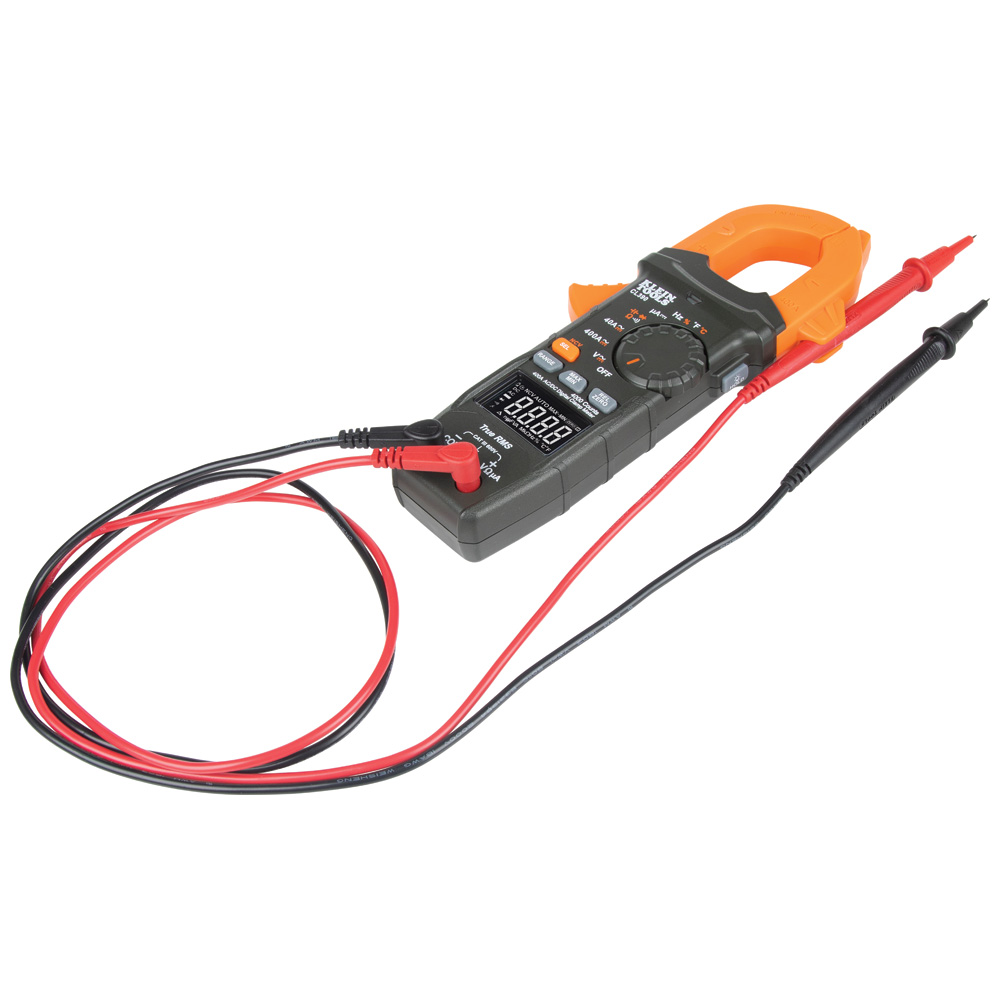

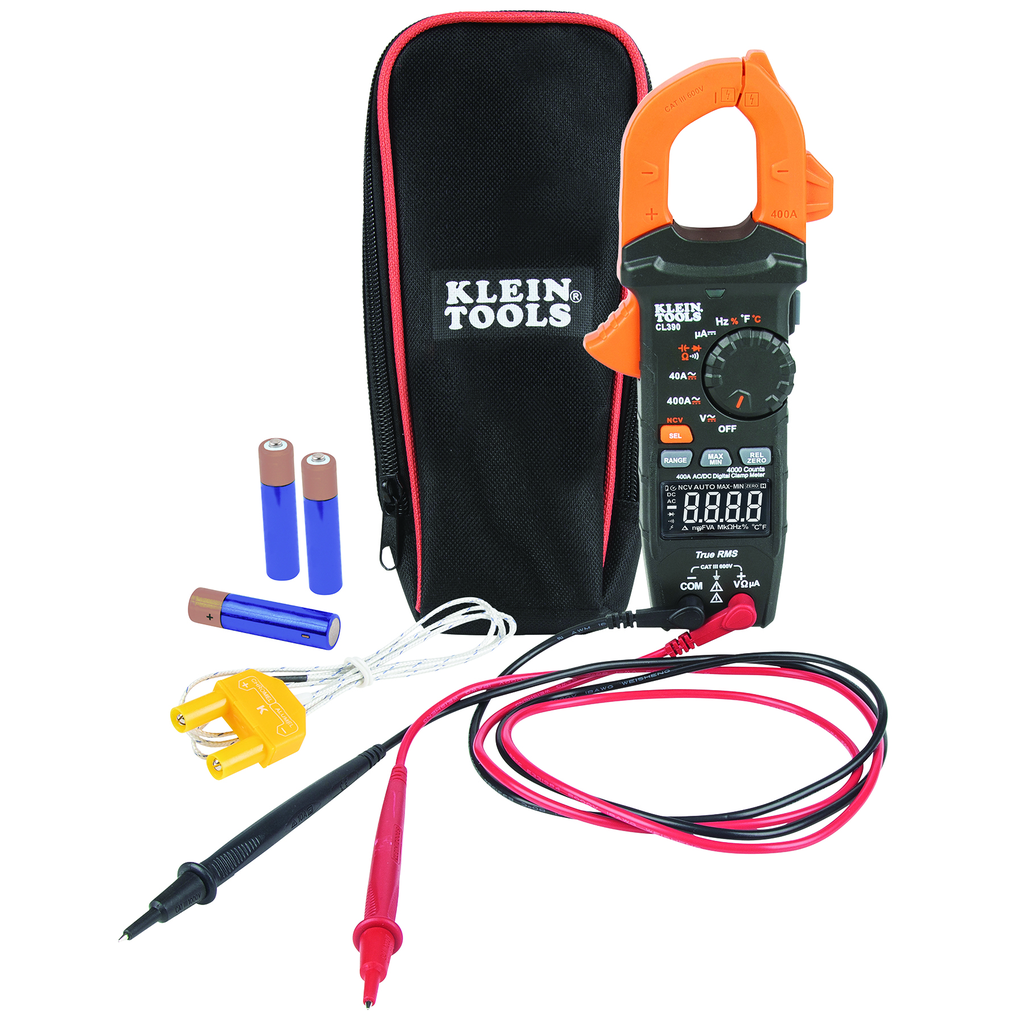

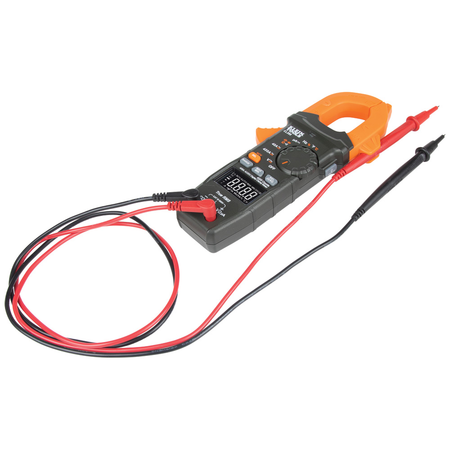

• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
• Non-contact voltage tester integrated into the clamp jaw

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not attempt to measure resistance or continuity on live circuits.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

Specifications

• Auto-Power Off: Yes
• Overall Height (Inch): 1.5
• DC Polarity Indicator: Yes
• Voltage: 600 V AC/DC
• Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
• Jaw Size (Inch): 1.6
• Temperature Range: -40° - 1832°F (-40° - 1000°C)
• Overall Length (cm): 21.5
• Width: 3.5120 in
• Depth: 8.4500 in
• DC Voltage: 600 V
• Overall Length (Inch): 8.45
• Overall Height (cm): 3.8
• Jaw Size (cm): 4.1
• Display: 4000 Count Reverse Contrast LCD
• Overall Width (cm): 8.9
• Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
• Overall Width (Inch): 3.5
• Type: AC/DC Current TRMS Clamp
• Ohms (Resistance): 40 MΩ
• AC Voltage: 600 V
• Current: 400 A AC/DC
• Material: ABS/Electronics
• Height: 1.5060 in
• Weight: 0.5160 lbs
• Capacitance: 4000 µF
• Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
• Drop Protection: 6.6' (2 m)
• DC Micro-Amp: 200 µA
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
• Application: Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
• Batteries: 3 x AAA
