HVAC Clamp Meter

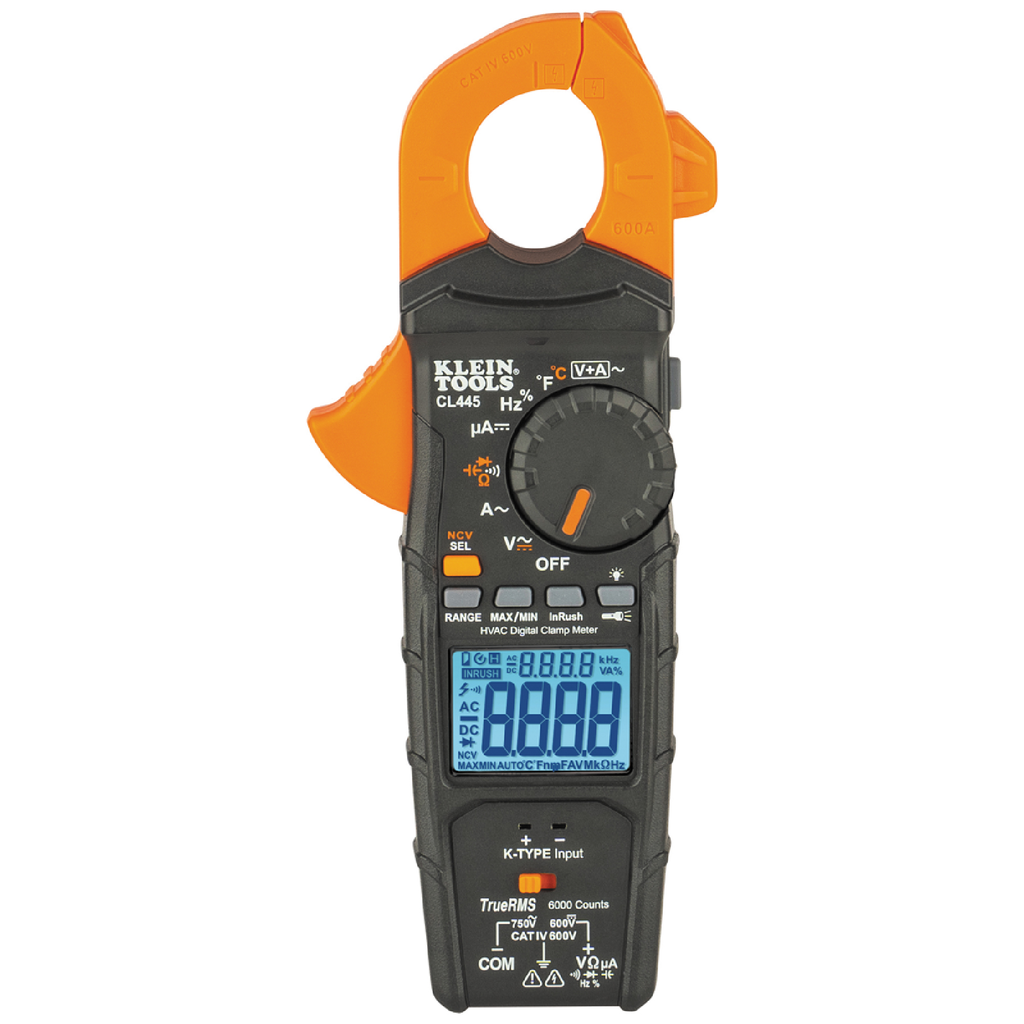

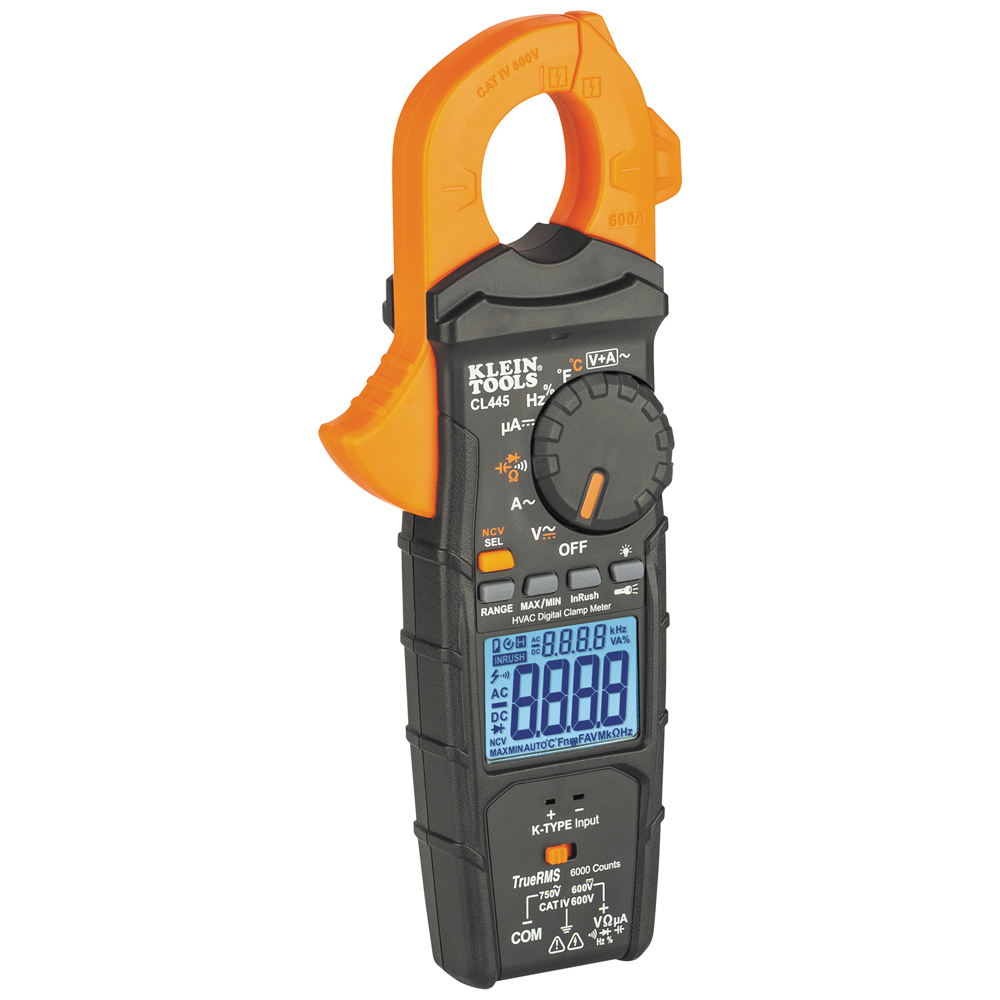

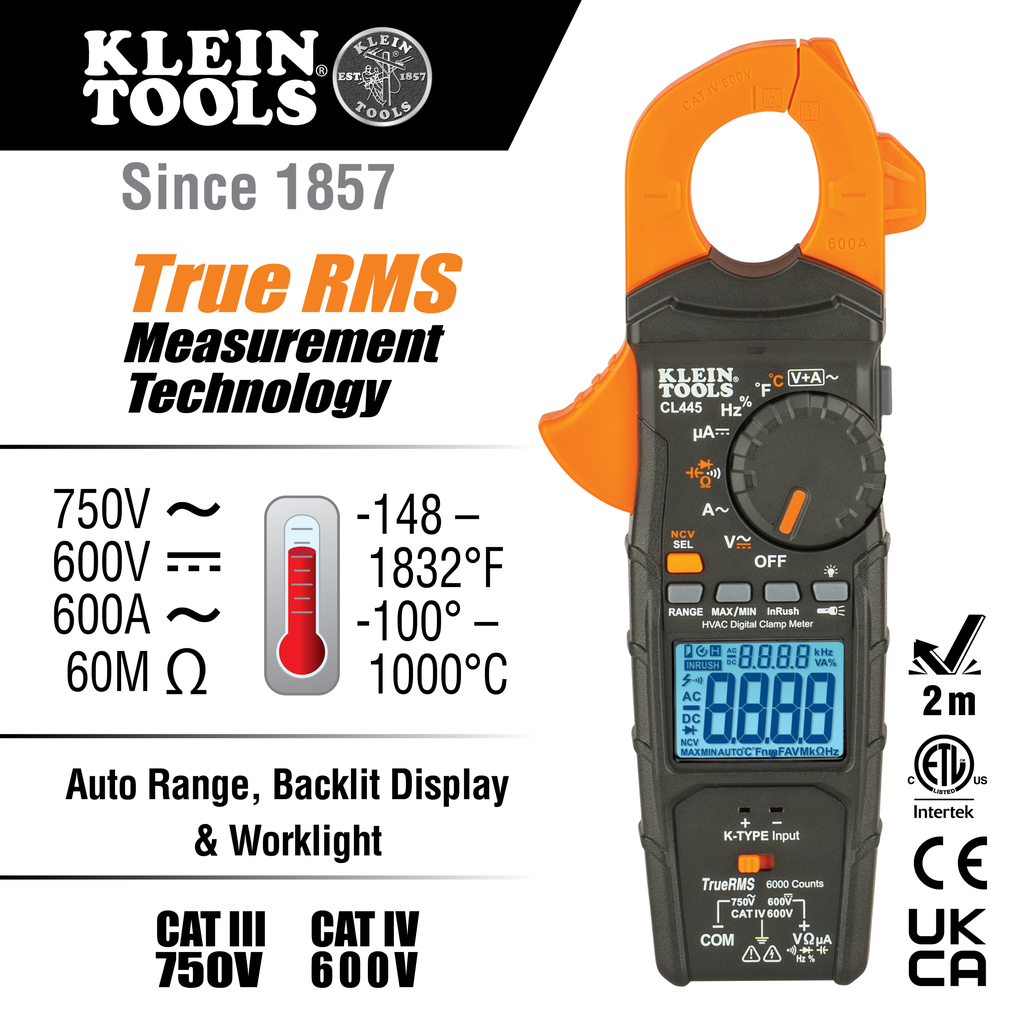

Klein Tools CL445 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter can simultaneously measure current and voltage, has a built-in worklight and comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.

Features

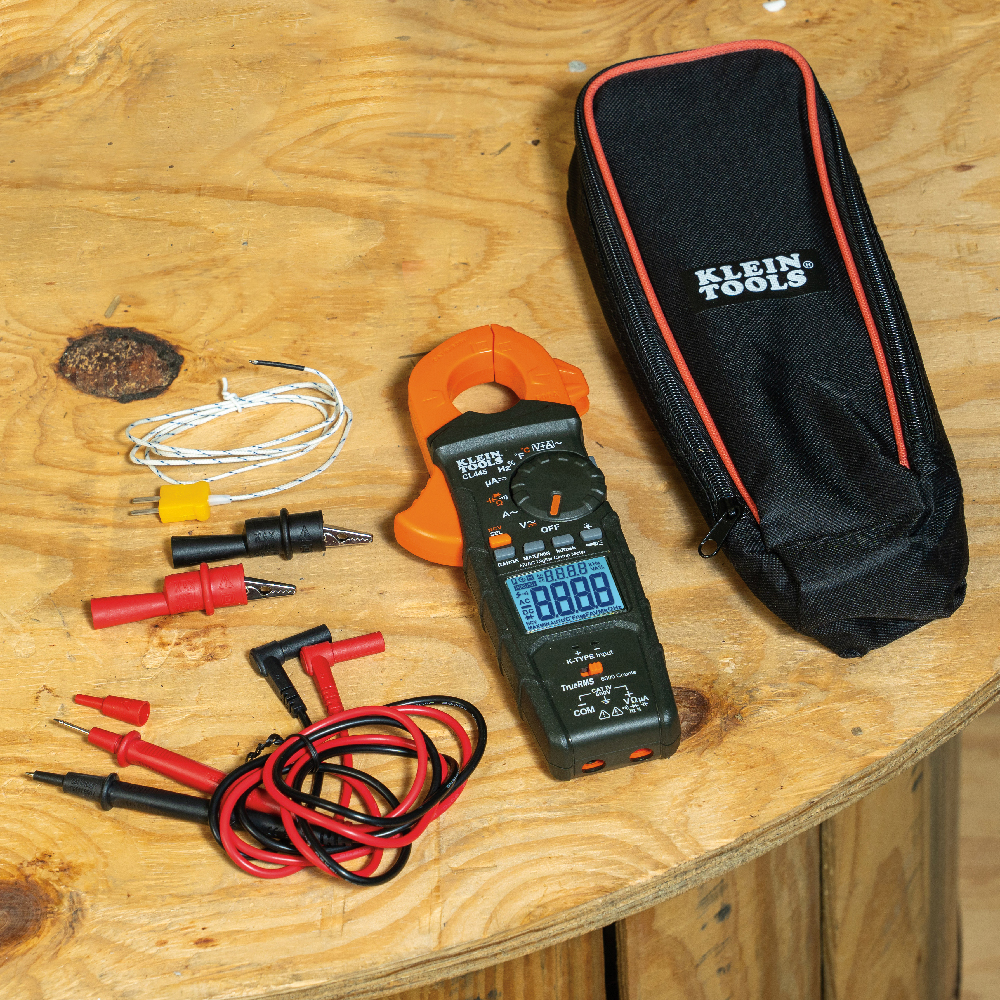

• Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
• Detect AC current with non-contact voltage tester integrated into the clamp jaw
• Digital clamp measures 600 A AC current and inrush current
• Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; V + A Simultaneously Displayed; Built-in Worklight
• Dedicated mode for capturing DC micro amp and inrush current

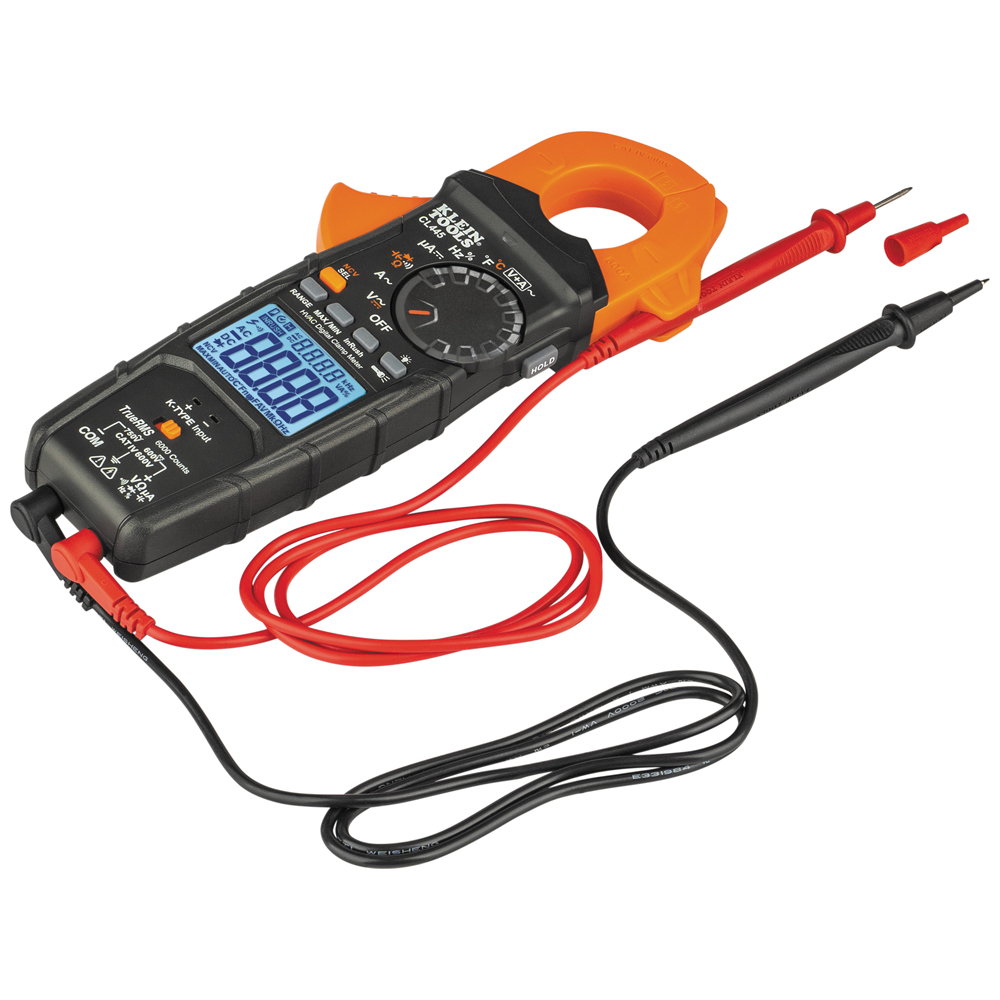

• Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests

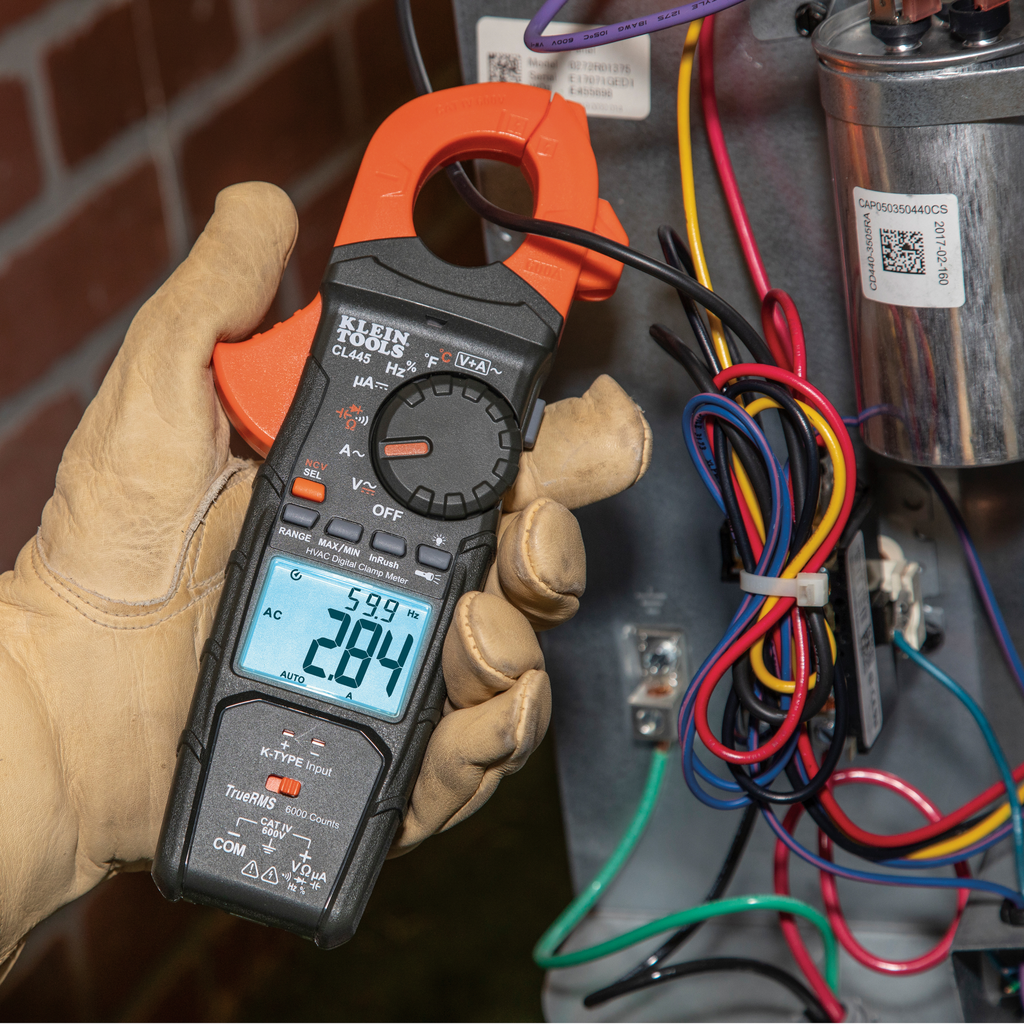

• Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
• CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

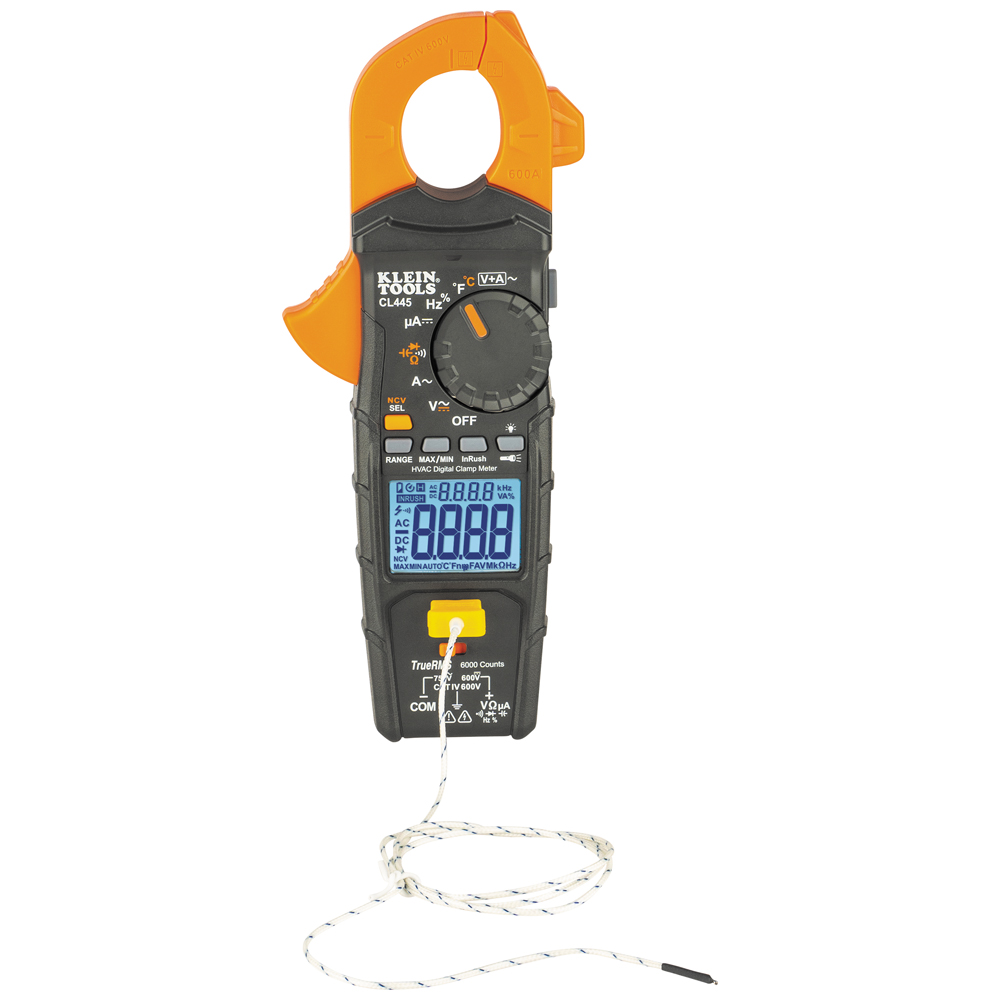

• K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)
• CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
• Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation

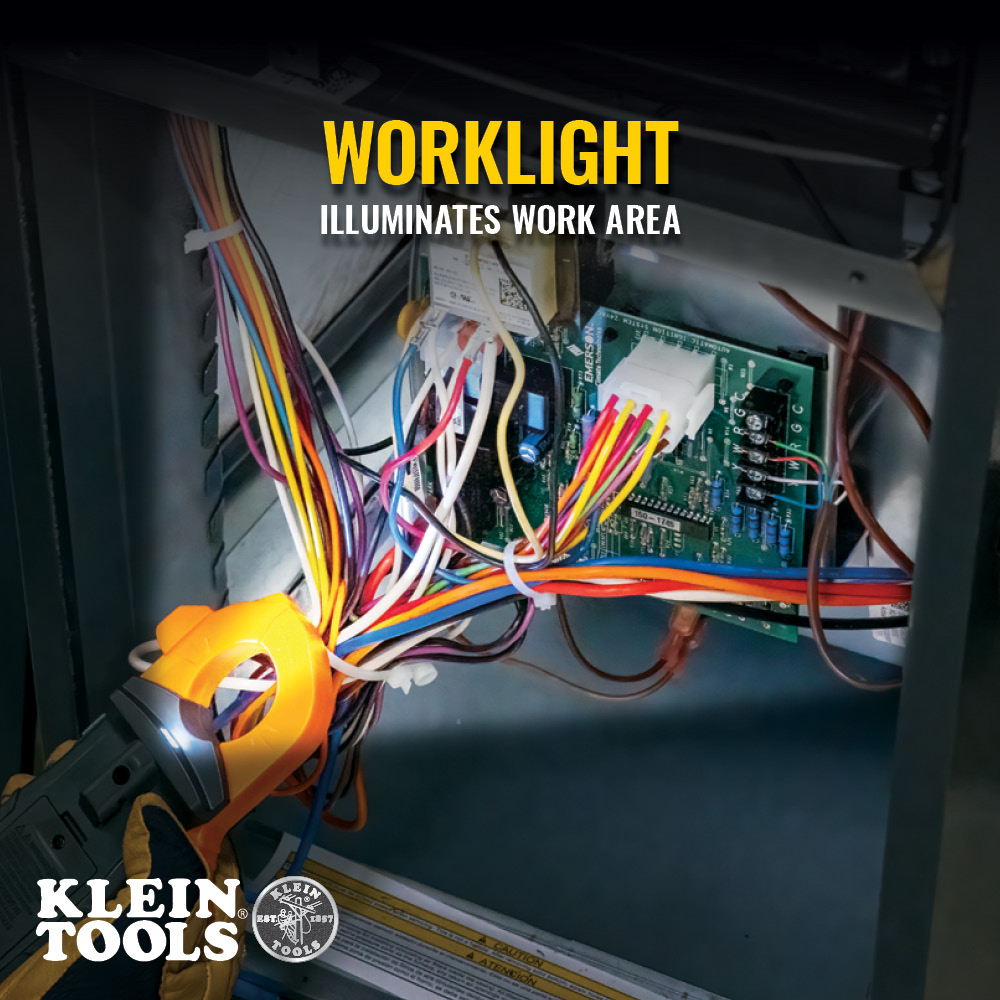

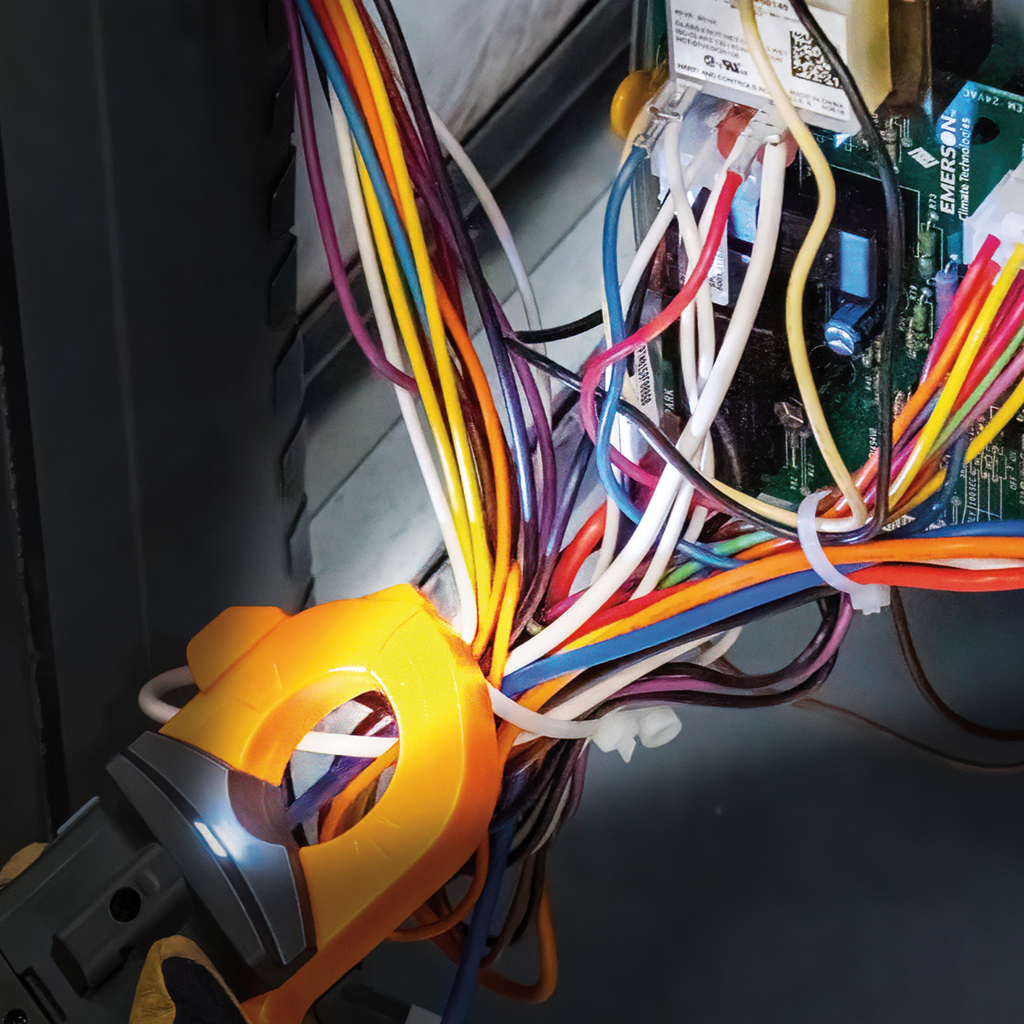

• Meter has a built-in worklight to illuminate in low light areas

Warnings

• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Never use the meter on a circuit with voltages that exceed the category based rating of this meter.

Specifications

• Frequency: 60 kHz
• Display: 6000 Count LCD
• Accuracy: See Instructions
• Batteries: 3 x AAA
• Standard: CAT IV 600V, CAT III 750V, Class 2, Double Insulation Safety Rating
• Functions: TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, AC Voltage + AC Amperage, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
• Ohms (Resistance): 60MΩ
• Height: 1.5900 in
• Depth: 9.2400 in
• Temperature Range: -148° to 1832°F (-100° to 1000°C)
• Type: HVAC TRMS Clamp Meter
• Jaw Size (Inch): 1.25
• Application: Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More
• Voltage: 750V AC; 600V DC
• DC Micro-Amp: 600µA
• Width: 3.7600 in
• Overall Width (cm): 9.6
• Overall Height (Inch): 1.59
• Overall Height (cm): 4
• Material: ABS/Electronics
• Current: 600A
• Drop Protection: 6.6' (2 m)
• Overall Length (cm): 23.5
• Overall Length (Inch): 9.24
• Weight: 0.7880 lbs
• Overall Width (Inch): 3.77
• Jaw Size (cm): 3.2
• DC Polarity Indicator: Yes
• Included: Clamp Meter; Right-Angle Input Test Leads; Push-On Alligator Clips; K-Type Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
• DC Voltage: 600V
• AC Voltage: 750V
• Capacitance: 6.000mF
• Auto-Power Off: Yes
