Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), Auto Off

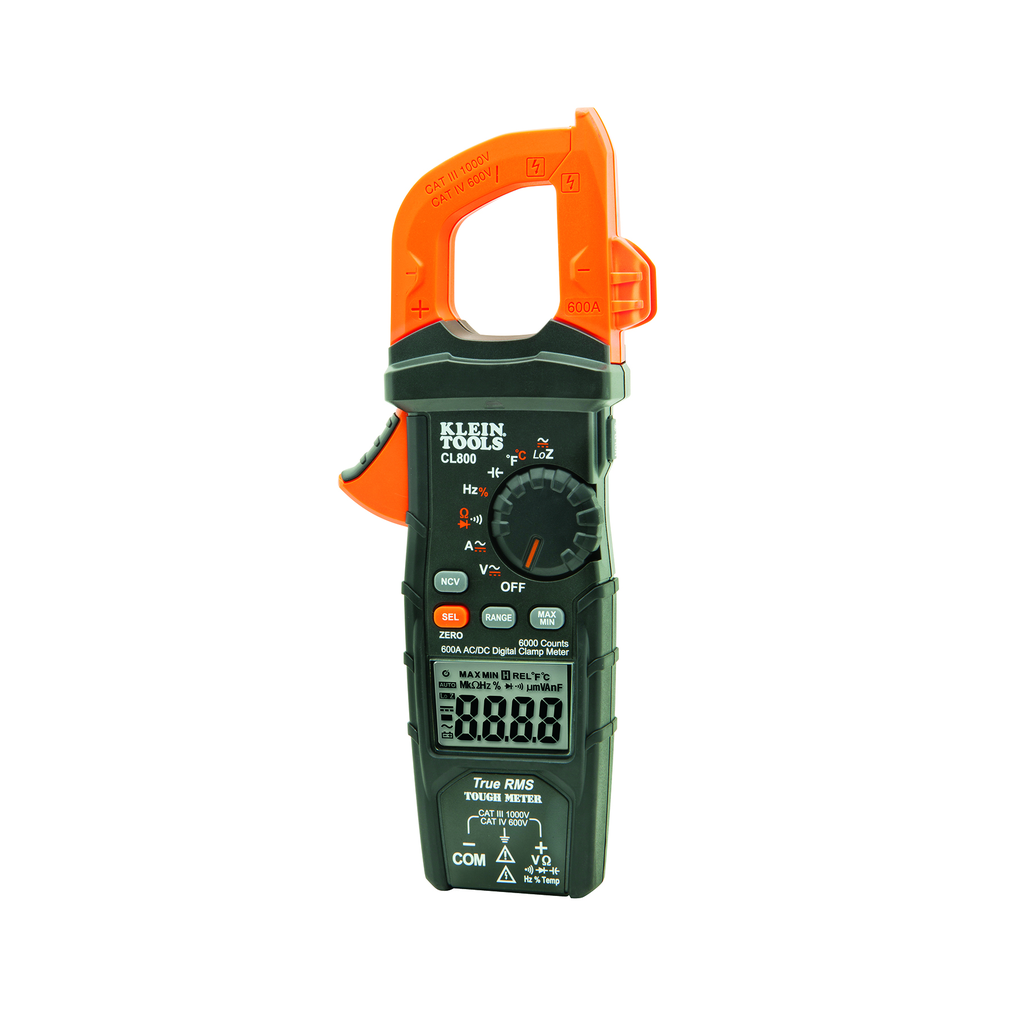

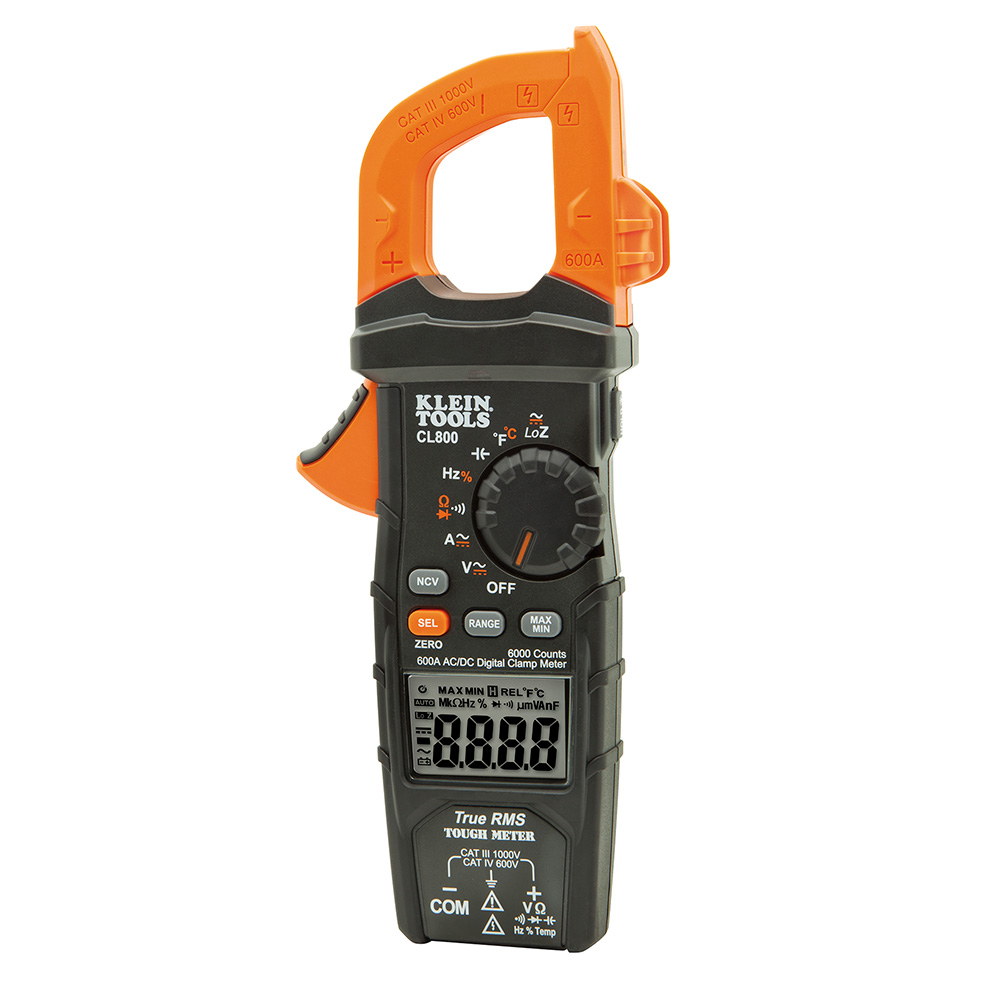

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not attempt to measure resistance or continuity on live circuits.

Features

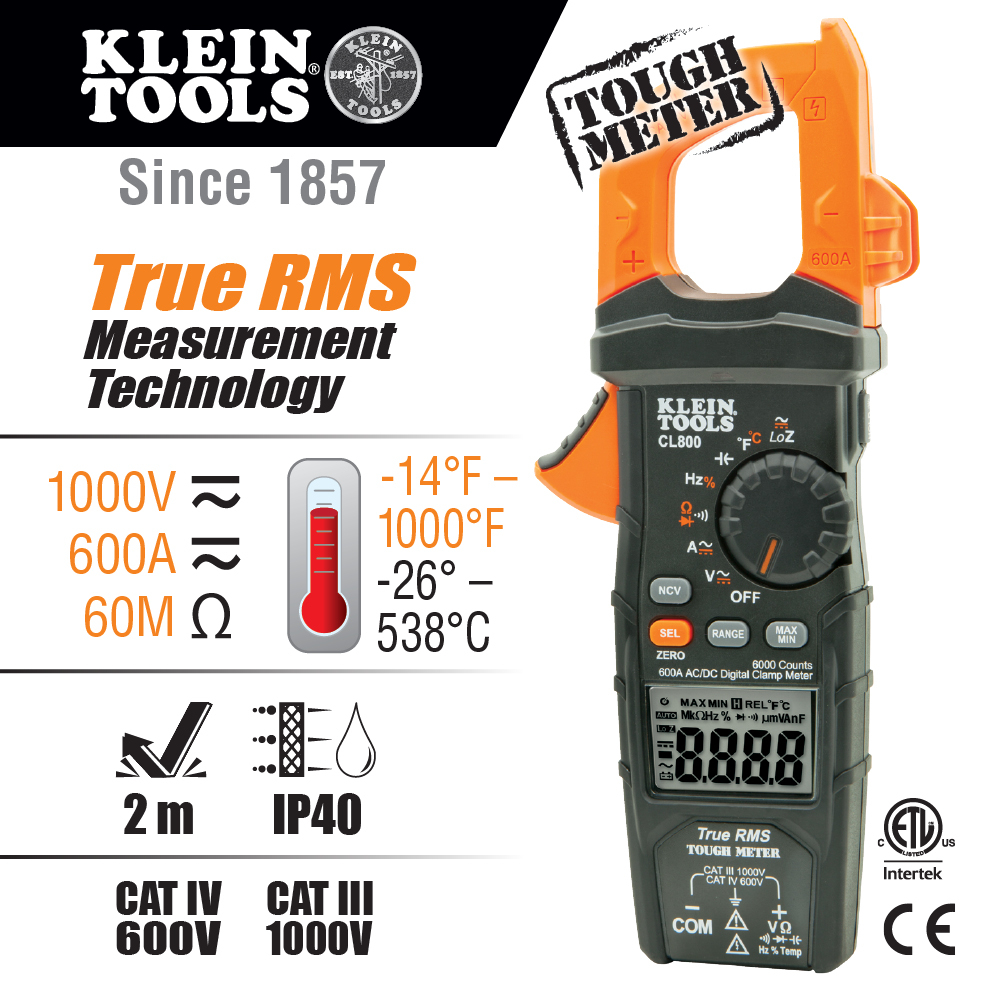

• CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
• Features Low Battery Indicator and Auto Shut Off
• Low battery indicator and easily accessible battery compartment
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Thermocouple probe measures temperature

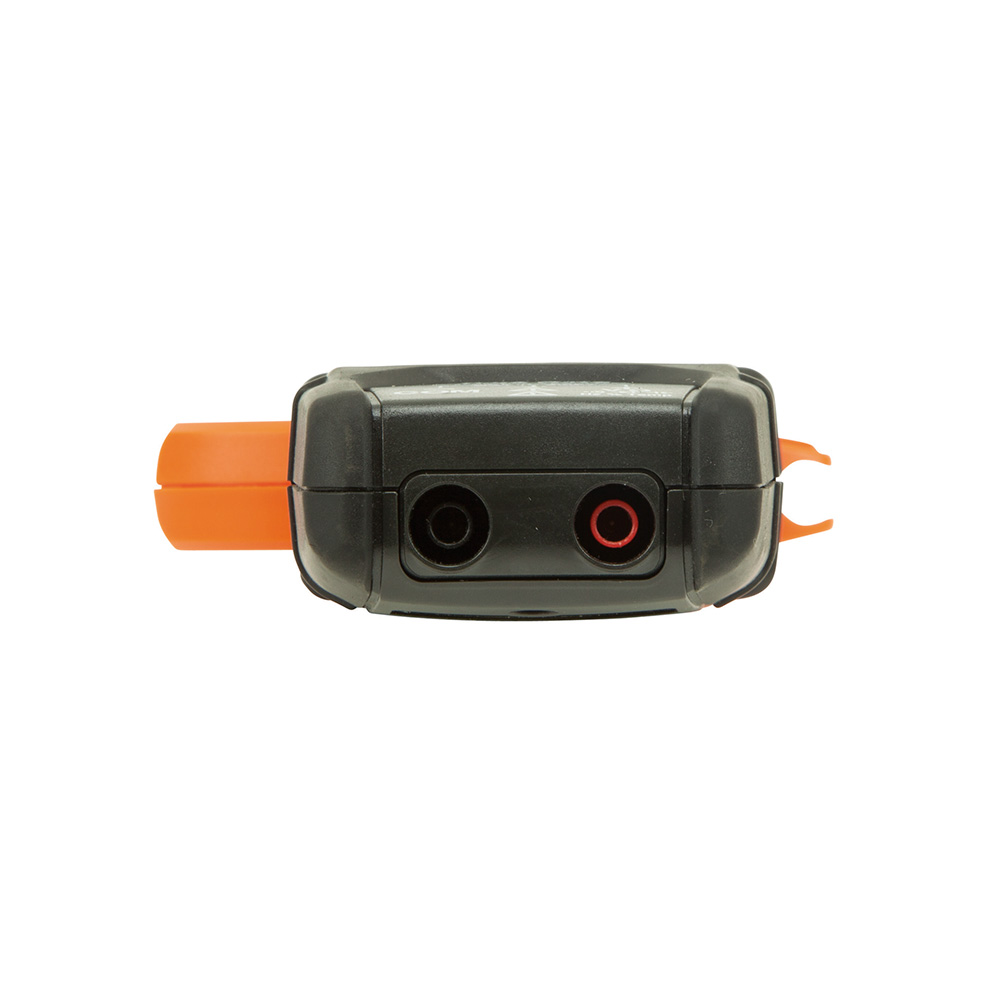

• Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
• Built to withstand a 6.6-Foot (2m) drop
• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
• Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
• Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
• Includes carrying pouch, test leads, thermocouple with adapter and batteries
• Operating altitude to 6562-Foot (2000m)

Specifications

• Included: Digital Clamp Meter; Carrying Case; 41" (1041.4 mm) Test Leads; Thermocouple with Adapter; Batteries
• Capacitance: 6000µF
• Width: 3.8200 in
• Batteries: 2 x AAA
• Current: 600A AC; 600A DC
• Height: 1.5400 in
• Overall Width: 3.81" (9.7 cm)
• Overall Height: 1.55" (3.9 cm)
• Jaw Size: 1.38" (3.5 cm)
• Weight: 0.7810 lbs
• Overall Length: 9.09" (23.1 cm)
• Display: 6000 Count LCD
• Temperature Range: -14° - 1000°F (-26° - 538°C)
• Application: Measures Current 10mA-600A
• Functions: Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
• Display Size: 1.6" x 1.04" (4.1 x 2.6 cm)
• Depth: 9.0900 in
• Voltage: 1000V AC; 1000V DC
• Ingress Protection: IP40
• Drop Protection: 6.6' (2 m)
• Standard: CAT IV 600V; CE Certified
• Ohms (Resistance): 60MO
• Frequency: 1Hz - 500 KHz
