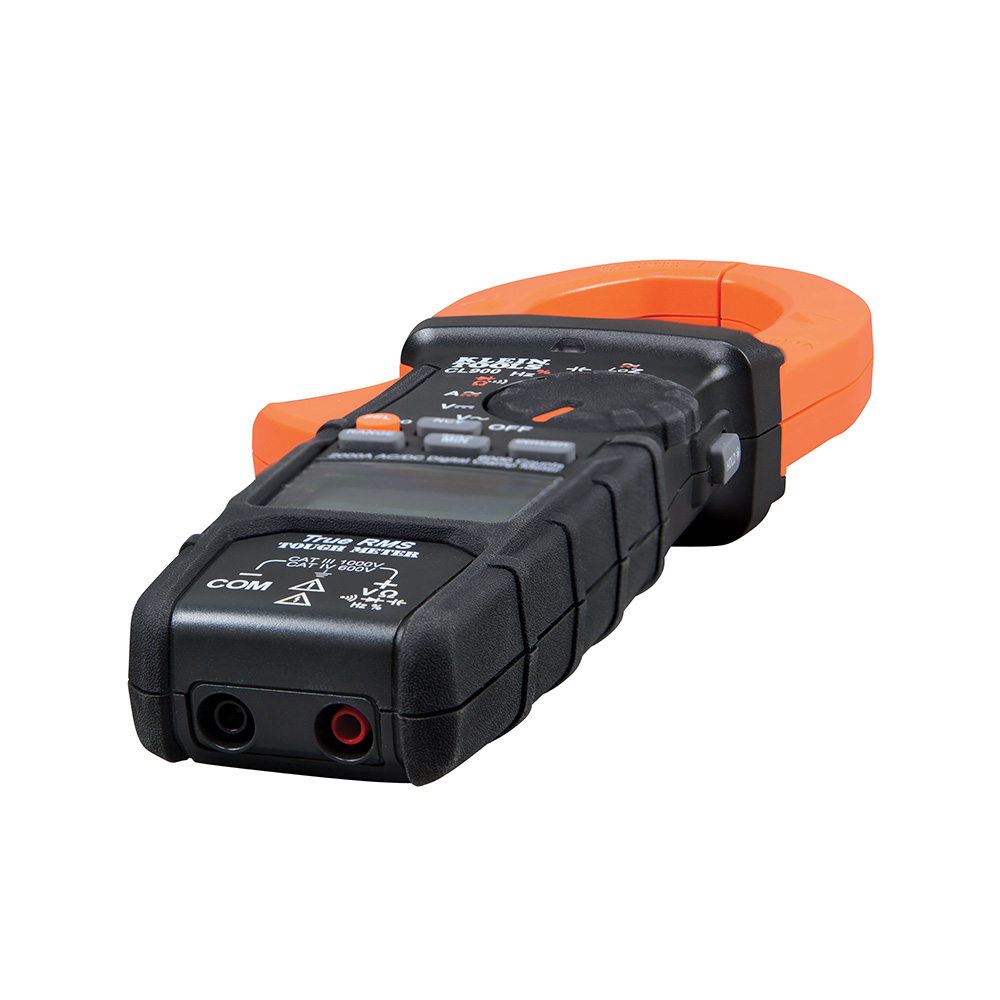

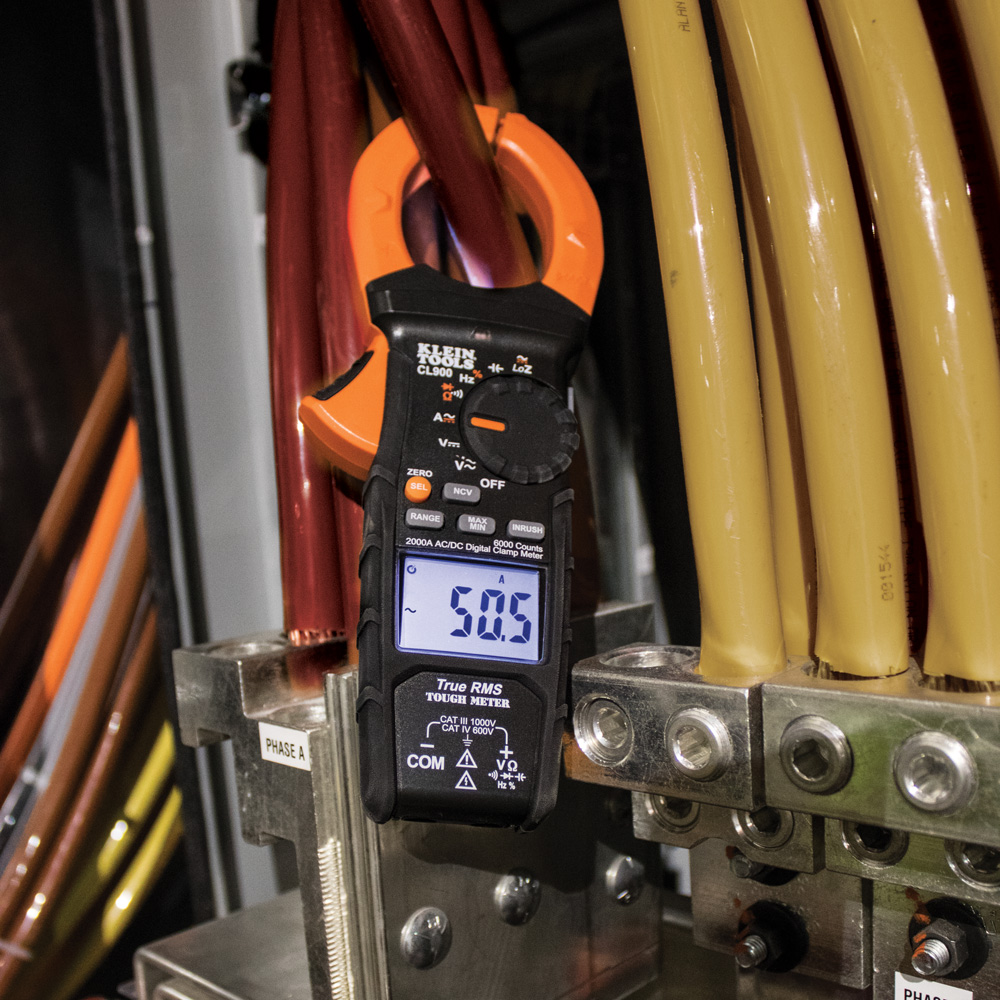

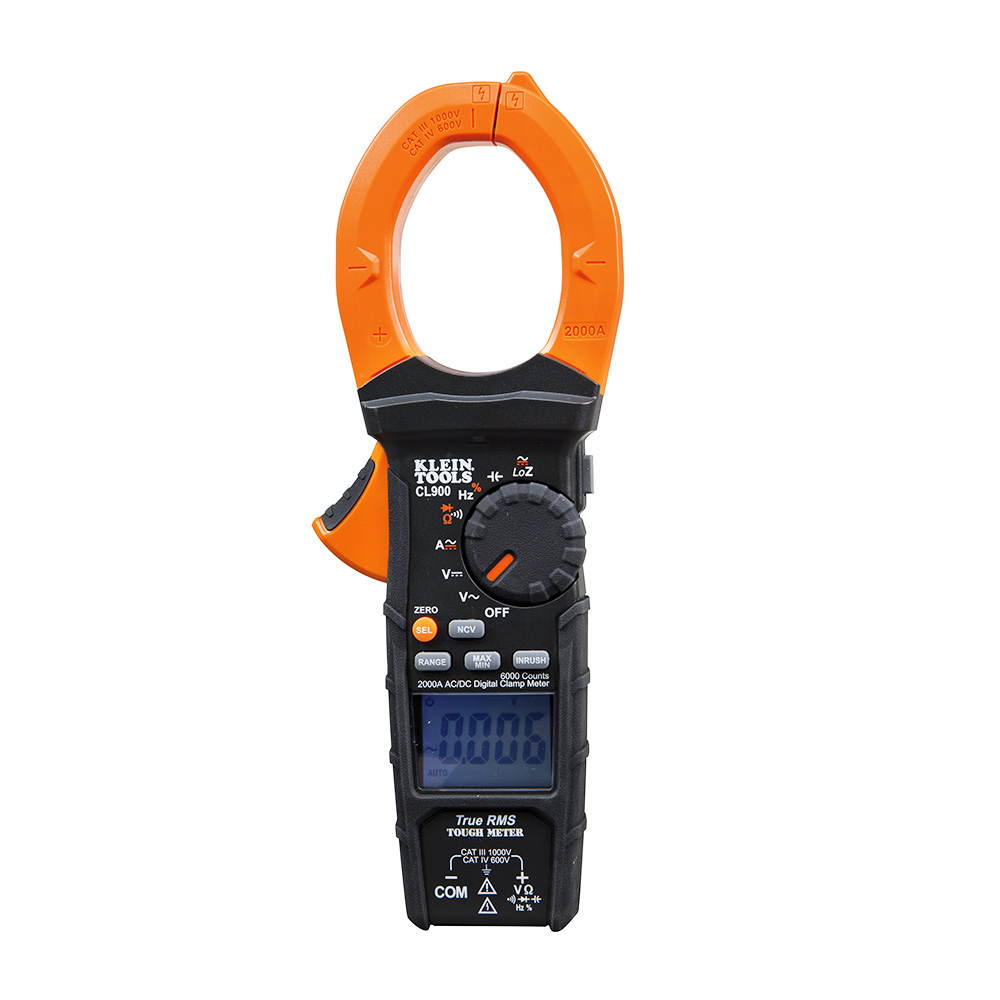

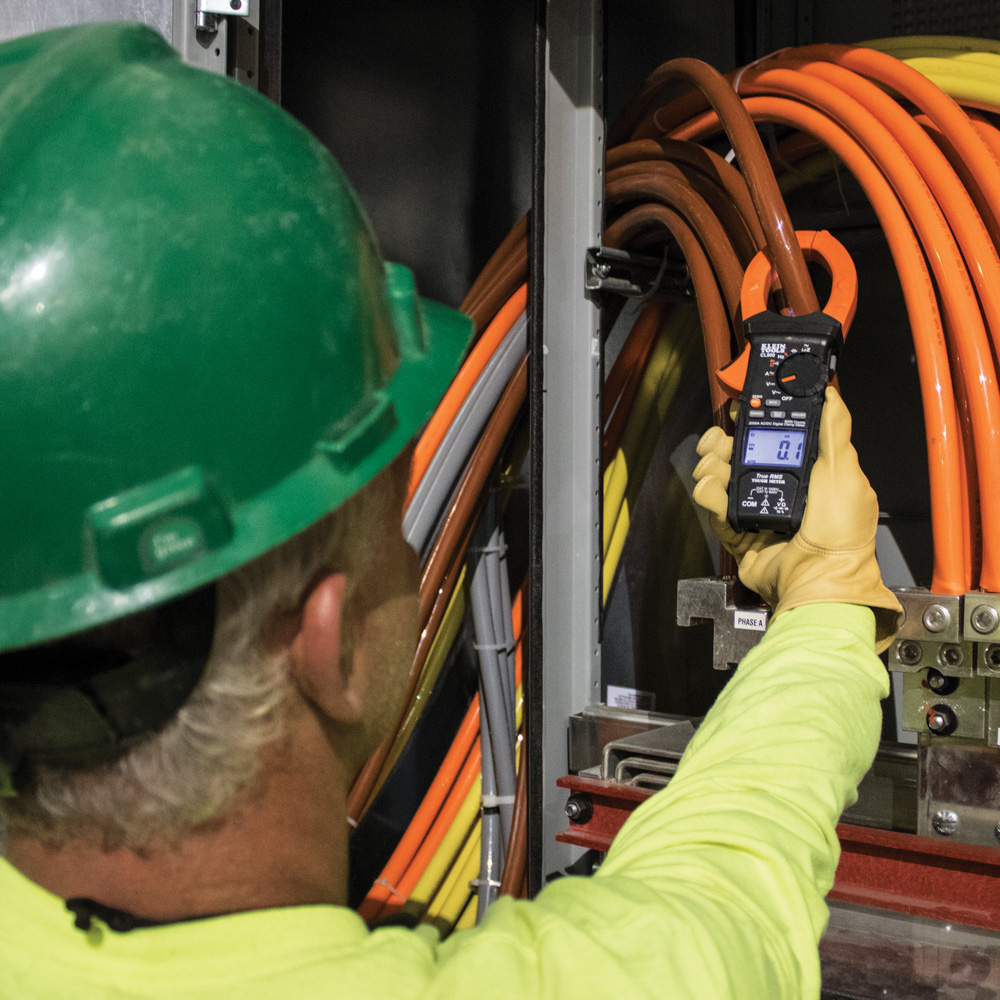

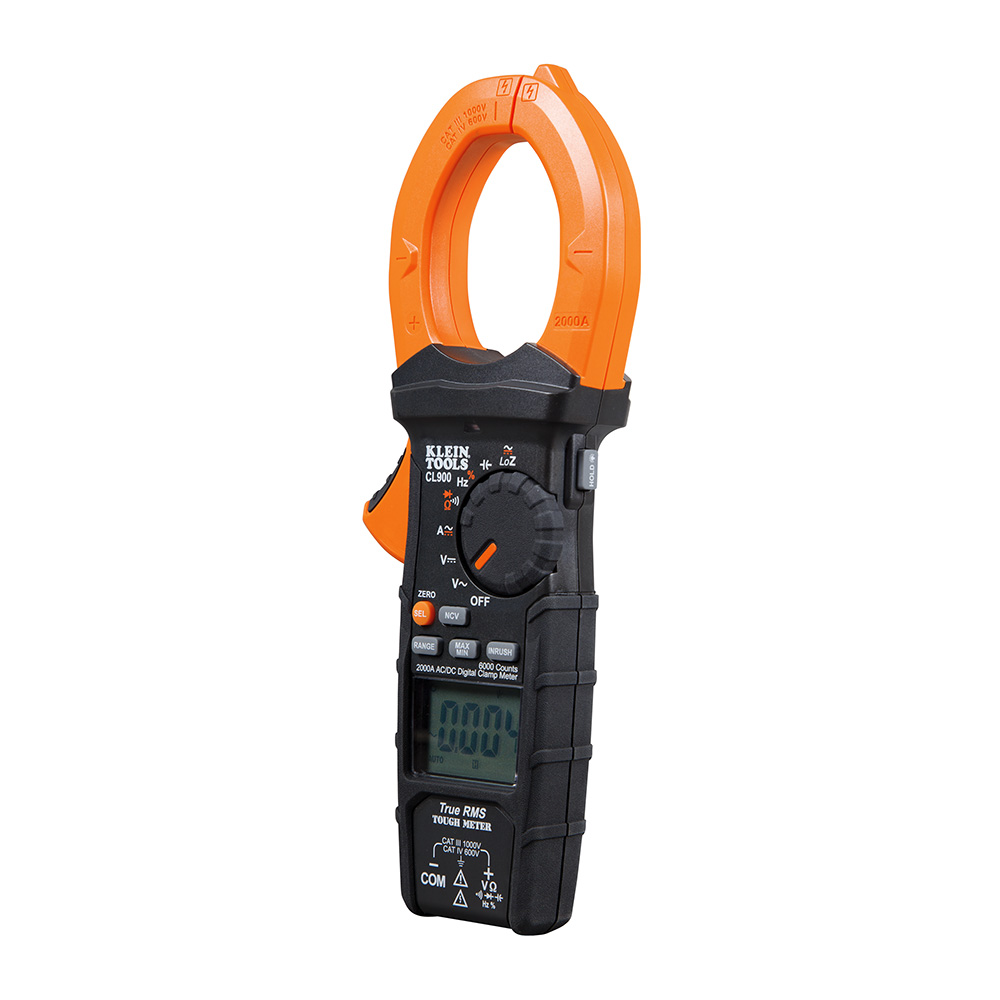

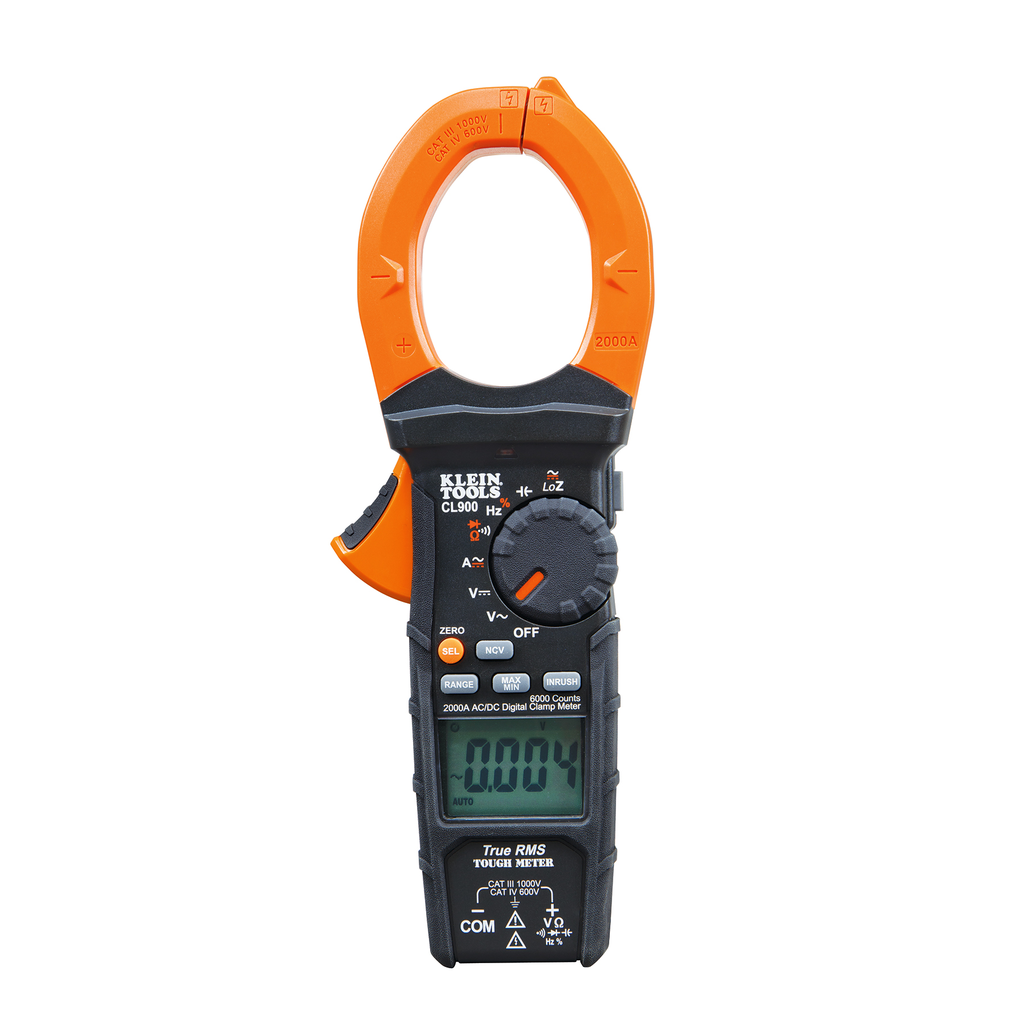

Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp

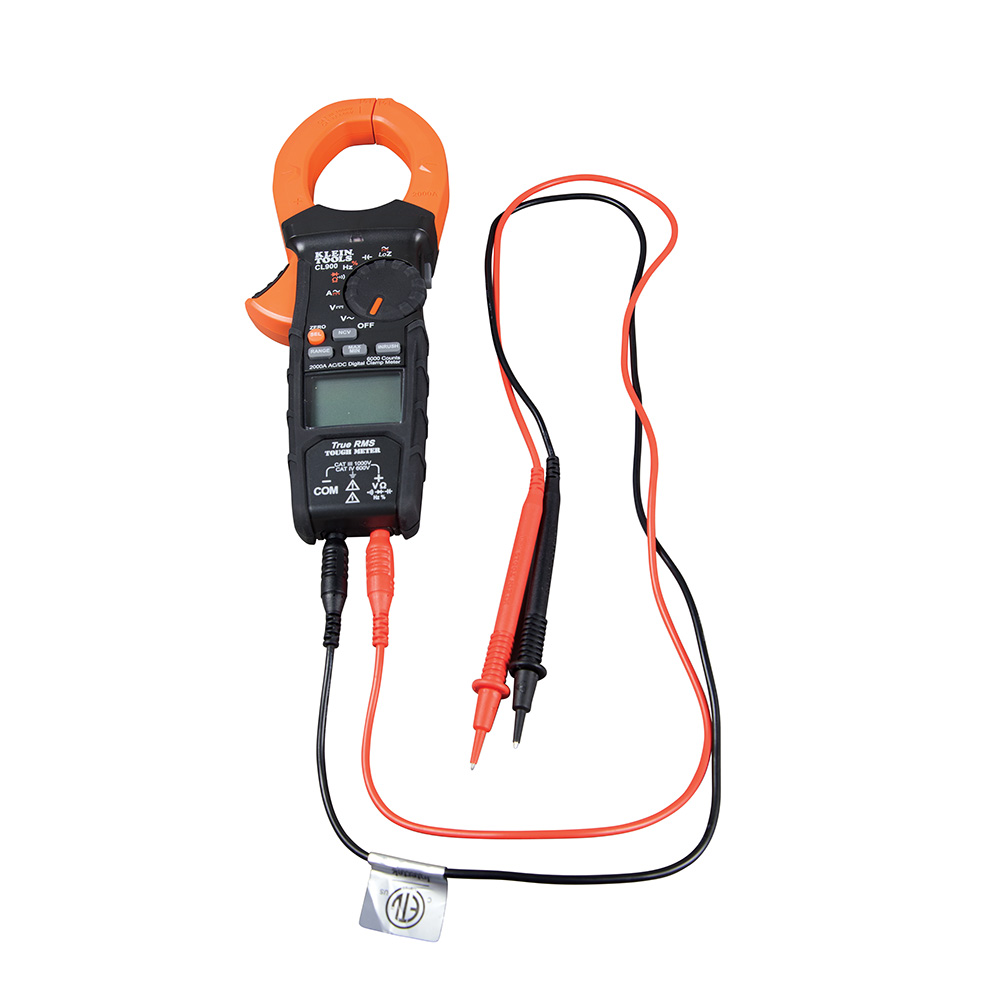

The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.

Features

• Non-contact voltage tester integrated into the clamp
• Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
• Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
• Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
• Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
• CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
• Backlit display for clear visibility in environments with low ambient lighting
• Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
• Powers off automatically after 30 minutes of non-use to conserve battery life
• Low battery indicator and easily accessible battery compartment
• Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Dedicated mode for capturing Inrush Current
• Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm

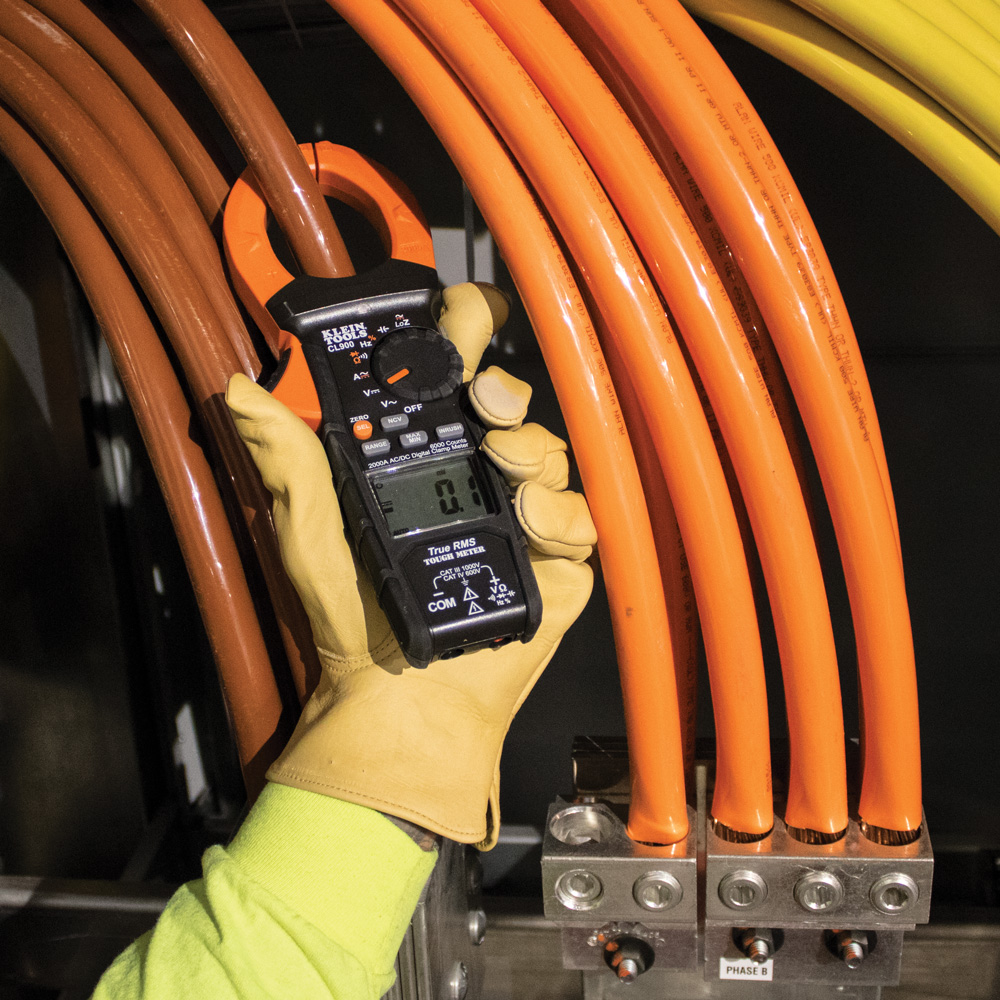

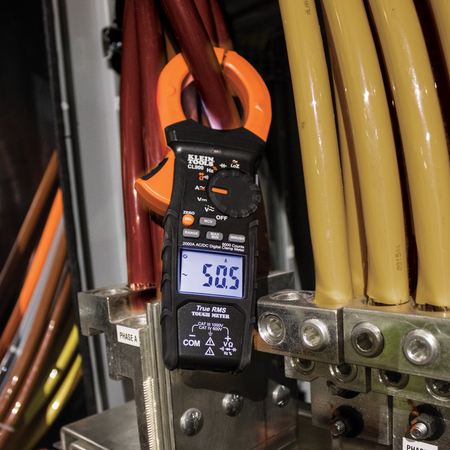

• Clamp measures AC and DC current
• Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester

Warnings

• Before each use, verify meter operation by measuring a known voltage or current
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed
• Never use the meter on a circuit with voltages that exceed the category based rating of this meter
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use

Specifications

• Overall Height (cm): 4.3
• Capacitance: 6000µF
• AC Voltage: 1000
• Width: 3.9000 in
• DC Polarity Indicator: Yes
• Current: 2000A AC/DC
• DC Voltage: 1000
• Standard: CAT IV 600V, CAT III 1000V
• Type: Clamp Meter
• Application: Measures Current to 2000A AC/DC
• Batteries: 2 x AAA
• Voltage: 1000V AC/DC
• Height: 1.7100 in
• Overall Height (Inch): 1.7
• Jaw Size (cm): 5.1
• Ohms (Resistance): 60MΩ
• Included: Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries
• Material: Plastic/Electronics
• Display: 6000 Count LCD
• DC Micro-Amp: No
• Drop Protection: 6.6' (2 m)
• Overall Width (cm): 9.9
• Overall Length (Inch): 10.39
• Overall Length (cm): 26.4
• Frequency: 500kHz
• Weight: 1.1000 lbs
• Auto-Power Off: Yes
• Functions: Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
• Depth: 10.4300 in
• Overall Width (Inch): 3.9
• Jaw Size (Inch): 2
• Ingress Protection: IP40
