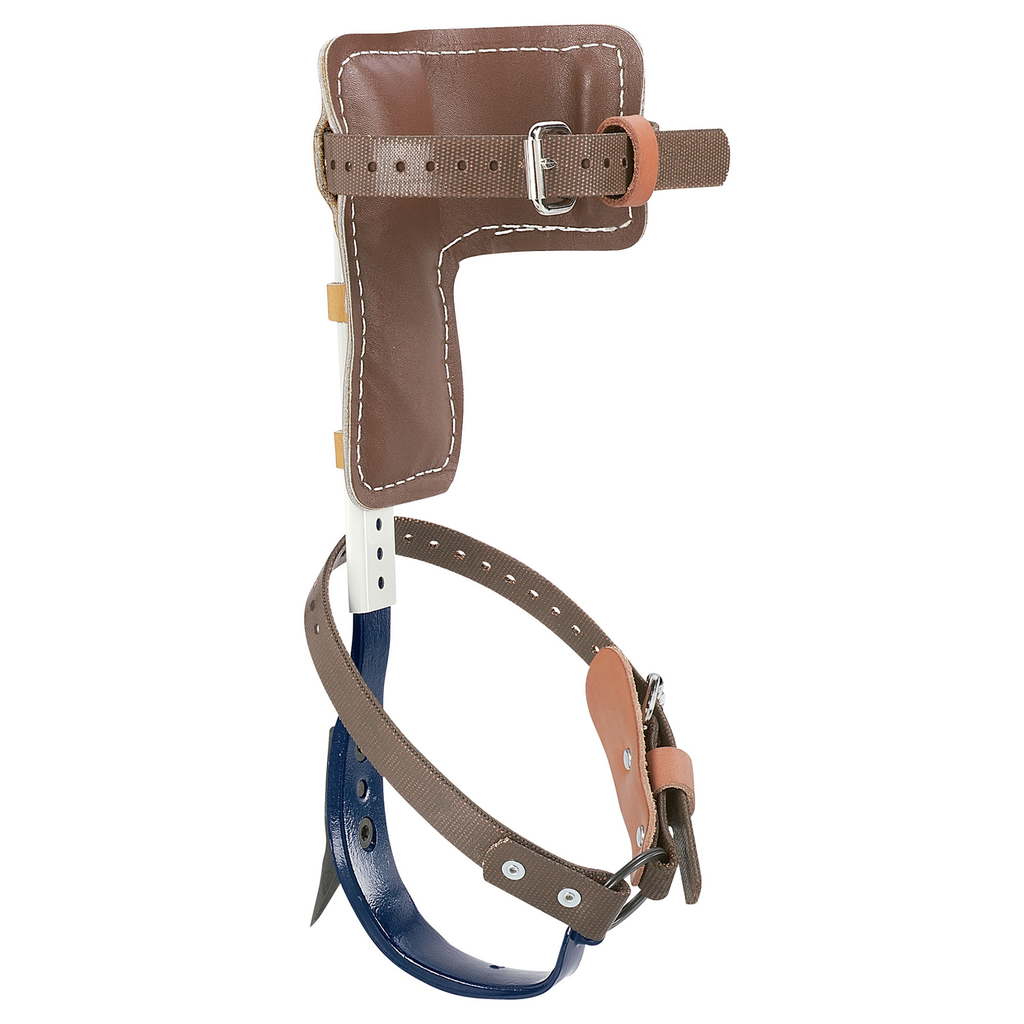

Pole Climber Set, Gaffs 17-Inch to 21-Inch

Klein's Pole Climber set includes the pads, steel sleeves, leg irons, 1-1/2-Inch gaffs, split rings and nylon calf and ankle straps. The secure sleeve and leg iron connections are adjustable in 1/4-Inch (6 mm) increments. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort. Klein Tools has been providing occupational protective equipment to linemen since the first telegraph poles were strung. Klein components should not be interchanged with components made from other manufacturers because Klein cannot guarantee that those components are properly designed or are free of defects in materials or workmanship.

Features

• Steel split ring secures ankle strap in place and allows for quick replacement
• Sold in pairs only
• 4-7/16-Inch (113 mm) wide stirrup provides greater foot support
• C.C.A. pole gaff. Designed to penetrate the hardest salt-treated poles
• 8-Inch (203 mm) x 8-Inch (203 mm) cushioned, high-grade leather climber pads for maximum comfort
• Secure sleeve and leg iron connection. Two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
• Contoured leg irons help position gaffs securely and comfortably
• To determine size needed, measure from instep to 1-Inch (25 mm) below knee
• Neoprene-impregnated nylon climber straps for long-lasting life

Specifications

• Replacement Ankle Strap Cat. No.: 5301-20
• Weight: 6.0000 lbs
• Adjustable Length: 17" to 21" (43.2 to 53.3 cm)
• Depth: 17.0000 in
• Height: 3.4200 in
• Replacement Calf Strap Cat. No.: 5301-18
• Replacement Pad Cat. No.: 8210
• Width: 8.8200 in
